Model Whirlpool DU8400XX2 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WP3369011 Whirlpool Dishwasher Housing Backorder WPL WP3369011 $47.40

1

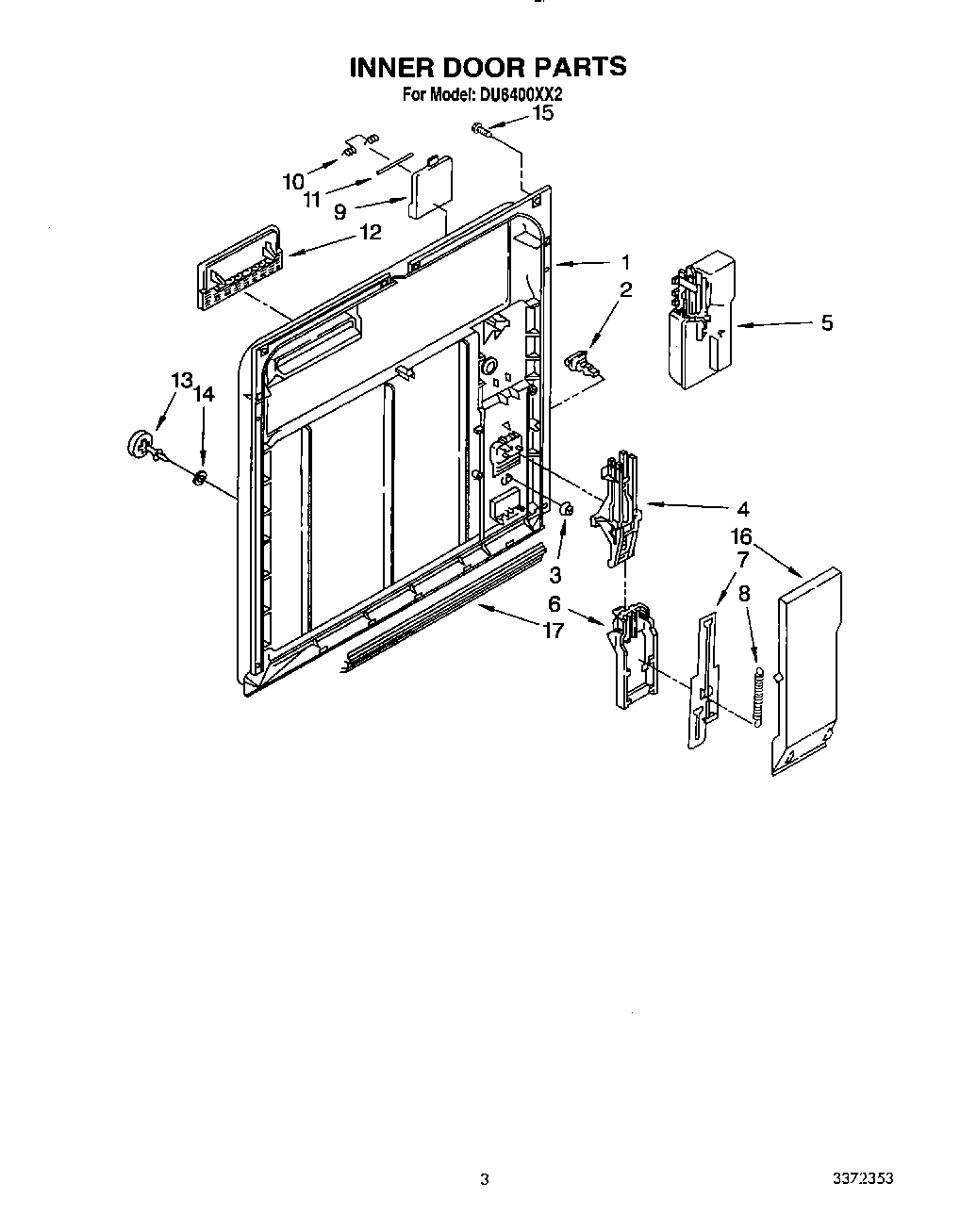

WP8528310 Whirlpool Dishwasher Inner Door Backorder WPL WP8528310 $122.05

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

2

WP8268825 Whirlpool Dishwasher Protector In Stock WPL WP8268825 $29.42

2

Seal, Drain Cover WPL 3369031 Contact Us For Availability

2

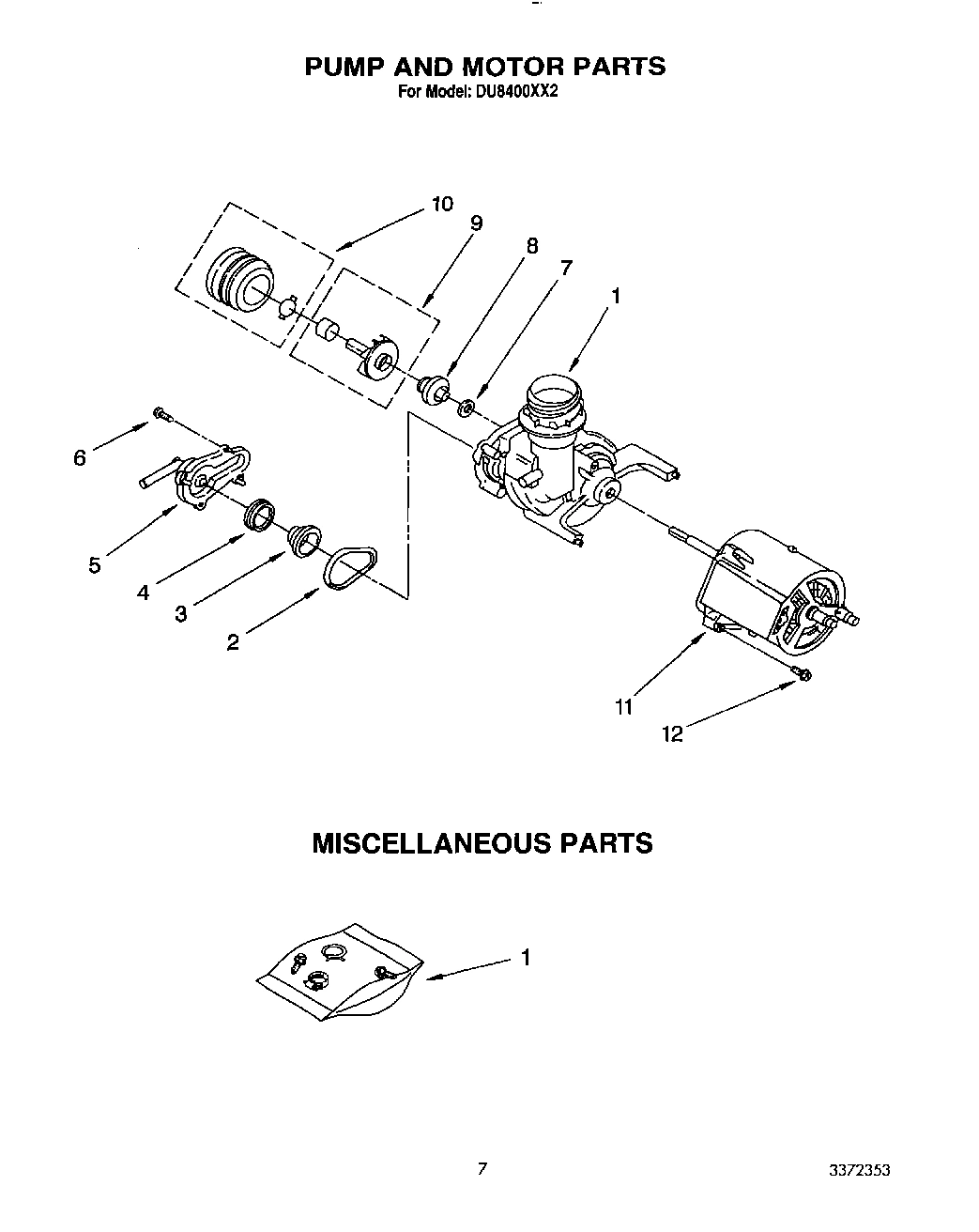

Pump & Motor Assembly WPL 3369015 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

W11189178 Whirlpool Dishwasher Hose In Stock WPL W11189178 $10.12

3

Diaphragm WPL 3369028 Contact Us For Availability

3

Bumper, Dishrack (2) WPL 304490 Contact Us For Availability

4

8193646 Whirlpool Dishwasher Lower Detergent In Stock WPL 8193646 $32.34

4

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $31.53

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

4

Follower, Cam WPL 3368997 Contact Us For Availability

4

Clamp (2) WPL 3369036 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $48.20

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Support, Motor WPL 3369033 Contact Us For Availability

5

Basket, Silverware WPL 3368966 Contact Us For Availability

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Wheel (2) WPL 302819 Contact Us For Availability

6

Grommet, Motor Support WPL 3369032 Contact Us For Availability

6

Track, Dishrack (2) WPL 3369071 Contact Us For Availability

7

Seal Seat WPL 3369020 Contact Us For Availability

7

Push-Nut, Motor Support WPL 3370856 Contact Us For Availability

7

Stop, Track (2) WPL 3369046 Contact Us For Availability

8

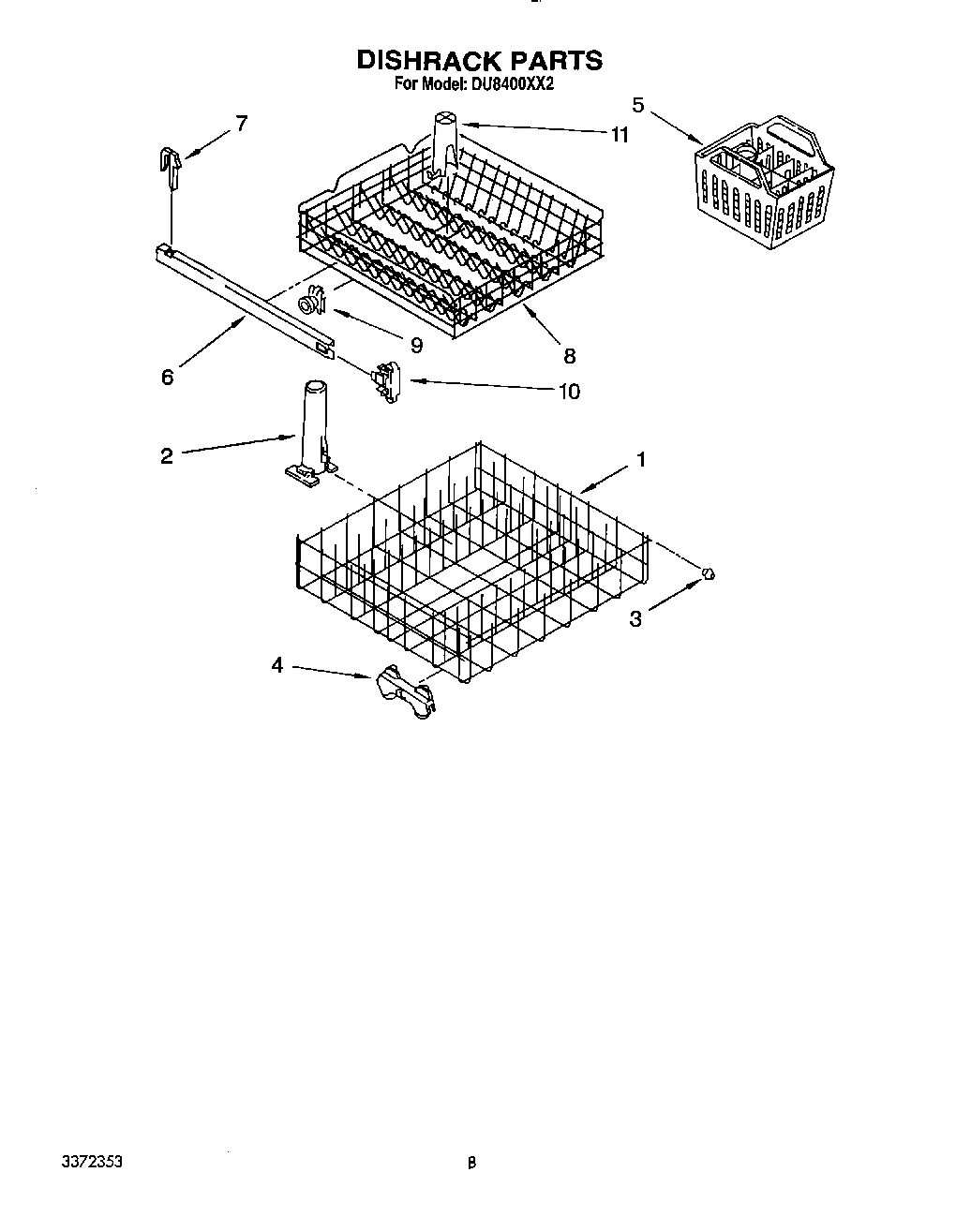

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $142.10

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

WP3385557 Whirlpool Dishwasher Head Seal Backorder WPL WP3385557 $55.13

8

Washer, Grommet WPL 3369038 Contact Us For Availability

9

4386996A Whirlpool Dishwasher Impeller In Stock WPL 4386996A $66.34

9

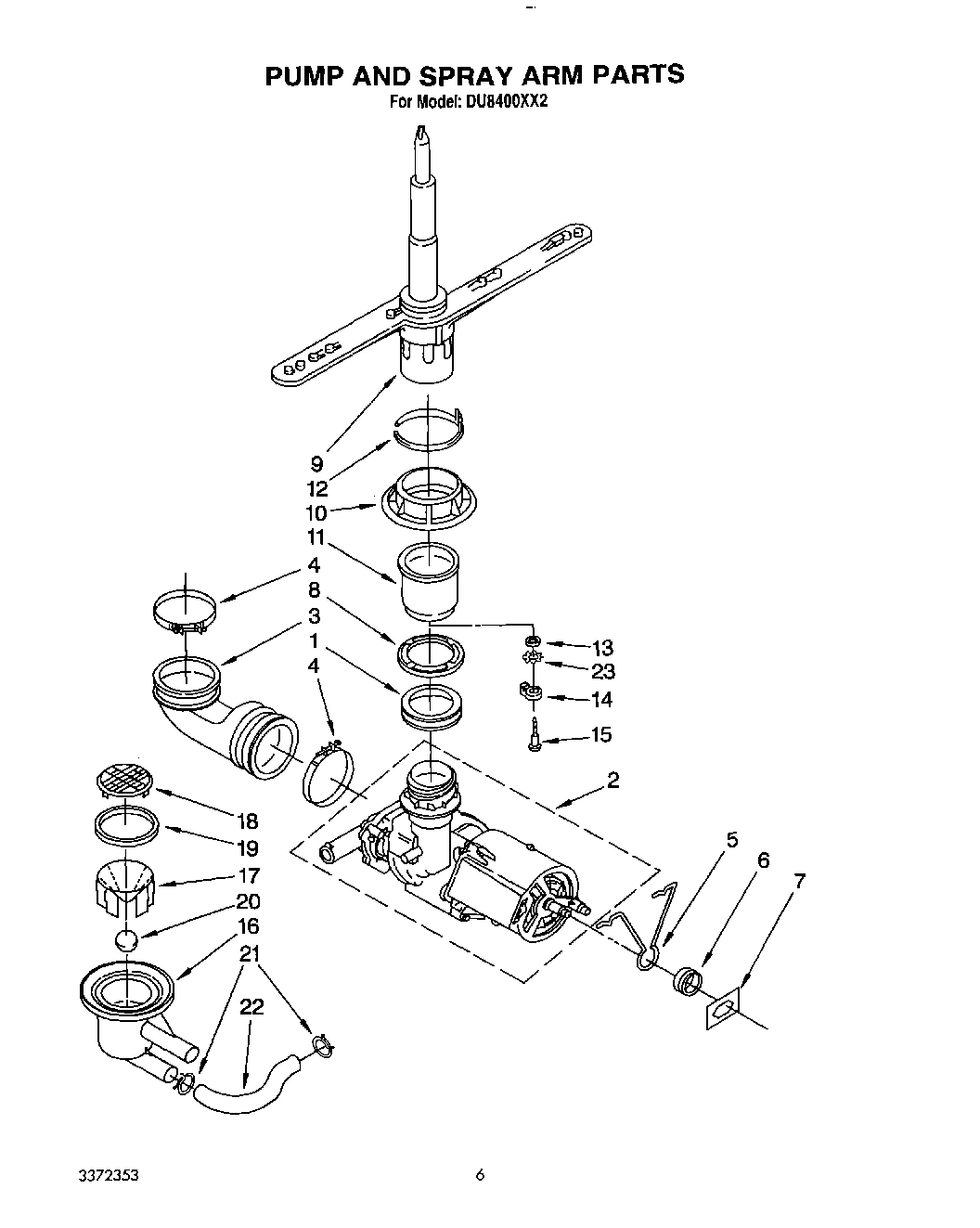

Spray Arm, Assembly Lower WPL 3369008 Contact Us For Availability

9

Wheel & Axle Assembly (4) WPL 3371581 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $2.51

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $31.26

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.64

End Cap, Track (2) WPL 300845 Contact Us For Availability

Nut, Pump Outlet WPL 3369039 Contact Us For Availability

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $16.78

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $30.25

Motor WPL 3372625 Contact Us For Availability

Diffuser, Water WPL 3371739 Contact Us For Availability

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.61

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $4.58

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

Washer WPL 3369044 Contact Us For Availability

14

3371746 Whirlpool Dishwasher Bearing Backorder WPL 3371746 $9.59

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.88

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

15

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

15

Shoulder Screw WPL 3368923 Contact Us For Availability

16

Cover, Drip WPL 3371569 Contact Us For Availability

16

Collector WPL 3369175 Contact Us For Availability

17

Knob, Timer WPL 3368998 Contact Us For Availability

17

Funnel WPL 3369176 Contact Us For Availability

17

Spatter Shield WPL 3369479 Contact Us For Availability

18

Spacer WPL 3368979 Contact Us For Availability

18

Grate, Funnel WPL 3369326 Contact Us For Availability

19

WP3369177 Whirlpool Dishwasher Seal Backorder WPL WP3369177 $4.92

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

20

WP3369178 Whirlpool Dishwasher Check Ball In Stock WPL WP3369178 $4.67

20

Retainer, Panel WPL 3370441 Contact Us For Availability

21

Clamp, Hose WPL 371499 Contact Us For Availability

22

Hose, Collector WPL 3369179 Contact Us For Availability

23

Washer, Curved WPL 3371634 Contact Us For Availability

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $53.56

26

WP3368928 Whirlpool Dishwasher Fuse In Stock WPL WP3368928 $43.59

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float Backorder WPL WP8519552 $39.45

33

Nut WPL 717488 Contact Us For Availability

35

WP3369193 Whirlpool Dishwasher Panel Backorder WPL WP3369193 $59.71

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

41

COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability

44

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

45

WP3372412 Whirlpool Dishwasher Retainer Backorder WPL WP3372412 $33.27

49

Access Panel (White/Black) WPL 3370868 Contact Us For Availability

51

Trim, Side WPL 3369588 Contact Us For Availability

52

Support, Heater WPL 3368987 Contact Us For Availability

53

WP250830 Whirlpool Refrigerator Screw Backorder WPL WP250830 $2.51

54

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.09

55

Relief, Strain WPL 3370307 Contact Us For Availability

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 4318050 WPL 4318050 Contact Us For Availability

Screw, 8-18 WPL 3369138 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability

Side Panel Kits (Avocado) WPL 4317926 Contact Us For Availability

Side Panel Kits (Gold) WPL 4317927 Contact Us For Availability

Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability

Side Panel WPL 4317930 Contact Us For Availability

WPL 4317931 WPL 4317931 Contact Us For Availability

WPL 675677 WPL 675677 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability
