Model Whirlpool DU8350XT1 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams

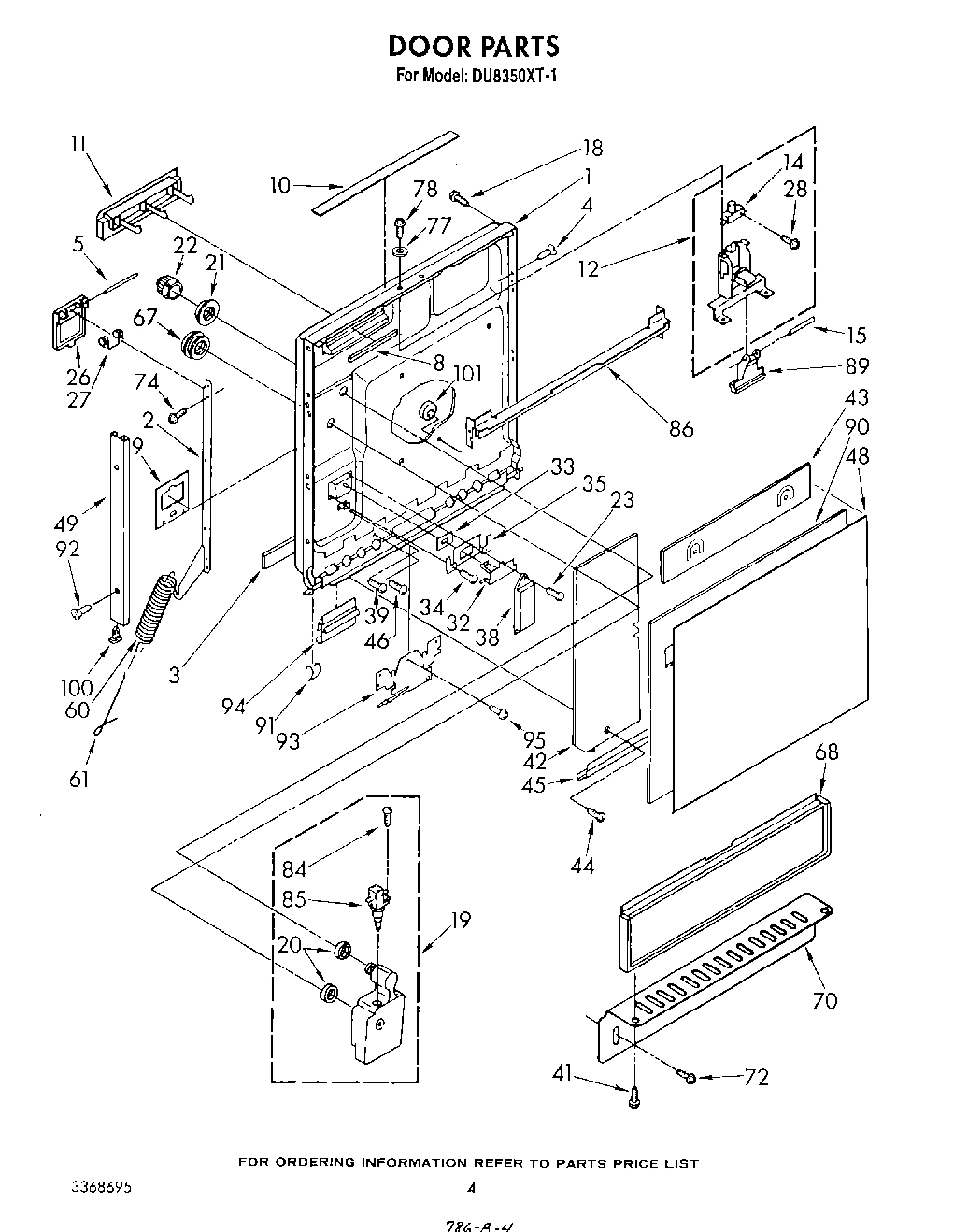

03 - DOOR

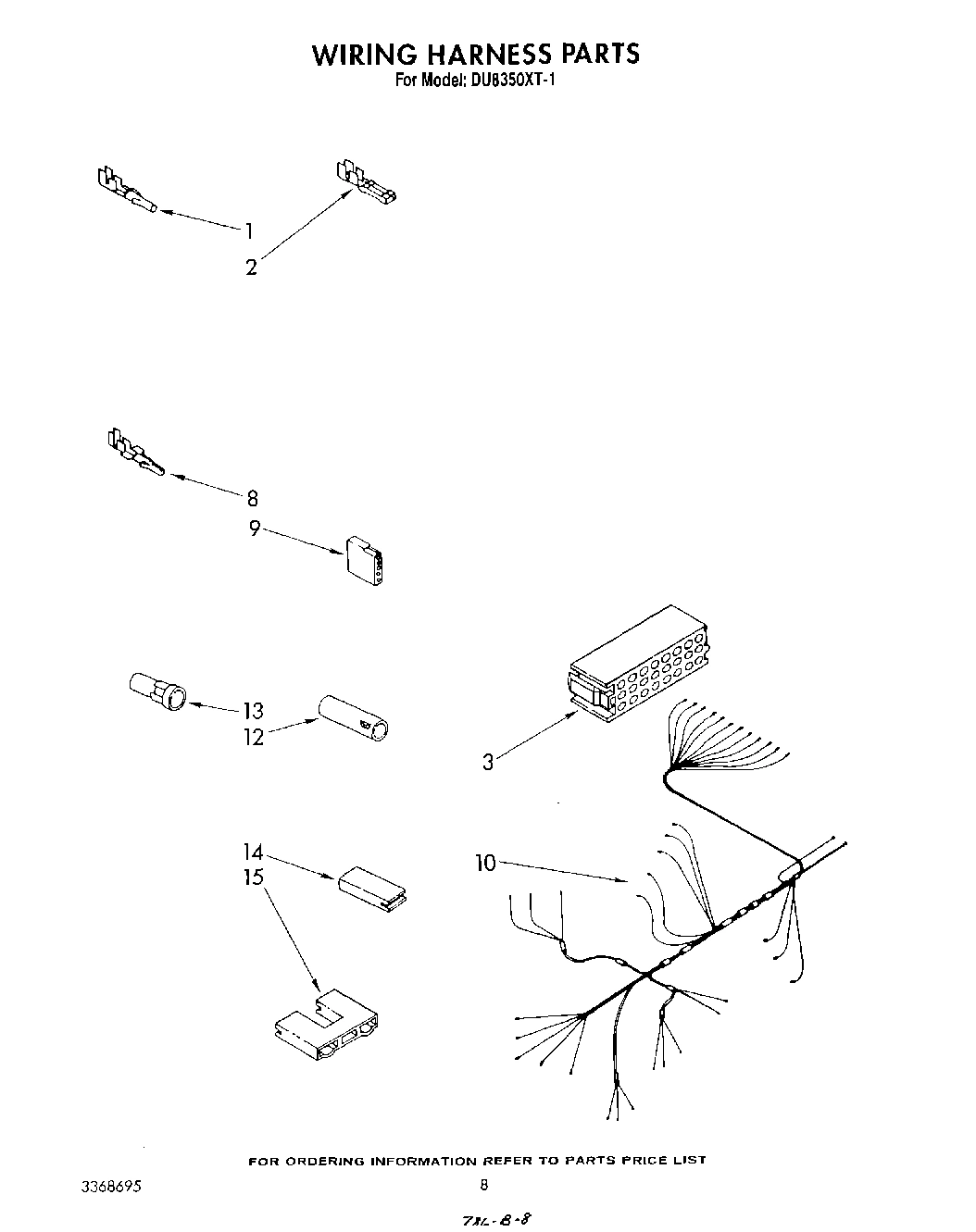

06 - WIRING HARNESS
01 - CONSOLE
04 - DISHRACK AND PANEL
05 - HEATER, PUMP AND LOWER SPRAY ARM
02 - TUB , LITERATURE AND OPTIONAL
Common parts from model Whirlpool DU8350XT1 UNDERCOUNTER DISHWASHER
WPL LIT3367007 WPL LIT3367007 Contact Us For Availability
WPL LIT3367228 WPL LIT3367228 Contact Us For Availability
WPL LIT3367816 WPL LIT3367816 Contact Us For Availability
WPL LIT3368024 WPL LIT3368024 Contact Us For Availability
WPL LIT3368593 WPL LIT3368593 Contact Us For Availability
WPL LIT3368695 WPL LIT3368695 Contact Us For Availability
1
Switch, Pushbutton WPL 3367814 Contact Us For Availability
1
Wheel Assembly (4) WPL 300995 Contact Us For Availability
1
Pump Housing, Upper WPL 3367439 Contact Us For Availability
1
Bracket, Mounting (2) WPL 300796 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
Terminal, Female WPL 304759 Contact Us For Availability
2
Switch, Motor WPL 301074 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
3
Disconnect Block, Timer WPL 304758 Contact Us For Availability
3
Edge Protector WPL 303294 Contact Us For Availability
4
Foam, Seal WPL 3368537 Contact Us For Availability
4
Impeller WPL 303517 Contact Us For Availability
4
Inlet, Water WPL 3367572 Contact Us For Availability
5
Hose, Inlet WPL 3368563 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
8
Timer WPL 304459 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Screw, 7-18 x 1-3/8 Slot Hex Wash Hd WPL 304232 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
Harness, Wiring WPL 3367755 Contact Us For Availability
10
Relay, Start WPL 304409 Contact Us For Availability
10
Brace WPL 3368647 Contact Us For Availability
11
Kit, Drain Impeller WPL 675468 Contact Us For Availability
11
Leg & Hinge Assembly, L.H. WPL 3367284 Contact Us For Availability
12
Receptacle WPL 351296 Contact Us For Availability
12
Console WPL 3367888 Contact Us For Availability
12
Screw, 13-16 (4) WPL 301817 Contact Us For Availability
12
Screw, 8-32 x 3/8 Hex Washer Head Slotted Tap WPL 718178 Contact Us For Availability
13
Plug WPL 351297 Contact Us For Availability
13
Insert, Decorative WPL 3367842 Contact Us For Availability
13
Base, Pump WPL 3367203 Contact Us For Availability
13
Box, Terminal WPL 300067 Contact Us For Availability
14
Connector Block (Alternate) WPL 301219 Contact Us For Availability
14
Connector Block (Alternate) WPL 358736 Contact Us For Availability
14
Bumper (2) WPL 304490 Contact Us For Availability
14
Relief, Strain WPL 717563 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Connector, Block (Alternate) WPL 300708 Contact Us For Availability
15
Connector Block (Alternate) WPL 374230 Contact Us For Availability
15
Knob, Timer WPL 3367282 Contact Us For Availability
15
Nut, 7/8-16 Polypropylene (1) WPL 713799 Contact Us For Availability
16
Panel, Reversible Side WPL ARI24168A6 Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
17
Nut, 1/8 Self-Threading (1) WPL 717488 Contact Us For Availability
17
Silverware Basket WPL 304166 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Trim, Basket WPL 717528 Contact Us For Availability
18
Pump & Motor Assembly WPL 3367440 Contact Us For Availability
18
Bracket, Overflow WPL 719342 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
19
Screw, 8 x 1/2 Hi-Lo Blunt Point (3) WPL 718250 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Grill, Vent WPL 304602 Contact Us For Availability
20
Panel, Lower Side WPL 3367549 Contact Us For Availability
21
Retainer & Seal WPL 3368002 Contact Us For Availability
21
Screw (2) WPL 9419621 Contact Us For Availability
22
Alternate WPL 301671 Contact Us For Availability
22
Alternate WPL 301672 Contact Us For Availability
22
Alternate WPL 304589 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
26
Cap, Nozzle WPL 3367910 Contact Us For Availability
26
Alternate WPL 303650 Contact Us For Availability
26
alternate WPL 300453 Contact Us For Availability
26
Valve, Water Inlet WPL 660995 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
27
Leg & Hinge Assembly, R.H. WPL 3367498 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
31
Screw, Shoulder WPL 302818 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Check Ball & Retainer WPL 675488 Contact Us For Availability
34
Locknut, 10-32 (8) WPL 718829 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
36
Alternate WPL 302113 Contact Us For Availability
36
Alternate WPL 302562 Contact Us For Availability
36
Heater WPL 660318 Contact Us For Availability
36
Alternate WPL 717141 Contact Us For Availability
36
Alternate WPL 719687 Contact Us For Availability
36
Block, Foam-Tub WPL 3368107 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
41
Screw, 4-40 x 5/8 Hex Head Slotted Thread Cut WPL 302203 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Thermostat 303652 (Alt.) (Alt.) WPL 303282 Contact Us For Availability
48
Thermostat 303652 (Alt.) (Alt.) WPL 336831 Contact Us For Availability
48
Thermostat 303652 (Alt.) WPL 661504 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
49
Wheel Assembly (8) WPL 300844 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 Indented Hex- WPL 3368008 Contact Us For Availability
54
WPL 301662 WPL 301662 Contact Us For Availability
55
WPL 301656 WPL 301656 Contact Us For Availability
60
WPL 261887 WPL 261887 Contact Us For Availability
60
WPL 261889 WPL 261889 Contact Us For Availability
60
WPL 261890 WPL 261890 Contact Us For Availability
60
WPL 261891 WPL 261891 Contact Us For Availability
60
WPL 285365 WPL 285365 Contact Us For Availability
60
WPL 285366 WPL 285366 Contact Us For Availability
60
WPL 285367 WPL 285367 Contact Us For Availability
60
WPL 285368 WPL 285368 Contact Us For Availability
60
WPL 350941 WPL 350941 Contact Us For Availability
60
WPL 675476 WPL 675476 Contact Us For Availability
60
WPL 675506 WPL 675506 Contact Us For Availability
60
WPL 72112 WPL 72112 Contact Us For Availability
60
WPL 799640 WPL 799640 Contact Us For Availability
60
WPL 978883 WPL 978883 Contact Us For Availability
70
Plate, Toe WPL 3367470 Contact Us For Availability
77
Washer WPL 300237 Contact Us For Availability
84
Screw, 4-20 x 3/8 Torx Pan Hd (2) WPL 304444 Contact Us For Availability
85
Actuator WPL 304443 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever WPL 304408 Contact Us For Availability
90
WPL 301957 WPL 301957 Contact Us For Availability
91
WPL 301857 WPL 301857 Contact Us For Availability
92
WPL 3367288 WPL 3367288 Contact Us For Availability
93
WPL 303362 WPL 303362 Contact Us For Availability
94
WPL 3367720 WPL 3367720 Contact Us For Availability
95
WPL 303090 WPL 303090 Contact Us For Availability
100
WPL 3367172 WPL 3367172 Contact Us For Availability
101
WPL 300239 WPL 300239 Contact Us For Availability
× ![]()
