Model Whirlpool DU8016XX1 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

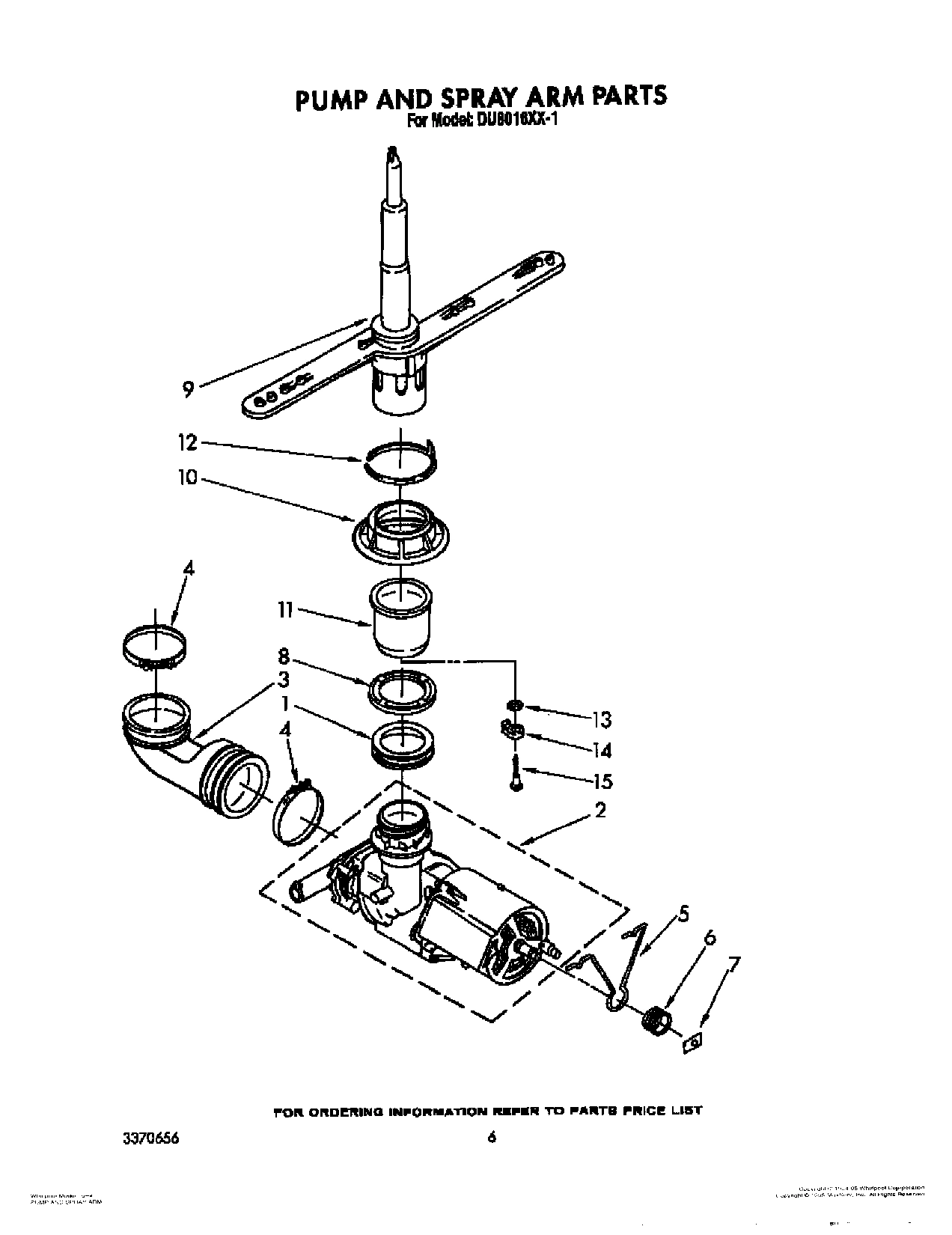

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Side Panel Kit (White) WPL 4317925 Contact Us For Availability

Avocado WPL 4317926 Contact Us For Availability

Gold WPL 4317927 Contact Us For Availability

Side Panel Kit: (Almond) WPL 4317929 Contact Us For Availability

Toast WPL 4317930 Contact Us For Availability

Platinum WPL 4317931 Contact Us For Availability

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

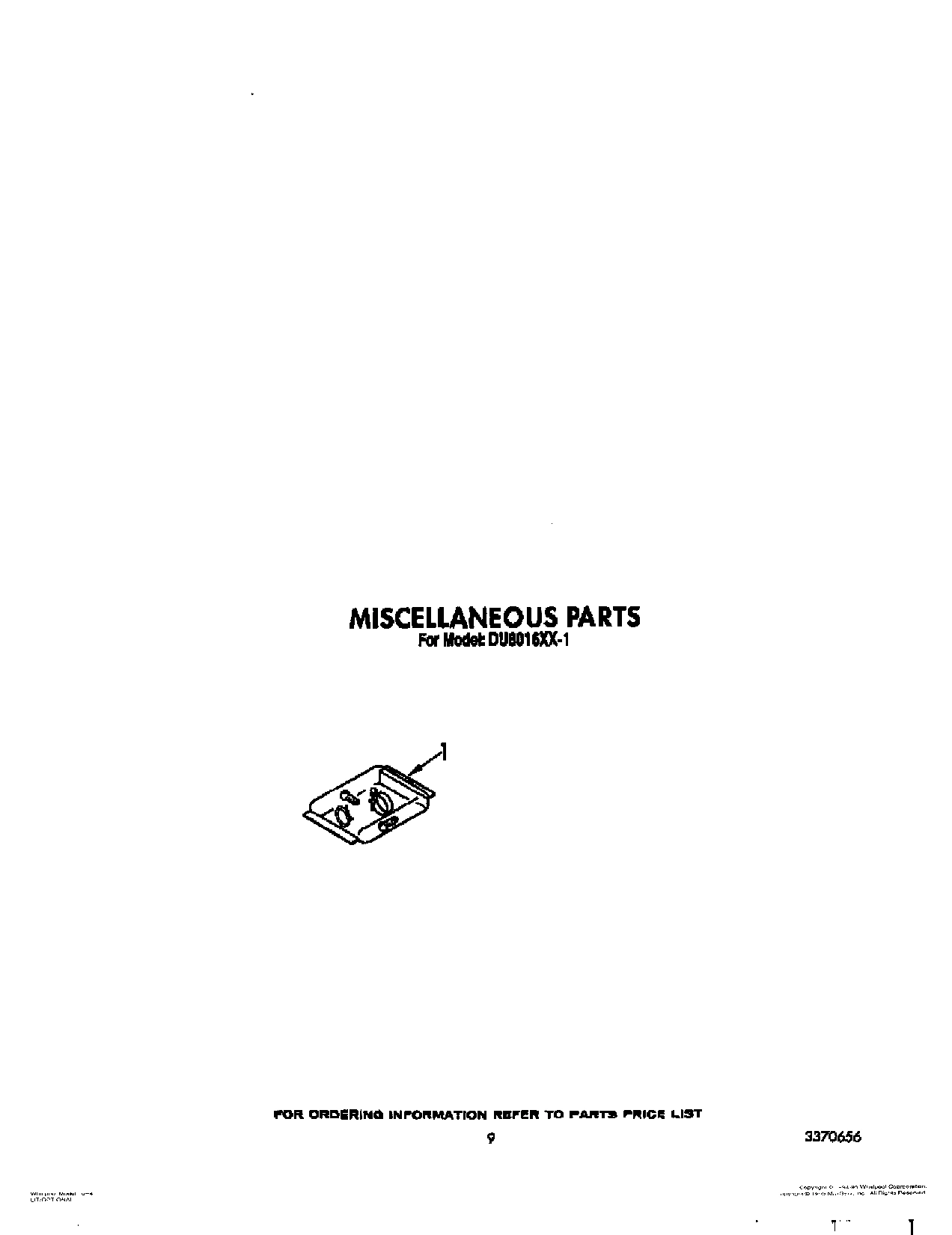

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Guide, Use & Care WPL LIT3369268 Contact Us For Availability

Wiring Diagram WPL LIT3369311 Contact Us For Availability

Instructions, Installation WPL LIT3369671 Contact Us For Availability

Parts List WPL LIT3370656 Contact Us For Availability

Energy Guide WPL LIT3371236 Contact Us For Availability

1

WP3369011 Whirlpool Dishwasher Housing Backorder WPL WP3369011 $47.40

1

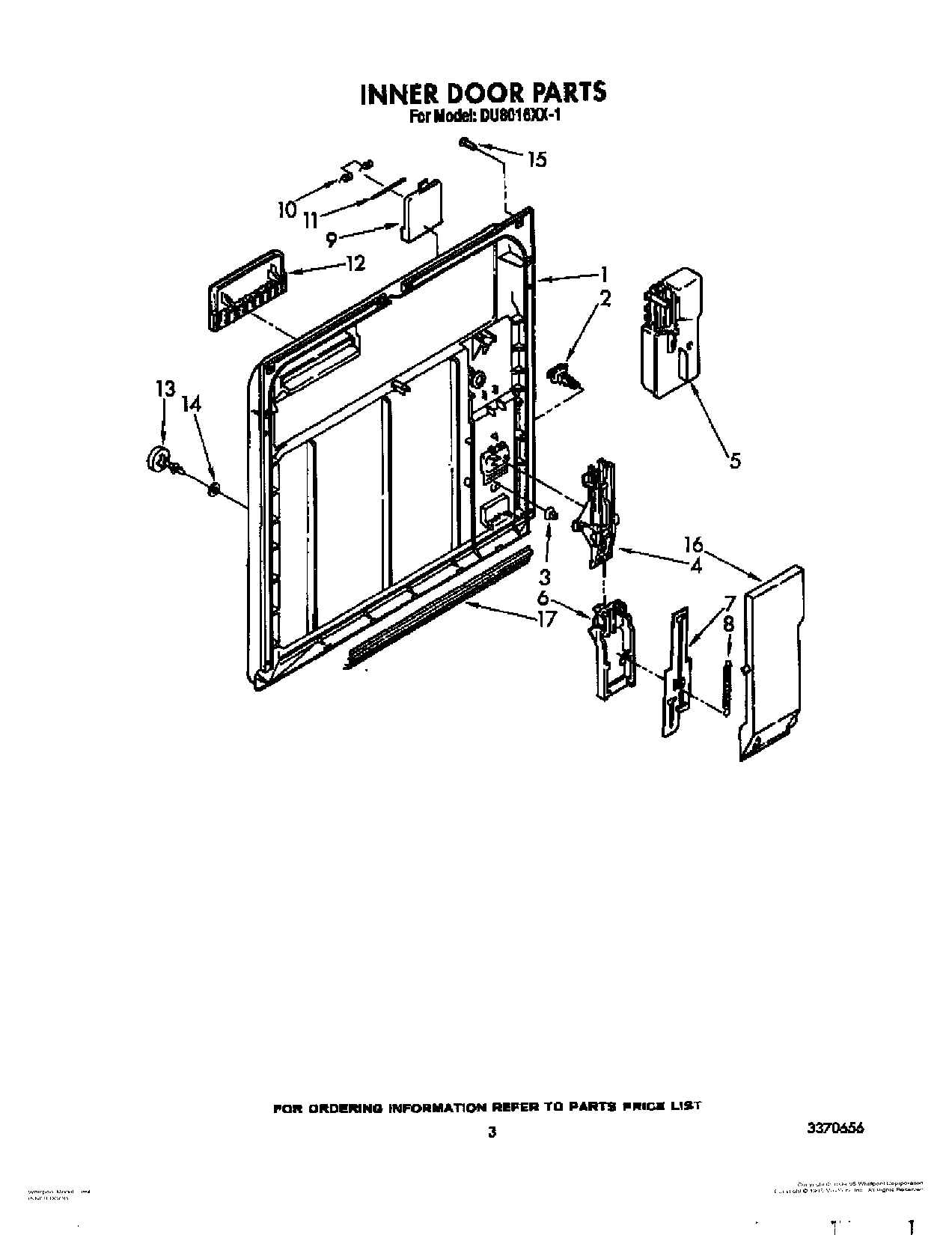

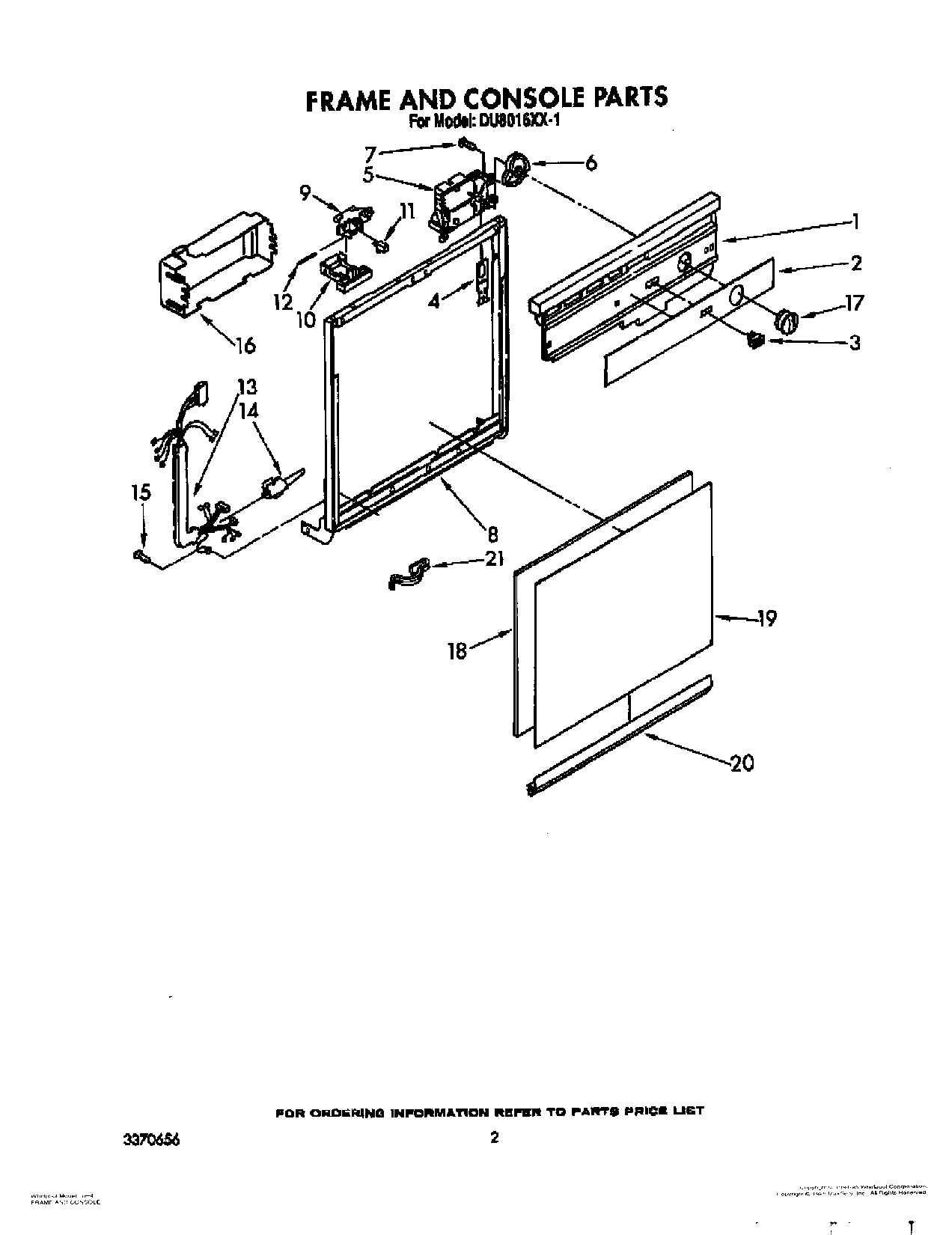

WP8528310 Whirlpool Dishwasher Inner Door Backorder WPL WP8528310 $122.05

1

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

Console WPL 3368991 Contact Us For Availability

1

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

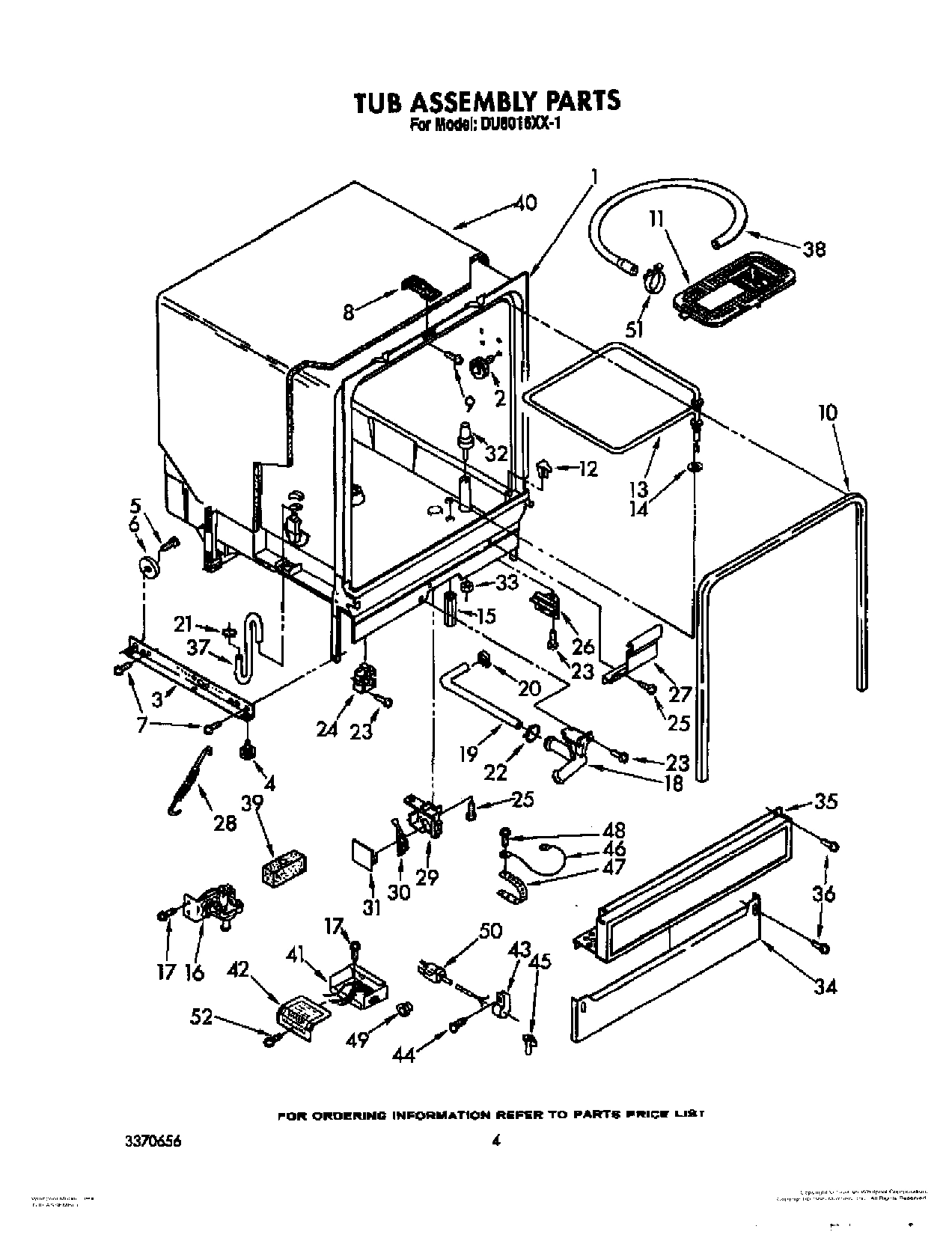

Tub Assembly WPL 3370850 Contact Us For Availability

2

Seal, Drain Cover WPL 3369031 Contact Us For Availability

2

Tub, Wheel Assembly (8) WPL 3369078 Contact Us For Availability

3

676413 Whirlpool Dishwasher Detergent Dispens In Stock WPL 676413 $3.70

3

W11189178 Whirlpool Dishwasher Hose In Stock WPL W11189178 $10.12

3

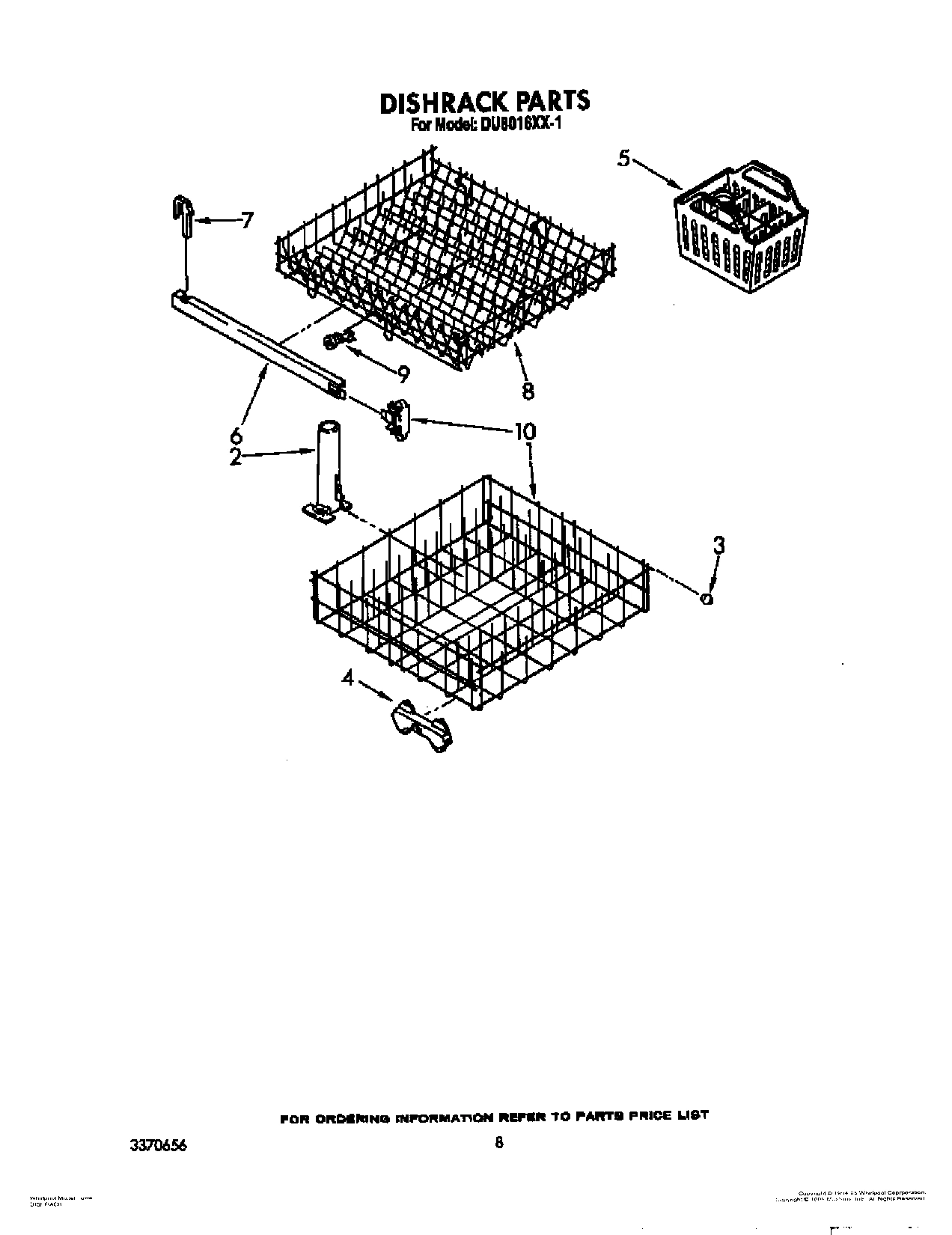

Runner (2) WPL 3368932 Contact Us For Availability

4

8193646 Whirlpool Dishwasher Lower Detergent In Stock WPL 8193646 $32.34

4

8193716 Whirlpool Leveling Leg Backorder WPL 8193716 $28.99

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

4

Follower, Cam WPL 3368997 Contact Us For Availability

5

WP8052027 Whirlpool Dishwasher Dispenser Backorder WPL WP8052027 $48.20

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

5

Screw, Shoulder (2) WPL 3370389 Contact Us For Availability

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $1.52

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Wheel (2) WPL 302819 Contact Us For Availability

7

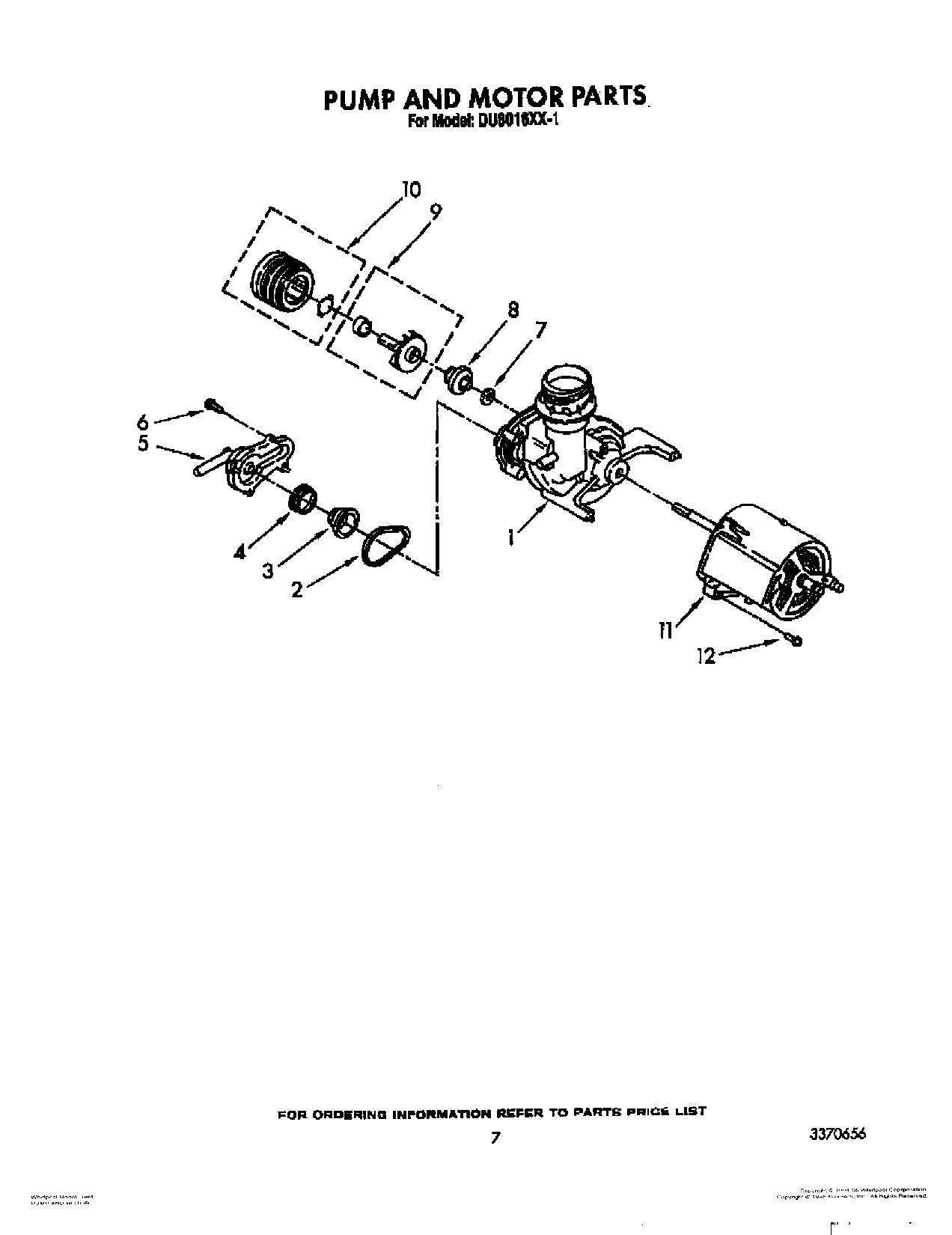

Seal Seat WPL 3369020 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $2.51

8

Washer, Grommet WPL 3369038 Contact Us For Availability

8

Plate, Latch WPL 3368965 Contact Us For Availability

9

Screw, 8-32 WPL 3368919 Contact Us For Availability

WP3368954 Whirlpool Dishwasher Lever Backorder WPL WP3368954 $2.51

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $31.26

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.64

WPW10509257 Whirlpool Door Gasket In Stock WPL WPW10509257 $50.26

End Cap, Track (2) WPL 300845 Contact Us For Availability

11

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $16.78

11

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $30.25

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.61

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $4.58

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

WP8528862 Whirlpool Dishwasher Water Deflecto In Stock WPL WP8528862 $34.45

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

WPW10082894 Whirlpool Dishwasher Heater Backorder WPL WPW10082894 $50.33

13

Washer WPL 3369044 Contact Us For Availability

14

WP3378134 Whirlpool Dishwasher Cap In Stock WPL WP3378134 $3.88

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

15

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.51

15

Nut (2) (Heater Terminal) WPL 3369073 Contact Us For Availability

16

Cover, Drip WPL 3371569 Contact Us For Availability

16

Water Valve WPL 3369868 Contact Us For Availability

17

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

17

Knob, Timer WPL 3368998 Contact Us For Availability

17

Spatter Shield WPL 3369479 Contact Us For Availability

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

18

Check, Valve Assembly WPL 3369421 Contact Us For Availability

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

19

Hose, Coupler WPL 3369050 Contact Us For Availability

20

Retainer, Panel WPL 3370441 Contact Us For Availability

20

Clamp WPL 3369082 Contact Us For Availability

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

22

Clamp WPL 3369327 Contact Us For Availability

23

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $53.56

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

26

WP3368928 Whirlpool Dishwasher Fuse In Stock WPL WP3368928 $43.59

27

Shield, Harness WPL 3368983 Contact Us For Availability

28

Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

30

Switch, Float WPL 3369067 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float Backorder WPL WP8519552 $39.45

33

Nut WPL 717488 Contact Us For Availability

35

Panel, Access WPL 3368936 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

37

Hose, Inlet WPL 3369414 Contact Us For Availability

38

675544 Whirlpool Drain Hose Backorder WPL 675544 $50.56

39

Diverter WPL 3369317 Contact Us For Availability

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

41

Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability

42

Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability

43

Clamp WPL 596553 Contact Us For Availability

44

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

45

Nut, Wire WPL 770754 Contact Us For Availability

46

Wire, Ground WPL 303485 Contact Us For Availability

47

Ground Strap WPL 22965 Contact Us For Availability

48

Screw WPL 132848 Contact Us For Availability

49

Bushing WPL 302770 Contact Us For Availability

50

Power Cord WPL 3370221 Contact Us For Availability

51

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

52

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11
