Model Whirlpool DU800CWDQ5 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $20.04

675679 Whirlpool Dishwasher White Tip Tines In Stock WPL 675679 $11.01

676458 Whirlpool Dishwasher Tine Tip Backorder WPL 676458 $15.56

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $16.60

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $16.25

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.62

Tine Tip Repair Kit (Blue - Enough For Two Co WPL 675677 Contact Us For Availability

Black (Uncut) WPL 799340 Contact Us For Availability

Almond (Uncut) WPL 978883 Contact Us For Availability

Do-It Yourself Manual WPL LIT0677967 Contact Us For Availability

Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability

Guide, Use & Care WPL LIT3376831 Contact Us For Availability

Wiring Diagram WPL LIT3379194 Contact Us For Availability

Instructions, Installation WPL LIT3380268 Contact Us For Availability

Energy Guide WPL LIT3380581 Contact Us For Availability

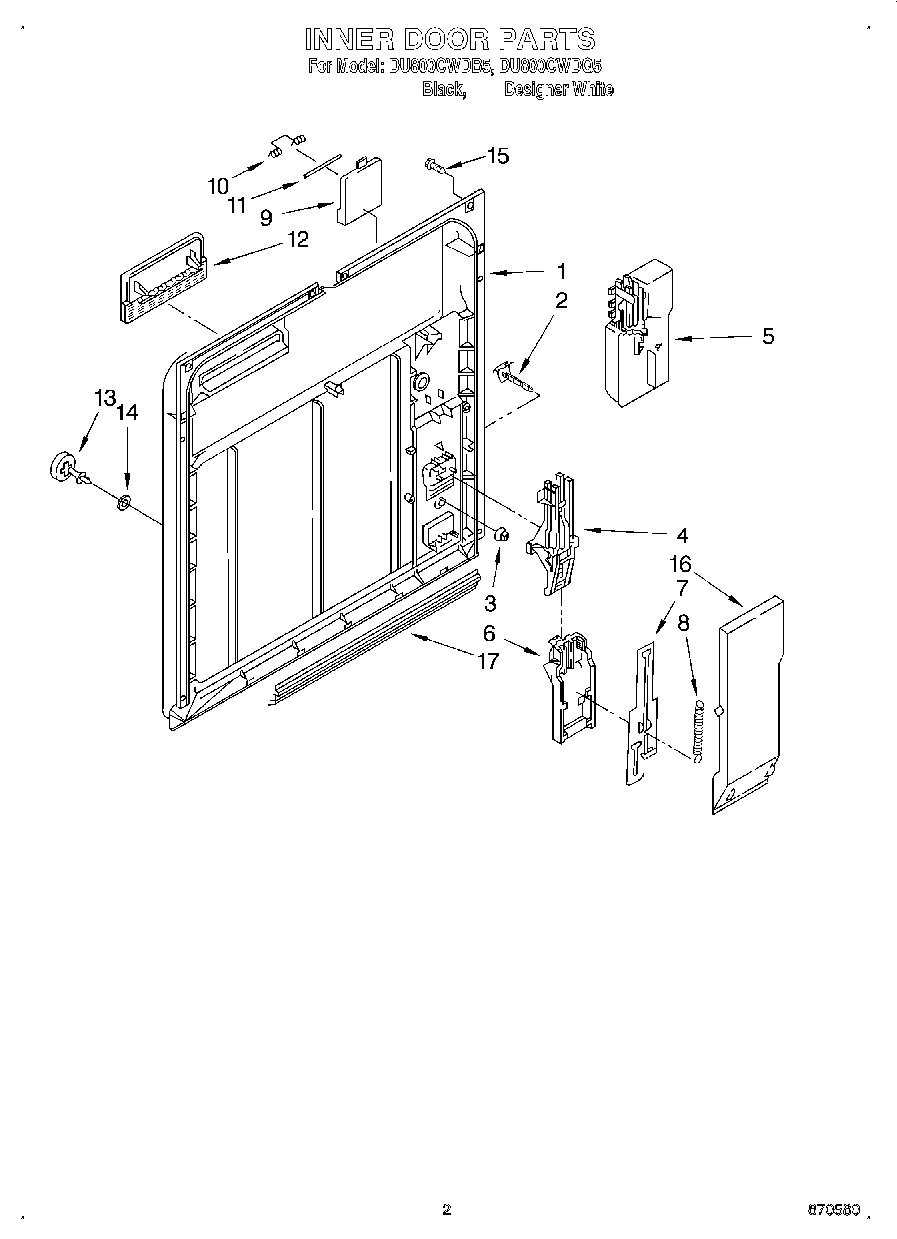

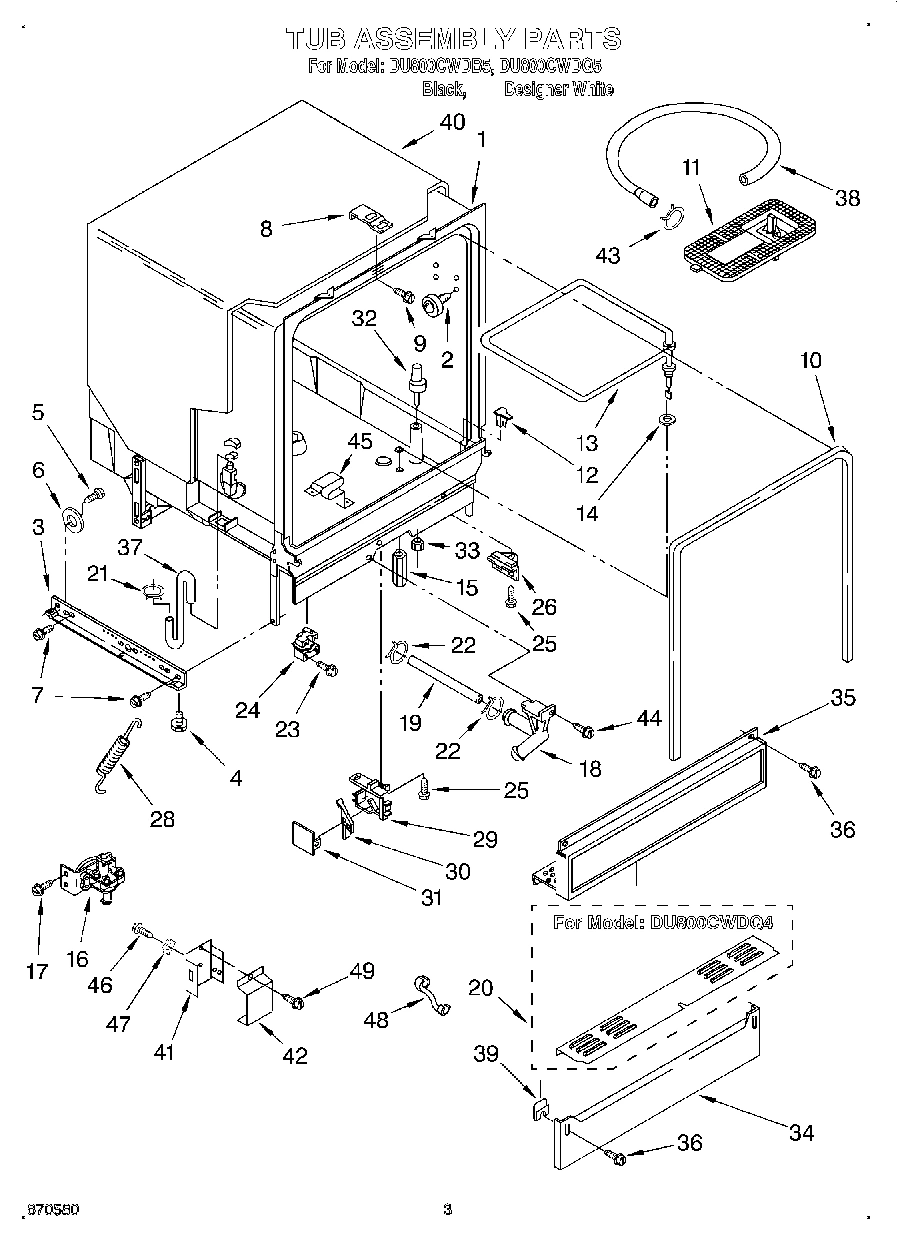

1

WP3369011 Whirlpool Dishwasher Housing Backorder WPL WP3369011 $47.40

1

DOOR SPRING KIT: (HEAVY DUTY) WPL 4318050 Contact Us For Availability

1

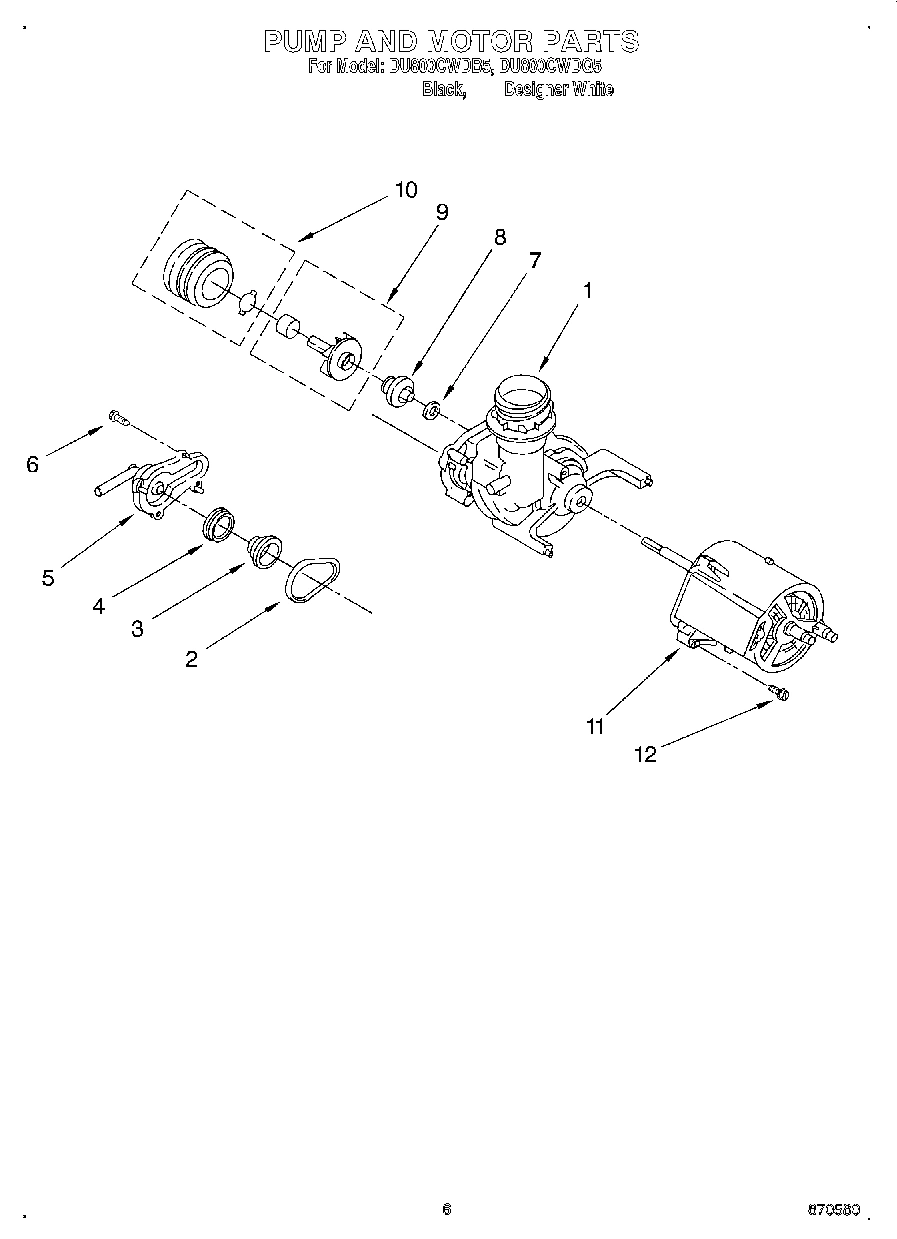

Grommet, Pump Seal WPL 3369037 Contact Us For Availability

1

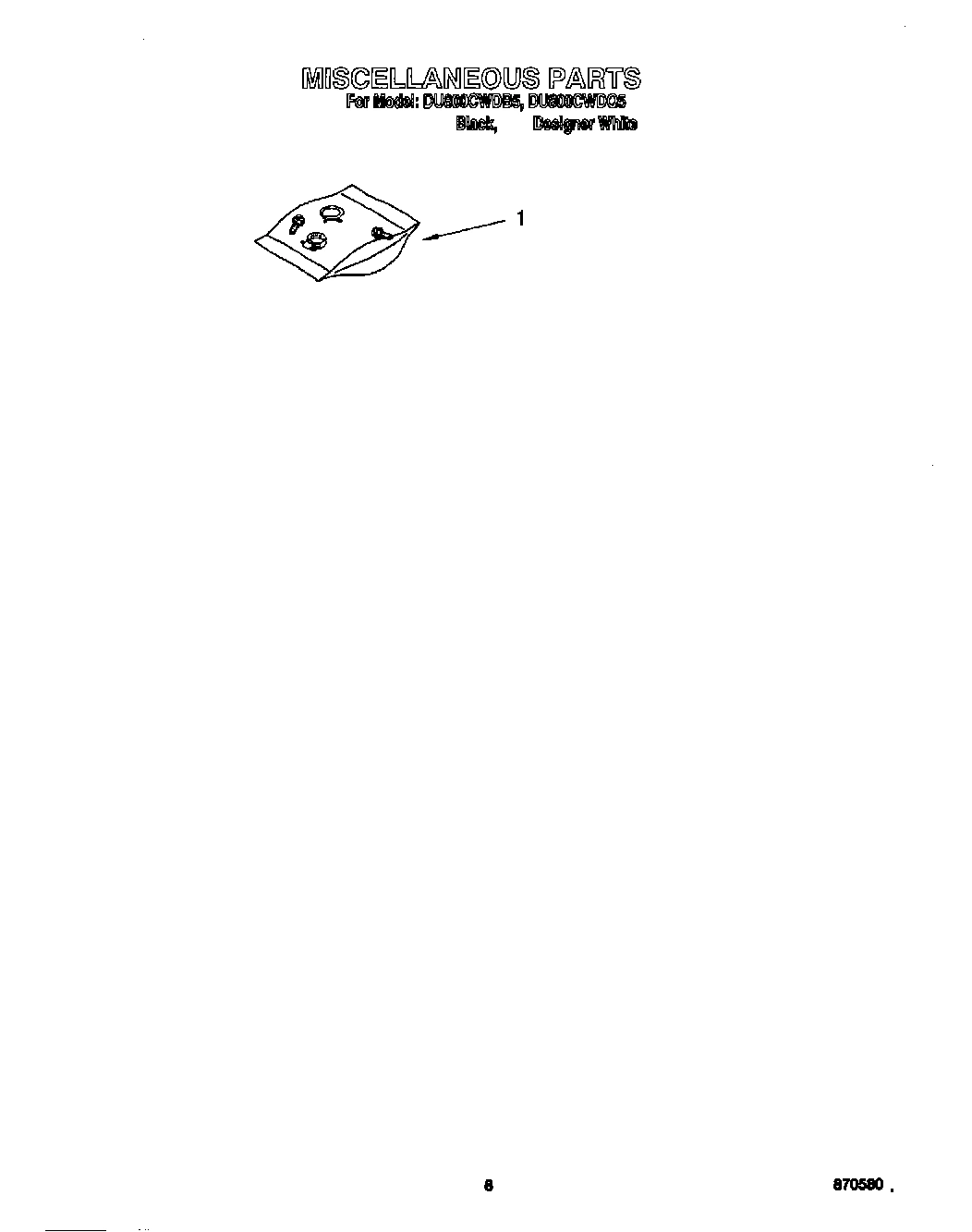

Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability

1

SIDE PANEL KITS: (WHITE) WPL 4317925 Contact Us For Availability

1

Side Panel Kits (Almond) WPL 4317929 Contact Us For Availability

2

Seal, Drain Cover WPL 3369031 Contact Us For Availability

2

Tub, Wheel Assembly (8) WPL 3380371 Contact Us For Availability

3

W11189178 Whirlpool Dishwasher Hose In Stock WPL W11189178 $10.12

4

WP3369529 Whirlpool Dishwasher Follower Backorder WPL WP3369529 $30.84

4

Ring, Diaphragm WPL 3369029 Contact Us For Availability

5

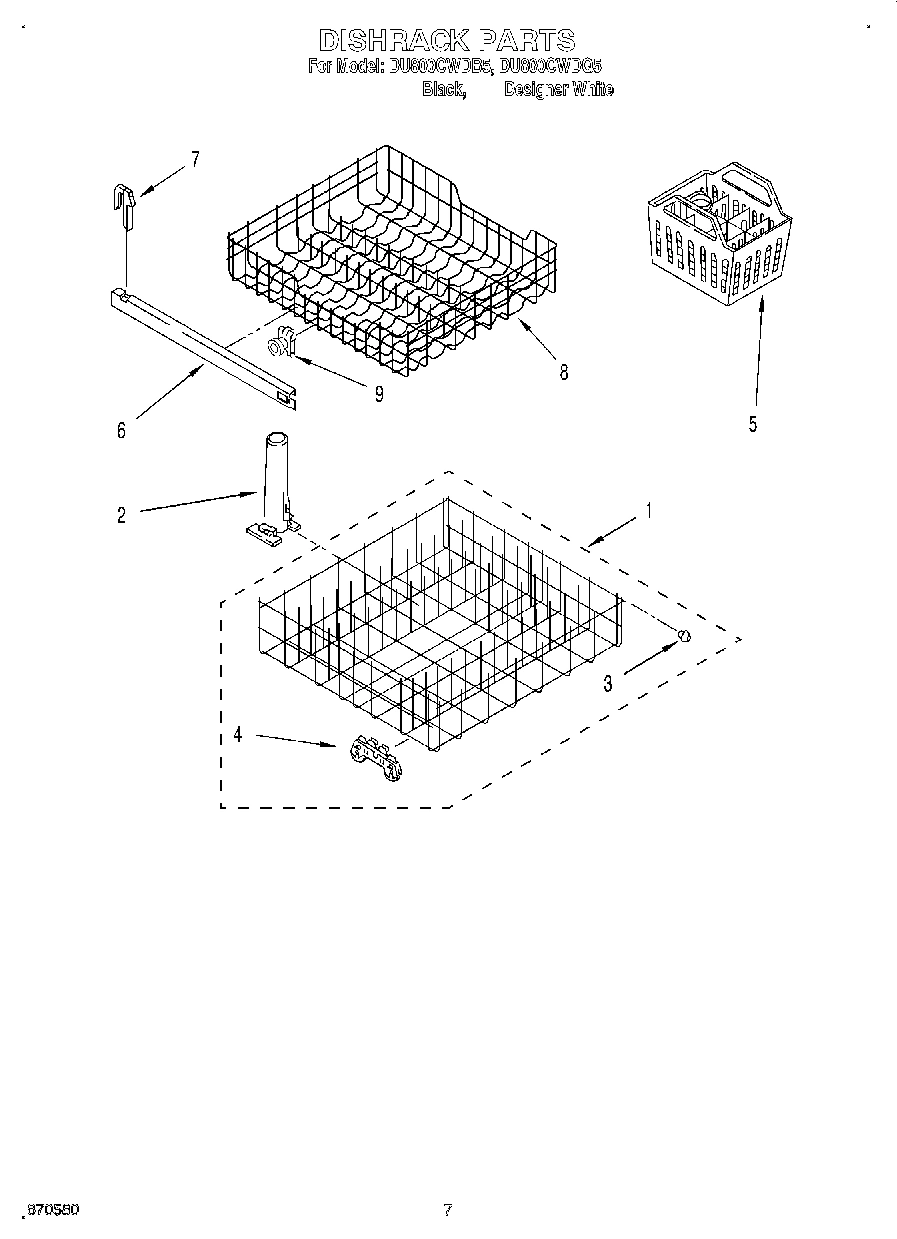

Basket, Silverware WPL 3369762 Contact Us For Availability

5

Cover, Drain Valve WPL 3369030 Contact Us For Availability

6

WP3368921 Whirlpool Screw In Stock WPL WP3368921 $2.34

6

Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability

6

Wheel (2) WPL 302819 Contact Us For Availability

7

Seal Seat WPL 3369020 Contact Us For Availability

7

Stop, Track (4) WPL 3379941 Contact Us For Availability

8

WP3368999 Whirlpool Dishwasher Spring In Stock WPL WP3368999 $3.33

8

Washer, Grommet WPL 3369038 Contact Us For Availability

8

Door Frame (Includes Item 21) (Black) WPL 3374711 Contact Us For Availability

10

WP3369012 Whirlpool Dishwasher Disk Mount Backorder WPL WP3369012 $31.26

10

Lever, Latch (Black) WPL 3369457 Contact Us For Availability

10

Lever, Latch White WPL 3372231 Contact Us For Availability

11

WP3369322 Whirlpool Cover Assembly Backorder WPL WP3369322 $30.25

11

WP3372028 Whirlpool Hinge Pin In Stock WPL WP3372028 $5.25

11

Support & Bearing Assembly (Includes Items: 1 WPL 3371745 Contact Us For Availability

3368922 Whirlpool Dishwasher TORX Screw Backorder WPL 3368922 $4.61

WP3369045 Whirlpool Dishwasher Seal Backorder WPL WP3369045 $4.58

WP3371710 Whirlpool Dishwasher Screen Backorder WPL WP3371710 $3.70

Pin, Switch (2) WPL 3368955 Contact Us For Availability

13

Washer WPL 3369044 Contact Us For Availability

14

3371746 Whirlpool Dishwasher Bearing Backorder WPL 3371746 $9.59

14

3376405 Whirlpool Dishwasher Elbow Backorder WPL 3376405 $5.33

14

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $3.46

16

Cover, Drip WPL 3371569 Contact Us For Availability

16

Washer, Curved WPL 3371634 Contact Us For Availability

17

3375348 Whirlpool Dishwasher Timer Knob Backorder WPL 3375348 $40.35

18

Spacer, Corrugated WPL 3368979 Contact Us For Availability

19

WP3369769 Whirlpool Dishwasher Panel In Stock WPL WP3369769 $17.79

WP3369177 Whirlpool Dishwasher Seal Backorder WPL WP3369177 $4.92

Retainer, Panel (Black) WPL 3374010 Contact Us For Availability

Retainer, Panel (White) WPL 3374011 Contact Us For Availability

Extension & Clip Assembly WPL 3374728 Contact Us For Availability

21

WP3369178 Whirlpool Dishwasher Check Ball In Stock WPL WP3369178 $5.49

21

WP3374716 Whirlpool Dishwasher Channel Backorder WPL WP3374716 $32.34

22

WP3373234 Whirlpool Dishwasher Bearing Backorder WPL WP3373234 $4.43

22

Clamp WPL 371499 Contact Us For Availability

24

W10102260 Whirlpool Dishwasher Motor Relay Backorder WPL W10102260 $53.56

26

WP3368928 Whirlpool Dishwasher Fuse In Stock WPL WP3368928 $44.41

29

Housing, Float Switch WPL 3369048 Contact Us For Availability

31

Cover, Switch Housing WPL 3369049 Contact Us For Availability

32

WP8519552 Whirlpool Dishwasher Float Backorder WPL WP8519552 $39.45

33

Nut WPL 717488 Contact Us For Availability

34

WP3379921 Whirlpool Dishwasher Toe Panel Backorder WPL WP3379921 $75.55

35

Panel, Access (Black) WPL 3374730 Contact Us For Availability

35

Panel, Access (White) WPL 3371682 Contact Us For Availability

36

WP302868 Whirlpool Screw In Stock WPL WP302868 $3.33

37

Hose, Inlet WPL 3369414 Contact Us For Availability

38

WP3374077 Whirlpool Dishwasher Drain Hose In Stock WPL WP3374077 $50.93

39

Clip, Grounding WPL 3378123 Contact Us For Availability

40

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.97

41

Terminal Box WPL 3378131 Contact Us For Availability

42

COVER ASSEMBLY TERMINAL BOX WPL 300068 Contact Us For Availability

43

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.52

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

45

3379740 Whirlpool Dishwasher Heater Support Backorder WPL 3379740 $33.69

46

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

47

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

48

Relief, Strain WPL 3370307 Contact Us For Availability

49

Screw WPL 3369138 Contact Us For Availability
