Model Whirlpool DU5216XW0 UNDERCOUNTER DISHWASHER – Common Parts & Diagrams
01 - FRAME AND CONSOLE
03 - TUB ASSEMBLY
04 - PUMP AND SPRAY ARM

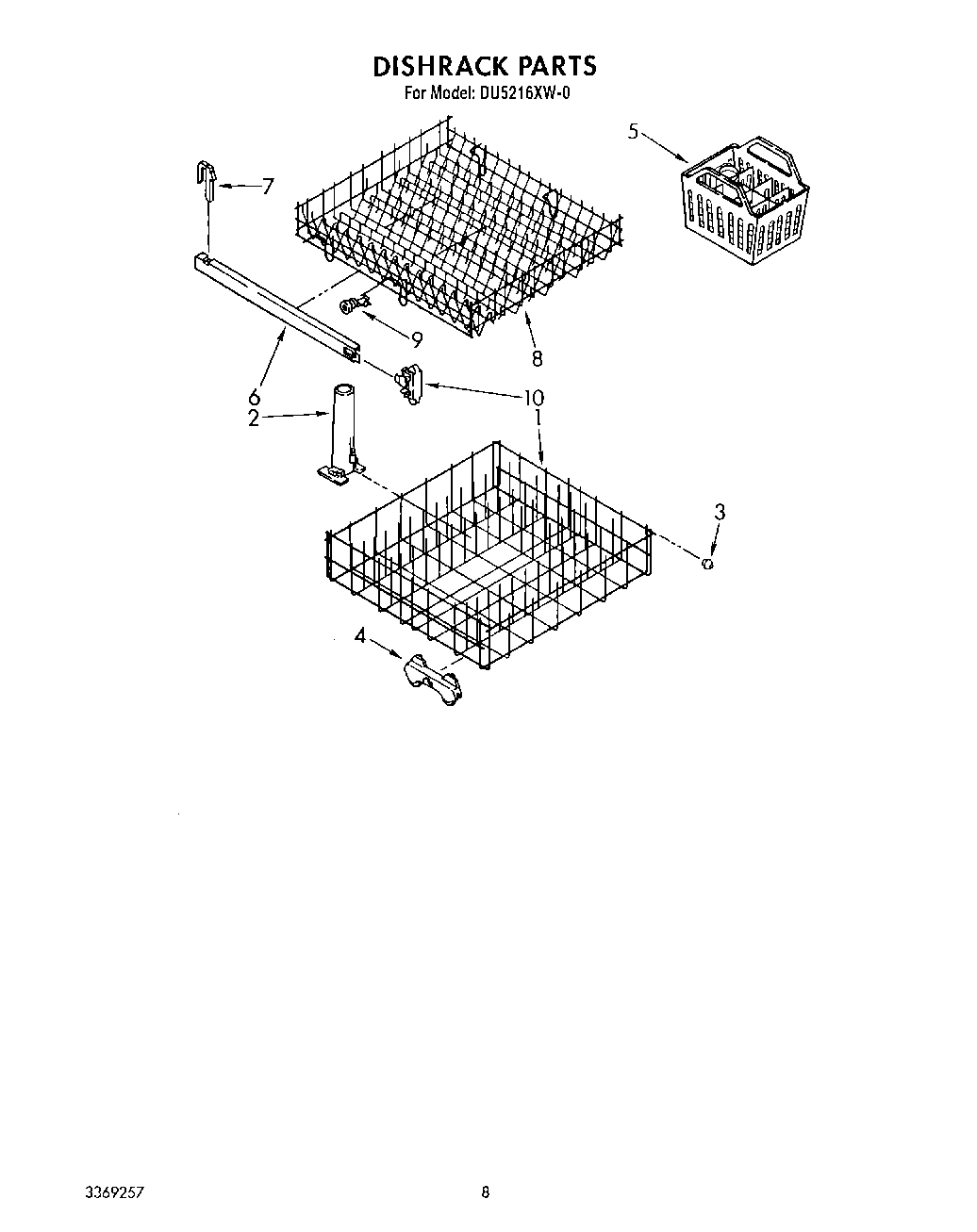

06 - DISHRACK

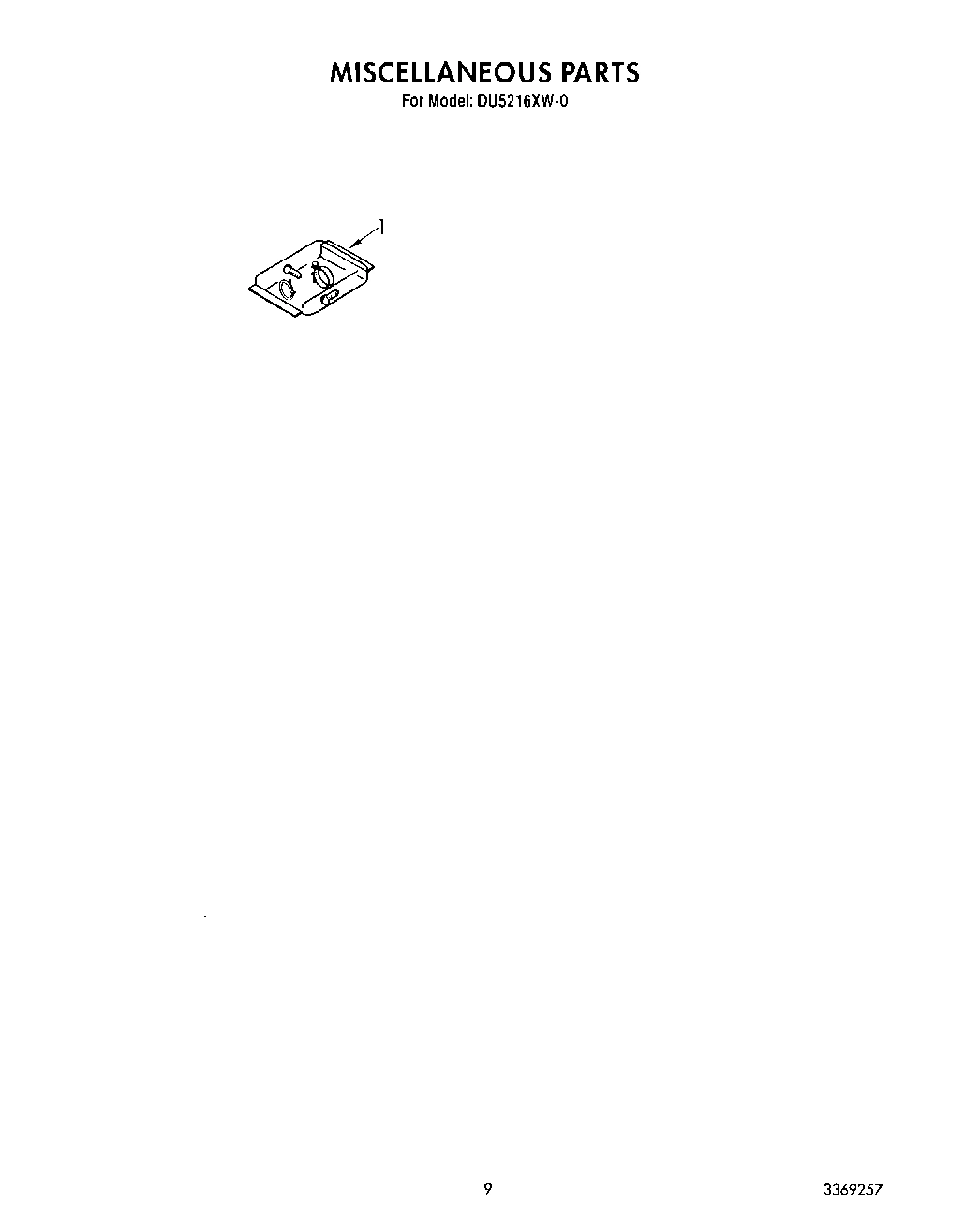

07 - MISCELLANEOUS, LIT/OPTIONAL
05 - PUMP AND MOTOR
02 - INNER DOOR
Common parts from model Whirlpool DU5216XW0 UNDERCOUNTER DISHWASHER
Instructions, Installation (Supplement) (Loca WPL LIT3367007 Contact Us For Availability
Guide, Use & Care WPL LIT3368028 Contact Us For Availability
Instructions, Installation WPL LIT3369089 Contact Us For Availability
Parts List WPL LIT3369257 Contact Us For Availability
Wiring Diagram WPL LIT3369891 Contact Us For Availability
Energy Guide WPL LIT3370565 Contact Us For Availability
1
Grommet, Pump Seal WPL 3369037 Contact Us For Availability
1
Console WPL 3368991 Contact Us For Availability
1
Miscellaneous Parts Bag (Includes 2 Screws & WPL 3369816 Contact Us For Availability
1
Leveler (Thinner) WPL 350941 Contact Us For Availability
1
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
1
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
1
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
1
Black (Uncut) WPL 799340 Contact Us For Availability
1
Almond (Uncut) WPL 978883 Contact Us For Availability
2
Pump & Motor Assembly WPL 3369015 Contact Us For Availability
3
Bumper, Dishrack (2) WPL 304490 Contact Us For Availability
3
Diaphragm WPL 3369028 Contact Us For Availability
4
Ring, Diaphragm WPL 3369029 Contact Us For Availability
4
Follower, Cam WPL 3368997 Contact Us For Availability
4
Clamp (2) WPL 3369036 Contact Us For Availability
5
Cover, Drain Valve WPL 3369030 Contact Us For Availability
5
Support, Motor WPL 3369033 Contact Us For Availability
5
Basket, Silverware WPL 3368966 Contact Us For Availability
6
Draw Bar, (Upper Dispenser) WPL 3369000 Contact Us For Availability
6
Grommet, Motor Support WPL 3369032 Contact Us For Availability
6
Track, Dishrack (2) WPL 3369071 Contact Us For Availability
7
Seal Seat WPL 3369020 Contact Us For Availability
7
Nut, Motor Support WPL 3369034 Contact Us For Availability
7
Stop, Track (2) WPL 3369046 Contact Us For Availability
8
Washer, Grommet WPL 3369038 Contact Us For Availability
9
Spray Arm, Assembly Lower WPL 3369008 Contact Us For Availability
9
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
10
End Cap, Track (2) WPL 300845 Contact Us For Availability
10
Nut, Pump Outlet WPL 3369039 Contact Us For Availability
11
Motor WPL 3369583 Contact Us For Availability
12
Pin, Switch (2) WPL 3368955 Contact Us For Availability
13
Washer WPL 3369044 Contact Us For Availability
15
Shoulder Screw WPL 3368923 Contact Us For Availability
16
Cover, Drip WPL 3369068 Contact Us For Availability
17
Knob, Timer WPL 3368998 Contact Us For Availability
17
Spatter Shield WPL 3369479 Contact Us For Availability
18
Spacer, Corrugated WPL 3368979 Contact Us For Availability
28
Spring & Bearing Assembly (2) WPL 3369337 Contact Us For Availability
29
Housing, Float Switch WPL 3369048 Contact Us For Availability
30
Switch, Float WPL 3369067 Contact Us For Availability
31
Cover, Switch Housing WPL 3369049 Contact Us For Availability
33
Nut WPL 717488 Contact Us For Availability
35
Panel, Access WPL 3368936 Contact Us For Availability
37
Hose, Inlet WPL 3369414 Contact Us For Availability
39
Diverter WPL 3369317 Contact Us For Availability
41
Terminal Block & Plug Assembly WPL 3369332 Contact Us For Availability
42
Cover Assembly, Terminal Box WPL 3369357 Contact Us For Availability
43
Clamp WPL 596553 Contact Us For Availability
45
Nut, Wire WPL 770754 Contact Us For Availability
46
Wire, Ground WPL 303485 Contact Us For Availability
47
Ground Strap WPL 22965 Contact Us For Availability
48
Screw WPL 132848 Contact Us For Availability
49
Bushing WPL 302770 Contact Us For Availability
50
Power Cord WPL 3370221 Contact Us For Availability
× ![]()
