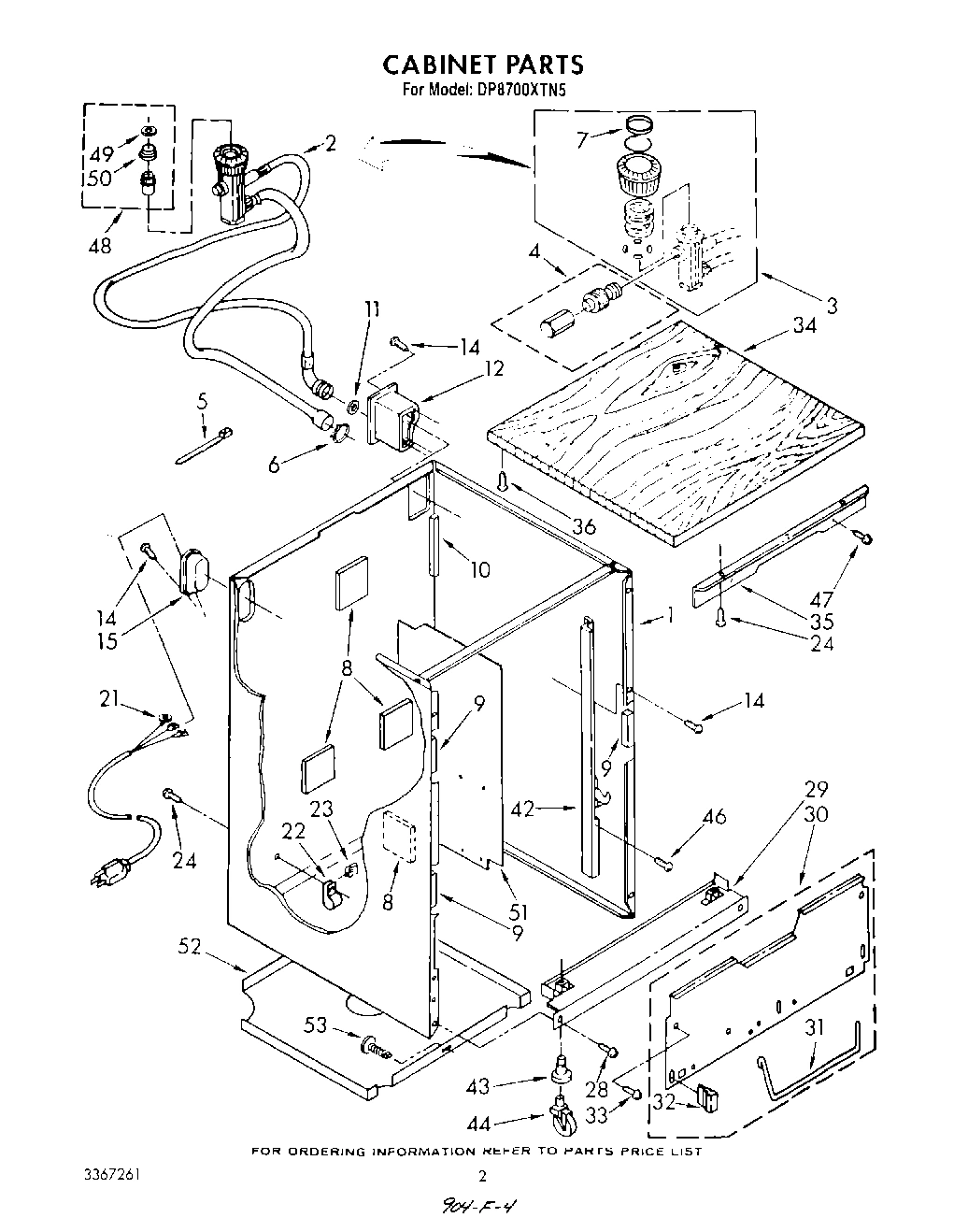

Model Whirlpool DP8700XTN5 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT304296 WPL LIT304296 Contact Us For Availability

WPL LIT3367225 WPL LIT3367225 Contact Us For Availability

WPL LIT3367261 WPL LIT3367261 Contact Us For Availability

WPL LIT3367993 WPL LIT3367993 Contact Us For Availability

WPL LIT3370048 WPL LIT3370048 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Plate, Perforated (Includes Item 5) (Also Ord WPL 302720 Contact Us For Availability

1

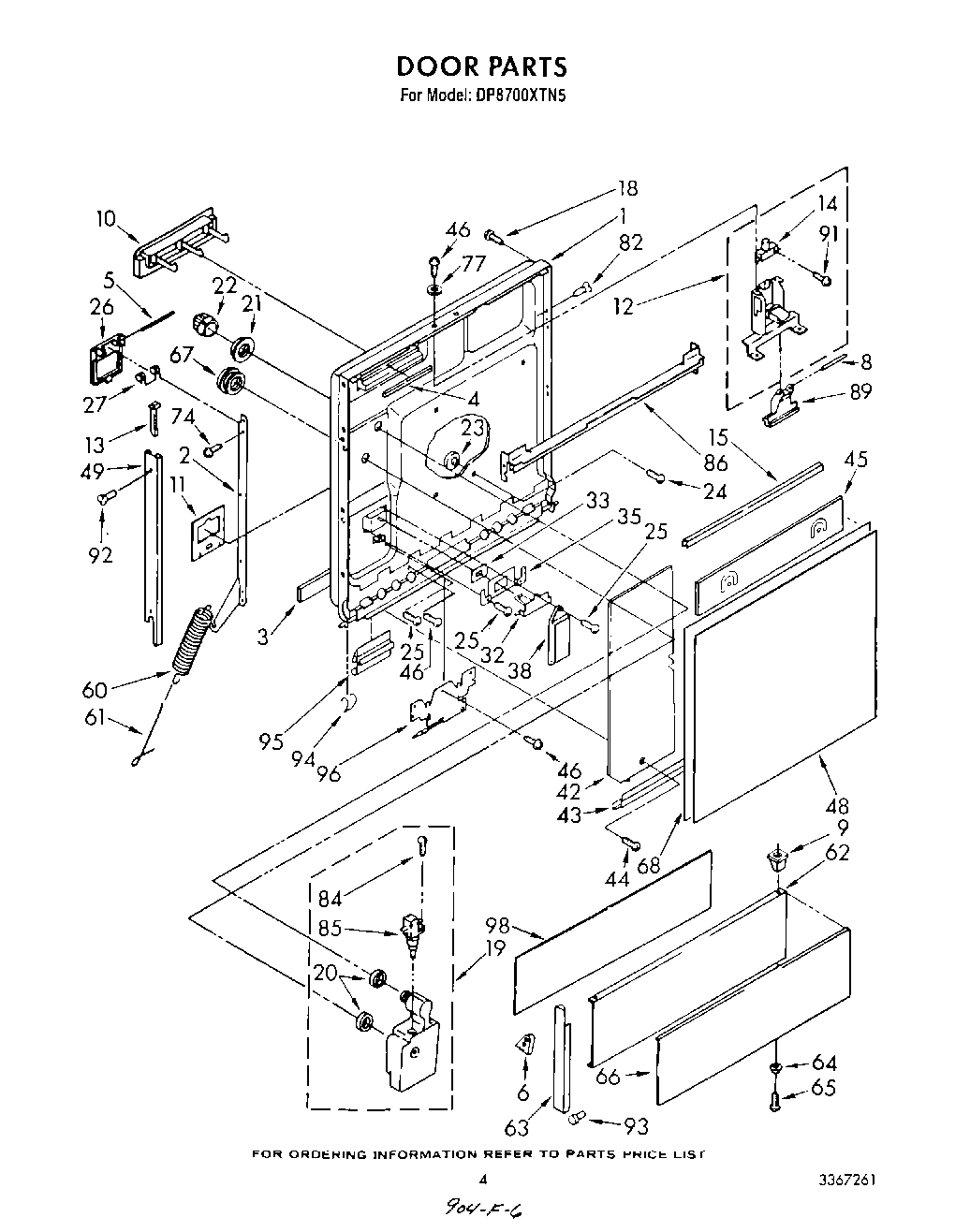

Door, Inner WPL 3367388 Contact Us For Availability

2

WP3376961 Whirlpool Dishwasher Wheel Backorder WPL WP3376961 $30.03

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Base, Inlet (Includes Items 1 & 5) (Also Orde WPL 3367173 Contact Us For Availability

2

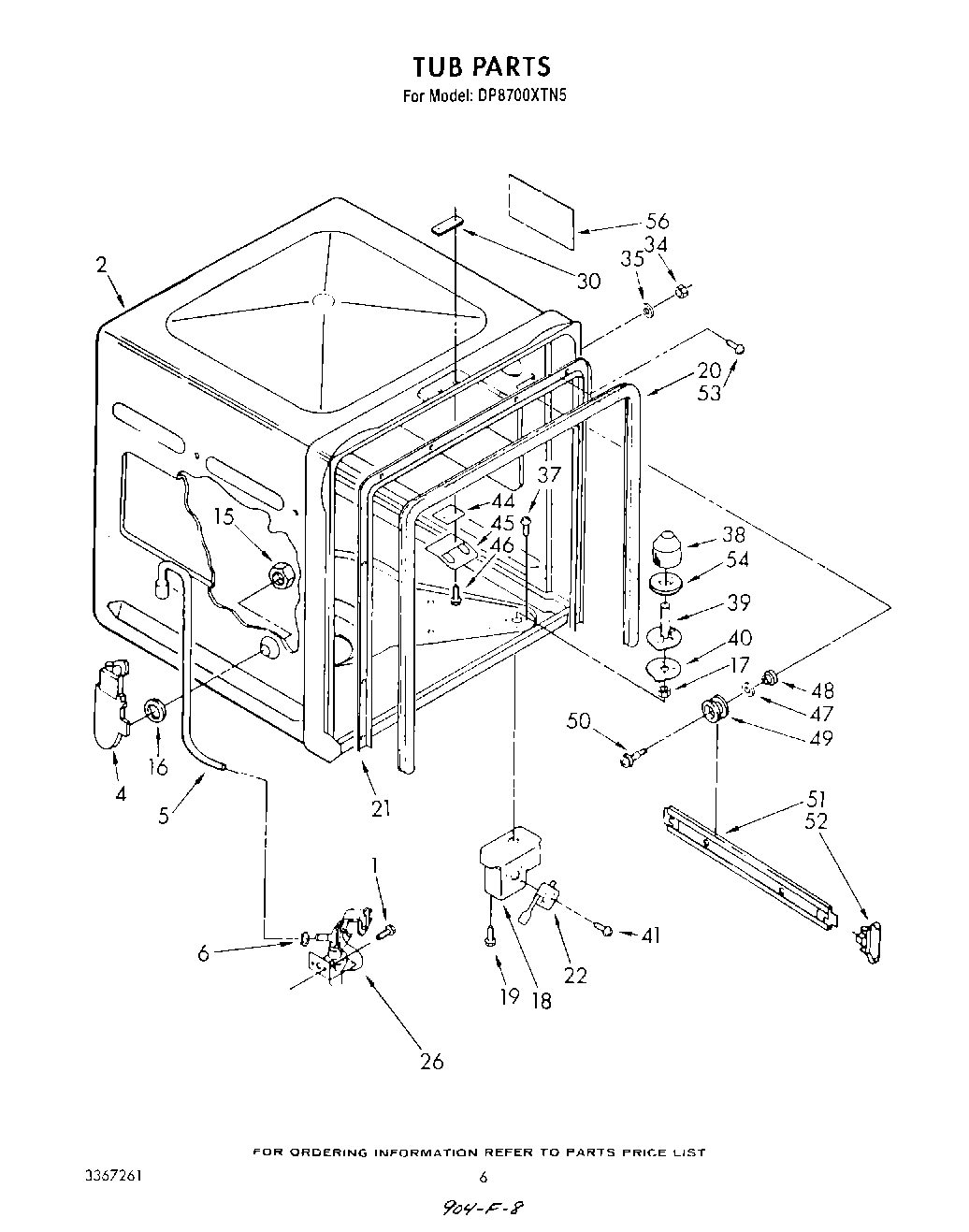

tub assembly WPL 3367464 Contact Us For Availability

2

Timer WPL 3368534 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

WP285170 Whirlpool Collar In Stock WPL WP285170 $28.27

3

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

3

block, timer (black) WPL 3369366 Contact Us For Availability

3

Screw, 7-18 x 1-3/8 WPL 304232 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

4

WP302710 Whirlpool Dishwasher Ring Seal Backorder WPL WP302710 $4.26

4

Terminal, Female WPL 304759 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Relay, Start WPL 304658 Contact Us For Availability

4

Baffle WPL 719860 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Hose, Inlet WPL 304669 Contact Us For Availability

5

Ball, Check WPL 302709 Contact Us For Availability

5

Plug, Two Pin WPL 717252 Contact Us For Availability

5

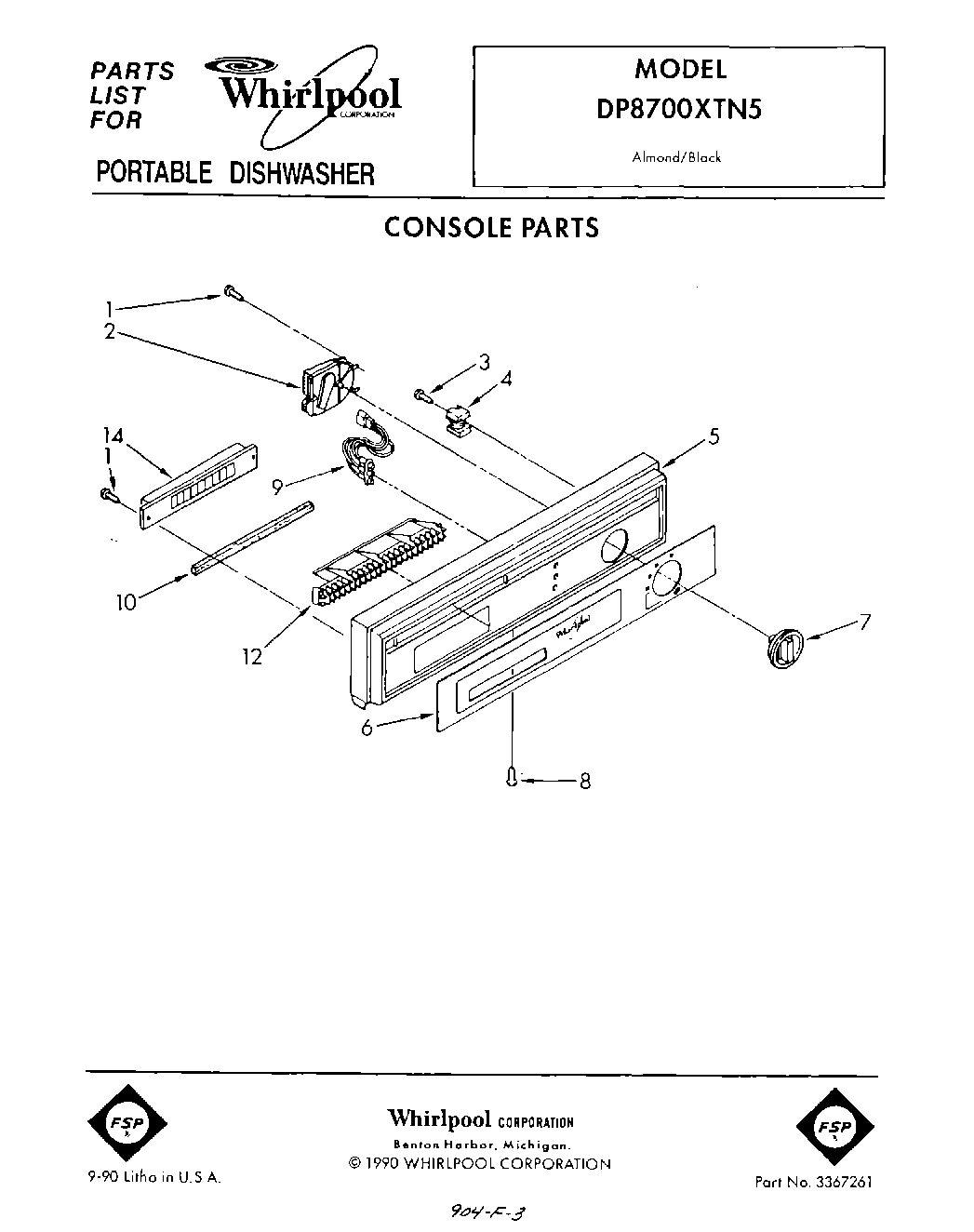

Console (Includes Illus. 6 & 12) WPL 3367889 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Plug, One Pin WPL 351297 Contact Us For Availability

6

Insert, Decorative WPL 3368424 Contact Us For Availability

6

Retainer (2) WPL 3367736 Contact Us For Availability

7

Seal WPL 711696 Contact Us For Availability

7

Cover, Valve WPL 302721 Contact Us For Availability

7

Knob, Timer WPL 3367282 Contact Us For Availability

8

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

Valve Stem Kit (Includes Items 12, 13 & 22) S WPL 302738 Contact Us For Availability

8

Pin, Pivot (2) WPL 300234 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Separator Assembly (Includes Items 12, 13 & 2 WPL 303883 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Light, Indicator (For Electrical Connector On WPL 304422 Contact Us For Availability

9

Grommet WPL 356592 Contact Us For Availability

Screw, 8-18 x 1-5/8 WPL 302717 Contact Us For Availability

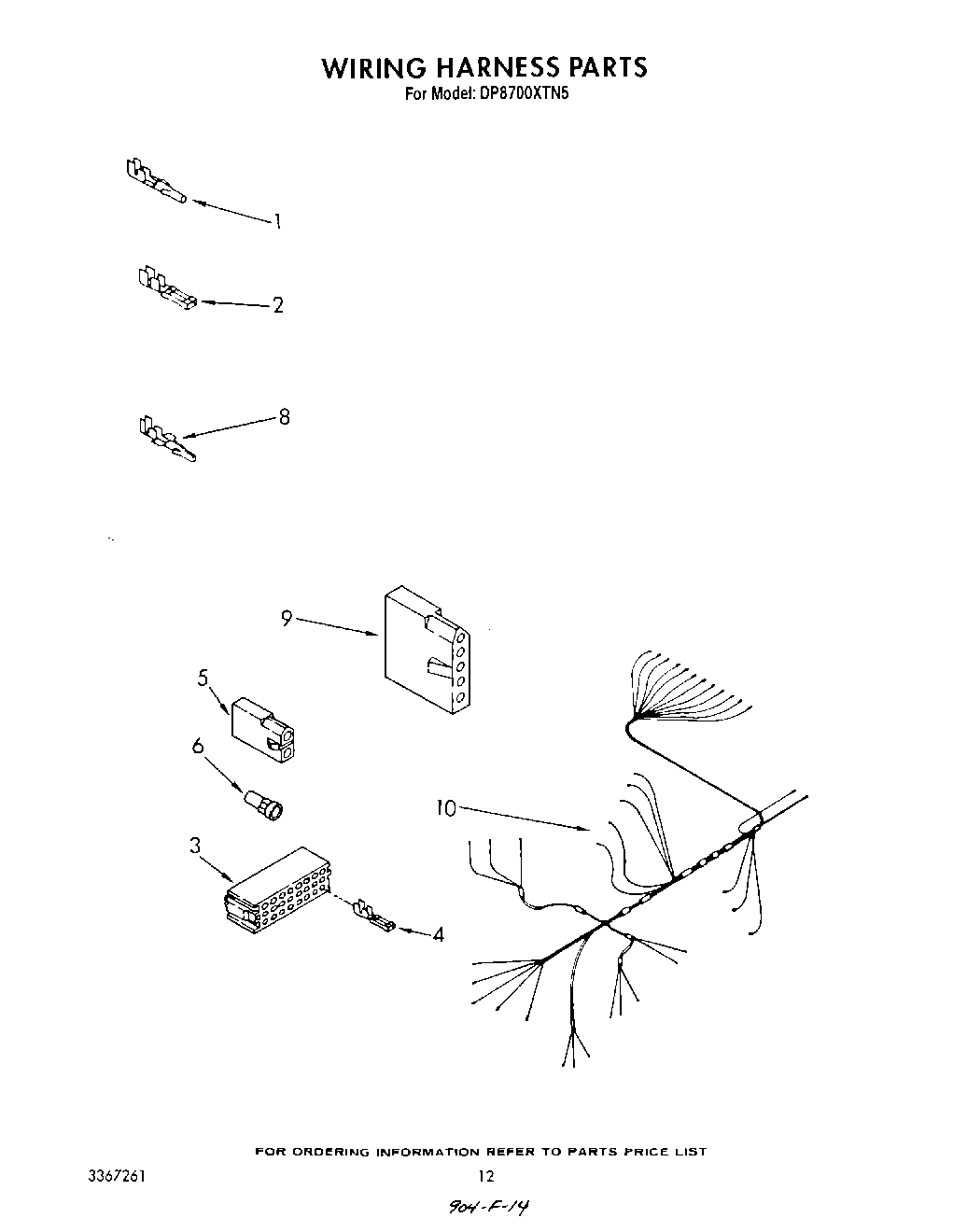

Harness, Wiring WPL 3367799 Contact Us For Availability

Foam, Seal WPL 3368537 Contact Us For Availability

Screen, Vent WPL 300246 Contact Us For Availability

11

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

11

Barrier WPL 303978 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

Grill, Vent WPL 304602 Contact Us For Availability

Latch Assembly WPL 3367058 Contact Us For Availability

13

WP302711 Whirlpool Dishwasher Ring Seal Backorder WPL WP302711 $11.66

13

Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability

Bumper (2) WPL 717970 Contact Us For Availability

Outlet, Pump (Includes Illus. 13) WPL 302730 Contact Us For Availability

Switch WPL 3367741 Contact Us For Availability

Switch, Interlock WPL 660951 Contact Us For Availability

15

Tower WPL 304170 Contact Us For Availability

15

Nut, 7/18-16 WPL 713799 Contact Us For Availability

15

Protector, Edge WPL 3367669 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

17

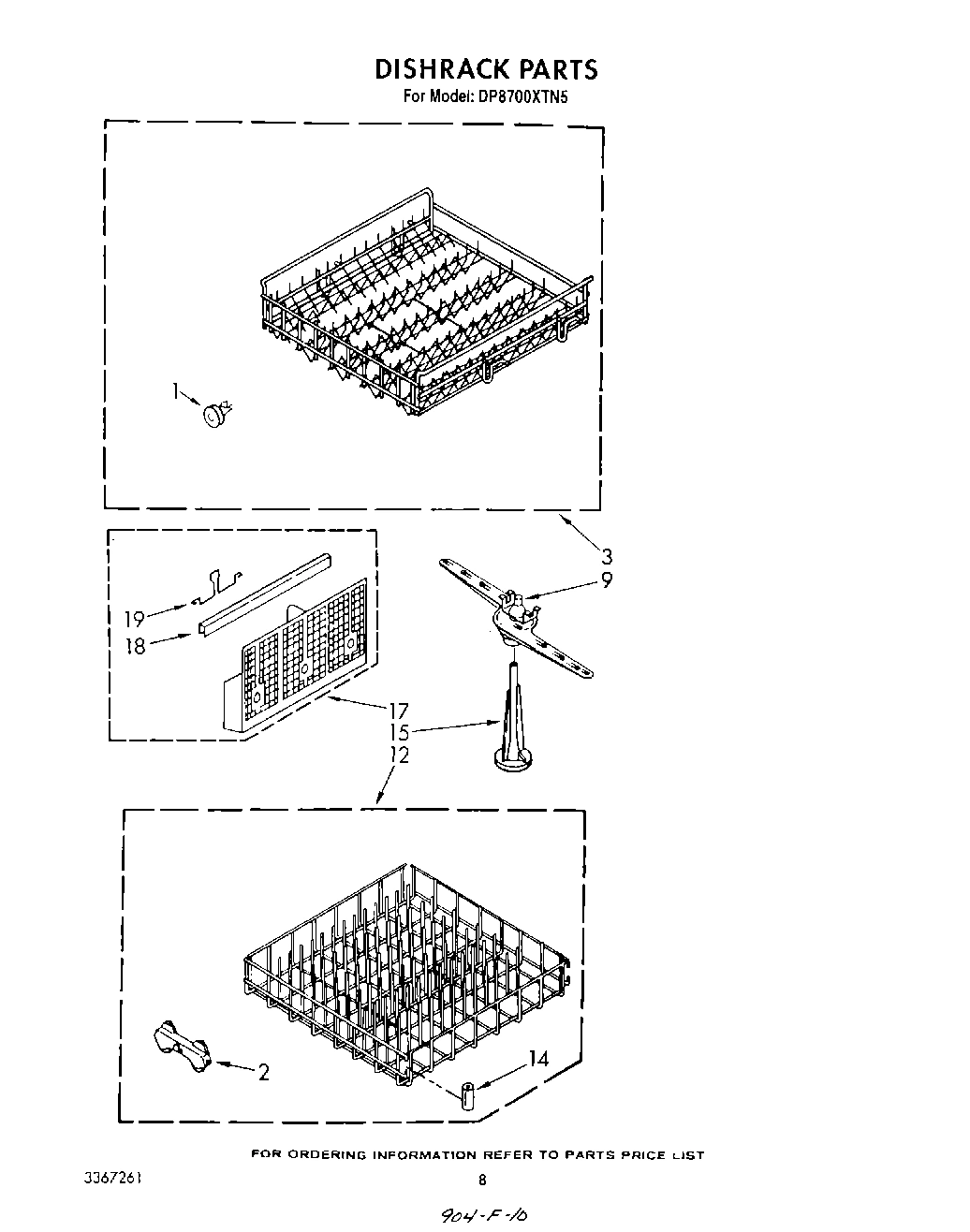

Silverware Basket Assembly WPL 304166 Contact Us For Availability

17

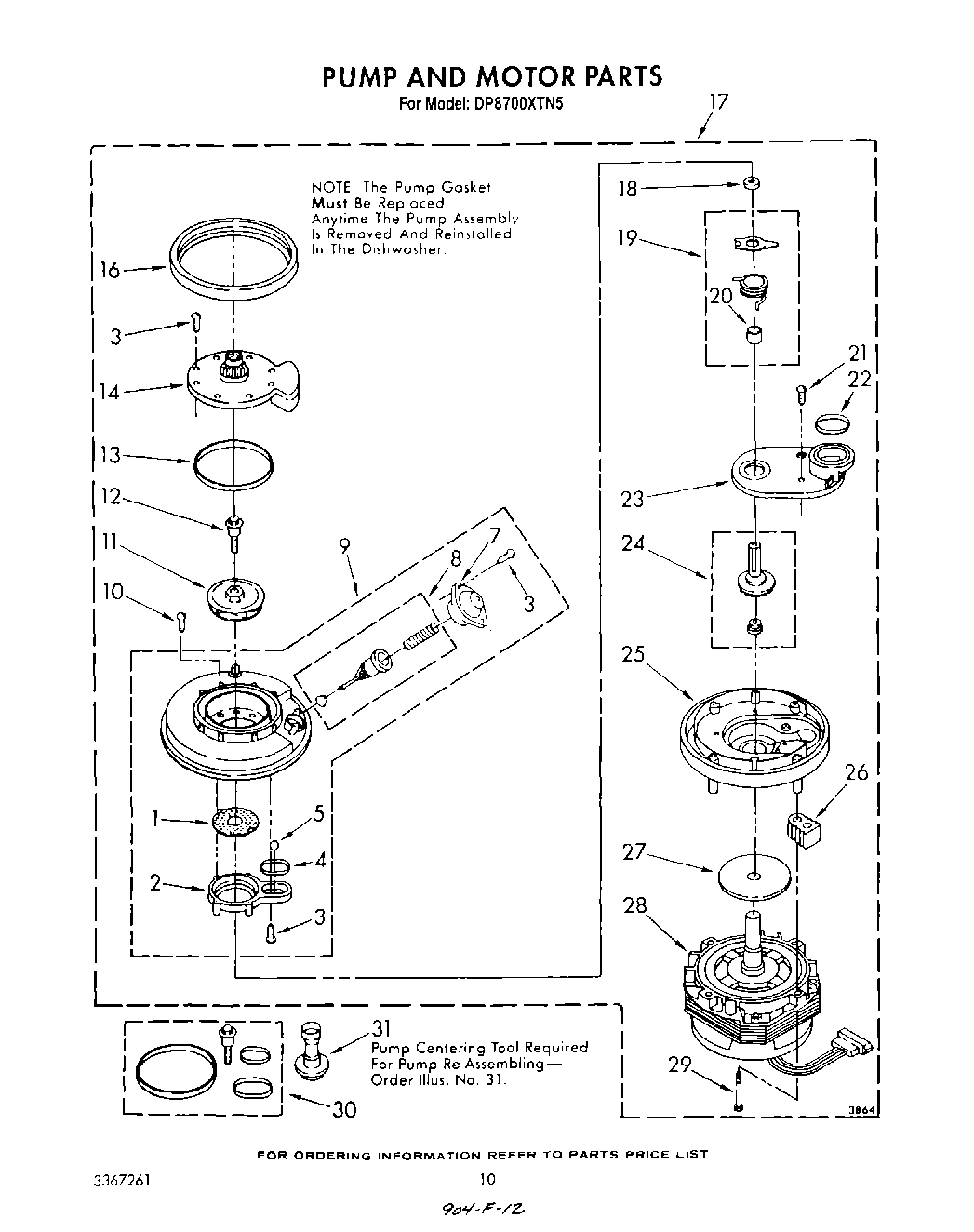

Pump & Motor Assembly WPL 3369476 Contact Us For Availability

Trim Basket (2) WPL 717528 Contact Us For Availability

Bushing, Grind WPL 302707 Contact Us For Availability

Bracket, Overflow Switch WPL 719342 Contact Us For Availability

Screw, 8 x 1-7/8 (2) WPL 304233 Contact Us For Availability

675806 Whirlpool Dishwasher Pump Impeller and In Stock WPL 675806 $85.12

Handle, Basket WPL 300086 Contact Us For Availability

Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability

Dispenser, Wetting Agent WPL 304442 Contact Us For Availability

20

Gasket WPL 3368007 Contact Us For Availability

20

Sleeve, Drain Impeller WPL 302705 Contact Us For Availability

20

Washer WPL 713080 Contact Us For Availability

21

Retainer, Gasket WPL 3368002 Contact Us For Availability

21

Check Ball & Retainer WPL 675488 Contact Us For Availability

21

Nut WPL 718575 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

Seal, Drain Cover WPL 302704 Contact Us For Availability

Switch, Pressure WPL 660741 Contact Us For Availability

Indicator, Level WPL 718577 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Cover, Drain (Also Order Item 30) See Note A. WPL 302723 Contact Us For Availability

23

Button, Retainer (3) WPL 300239 Contact Us For Availability

24

Screw, 8-18 x 3/8 (3) WPL 300250 Contact Us For Availability

25

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

25

Base, Pump (Includes Item 24) (Also Order Ite WPL 3367204 Contact Us For Availability

26

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

26

Valve, Water Inlet WPL 661511 Contact Us For Availability

27

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

28

Motor (Includes Items 24, 27 & 31) (Also Orde WPL 3369472 Contact Us For Availability

29

Screw, 13-16 (4) WPL 3369331 Contact Us For Availability

30

Pump Seal Kit (Includes Items 4, 13 & 22) WPL 675505 Contact Us For Availability

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

31

Tool, Pump Centering WPL 303918 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

Seal, Lever WPL 300105 Contact Us For Availability

34

Locknut (8) WPL 718829 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

36

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Cap, Nozzle WPL 3367910 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Spray Arm, Lower WPL 302767 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

41

Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability

42

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

42

Barrier, Door WPL 303906 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 300450 Contact Us For Availability

43

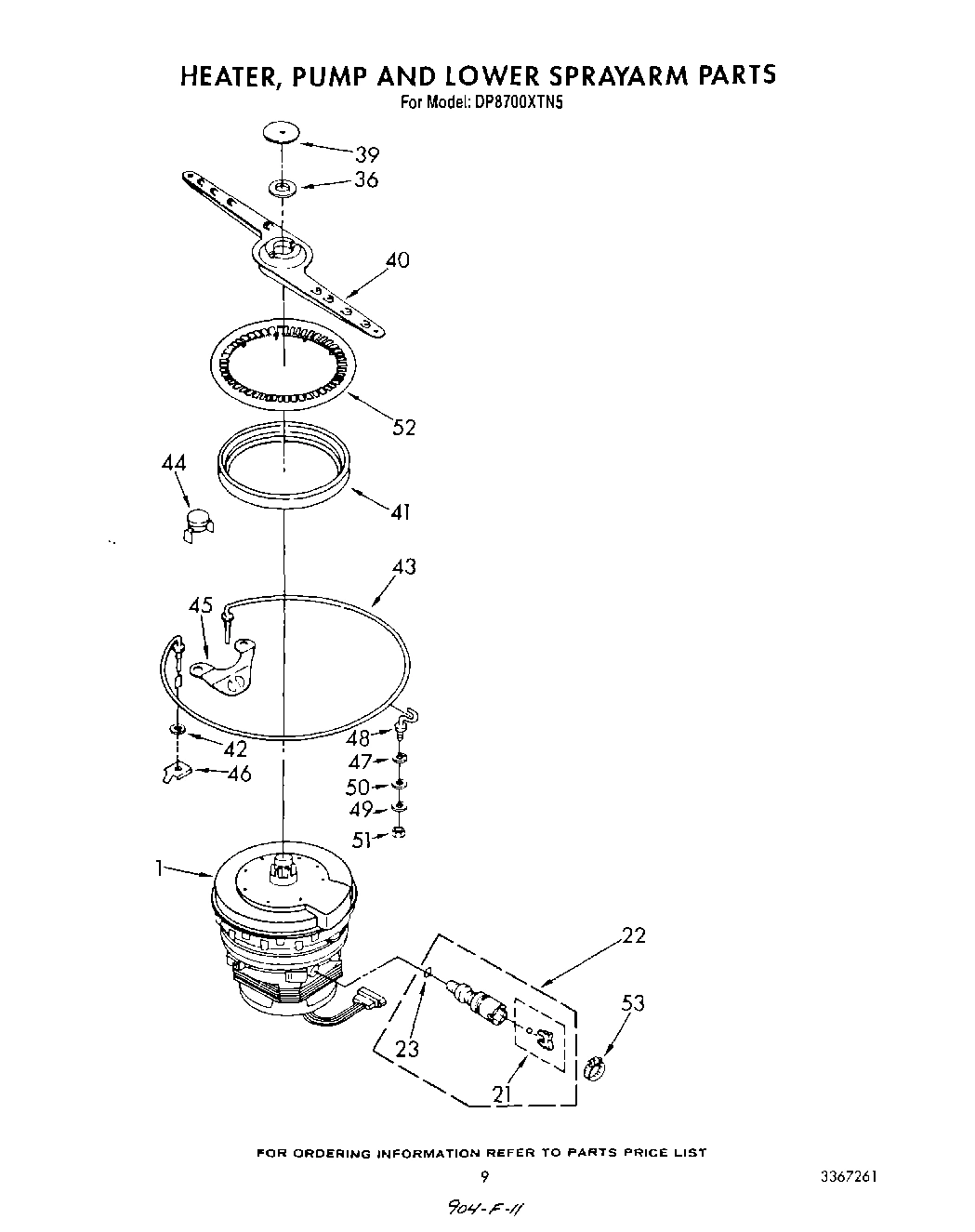

Heater WPL 660318 Contact Us For Availability

43

Edging, Panel WPL 304047 Contact Us For Availability

44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

44

Thermostat WPL 661504 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Bracket WPL 3368272 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

45

Barrier, Console WPL 303908 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

46

Nut, 7/16 x 20 (2) WPL 718537 Contact Us For Availability

47

Washer, Retainer (2) WPL 717289 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Support, Heater (2) WPL 717096 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front (Almond/Black) WPL 304668 Contact Us For Availability

Washer (2) WPL 711284 Contact Us For Availability

Wheel Tub (8) WPL 300844 Contact Us For Availability

Trim, Door (R.H.) WPL 3367487 Contact Us For Availability

Trim, Door (L.H.) WPL 3367488 Contact Us For Availability

50

Washer (2) WPL 14351 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

52

Grate WPL 303469 Contact Us For Availability

53

WP3367052 Whirlpool Hose Clamp Backorder WPL WP3367052 $3.70

53

Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability

54

Gasket, Standpipe (2) WPL 301662 Contact Us For Availability

56

Pad, Sound (2) WPL 302340 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

62

Panel, Access WPL 302592 Contact Us For Availability

63

Cap, End R.H. WPL 3367527 Contact Us For Availability

63

Cap, End L.H. WPL 3367531 Contact Us For Availability

64

Foot (2) WPL 719581 Contact Us For Availability

65

Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability

66

overlay, access panel (black) WPL 303445 Contact Us For Availability

67

Cap, Drip WPL 718576 Contact Us For Availability

68

Spacer, Panel WPL 3368569 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer (2) WPL 300237 Contact Us For Availability

82

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

84

Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability

85

Actuator WPL 304443 Contact Us For Availability

86

Rail, Support WPL 304391 Contact Us For Availability

89

Lever, Release WPL 304408 Contact Us For Availability

91

Screw, 6-32 x 1 WPL 301582 Contact Us For Availability

92

Screw, 8 - 18 (4) WPL 3367288 Contact Us For Availability

93

Bumper WPL 715779 Contact Us For Availability

94

Clip, Wire WPL 301857 Contact Us For Availability

95

Retainer, Clip WPL 3367720 Contact Us For Availability

96

Shield, Harness WPL 303362 Contact Us For Availability

98

pad WPL 301774 Contact Us For Availability
