Model Whirlpool DP8350XVN0 PORTABLE DISHWASHER – Common Parts & Diagrams

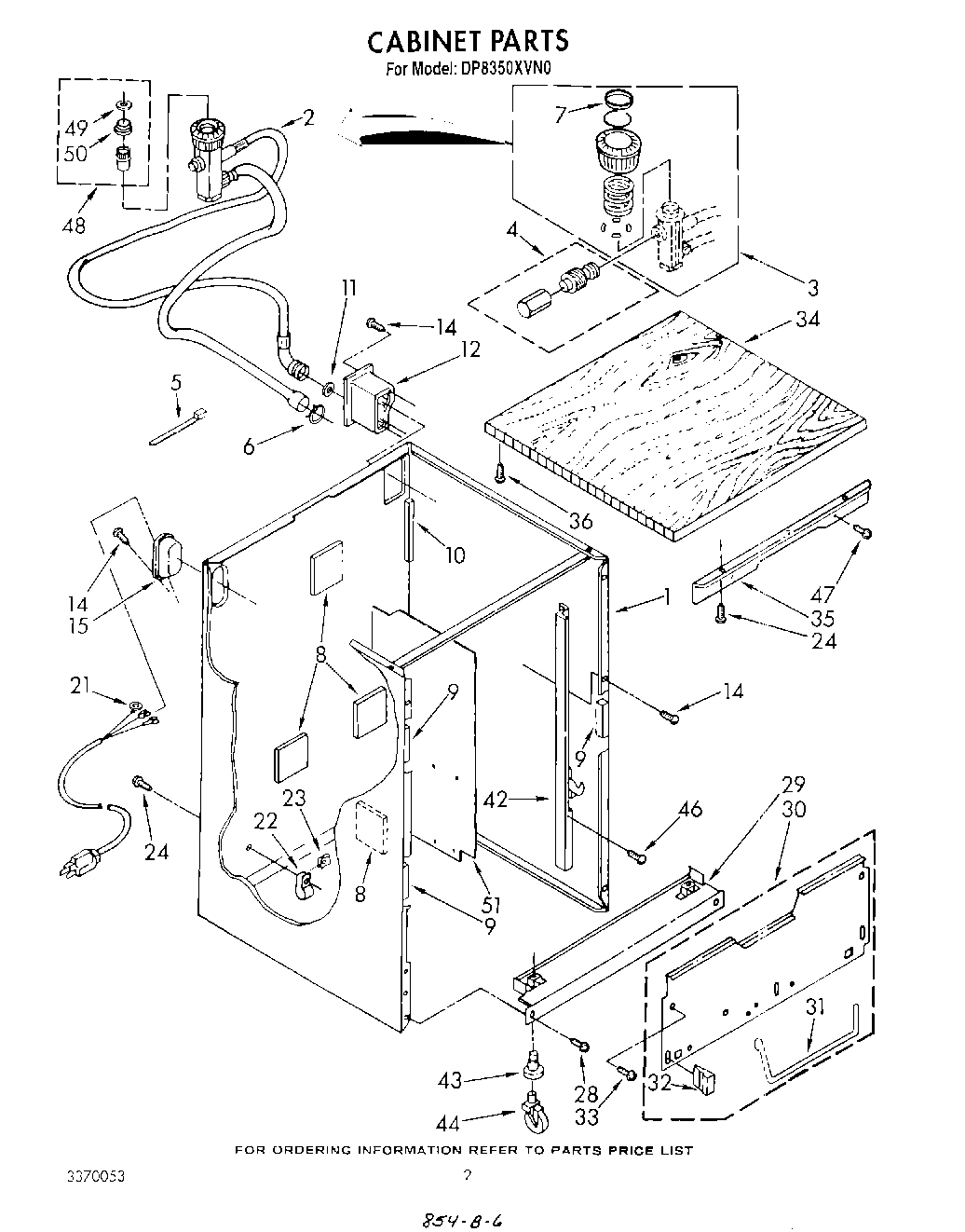

02 - CABINET

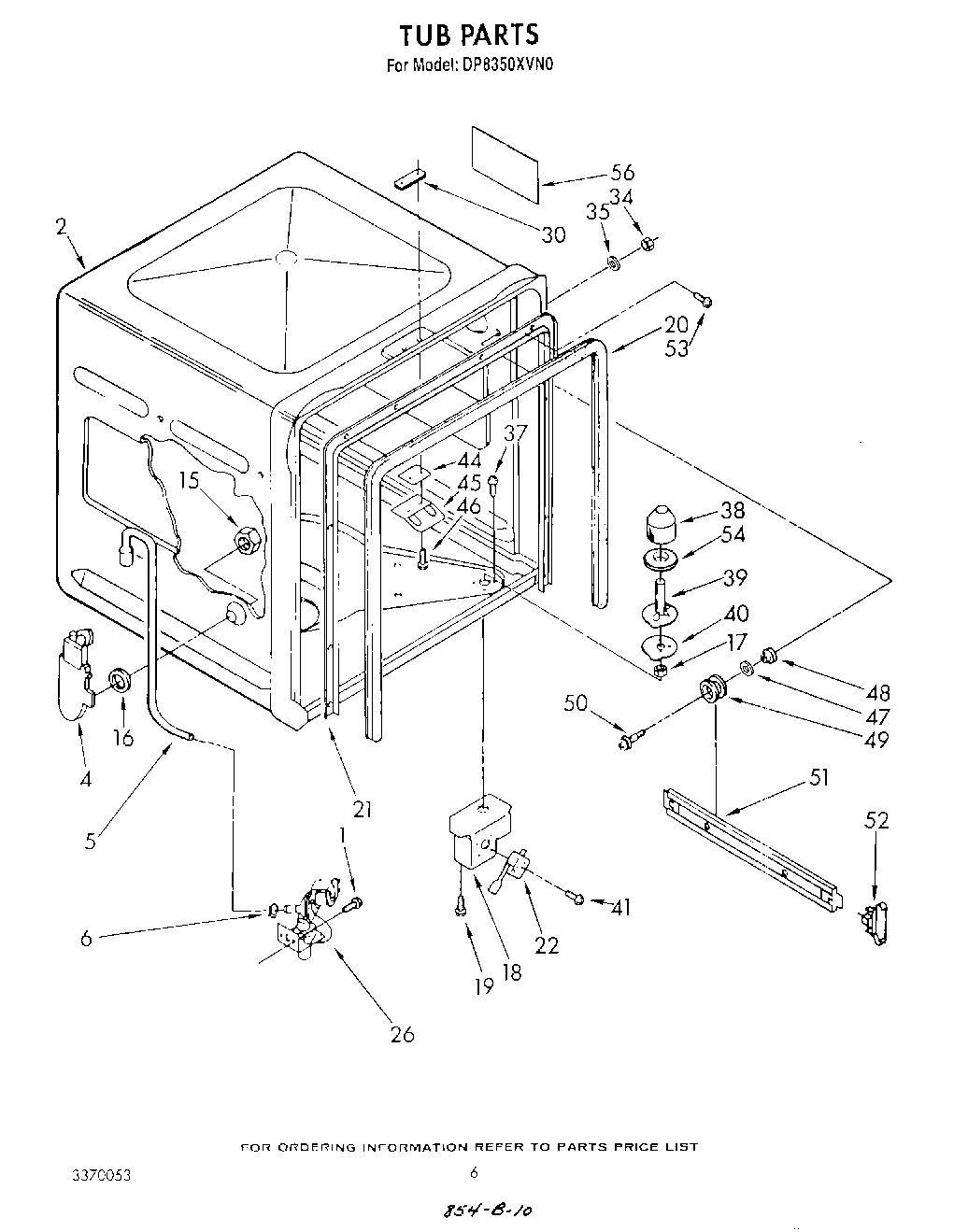

04 - TUB, LITERATURE AND OPTIONAL

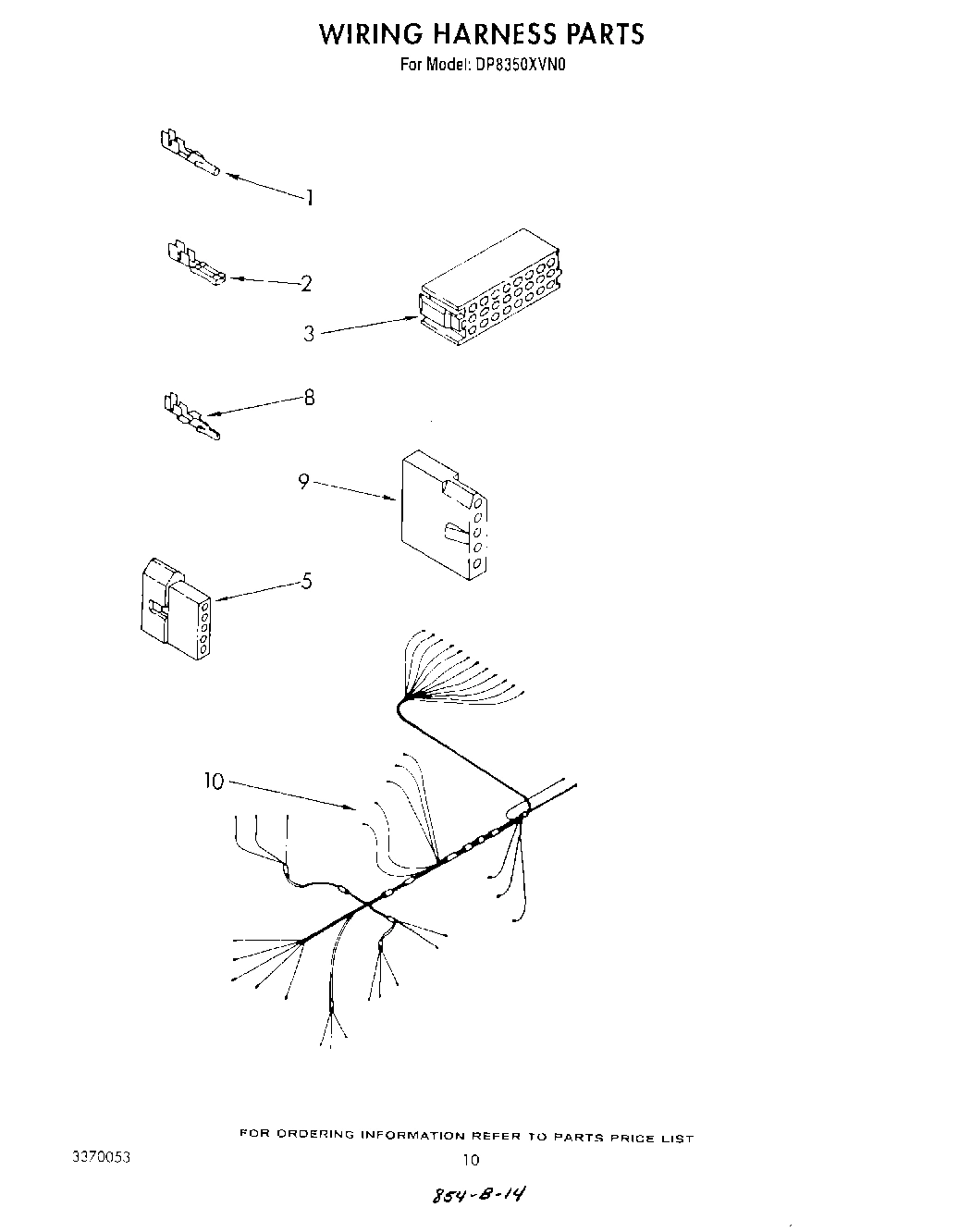

07 - WIRING HARNESS

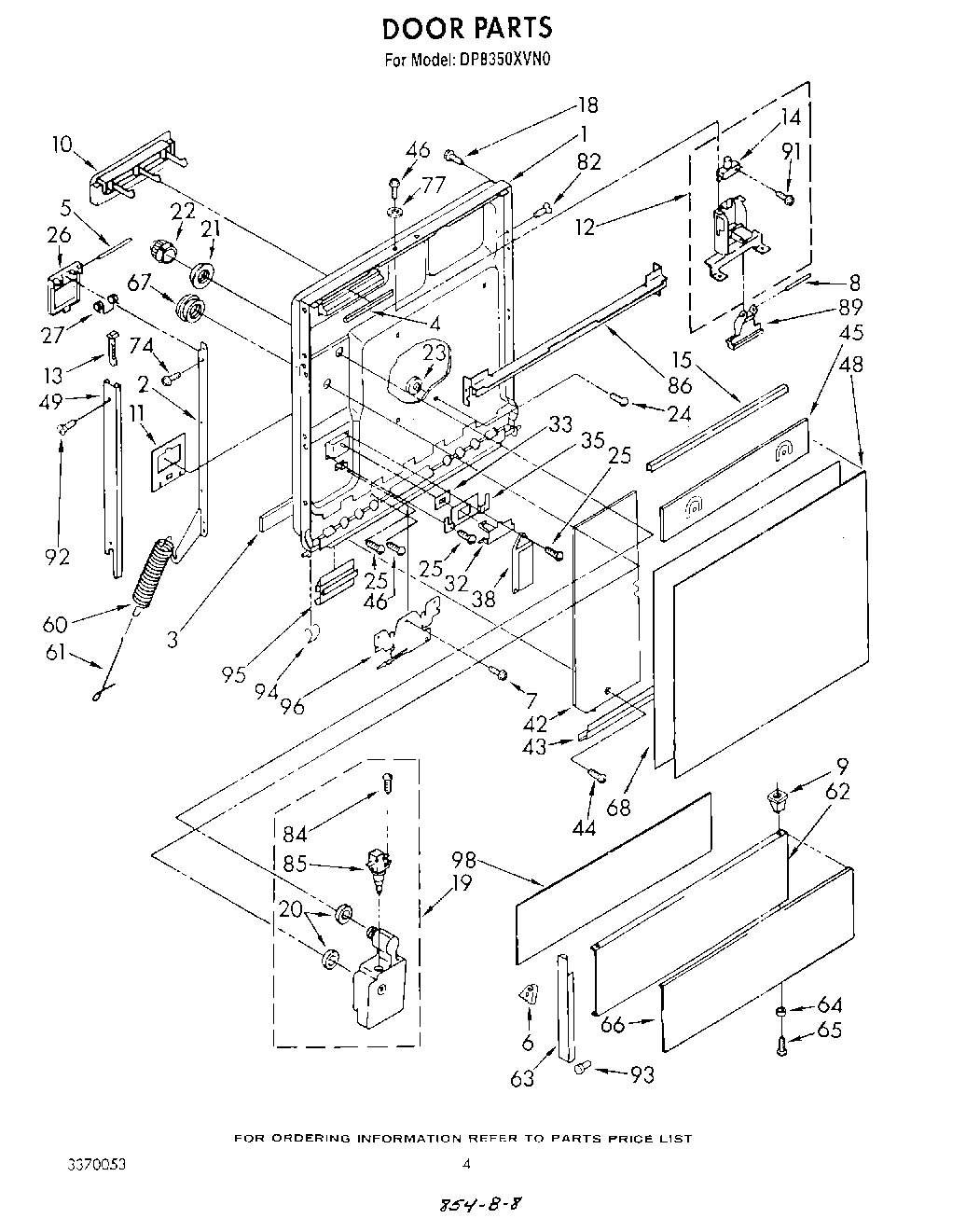

03 - DOOR

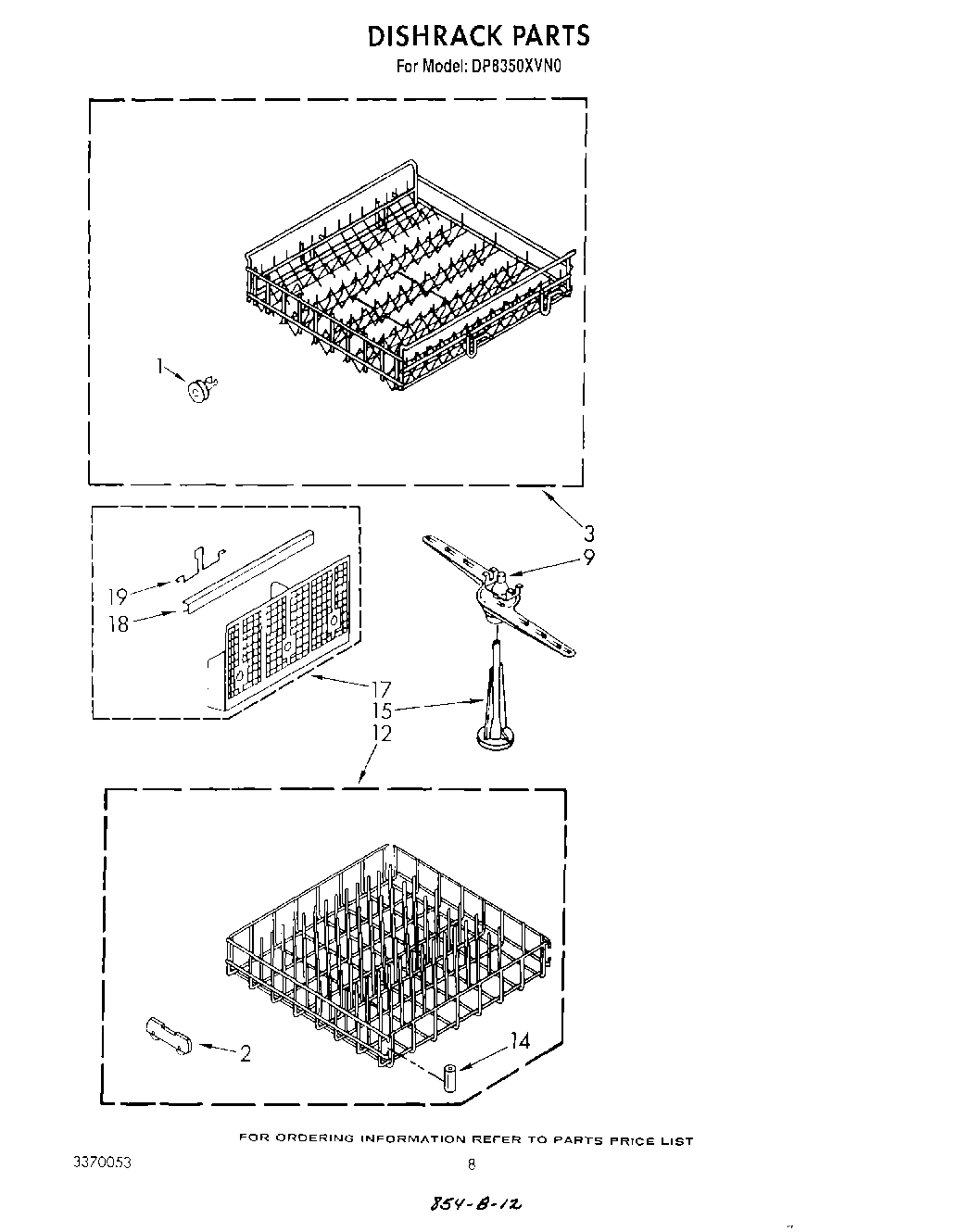

05 - DISHRACK

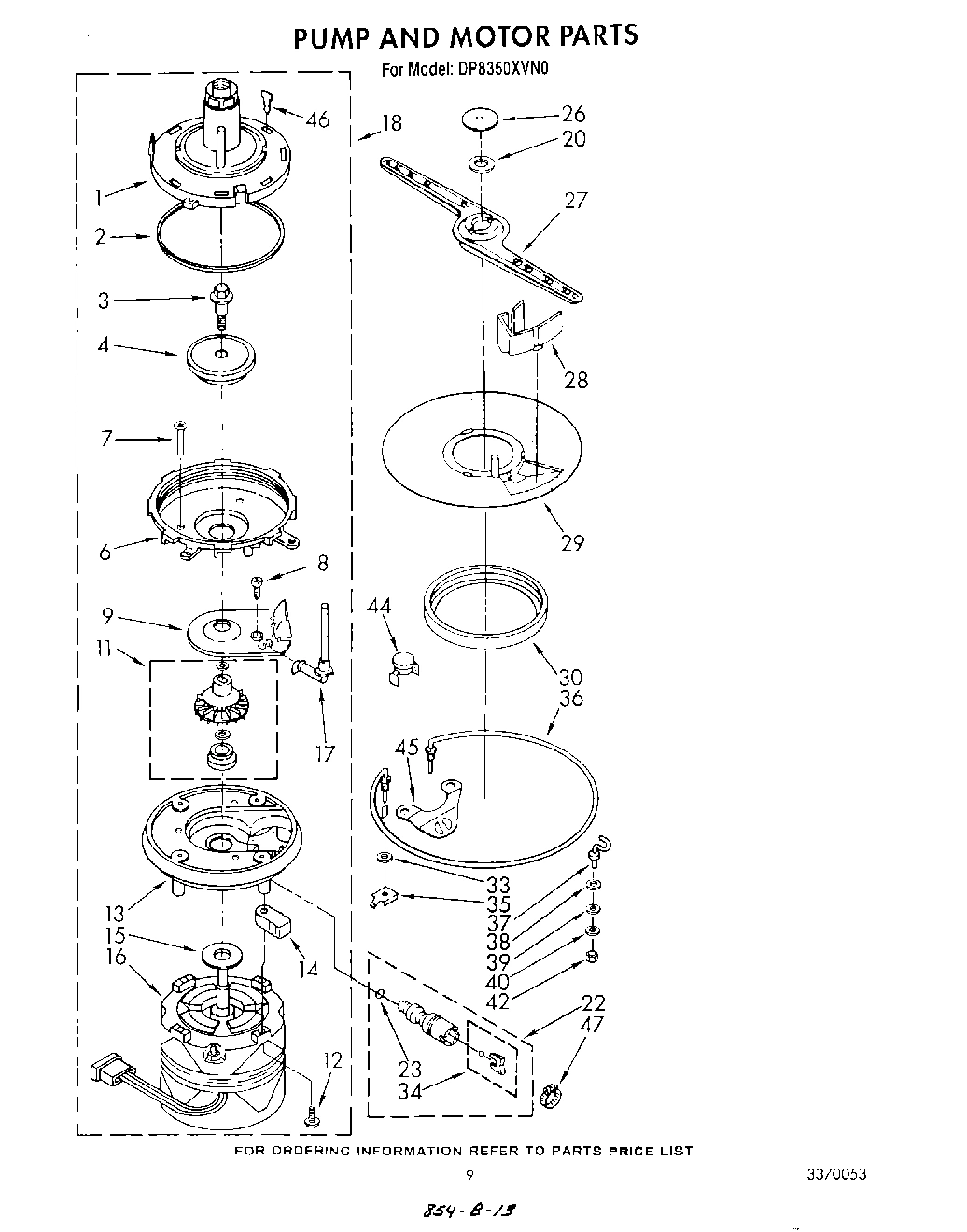

06 - PUMP AND MOTOR

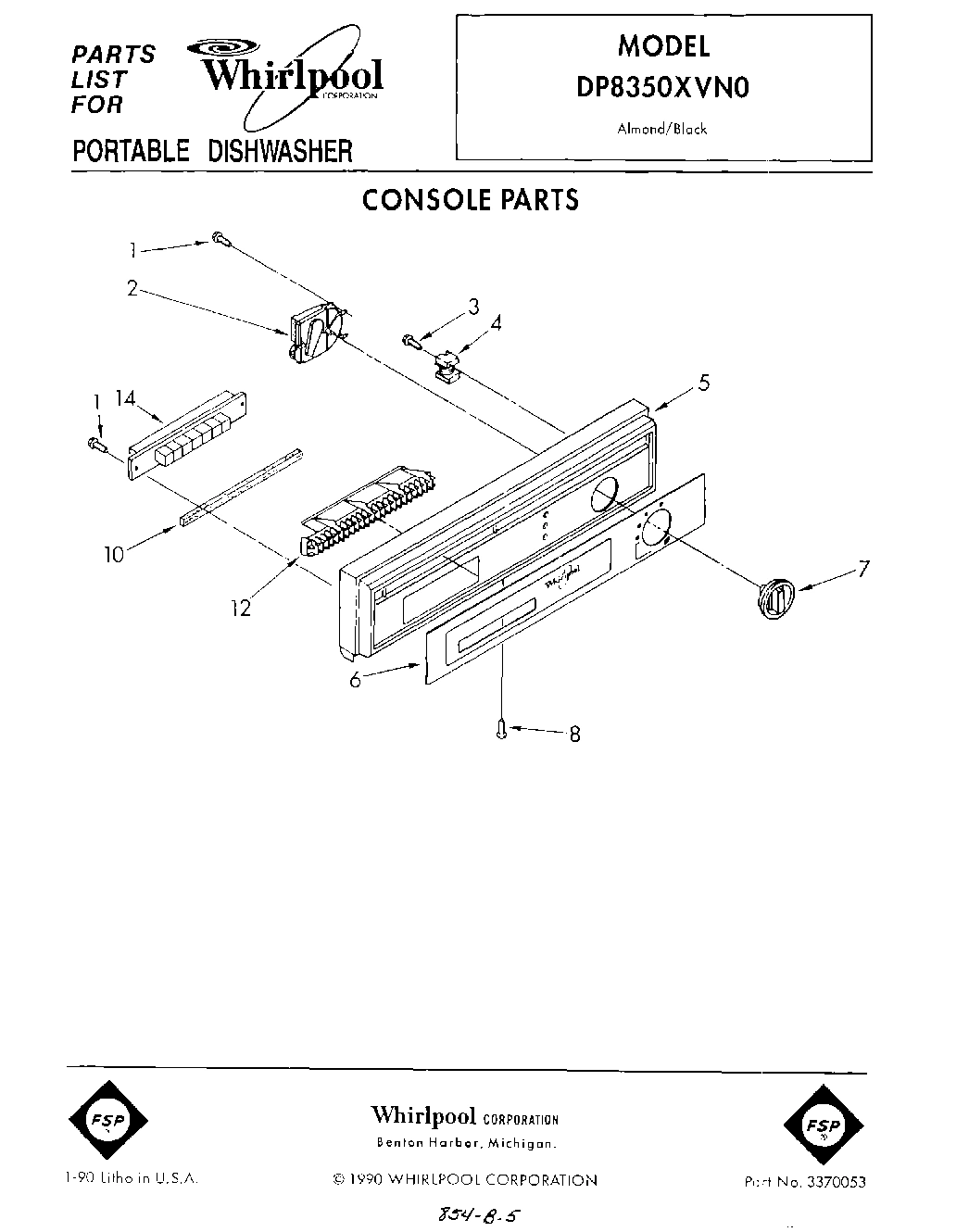

01 - CONSOLE
Common parts from model Whirlpool DP8350XVN0 PORTABLE DISHWASHER
PAINT, BULK (1 WPL 799344 Contact Us For Availability
Golden Harvest WPL 261890 Contact Us For Availability
Golden Harvest (Uncut) WPL 261891 Contact Us For Availability
Toast WPL 285365 Contact Us For Availability
Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability
Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability
Platinum (Uncut) WPL 285368 Contact Us For Availability
Leveler (Thinner) WPL 350941 Contact Us For Availability
Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability
Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability
Paint, (Touch-Up 1/2 Oz.) (Toast) WPL 72112 Contact Us For Availability
WPL 799640 WPL 799640 Contact Us For Availability
WPL 978883 WPL 978883 Contact Us For Availability
WPL LIT3367225 WPL LIT3367225 Contact Us For Availability
WPL LIT3368833 WPL LIT3368833 Contact Us For Availability
WPL LIT3369265 WPL LIT3369265 Contact Us For Availability
WPL LIT3370053 WPL LIT3370053 Contact Us For Availability
WPL LIT3370077 WPL LIT3370077 Contact Us For Availability
1
Door, Inner WPL 3367388 Contact Us For Availability
1
Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability
1
Pump Housing, Upper WPL 3367439 Contact Us For Availability
2
Terminal, Female WPL 352088 Contact Us For Availability
2
Seal, Ring WPL 718259 Contact Us For Availability
2
tub assembly WPL 3367464 Contact Us For Availability
2
Support, Door (R.H.) WPL 3367201 Contact Us For Availability
2
Support, Door (L.H.) WPL 3367202 Contact Us For Availability
2
Timer WPL 3368830 Contact Us For Availability
3
Disconnect Block, Timer WPL 3369366 Contact Us For Availability
3
Gasket, Door WPL 717921 Contact Us For Availability
3
Screw, 7-18 x 1-3/8 WPL 304232 Contact Us For Availability
4
Inlet, Water WPL 300974 Contact Us For Availability
4
Baffle WPL 719860 Contact Us For Availability
4
Impeller WPL 303517 Contact Us For Availability
4
Relay, Start WPL 304409 Contact Us For Availability
5
Hose, Inlet WPL 304669 Contact Us For Availability
5
Cap, 5 Pin WPL 719584 Contact Us For Availability
5
Console (Includes Items 6 & 12) WPL 3367888 Contact Us For Availability
6
Retainer (2) WPL 3367736 Contact Us For Availability
6
Pump Housing, Lower WPL 718222 Contact Us For Availability
6
Insert, Decorative WPL 3367842 Contact Us For Availability
7
Seal WPL 711696 Contact Us For Availability
7
Knob, Timer WPL 3367282 Contact Us For Availability
8
Pin, Pivot (2) WPL 300234 Contact Us For Availability
9
Spray Arm, Upper WPL 304204 Contact Us For Availability
9
Receptacle (5-Circuit) WPL 719585 Contact Us For Availability
9
Grommet WPL 356592 Contact Us For Availability
9
Coverplate WPL 300084 Contact Us For Availability
10
harness, wiring WPL 3368836 Contact Us For Availability
10
Screen, Vent WPL 300246 Contact Us For Availability
10
Foam, Seal WPL 3368537 Contact Us For Availability
11
Barrier WPL 303978 Contact Us For Availability
11
Kit, Drain Impeller WPL 675468 Contact Us For Availability
12
Latch Assembly WPL 3367058 Contact Us For Availability
12
Screw, 13-16 (4) WPL 3369331 Contact Us For Availability
12
Grill, Vent WPL 304602 Contact Us For Availability
13
Clip, Trim Guard (2) WPL 3367172 Contact Us For Availability
13
Base, Pump WPL 3367203 Contact Us For Availability
14
Switch, Interlock WPL 660951 Contact Us For Availability
14
Bumper (2) WPL 304490 Contact Us For Availability
14
Switch, Pushbutton WPL 3367814 Contact Us For Availability
15
Tower WPL 304170 Contact Us For Availability
15
Nut, 7/18-16 WPL 713799 Contact Us For Availability
15
Protector, Edge WPL 3367669 Contact Us For Availability
16
Gasket WPL 713878 Contact Us For Availability
16
Motor WPL 303574 Contact Us For Availability
17
Nut, .125 WPL 717488 Contact Us For Availability
17
Silverware Basket Assembly WPL 304166 Contact Us For Availability
17
Bleeder Assembly WPL 718629 Contact Us For Availability
18
Bracket, Overflow Switch WPL 719342 Contact Us For Availability
18
Screw, 8 x 1-7/8 (2) WPL 304233 Contact Us For Availability
18
Trim Basket (2) WPL 717528 Contact Us For Availability
18
Pump & Motor Assembly WPL 3367440 Contact Us For Availability
19
Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability
19
Dispenser, Wetting Agent WPL 304442 Contact Us For Availability
19
Handle, Basket WPL 300086 Contact Us For Availability
20
Bearing, Nozzle WPL 719576 Contact Us For Availability
20
Gasket WPL 3368007 Contact Us For Availability
20
Washer WPL 713080 Contact Us For Availability
21
Retainer, Gasket WPL 3368002 Contact Us For Availability
21
Nut WPL 718575 Contact Us For Availability
22
Switch, Pressure WPL 660741 Contact Us For Availability
22
Indicator, Level WPL 718577 Contact Us For Availability
23
Button, Retainer (3) WPL 300239 Contact Us For Availability
23
``O`` Ring WPL 95080 Contact Us For Availability
24
Screw, 8-18 x 3/8 (3) WPL 300250 Contact Us For Availability
26
Valve, Water Inlet WPL 661511 Contact Us For Availability
26
Cap, Nozzle WPL 3367198 Contact Us For Availability
27
Spray Arm, Lower WPL 302767 Contact Us For Availability
28
Guard, Screen WPL 300988 Contact Us For Availability
29
Screen, Sump WPL 718226 Contact Us For Availability
30
Gasket, Pump WPL 717000 Contact Us For Availability
30
Nut, Twin Spring WPL 303080 Contact Us For Availability
32
Lever, Catch WPL 300119 Contact Us For Availability
33
Seal, Lever WPL 300105 Contact Us For Availability
34
Locknut (8) WPL 718829 Contact Us For Availability
34
Check Ball & Retainer WPL 675488 Contact Us For Availability
35
Washer (8) WPL 717624 Contact Us For Availability
35
Retainer WPL 300104 Contact Us For Availability
35
Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability
36
Heater WPL 660318 Contact Us For Availability
37
Support, Heater (2) WPL 717096 Contact Us For Availability
38
Actuator WPL 300109 Contact Us For Availability
38
Float WPL 718035 Contact Us For Availability
38
Washer, Retainer (2) WPL 717289 Contact Us For Availability
39
Standpipe, Overflow WPL 719967 Contact Us For Availability
39
Washer (2) WPL 14351 Contact Us For Availability
40
Gasket, Overflow WPL 719966 Contact Us For Availability
40
Washer (2) WPL 711284 Contact Us For Availability
41
Screw, 4-40 x 9/16 WPL 302203 Contact Us For Availability
42
Barrier, Door WPL 303906 Contact Us For Availability
42
Nut, 10-32 (2) WPL 120614 Contact Us For Availability
43
Socket, Caster (Alternate) WPL 300450 Contact Us For Availability
43
Edging, Panel WPL 304047 Contact Us For Availability
44
Shim WPL 712302 Contact Us For Availability
44
Thermostat WPL 661504 Contact Us For Availability
45
Strike WPL 300233 Contact Us For Availability
45
Barrier, Console WPL 303908 Contact Us For Availability
45
Bracket, Thermostat WPL 3368272 Contact Us For Availability
46
Key, Pump Housing WPL 301936 Contact Us For Availability
47
Washer (8) WPL 718750 Contact Us For Availability
48
Washer, Cup (8) WPL 718817 Contact Us For Availability
48
Panel, Front WPL 304668 Contact Us For Availability
49
Wheel Tub (8) WPL 300844 Contact Us For Availability
49
Trim, Door R.H. WPL 3368003 Contact Us For Availability
49
Trim, Door L.H. WPL 3368004 Contact Us For Availability
50
Screw, Shoulder (8) WPL 712499 Contact Us For Availability
51
Track (2) WPL 300846 Contact Us For Availability
52
End Cap, Track (4) WPL 300845 Contact Us For Availability
53
Screw, 8-18 x 5/8 (10) WPL 3368008 Contact Us For Availability
54
Gasket, Standpipe (2) WPL 301662 Contact Us For Availability
56
Pad, Sound (2) WPL 302340 Contact Us For Availability
61
Retainer, Spring WPL 716401 Contact Us For Availability
62
Panel, Access WPL 302592 Contact Us For Availability
63
Cap, End R.H. WPL 3367527 Contact Us For Availability
63
Cap, End L.H. WPL 3367531 Contact Us For Availability
64
Foot (2) WPL 719581 Contact Us For Availability
65
Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability
66
Overlay, Access Panel WPL 303445 Contact Us For Availability
67
Cap, Drip WPL 718576 Contact Us For Availability
68
Spacer, Panel WPL 3368569 Contact Us For Availability
77
Washer (2) WPL 300237 Contact Us For Availability
84
Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability
85
Actuator WPL 304443 Contact Us For Availability
86
Rail, Support WPL 304391 Contact Us For Availability
89
Lever, Release WPL 304408 Contact Us For Availability
91
Screw, 6-32 x 1 WPL 301582 Contact Us For Availability
92
Screw, 8 - 18 (4) WPL 3367288 Contact Us For Availability
93
Bumper WPL 715779 Contact Us For Availability
94
Clip, Wire WPL 301857 Contact Us For Availability
95
Retainer, Clip WPL 3367720 Contact Us For Availability
96
Shield, Harness WPL 303362 Contact Us For Availability
98
pad WPL 301774 Contact Us For Availability
× ![]()
