Model Whirlpool DP4800XSW0 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT304287 WPL LIT304287 Contact Us For Availability

WPL LIT3367225 WPL LIT3367225 Contact Us For Availability

WPL LIT3367326 WPL LIT3367326 Contact Us For Availability

WPL LIT3367759 WPL LIT3367759 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Bracket, Console WPL 300754 Contact Us For Availability

1

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

1

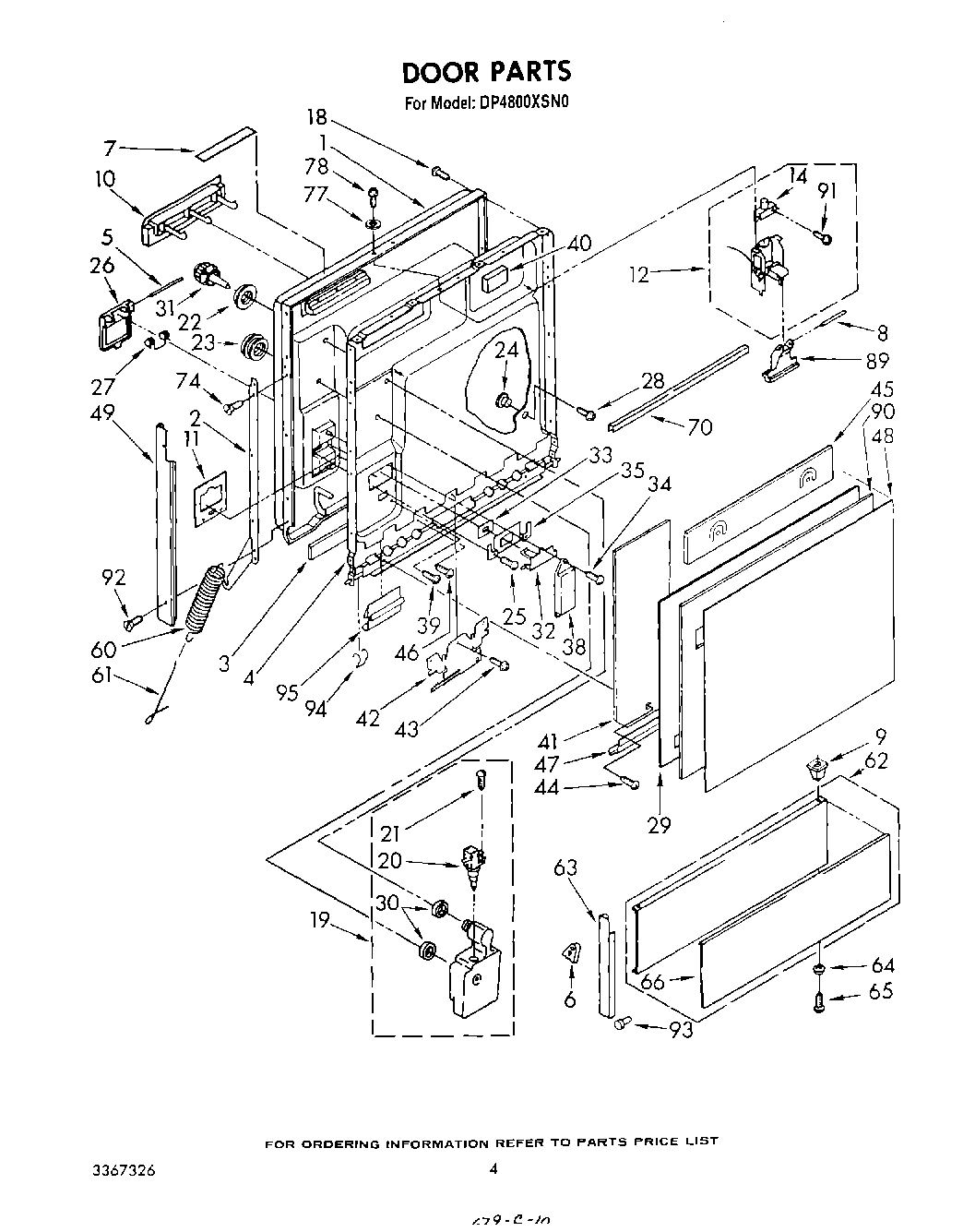

Door, Inner (Includes Illus. 4) WPL 3367388 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Panel, Escutcheon WPL 304059 Contact Us For Availability

2

Support, Door (R.H.) WPL 3367201 Contact Us For Availability

2

Support, Door (L.H.) WPL 3367202 Contact Us For Availability

2

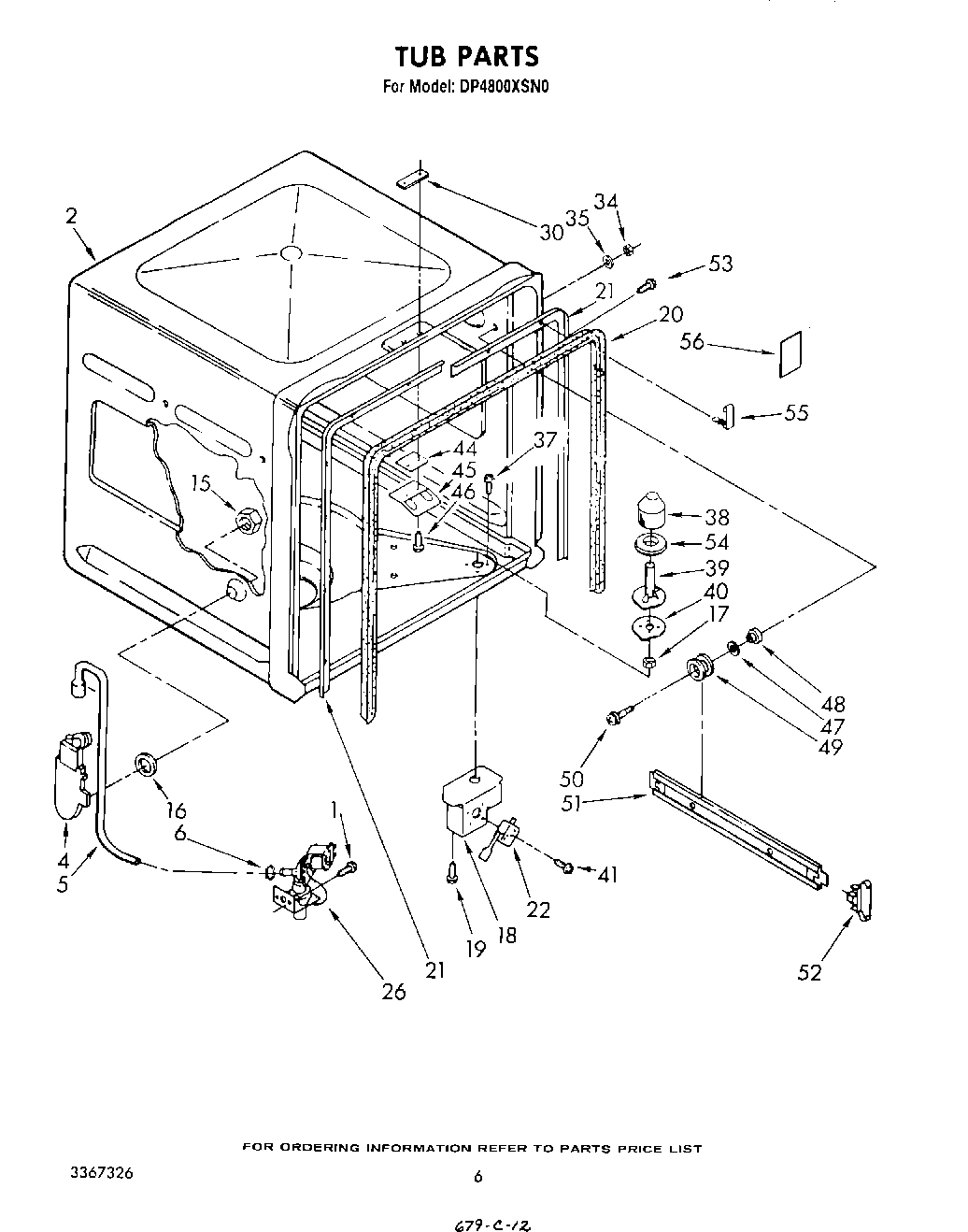

tub assembly WPL 3367464 Contact Us For Availability

3

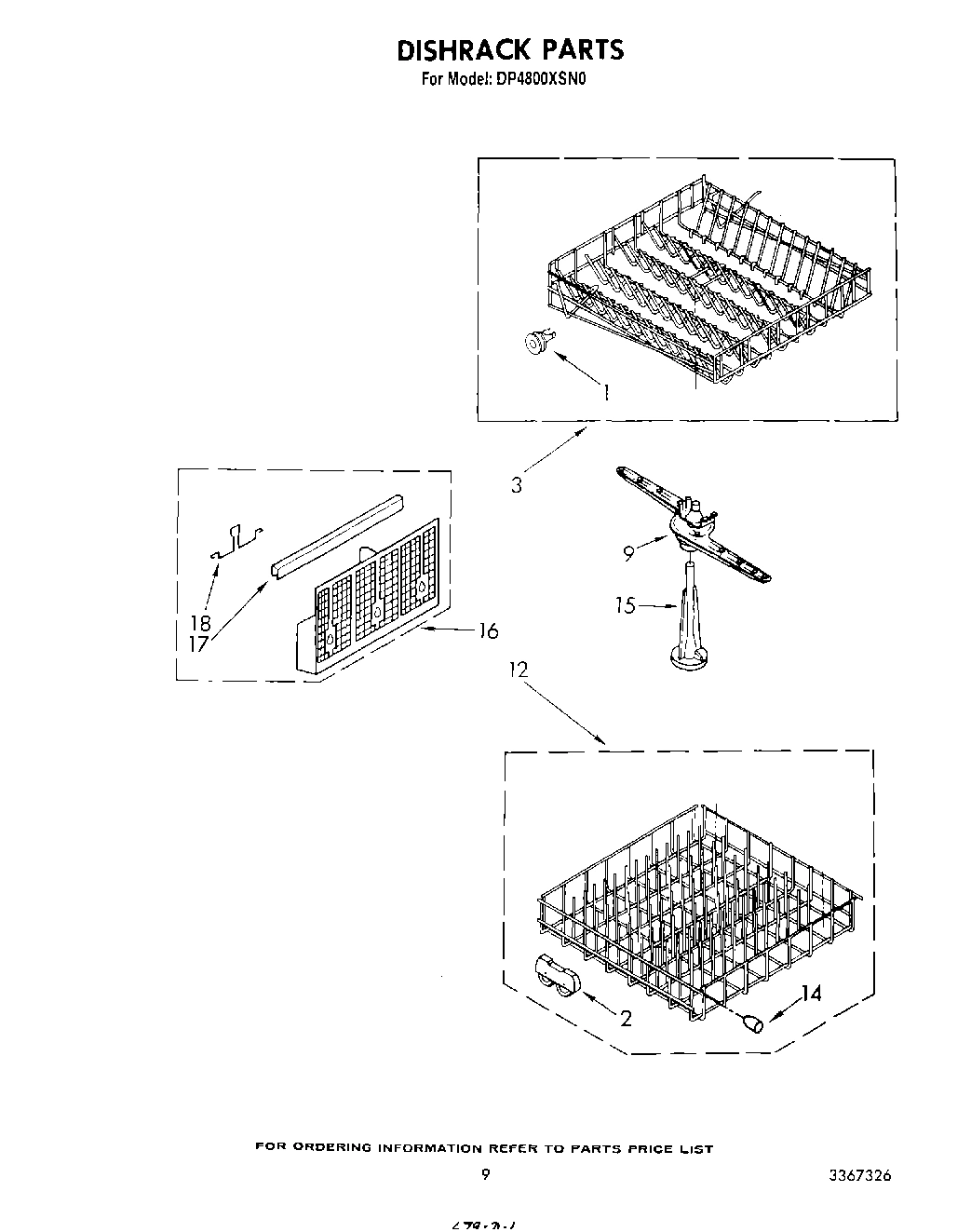

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

WP285170 Whirlpool Collar In Stock WPL WP285170 $28.27

3

Motor, Timer WPL 303558 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

4

Impeller WPL 303517 Contact Us For Availability

4

Relay, Start (Alt.) WPL 300516 Contact Us For Availability

4

Relay, Start (Alt.) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Relay, Start WPL 660736 Contact Us For Availability

4

Liner, Door WPL 3367500 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Hose, Inlet WPL 304669 Contact Us For Availability

5

Insert, Console WPL 304004 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

6

Timer WPL 303995 Contact Us For Availability

6

Retainer (2) WPL 3367736 Contact Us For Availability

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

7

Seal WPL 711696 Contact Us For Availability

7

Label, Users Guide WPL 302081 Contact Us For Availability

8

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

8

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

8

Pin, Pivot WPL 300234 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Coverplate WPL 300084 Contact Us For Availability

9

Grommet WPL 356592 Contact Us For Availability

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

10

Button WPL 301977 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

10

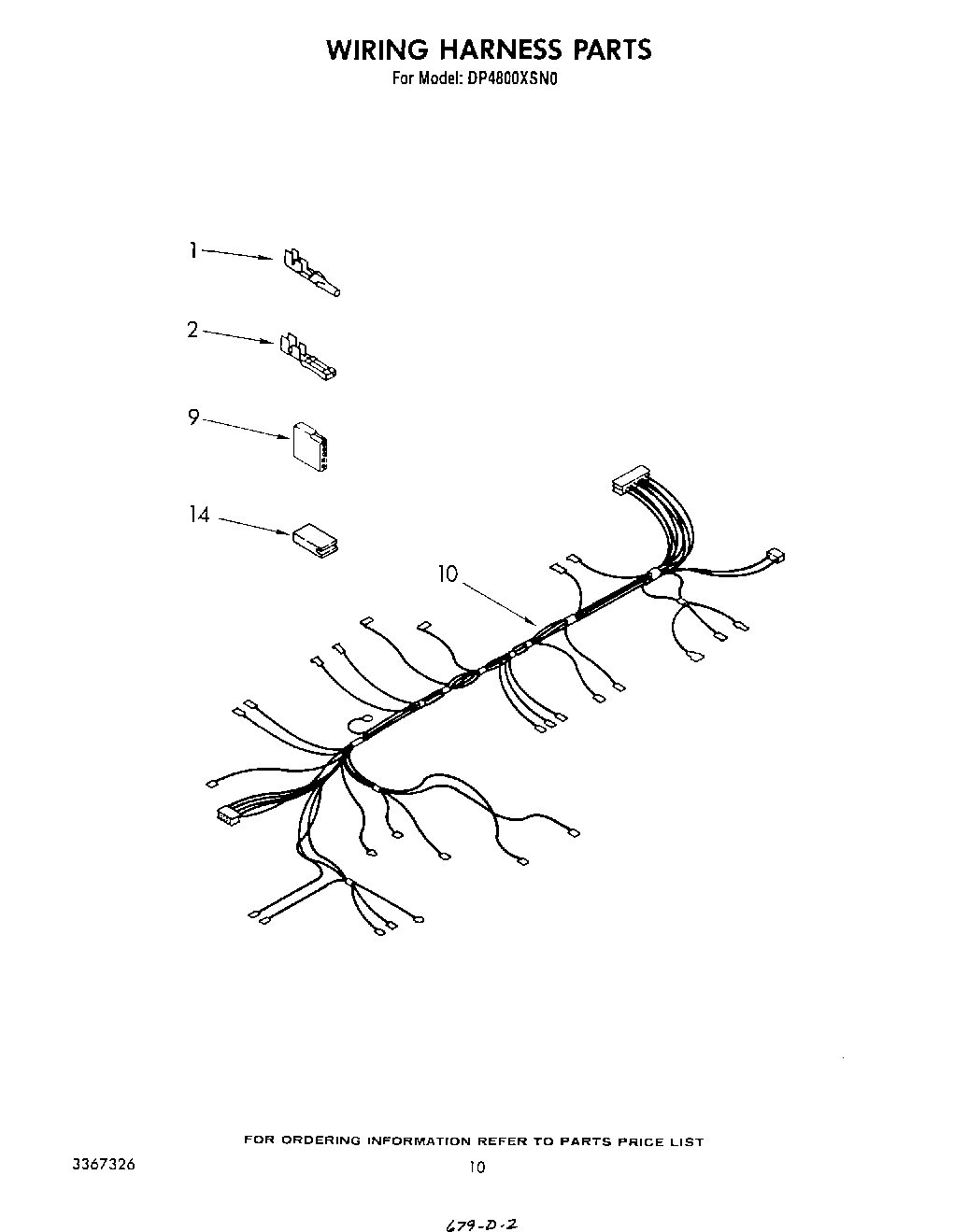

Harness, Wiring WPL 3367734 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Kit, Drain Impeller WPL 675474 Contact Us For Availability

Switch, Push Button WPL 303427 Contact Us For Availability

Barrier WPL 303978 Contact Us For Availability

12

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

12

Screw, 13-16 (4) WPL 301817 Contact Us For Availability

12

Latch Assembly WPL 300235 Contact Us For Availability

13

Base, Pump WPL 3367203 Contact Us For Availability

13

Barrier WPL 303129 Contact Us For Availability

WP3367197 Whirlpool Dishwasher Support Backorder WPL WP3367197 $3.51

Trim, Console WPL 301624 Contact Us For Availability

Bumper WPL 717970 Contact Us For Availability

Switch, Interlock (Alt.) WPL 300232 Contact Us For Availability

Switch, Interlock (Alt.) WPL 303075 Contact Us For Availability

Switch, Interlock (Alt.) WPL 303885 Contact Us For Availability

Switch, Interlock WPL 660951 Contact Us For Availability

Block, Disconnect WPL 304758 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Tower WPL 304170 Contact Us For Availability

Nut, 7/18-16 WPL 713799 Contact Us For Availability

16

Motor WPL 303574 Contact Us For Availability

16

Silverware Basket WPL 304166 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

17

Trim, Basket WPL 717528 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Pump & Motor Assembly WPL 3367440 Contact Us For Availability

Handle, Basket WPL 300086 Contact Us For Availability

Bracket, Overflow Switch WPL 719342 Contact Us For Availability

19

Dispenser, Wetting Agent WPL 304442 Contact Us For Availability

19

Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability

Actuator WPL 304443 Contact Us For Availability

Gasket WPL 3367679 Contact Us For Availability

Check Ball & Retainer WPL 675488 Contact Us For Availability

Screw, 4-20 x 3/8 (2) WPL 304444 Contact Us For Availability

Retainer (R.H.) WPL 302093 Contact Us For Availability

Retainer (L.H.) WPL 302094 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

Nut, 1-14 WPL 718575 Contact Us For Availability

Switch, Pressure (Alt.) WPL 301671 Contact Us For Availability

Switch, Pressure (Alt.) WPL 301672 Contact Us For Availability

Switch, Pressure WPL 660741 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Indicator, Leveler WPL 718577 Contact Us For Availability

24

Button, Retainer (3) WPL 300239 Contact Us For Availability

26

Cap, Nozzle WPL 3367198 Contact Us For Availability

26

Valve, Water Inlet WPL 661511 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 302767 Contact Us For Availability

28

Guard, Screen WPL 300988 Contact Us For Availability

28

Dial, Indicator WPL 300996 Contact Us For Availability

28

Screw, 8-18 x 3/8 (3) WPL 300250 Contact Us For Availability

29

Screen, Sump WPL 718226 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Knob WPL 301010 Contact Us For Availability

Washer WPL 713080 Contact Us For Availability

Nut, Twin Spring WPL 303080 Contact Us For Availability

31

Cap, Drip WPL 718576 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

34

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

34

Locknut (8) WPL 718829 Contact Us For Availability

35

Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

Heater (Alt.) WPL 302113 Contact Us For Availability

Heater (Alt.) WPL 302562 Contact Us For Availability

Heater WPL 660318 Contact Us For Availability

Heater (Alt.) WPL 717141 Contact Us For Availability

Heater (Alt.) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

40

Spacer, Timer WPL 302866 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

41

Barrier, Door WPL 303906 Contact Us For Availability

41

Screw, 4-40 x 3/4 WPL 302203 Contact Us For Availability

42

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

42

Shield, Harness WPL 303362 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 300450 Contact Us For Availability

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

Thermostat (Alt.) WPL 303282 Contact Us For Availability

Thermostat (Alt.) WPL 303652 Contact Us For Availability

Thermostat WPL 661504 Contact Us For Availability

Shim WPL 712302 Contact Us For Availability

45

Bracket, Thermostat WPL 303808 Contact Us For Availability

45

Barrier, Console WPL 303908 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

Edging, Panel WPL 304047 Contact Us For Availability

47

Washer (8) WPL 718750 Contact Us For Availability

48

Panel, Front WPL ARI22785A9 Contact Us For Availability

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

49

Trim, Door (R.H.) WPL 3367378 Contact Us For Availability

49

Trim, Door (L.H.) WPL 3367379 Contact Us For Availability

49

Wheel Tub (8) WPL 300844 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

53

Screw, 8-18 x 5/8 (10) WPL 719266 Contact Us For Availability

54

Gasket, Standpipe (2) WPL 301662 Contact Us For Availability

55

Clip, Gasket (2) WPL 301663 Contact Us For Availability

56

Pad, Sound WPL 301774 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

62

Panel, Access WPL ARI22786A7 Contact Us For Availability

63

Cap, End R.H. WPL 3367527 Contact Us For Availability

63

Cap, End L.H. WPL 3367531 Contact Us For Availability

64

Foot (2) WPL 719581 Contact Us For Availability

66

Overlay, Access Panel WPL 303445 Contact Us For Availability

70

Protector, Edge WPL 3367669 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

75

Vinyl Touch Up (Blue) WPL 675476 Contact Us For Availability

75

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

(Belt Drive) WPL LIT677813 Contact Us For Availability

LIT677813 (Belt Drive) (Dryer) WPL LIT677818 Contact Us For Availability

LIT677813 (Belt Drive) (Compactor) WPL LIT677821 Contact Us For Availability

LIT677813 (Belt Drive) (Dishwasher) WPL LIT677967 Contact Us For Availability

77

WPL 300237 WPL 300237 Contact Us For Availability

78

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

89

WPL 304407 WPL 304407 Contact Us For Availability

90

WPL 301957 WPL 301957 Contact Us For Availability

91

WPL 301582 WPL 301582 Contact Us For Availability

92

WPL 3367288 WPL 3367288 Contact Us For Availability

93

WPL 715779 WPL 715779 Contact Us For Availability

94

WPL 301857 WPL 301857 Contact Us For Availability

95

WPL 303121 WPL 303121 Contact Us For Availability
