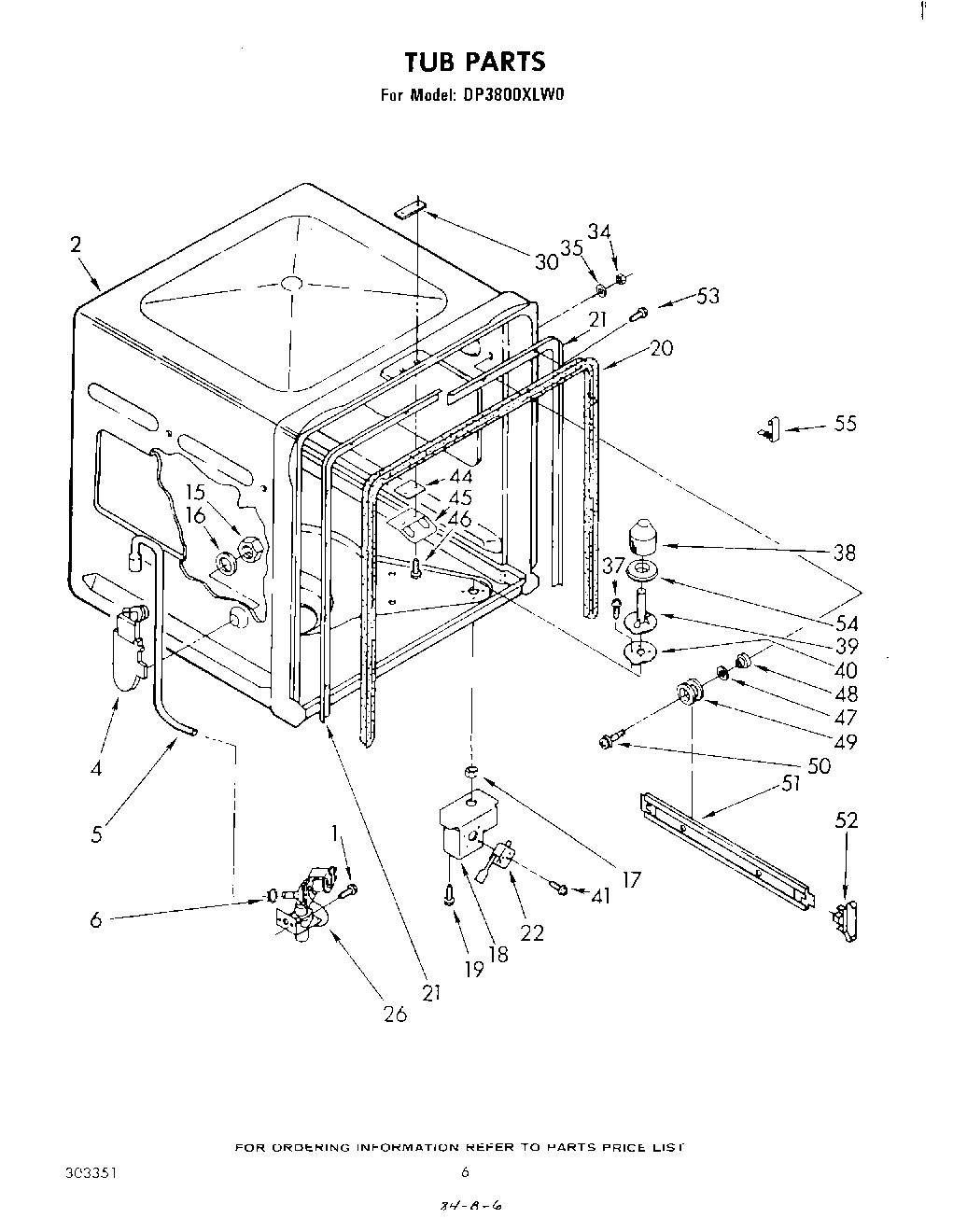

Model Whirlpool DP3800XLW0 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Motor (General Electric) WPL 301858 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Bracket, Console WPL 300754 Contact Us For Availability

1

Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability

1

Pump Housing, Upper WPL 301558 Contact Us For Availability

1

Wheel & Axle Assembly (4) WPL 300995 Contact Us For Availability

1

Shell Assembly (White) WPL 302897 Contact Us For Availability

1

Shell Assembly (Almond) WPL 302898 Contact Us For Availability

1

Shell Assembly (Golden Harvest) WPL 302901 Contact Us For Availability

1

Shell Assembly (New Avocado) WPL 302906 Contact Us For Availability

2

4317933 Whirlpool Lower Rack Wheels In Stock WPL 4317933 $14.55

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Panel, Escutcheon WPL 303458 Contact Us For Availability

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

2

Coupler Assembly WPL 302902 Contact Us For Availability

3

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

3

W11169039 Whirlpool Dishwasher Dish Rack In Stock WPL W11169039 $135.33

3

WP285170 Whirlpool Collar In Stock WPL WP285170 $28.27

3

Motor, Timer WPL 301074 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

3

Screw, 10-32 x .75 WPL 718326 Contact Us For Availability

4

Receptacle, Terminal (2-Way) WPL 717252 Contact Us For Availability

4

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Liner, Door WPL 303202 Contact Us For Availability

4

Impeller WPL 719949 Contact Us For Availability

4

Valve, Pressure Relief WPL 285171 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

WPW10144763 Whirlpool Tie Wire Backorder WPL WPW10144763 $2.38

5

Insert, Console WPL 303441 Contact Us For Availability

5

Spacer WPL 303048 Contact Us For Availability

6

Receptacle, Terminal (3-Way) WPL 353425 Contact Us For Availability

6

Timer WPL 303281 Contact Us For Availability

6

Retainer (2) WPL 301596 Contact Us For Availability

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $10.76

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

7

Seal WPL 711696 Contact Us For Availability

8

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

8

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

8

Screw (2) WPL 339494 Contact Us For Availability

8

Pin, Pivot WPL 300234 Contact Us For Availability

9

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Receptacle (5-Circuit) WPL 719585 Contact Us For Availability

9

Grommet WPL 356592 Contact Us For Availability

9

Coverplate WPL 300084 Contact Us For Availability

10

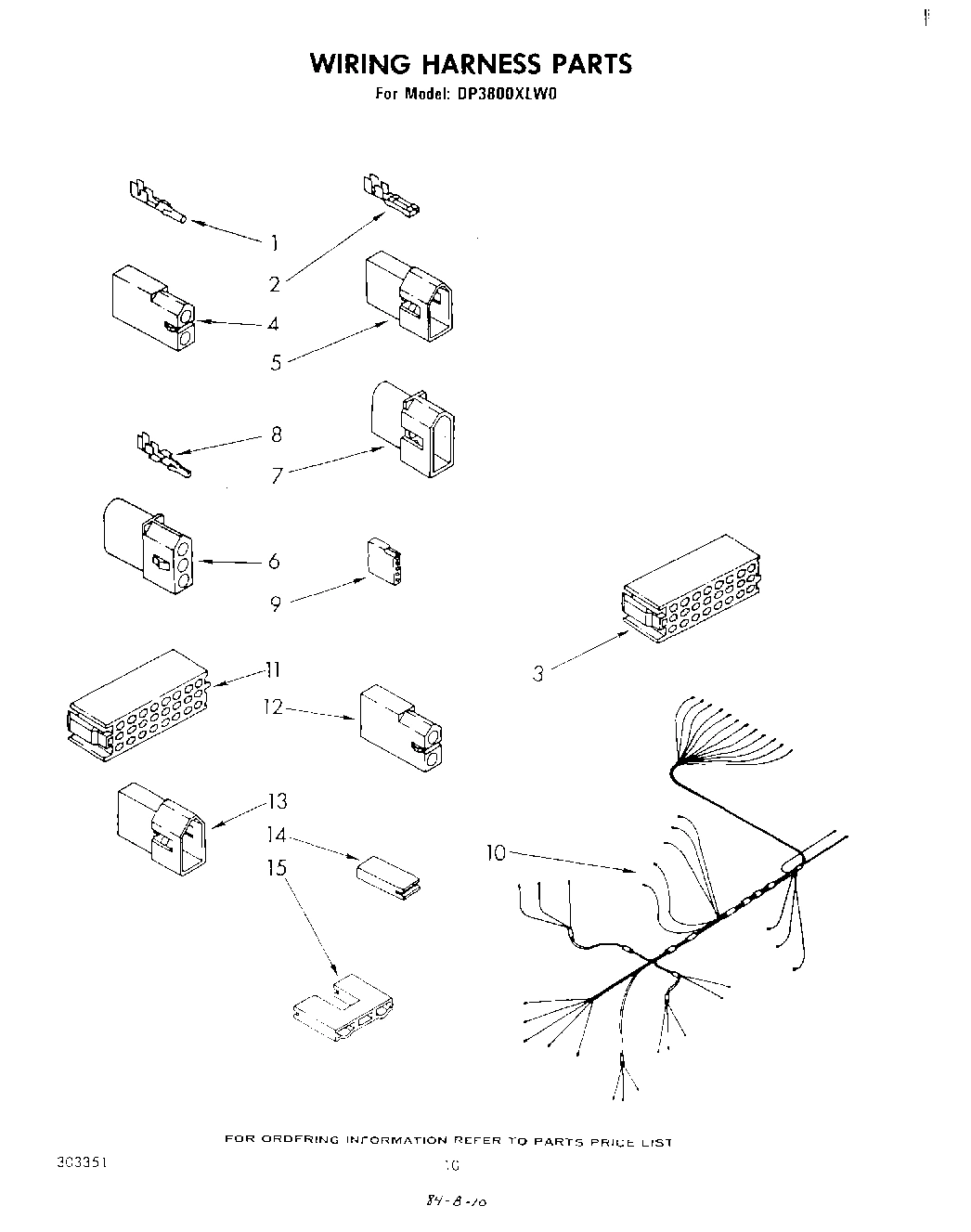

Harness, Wiring WPL 302345 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

Disconnect Block WPL 352090 Contact Us For Availability

Kit, Impeller Drain WPL 675297 Contact Us For Availability

W10311986 Whirlpool Dishwasher Lower Rack Backorder WPL W10311986 $170.17

Receptacle Terminal (2-Way) Red WPL 717251 Contact Us For Availability

Latch Assembly WPL 300235 Contact Us For Availability

Screw, 13-16 (4) WPL 301817 Contact Us For Availability

Housing, Hose WPL 302891 Contact Us For Availability

13

WP717253 Whirlpool Dishwasher Connector Backorder WPL WP717253 $3.51

13

Base, Pump WPL 301812 Contact Us For Availability

Connector Block WPL 301219 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Support, Pump (4) WPL 718260 Contact Us For Availability

Bumper WPL 303358 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Connector Block WPL 300708 Contact Us For Availability

Tower WPL 302030 Contact Us For Availability

Housing, Cord WPL 716234 Contact Us For Availability

16

WP8539066 Whirlpool Dishwasher Basket Ware Backorder WPL WP8539066 $38.52

16

Motor (Emerson) WPL 301811 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

Pump & Motor Assembly (Alternate) WPL 301829 Contact Us For Availability

Pump & Motor Assembly (Alternate) WPL 301860 Contact Us For Availability

Pump & Motor Assembly (Alternate) WPL 301861 Contact Us For Availability

20

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

21

Cord, Power WPL 302325 Contact Us For Availability

Switch, Pressure WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Adapter, Hose WPL 719930 Contact Us For Availability

Clamp, Strain Relief WPL 596553 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

23

Nut, J-Type WPL 717337 Contact Us For Availability

24

Screw, 8-18 x 5/8 WPL 303090 Contact Us For Availability

26

Valve, Water Inlet WPL 719495 Contact Us For Availability

26

Cap, Nozzle WPL 302816 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 302767 Contact Us For Availability

28

Dial, Indicator WPL 300996 Contact Us For Availability

28

Guard, Screen WPL 303069 Contact Us For Availability

29

Screen, Sump WPL 303070 Contact Us For Availability

29

Toeplate Assembly (Includes Illus. 43) WPL 719513 Contact Us For Availability

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

Nut, Twin Spring WPL 303080 Contact Us For Availability

Knob WPL 301010 Contact Us For Availability

Plate, Cover WPL 719091 Contact Us For Availability

31

Bar, Torsion (R.H.) WPL 719093 Contact Us For Availability

31

Bar, Torsion (L.H.) WPL 719094 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

32

Bumper, Rubber WPL 719235 Contact Us For Availability

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

34

Locknut (8) WPL 718829 Contact Us For Availability

34

Panel, Top WPL 303366 Contact Us For Availability

Washer (8) WPL 717624 Contact Us For Availability

Retainer WPL 300104 Contact Us For Availability

Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability

Trim, Front WPL 302250 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

Screw (2) WPL 343826 Contact Us For Availability

37

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

39

Screw, 8 x 1/2 Hi-Lo Blunt Point (1) WPL 718250 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Ground Clip (2) WPL 718533 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

41

Screw, 4-40 x 3/4 WPL 98086 Contact Us For Availability

Shield, Harness WPL 303362 Contact Us For Availability

Nut, 10-32 (2) WPL 9420162 Contact Us For Availability

Leg Assembly, L.H. WPL 719621 Contact Us For Availability

Leg Assembly, R.H. WPL 719622 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 300450 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 717588 Contact Us For Availability

44

WP3370639 Whirlpool Caster Backorder WPL WP3370639 $25.57

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

47

Washer (8) WPL 718750 Contact Us For Availability

48

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $26.68

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI22765A9 Contact Us For Availability

Wheel Tub (8) WPL 300844 Contact Us For Availability

Trim, Door (L.H.) WPL 303502 Contact Us For Availability

Trim, Door (R.H.) WPL 303503 Contact Us For Availability

Washer WPL 713747 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

50

Bushing WPL 713748 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

54

Gasket, Standpipe (2) WPL 301662 Contact Us For Availability

55

Clip, Gasket (2) WPL 301663 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

62

Panel, Access WPL ARI22766A8 Contact Us For Availability

63

Cap, End (R.H.) WPL 302590 Contact Us For Availability

63

Cap, End (L.H.) WPL 302591 Contact Us For Availability

64

Foot (2) WPL 719581 Contact Us For Availability

65

Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer (2) WPL 300237 Contact Us For Availability

89

Lever, Release WPL 300230 Contact Us For Availability

90

Spacer, Panel WPL 300801 Contact Us For Availability

91

Screw, 6-32 x 1 WPL 301582 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

Bumper WPL 715779 Contact Us For Availability

94

Clip, Wire WPL 301857 Contact Us For Availability

95

Retainer, Clip WPL 303121 Contact Us For Availability
