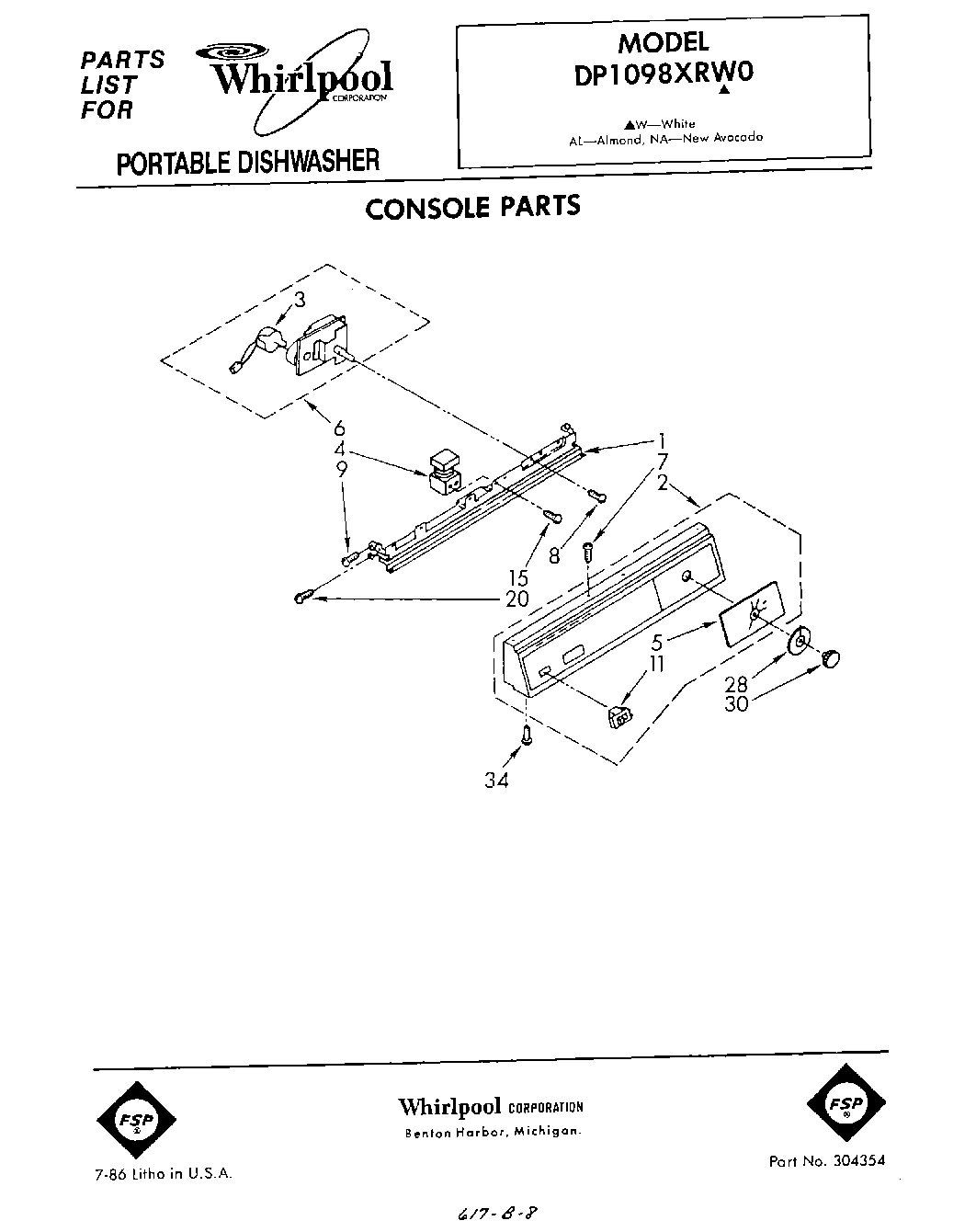

Model Whirlpool DP1098XRW0 PORTABLE DISHWASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

W10840471 Whirlpool Dishwasher Touch Up In Stock WPL W10840471 $15.23

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Toast WPL 285365 Contact Us For Availability

Paint, Spray (13 Oz.) (Platinum) WPL 285366 Contact Us For Availability

Enamal, Toast (1 Qt. Uncut) WPL 285367 Contact Us For Availability

Platinum (Uncut) WPL 285368 Contact Us For Availability

Tine Tip Repair Kit (Blue-Enough For Two Comp WPL 675506 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799640 WPL 799640 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT303312 WPL LIT303312 Contact Us For Availability

WPL LIT304283 WPL LIT304283 Contact Us For Availability

WPL LIT304354 WPL LIT304354 Contact Us For Availability

WPL LIT3367124 WPL LIT3367124 Contact Us For Availability

1

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

1

Bracket, Console WPL 300754 Contact Us For Availability

1

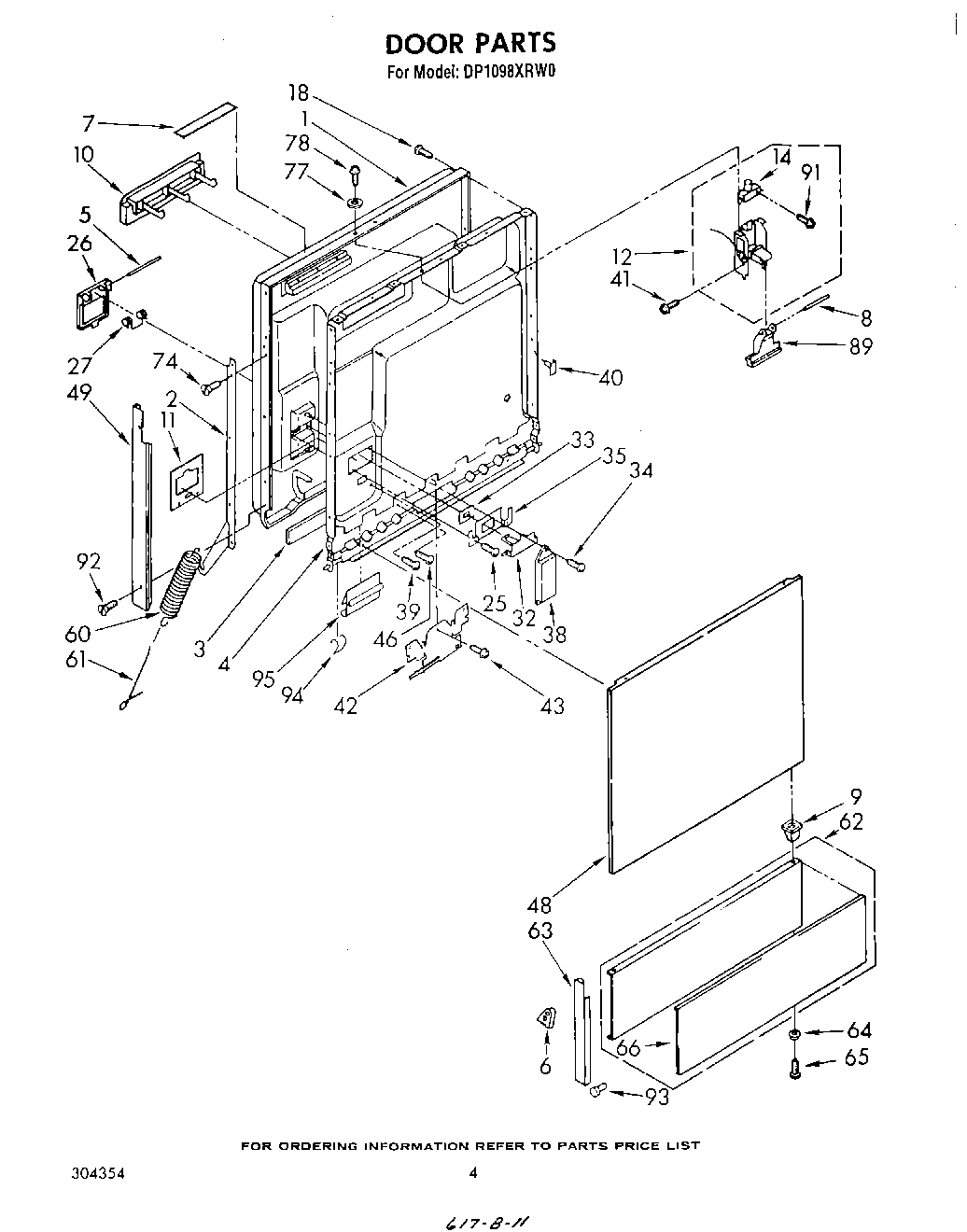

Door, Inner (Includes Illus. 4) WPL 303266 Contact Us For Availability

1

Pump Housing, Upper WPL 301558 Contact Us For Availability

2

Terminal, Female WPL 352088 Contact Us For Availability

2

Seal, Ring WPL 718259 Contact Us For Availability

2

Panel, Escutcheon WPL 303463 Contact Us For Availability

2

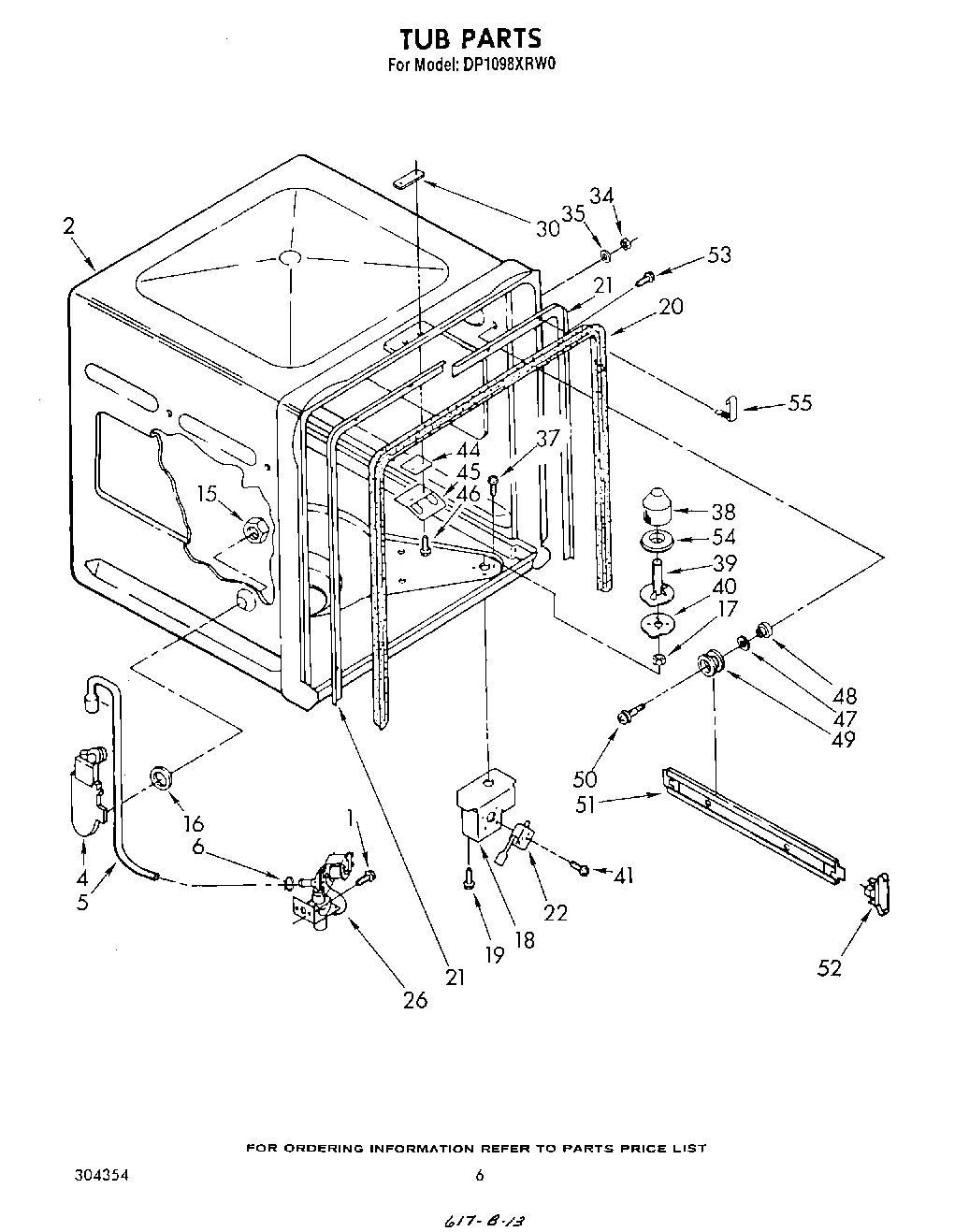

Tub Assembly WPL 303110 Contact Us For Availability

2

Support Door (L.H.) WPL 303196 Contact Us For Availability

2

Support, Door (R.H.) WPL 303197 Contact Us For Availability

3

WP285170 Whirlpool Collar In Stock WPL WP285170 $28.27

3

WP3371152 Whirlpool Dishwasher Screw Backorder WPL WP3371152 $3.70

3

Motor, Timer WPL 301074 Contact Us For Availability

3

Gasket, Door WPL 717921 Contact Us For Availability

4

Relay, Start (Alternate) WPL 300516 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301536 Contact Us For Availability

4

Relay, Start (Alternate) WPL 301620 Contact Us For Availability

4

Inlet, Water WPL 300974 Contact Us For Availability

4

Liner, Door WPL 303202 Contact Us For Availability

4

Impeller WPL 303517 Contact Us For Availability

5

4387043 Whirlpool Door Latch Kit In Stock WPL 4387043 $15.98

5

Hose, Inlet WPL 304669 Contact Us For Availability

5

Insert, Console WPL 303454 Contact Us For Availability

6

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

6

Timer WPL 303281 Contact Us For Availability

6

Retainer (2) WPL 301596 Contact Us For Availability

6

Pump Housing, Lower WPL 718222 Contact Us For Availability

7

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

7

Seal WPL 711696 Contact Us For Availability

7

Screw (4) WPL 304737 Contact Us For Availability

7

Label, Users Guide WPL 302081 Contact Us For Availability

8

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

8

Screw (2) WPL 339494 Contact Us For Availability

8

Pin, Pivot WPL 300234 Contact Us For Availability

9

WP304204 Whirlpool Dishwasher Spray Arm Backorder WPL WP304204 $94.36

9

Grommet WPL 356592 Contact Us For Availability

9

Coverplate WPL 300084 Contact Us For Availability

10

Screen, Vent WPL 300246 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

Barrier WPL 303978 Contact Us For Availability

Kit, Drain Impeller WPL 675468 Contact Us For Availability

12

Latch Assembly WPL 300235 Contact Us For Availability

12

Screw, 13-16 (4) WPL 301817 Contact Us For Availability

13

Base, Pump WPL 301812 Contact Us For Availability

Switch, Interlock (Alternate) WPL 300232 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303075 Contact Us For Availability

Switch, Interlock (Alternate) WPL 303885 Contact Us For Availability

Support, Pump (4) WPL 718260 Contact Us For Availability

W10909679 Whirlpool Dishwasher Slinger Backorder WPL W10909679 $8.24

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Tower WPL 304170 Contact Us For Availability

Nut, 7/18-16 WPL 713799 Contact Us For Availability

16

Gasket WPL 713878 Contact Us For Availability

16

Motor WPL 303574 Contact Us For Availability

17

Nut, .125 WPL 717488 Contact Us For Availability

17

Bleeder Assembly WPL 718629 Contact Us For Availability

18

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

18

Bracket, Overflow Switch WPL 719342 Contact Us For Availability

18

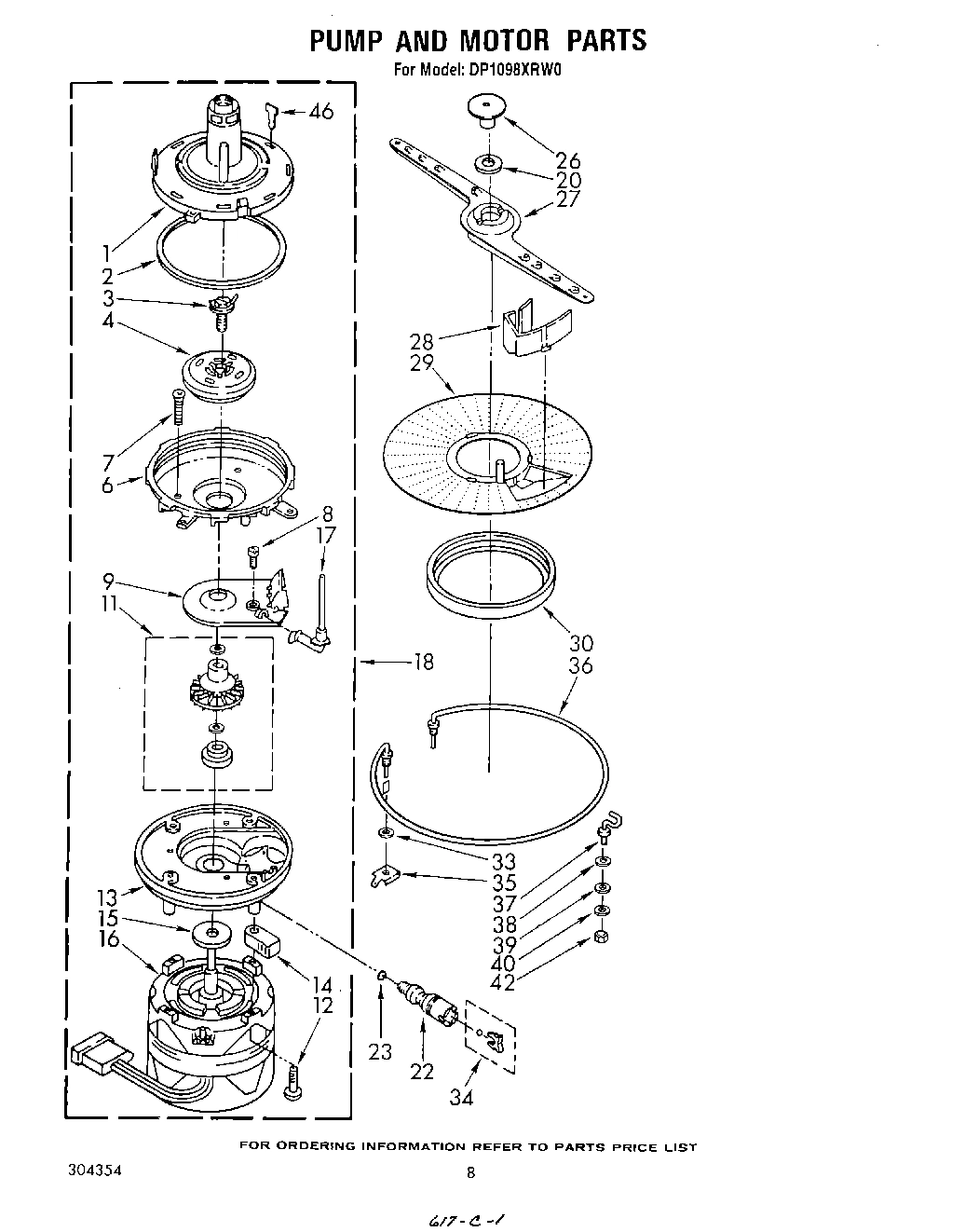

Pump & Motor Assembly WPL 303576 Contact Us For Availability

19

Screw, 8 x 1/2 (3) WPL 718250 Contact Us For Availability

WP719576 Whirlpool Dishwasher Bearing Backorder WPL WP719576 $4.26

Screw, 8-18 x 5/8 (2) WPL 303090 Contact Us For Availability

Gasket (Alternate) WPL 302090 Contact Us For Availability

Gasket (Alternate) WPL 302091 Contact Us For Availability

21

Retainer (R.H.) WPL 302093 Contact Us For Availability

21

Retainer (L.H.) WPL 302094 Contact Us For Availability

675238 Whirlpool Check Valve Backorder WPL 675238 $28.04

Switch, Pressure (Alternate) WPL 301671 Contact Us For Availability

Switch, Pressure (Alternate) WPL 301672 Contact Us For Availability

Switch, Pressure (Alternate) WPL 304589 Contact Us For Availability

23

``O`` Ring WPL 95080 Contact Us For Availability

26

Valve, Water Inlet (Alternate) WPL 3367044 Contact Us For Availability

26

Valve, Water Inlet (Alternate) WPL 719495 Contact Us For Availability

26

Cap, Nozzle WPL 303997 Contact Us For Availability

27

WP8066018 Whirlpool Spring Assembly In Stock WPL WP8066018 $2.51

27

Spray Arm, Lower WPL 302767 Contact Us For Availability

28

Dial, Indicator WPL 303607 Contact Us For Availability

28

Guard, Screen WPL 300988 Contact Us For Availability

29

Screen, Sump WPL 718226 Contact Us For Availability

30

717000 Whirlpool Dishwasher Gasket Backorder WPL 717000 $24.91

30

Knob WPL 303608 Contact Us For Availability

30

Nut, Twin Spring WPL 303080 Contact Us For Availability

32

Lever, Catch WPL 300119 Contact Us For Availability

33

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

33

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

33

Seal, Lever WPL 300105 Contact Us For Availability

34

WP487353 Whirlpool Refrigerator Screw Backorder WPL WP487353 $2.51

34

Locknut (8) WPL 718829 Contact Us For Availability

34

Check Ball & Retainer WPL 675488 Contact Us For Availability

35

Washer (8) WPL 717624 Contact Us For Availability

35

Retainer WPL 300104 Contact Us For Availability

35

Nut, 7/16-20 (2) WPL 718537 Contact Us For Availability

Heater (Alternate) WPL 302113 Contact Us For Availability

Heater (Alternate) WPL 302562 Contact Us For Availability

Heater (Alternate) WPL 717141 Contact Us For Availability

Heater (Alternate) WPL 719687 Contact Us For Availability

37

Support, Heater (2) WPL 717096 Contact Us For Availability

38

Actuator WPL 300109 Contact Us For Availability

38

Float WPL 718035 Contact Us For Availability

38

Washer, Retainer (2) WPL 717289 Contact Us For Availability

39

WP304231 Whirlpool Dishwasher Screw Backorder WPL WP304231 $2.51

39

Standpipe, Overflow WPL 719967 Contact Us For Availability

39

Washer (2) WPL 14351 Contact Us For Availability

40

Gasket, Overflow WPL 719966 Contact Us For Availability

40

Ground Clip (2) WPL 718533 Contact Us For Availability

40

Washer (2) WPL 711284 Contact Us For Availability

41

Screw, 4-40 x 3/4 WPL 302203 Contact Us For Availability

42

Shield, Harness WPL 303362 Contact Us For Availability

42

Nut, 10-32 (2) WPL 120614 Contact Us For Availability

43

Socket, Caster (Alternate) WPL 300450 Contact Us For Availability

44

Shim WPL 712302 Contact Us For Availability

45

Strike WPL 300233 Contact Us For Availability

46

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

Key, Pump Housing WPL 301936 Contact Us For Availability

47

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

47

Washer (8) WPL 718750 Contact Us For Availability

48

WPW10254672 Whirlpool Faucet Adapter In Stock WPL WPW10254672 $26.68

48

Washer, Cup (8) WPL 718817 Contact Us For Availability

48

Panel, Front WPL ARI22744A9 Contact Us For Availability

Washer WPL 713747 Contact Us For Availability

Wheel Tub (8) WPL 300844 Contact Us For Availability

Trim, Door (R.H.) WPL 3367122 Contact Us For Availability

Trim, Door (L.H.) WPL 3367123 Contact Us For Availability

50

Bushing WPL 713748 Contact Us For Availability

50

Screw, Shoulder (8) WPL 712499 Contact Us For Availability

51

Track (2) WPL 300846 Contact Us For Availability

52

End Cap, Track (4) WPL 300845 Contact Us For Availability

54

Gasket, Standpipe (2) WPL 301662 Contact Us For Availability

55

Clip, Gasket (2) WPL 301663 Contact Us For Availability

60

675611 Whirlpool Spring Assembly In Stock WPL 675611 $39.24

61

WP716401 Whirlpool Dishwasher Retainer In Stock WPL WP716401 $26.21

62

Panel, Access WPL ARI22745A2 Contact Us For Availability

63

Cap, End (R.H.) WPL 302590 Contact Us For Availability

63

Cap, End (L.H.) WPL 302591 Contact Us For Availability

64

Foot (2) WPL 719581 Contact Us For Availability

65

Screw, 8-18 x 5/8 WPL 719266 Contact Us For Availability

66

Overlay, Access Panel WPL 3367146 Contact Us For Availability

74

WP488627 Whirlpool Refrigerator Screw In Stock WPL WP488627 $4.26

77

Washer (2) WPL 300237 Contact Us For Availability

78

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

89

Lever, Release WPL 300230 Contact Us For Availability

91

Screw, 6-32 x 1 WPL 301582 Contact Us For Availability

92

302251 Whirlpool Dishwasher Screw Backorder WPL 302251 $9.59

93

Bumper WPL 715779 Contact Us For Availability

94

Clip, Wire WPL 301857 Contact Us For Availability

95

Retainer, Clip WPL 303121 Contact Us For Availability
