Model Maytag DM45A DISHWASHER – Common Parts & Diagrams

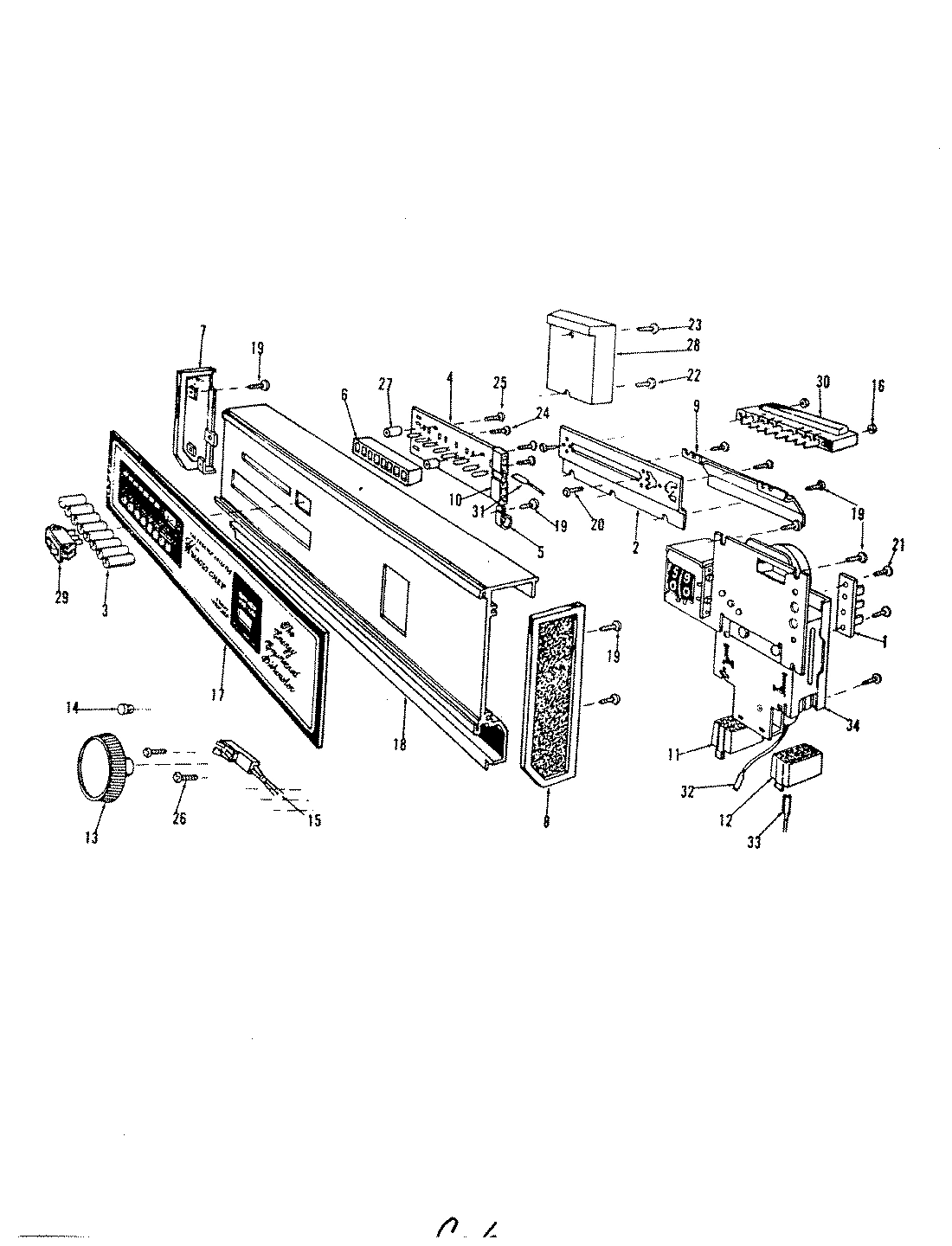

01 - CONTROL PANEL

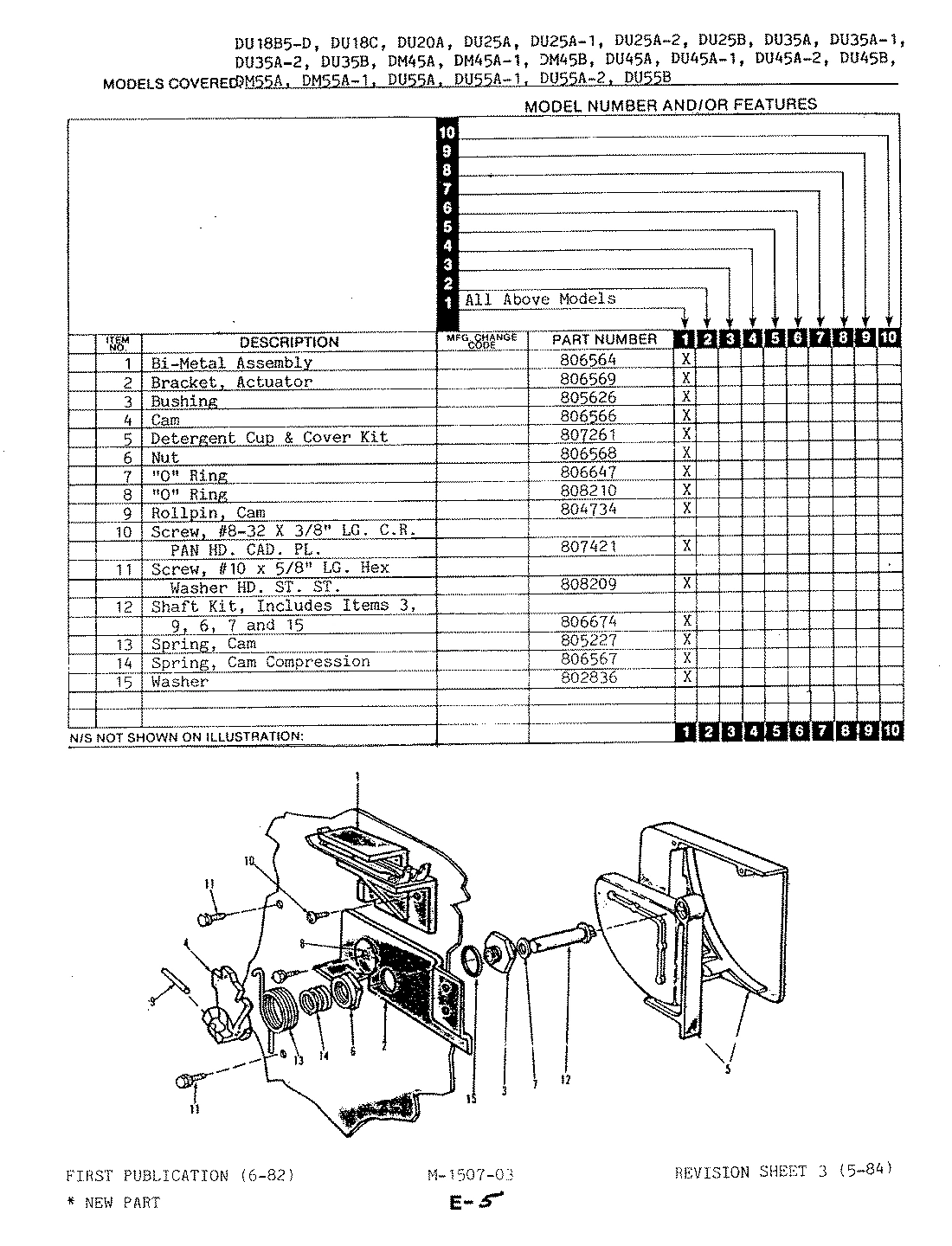

02 - DETERGENT CUP

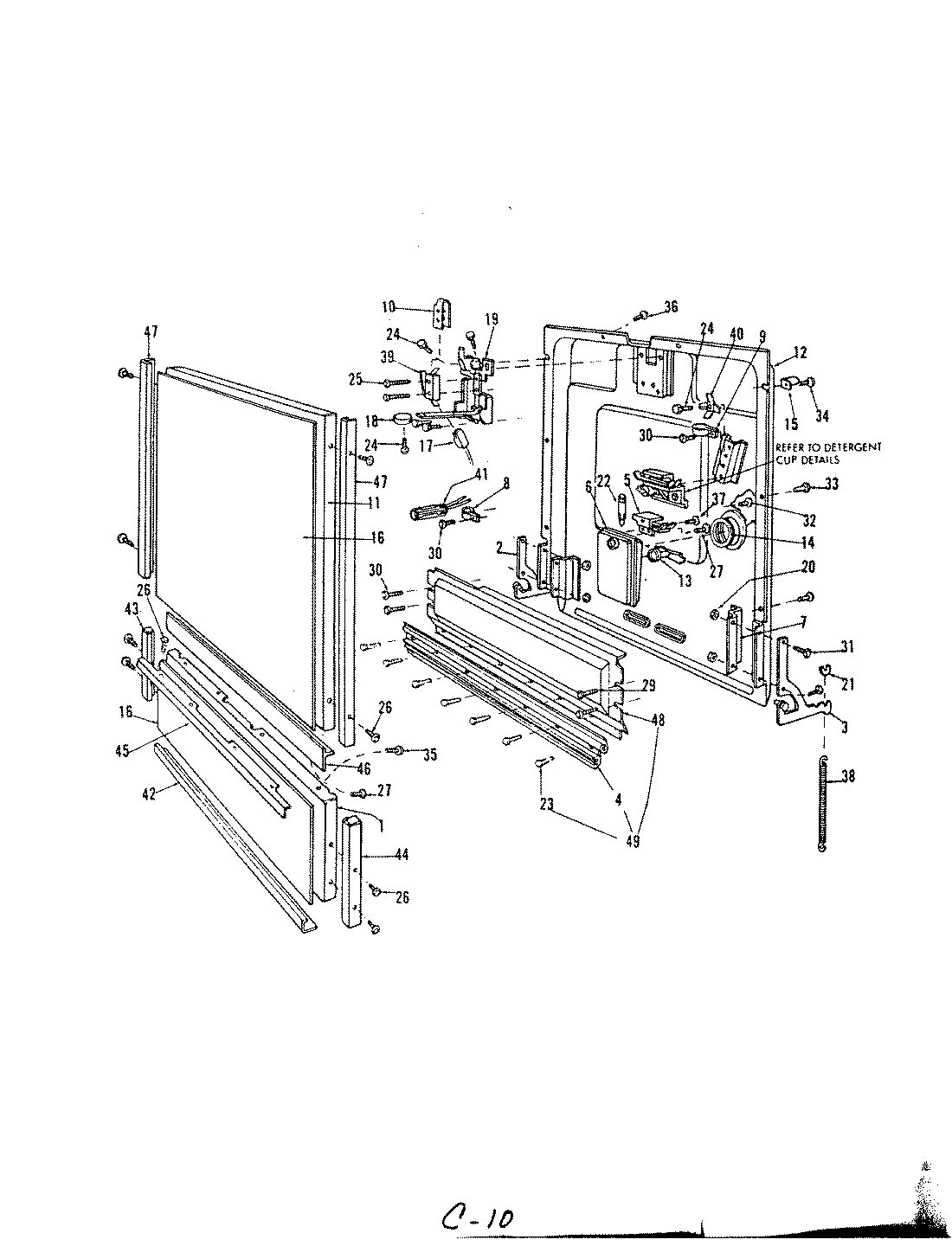

03 - DOOR

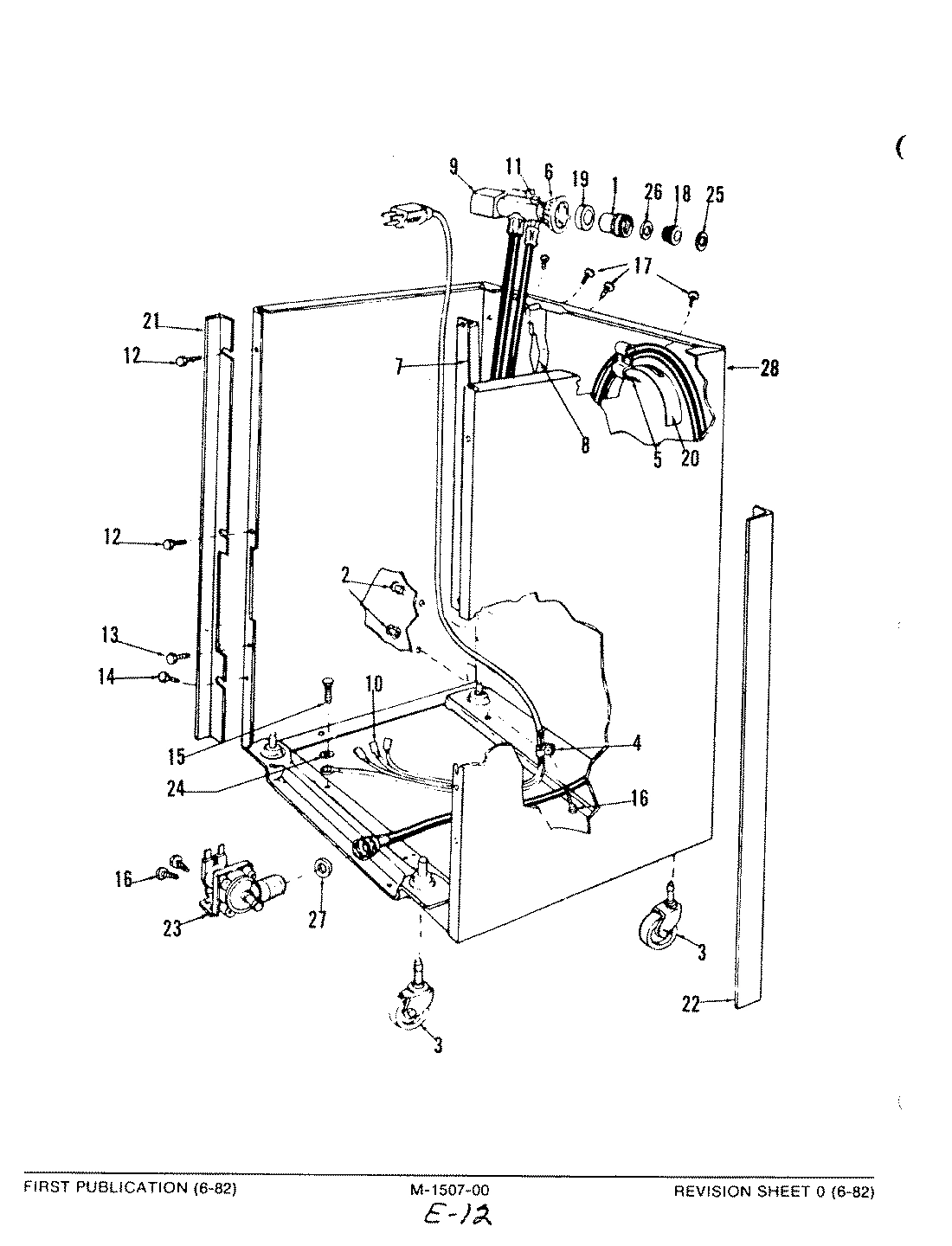

04 - FRAME PARTS

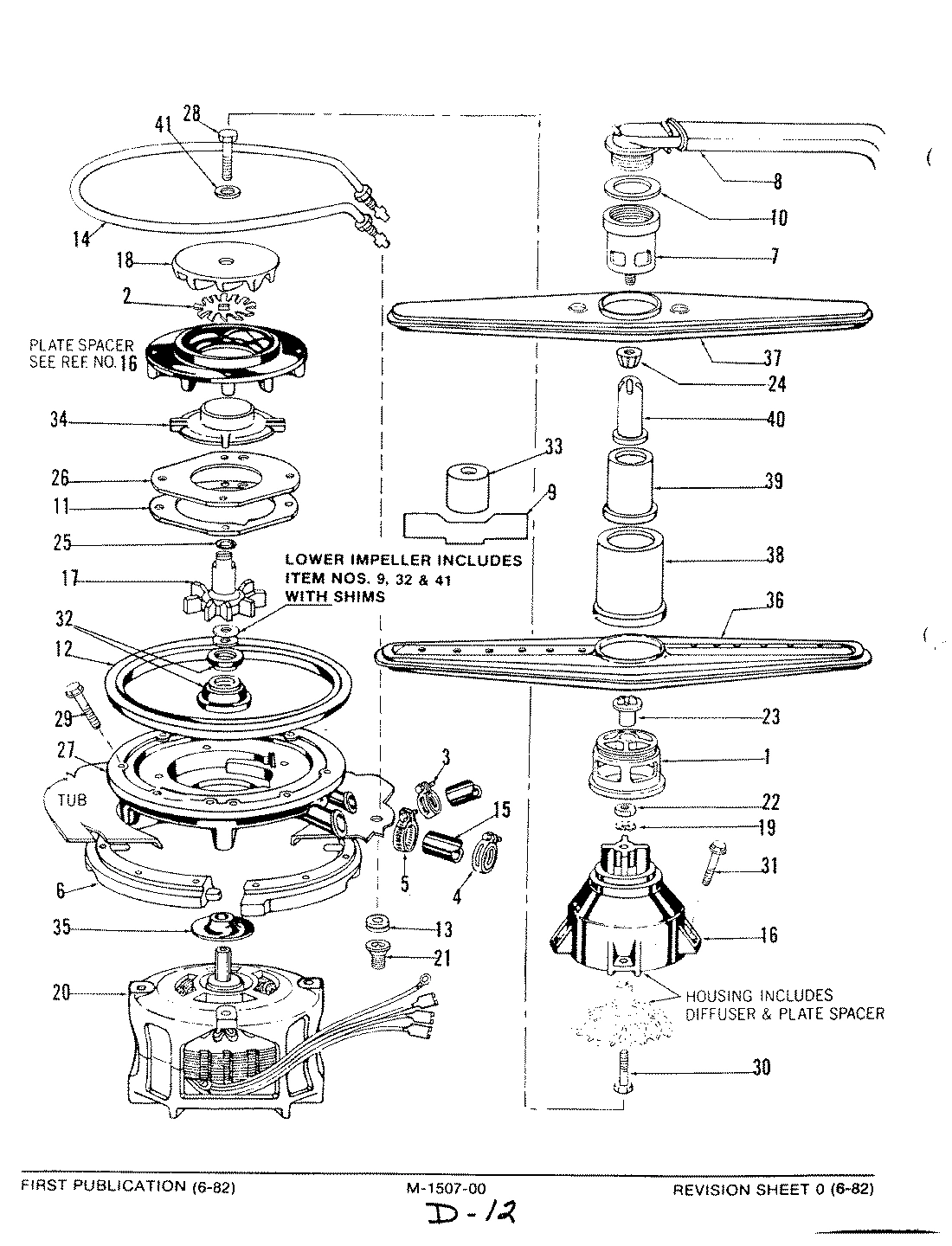

05 - MOTOR, HEATER & SPRAY ARM

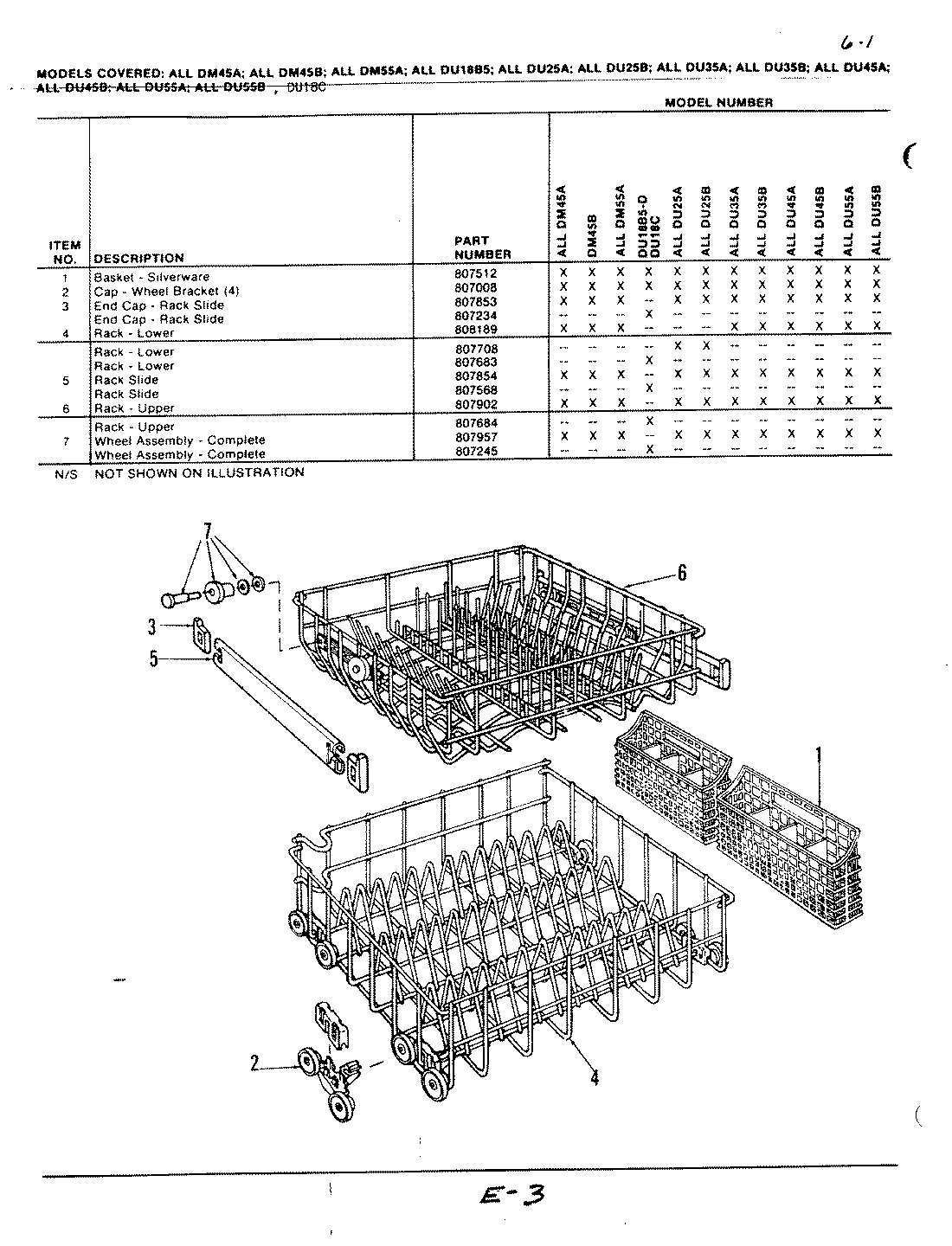

06 - RACKS

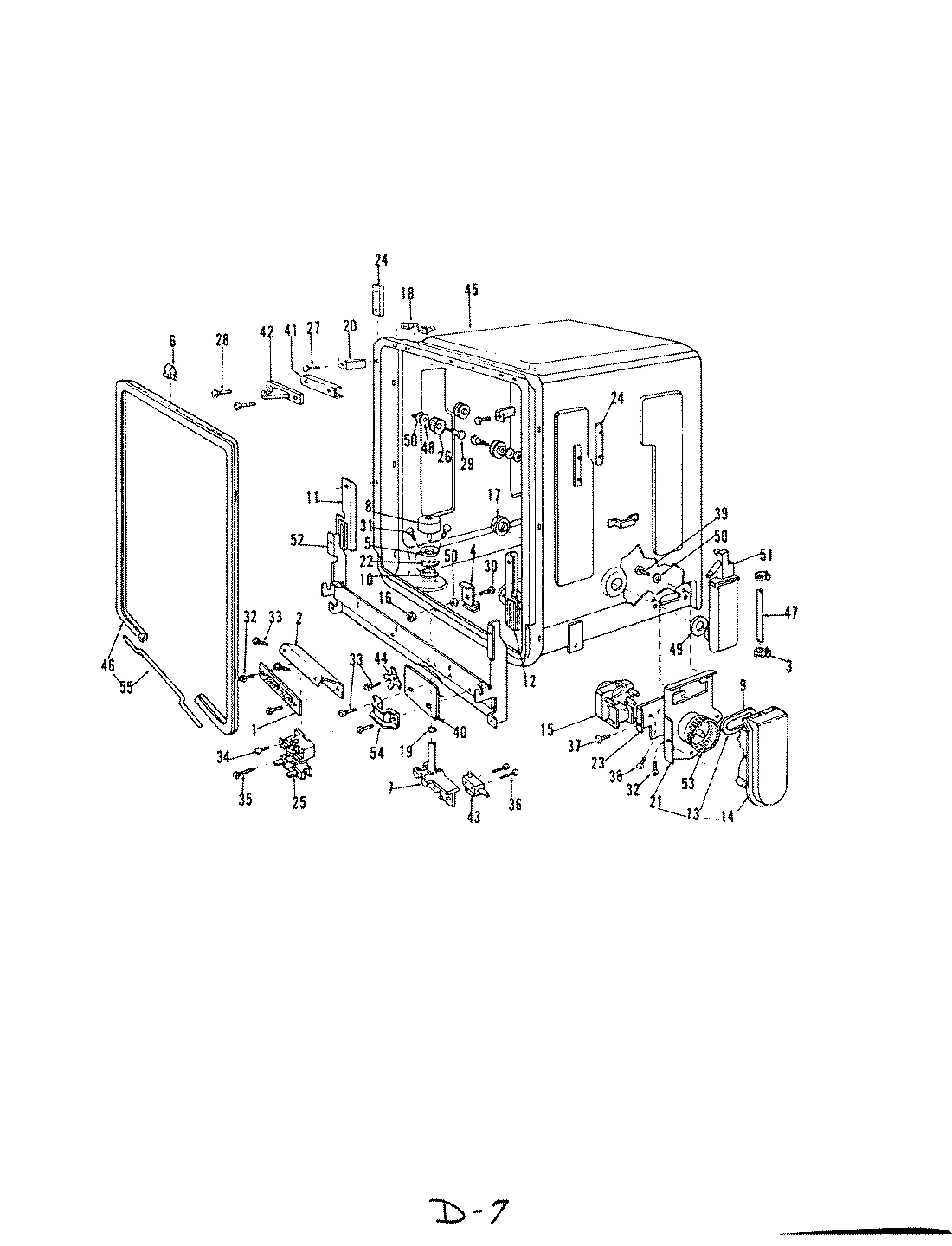

07 - TUB
Common parts from model Maytag DM45A DISHWASHER
1
MAY 806564 MAY 806564 Contact Us For Availability
1
MAY 808069 MAY 808069 Contact Us For Availability
1
MAY 808084 MAY 808084 Contact Us For Availability
1
MAY 803391 MAY 803391 Contact Us For Availability
1
LOWER BEARING MAY 808175 Contact Us For Availability
1
SILVRWR BASKET MAY 807512 Contact Us For Availability
1
MAY 807486 MAY 807486 Contact Us For Availability
2
MAY 806594 MAY 806594 Contact Us For Availability
2
MAY 806569 MAY 806569 Contact Us For Availability
2
LH ARM MAY 805682 Contact Us For Availability
2
MAY 807883 MAY 807883 Contact Us For Availability
2
MACERATOR BLADE MAY 808075 Contact Us For Availability
2
WHEEL ASM MAY 807008 Contact Us For Availability
2
MAY 807849 MAY 807849 Contact Us For Availability
3
PUSH BUTTON MAY 807091 Contact Us For Availability
3
MAY 805626 MAY 805626 Contact Us For Availability
3
RH ARM MAY 805681 Contact Us For Availability
3
MAY 807212 MAY 807212 Contact Us For Availability
3
MAY 806171 MAY 806171 Contact Us For Availability
3
CLAMP MAY 806090 Contact Us For Availability
3
END CAP MAY 807853 Contact Us For Availability
3
MAY 807813 MAY 807813 Contact Us For Availability
4
MAY 806566 MAY 806566 Contact Us For Availability
4
MAY 804426 MAY 804426 Contact Us For Availability
4
CLAMP MAY 805495 Contact Us For Availability
4
MAY 808189 MAY 808189 Contact Us For Availability
4
MAY 808115 MAY 808115 Contact Us For Availability
5
DETRG CUP KIT MAY 807261 Contact Us For Availability
5
BRACKET MAY 806756 Contact Us For Availability
5
HOSE CLAMP MAY 806142 Contact Us For Availability
5
MAY 808186 MAY 808186 Contact Us For Availability
5
MAY 807854 MAY 807854 Contact Us For Availability
5
MAY 804149 MAY 804149 Contact Us For Availability
6
NUT MAY 806568 Contact Us For Availability
6
DISPENSER MAY 806753 Contact Us For Availability
6
COLLAR KIT MAY 807499 Contact Us For Availability
6
CLAMP RING MAY 807712 Contact Us For Availability
6
UPPER RACK MAY 807902 Contact Us For Availability
6
CLIP KIT (TUB GASKET) MAY 805763 Contact Us For Availability
7
LH END CAP MAY 806407 Contact Us For Availability
7
O RING MAY 806647 Contact Us For Availability
7
ARM BRACKET MAY 806717 Contact Us For Availability
7
HOSE GUARD MAY 808120 Contact Us For Availability
7
MAY 808183 MAY 808183 Contact Us For Availability
7
WHEEL ASM MAY 807957 Contact Us For Availability
7
FLOAT ASM MAY 807677 Contact Us For Availability
8
RH END CAP MAY 806406 Contact Us For Availability
8
O RING MAY 808210 Contact Us For Availability
8
MAY 805340 MAY 805340 Contact Us For Availability
8
HOSE GUIDE MAY 805859 Contact Us For Availability
8
ELBOW & TUBE MAY 808185 Contact Us For Availability
8
MAY 804630 MAY 804630 Contact Us For Availability
9
MAY 806972 MAY 806972 Contact Us For Availability
9
ROLLPIN MAY 804734 Contact Us For Availability
9
HOSE ASM MAY 807496 Contact Us For Availability
9
SHIM GAUGE MAY 807077 Contact Us For Availability
10
MAY 807421 MAY 807421 Contact Us For Availability
10
SWITCH COVER MAY 807450 Contact Us For Availability
10
POWER CORD MAY 805046 Contact Us For Availability
10
MAY 808184 MAY 808184 Contact Us For Availability
10
GASKET MAY 808063 Contact Us For Availability
11
SCREW MAY 808209 Contact Us For Availability
11
MAY 807643 MAY 807643 Contact Us For Availability
11
RELIEF KIT MAY 807498 Contact Us For Availability
11
GASKET MAY 807709 Contact Us For Availability
11
LH GUIDE MAY 807470 Contact Us For Availability
12
SHAFT KIT MAY 806674 Contact Us For Availability
12
INNER PANEL MAY 807194 Contact Us For Availability
12
MAY 807710 MAY 807710 Contact Us For Availability
12
RH GUIDE MAY 807471 Contact Us For Availability
13
MAY 807094 MAY 807094 Contact Us For Availability
13
SPRING MAY 805227 Contact Us For Availability
13
MAY 807673 MAY 807673 Contact Us For Availability
13
SCREW MAY 806663 Contact Us For Availability
13
GROMMET MAY 806833 Contact Us For Availability
14
MAY 807096 MAY 807096 Contact Us For Availability
14
SPRING MAY 806567 Contact Us For Availability
14
GROMMET MAY 805631 Contact Us For Availability
14
HEATER KIT MAY 806864 Contact Us For Availability
15
LIGHT ASM MAY 805866 Contact Us For Availability
15
GASKET MAY 802836 Contact Us For Availability
15
DOOR GUIDE MAY 807449 Contact Us For Availability
15
MAY 807951 MAY 807951 Contact Us For Availability
15
HOSE CONNECTOR MAY 808174 Contact Us For Availability
16
MAY 808215 MAY 808215 Contact Us For Availability
16
SCREW MAY 804518 Contact Us For Availability
16
PUMPHOUSING KIT MAY 806978 Contact Us For Availability
16
MAY 803346 MAY 803346 Contact Us For Availability
17
INSULATOR MAY 806846 Contact Us For Availability
17
IMPELLER KIT MAY 808042 Contact Us For Availability
17
MAY 805669 MAY 805669 Contact Us For Availability
18
MAY 808212 MAY 808212 Contact Us For Availability
18
KNOB MAY 806893 Contact Us For Availability
18
ADAPTOR MAY 800782 Contact Us For Availability
18
UPPER IMPELLER MAY 808041 Contact Us For Availability
18
MAY 807018 MAY 807018 Contact Us For Availability
19
SCREW MAY 806943 Contact Us For Availability
19
LATCH ASM MAY 807016 Contact Us For Availability
19
U PACKING MAY 806584 Contact Us For Availability
19
MAY 804526 MAY 804526 Contact Us For Availability
19
O RING MAY 807759 Contact Us For Availability
20
MAY 807141 MAY 807141 Contact Us For Availability
20
MAY 800928 MAY 800928 Contact Us For Availability
20
HOSE SUPPORT MAY 806143 Contact Us For Availability
20
MOTOR MAY 806300 Contact Us For Availability
20
MAY 807454 MAY 807454 Contact Us For Availability
21
SPRING PAD MAY 805884 Contact Us For Availability
21
NUT MAY 806834 Contact Us For Availability
22
MAY 806757 MAY 806757 Contact Us For Availability
22
MAY 804527 MAY 804527 Contact Us For Availability
22
PLATE, FLOAT TUBE MAY 808064 Contact Us For Availability
23
MAY 804982 MAY 804982 Contact Us For Availability
23
NUT MAY 808176 Contact Us For Availability
24
MAY 807373 MAY 807373 Contact Us For Availability
24
MAY 808181 MAY 808181 Contact Us For Availability
24
TAPPING PLATE MAY 807038 Contact Us For Availability
25
MAY 803051 MAY 803051 Contact Us For Availability
25
MAY 803393 MAY 803393 Contact Us For Availability
25
O RING MAY 806521 Contact Us For Availability
25
RELAY MAY 805255 Contact Us For Availability
26
MAY 805324 MAY 805324 Contact Us For Availability
26
MAY 807293 MAY 807293 Contact Us For Availability
26
MAY 807607 MAY 807607 Contact Us For Availability
26
PUMP PLATE MAY 807884 Contact Us For Availability
26
ROLLER MAY 807180 Contact Us For Availability
27
MAY 805323 MAY 805323 Contact Us For Availability
27
MAY 806539 MAY 806539 Contact Us For Availability
27
HOSE WASHER MAY 800787 Contact Us For Availability
27
PUMP HOUSING MAY 807711 Contact Us For Availability
28
MAY 807425 MAY 807425 Contact Us For Availability
28
MAY 805063 MAY 805063 Contact Us For Availability
28
FRAME ASM AM MAY 808537 Contact Us For Availability
28
MAY 806353 MAY 806353 Contact Us For Availability
28
MAY 806890 MAY 806890 Contact Us For Availability
29
MAY 807737 MAY 807737 Contact Us For Availability
29
SCREW MAY 806810 Contact Us For Availability
29
SCREW MAY 807181 Contact Us For Availability
30
MAY 808403 MAY 808403 Contact Us For Availability
30
MAY 806945 MAY 806945 Contact Us For Availability
30
MAY 803319 MAY 803319 Contact Us For Availability
31
MAY 803311 MAY 803311 Contact Us For Availability
31
MAY 807268 MAY 807268 Contact Us For Availability
31
SCREW MAY 807359 Contact Us For Availability
32
MAY 807501 MAY 807501 Contact Us For Availability
32
SCREW MAY 806863 Contact Us For Availability
32
GASKET MAY 803903 Contact Us For Availability
33
SCREW MAY 806830 Contact Us For Availability
33
SCREW MAY 806967 Contact Us For Availability
33
SEAL TOOL MAY 803923 Contact Us For Availability
34
MAY 808128 MAY 808128 Contact Us For Availability
34
MAY 806976 MAY 806976 Contact Us For Availability
34
SHROUD MAY 806267 Contact Us For Availability
34
MAY 806593 MAY 806593 Contact Us For Availability
35
MAY 807784 MAY 807784 Contact Us For Availability
35
MAY D800062 MAY D800062 Contact Us For Availability
35
MAY 804672 MAY 804672 Contact Us For Availability
36
SCREW MAY 806894 Contact Us For Availability
36
MAY 808177 MAY 808177 Contact Us For Availability
36
BOLT MAY 804594 Contact Us For Availability
37
MAY 804895 MAY 804895 Contact Us For Availability
37
MAY 808182 MAY 808182 Contact Us For Availability
38
DOOR SPRING MAY 805683 Contact Us For Availability
38
TOWER BASE MAY 808178 Contact Us For Availability
39
SCREW MAY 803416 Contact Us For Availability
39
MAY 807043 MAY 807043 Contact Us For Availability
39
MAY 808179 MAY 808179 Contact Us For Availability
40
GROUND TERMINAL MAY 807213 Contact Us For Availability
40
MAY 808180 MAY 808180 Contact Us For Availability
41
MAY 808280 MAY 808280 Contact Us For Availability
41
STRIKE SHIM MAY 807073 Contact Us For Availability
42
BOTTOM TRIM MAY 808027 Contact Us For Availability
42
STRIKE MAY 807015 Contact Us For Availability
43
LH TRIM MAY 808029 Contact Us For Availability
43
FLOAT SWITCH MAY 807680 Contact Us For Availability
44
RH TRIM MAY 808028 Contact Us For Availability
45
ACC PNL TRIM MAY 808346 Contact Us For Availability
45
MAY 808187 MAY 808187 Contact Us For Availability
46
MAY 806912 MAY 806912 Contact Us For Availability
46
MAY 808071 MAY 808071 Contact Us For Availability
47
DOOR TRIM MAY 808026 Contact Us For Availability
47
INLET TUBE MAY 807891 Contact Us For Availability
48
MAY 803367 MAY 803367 Contact Us For Availability
49
VENT BAFFLE MAY 808369 Contact Us For Availability
49
WASHER MAY 803573 Contact Us For Availability
50
SEALER MAY 805776 Contact Us For Availability
51
MAY 806470 MAY 806470 Contact Us For Availability
52
HINGE MAY 807885 Contact Us For Availability
54
CLAMP MAY 806723 Contact Us For Availability
55
