Model Hotpoint DLL2884TB Dryer Electric – Common Parts & Diagrams

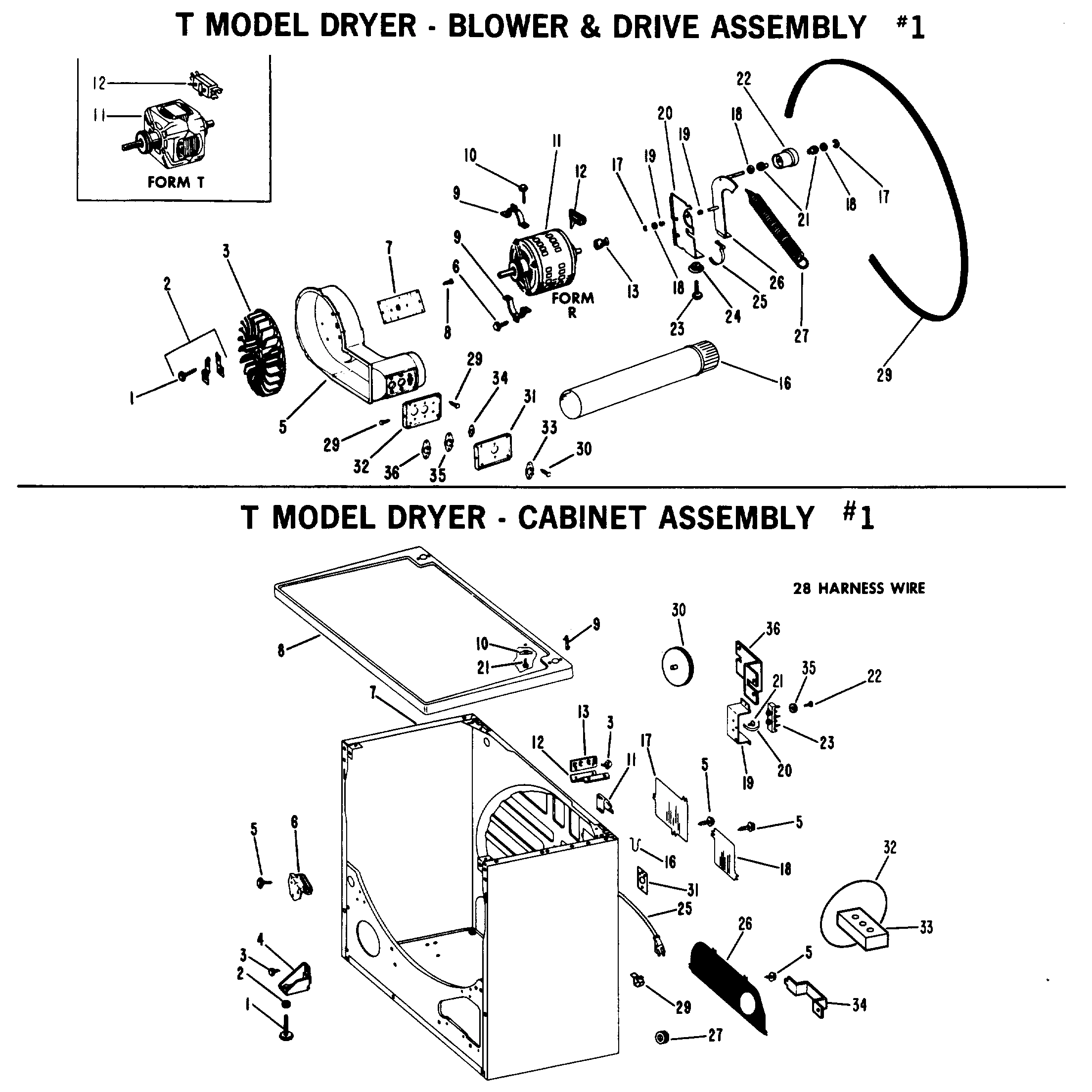

BLOWER & DRIVE ASSEMBLY #1

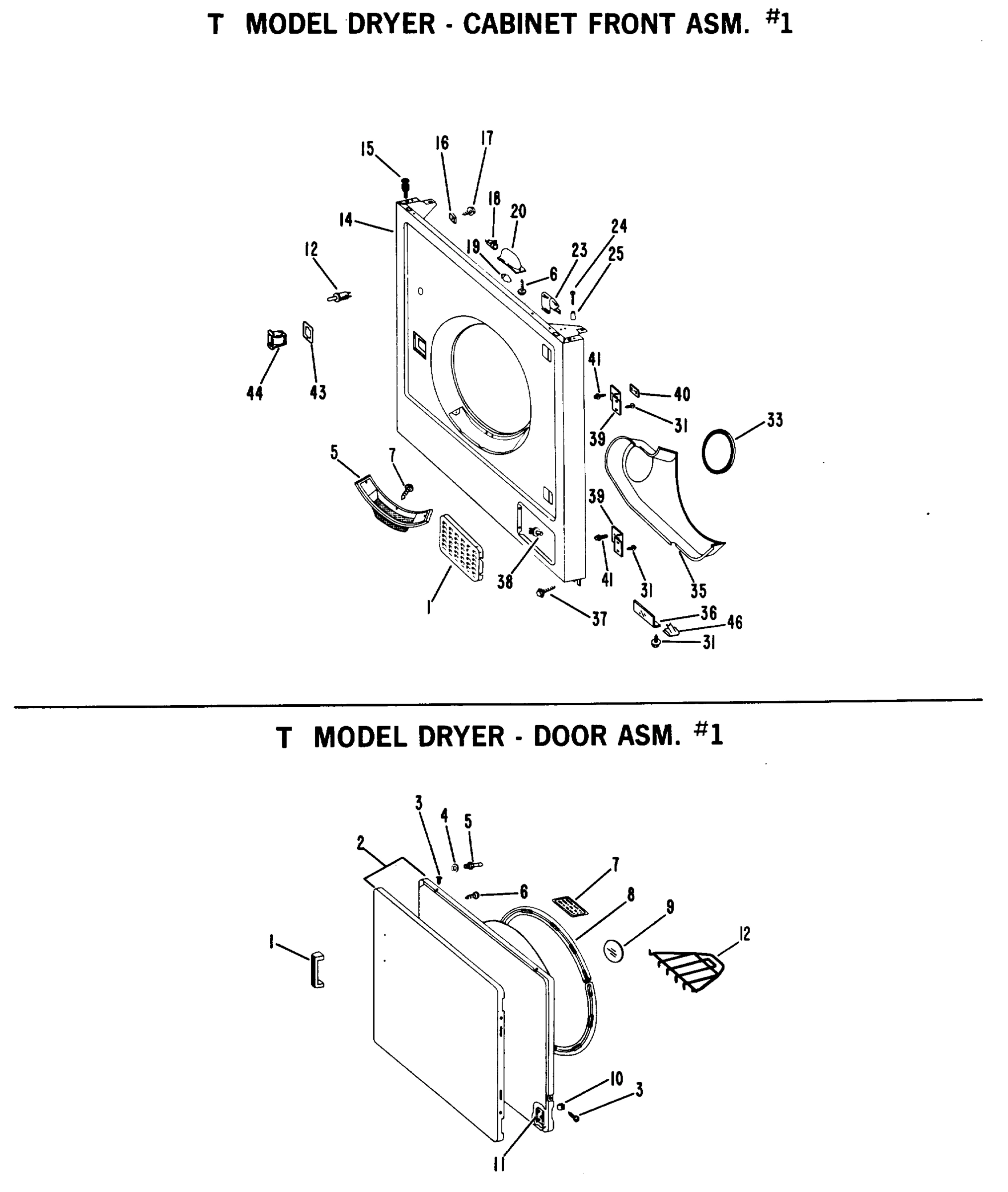

CABINET FRONT ASM. #1

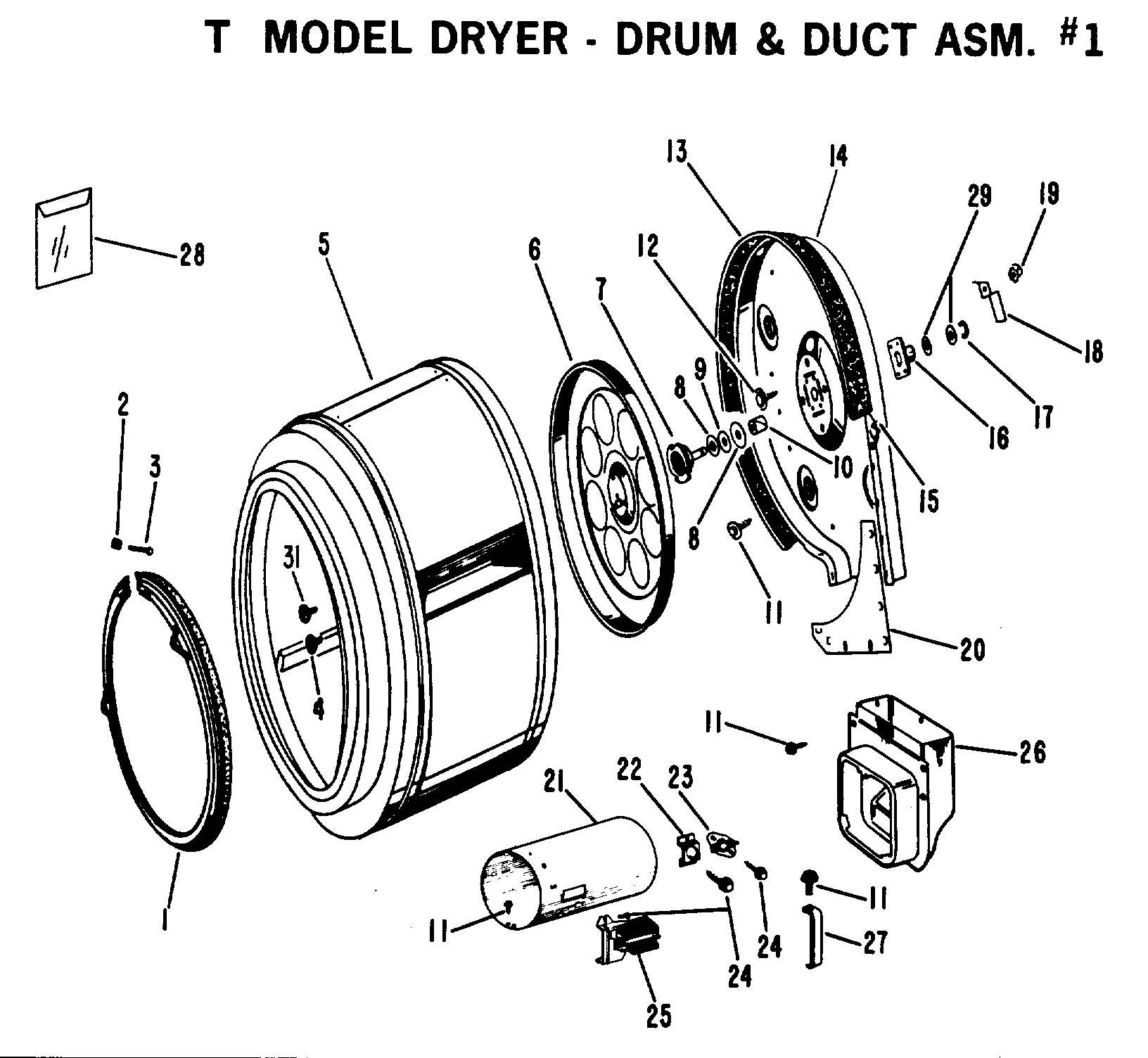

DRUM & DUCT ASM. #1

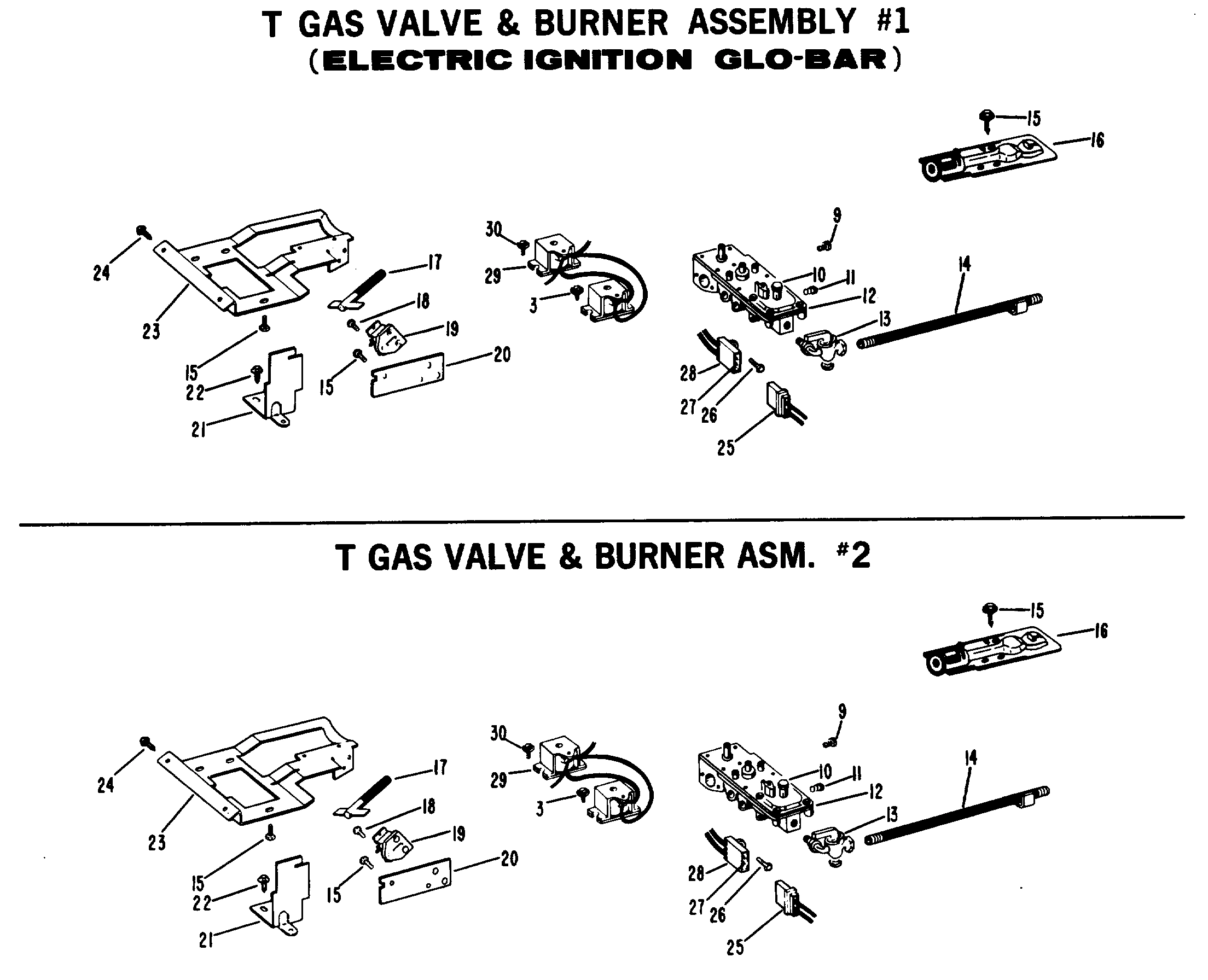

ELECTRIC IGNITION GLO-BAR

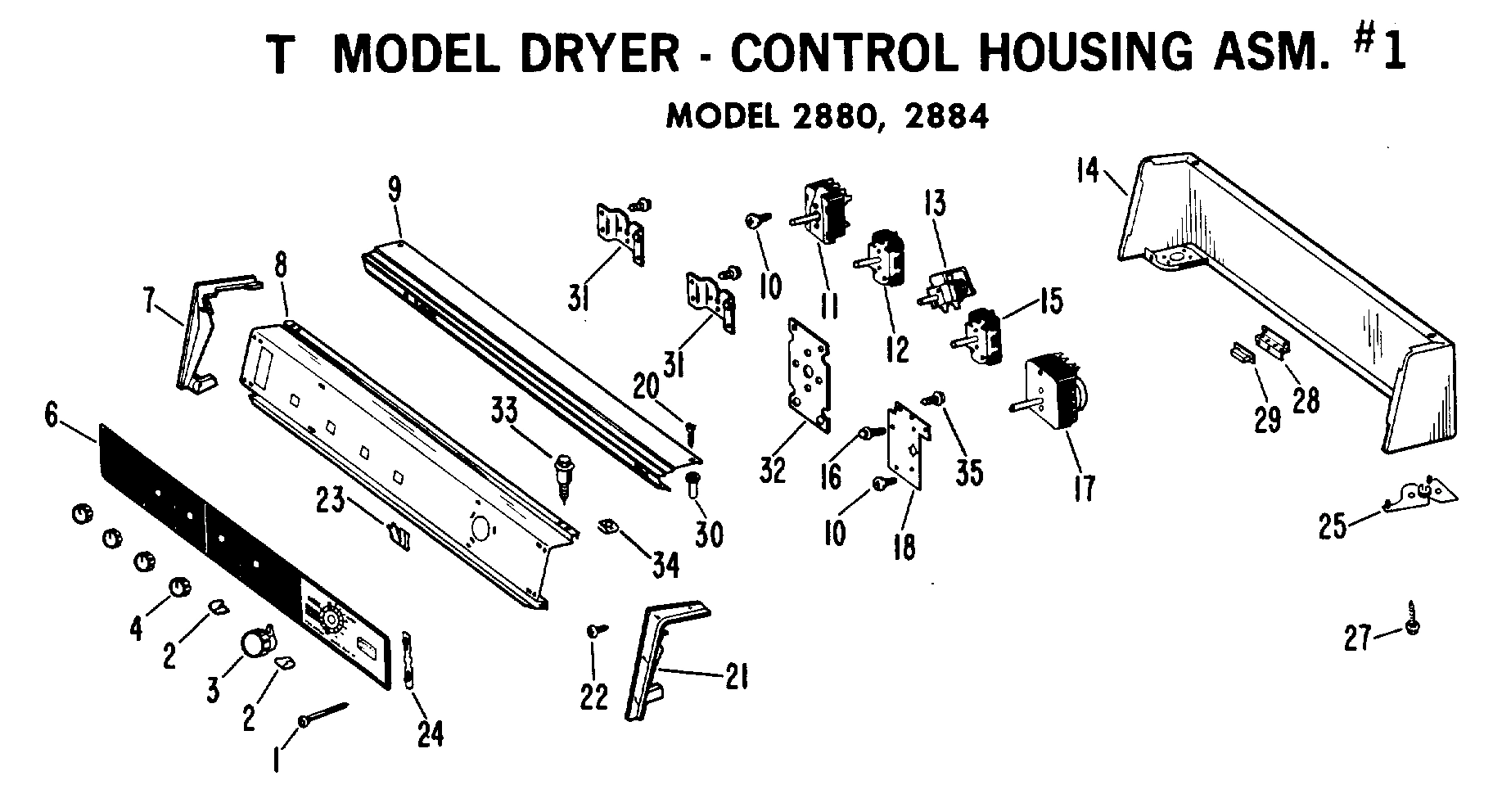

T MODEL DRYER
Common parts from model Hotpoint DLL2884TB Dryer Electric
1
GEN WE01X0257 GEN WE01X0257 Contact Us For Availability
1
GEN WE09X0040 GEN WE09X0040 Contact Us For Availability
1
GEN WE10X0193 GEN WE10X0193 Contact Us For Availability
1
GEN WH02X0879 GEN WH02X0879 Contact Us For Availability
1
GEN WZ04X0329 GEN WZ04X0329 Contact Us For Availability
2
GEN WE01X5201 GEN WE01X5201 Contact Us For Availability
2
GEN WE02X0216 GEN WE02X0216 Contact Us For Availability
2
GEN WE10X0236 GEN WE10X0236 Contact Us For Availability
2
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
3
GEN 10-16X1/2 GEN 10-16X1/2 Contact Us For Availability
3
GEN 8-32X7/16 GEN 8-32X7/16 Contact Us For Availability
3
CONTROL KNOB - 2880 GEN WE01X0877 Contact Us For Availability
3
CONTROL KNOB - 2884 GEN WE01X0917 Contact Us For Availability
3
GEN WE02X0215 GEN WE02X0215 Contact Us For Availability
3
BLOWER WHEEL (ELECTRIC T GEN WL16X0016 Contact Us For Availability
3
GEN WZ04X0236 GEN WZ04X0236 Contact Us For Availability
4
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
4
GEN WE02X0269 GEN WE02X0269 Contact Us For Availability
4
GEN WE13X0094 GEN WE13X0094 Contact Us For Availability
4
KNOB ASM GEN WH01X2156 Contact Us For Availability
4
GEN WZ10X0016 GEN WZ10X0016 Contact Us For Availability
5
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
5
BLOWER HOUSING ASM. GEN WE14X0135 Contact Us For Availability
5
LINT FILTER WHITE GEN WE18X0036 Contact Us For Availability
5
DRUM ASSEMBLY GEN WE21X0047 Contact Us For Availability
6
GEN WE02X0227 GEN WE02X0227 Contact Us For Availability
6
GEN WE13X0093 GEN WE13X0093 Contact Us For Availability
6
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
6
SWITCH TRIM (GAS) TA ONL GEN WE19X0694 Contact Us For Availability
6
SWITCH TRIM SWITCH TRIM GEN WE19X0695 Contact Us For Availability
6
GEN WZ04X0193 GEN WZ04X0193 Contact Us For Availability
6
GEN WZ05X0155 GEN WZ05X0155 Contact Us For Availability
7
GEN WE01X0972 GEN WE01X0972 Contact Us For Availability
7
GEN WE13X0132 GEN WE13X0132 Contact Us For Availability
7
GEN WE20X0507 GEN WE20X0507 Contact Us For Availability
7
GEN WH42X1072 GEN WH42X1072 Contact Us For Availability
7
GEN WZ04X0316 GEN WZ04X0316 Contact Us For Availability
8
WASHER FLAT GEN WE02X0198 Contact Us For Availability
8
GEN WE02X0268 GEN WE02X0268 Contact Us For Availability
8
GEN WE09X0041 GEN WE09X0041 Contact Us For Availability
8
GEN WE19X0733 GEN WE19X0733 Contact Us For Availability
8
GEN WE20X0511 GEN WE20X0511 Contact Us For Availability
9
MAIN BURNER, ORIFICE NO. GEN WE01X0669 Contact Us For Availability
9
MAIN BURNER, ORIFICE NO. GEN WE01X0698 Contact Us For Availability
9
GEN WE01X0776 GEN WE01X0776 Contact Us For Availability
9
GEN WE19X0696 GEN WE19X0696 Contact Us For Availability
9
GEN WH01X1946 GEN WH01X1946 Contact Us For Availability
10
GEN WE01X0347 GEN WE01X0347 Contact Us For Availability
10
GEN WE01X0606 GEN WE01X0606 Contact Us For Availability
10
SCREW 8-18 X 1/2 HEX GEN WE02X0275 Contact Us For Availability
10
GEN WH02X5137 GEN WH02X5137 Contact Us For Availability
11
GEN 1/8-27 NPT GEN 1/8-27 NPT Contact Us For Availability
11
GEN WE02X0222 GEN WE02X0222 Contact Us For Availability
11
GEN WE02X0224 GEN WE02X0224 Contact Us For Availability
11
GEN WE04X0503 GEN WE04X0503 Contact Us For Availability
11
GEN WH01X1923 GEN WH01X1923 Contact Us For Availability
12
GEN WE01X0411 GEN WE01X0411 Contact Us For Availability
12
GEN WE01X0938 GEN WE01X0938 Contact Us For Availability
12
SWITCH ASM PB DOOR GEN WE04X0197 Contact Us For Availability
12
SWITCH-START FORM R MTR GEN WE04X0198 Contact Us For Availability
12
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
12
GEN WE04X0517 GEN WE04X0517 Contact Us For Availability
12
GEN WE14X0127 GEN WE14X0127 Contact Us For Availability
12
GEN WE14X0129 GEN WE14X0129 Contact Us For Availability
13
VALVE ASM SHUTOFF GEN WE01X0758 Contact Us For Availability
13
GEN WE01X0916 GEN WE01X0916 Contact Us For Availability
13
SCR 5/16-18 M SET 5/16 S GEN WE02X0180 Contact Us For Availability
13
GEN WE04X0203 GEN WE04X0203 Contact Us For Availability
13
GEN WE09X0044 GEN WE09X0044 Contact Us For Availability
13
DRIVE PULLEY AND SET SCR GEN WL12X0050 Contact Us For Availability
14
GEN WE01X0757 GEN WE01X0757 Contact Us For Availability
14
DIFFUSER SEAL ASM GEN WE14X0125 Contact Us For Availability
14
GEN WE19X0441 GEN WE19X0441 Contact Us For Availability
14
GEN WE20X0518 GEN WE20X0518 Contact Us For Availability
14
GEN WE20X0521 GEN WE20X0521 Contact Us For Availability
15
GEN 10-16X3/8 GEN 10-16X3/8 Contact Us For Availability
15
GEN 8-18X5/8 GEN 8-18X5/8 Contact Us For Availability
15
GEN WD02X5063 GEN WD02X5063 Contact Us For Availability
15
GEN WE01X0619 GEN WE01X0619 Contact Us For Availability
15
SWITCH-SAFETY START GEN WE04X0463 Contact Us For Availability
15
GROMMET-CABINET A GEN WH01X5122 Contact Us For Availability
16
GEN WE01X0353 GEN WE01X0353 Contact Us For Availability
16
GEN WE01X0763 GEN WE01X0763 Contact Us For Availability
16
GEN WE02X0201 GEN WE02X0201 Contact Us For Availability
16
GEN WE14X0137 GEN WE14X0137 Contact Us For Availability
16
GEN WH02X0816 GEN WH02X0816 Contact Us For Availability
17
GEN WE01X0754 GEN WE01X0754 Contact Us For Availability
17
GEN WE02X0210 GEN WE02X0210 Contact Us For Availability
17
GEN WE04X0524 GEN WE04X0524 Contact Us For Availability
17
GEN WZ04X0288 GEN WZ04X0288 Contact Us For Availability
17
GEN WZ13X0031 GEN WZ13X0031 Contact Us For Availability
18
GEN WE01X0755 GEN WE01X0755 Contact Us For Availability
18
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
18
SOCKET ASSEMBLY GEN WE04X0185 Contact Us For Availability
18
TIMER BRACKET GEN WE13X0076 Contact Us For Availability
18
GEN WZ04X0221 GEN WZ04X0221 Contact Us For Availability
18
GEN WE02 GEN WE02 Contact Us For Availability
18
GEN WE01 GEN WE01 Contact Us For Availability
18
GEN WE04 GEN WE04 Contact Us For Availability
19
GEN 10C7DC GEN 10C7DC Contact Us For Availability
19
GEN WE01X0858 GEN WE01X0858 Contact Us For Availability
19
CLIP ASM. GEN WE01X0 Contact Us For Availability
19
CLIP ASM. GEN WE01X0941 Contact Us For Availability
19
GEN WE03X0040 GEN WE03X0040 Contact Us For Availability
19
TERMINAL BLOCK BRACKET (ELECTRIC) GEN WE13X0119 Contact Us For Availability
20
GROUND STRAP (ELECTRIC) GEN WE01X0339 Contact Us For Availability
20
LAMP HOUSING GEN WE01X0427 Contact Us For Availability
20
MOTOR BRACKET GEN WE13X0092 Contact Us For Availability
20
BRACKET GEN WE13X0116 Contact Us For Availability
20
DIFFUSER PLATE GEN WE14X0105 Contact Us For Availability
20
SCREW GEN WZ04X0319 Contact Us For Availability
21
SPACER BRACKET GEN WE13X0114 Contact Us For Availability
21
COMBUSTION CHAMBER GEN WE14X0124 Contact Us For Availability
21
GEN WH42X1073 GEN WH42X1073 Contact Us For Availability
22
IDLER PULLEY GEN WE12X0045 Contact Us For Availability
22
CHAMBER BRACKET GEN WE13X0098 Contact Us For Availability
22
GEN WZ04X0266 GEN WZ04X0266 Contact Us For Availability
22
GEN WZ05X0120 GEN WZ05X0120 Contact Us For Availability
23
GROUND CLIP GEN WE01X0762 Contact Us For Availability
23
SCREW GEN WE02X0194 Contact Us For Availability
23
TERMINAL BLOCK (ELE GEN WE04X0168 Contact Us For Availability
23
GEN WE04X0545 GEN WE04X0545 Contact Us For Availability
23
GEN WE13X0117 GEN WE13X0117 Contact Us For Availability
23
GEN WZ04X02 GEN WZ04X02 Contact Us For Availability
× ![]()
