Model LG DLE3600W.ABWEUCI 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Front Load Electric Dryer with Built-In Intelli – Common Parts & Diagrams

Common parts from model LG DLE3600W.ABWEUCI 7.4 cu. ft. Ultra Large Capacity Smart wi-fi Enabled Front Load Electric Dryer with Built-In Intelli

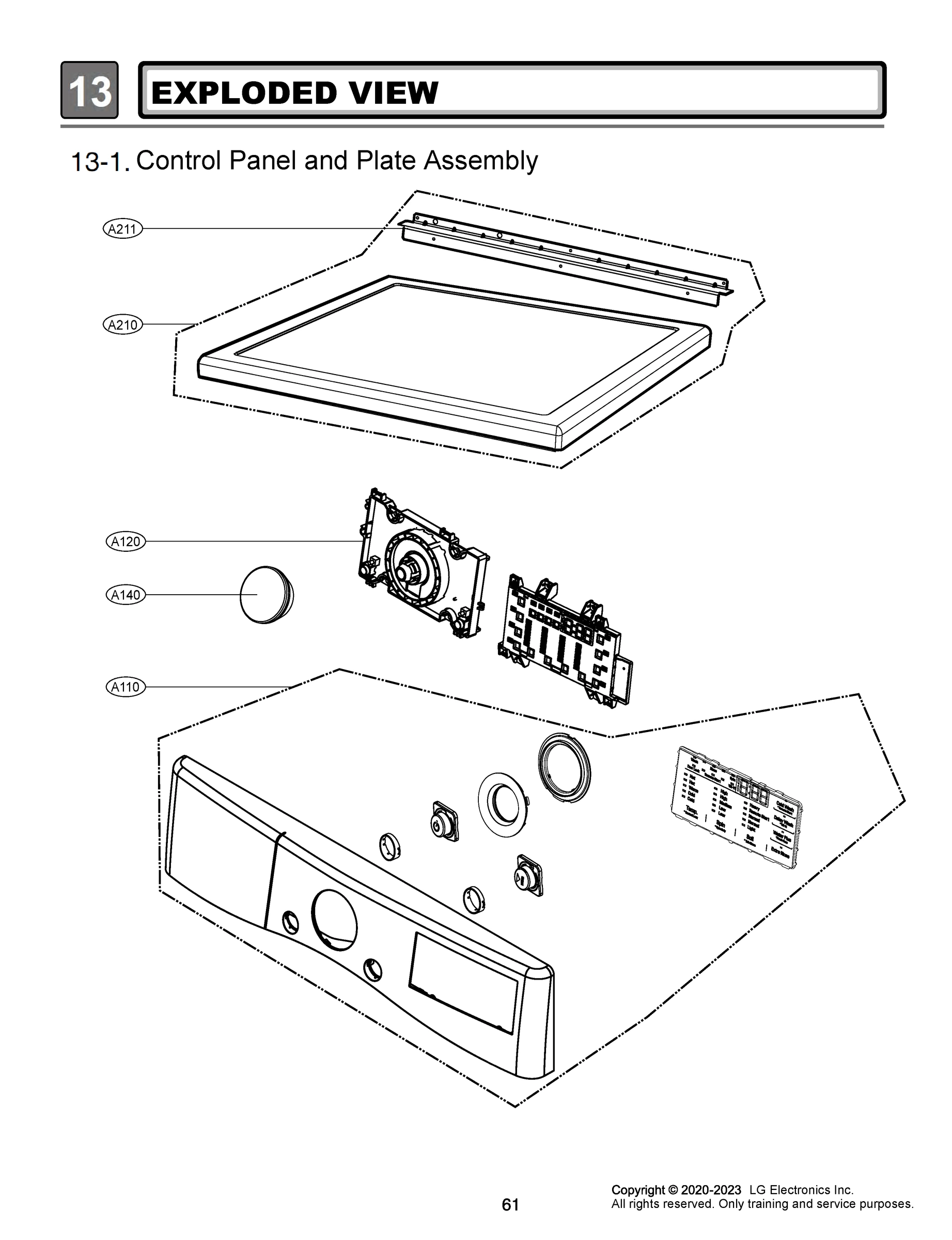

CONTROL PANEL AND PLATE ASSEMBLY

Print

• This Diagram
• All Diagrams

A130

EBR31002603 LG Main PCB Assembly In Stock LGE EBR31002603 View Details $291.33

View on Model

A300

MAZ67119501 LG Hinge Bracket Backorder LGE MAZ67119501 View Details $33.69

View on Model

A308

1APF0402608 LG Laptop Screw Backorder LGE 1APF0402608 View Details $6.19

View on Model

A315

4000FD4191A LG Customized Screw Backorder LGE 4000FD4191A View Details $6.19

View on Model

A320

4027EL1001A LG Dryer Door Latch Catch In Stock LGE 4027EL1001A View Details $14.79

View on Model

A325

1SZZEL2001A LG Screw Customized Backorder LGE 1SZZEL2001A View Details $6.19

View on Model

A330

6601EL3001A LG Dryer Door Switch Assembly In Stock LGE 6601EL3001A View Details $33.69

View on Model

A520

4810EL3001B LG Dryer Base Bracket Backorder LGE 4810EL3001B View Details $6.19

View on Model

A525

4810EL3009A LG Dryer Base Bracket Backorder LGE 4810EL3009A View Details $20.35

View on Model

A530

4810EL3009B LG Dryer Leveling Leg Bracket Backorder LGE 4810EL3009B View Details $9.86

View on Model

A540

4778EL3001B LG Dryer Leveling Leg In Stock LGE 4778EL3001B View Details $3.46

View on Model

A560

3550EL3007D LG Cover Guide Backorder LGE 3550EL3007D View Details $9.86

View on Model

A570

3550EL3002A LG Safety Cover In Stock LGE 3550EL3002A View Details $6.19

View on Model

A610

383EEL9001H LG Assembly Parts In Stock LGE 383EEL9001H View Details $14.79

View on Model

F110

5301EL1001J LG Dryer Heater Element Assembly In Stock LGE 5301EL1001J View Details $223.20

View on Model

F130

6931EL3003D LG Dryer High-Limit Thermal Fuse In Stock LGE 6931EL3003D View Details $7.58

View on Model

F140

6931EL3001F LG Thermostat Assembly In Stock LGE 6931EL3001F View Details $36.62

View on Model

F150

383EEL9001C LG Parts Assembly In Stock LGE 383EEL9001C View Details $63.62

View on Model

F200

5209EL1001C LG Duct Assembly Backorder LGE 5209EL1001C View Details $91.26

View on Model

K120

4432EL1002A LG Dryer Drum Baffle Backorder LGE 4432EL1002A View Details $26.26

View on Model

K130

4400EL2001F LG Dryer Drum Belt In Stock LGE 4400EL2001F View Details $16.93

View on Model

K140

4036EL3001A LG Dryer Drum Felt Gasket In Stock LGE 4036EL3001A View Details $26.79

View on Model

K240

5209EL1002C LG Duct Assembly Backorder LGE 5209EL1002C View Details $72.49

View on Model

K251

4581EL3001M LG Roller Assembly Backorder LGE 4581EL3001M View Details $33.69

View on Model

K252

4W50100F LG Customized In Stock LGE 4W50100F View Details $4.50

View on Model

K336

4970EL4002C LG Dryer Distortion Spring In Stock LGE 4970EL4002C View Details $6.19

View on Model

K340

6500EL3001A LG Dryer Moisture Sensor In Stock LGE 6500EL3001A View Details $9.86

View on Model

K350

6631EL3003B LG Dryer Wiring Harness In Stock LGE 6631EL3003B View Details $14.79

View on Model

K510

5835EL1002A LG Dryer Blower Fan Assembly In Stock LGE 5835EL1002A View Details $72.49

View on Model

K515

383EEL9001G LG Assembly Parts In Stock LGE 383EEL9001G View Details $6.19

View on Model

K520

MEK37661701 LG Blower Housing Backorder LGE MEK37661701 View Details $117.30

View on Model

K530

5209EL1006L LG Duct Assembly Backorder LGE 5209EL1006L View Details $117.30

View on Model

K540

4975EL3001A LG Guide Assembly Backorder LGE 4975EL3001A View Details $26.26

View on Model

K550

6323EL2001B LG Dryer Thermistor Assembly Backorder LGE 6323EL2001B View Details $33.69

View on Model

K560

6931EL3002M LG Dryer Thermostat In Stock LGE 6931EL3002M View Details $26.93

View on Model

×
