Model GE DLB2880BAC – Common Parts & Diagrams

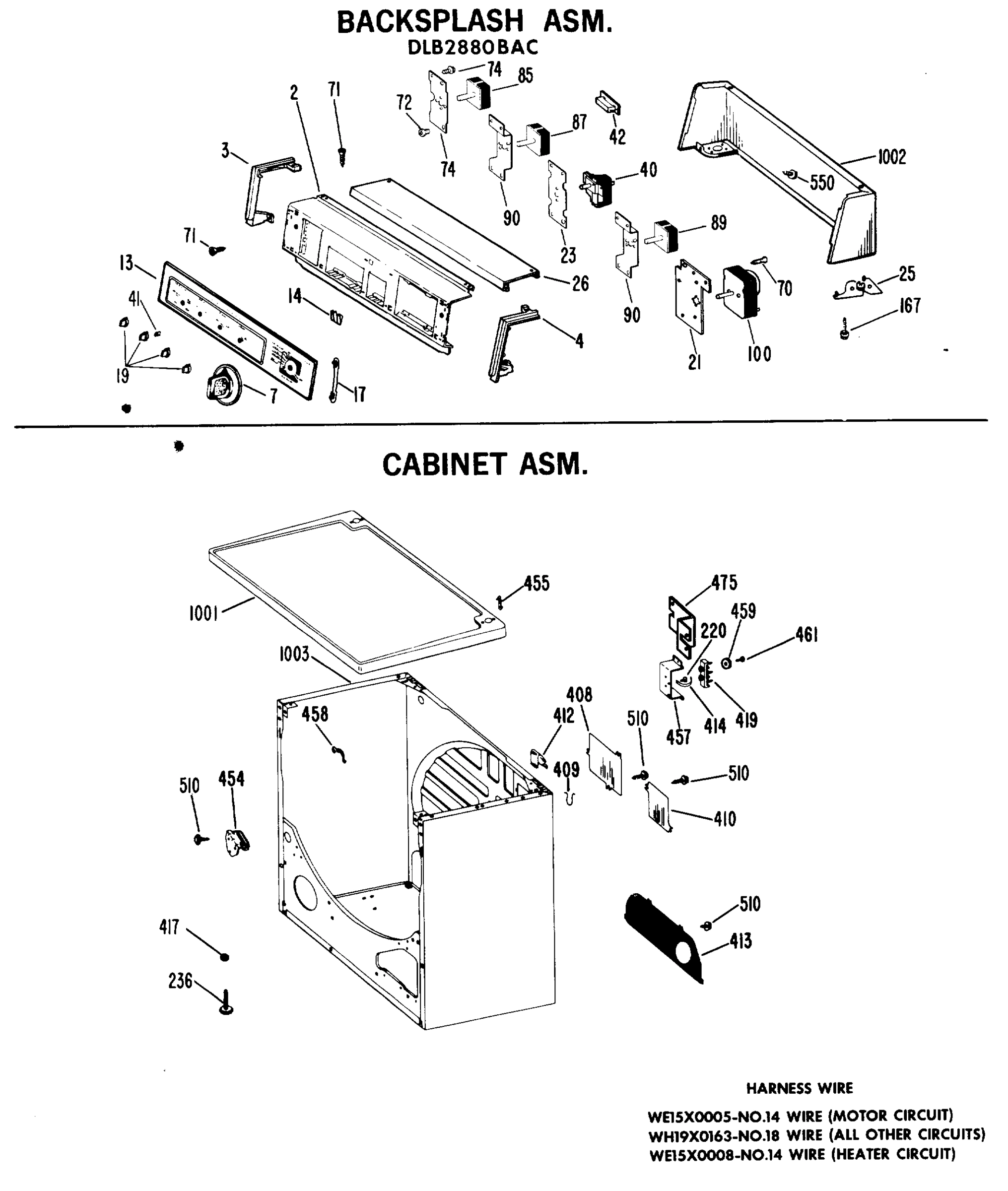

BACKSPLASH ASM.

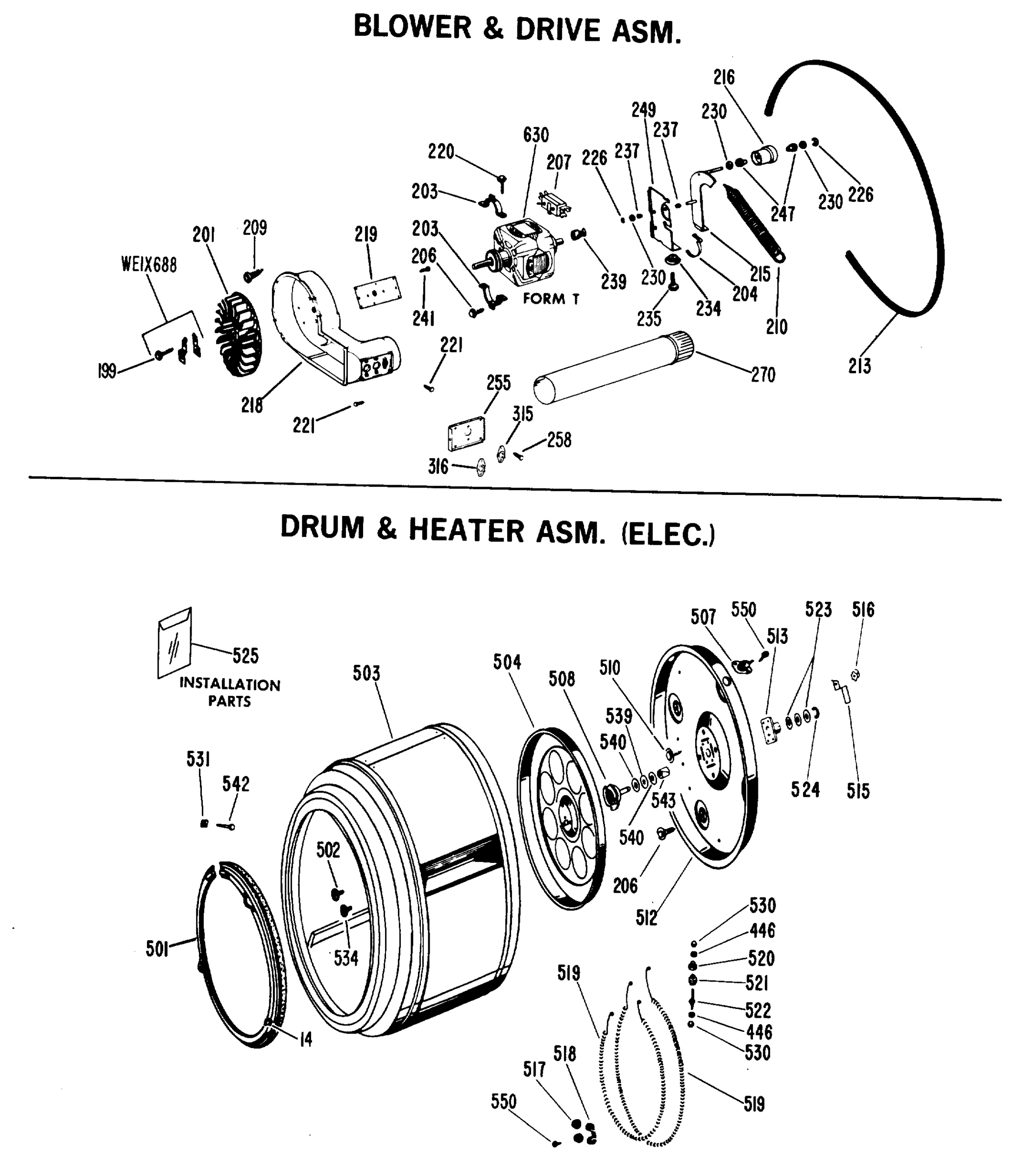

BLOWER & DRIVE ASM.
CABINET FRONT ASM.
Common parts from model GE DLB2880BAC
2
GEN WE19X0733 GEN WE19X0733 Contact Us For Availability
3
GEN WH42X2005 GEN WH42X2005 Contact Us For Availability
4
GEN WH42X2006 GEN WH42X2006 Contact Us For Availability
7
GEN WE01X0982 GEN WE01X0982 Contact Us For Availability
13
GEN WE19X0794 GEN WE19X0794 Contact Us For Availability
14
CLIP-GROUND GEN WE01X0762 Contact Us For Availability
17
GEN WE01X0577 GEN WE01X0577 Contact Us For Availability
19
KNOB CLIP ASM GEN WH01X2274 Contact Us For Availability
21
GEN WE13X0076 GEN WE13X0076 Contact Us For Availability
23
GEN WH16X0401 GEN WH16X0401 Contact Us For Availability
25
GEN WE01X0926 GEN WE01X0926 Contact Us For Availability
26
GEN WE19X0770 GEN WE19X0770 Contact Us For Availability
40
GEN WE01X0916 GEN WE01X0916 Contact Us For Availability
41
CLIP KNOB GEN WE01X0980 Contact Us For Availability
41
GEN WE01X5201 GEN WE01X5201 Contact Us For Availability
42
GEN WE04X0499 GEN WE04X0499 Contact Us For Availability
70
SCREW-TYPE A GEN WH02X0937 Contact Us For Availability
71
GEN WH02X0947 GEN WH02X0947 Contact Us For Availability
72
GEN WH02X5137 GEN WH02X5137 Contact Us For Availability
74
GEN WE13X0137 GEN WE13X0137 Contact Us For Availability
80
GEN WL02X0139 GEN WL02X0139 Contact Us For Availability
85
GEN WE04X0603 GEN WE04X0603 Contact Us For Availability
87
GEN WE04X0605 GEN WE04X0605 Contact Us For Availability
89
GEN WE04X0618 GEN WE04X0618 Contact Us For Availability
90
GEN WH16X0434 GEN WH16X0434 Contact Us For Availability
100
GEN WE04X0619 GEN WE04X0619 Contact Us For Availability
167
GEN WE02X0186 GEN WE02X0186 Contact Us For Availability
199
SCREW 14-10 X 1 HEX GEN WE02X0280 Contact Us For Availability
201
GEN WE16X0016 GEN WE16X0016 Contact Us For Availability
206
SCREW 10-16 X 3/8 HEX GEN 10-16X3/8 Contact Us For Availability
207
GEN WE04X0344 GEN WE04X0344 Contact Us For Availability
209
GEN WE02X0269 GEN WE02X0269 Contact Us For Availability
210
GEN WE01X0866 GEN WE01X0866 Contact Us For Availability
213
GEN WE12X0049 GEN WE12X0049 Contact Us For Availability
215
GEN WE03X0041 GEN WE03X0041 Contact Us For Availability
216
GEN WE12X0045 GEN WE12X0045 Contact Us For Availability
218
GEN WE14X0135 GEN WE14X0135 Contact Us For Availability
219
GEN WE13X0132 GEN WE13X0132 Contact Us For Availability
220
SCREW 8-18 X 1/2 HEX GEN WE02X0275 Contact Us For Availability
221
GEN WE02X0267 GEN WE02X0267 Contact Us For Availability
226
RING-E GEN WZ13X0031 Contact Us For Availability
230
GEN WE02X0211 GEN WE02X0211 Contact Us For Availability
234
NUT-SHEET METAL GEN WE02X0154 Contact Us For Availability
235
SCREW 5/16-12LH X 3/4 HX GEN WE02X0194 Contact Us For Availability
237
GEN WE03X0040 GEN WE03X0040 Contact Us For Availability
239
GEN WE12X0050 GEN WE12X0050 Contact Us For Availability
241
GEN WE02X0268 GEN WE02X0268 Contact Us For Availability
249
GEN WE13X0092 GEN WE13X0092 Contact Us For Availability
255
GEN WE13X0131 GEN WE13X0131 Contact Us For Availability
258
GEN WE02X0266 GEN WE02X0266 Contact Us For Availability
270
GEN WE14X0137 GEN WE14X0137 Contact Us For Availability
300
GEN WE18X0036 GEN WE18X0036 Contact Us For Availability
302
GEN WE01X0888 GEN WE01X0888 Contact Us For Availability
307
GEN WE14X0104 GEN WE14X0104 Contact Us For Availability
308
GEN WE09X0042 GEN WE09X0042 Contact Us For Availability
309
HOUSING-LAMP GEN WE01X0427 Contact Us For Availability
314
LAMP K GEN WX12X0079 Contact Us For Availability
315
GEN WE04X0600 GEN WE04X0600 Contact Us For Availability
316
THERMOSTAT L135-15 GEN WE04X0601 Contact Us For Availability
323
GROMMET-CABINET A GEN WH01X5122 Contact Us For Availability
325
GEN WE01X0901 GEN WE01X0901 Contact Us For Availability
329
GEN WE01X0748 GEN WE01X0748 Contact Us For Availability
344
NUT-TWIN SPEED A GEN WH02X5002 Contact Us For Availability
357
STOP-COVER GEN WH01X2187 Contact Us For Availability
360
GEN 10-16X3/4 GEN 10-16X3/4 Contact Us For Availability
370
GEN 10-18X114 GEN 10-18X114 Contact Us For Availability
372
SCREW 8-15 X 1/2 TRUSS GEN WE02X0270 Contact Us For Availability
375
GEN WE04X0185 GEN WE04X0185 Contact Us For Availability
380
SWITCH ASM-PUSH BUTTON GEN WE04X0197 Contact Us For Availability
406
SCREW 8-15 X 1/2 OVAL GEN WZ04X0236 Contact Us For Availability
408
GEN WE01X0754 GEN WE01X0754 Contact Us For Availability
409
GEN WE01X0353 GEN WE01X0353 Contact Us For Availability
410
GEN WE01X0755 GEN WE01X0755 Contact Us For Availability
412
CLIP-COVER GEN WH01X1923 Contact Us For Availability
413
GEN WE14X0103 GEN WE14X0103 Contact Us For Availability
414
GEN WE01X0339 GEN WE01X0339 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
418
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
419
GEN WE04X0168 GEN WE04X0168 Contact Us For Availability
420
GEN WH02X0893 GEN WH02X0893 Contact Us For Availability
446
WASHER-FLAT GEN WE02X0279 Contact Us For Availability
454
GEN WE13X0093 GEN WE13X0093 Contact Us For Availability
455
GEN WH01X1946 GEN WH01X1946 Contact Us For Availability
457
GEN WE13X0119 GEN WE13X0119 Contact Us For Availability
458
GEN WE01X0408 GEN WE01X0408 Contact Us For Availability
459
WASHER CUP GEN WE02X0092 Contact Us For Availability
460
GEN 10-16X1/2 GEN 10-16X1/2 Contact Us For Availability
460
SCREW 10-16 X 7/8 HEX GEN WZ04X0264 Contact Us For Availability
475
GEN WH16X0317 GEN WH16X0317 Contact Us For Availability
501
GEN WE09X0040 GEN WE09X0040 Contact Us For Availability
502
GEN WE02X0277 GEN WE02X0277 Contact Us For Availability
503
GEN WE21X0047 GEN WE21X0047 Contact Us For Availability
504
GEN WE14X0086 GEN WE14X0086 Contact Us For Availability
512
GEN WE11X0067 GEN WE11X0067 Contact Us For Availability
517
GEN WE01X0336 GEN WE01X0336 Contact Us For Availability
518
GEN WE01X0335 GEN WE01X0335 Contact Us For Availability
519
GEN WE11X0060 GEN WE11X0060 Contact Us For Availability
520
GEN WE01X0158 GEN WE01X0158 Contact Us For Availability
521
GEN WE01X0159 GEN WE01X0159 Contact Us For Availability
522
SCREW 1/4-28 X 1 3/4 HEX GEN WE02X0136 Contact Us For Availability
523
GEN WE02X0183 GEN WE02X0183 Contact Us For Availability
524
GEN WE02X0210 GEN WE02X0210 Contact Us For Availability
525
ENVELOPE & PARTS ASM GEN WE25X0097 Contact Us For Availability
530
GEN WE02X0278 GEN WE02X0278 Contact Us For Availability
531
GEN WE02X0216 GEN WE02X0216 Contact Us For Availability
534
GEN WE02X0153 GEN WE02X0153 Contact Us For Availability
540
GEN WE02X0198 GEN WE02X0198 Contact Us For Availability
542
GEN WE02X0215 GEN WE02X0215 Contact Us For Availability
545
TERMINAL 1/4" FEMALE GEN WB02X0817 Contact Us For Availability
550
SCREW 8-18 X 3/8 HEX GEN WE02X0281 Contact Us For Availability
603
HANDLE-DOOR GEN WE01X0257 Contact Us For Availability
604
SCREW 10-24 X 13/16 TRUS GEN WE02X0227 Contact Us For Availability
605
WASHER-FLAT GEN WZ10X0016 Contact Us For Availability
606
GEN WE01X0890 GEN WE01X0890 Contact Us For Availability
610
GEN WE09X0041 GEN WE09X0041 Contact Us For Availability
611
GEN WE02X0224 GEN WE02X0224 Contact Us For Availability
1001
GEN WE20X0582 GEN WE20X0582 Contact Us For Availability
1001
GEN WE20X0583 GEN WE20X0583 Contact Us For Availability
1001
GEN WE20X0584 GEN WE20X0584 Contact Us For Availability
1001
GEN WE20X0585 GEN WE20X0585 Contact Us For Availability
1001
GEN WE20X0586 GEN WE20X0586 Contact Us For Availability
1002
GEN WE19X0441 GEN WE19X0441 Contact Us For Availability
1002
GEN WE19X0701 GEN WE19X0701 Contact Us For Availability
1002
GEN WE19X0702 GEN WE19X0702 Contact Us For Availability
1002
GEN WE19X0703 GEN WE19X0703 Contact Us For Availability
1002
GEN WE19X0704 GEN WE19X0704 Contact Us For Availability
1003
GEN WE20X0507 GEN WE20X0507 Contact Us For Availability
1003
GEN WE20X0534 GEN WE20X0534 Contact Us For Availability
1003
GEN WE20X0535 GEN WE20X0535 Contact Us For Availability
1003
GEN WE20X0536 GEN WE20X0536 Contact Us For Availability
1003
GEN WE20X0537 GEN WE20X0537 Contact Us For Availability
1005
GEN WE10X0236 GEN WE10X0236 Contact Us For Availability
1005
GEN WE10X0245 GEN WE10X0245 Contact Us For Availability
1005
DOOR ASM HA GEN WE10X0246 Contact Us For Availability
1005
GEN WE10X0247 GEN WE10X0247 Contact Us For Availability
1005
GEN WE10X0248 GEN WE10X0248 Contact Us For Availability
1008
GEN WE20X0518 GEN WE20X0518 Contact Us For Availability
1008
GEN WE20X0538 GEN WE20X0538 Contact Us For Availability
1008
GEN WE20X0539 GEN WE20X0539 Contact Us For Availability
1008
GEN WE20X0540 GEN WE20X0540 Contact Us For Availability
1008
GEN WE20X0541 GEN WE20X0541 Contact Us For Availability
9999
GEN 39-9223 GEN 39-9223 Contact Us For Availability
9999
GEN 39-9228 GEN 39-9228 Contact Us For Availability
9999
GEN 49-9043 GEN 49-9043 Contact Us For Availability
× ![]()
