Model Electrolux DGT400A0T DRYER – Common Parts & Diagrams

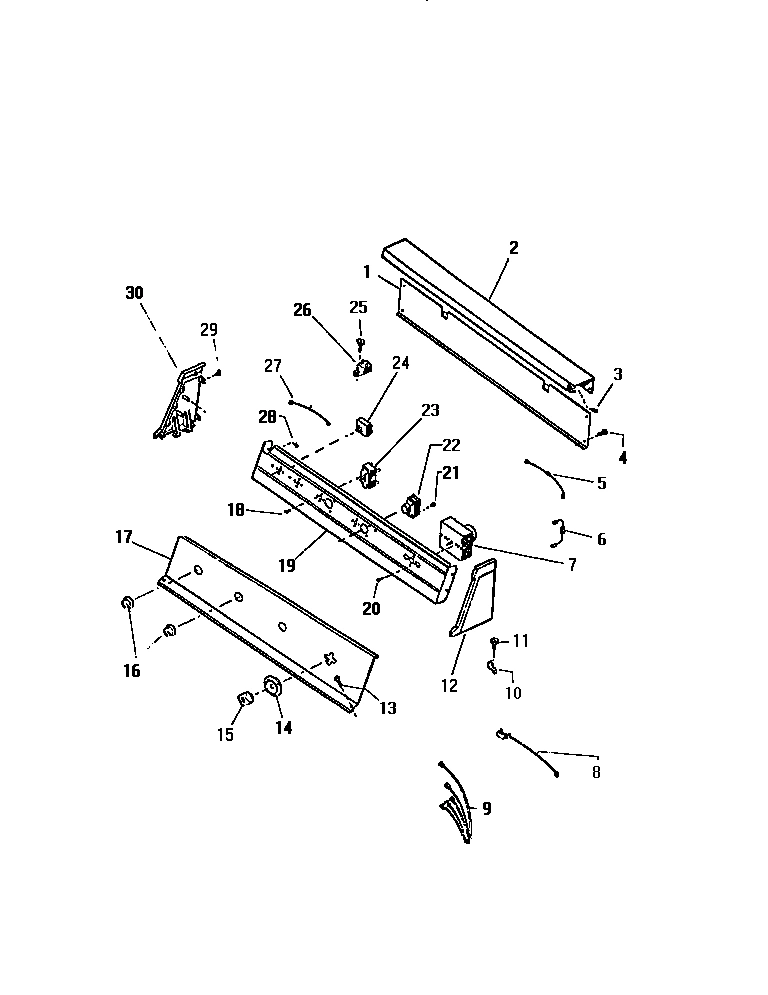

02 - CONSOLE & CONTROLS

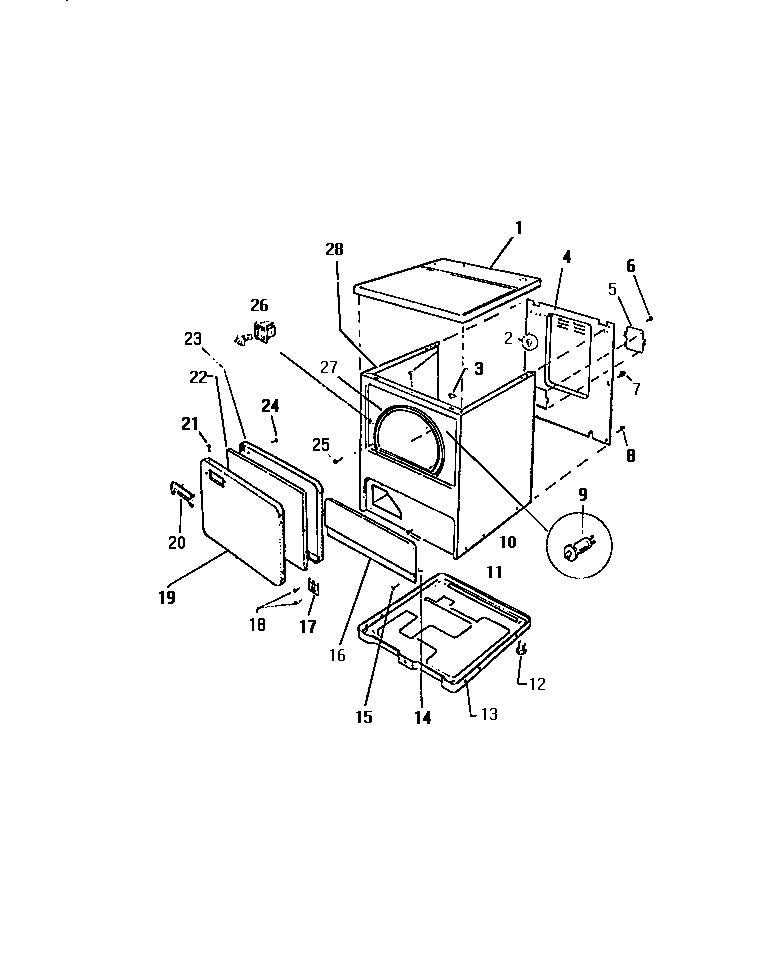

03 - CABINET

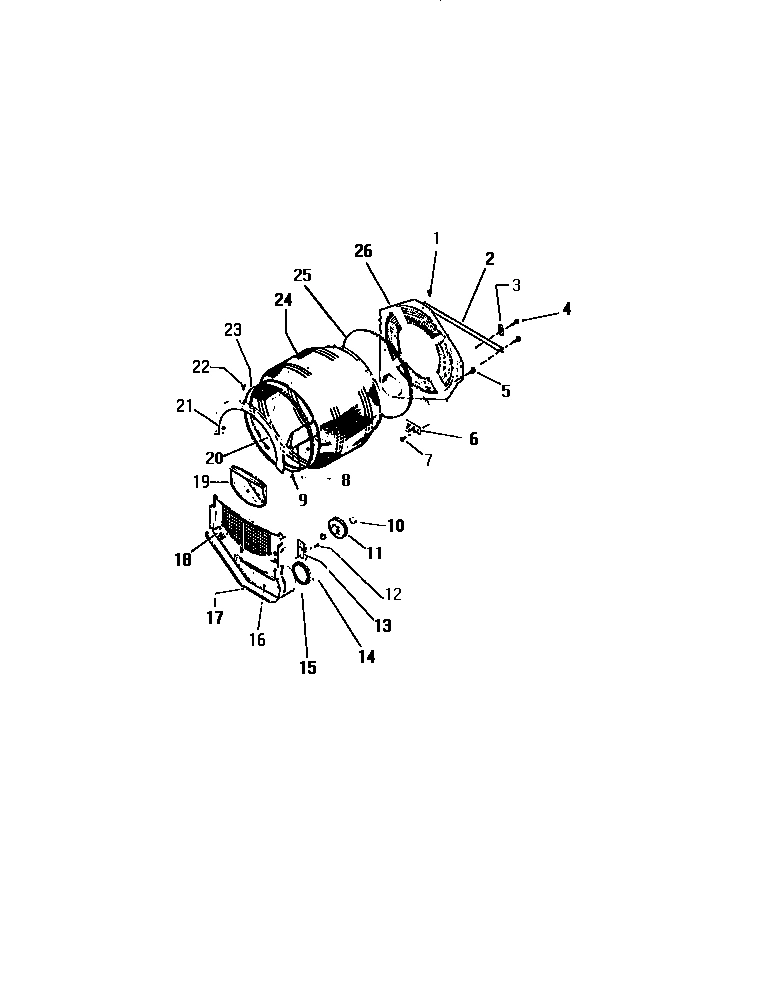

04 - DRUM

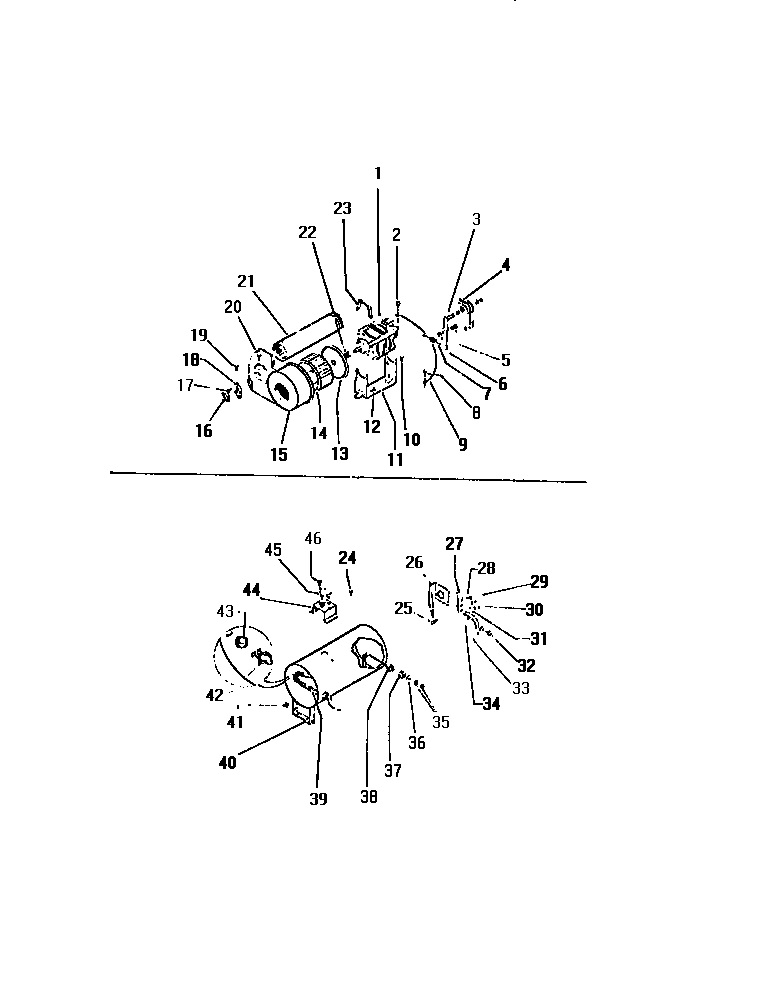

05 - BLOWER & HEATER HOUSING COMPONENTS

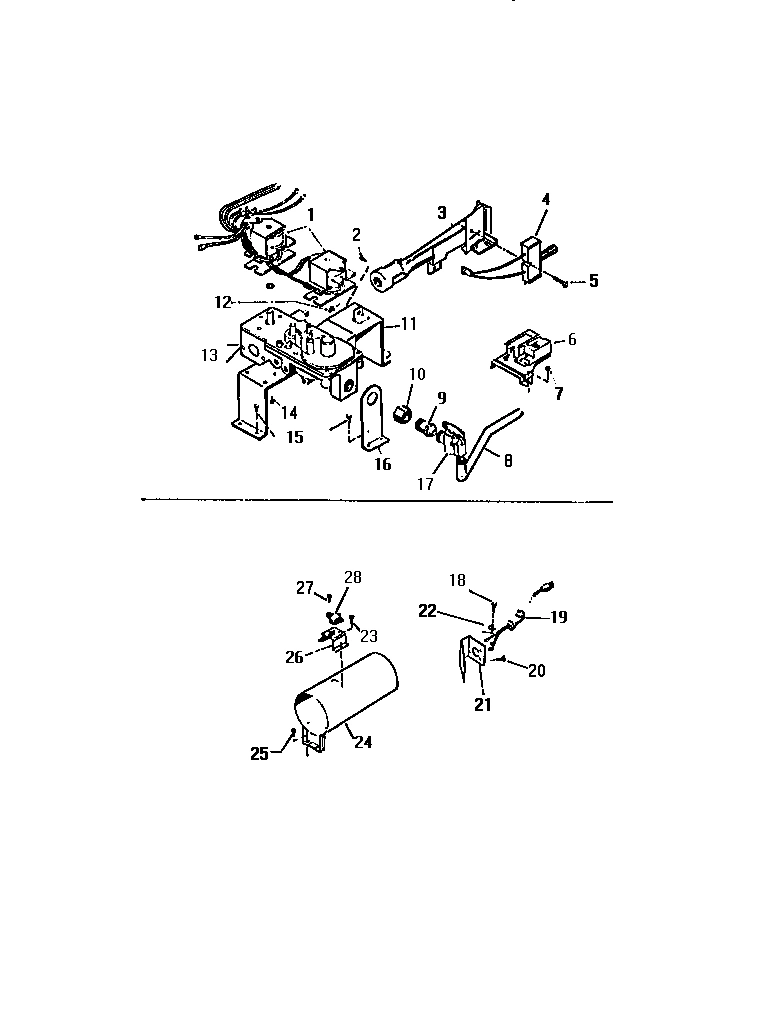

06 - GLOW BAR BURNER & COMBUSTION CHAMBE
Common parts from model Electrolux DGT400A0T DRYER
*41840
CLIP, HARNESS TO RH CABINET (2) WCI F140144-000 Contact Us For Availability
*41841
CABLE TIE, HARNESS TO RH CABINET WCI F133780-000 Contact Us For Availability
*41845
WIRE RING, HARNESS TO SIDE OF BASE WCI F136345-000 Contact Us For Availability
*41847
WHEEL, TIRE, NYLINER PACKAGE (CONSIST OF WHEE WCI F133006-500 Contact Us For Availability
*41848
PERMAWICK LUBRICANT WCI F133047-000 Contact Us For Availability
*41849
WCI F133024-000 WCI F133024-000 Contact Us For Availability
*41850
GAS CONVERSION KIT, L.P. TO NATURAL WCI F137071-000 Contact Us For Availability
*41851
GAS CONVERSION KIT, NATURAL TO L.P. WCI F137070-000 Contact Us For Availability
*41872
END TRIM AND CAP ASSSEMBLY, LH WCI F139719-100 Contact Us For Availability
*41873
WCI 139869-000 WCI 139869-000 Contact Us For Availability
*41874
WCI 139870-000 WCI 139870-000 Contact Us For Availability
*41875
WCI 140075-000 WCI 140075-000 Contact Us For Availability
*41878
TOUCH-UP SPRAY PAINT, 6 OUNCE, AEROSOL, HARVE WCI F94566-51 Contact Us For Availability
*41881
COMPL HTR ASSY (CONSIST OF KEY NOS. 35-40,42, WCI F137023-000 Contact Us For Availability
1
WCI F139230-026 WCI F139230-026 Contact Us For Availability
1
TOP PANEL, WHEAT WCI F139207-038 Contact Us For Availability
1
MOTOR AND PULLEY ASSEMBLY, GE WCI F133072-000 Contact Us For Availability
1
WCI F133075-000 WCI F133075-000 Contact Us For Availability
1A
MOTOR SWITCH (EMERSON) WCI F067634-002 Contact Us For Availability
1A
MOTOR SWITCH (GE) WCI F067634-006 Contact Us For Availability
2
TOP COVER (ROSE WOOD GRAIN) WCI F139795-000 Contact Us For Availability
2
WCI F001345-000 WCI F001345-000 Contact Us For Availability
2
PLENUM SUPPORT ASSEMBLY WCI F137077-000 Contact Us For Availability
3
CLIP (3) WCI F139635-000 Contact Us For Availability
3
CLIP (2) WCI F130448-000 Contact Us For Availability
3
WCI F131174-000 WCI F131174-000 Contact Us For Availability
3
IDLR WHL ASSY(IDLER BAR, WHL & WSHR RETAINING WCI F079499-000 Contact Us For Availability
3
BURNER AND BRACKET ASSEMBLY WCI F139744-000 Contact Us For Availability
4
WCI F139218-526 WCI F139218-526 Contact Us For Availability
4
BELT WCI F131654-000 Contact Us For Availability
5
WCI F139218-326 WCI F139218-326 Contact Us For Availability
5
WCI F079485-000 WCI F079485-000 Contact Us For Availability
5
WCI F134225-000 WCI F134225-000 Contact Us For Availability
6
WCI F133165-000 WCI F133165-000 Contact Us For Availability
6
WCI F076822-000 WCI F076822-000 Contact Us For Availability
7
WCI F137252-000 WCI F137252-000 Contact Us For Availability
7
SCREW (6) WCI F132080-000 Contact Us For Availability
7
WCI F131652-000 WCI F131652-000 Contact Us For Availability
7A
WCI F079459-022 WCI F079459-022 Contact Us For Availability
8
WCI F139816-000 WCI F139816-000 Contact Us For Availability
8
WCI F076968-000 WCI F076968-000 Contact Us For Availability
8
WCI F078202-100 WCI F078202-100 Contact Us For Availability
9
WCI F140176-000 WCI F140176-000 Contact Us For Availability
9
DOOR SWITCH WCI F130791-000 Contact Us For Availability
9
GROUND WIRE, GAS WCI F140282-100 Contact Us For Availability
9
WCI F062791-300 WCI F062791-300 Contact Us For Availability
10
CLIP (5) WCI F063124-000 Contact Us For Availability
10
WCI F079171-000 WCI F079171-000 Contact Us For Availability
10
SEMS SCREW WCI F133911-000 Contact Us For Availability
10
WCI F062792-300 WCI F062792-300 Contact Us For Availability
11
WHEEL, TIRE, NYLINER ASSEMBLY (5) WCI F133006-000 Contact Us For Availability
11
WCI F078190-026 WCI F078190-026 Contact Us For Availability
11
MOUNTING BRACKET WCI F076992-000 Contact Us For Availability
12
END TRIM AND CAP ASSEMBLY, RH WCI F139719-000 Contact Us For Availability
12
WCI F137033-000 WCI F137033-000 Contact Us For Availability
12
SCREW (4) WCI F132459-000 Contact Us For Availability
12
WCI F066452-020 WCI F066452-020 Contact Us For Availability
12A
ORIFICE, NATURAL, GAS MODELS WCI F066452-019 Contact Us For Availability
13
SCREW (2) WCI F140203-000 Contact Us For Availability
13
WCI F140281-026 WCI F140281-026 Contact Us For Availability
13
SHAFT AND MOUNTING PLATE (2) WCI F133163-000 Contact Us For Availability
13
WCI F064354-028 WCI F064354-028 Contact Us For Availability
13
ASSEMBLY, VALVE, COILS AND ORIFICE, NATURAL WCI F139745-000 Contact Us For Availability
13A
ASSEMBLY, VALVE, COILS AND ORIFICE, LP WCI F137060-000 Contact Us For Availability
14
WCI F078951-000 WCI F078951-000 Contact Us For Availability
14
WCI F133279-000 WCI F133279-000 Contact Us For Availability
14
WCI F133008-000 WCI F133008-000 Contact Us For Availability
14
SCREW (2) WCI F132144-000 Contact Us For Availability
14
WCI F076829-000 WCI F076829-000 Contact Us For Availability
15
WCI F078950-100 WCI F078950-100 Contact Us For Availability
15
WCI F066904-000 WCI F066904-000 Contact Us For Availability
15
EXHAUST AND LINT HOUSING ASSEMBLY (SEE NOTE 1 WCI F133005-000 Contact Us For Availability
15
WCI F078201-100 WCI F078201-100 Contact Us For Availability
16
ACCESS PANEL, WHEAT WCI F134145-038 Contact Us For Availability
16
WCI F137050-000 WCI F137050-000 Contact Us For Availability
16
WCI F132075-000 WCI F132075-000 Contact Us For Availability
16
WCI F079904-000 WCI F079904-000 Contact Us For Availability
17
WCI F139938-100 WCI F139938-100 Contact Us For Availability
17
WCI F078319-000 WCI F078319-000 Contact Us For Availability
17
WCI F078861-100 WCI F078861-100 Contact Us For Availability
17
WCI F133170-000 WCI F133170-000 Contact Us For Availability
18
WCI F76979 WCI F76979 Contact Us For Availability
18
BRACKET WCI F078680-000 Contact Us For Availability
19
WCI F140183-022 WCI F140183-022 Contact Us For Availability
19
OUTER DOOR PANEL, WHEAT WCI F137874-038 Contact Us For Availability
19
WCI F134722-000 WCI F134722-000 Contact Us For Availability
19
SERVICE CORD WCI F079022-000 Contact Us For Availability
20
WCI F060796-000 WCI F060796-000 Contact Us For Availability
20
WCI F078673-200 WCI F078673-200 Contact Us For Availability
20
WCI F078825-000 WCI F078825-000 Contact Us For Availability
21
SCREW (2) WCI F137505-000 Contact Us For Availability
21
SCREW (3) WCI F079999-000 Contact Us For Availability
21
WCI F131053-000 WCI F131053-000 Contact Us For Availability
21
EXHAUST PIPE ASSEMBLY WCI F140283-000 Contact Us For Availability
21
WCI F063536-026 WCI F063536-026 Contact Us For Availability
22
PUSH TO START SWITCH WCI F135006-000 Contact Us For Availability
22
WCI F132413-000 WCI F132413-000 Contact Us For Availability
22
WCI F064360-000 WCI F064360-000 Contact Us For Availability
22
WCI F078101-000 WCI F078101-000 Contact Us For Availability
23
WCI F137873-028 WCI F137873-028 Contact Us For Availability
23
WCI F133007-100 WCI F133007-100 Contact Us For Availability
23
MOTOR CLIP (2) WCI F002618-000 Contact Us For Availability
24
SCREW (2) WCI F136470-000 Contact Us For Availability
24
WCI F076951-300 WCI F076951-300 Contact Us For Availability
24
COMBUSTION CHAMBER WCI F133078-300 Contact Us For Availability
25
WCI F133007-000 WCI F133007-000 Contact Us For Availability
26
PLENUM AND SEAL ASSEMBLY WITHOUT LIGHT WCI F133060-100 Contact Us For Availability
26
WCI F076956-200 WCI F076956-200 Contact Us For Availability
27
WCI F133271-000 WCI F133271-000 Contact Us For Availability
28
SCREW (2) WCI F134584-000 Contact Us For Availability
28
WCI F134920-338 WCI F134920-338 Contact Us For Availability
28
SAFETY THERMOSTAT WCI F132077-000 Contact Us For Availability
29
WCI F139577-000 WCI F139577-000 Contact Us For Availability
30
NUT (4) WCI F073339-000 Contact Us For Availability
31
WCI F073329-000 WCI F073329-000 Contact Us For Availability
34
WCI F076793-100 WCI F076793-100 Contact Us For Availability
35
NUT (2) WCI F073340-000 Contact Us For Availability
36
WASHER (2) WCI F063602-000 Contact Us For Availability
37
INSULATOR, FEMALE (2) WCI F078254-000 Contact Us For Availability
38
INSULATOR, MALE (2) WCI F078253-000 Contact Us For Availability
39
HEAT ELMNT PCKG, CONSIST OF ELMNT, INSLTRS & WCI F137022-000 Contact Us For Availability
40
WCI F133078-100 WCI F133078-100 Contact Us For Availability
42
CLIP (11) WCI F131734-000 Contact Us For Availability
43
WCI F131735-000 WCI F131735-000 Contact Us For Availability
44
WCI F076956-000 WCI F076956-000 Contact Us For Availability
45
SAFETY THERMOSTAT WCI F132202-000 Contact Us For Availability
× ![]()
