Model Electrolux DGA800A1T DRYER – Common Parts & Diagrams

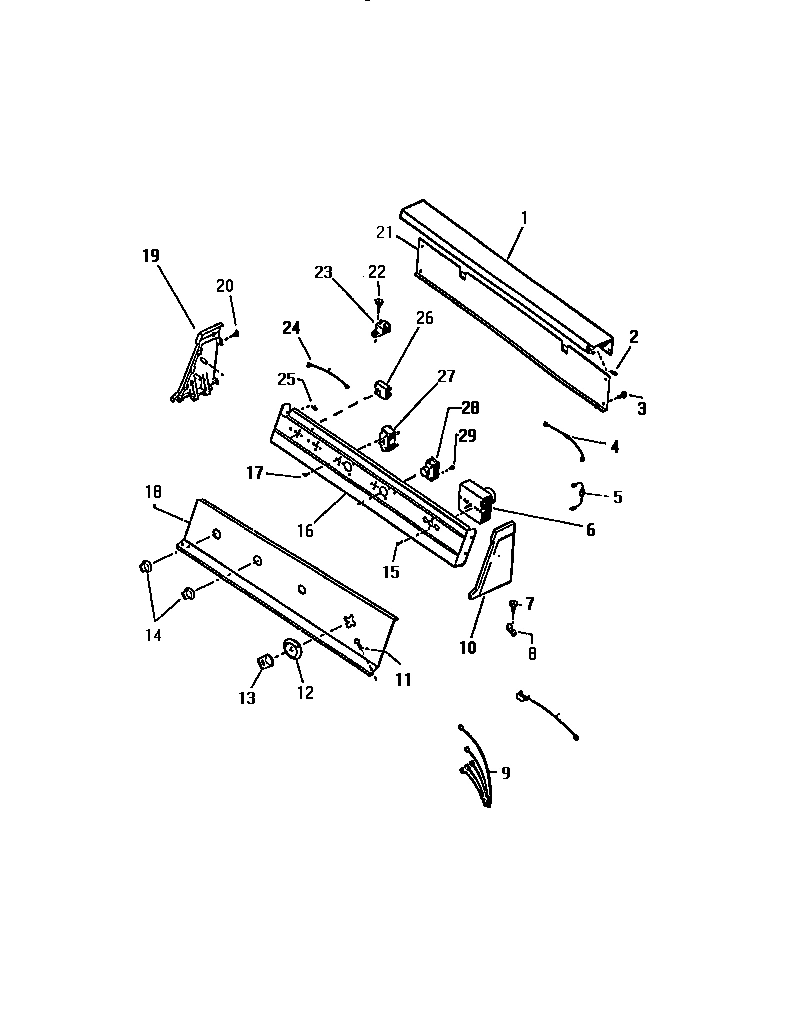

02 - CONSOLE & CONTROLS

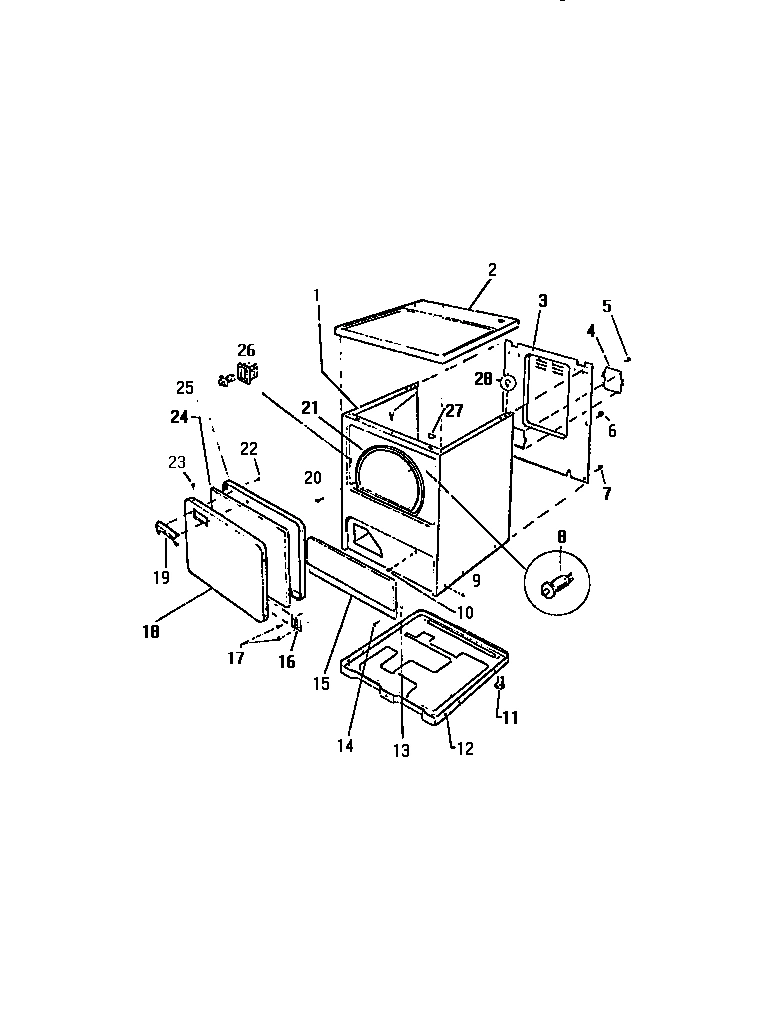

03 - CABINET

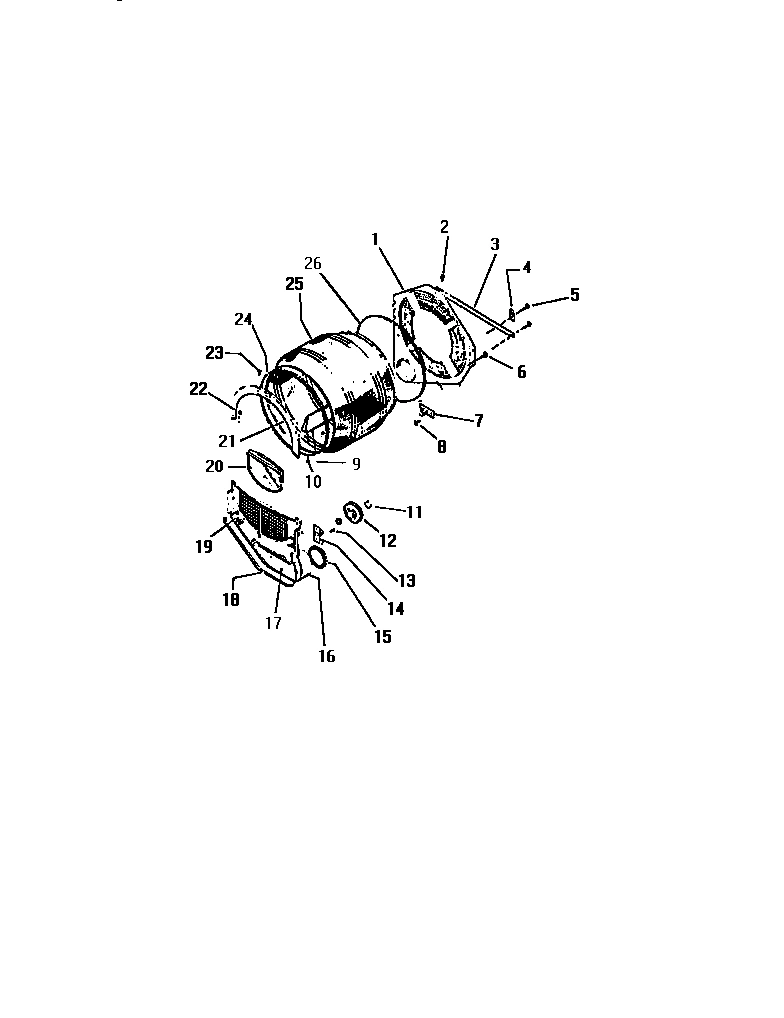

04 - DRUM

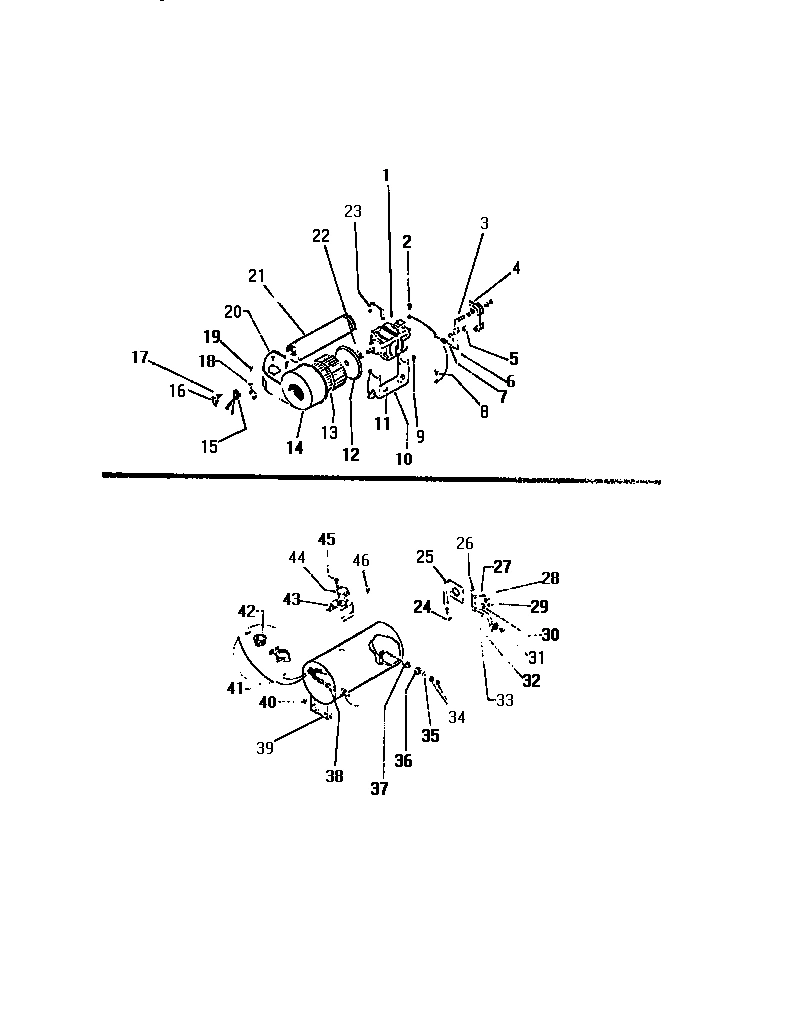

05 - BLOWER & HEATER HOUSING COMPONENTS

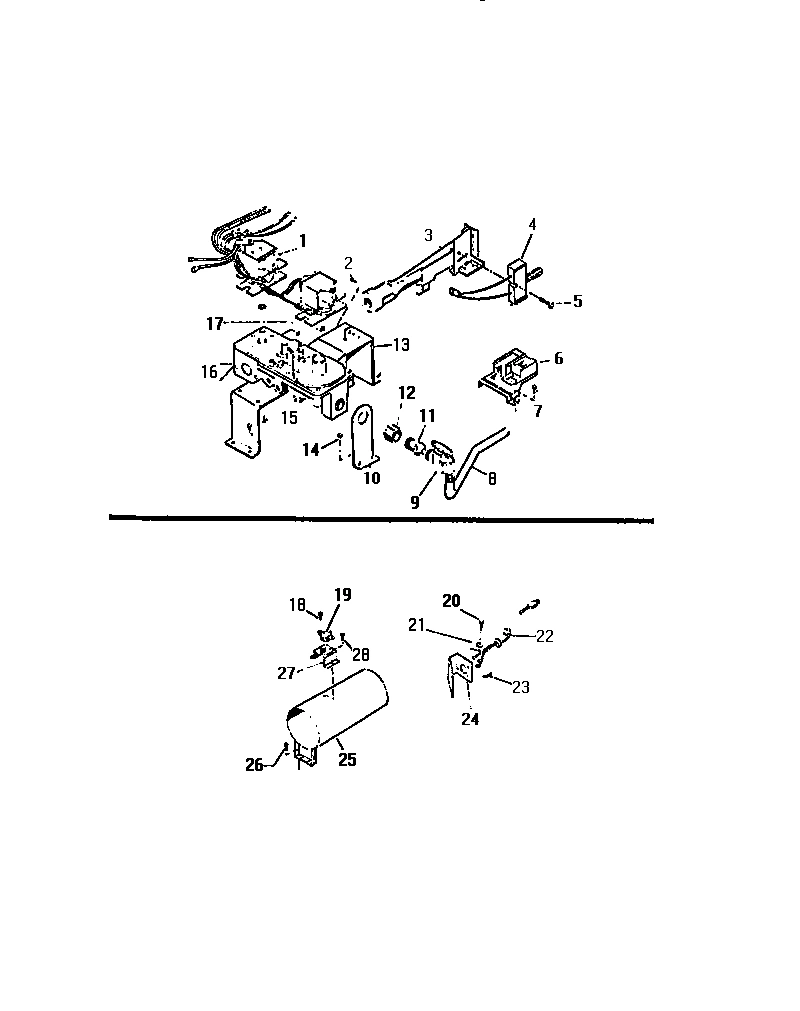

06 - GLOW BAR BURNER & COMBUSTION CHAMBE
Common parts from model Electrolux DGA800A1T DRYER
*42641
CLIP HARNESS TO RH CAB (2) WCI F140144-000 Contact Us For Availability
*42642
CABLE TIE HARNESS TO RH CAB WCI F133780-000 Contact Us For Availability
*42645
WIRE RING, HARNESS TO SIDE OF BASE WCI F136345-000 Contact Us For Availability
*42646
WCI F06312-000 WCI F06312-000 Contact Us For Availability
*42663
INSTALL INSTRUCTIONS WCI 140075-000 Contact Us For Availability
*42664
WCI 140332-000 WCI 140332-000 Contact Us For Availability
*42666
WCI 140350-000 WCI 140350-000 Contact Us For Availability
*42673
TOUCH-UP SPRAY PAINT (6 OZ. AEROSOL), WHEAT WCI F94566-51 Contact Us For Availability
*42676
WCI F133024-00 WCI F133024-00 Contact Us For Availability
*42677
WCI F133047-000 WCI F133047-000 Contact Us For Availability
*42684
WCI F133285-000 WCI F133285-000 Contact Us For Availability
*42686
COMPLETE HTR ASSEMBLY WCI F137023-000 Contact Us For Availability
*42687
GROUND WIRE, GAS WCI F140282-100 Contact Us For Availability
*42688
GROUND WIRE, ELECTRIC WCI F140282-000 Contact Us For Availability
*42689
GAS CONVERSION KIT, NATURAL TO L.P. WCI F137070-000 Contact Us For Availability
*42690
GAS CONVERSION KIT, L.P. TO NATURAL WCI F137071-000 Contact Us For Availability
1
TOP COVER (ROSE WOOD GRAIN) WCI F139795-000 Contact Us For Availability
1
WCI F134920-338 WCI F134920-338 Contact Us For Availability
1
PLENUM AND SEAL ASSEMBLY WITHOUT LIGHT WCI F133060-100 Contact Us For Availability
1
WCI F137078-000 WCI F137078-000 Contact Us For Availability
1
WCI F133075-000 WCI F133075-000 Contact Us For Availability
1A
WCI F137079-000 WCI F137079-000 Contact Us For Availability
1B
MOTOR SWITCH (GE) WCI F067634-006 Contact Us For Availability
1C
MOTOR SWITCH (EMERSON) WCI F067634-002 Contact Us For Availability
2
CLIP (3) WCI F139635-000 Contact Us For Availability
2
TOP PANEL, WHEAT WCI F139207-038 Contact Us For Availability
3
WCI F139218-526 WCI F139218-526 Contact Us For Availability
3
PLENUM SUPT ASSEMBLY WCI F137077-000 Contact Us For Availability
3
IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEE WCI F079499-000 Contact Us For Availability
3
WCI F139744-000 WCI F139744-000 Contact Us For Availability
4
WCI F065111-016 WCI F065111-016 Contact Us For Availability
4
ACCESS PLATE TERM. BLOCK WCI F139218-326 Contact Us For Availability
4
WCI F131174-000 WCI F131174-000 Contact Us For Availability
4
BELT WCI F131654-000 Contact Us For Availability
5
WCI F079485-000 WCI F079485-000 Contact Us For Availability
5
WCI F134225-000 WCI F134225-000 Contact Us For Availability
6
TIMER MOTOR, MALLORY WCI F079459-030 Contact Us For Availability
6
WCI F076822-000 WCI F076822-000 Contact Us For Availability
6A
WCI F139742-000 WCI F139742-000 Contact Us For Availability
7
SHAFT AND MTG PLATE (3) WCI F133165-000 Contact Us For Availability
7
WCI F131652-000 WCI F131652-000 Contact Us For Availability
8
WCI F079171-000 WCI F079171-000 Contact Us For Availability
8
DOOR SWITCH WCI F130791-000 Contact Us For Availability
8
SCREW (6) WCI F132080-000 Contact Us For Availability
8
WCI F078202-100 WCI F078202-100 Contact Us For Availability
9
WCI F140181-000 WCI F140181-000 Contact Us For Availability
9
WCI F076968-000 WCI F076968-000 Contact Us For Availability
9
SEMS SCREW WCI F133911-000 Contact Us For Availability
9
WCI F133170-000 WCI F133170-000 Contact Us For Availability
10
END TRIM AND CAP ASSEMBLY, RH WCI F139719-000 Contact Us For Availability
10
WCI F078190-026 WCI F078190-026 Contact Us For Availability
10
WCI F079904-000 WCI F079904-000 Contact Us For Availability
11
SCREW (2) WCI F140203-000 Contact Us For Availability
11
WCI F137033-000 WCI F137033-000 Contact Us For Availability
11
CLIP (5) WCI F063124-000 Contact Us For Availability
11
WCI F062791-300 WCI F062791-300 Contact Us For Availability
12
WCI F078951-000 WCI F078951-000 Contact Us For Availability
12
WCI F140281-026 WCI F140281-026 Contact Us For Availability
12
WHEEL, TIRE, NYLINER ASSEMBLY (NOTE 1) (5) WCI F133006-000 Contact Us For Availability
12
WCI F064354-028 WCI F064354-028 Contact Us For Availability
12
WCI F062792-300 WCI F062792-300 Contact Us For Availability
13
WCI F078950-100 WCI F078950-100 Contact Us For Availability
13
WCI F133279-000 WCI F133279-000 Contact Us For Availability
13
SCREW (4) WCI F132459-000 Contact Us For Availability
13
WCI F076829-000 WCI F076829-000 Contact Us For Availability
13
WCI F076992-000 WCI F076992-000 Contact Us For Availability
13A
SPEED NUT, ELECTRIC MODELS (2) WCI F078085-000 Contact Us For Availability
14
ROTARY KNOB (2) WCI F078949-000 Contact Us For Availability
14
WCI F066904-000 WCI F066904-000 Contact Us For Availability
14
SHAFT AND MTG PLATE (2) WCI F133163-000 Contact Us For Availability
14
WCI F078201-100 WCI F078201-100 Contact Us For Availability
15
WCI F060796-000 WCI F060796-000 Contact Us For Availability
15
ACCESS PANEL, WHEAT WCI F134145-038 Contact Us For Availability
15
WCI F133008-000 WCI F133008-000 Contact Us For Availability
15
SCREW (2) WCI F132144-000 Contact Us For Availability
15
EXTERNAL THERMO HTR (ELECTRIC) WCI F136777-000 Contact Us For Availability
15
EXTERNAL THERMO HTR (GAS) WCI F136777-100 Contact Us For Availability
16
CONTROL MTG BRKT WCI F140183-022 Contact Us For Availability
16
WCI F078319-000 WCI F078319-000 Contact Us For Availability
16
EXHAUST AND LINT HSG ASSEMBLY (NOTE 2) WCI F133005-000 Contact Us For Availability
16
CONTROL THERMO WCI F136797-000 Contact Us For Availability
16
WCI F137060-000 WCI F137060-000 Contact Us For Availability
16
WCI F139745-000 WCI F139745-000 Contact Us For Availability
17
SCREW (4) WCI F135021-000 Contact Us For Availability
17
WCI F137050-000 WCI F137050-000 Contact Us For Availability
17
WCI F066452-019 WCI F066452-019 Contact Us For Availability
17
WCI F066452-020 WCI F066452-020 Contact Us For Availability
18
WCI F139949-100 WCI F139949-100 Contact Us For Availability
18
OUTER DOOR PANEL, WHEAT WCI F137874-038 Contact Us For Availability
18
WCI F078861-100 WCI F078861-100 Contact Us For Availability
18
BRACKET WCI F078680-000 Contact Us For Availability
19
END TRIM AND CAP ASSEMBLY, LH WCI F139719-100 Contact Us For Availability
19
WCI F078673-200 WCI F078673-200 Contact Us For Availability
19
WCI F76979 WCI F76979 Contact Us For Availability
19
SAFETY THERMO WCI F132077-000 Contact Us For Availability
20
WCI F139577-000 WCI F139577-000 Contact Us For Availability
20
WCI F134722-000 WCI F134722-000 Contact Us For Availability
21
WCI F139230-026 WCI F139230-026 Contact Us For Availability
21
WCI F133271-000 WCI F133271-000 Contact Us For Availability
21
WCI F078825-000 WCI F078825-000 Contact Us For Availability
21
EXHAUST PIPE ASSEMBLY WCI F140283-000 Contact Us For Availability
21
WCI F078101-000 WCI F078101-000 Contact Us For Availability
22
SCREW (2) WCI F136470-000 Contact Us For Availability
22
GROMMET (2) WCI F131653-000 Contact Us For Availability
22
WCI F064360-000 WCI F064360-000 Contact Us For Availability
22
SERVICE CORD WCI F079022-000 Contact Us For Availability
23
CONTROL WCI F133242-000 Contact Us For Availability
23
SCREW (3) WCI F079999-000 Contact Us For Availability
23
MOTOR CLIP (2) WCI F002618-000 Contact Us For Availability
24
WCI F065898-016 WCI F065898-016 Contact Us For Availability
24
WCI F132413-000 WCI F132413-000 Contact Us For Availability
24
WCI F133007-100 WCI F133007-100 Contact Us For Availability
24
WCI F063536-026 WCI F063536-026 Contact Us For Availability
25
WCI F137873-028 WCI F137873-028 Contact Us For Availability
25
WCI F076951-300 WCI F076951-300 Contact Us For Availability
25
COMBUSTION CHAMBER WCI F133078-300 Contact Us For Availability
26
WCI F139948-000 WCI F139948-000 Contact Us For Availability
26
WCI F133007-000 WCI F133007-000 Contact Us For Availability
27
ROTARY SWITCH WCI F137447-000 Contact Us For Availability
27
SCREW (2) WCI F134584-000 Contact Us For Availability
27
CLIP (2) WCI F130448-000 Contact Us For Availability
27
WCI F076956-200 WCI F076956-200 Contact Us For Availability
28
PUSH TO START SWITCH WCI F135006-000 Contact Us For Availability
28
WCI F001345-000 WCI F001345-000 Contact Us For Availability
29
SCREW (2) WCI F137505-000 Contact Us For Availability
29
NUT (4) WCI F073339-000 Contact Us For Availability
30
WCI F073323-000 WCI F073323-000 Contact Us For Availability
33
WCI F076793-100 WCI F076793-100 Contact Us For Availability
34
NUT (2) WCI F073340-000 Contact Us For Availability
35
WASHER (2) WCI F063602-000 Contact Us For Availability
36
INSULATOR, FEMALE (2) WCI F078254-000 Contact Us For Availability
37
INSULATOR, MALE (2) WCI F078253-000 Contact Us For Availability
38
HEAT ELEMENT PKG (PACKAGE CONTAINS ELEMENT, I WCI F137022-000 Contact Us For Availability
39
HTR. HOUSING WCI F133078-100 Contact Us For Availability
41
CLIP (11) WCI F131734-000 Contact Us For Availability
42
WCI F131735-000 WCI F131735-000 Contact Us For Availability
43
WCI F076956-000 WCI F076956-000 Contact Us For Availability
44
WCI F132202-000 WCI F132202-000 Contact Us For Availability
× ![]()
