Model Maytag DG306 GAS DRYER – Common Parts & Diagrams
01 - 50 CYCLE CONVERSION LIST
02 - BURNER ASSEMBLY

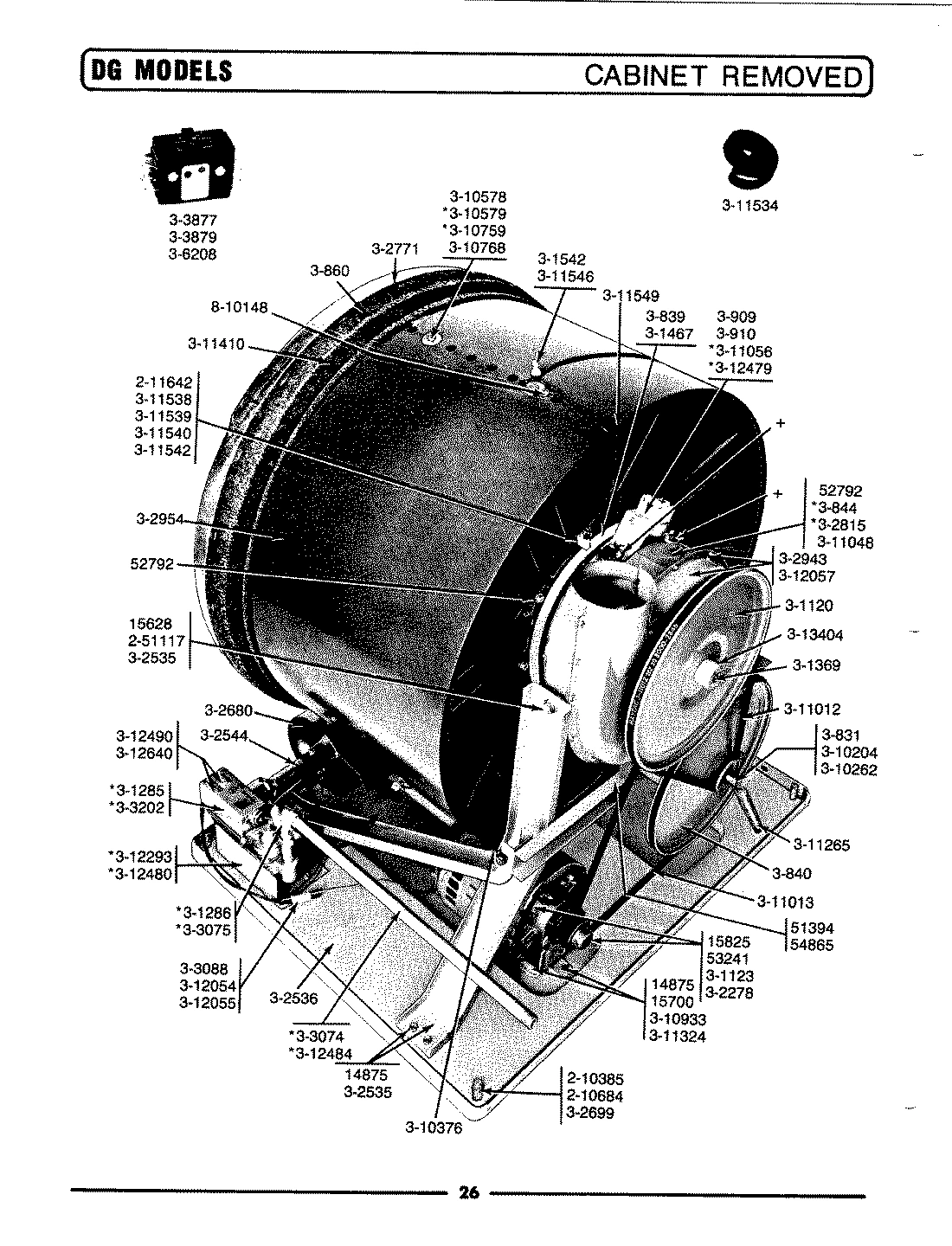

03 - CABINET REMOVED

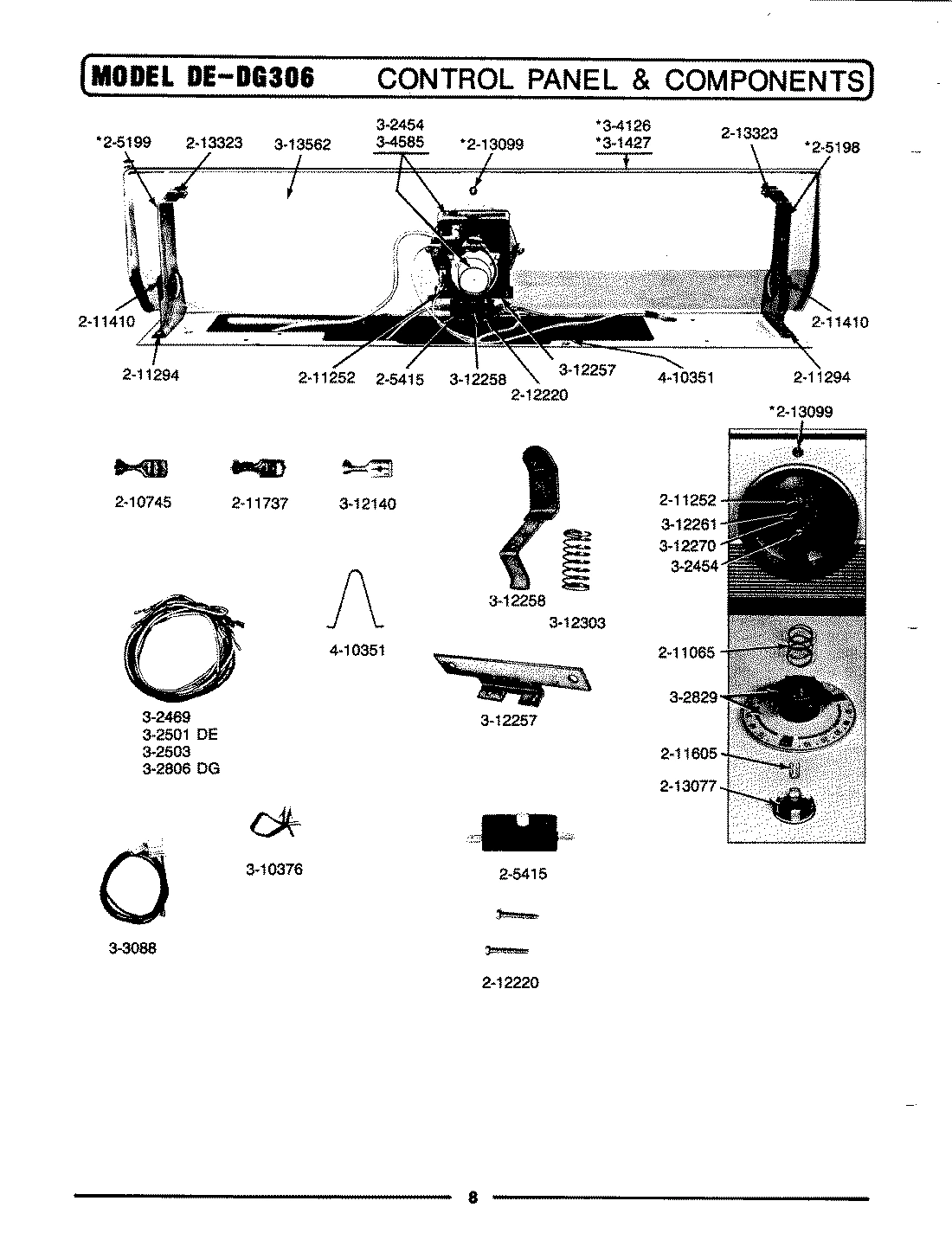

04 - CONTROL PANEL & COMPONENTS

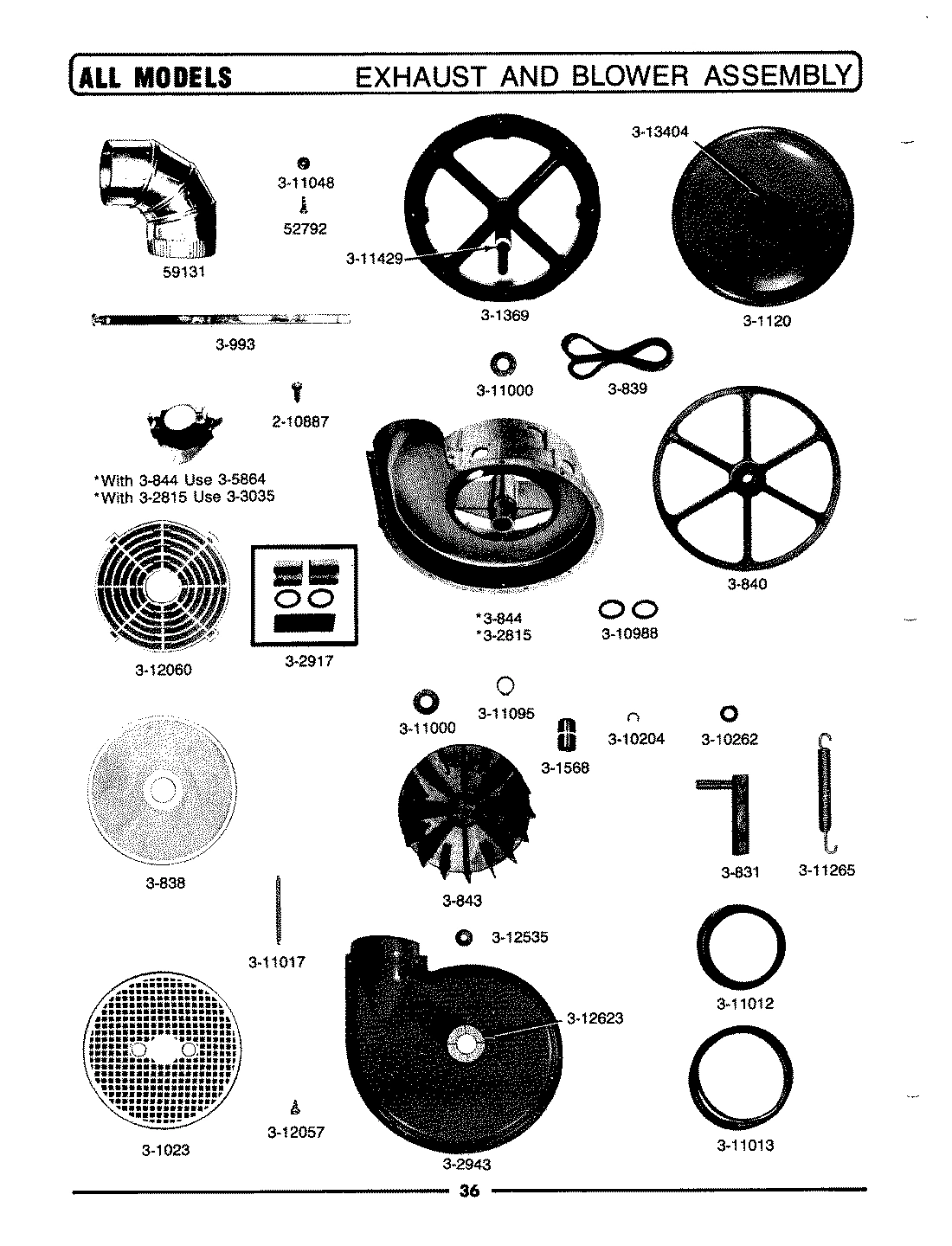

05 - EXHAUST & BLOWER ASSEMBLY

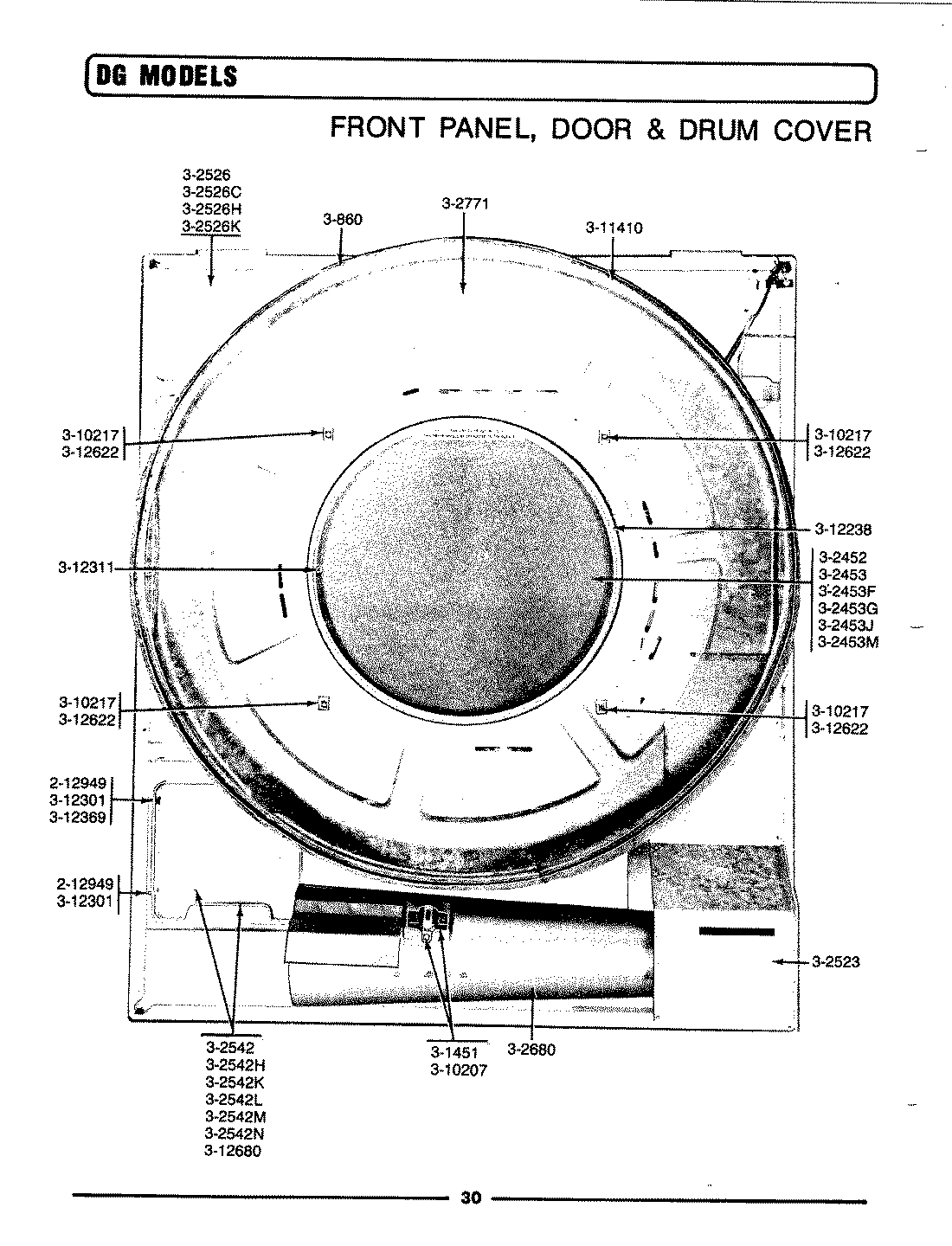

06 - FRONT PANEL, DOOR & DRUM COVER

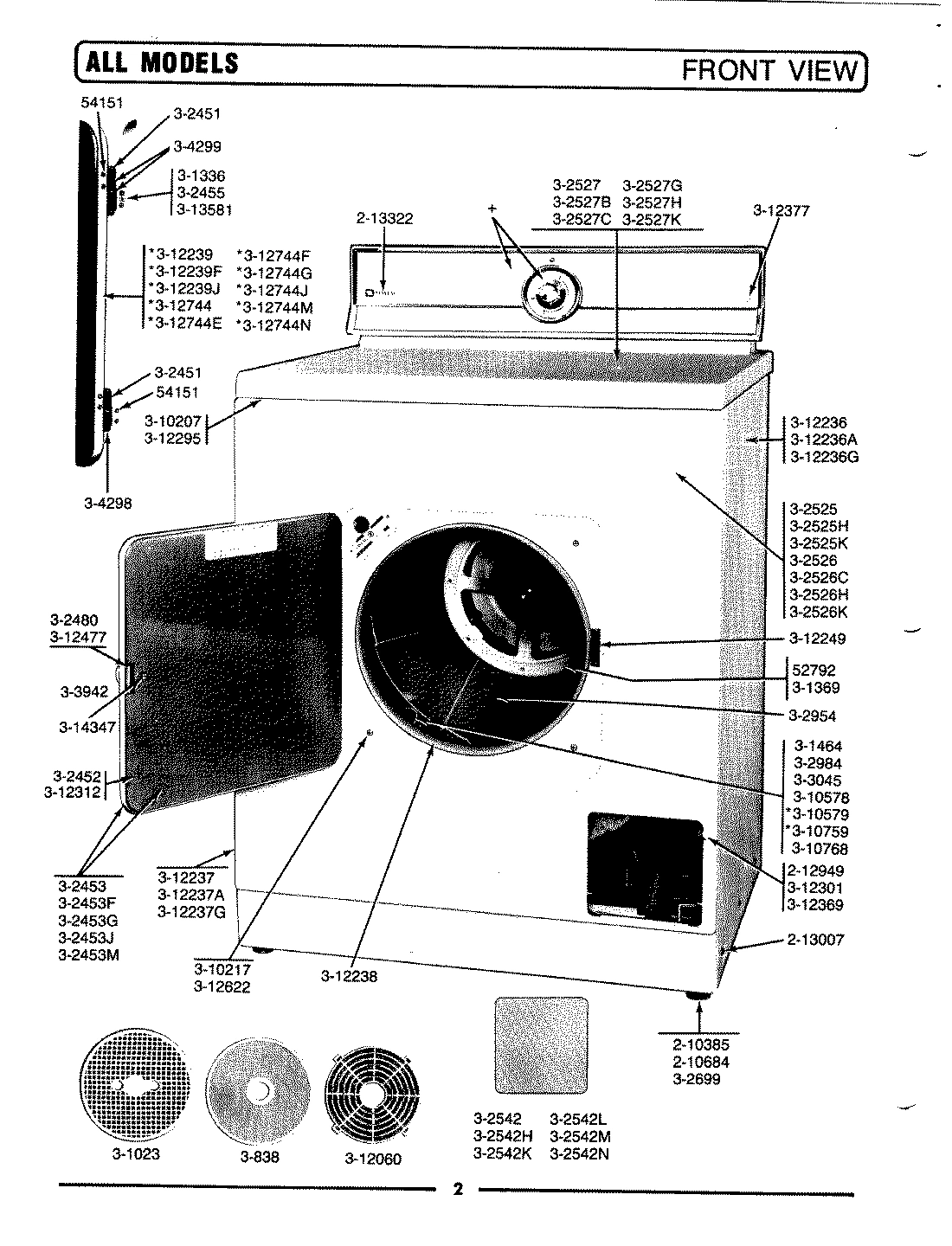

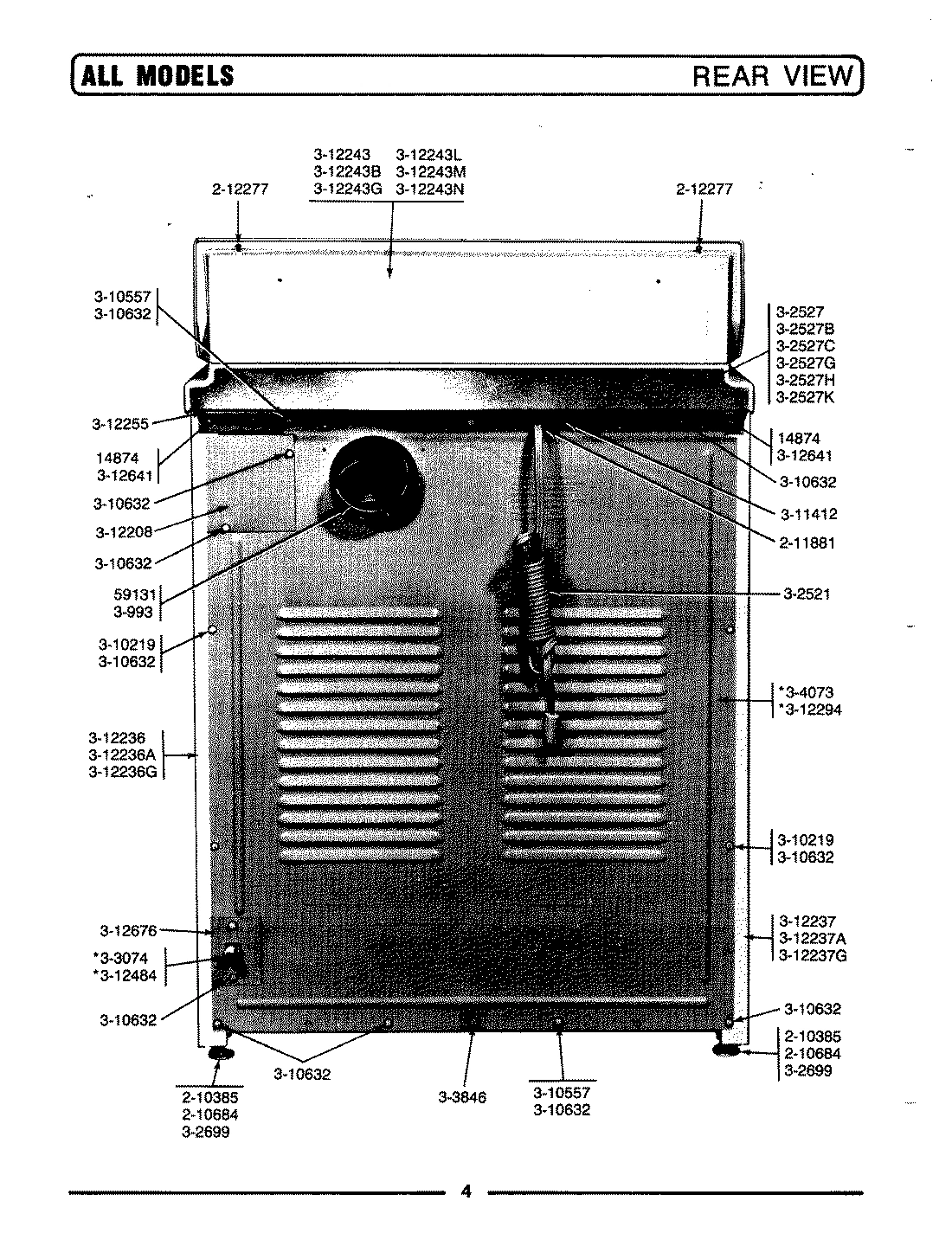

07 - FRONT VIEW

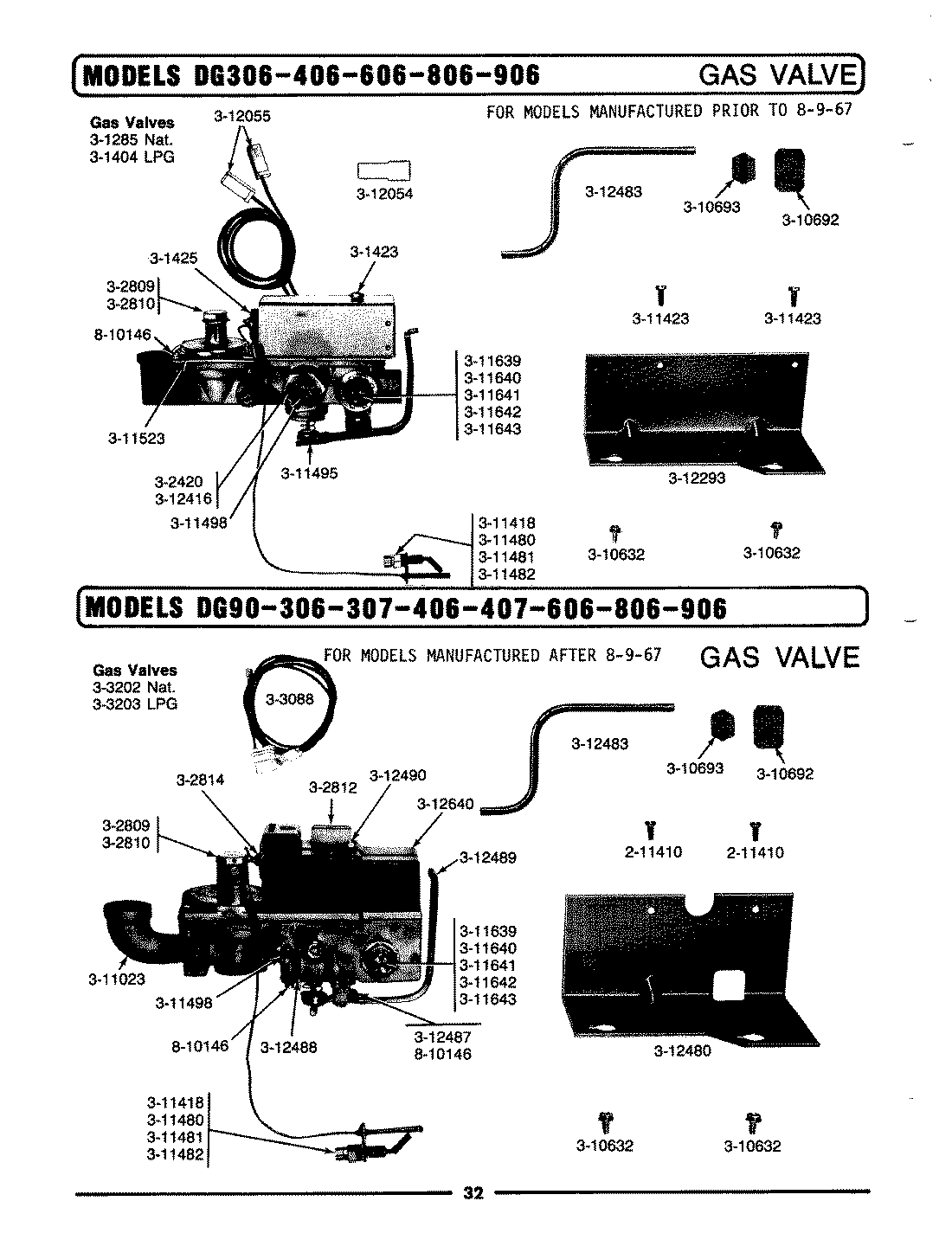

08 - GAS VALVE (AFTER 8-9-67)
09 - GAS VALVE (PRIOR TO 8-9-67)

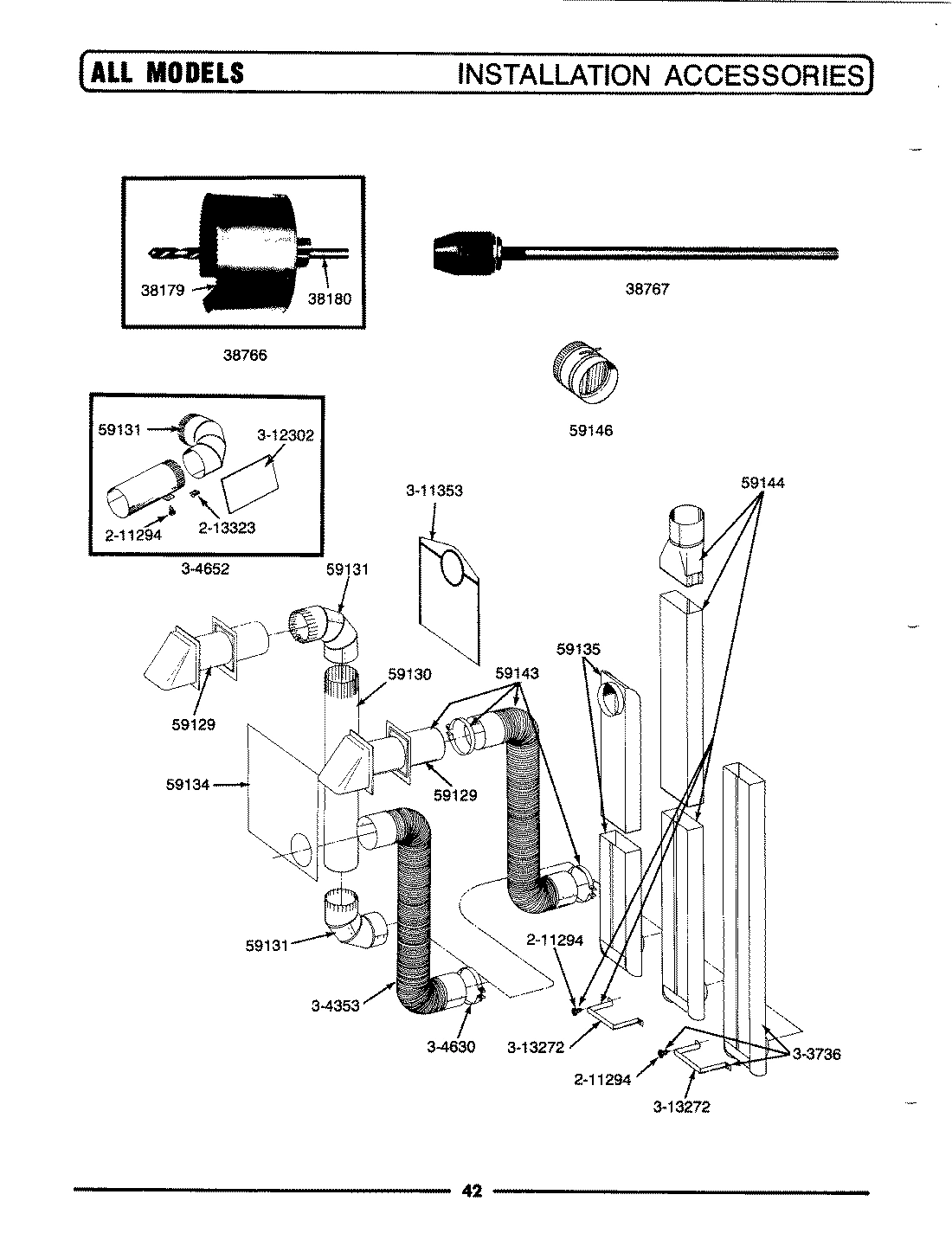

10 - INSTALLATION ACCESSORIES
11 - REAR VIEW

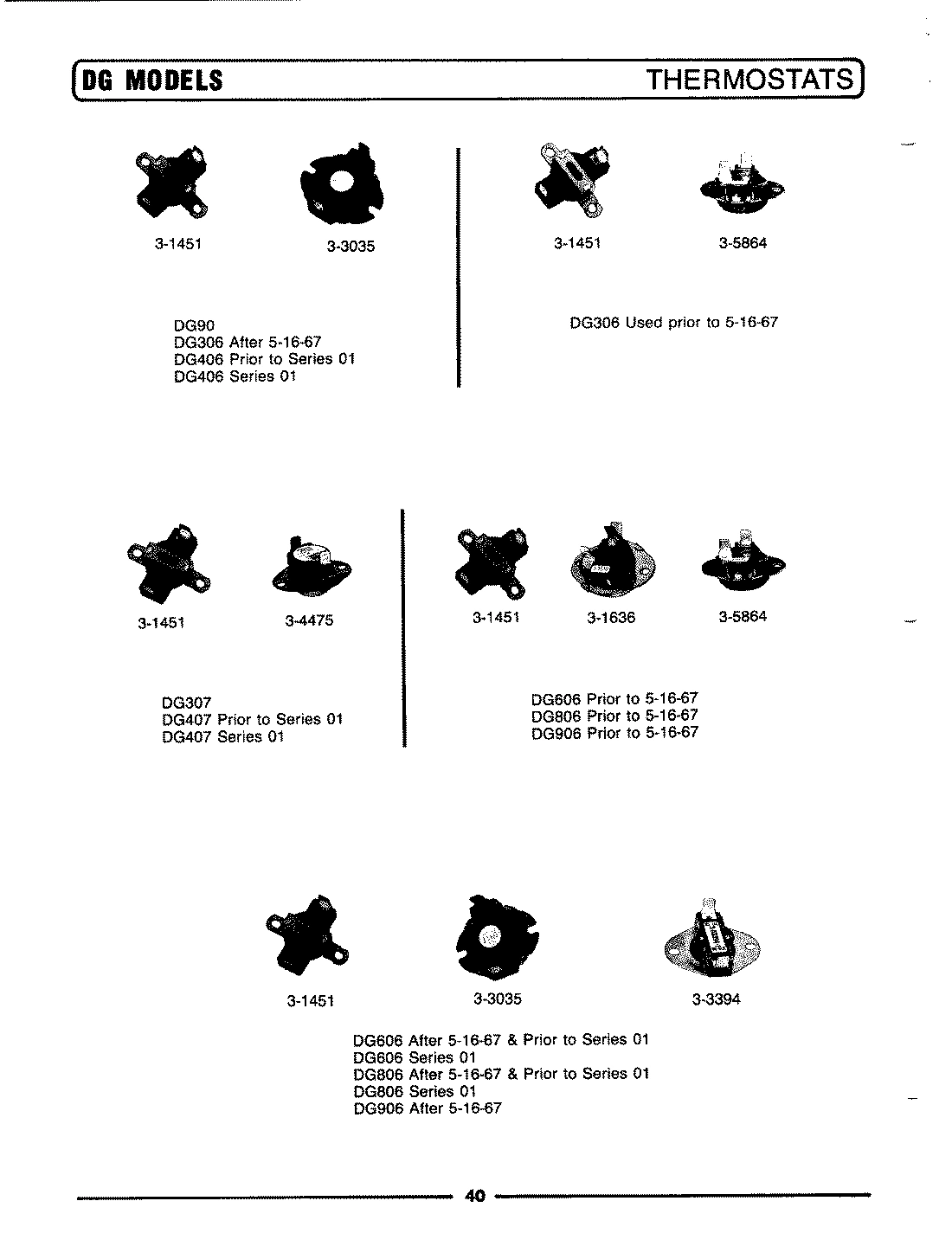

12 - THERMOSTATS
Common parts from model Maytag DG306 GAS DRYER
1
MAY 014875 MAY 014875 Contact Us For Availability
1
MAY 052792 MAY 052792 Contact Us For Availability
1
MAY 301285 MAY 301285 Contact Us For Availability
1
MAY 205198 MAY 205198 Contact Us For Availability
1
MAY 211410 MAY 211410 Contact Us For Availability
1
MAY Y059131 MAY Y059131 Contact Us For Availability
1
MAY Y301451 MAY Y301451 Contact Us For Availability
1
MAY 038179 MAY 038179 Contact Us For Availability
2
MAY Y301636 MAY Y301636 Contact Us For Availability
2
MAY 015628 MAY 015628 Contact Us For Availability
2
MAY 300860 MAY 300860 Contact Us For Availability
2
MAY 205199 MAY 205199 Contact Us For Availability
2
MAY 054151 MAY 054151 Contact Us For Availability
2
MAY 301404 MAY 301404 Contact Us For Availability
2
MAY 038180 MAY 038180 Contact Us For Availability
2
MAY Y201808 MAY Y201808 Contact Us For Availability
3
MAY 015700 MAY 015700 Contact Us For Availability
3
MAY 300831 MAY 300831 Contact Us For Availability
3
MAY 301423 MAY 301423 Contact Us For Availability
3
MAY 038766 MAY 038766 Contact Us For Availability
4
MAY Y303394 MAY Y303394 Contact Us For Availability
4
MAY 210745 MAY 210745 Contact Us For Availability
4
MAY Y302812 MAY Y302812 Contact Us For Availability
4
MAY 301425 MAY 301425 Contact Us For Availability
4
MAY 038767 MAY 038767 Contact Us For Availability
5
MAY 051394 MAY 051394 Contact Us For Availability
5
MAY 300839 MAY 300839 Contact Us For Availability
5
MAY 212949 MAY 212949 Contact Us For Availability
5
MAY 302814 MAY 302814 Contact Us For Availability
5
MAY 302420 MAY 302420 Contact Us For Availability
5
MAY 211881 MAY 211881 Contact Us For Availability
6
MAY 300840 MAY 300840 Contact Us For Availability
6
MAY 303088 MAY 303088 Contact Us For Availability
6
MAY 300993 MAY 300993 Contact Us For Availability
6
MAY 305864 MAY 305864 Contact Us For Availability
6
SCREW ASSEMBLY - LEAK LIMIT MAY 302809 Contact Us For Availability
6
MAY Y059130 MAY Y059130 Contact Us For Availability
7
MAY Y053241 MAY Y053241 Contact Us For Availability
7
MAY Y303202 MAY Y303202 Contact Us For Availability
7
MAY 300843 MAY 300843 Contact Us For Availability
7
MAY 213322 MAY 213322 Contact Us For Availability
7
MAY 302810 MAY 302810 Contact Us For Availability
7
MAY 301548 MAY 301548 Contact Us For Availability
8
MAY 054865 MAY 054865 Contact Us For Availability
8
MAY 214697 MAY 214697 Contact Us For Availability
8
MAY Y303203 MAY Y303203 Contact Us For Availability
8
MAY Y059134 MAY Y059134 Contact Us For Availability
8
MAY 302521 MAY 302521 Contact Us For Availability
9
MAY 300838 MAY 300838 Contact Us For Availability
9
MAY 211605 MAY 211605 Contact Us For Availability
9
TOP COVER-WHITE MAY 302527 Contact Us For Availability
9
COMPRESSION NUT MAY 310692 Contact Us For Availability
9
MAY Y059135 MAY Y059135 Contact Us For Availability
10
MAY Y301120 MAY Y301120 Contact Us For Availability
10
MAY 211737 MAY 211737 Contact Us For Availability
10
MAY 301023 MAY 301023 Contact Us For Availability
10
MIXING CHAMBER MAY 302523 Contact Us For Availability
10
MAY 302527B MAY 302527B Contact Us For Availability
10
MAY Y310693 MAY Y310693 Contact Us For Availability
10
MAY Y059143 MAY Y059143 Contact Us For Availability
11
MAY Y311418 MAY Y311418 Contact Us For Availability
11
MAY 211642 MAY 211642 Contact Us For Availability
11
MAY 212220 MAY 212220 Contact Us For Availability
11
MAY 302527C MAY 302527C Contact Us For Availability
11
MAY 059144 MAY 059144 Contact Us For Availability
12
MAY 251117 MAY 251117 Contact Us For Availability
12
MAY 301369 MAY 301369 Contact Us For Availability
12
MAY 213077 MAY 213077 Contact Us For Availability
12
MAY 301568 MAY 301568 Contact Us For Availability
12
STREET ELBOW, 3/8 INCH MAY 311023 Contact Us For Availability
12
MAY Y311423 MAY Y311423 Contact Us For Availability
12
MAY 059146 MAY 059146 Contact Us For Availability
13
MAY Y302815 MAY Y302815 Contact Us For Availability
13
MAY 213099 MAY 213099 Contact Us For Availability
13
MAY 302527H MAY 302527H Contact Us For Availability
13
MAY Y311480 MAY Y311480 Contact Us For Availability
14
MAY 213323 MAY 213323 Contact Us For Availability
14
BEARING KIT - DRUM MAY 302917 Contact Us For Availability
14
HINGE ASSEMBLY MAY 302451 Contact Us For Availability
14
MAY 302527K MAY 302527K Contact Us For Availability
14
PILOT ORIFICE-MFG. MAY 311481 Contact Us For Availability
15
MAY Y311482 MAY Y311482 Contact Us For Availability
15
MAY Y302699 MAY Y302699 Contact Us For Availability
15
MAY 302943 MAY 302943 Contact Us For Availability
15
MAY Y302454 MAY Y302454 Contact Us For Availability
15
DOOR LINER MAY 302452 Contact Us For Availability
15
MAY 303736 MAY 303736 Contact Us For Availability
16
MAY 303074 MAY 303074 Contact Us For Availability
16
HARNESS FOR SHROUD MAY 302469 Contact Us For Availability
16
MAY 302453 MAY 302453 Contact Us For Availability
16
GASKET MAY 311495 Contact Us For Availability
16
MAY Y304353 MAY Y304353 Contact Us For Availability
17
MAY 310484 MAY 310484 Contact Us For Availability
17
MAY 310204 MAY 310204 Contact Us For Availability
17
MAY 302501 MAY 302501 Contact Us For Availability
17
MAY 302453F MAY 302453F Contact Us For Availability
17
MAY Y311498 MAY Y311498 Contact Us For Availability
17
MAY Y304630 MAY Y304630 Contact Us For Availability
18
MAY 310262 MAY 310262 Contact Us For Availability
18
MAY 302503 MAY 302503 Contact Us For Availability
18
MAY 302453G MAY 302453G Contact Us For Availability
18
GASKET FOR REGULATOR MAY 311523 Contact Us For Availability
18
MAY 311147 MAY 311147 Contact Us For Availability
18
MAY 303846 MAY 303846 Contact Us For Availability
19
MAY Y310798 MAY Y310798 Contact Us For Availability
19
MAY Y311639 MAY Y311639 Contact Us For Availability
19
MAY 302806 MAY 302806 Contact Us For Availability
19
MAY 302453J MAY 302453J Contact Us For Availability
19
MAY 311353 MAY 311353 Contact Us For Availability
19
BACK PANEL MAY 304073 Contact Us For Availability
20
MAY Y302829 MAY Y302829 Contact Us For Availability
20
MAY 310988 MAY 310988 Contact Us For Availability
20
BURNER ORIFICE BLACK No.57 MAY 310803 Contact Us For Availability
20
MAY 311640 MAY 311640 Contact Us For Availability
20
MAY 302453M MAY 302453M Contact Us For Availability
20
MAY 313272 MAY 313272 Contact Us For Availability
20
MAY 310219 MAY 310219 Contact Us For Availability
21
90 DEGREE ELBOW, 3/8 INCH MAY 311065 Contact Us For Availability
21
MAY 301123 MAY 301123 Contact Us For Availability
21
COMBUSTION CONE MAY 302680 Contact Us For Availability
21
MAY 311000 MAY 311000 Contact Us For Availability
21
MAY Y302455 MAY Y302455 Contact Us For Availability
21
ORIFICE FOR MAIN BURNER MAY 311641 Contact Us For Availability
21
MAY 313766 MAY 313766 Contact Us For Availability
21
MAY 310557 MAY 310557 Contact Us For Availability
22
MAY Y310632 MAY Y310632 Contact Us For Availability
22
MAY 311162 MAY 311162 Contact Us For Availability
22
MAY 302771 MAY 302771 Contact Us For Availability
22
MAY 304126 MAY 304126 Contact Us For Availability
22
MAY 302480 MAY 302480 Contact Us For Availability
22
ORIFICE, MAIN BURNER (MFG) MAY 311642 Contact Us For Availability
23
MAY 310207 MAY 310207 Contact Us For Availability
23
MAY 301286 MAY 301286 Contact Us For Availability
23
MAY 312480 MAY 312480 Contact Us For Availability
23
MAY 304127 MAY 304127 Contact Us For Availability
23
MAY 302525 MAY 302525 Contact Us For Availability
23
ORIFICE FOR MAIN BURNER MAY 311643 Contact Us For Availability
24
MAY 312054 MAY 312054 Contact Us For Availability
24
MAY Y304585 MAY Y304585 Contact Us For Availability
24
MAY Y311017 MAY Y311017 Contact Us For Availability
24
MAY 302525H MAY 302525H Contact Us For Availability
24
SCREW MAY 311412 Contact Us For Availability
25
MAY 311610 MAY 311610 Contact Us For Availability
25
MAY 301467 MAY 301467 Contact Us For Availability
25
MAY Y310376 MAY Y310376 Contact Us For Availability
25
MAY 311048 MAY 311048 Contact Us For Availability
25
BAND MAY 311410 Contact Us For Availability
25
MAY Y312055 MAY Y312055 Contact Us For Availability
25
MAY 302525K MAY 302525K Contact Us For Availability
25
BRACKET FOR LEVER MAY 312487 Contact Us For Availability
26
MAY 301542 MAY 301542 Contact Us For Availability
26
MAY 312293 MAY 312293 Contact Us For Availability
26
MAY Y312140 MAY Y312140 Contact Us For Availability
26
MAY 311095 MAY 311095 Contact Us For Availability
26
FRONT PANEL-WHITE MAY 302526 Contact Us For Availability
26
GASKET FOR PILOT MAY 312488 Contact Us For Availability
27
MAY Y302278 MAY Y302278 Contact Us For Availability
27
MAY 311265 MAY 311265 Contact Us For Availability
27
BRACKET MAY 312257 Contact Us For Availability
27
MAY 302526C MAY 302526C Contact Us For Availability
27
LEVER FOR PILOT MAY 312489 Contact Us For Availability
27
SCREW FOR FILTER MAY 312416 Contact Us For Availability
28
MAY 311910 MAY 311910 Contact Us For Availability
28
MAY 312208 MAY 312208 Contact Us For Availability
28
SUPPORT MAY 302535 Contact Us For Availability
28
SCREW FOR MAIN SOLENOID MAY 312490 Contact Us For Availability
28
MAY 312258 MAY 312258 Contact Us For Availability
28
MAY Y311429 MAY Y311429 Contact Us For Availability
28
MAY 302526H MAY 302526H Contact Us For Availability
28
MAY 312311 MAY 312311 Contact Us For Availability
28
MAY Y312483 MAY Y312483 Contact Us For Availability
29
BASE MAY 302536 Contact Us For Availability
29
MAY Y312057 MAY Y312057 Contact Us For Availability
29
VALVE COVER FOR 3-3202 MAY 312640 Contact Us For Availability
29
WASHER MAY 312261 Contact Us For Availability
29
MAY 302526K MAY 302526K Contact Us For Availability
29
MAY 810146 MAY 810146 Contact Us For Availability
30
MAY 312298 MAY 312298 Contact Us For Availability
30
MAY Y302544 MAY Y302544 Contact Us For Availability
30
MAY Y312270 MAY Y312270 Contact Us For Availability
30
MAY 312236 MAY 312236 Contact Us For Availability
31
MAY 312302 MAY 312302 Contact Us For Availability
31
MAY 312303 MAY 312303 Contact Us For Availability
31
MAY 312680 MAY 312680 Contact Us For Availability
31
MAY 312236A MAY 312236A Contact Us For Availability
32
MAY 313562 MAY 313562 Contact Us For Availability
32
MAY Y312623 MAY Y312623 Contact Us For Availability
32
MAY 312236G MAY 312236G Contact Us For Availability
33
MAY Y313404 MAY Y313404 Contact Us For Availability
33
MAY 410351 MAY 410351 Contact Us For Availability
33
MAY 302527G MAY 302527G Contact Us For Availability
33
PANEL-WHITE MAY 312237 Contact Us For Availability
34
MAY 210887 MAY 210887 Contact Us For Availability
34
MAY 312237A MAY 312237A Contact Us For Availability
35
MAY Y300844 MAY Y300844 Contact Us For Availability
35
MAY 312237G MAY 312237G Contact Us For Availability
36
MAY 302542 MAY 302542 Contact Us For Availability
36
MAY 312243 MAY 312243 Contact Us For Availability
37
MAY 302542H MAY 302542H Contact Us For Availability
37
MAY 312243B MAY 312243B Contact Us For Availability
38
SHUT-OFF VALVE MAY 303075 Contact Us For Availability
38
MAY 302542K MAY 302542K Contact Us For Availability
38
MAY 312243G MAY 312243G Contact Us For Availability
39
MAY 302542L MAY 302542L Contact Us For Availability
39
MAY 312243L MAY 312243L Contact Us For Availability
40
MAY 302542M MAY 302542M Contact Us For Availability
40
MAY 312243M MAY 312243M Contact Us For Availability
41
MAY Y303877 MAY Y303877 Contact Us For Availability
41
MAY 302542N MAY 302542N Contact Us For Availability
41
MAY 312243N MAY 312243N Contact Us For Availability
42
MAY Y303879 MAY Y303879 Contact Us For Availability
42
MAY 312255 MAY 312255 Contact Us For Availability
43
DRUM W/FELT - PORCELAIN MAY 302954 Contact Us For Availability
43
MAY 306208 MAY 306208 Contact Us For Availability
43
BACK FOR CABINET MAY 312294 Contact Us For Availability
44
MAY Y312484 MAY Y312484 Contact Us For Availability
44
BAFFLE ASSEMBLY - POLY MAY 302984 Contact Us For Availability
45
MAY Y312641 MAY Y312641 Contact Us For Availability
46
MAY 312676 MAY 312676 Contact Us For Availability
46
MAY 303942 MAY 303942 Contact Us For Availability
47
MAY Y304298 MAY Y304298 Contact Us For Availability
47
MAY 313122 MAY 313122 Contact Us For Availability
48
MAY 304299 MAY 304299 Contact Us For Availability
50
MAY 310217 MAY 310217 Contact Us For Availability
51
MAY 310578 MAY 310578 Contact Us For Availability
51
MAY 310933 MAY 310933 Contact Us For Availability
52
MAY Y311012 MAY Y311012 Contact Us For Availability
52
SCREW, No.10-24 X 11/16 INCH MAY 310579 Contact Us For Availability
53
MAY Y311013 MAY Y311013 Contact Us For Availability
53
MAY Y310759 MAY Y310759 Contact Us For Availability
54
MAY 310768 MAY 310768 Contact Us For Availability
55
SHIELD FOR SPIDER MAY Y312060 Contact Us For Availability
57
MAY 311324 MAY 311324 Contact Us For Availability
59
MAY 311534 MAY 311534 Contact Us For Availability
60
MAY Y311538 MAY Y311538 Contact Us For Availability
61
MAY Y311539 MAY Y311539 Contact Us For Availability
62
COVER FOR CARBON BRUSH MAY 311540 Contact Us For Availability
62
MAY 312238 MAY 312238 Contact Us For Availability
63
MAY Y311542 MAY Y311542 Contact Us For Availability
63
MAY 312239 MAY 312239 Contact Us For Availability
64
MAY 311546 MAY 311546 Contact Us For Availability
64
MAY 312239F MAY 312239F Contact Us For Availability
65
MAY 311549 MAY 311549 Contact Us For Availability
65
MAY 312239J MAY 312239J Contact Us For Availability
66
MAY 312249 MAY 312249 Contact Us For Availability
68
BUSHING FOR ACCESS STUD MAY 312301 Contact Us For Availability
69
MAY 312312 MAY 312312 Contact Us For Availability
70
MAY 312369 MAY 312369 Contact Us For Availability
71
MAY 312377 MAY 312377 Contact Us For Availability
72
MAY 312477 MAY 312477 Contact Us For Availability
73
MAY 312622 MAY 312622 Contact Us For Availability
74
MAY Y312744 MAY Y312744 Contact Us For Availability
75
MAY 312744E MAY 312744E Contact Us For Availability
76
MAY 810148 MAY 810148 Contact Us For Availability
76
MAY 312744F MAY 312744F Contact Us For Availability
77
MAY 312744G MAY 312744G Contact Us For Availability
78
MAY 312744J MAY 312744J Contact Us For Availability
79
MAY 312744M MAY 312744M Contact Us For Availability
80
MAY 312744N MAY 312744N Contact Us For Availability
81
SLEEVE FOR DOOR WIRES MAY 313581 Contact Us For Availability
× ![]()
