Model Whirlpool DG26CS GAS DRYER – Common Parts & Diagrams

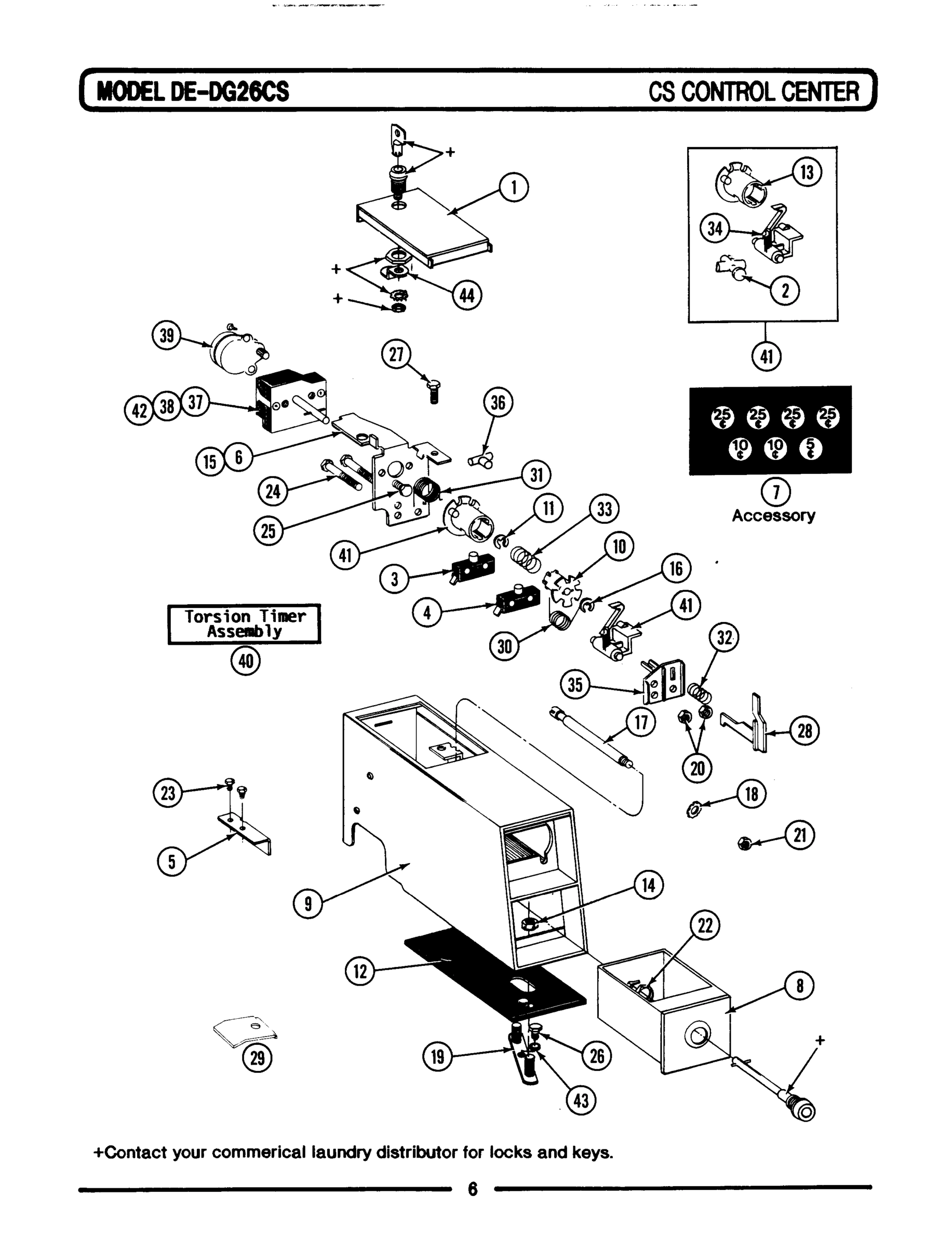

02 - CONTROL CENTER

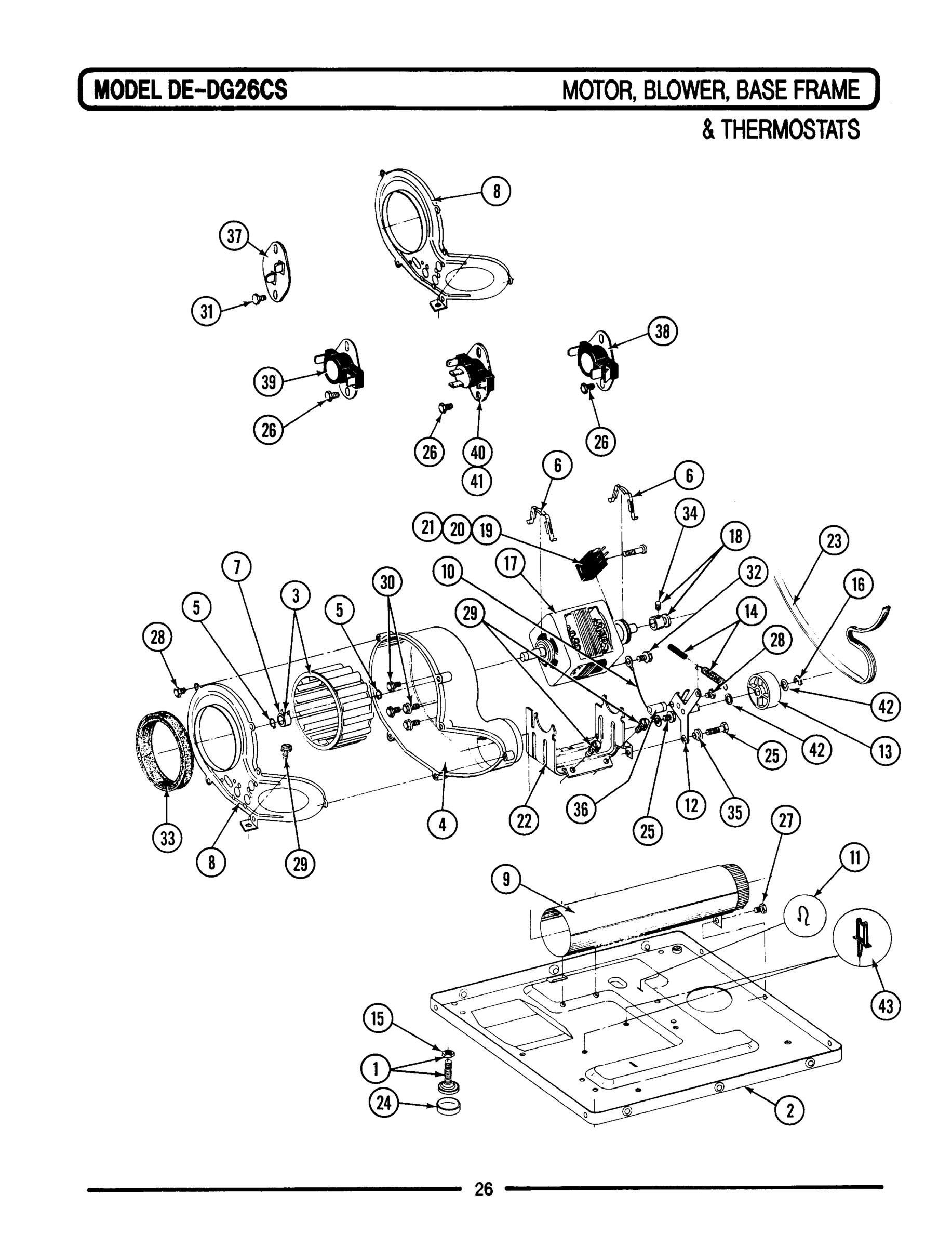

08 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

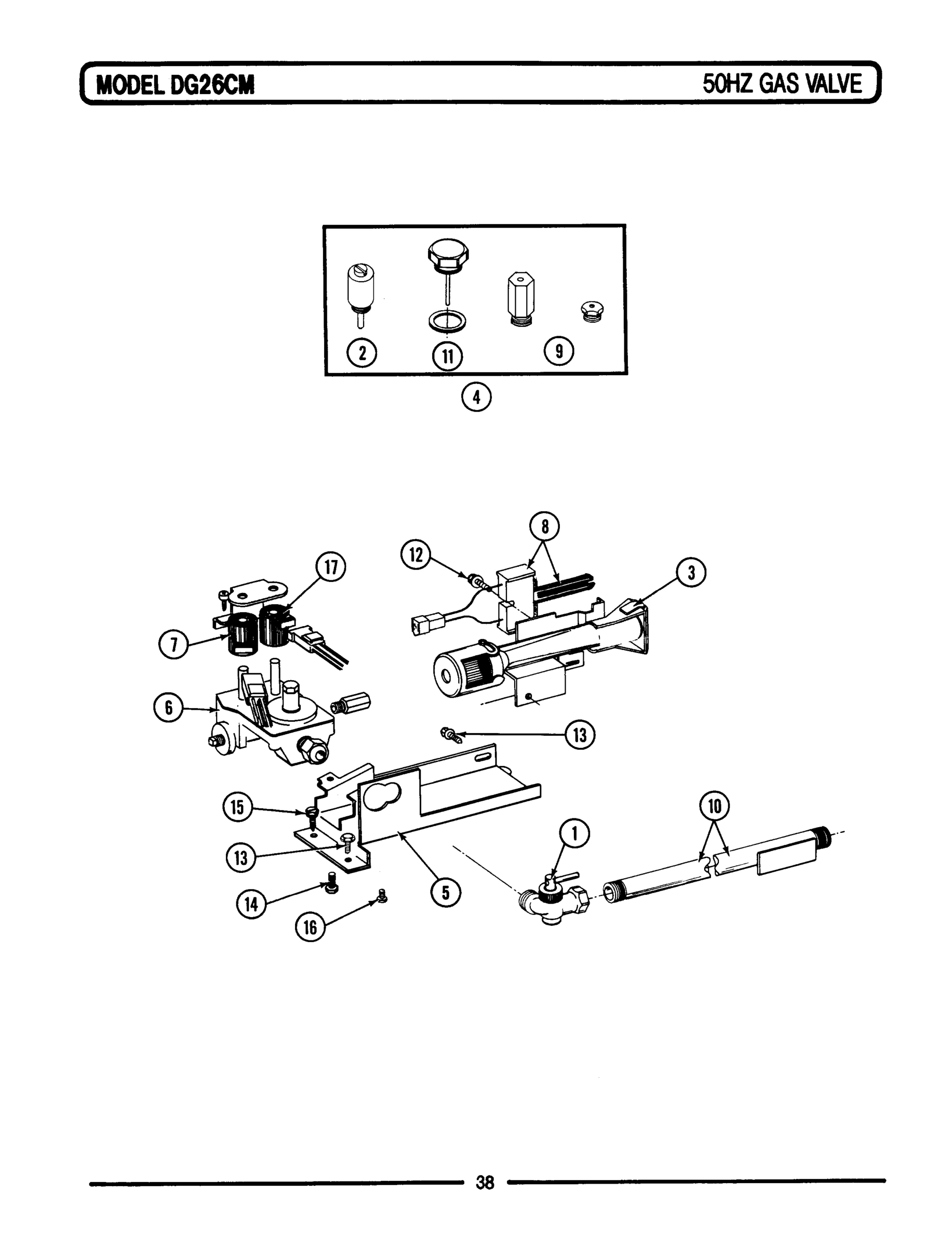

11 - 50HZ GAS VALVE
12 - CONVERSION LIST

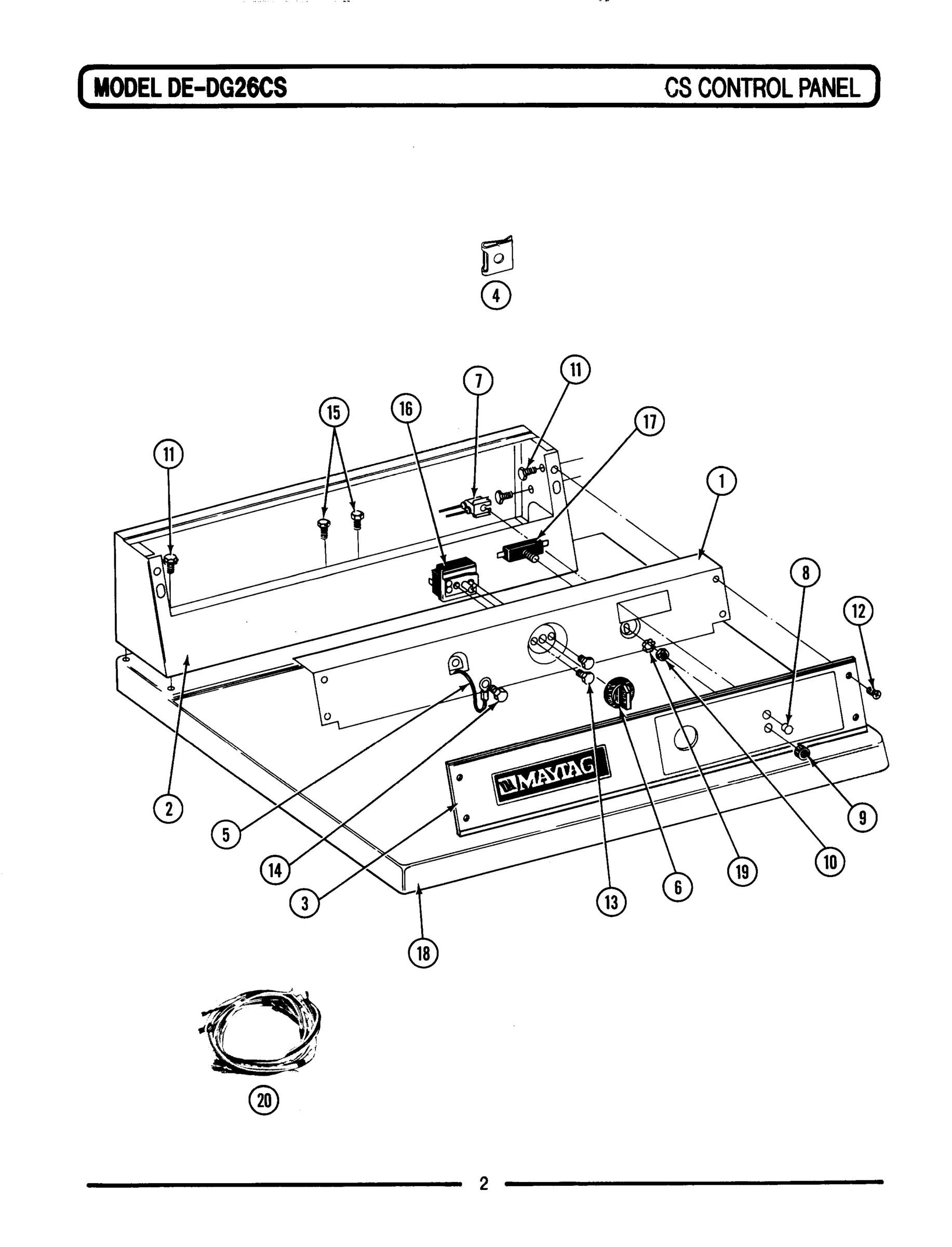

01 - CONTROL PANEL

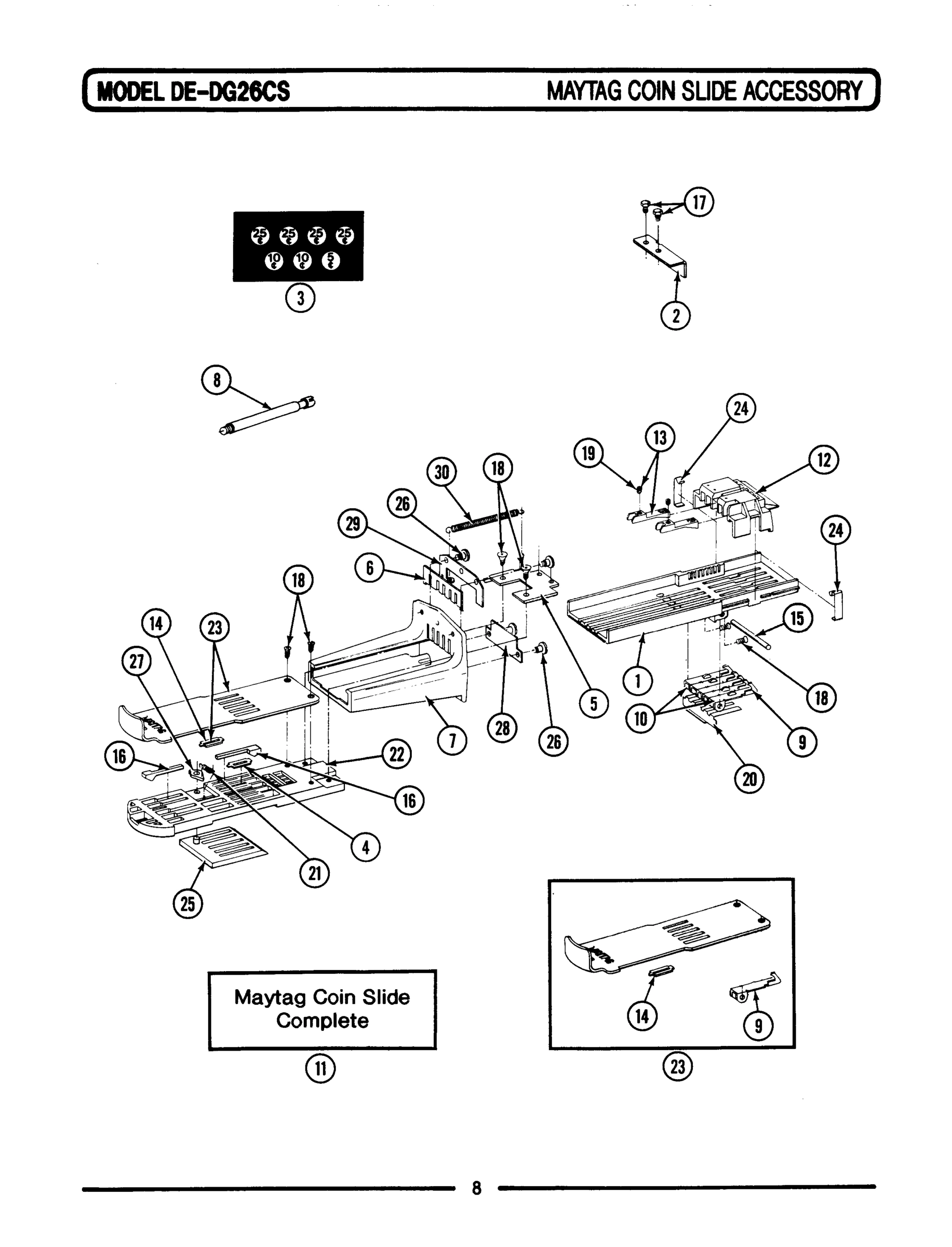

03 - MAYTAG COIN SLIDE-ACCESSORY

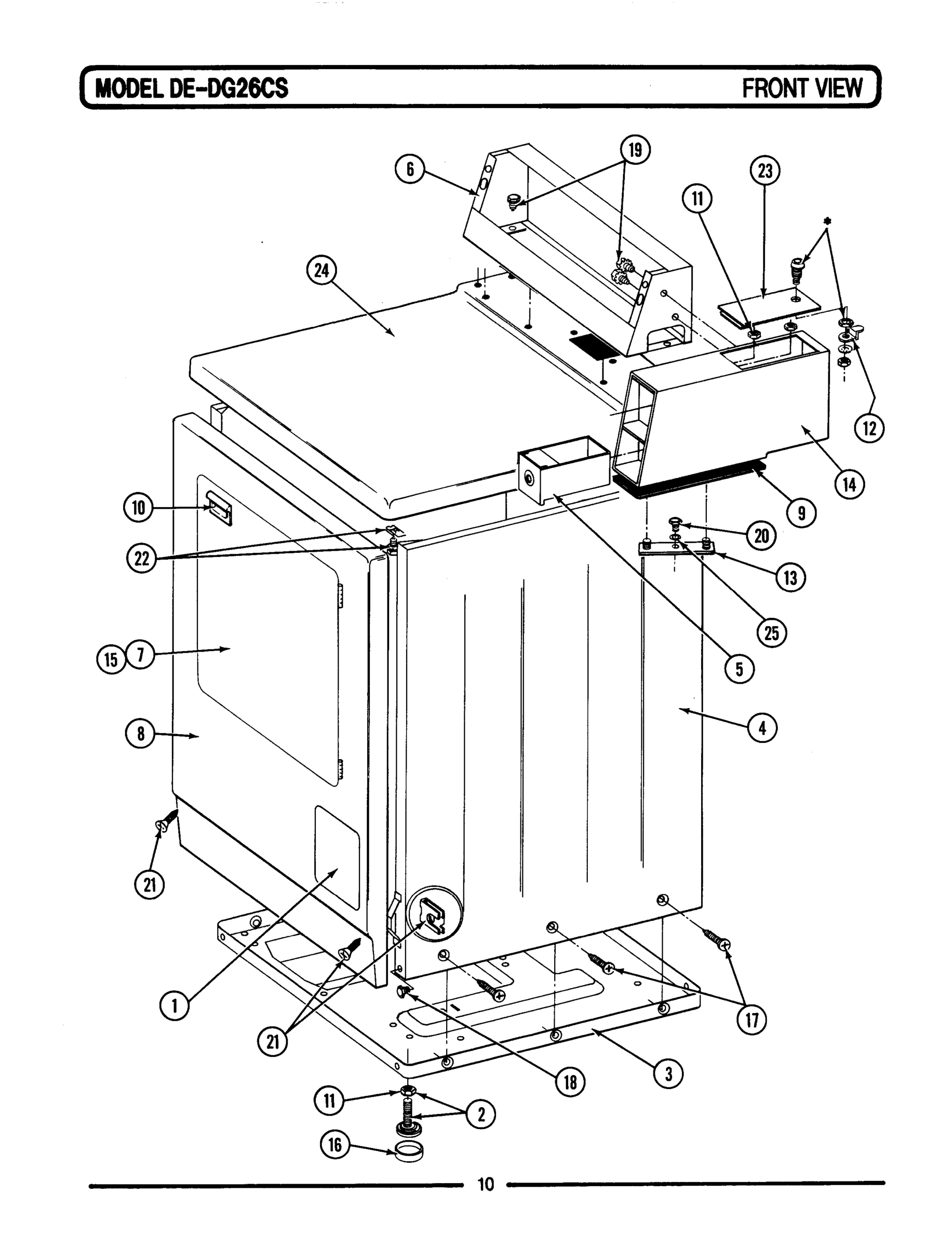

04 - FRONT VIEW

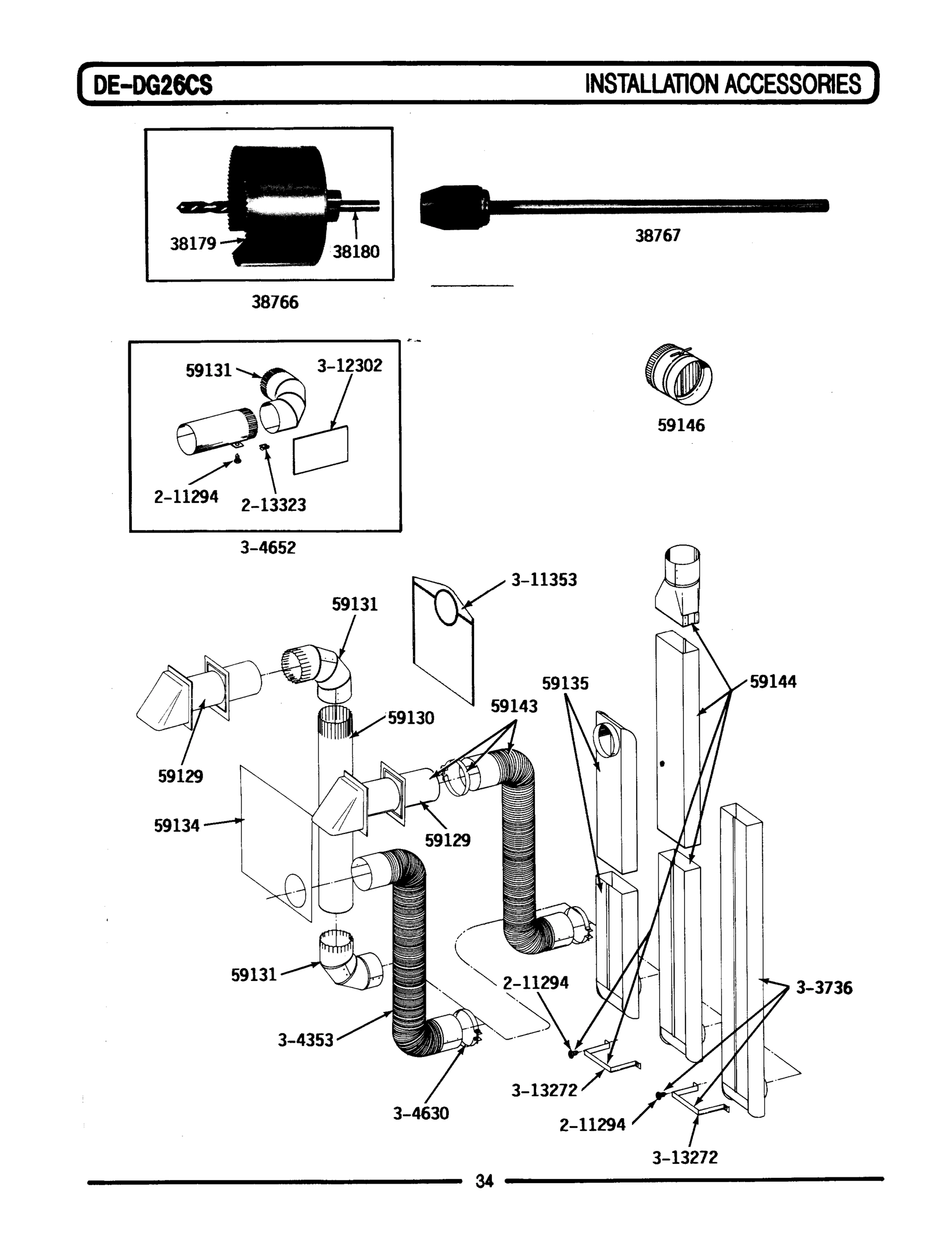

09 - INSTALLATION ACCESSORIES

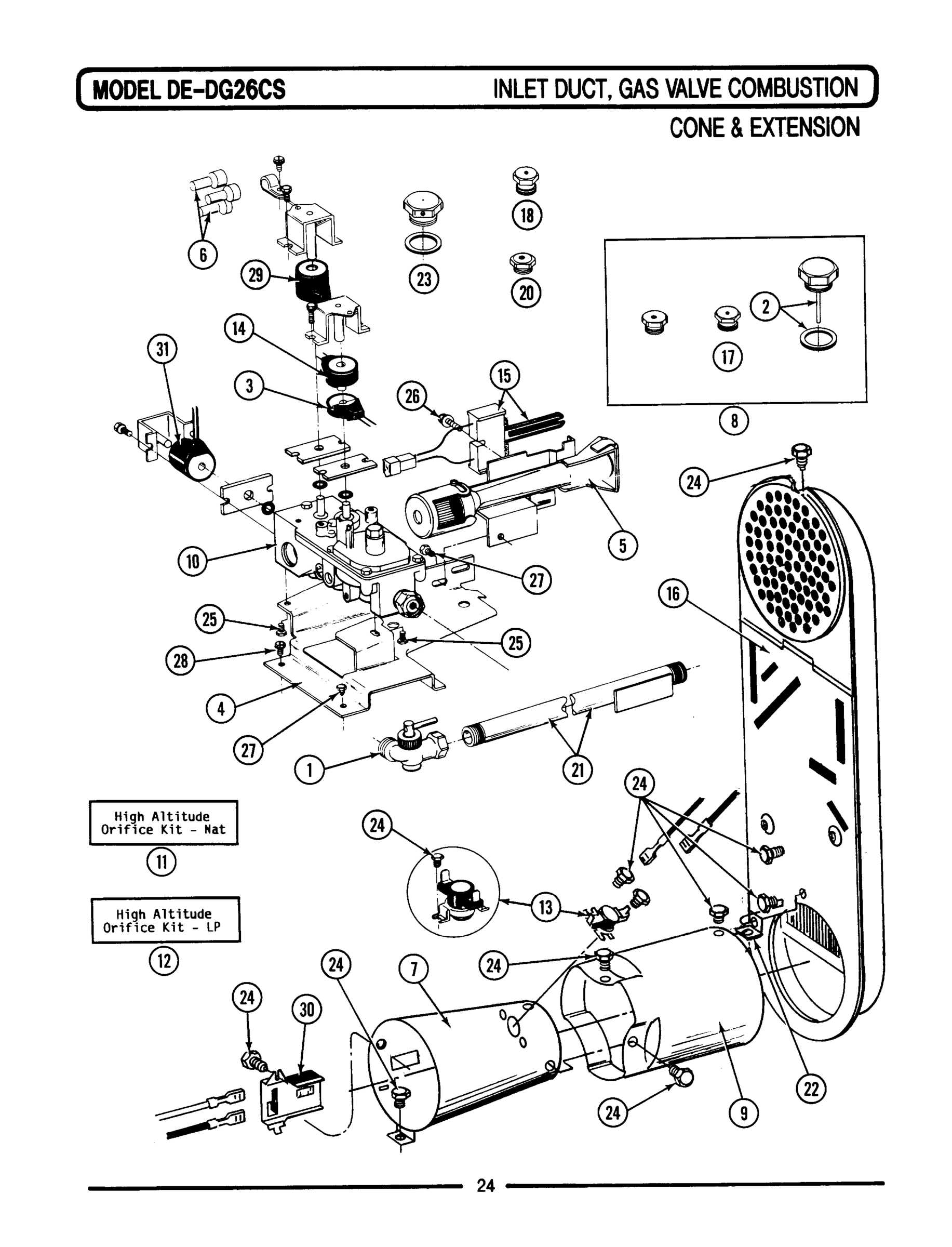

10 - INLET DUCT, GAS VALVE, CONE & EXTENSION

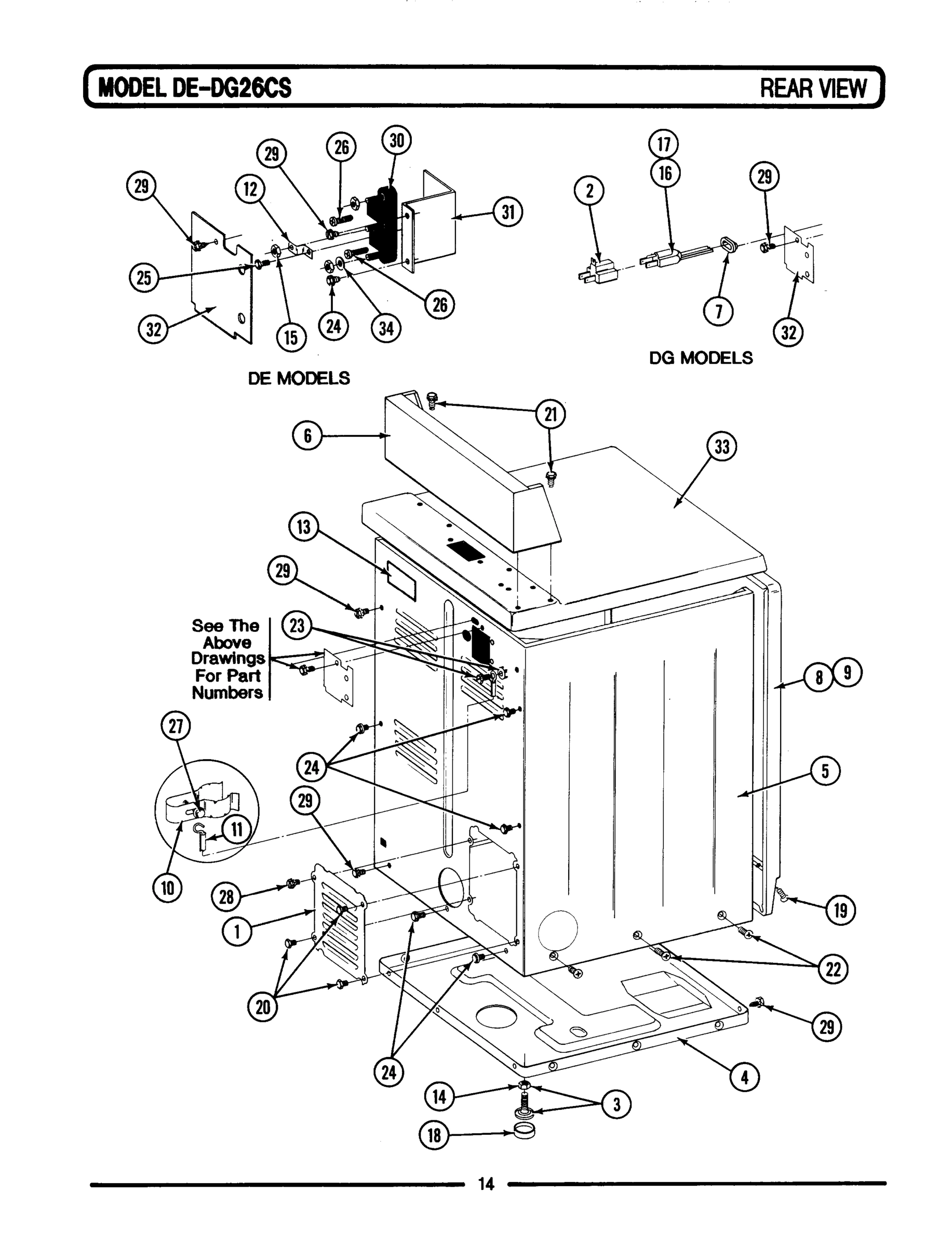

05 - REAR VIEW

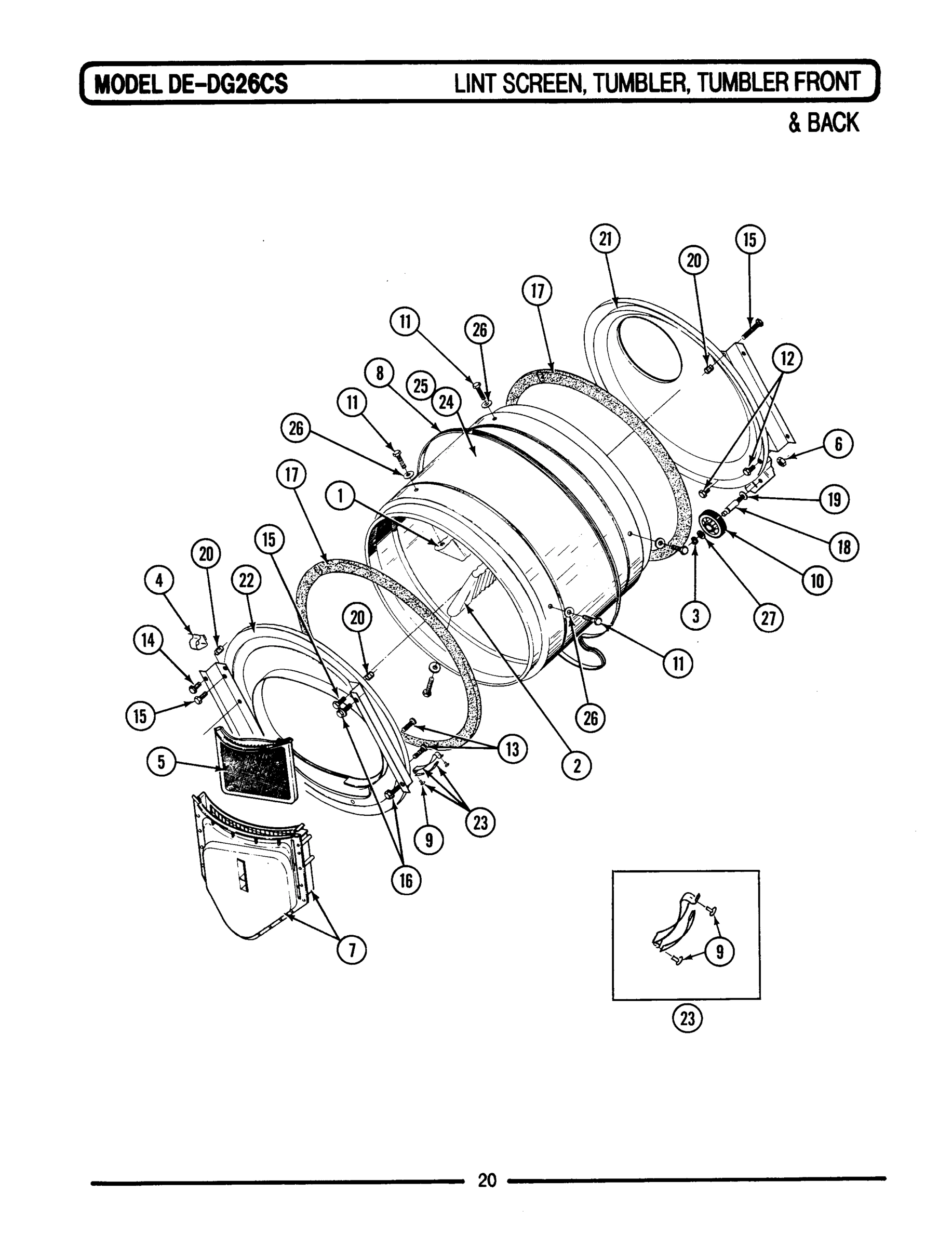

07 - LINT SCREEN, TUMBLER (FRONT & BACK)

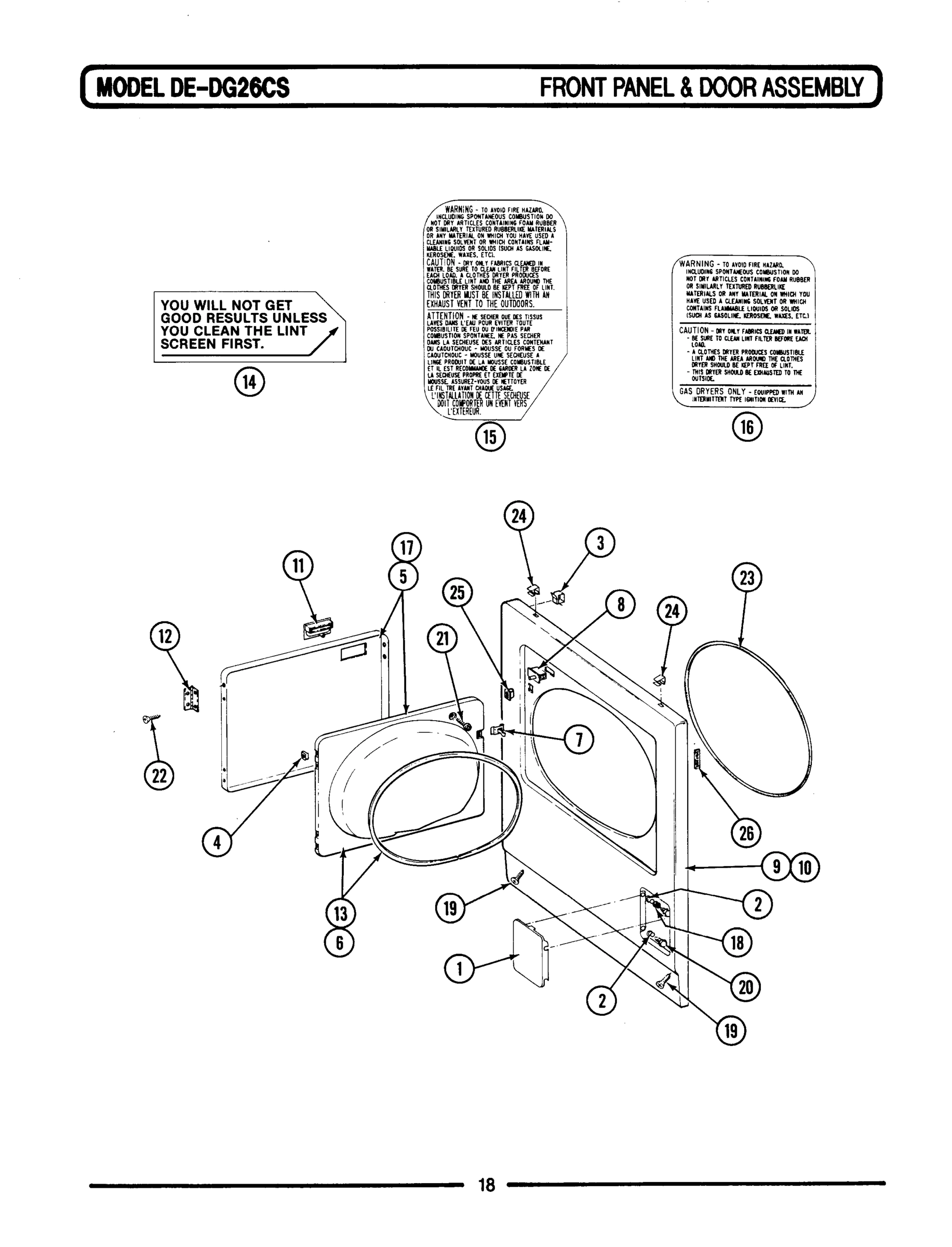

06 - FRONT PANEL & DOOR ASSEMBLY
Common parts from model Whirlpool DG26CS GAS DRYER
001
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
001
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
001
BACK-UP PLATE (WHT) WPL 314912 Contact Us For Availability
001
BASE INSERT, HOUSING WPL 214594 Contact Us For Availability
001
COVER, ACCESS WPL Y312951 Contact Us For Availability
001
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
002
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
002
PLUG, BLOCKING (LPG REGULATOR) WPL 306184 Contact Us For Availability
002
MOTOR 240-50 WPL Y304656 Contact Us For Availability
002
CONVERTER WPL Y201808 Contact Us For Availability
003
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
003
COINAGE DECAL WPL 214648 Contact Us For Availability
003
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
BASE ASSY. WPL Y303361 Contact Us For Availability
004
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
004
FASTENER WPL 215003 Contact Us For Availability
004
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
004
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
005
COIN BOX (WHT) WPL 205423 Contact Us For Availability
005
(ALM) WPL 205423L Contact Us For Availability
005
(H. WHEAT) WPL 205423M Contact Us For Availability
005
BRACKET, GAS VALVE WPL 314566 Contact Us For Availability
005
WIRE, GROUND WPL 205810 Contact Us For Availability
005
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
005
SCREEN, LINT WPL 307108 Contact Us For Availability
006
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
006
GAS VALVE (240V-50HZ) WPL 307927 Contact Us For Availability
006
TIMER 240-50 WPL 305812 Contact Us For Availability
006
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
006
GATE, COIN OPENING WPL 214578 Contact Us For Availability
006
PIPE, VENTING WPL Y059130 Contact Us For Availability
006
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
006
DOOR SEAL WPL 314935 Contact Us For Availability
007
TIMER MOTOR 240-50 WPL 306527 Contact Us For Availability
007
PART NOT USED WPL 204075 Contact Us For Availability
007
INDICATOR LAMP WPL Y305396 Contact Us For Availability
007
HOUSING, COIN SLIDE WPL 214584 Contact Us For Availability
007
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
007
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
007
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
007
PART NOT USED WPL 211881 Contact Us For Availability
007
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
008
VAULT, COIN (WHT) WPL 207913 Contact Us For Availability
008
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
008
BOLT, LOCKING WPL 213035 Contact Us For Availability
008
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
008
CONVERSION KIT (NAT.TO LP) WPL Y303779 Contact Us For Availability
009
GASKET, METER CASE WPL 214660 Contact Us For Availability
009
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
009
TRANSFORMER (240V 50HZ) WPL 307928 Contact Us For Availability
009
KNURLED NUT WPL Y312702 Contact Us For Availability
009
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
009
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
010
DRIVER, INDEX WHEEL WPL 314330 Contact Us For Availability
010
WIRE, GROUND WPL 901220 Contact Us For Availability
010
HEX NUT, SWITCH WPL Y312706 Contact Us For Availability
010
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
010
(ALM) WPL 307998L Contact Us For Availability
010
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
010
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
010
GROUND CLAMP WPL 301548 Contact Us For Availability
011
SCREW WPL Y310759 Contact Us For Availability
011
E CLIP WPL Y312270 Contact Us For Availability
011
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
011
HANDLE (WHT) WPL 314946 Contact Us For Availability
011
(ALM) WPL 314972 Contact Us For Availability
012
PART NOT USED WPL Y312184 Contact Us For Availability
012
HINGE WPL 307099 Contact Us For Availability
013
INDEX WHEEL WPL 314546 Contact Us For Availability
013
INSTURCTION LABEL WPL 214519 Contact Us For Availability
013
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
014
COIN METER ASSY (WHT) WPL 206956 Contact Us For Availability
014
(ALM) WPL 206956L Contact Us For Availability
014
(H. WHEAT) WPL 206956M Contact Us For Availability
014
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
014
SCREW----NA WPL Y313561 Contact Us For Availability
014
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
014
HOLDING COIL WPL 305604 Contact Us For Availability
014
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
015
POWER CORD, TOP COVER WPL Y314322 Contact Us For Availability
015
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
016
LOCK RING, TIMER SHAFT WPL 211790 Contact Us For Availability
016
SCREW WPL Y310632 Contact Us For Availability
016
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
016
POWER CORD WPL 302521 Contact Us For Availability
017
BOLT, LOCKING WPL 215559 Contact Us For Availability
017
(ALM) WPL NLA Contact Us For Availability
017
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
017
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
017
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
018
LOCK WASHER WPL 910387 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
018
SCREW WPL 214597 Contact Us For Availability
018
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
018
MAIN BURNER ORIFICE-INT-NAT WPL 313367 Contact Us For Availability
018
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
019
SWITCH, MOTOR PROD.No.3-3358-2, No.3-3358-4 & WPL Y303877 Contact Us For Availability
019
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
019
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
020
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
020
HARNESS, WIRE (CANADA) WPL 307280 Contact Us For Availability
020
HARNESS, WIRE WPL Y307175 Contact Us For Availability
020
SPRING, LOWER GAGE ARM WPL 214596 Contact Us For Availability
020
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
020
MAIN BURNER ORIFICE-EXT-NAT WPL 313366 Contact Us For Availability
020
SCREW WPL 212949 Contact Us For Availability
021
PROD. No.3-3358-8 & No.3-3358-9 WPL 306207 Contact Us For Availability
021
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
021
SPRING, RATCHET ARM WPL 214582 Contact Us For Availability
021
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
021
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
022
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
022
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
022
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
022
SCREW WPL Y314062 Contact Us For Availability
023
TIMER ACCESS DOOR (WHT) WPL 203188 Contact Us For Availability
023
(ALM) WPL 203188L Contact Us For Availability
023
(H. WHEAT) WPL 203188M Contact Us For Availability
023
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
024
SPRING CLIP WPL 214589 Contact Us For Availability
024
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
025
WASHER WPL 910309 Contact Us For Availability
025
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
025
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
026
SCREW WPL 304971 Contact Us For Availability
026
WASHER WPL 314158 Contact Us For Availability
026
TWIN FASTENER WPL Y313907 Contact Us For Availability
027
RATCHET ARM WPL 214572 Contact Us For Availability
027
SCREW, BAFFLE (TUMBLER) WPL 313122 Contact Us For Availability
029
SECONDARY COIL WPL 305603 Contact Us For Availability
030
ACTUATOR SPRING WPL 314332 Contact Us For Availability
030
SCREW WPL 314818 Contact Us For Availability
030
RETURN SPRING WPL 214581 Contact Us For Availability
030
PART NOT USED WPL 400008 Contact Us For Availability
031
RETURN SPRING WPL 314331 Contact Us For Availability
031
SIDE COIL WPL Y304626 Contact Us For Availability
031
PART NOT USED WPL Y312904 Contact Us For Availability
032
COVER, TERMINAL WPL Y312905 Contact Us For Availability
033
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
034
ACTUATOR, SWITCH WPL 314548 Contact Us For Availability
034
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
035
SWITCH & SLIDER BRACKET WPL 314339 Contact Us For Availability
036
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
037
TIMER WPL 305796 Contact Us For Availability
038
TIMER (CANADA) WPL 305813 Contact Us For Availability
038
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
039
TIMER MOTOR RPR WPL 305870 Contact Us For Availability
040
TORSION TIMER ASSY. COMPLETE WPL 305797 Contact Us For Availability
040
THERMOSTAT, MULTI-TEMP WPL 306966 Contact Us For Availability
041
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
041
PART NOT USED WPL 306967 Contact Us For Availability
042
WIRE HARNESS, TIMER WPL 305800 Contact Us For Availability
043
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
