Model Whirlpool DG26CD GAS DRYER – Common Parts & Diagrams
10 - INSTALLATION ACCESSORIES
03 - CONTROL PANEL-CD MODELS

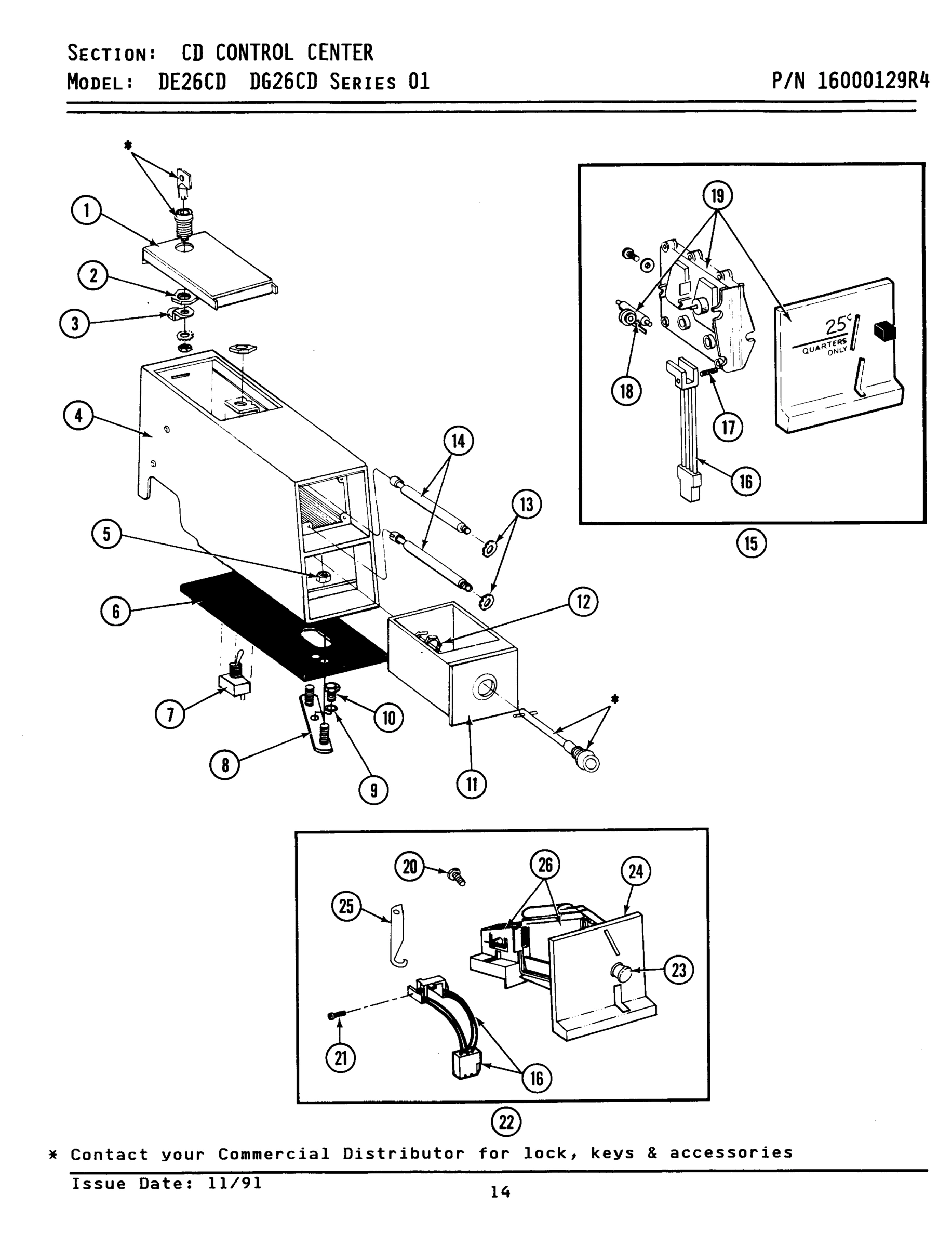

04 - CONTROL CENTER - CD MODELS

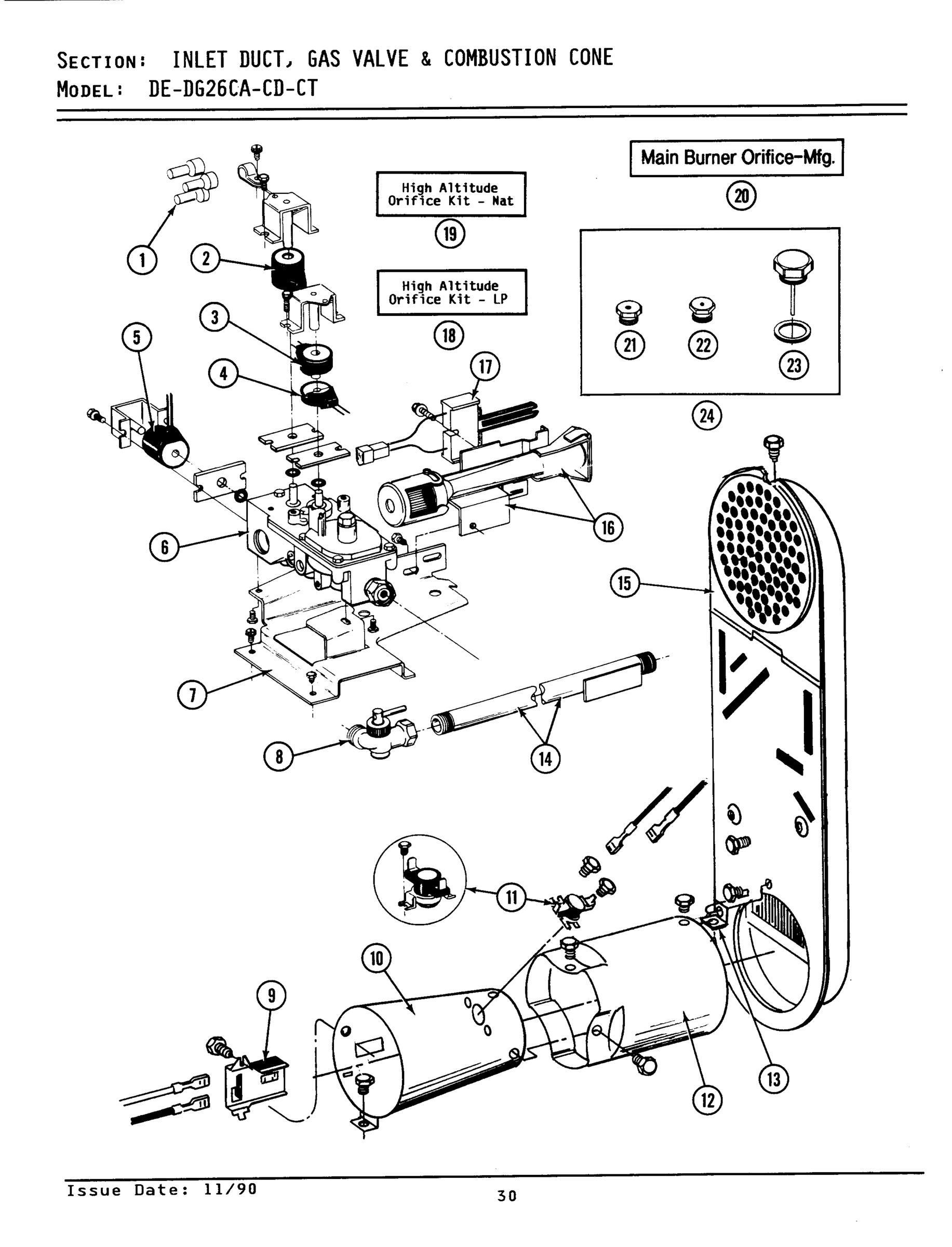

07 - INLET DUCT, GAS VALVE & COMBUSTION CONE

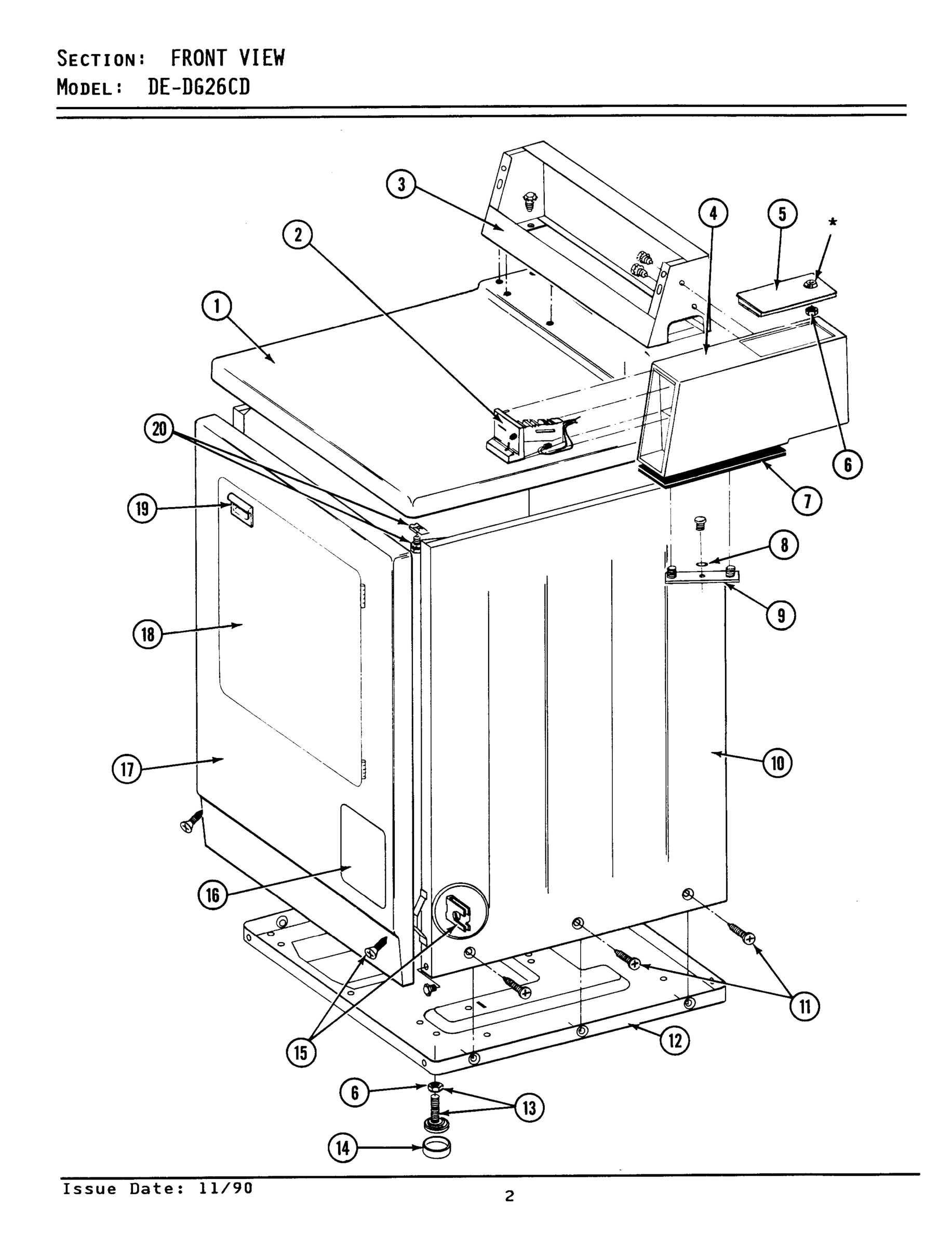

01 - FRONT VIEW - CD MODELS

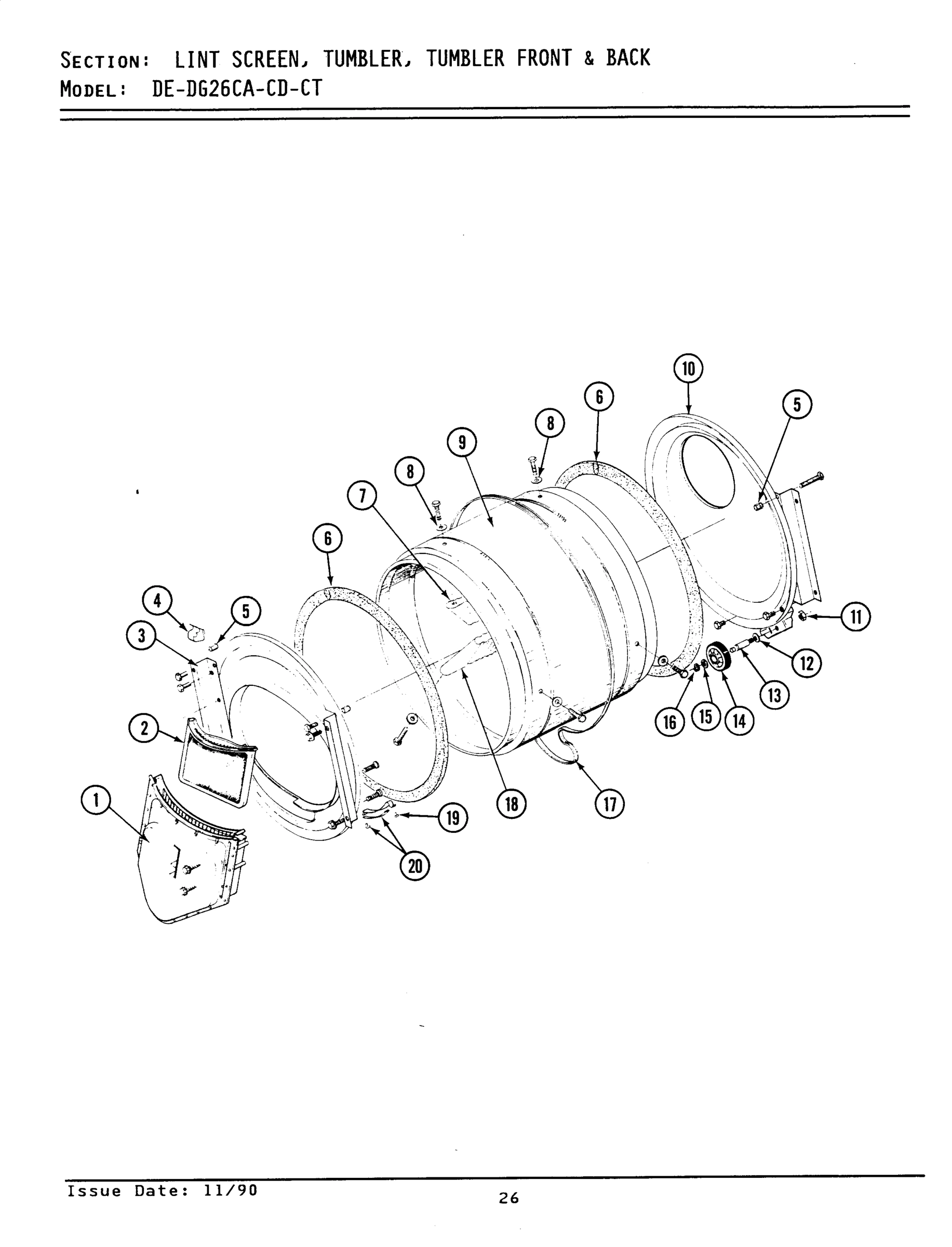

06 - LINT SCREEN, TUMBLER (FRONT & BACK)

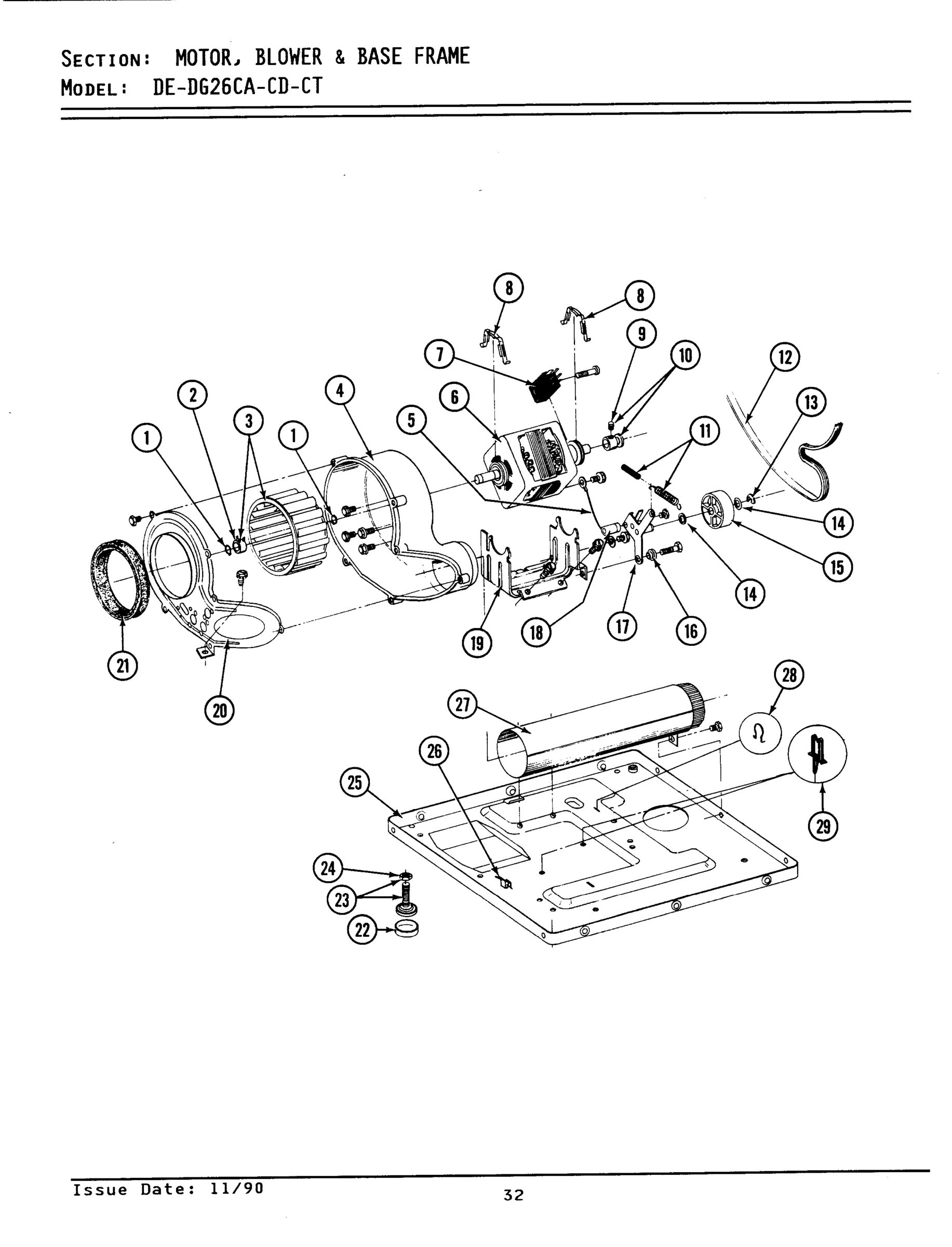

08 - MOTOR, BLOWER & BASE FRAME

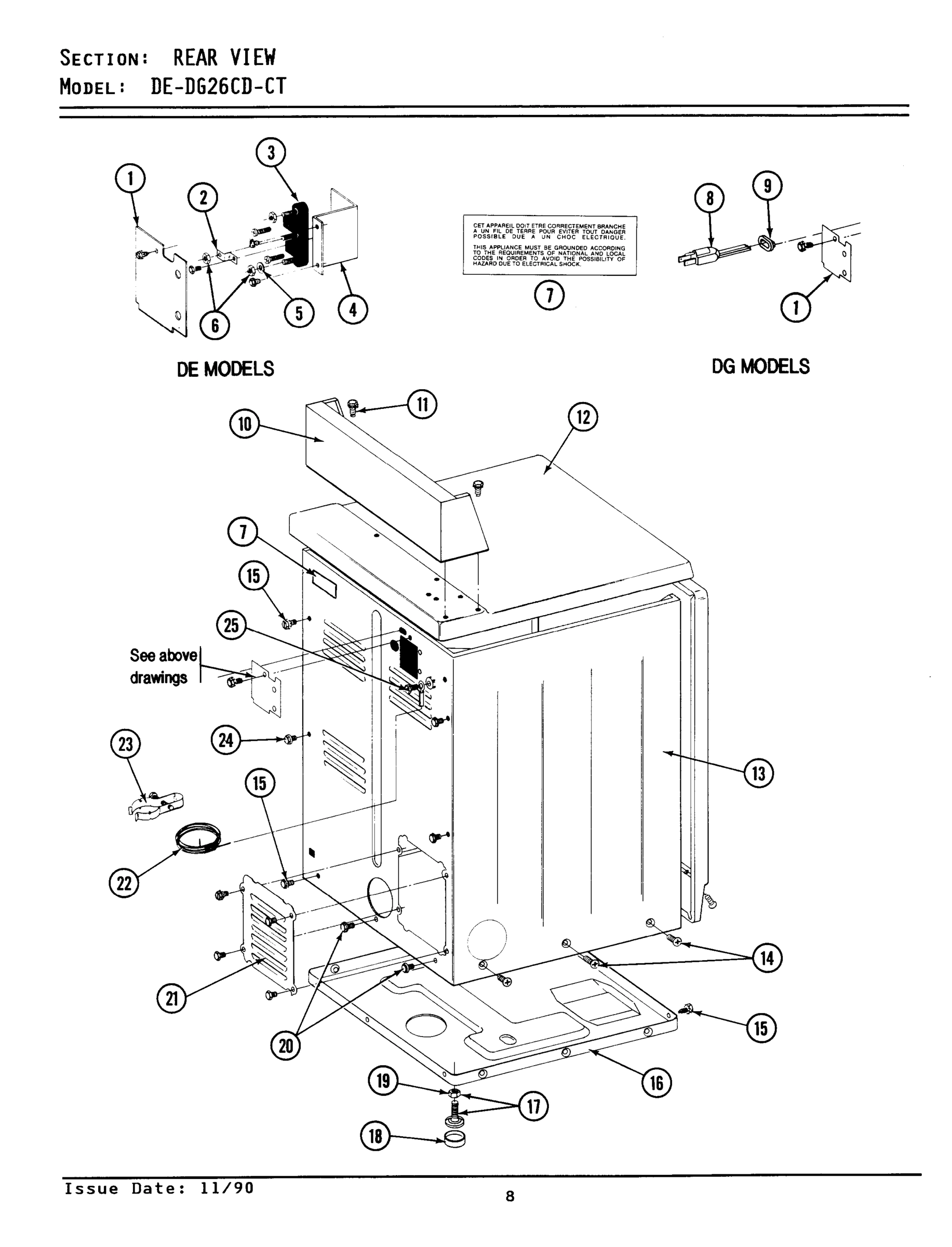

02 - REAR VIEW - CD/CT MODELS

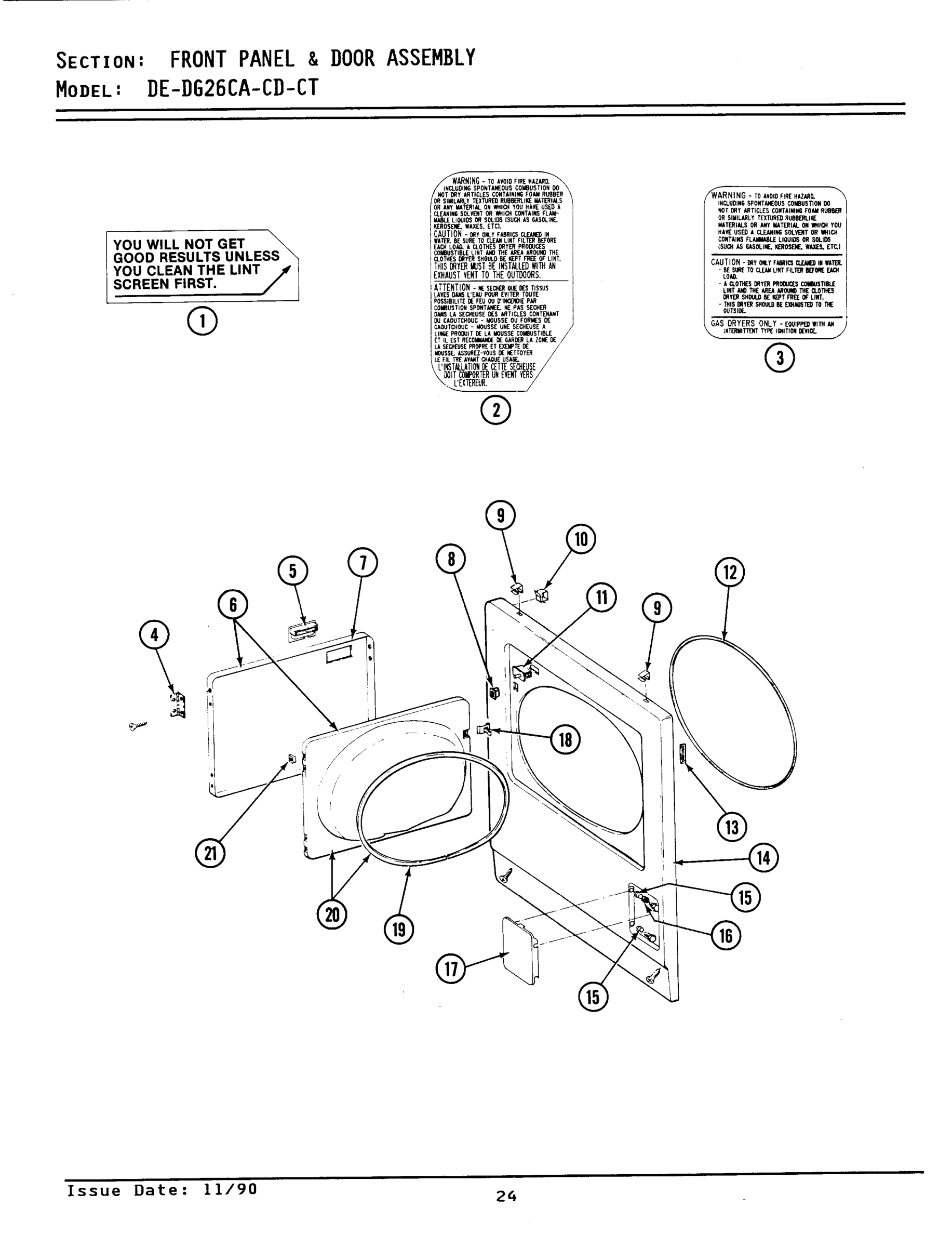

05 - FRONT PANEL & DOOR ASSEMBLY

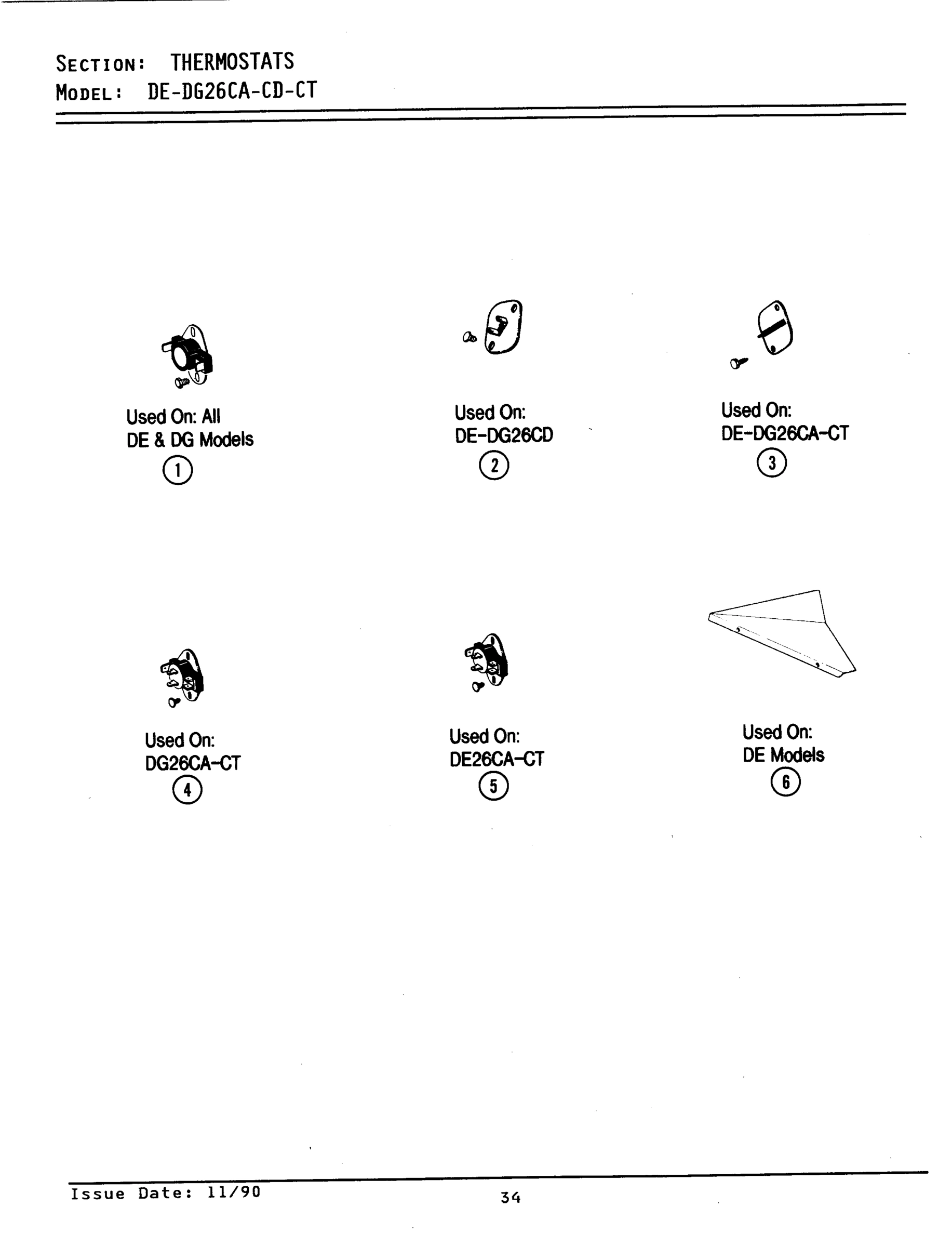

09 - THERMOSTATS
Common parts from model Whirlpool DG26CD GAS DRYER
001
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
001
DUCT, OUTLET ASSY. ----S WPL Y307112 Contact Us For Availability
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
002
TRANSFORMER WPL 207766 Contact Us For Availability
002
SECONDARY COIL WPL 305603 Contact Us For Availability
002
SCREEN, LINT WPL 307108 Contact Us For Availability
002
PART NOT USED WPL Y312184 Contact Us For Availability
002
LABEL, INSTRUCTION WPL 314941 Contact Us For Availability
002
THERMISTOR TEMP CONTROL WPL 306056 Contact Us For Availability
003
SCREW WPL NLA Contact Us For Availability
003
RELAY, SPST 24VDC WPL 206824 Contact Us For Availability
003
HOLDING COIL WPL 305604 Contact Us For Availability
003
FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability
003
PART NOT USED WPL 400008 Contact Us For Availability
004
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
004
BATTERY WPL 206828 Contact Us For Availability
004
CONTROL CENTER CASE (WHT) WPL 207673 Contact Us For Availability
004
(ALM) WPL 207673L Contact Us For Availability
004
CASE, COIN METER (WHT) WPL 207940 Contact Us For Availability
004
(ALM) WPL 207940L Contact Us For Availability
004
PART NOT USED WPL Y312904 Contact Us For Availability
004
HINGE WPL 307099 Contact Us For Availability
004
SCREW WPL Y314062 Contact Us For Availability
004
PART NOT USED WPL 306966 Contact Us For Availability
005
SUPPORT, PC BOARD WPL 215510 Contact Us For Availability
005
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
005
(ALM) WPL 203188L Contact Us For Availability
005
(H. WHEAT) WPL 203188M Contact Us For Availability
005
SIDE COIL WPL Y304626 Contact Us For Availability
005
HANDLE (WHT) WPL 314946 Contact Us For Availability
005
(ALM) WPL 314972 Contact Us For Availability
005
WIRE, GROUND WPL 901220 Contact Us For Availability
005
PART NOT USED WPL 306967 Contact Us For Availability
006
FASTENER WPL 215003 Contact Us For Availability
006
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
006
PART NOT USED WPL Y313561 Contact Us For Availability
006
DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability
006
PART NOT USED WPL 315122 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
SWITCH WPL 206794 Contact Us For Availability
007
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
007
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
007
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
007
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
007
INSTRUCTION LABEL WPL 214519 Contact Us For Availability
007
PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability
008
BACKUP PLATE W/SWITCH WPL 306694 Contact Us For Availability
008
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
008
WASHER WPL 314158 Contact Us For Availability
008
POWER CORD WPL 302521 Contact Us For Availability
009
WASHER WPL 910309 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
009
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
009
GROMMET WPL 211881 Contact Us For Availability
010
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
010
CONE, COMBUSTION WPL Y308548 Contact Us For Availability
010
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y307114 Contact Us For Availability
010
BACK, TUMBLER (W/SEAL) ---S WPL Y308544 Contact Us For Availability
010
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
011
DISPLAY COVER WPL 215515 Contact Us For Availability
011
COIN BOX (WHT) WPL 207672 Contact Us For Availability
011
(ALM) WPL 207672L Contact Us For Availability
011
BOX, COIN (WHT) WPL 207912 Contact Us For Availability
011
(ALM) WPL 207912L Contact Us For Availability
011
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
TOP COVER ASSY. (WHT) WPL 307105 Contact Us For Availability
012
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
012
SEAL, FRONT PANEL WPL 314937 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
LOCK WASHER WPL 910181 Contact Us For Availability
013
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
013
TWIN FASTENER WPL Y313907 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
BOLT, LOCKING WPL 213035 Contact Us For Availability
014
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
014
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
014
(ALM) WPL 307998L Contact Us For Availability
015
SCREW WPL 215526 Contact Us For Availability
015
INLET DUCT ASSY. WPL 307119 Contact Us For Availability
015
SCREW, BUSHINGS WPL 212949 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
SWITCH, OPTIC ASSY. WPL 206799 Contact Us For Availability
016
BASE ASSY. WPL Y303361 Contact Us For Availability
016
SLEEVE, RUBBER, ACCESS DOOR WPL 312369 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
017
WIRE, GROUND WPL 205810 Contact Us For Availability
017
SCREW WPL 304971 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
SPACER CIRCUIT BOARD WPL Y215513 Contact Us For Availability
018
DOOR ASSY. COMPLETE (WHT) WPL 308061 Contact Us For Availability
019
DOOR SEAL WPL 314935 Contact Us For Availability
020
TORX BIT (TX20H) WPL Y038227 Contact Us For Availability
020
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
020
COVER, BLOWER WPL 314778 Contact Us For Availability
020
DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability
021
COVER, ACCESS WPL Y312951 Contact Us For Availability
021
CLIP, DOOR LINER WPL Y313910 Contact Us For Availability
022
COIN DROP ASSY. (25 CENTS) WPL 207948 Contact Us For Availability
023
BUTTON, RETURN WPL 216009 Contact Us For Availability
023
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
024
MTG. PLATE, SINGLE WPL 216010 Contact Us For Availability
024
SCREW WPL Y310632 Contact Us For Availability
024
CONVERSION KIT (NAT.TO LP) WPL Y303779 Contact Us For Availability
025
SPRING, BUTTON WPL 216011 Contact Us For Availability
026
COIN REJECTOR (.25 CENTS) WPL 207947 Contact Us For Availability
026
COIN REJECTOR 25 CENTS WPL 207949 Contact Us For Availability
027
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
028
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
029
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
× ![]()
