Model Whirlpool DG25CS WASHER – Common Parts & Diagrams

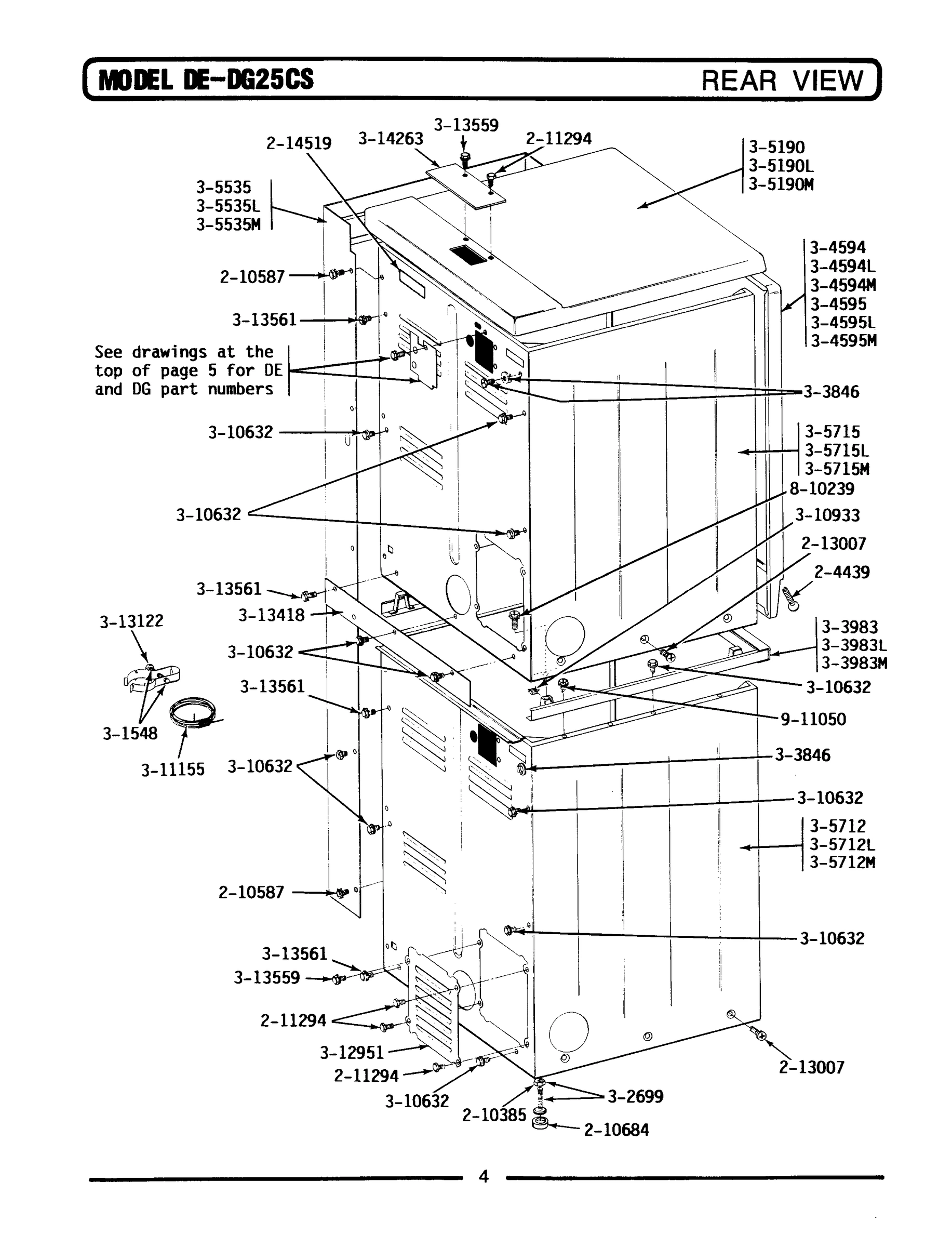

02 - REAR VIEW

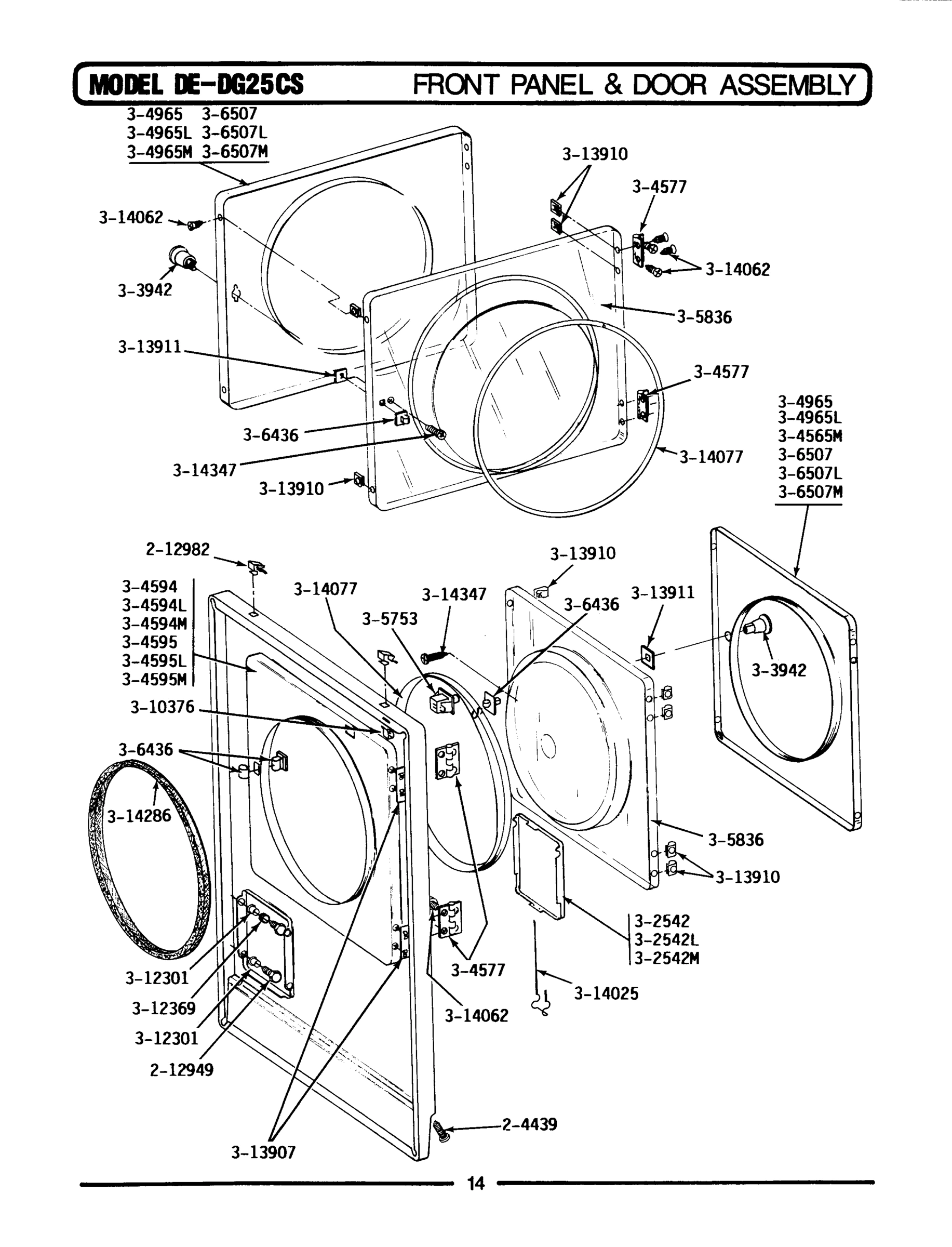

07 - FRONT PANEL & DOOR ASSEMBLY
08 - LINT SCREEN, TUMBLER (FRONT & BACK)

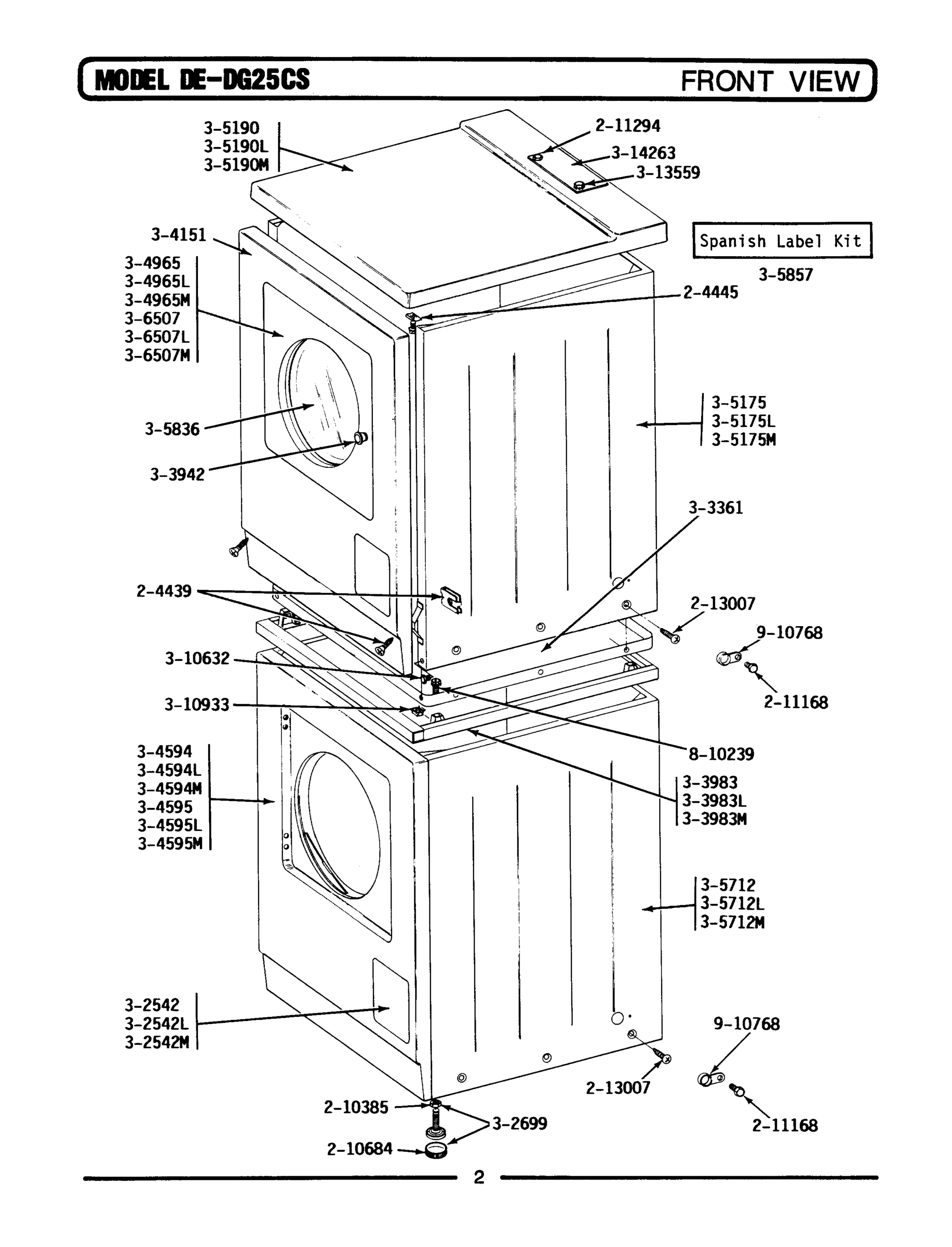

01 - FRONT VIEW

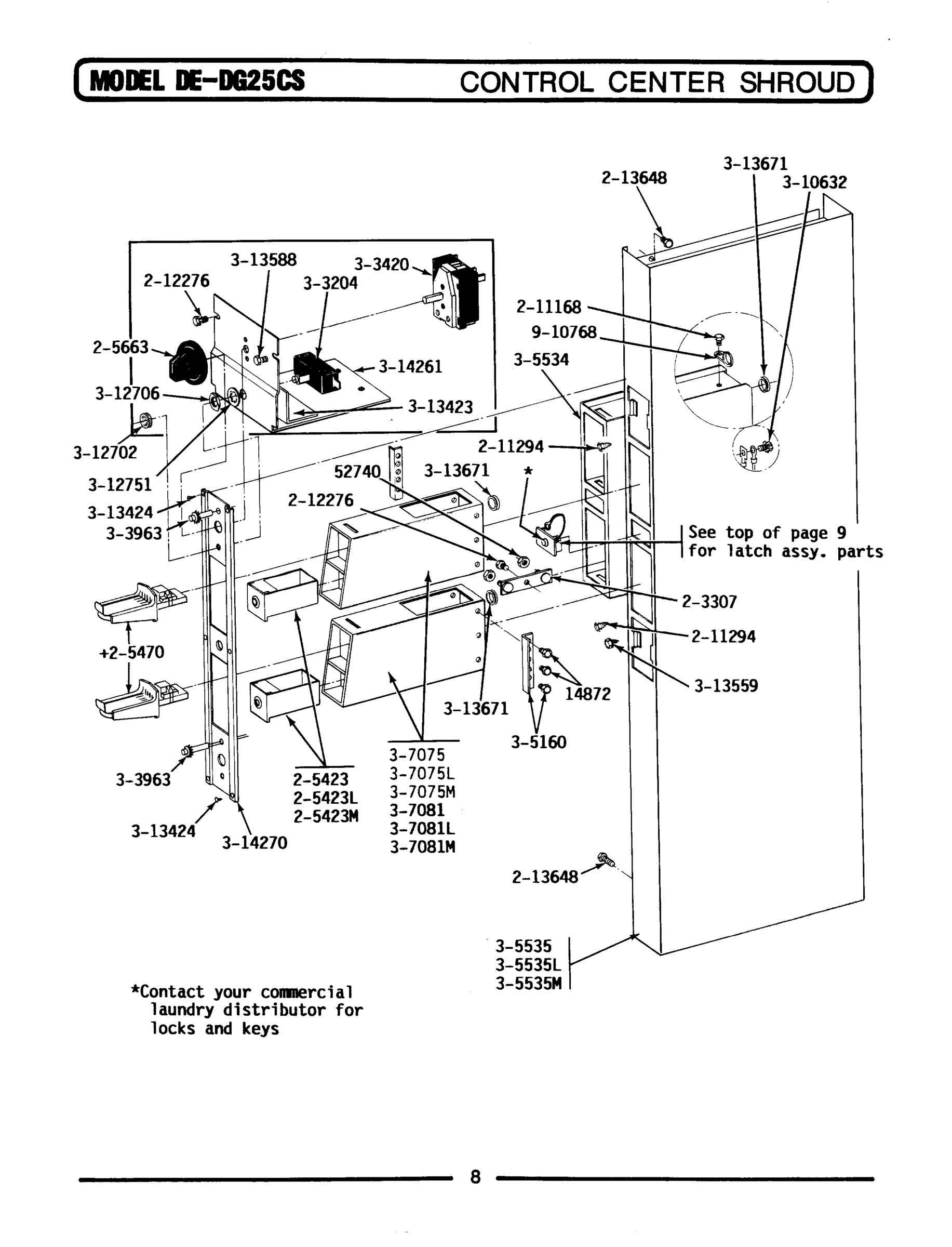

04 - CONTROL CENTER SHROUD

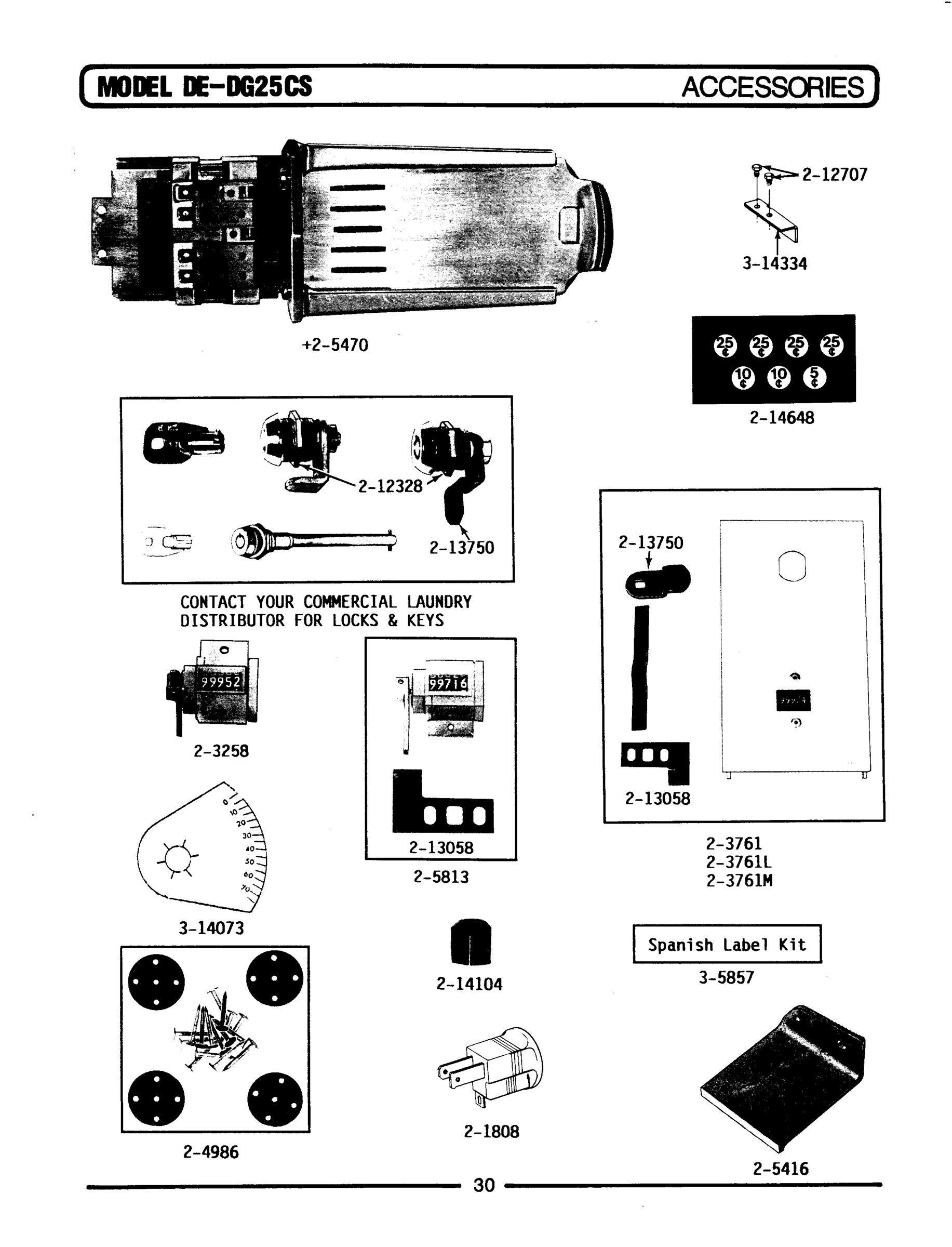

11 - INSTALLATION ACCESSORIES

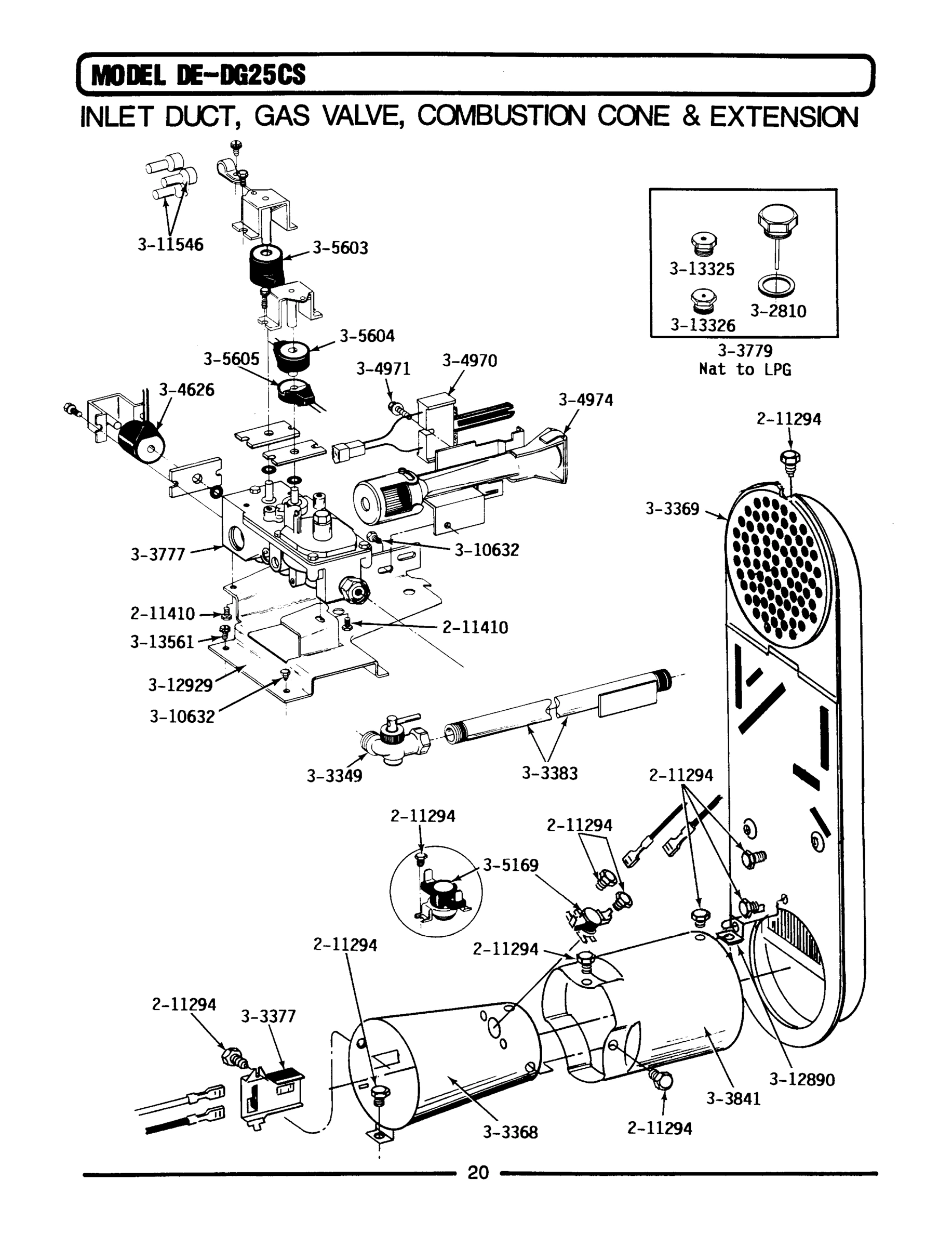

09 - INLET DUCT, GAS VALVE & COMBUSTION CONE

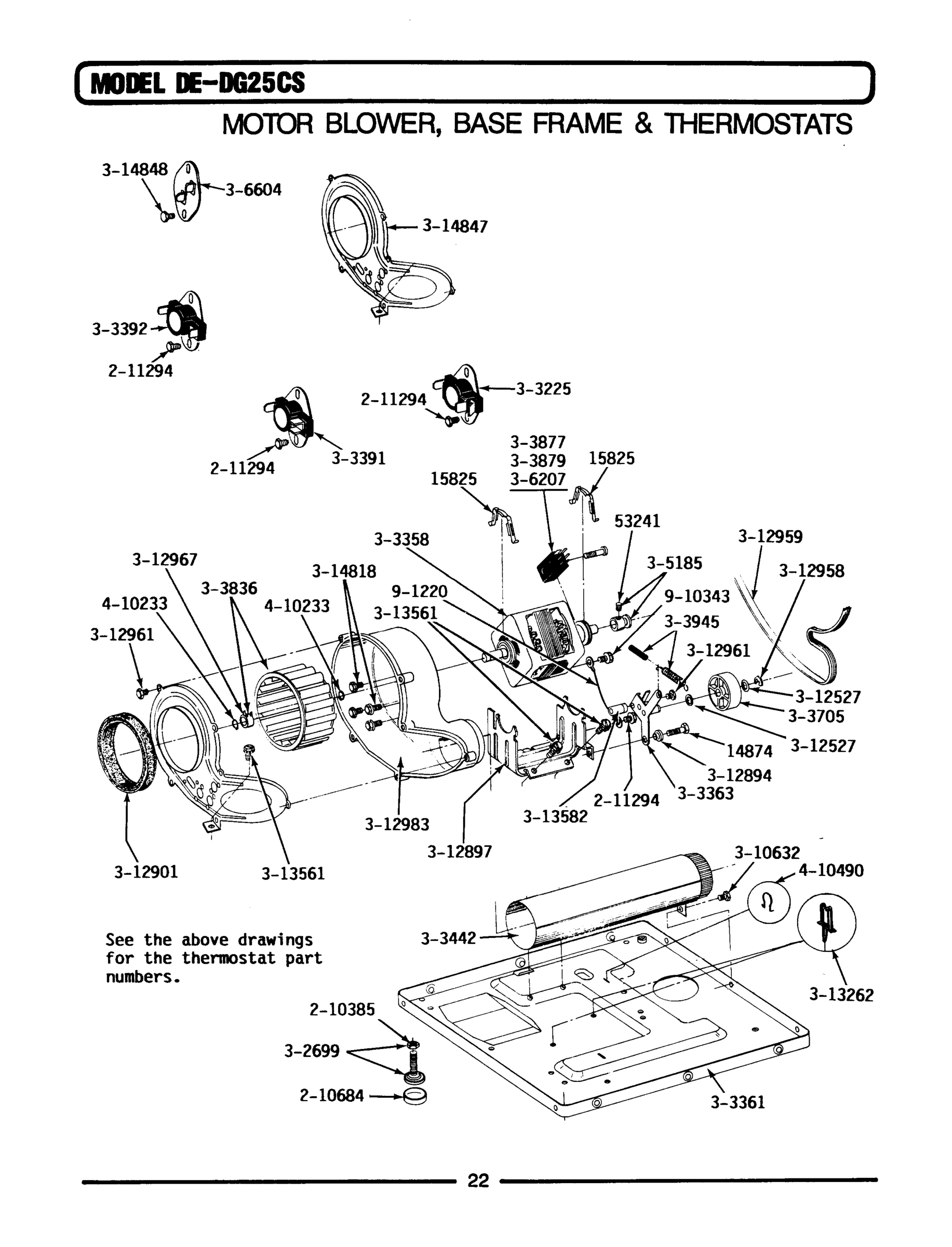

10 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

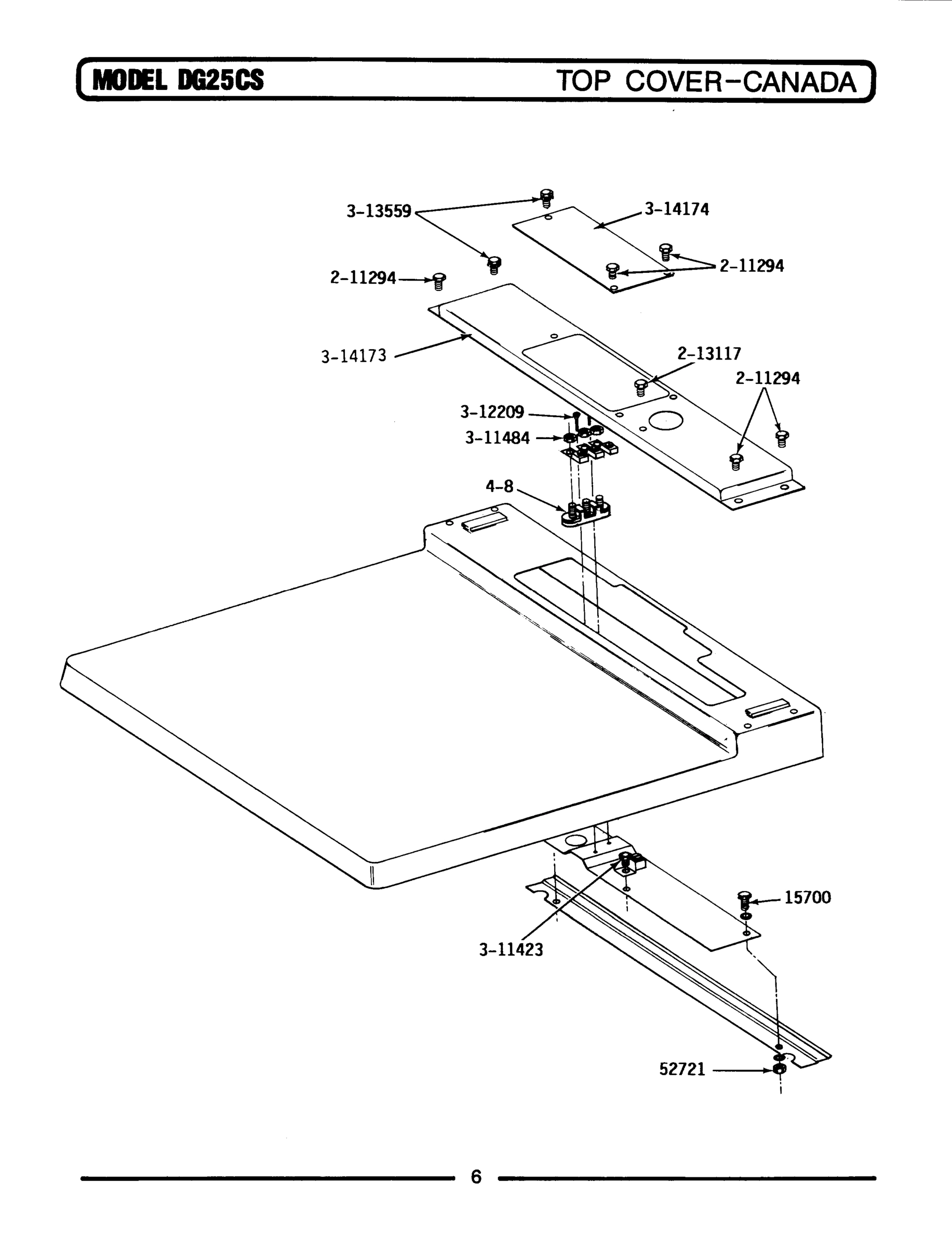

03 - TOP COVER-CANADA

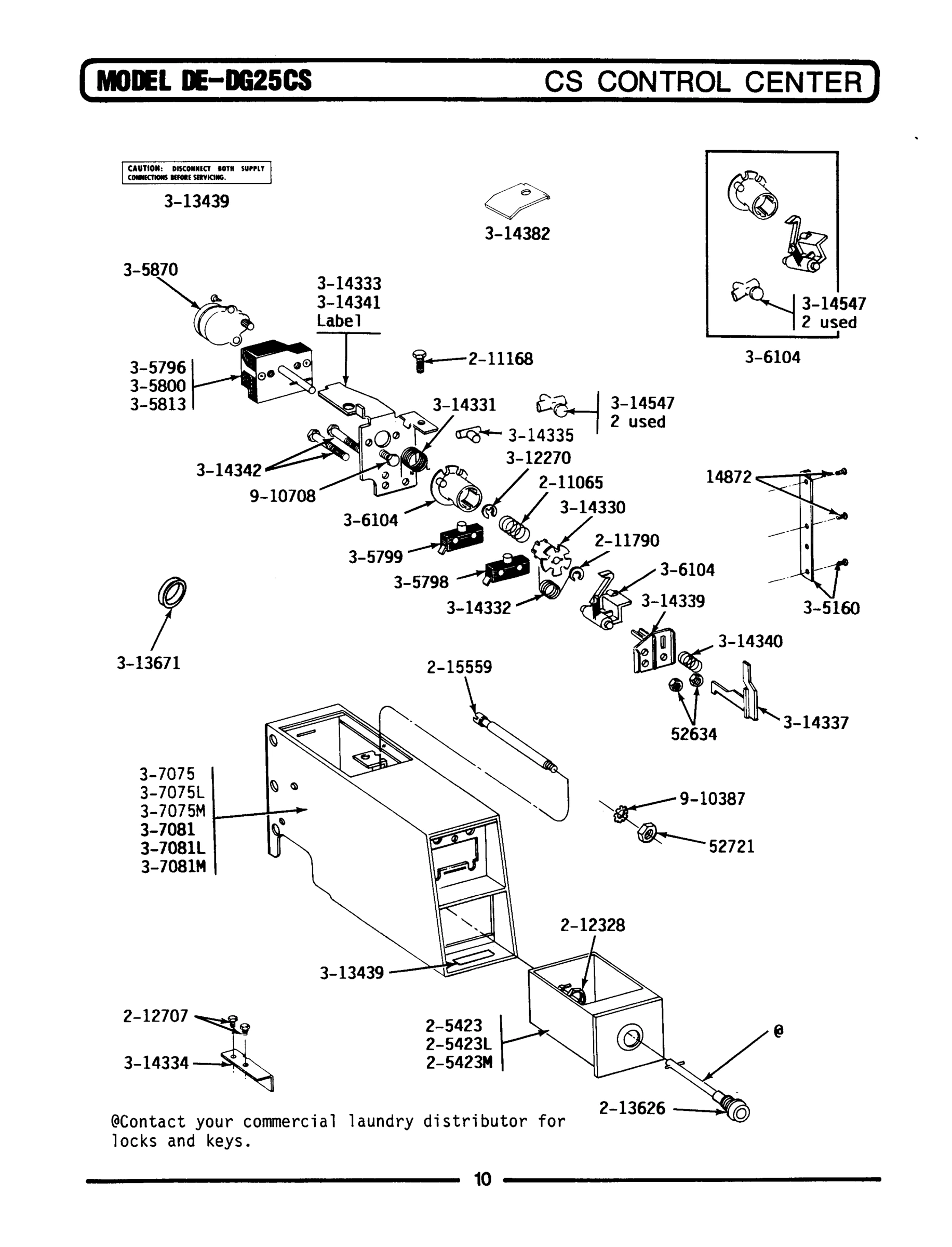

05 - CONTROL CENTER

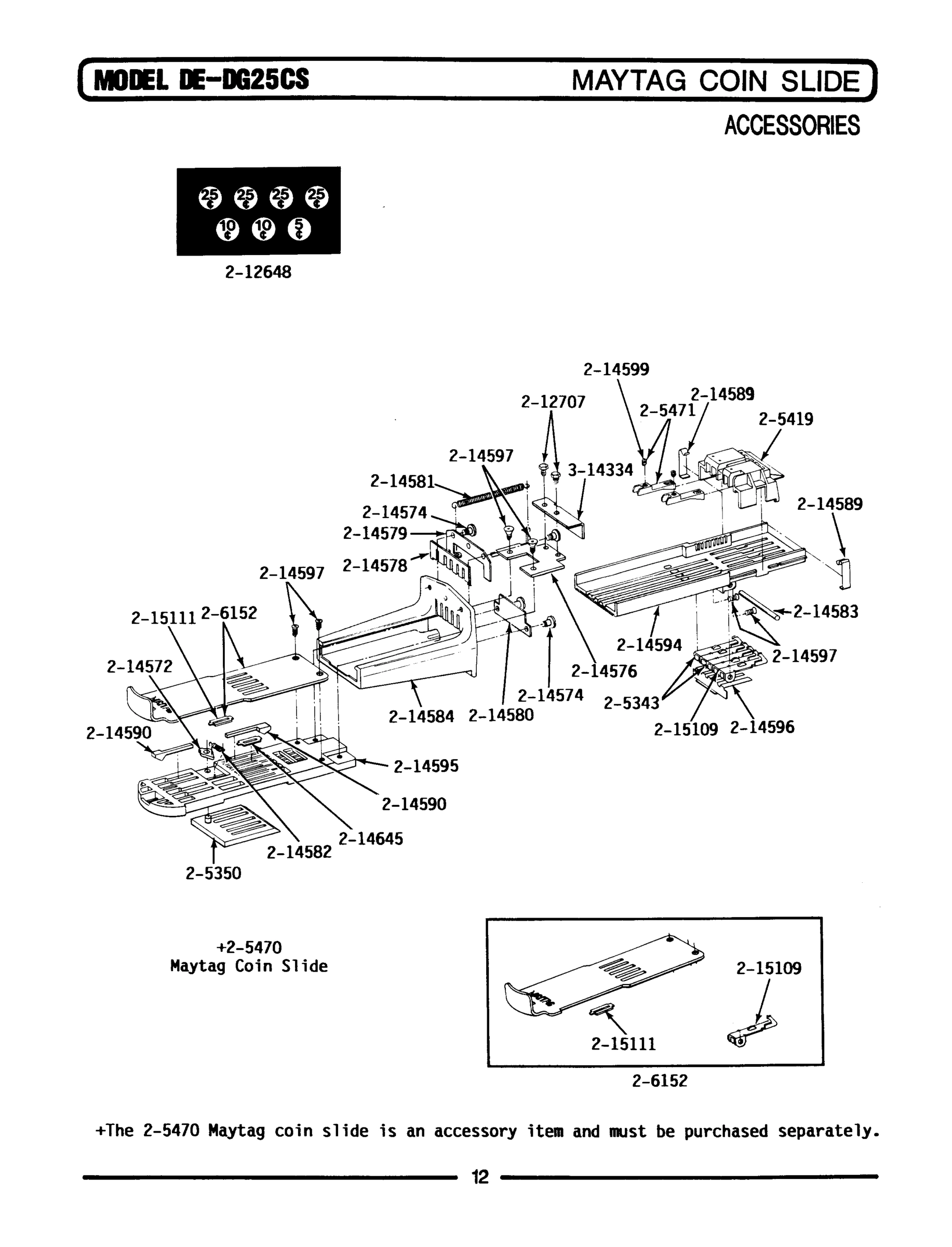

06 - MAYTAG COIN SLIDE
Common parts from model Whirlpool DG25CS WASHER
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
001
WIRE, GROUND WPL 205810 Contact Us For Availability
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
001
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
002
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
002
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
003
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
COIN BOX-WHITE WPL 205423 Contact Us For Availability
004
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
004
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
005
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
006
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
006
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
006
KNOB FOR SELECTOR SWITCH WPL 205663 Contact Us For Availability
006
PIPE, VENTING WPL Y059130 Contact Us For Availability
006
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
007
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
007
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
007
LOCK RING FOR TIMER SHAFT WPL 211790 Contact Us For Availability
008
TUMBLER BACK WPL Y306660 Contact Us For Availability
008
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
008
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
008
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
008
RATCHET ARM WPL 214572 Contact Us For Availability
009
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
009
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
009
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
010
BASE ASSY. WPL Y303361 Contact Us For Availability
010
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
010
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
010
TERMINAL COVER - CANADA WPL Y314174 Contact Us For Availability
011
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
011
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
011
BOLT, LOCKING WPL 215559 Contact Us For Availability
011
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
012
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
012
SIDE COIL WPL Y304626 Contact Us For Availability
013
WASHER WPL 310557 Contact Us For Availability
013
START SWITCH WITH NUTS WPL Y303204 Contact Us For Availability
013
TIMER WPL 305796 Contact Us For Availability
014
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
014
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
014
SCREW WPL 304971 Contact Us For Availability
014
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
014
BYPASS SWITCH FOR MOTOR WPL 305798 Contact Us For Availability
014
RETURN SPRING WPL 214581 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
DOOR COMPLETE-WHITE WPL 304965 Contact Us For Availability
015
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
015
INDICATOR LIGHT WPL 303963 Contact Us For Availability
015
BYPASS SWITCH FOR HEATER WPL Y305799 Contact Us For Availability
015
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability
016
TOP COVER-WHITE WPL Y305190 Contact Us For Availability
016
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
016
GROUND WIRE FOR LATCH WPL Y303981 Contact Us For Availability
016
WIRE HARNESS FOR TIMER WPL 305800 Contact Us For Availability
017
TWIN FASTENER WPL Y313907 Contact Us For Availability
017
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
017
SECONDARY COIL WPL 305603 Contact Us For Availability
017
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
017
TIMER - CANADA RPR WPL 305813 Contact Us For Availability
017
HOUSING FOR COIN SLIDE WPL 214584 Contact Us For Availability
018
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
018
VAULT ASSEMBLY WPL 305534 Contact Us For Availability
018
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
018
HOLDING COIL WPL 305604 Contact Us For Availability
018
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
018
TIMER MOTOR RPR WPL 305870 Contact Us For Availability
018
SPRING CLIP WPL 214589 Contact Us For Availability
019
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
019
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
019
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
019
TORSION-TIMER KIT WPL 306104 Contact Us For Availability
020
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
020
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
020
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
020
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
021
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
021
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
022
SCREW WPL Y314062 Contact Us For Availability
022
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
023
FASTENER WPL 310933 Contact Us For Availability
023
DOOR SEAL WPL 314077 Contact Us For Availability
023
COIN METER WELD ASSEMBLY WPL Y307081 Contact Us For Availability
023
KNURLED NUT WPL Y312702 Contact Us For Availability
023
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
023
SCREW WPL 214597 Contact Us For Availability
024
SCREW WPL Y310632 Contact Us For Availability
024
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
024
E CLIP WPL Y312270 Contact Us For Availability
025
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
025
STRAP, GROUND WPL Y312184 Contact Us For Availability
025
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
025
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
025
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
026
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
026
LINT SEAL WPL Y313796 Contact Us For Availability
026
GROMMET FOR CONTROL CENTER WPL Y313671 Contact Us For Availability
026
COINAGE DECAL WPL 214648 Contact Us For Availability
027
COVER, TERMINAL WPL Y312905 Contact Us For Availability
027
DRIVER FOR INDEX WHEEL WPL 314330 Contact Us For Availability
028
COVER, ACCESS WPL Y312951 Contact Us For Availability
028
NICKEL INSERT WPL NLA Contact Us For Availability
028
RETURN SPRING WPL 314331 Contact Us For Availability
029
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
029
WASHER WPL 314158 Contact Us For Availability
029
PLATE FOR LATCH WPL 313428 Contact Us For Availability
029
ACTUATOR SPRING WPL 314332 Contact Us For Availability
029
WASHER WPL 214334 Contact Us For Availability
030
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
030
TIMER MOUNTING BRACKET WPL 314333 Contact Us For Availability
031
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
031
BRACKET FOR COIN SLIDE WPL 314334 Contact Us For Availability
032
TIME ADJUSTMENT PEG WPL 314335 Contact Us For Availability
033
SWITCH AND RELAY BRACKET WPL Y314261 Contact Us For Availability
034
CONTROL PANEL WPL 314270 Contact Us For Availability
034
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
034
SWITCH AND SLIDER BRACKET WPL 314339 Contact Us For Availability
035
SCREW----NA WPL Y313561 Contact Us For Availability
035
CABLE STRAP-HARNESS TO BASE WPL 910768 Contact Us For Availability
037
SCREW WPL 314818 Contact Us For Availability
038
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
040
LOCK WASHER WPL 910387 Contact Us For Availability
041
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
042
WIRE, GROUND WPL 901220 Contact Us For Availability
× ![]()
