Model Whirlpool DG19CT GAS DRYER – Common Parts & Diagrams

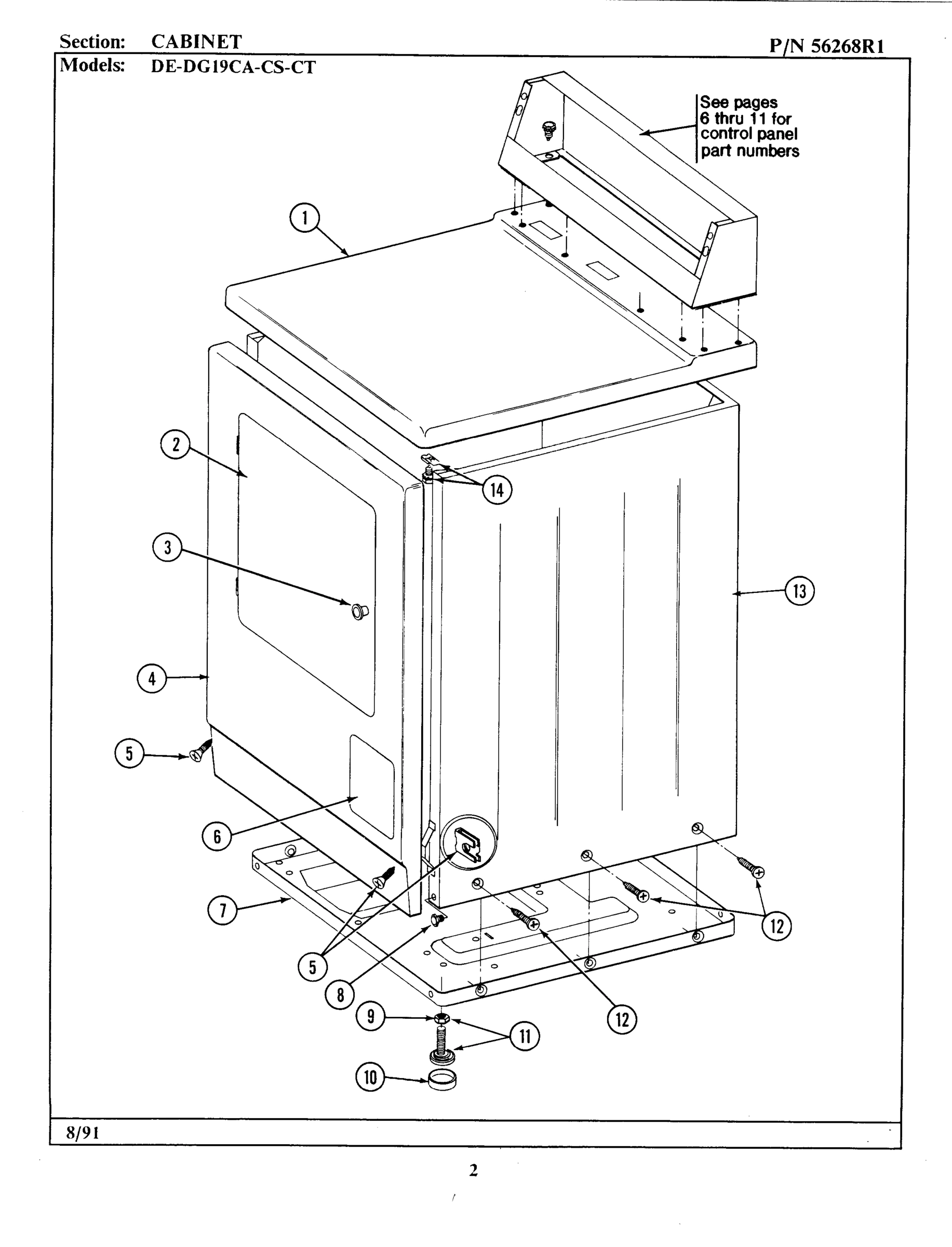

01 - CABINET-FRONT

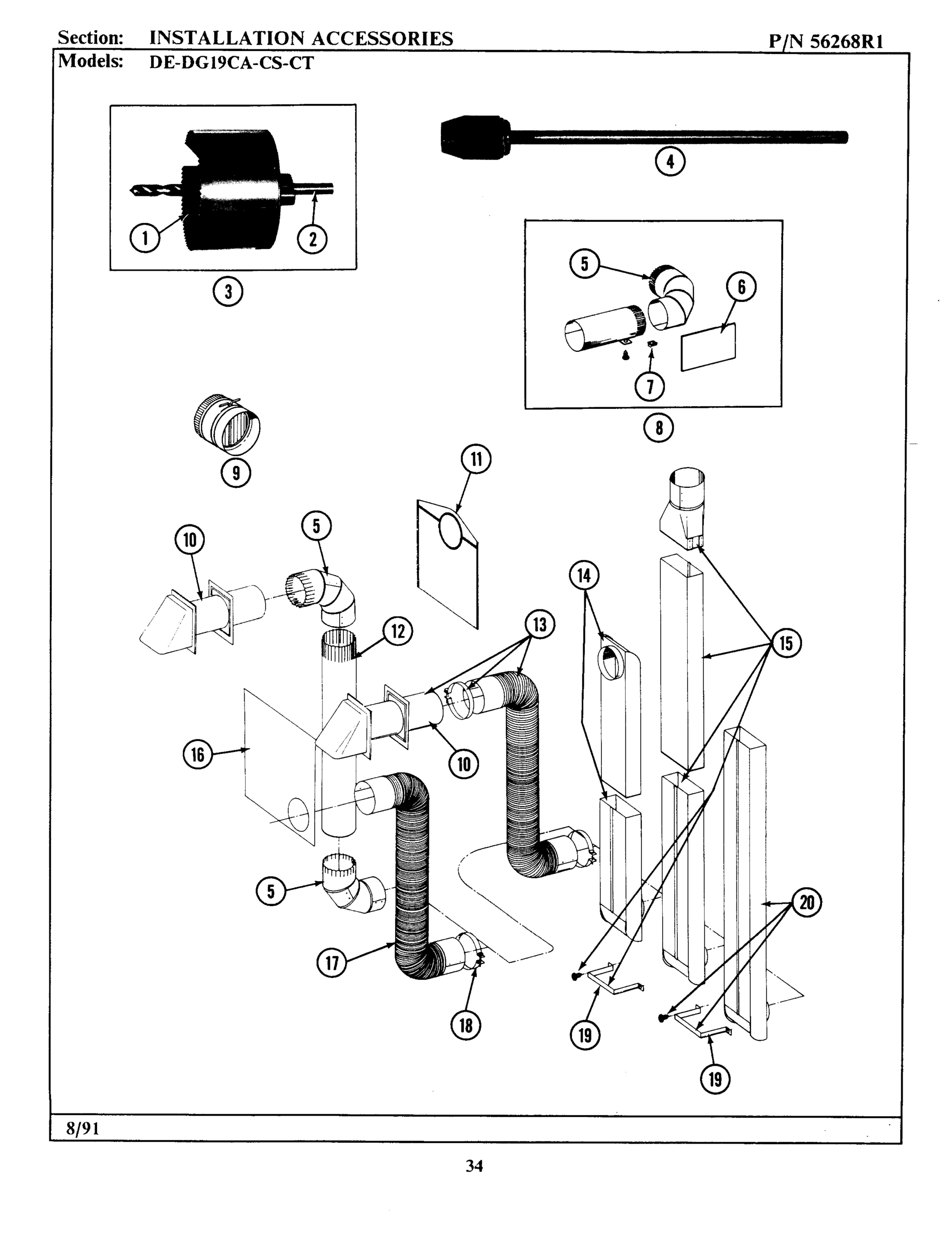

06 - INSTALLATION ACCESSORIES

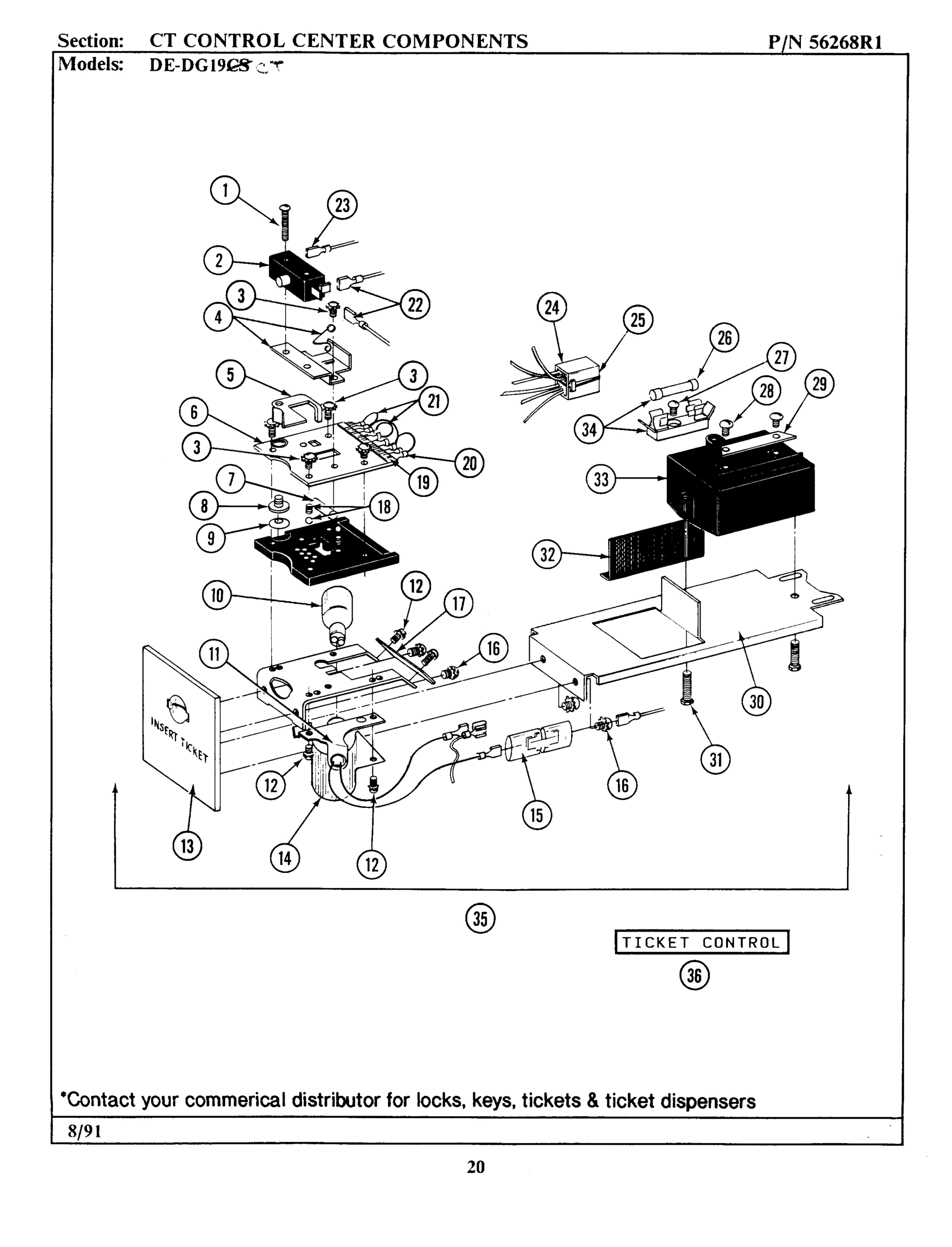

09 - CONTROL CENTER COMPONENTS

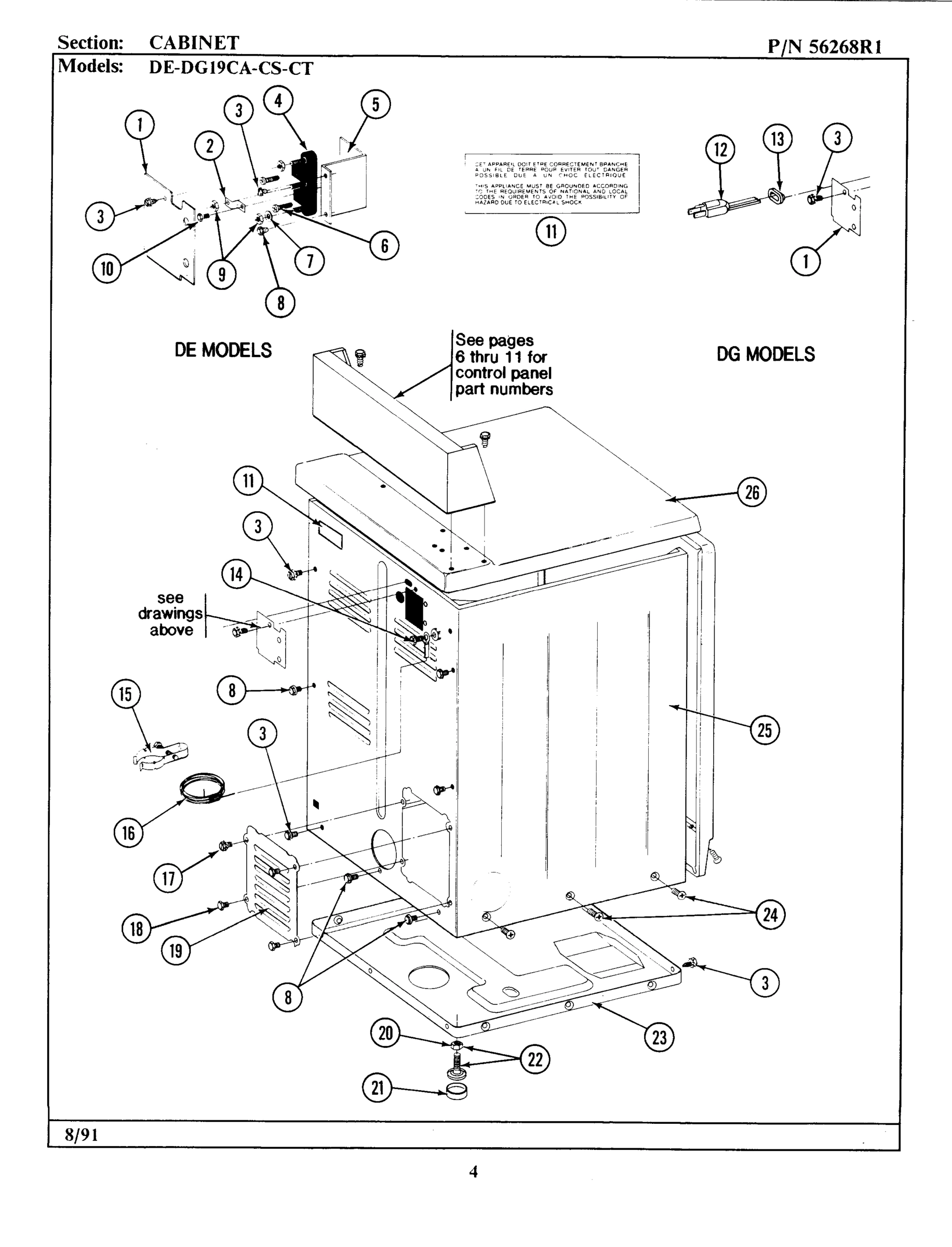

02 - CABINET-REAR

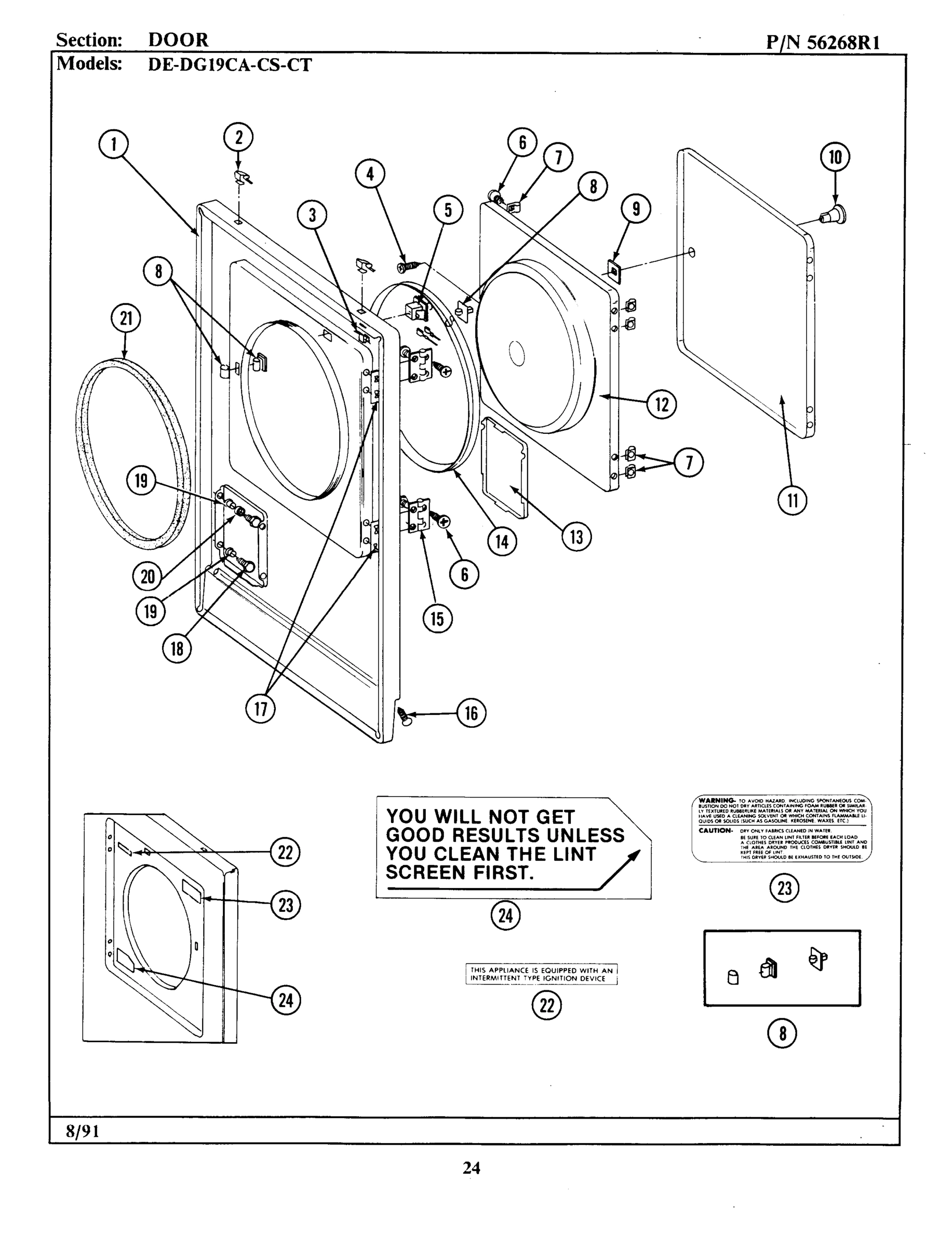

03 - DOOR

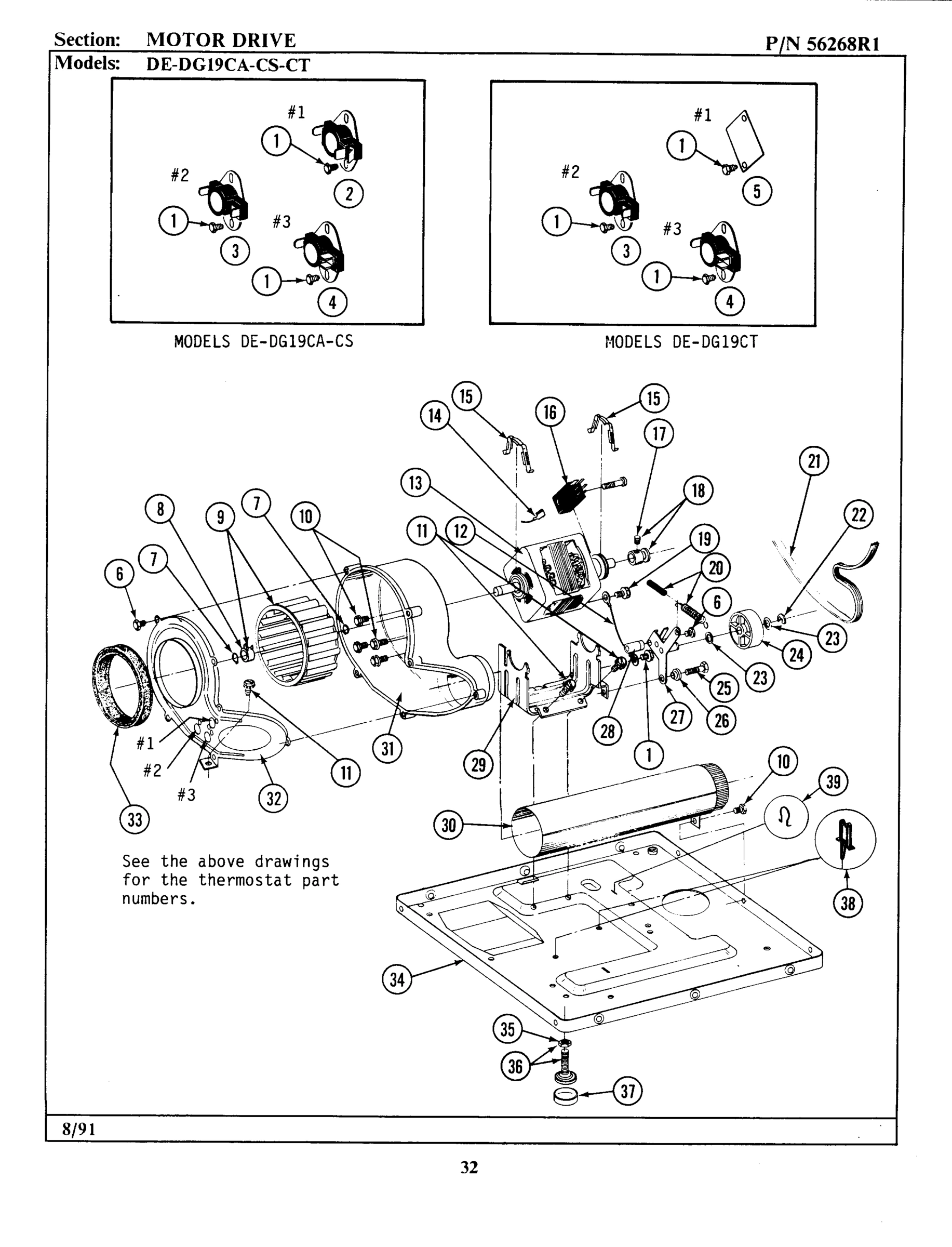

05 - MOTOR DRIVE

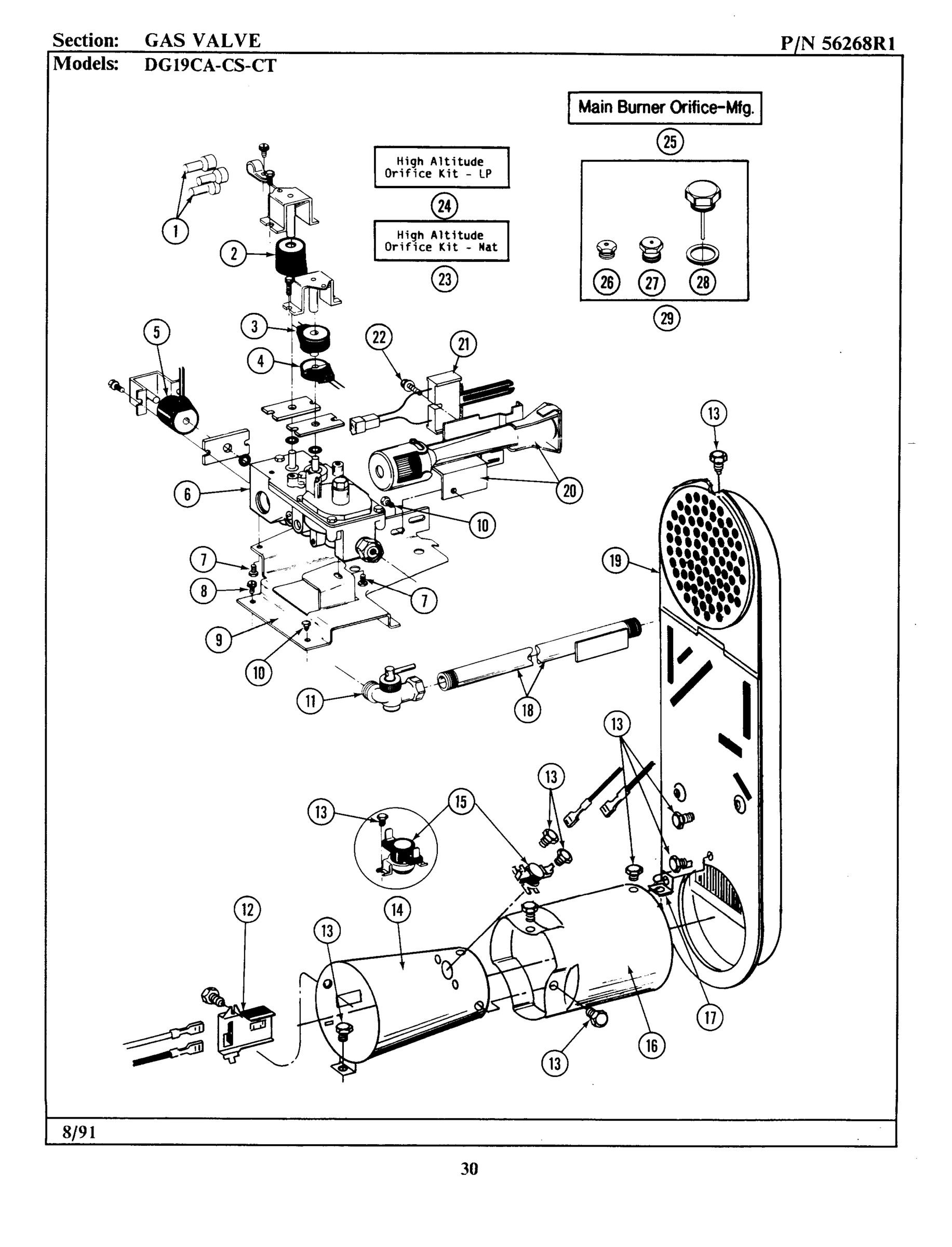

10 - GAS VALVE

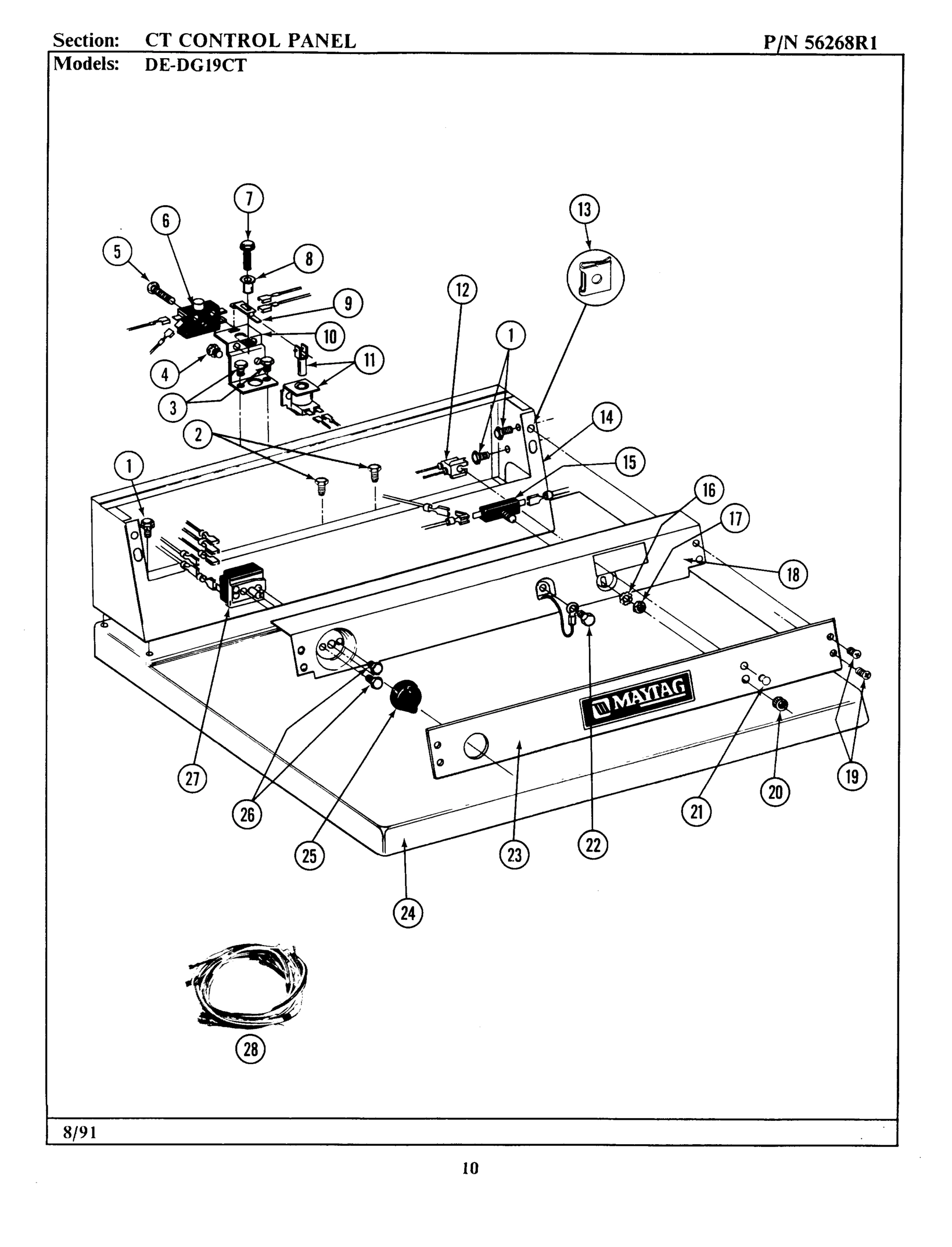

07 - CONTROL PANEL

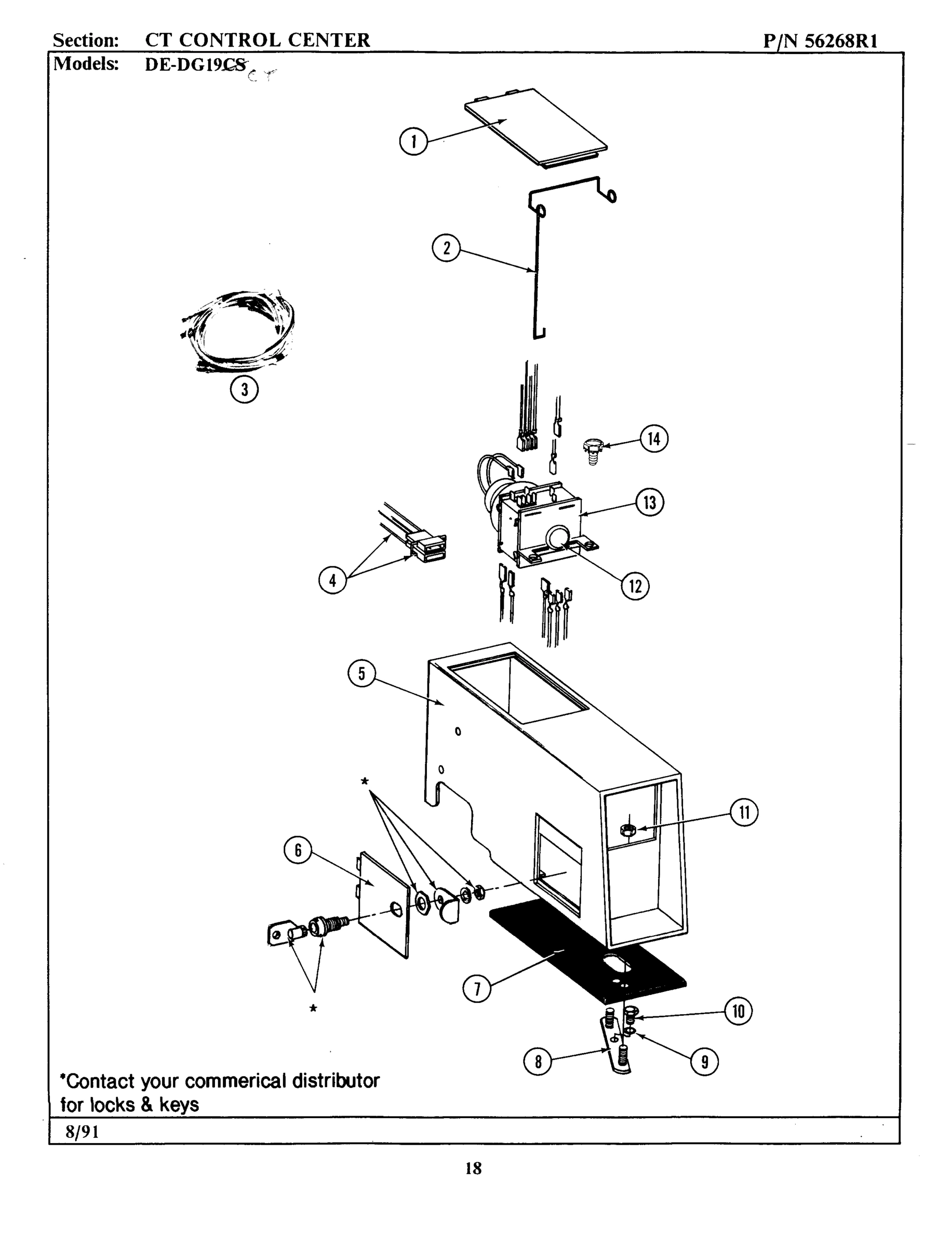

08 - CONTROL CENTER

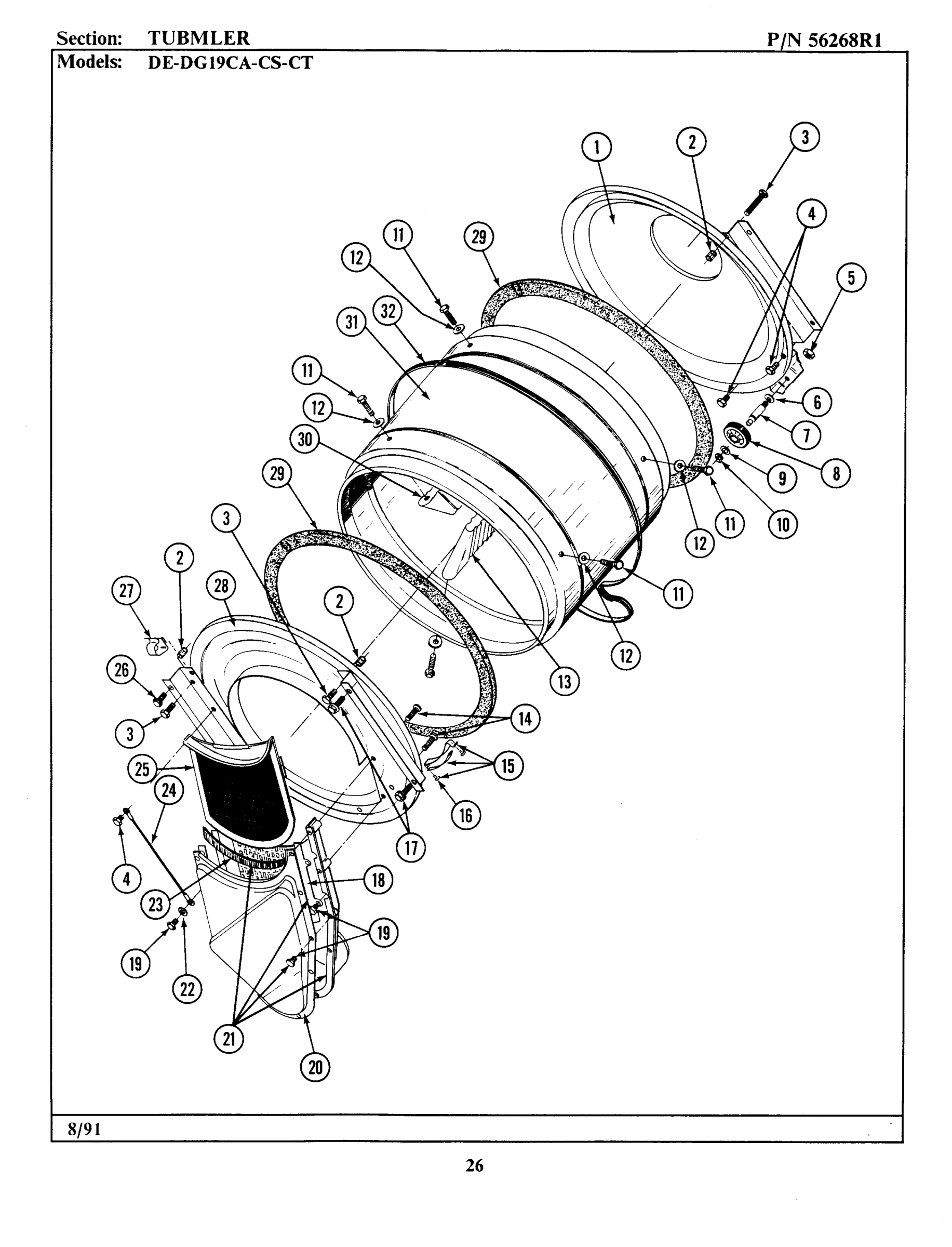

04 - TUMBLER

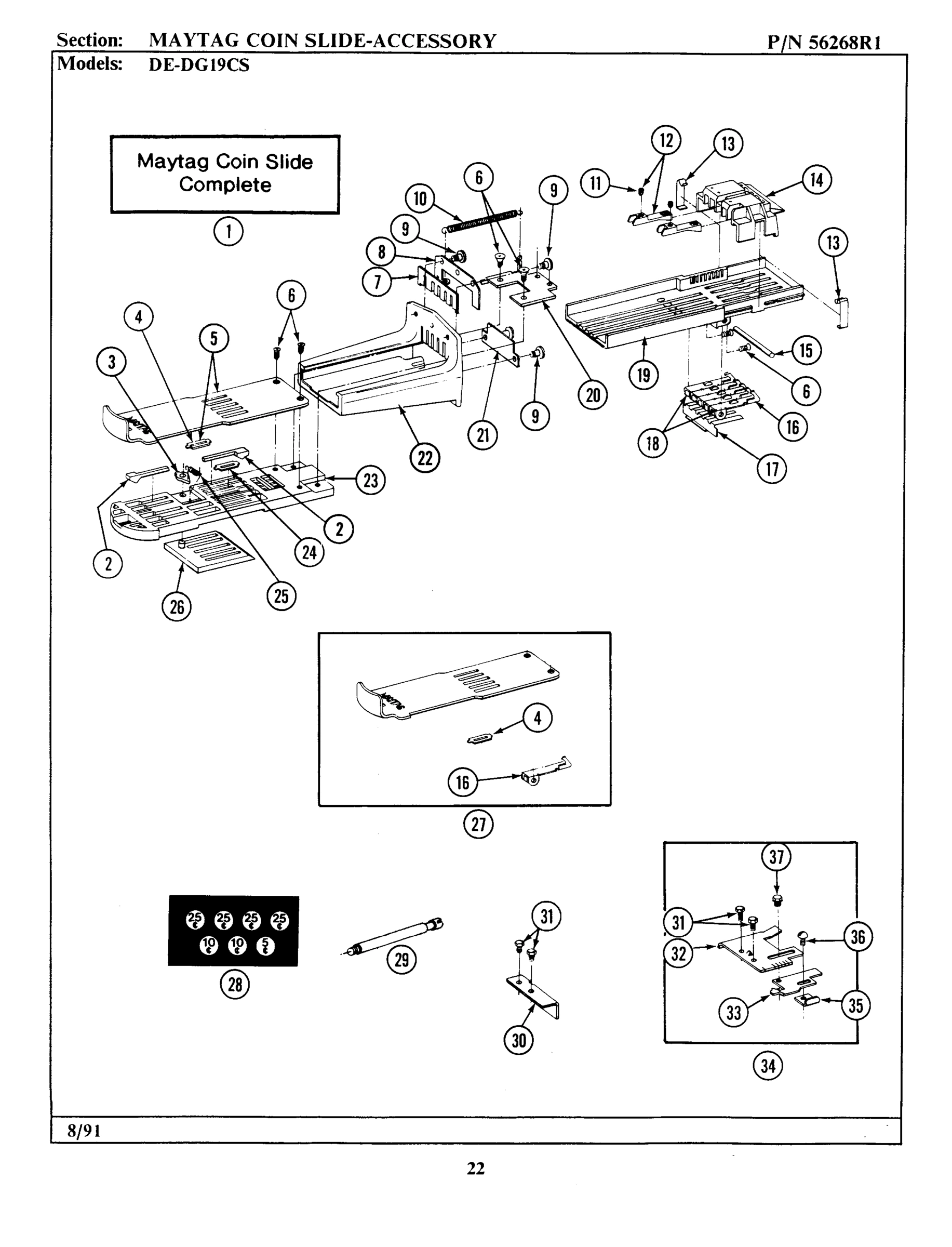

11 - MAYTAG COIN SLIDE-ACCESSORY
Common parts from model Whirlpool DG19CT GAS DRYER
001
COVER, TERMINAL WPL Y312905 Contact Us For Availability
001
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
001
TUMBLER BACK WPL Y306660 Contact Us For Availability
002
SWITCH, TICKET CONTROL WPL 204882 Contact Us For Availability
002
PART NOT USED WPL Y303225 Contact Us For Availability
002
SECONDARY COIL WPL 305603 Contact Us For Availability
002
SCREW, POWER CORD WPL Y314322 Contact Us For Availability
002
LATCH, ACCESS DOOR WPL 214878 Contact Us For Availability
003
HOLDING COIL WPL 305604 Contact Us For Availability
003
RATCHET ARM WPL 214572 Contact Us For Availability
004
CAM PLATE ASSEMBLY WPL 204881 Contact Us For Availability
004
ELECTIRCAL INSTRUCT. LABEL WPL 214519 Contact Us For Availability
004
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
005
ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability
005
SWITCH LEVER WPL 214218 Contact Us For Availability
005
POWER CORD WPL 302521 Contact Us For Availability
005
COVER (THERMOSTAT) WPL Y312853 Contact Us For Availability
005
SIDE COIL WPL Y304626 Contact Us For Availability
005
SCREW, RELAY SWITCH WPL 212950 Contact Us For Availability
006
INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability
006
CIRCUIT BOARD WPL 212452 Contact Us For Availability
006
CORD GROMMETT WPL 211881 Contact Us For Availability
006
SCREW WPL Y314062 Contact Us For Availability
006
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
006
SWITCH, RELAY WPL Y303787 Contact Us For Availability
006
SCREW WPL 214597 Contact Us For Availability
007
FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability
007
ROLLER, CAM WPL 214275 Contact Us For Availability
007
CLIP, DOOR LINER (OUTER PNL) WPL Y313910 Contact Us For Availability
007
SCREW WPL 212949 Contact Us For Availability
007
GASKET, METER CASE WPL 214660 Contact Us For Availability
007
GATE, COIN OPENING WPL 214578 Contact Us For Availability
008
EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability
008
ADJUSTMENT THUMB WHEEL WPL 214220 Contact Us For Availability
008
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
009
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
009
WASHER WPL 910309 Contact Us For Availability
010
LAMP, TICKET CONTROL WPL 202479 Contact Us For Availability
010
RETURN SPRING WPL 214581 Contact Us For Availability
011
SCREW WPL Y310759 Contact Us For Availability
011
BAG, LINT (DACRON) WPL 311353 Contact Us For Availability
011
DOOR (WHT) WPL Y306668 Contact Us For Availability
011
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
011
SOLENOID, RELAY ASSEMBLY WPL 305393 Contact Us For Availability
012
PIPE, VENTING WPL Y059130 Contact Us For Availability
012
COVER, ACCESS WPL Y312951 Contact Us For Availability
012
WIRE, GROUND WPL 901220 Contact Us For Availability
012
KNOB, TIMER WPL 213089 Contact Us For Availability
012
WASHER WPL 314158 Contact Us For Availability
013
FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability
013
FASTENER WPL 215003 Contact Us For Availability
013
TIMER W/KNOB & PIN WPL Y303801 Contact Us For Availability
013
SPRING CLIP WPL 214589 Contact Us For Availability
014
SCREW & FASTENER ASSY. WPL 204445 Contact Us For Availability
014
VENT DUCT ASSY. WPL Y059135 Contact Us For Availability
014
SHIELD, HEAT LAMP WPL 212533 Contact Us For Availability
014
DOOR SEAL WPL 314077 Contact Us For Availability
014
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
014
CONSOLE (WHT) WPL 305213 Contact Us For Availability
015
WIRE CONNECTOR WPL Y201110 Contact Us For Availability
015
DOOR HINGE WPL Y304577 Contact Us For Availability
015
SWITCH ASSEMBLY W/HEX NUT WPL Y303318 Contact Us For Availability
016
PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability
016
SCREW & FSTNER ASSY (FT. PNL) WPL 204439 Contact Us For Availability
016
PROD. No.3-3358-8 & No.3-3358-9 WPL 306207 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358-2, No.3-3 WPL Y303877 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 WPL Y303879 Contact Us For Availability
016
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
017
SCREW WPL Y310632 Contact Us For Availability
017
TWIN FASTENER WPL Y313907 Contact Us For Availability
017
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
017
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
017
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
017
SPRING, LOWER GAGE ARM WPL 214596 Contact Us For Availability
018
CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability
018
CONTACT BALL KIT WPL 203140 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
018
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
018
GUIDE, LINT SCREEN WPL Y313795 Contact Us For Availability
018
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
019
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
019
BASE INSERT, HOUSING WPL 214594 Contact Us For Availability
020
SPADE (MINIATURE) WPL Y311550 Contact Us For Availability
020
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
020
KNURLED NUT WPL Y312702 Contact Us For Availability
020
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
021
SEAL, FRONT PANEL WPL 314286 Contact Us For Availability
021
LENS, CONTROL PANEL WPL 213099 Contact Us For Availability
021
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
022
SCREW WPL 304971 Contact Us For Availability
022
WASHER WPL 310557 Contact Us For Availability
022
HOUSING, COIN SLIDE WPL 214584 Contact Us For Availability
023
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
023
LINT SEAL WPL Y313796 Contact Us For Availability
024
TOP COVER (WHT) WPL Y305191 Contact Us For Availability
024
LABEL, LINT SCREEN INSTR. WPL Y313340 Contact Us For Availability
025
PIN RECEPTACLE, PLUG WPL 213074 Contact Us For Availability
025
KNOB, SELECTOR SWITCH WPL 205663 Contact Us For Availability
025
SPRING, RATCHET ARM WPL 214582 Contact Us For Availability
026
SCREW----NA WPL Y313561 Contact Us For Availability
026
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
027
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
027
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
028
SCREW - CIRCUIT BOARD COVER WPL 311613 Contact Us For Availability
028
COINAGE DECAL WPL 214648 Contact Us For Availability
029
COVER, CIRCUIT BOARD WPL 311612 Contact Us For Availability
029
CONVERSION KIT (NAT.TO LP) WPL Y303779 Contact Us For Availability
029
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
029
BOLT, LOCKING WPL 213035 Contact Us For Availability
030
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
030
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
030
BRACKET, COIN SLIDE WPL 314334 Contact Us For Availability
031
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
031
PART NOT USED WPL 305187 Contact Us For Availability
031
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
032
COVER, BLOWER HOUSING WPL Y313770 Contact Us For Availability
032
PART NOT USED WPL Y312577 Contact Us For Availability
033
ELECTRONIC CONTROL WPL 202477 Contact Us For Availability
033
PART NOT USED WPL Y312578 Contact Us For Availability
034
BASE ASSY. WPL Y303361 Contact Us For Availability
034
PART NOT USED WPL Y302924 Contact Us For Availability
035
PART NOT USED WPL Y312576 Contact Us For Availability
036
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
036
PART NOT USED WPL NLA Contact Us For Availability
036
TICKET CONTROL WPL 202509 Contact Us For Availability
038
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
039
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
× ![]()
