Model Electrolux DEA500A0W DRYER – Common Parts & Diagrams

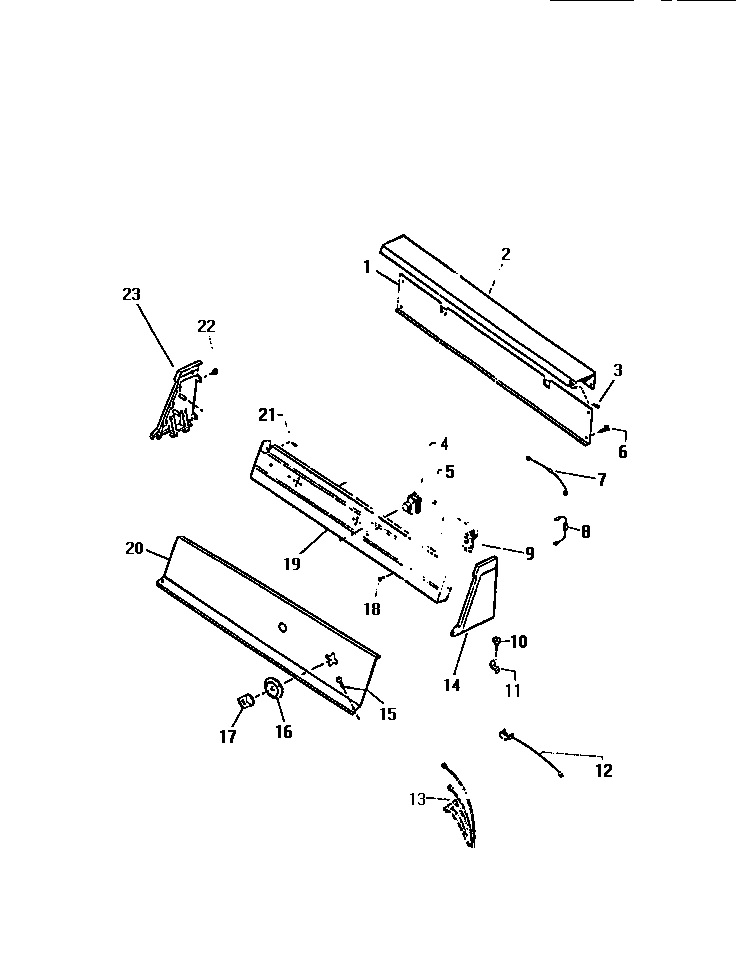

02 - CONSOLE & CONTROLS

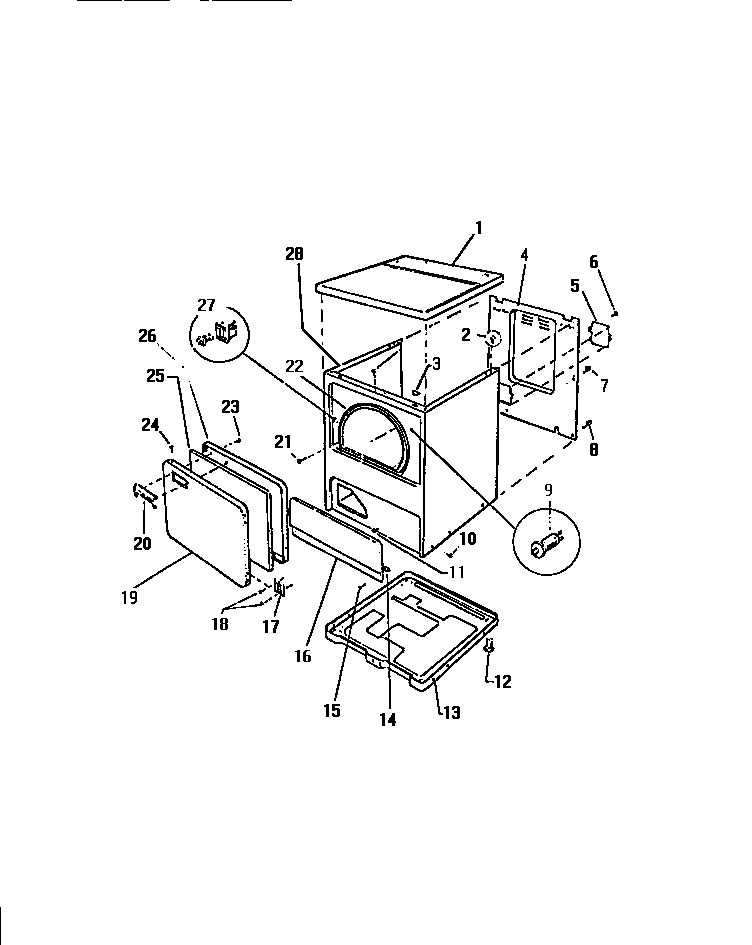

03 - CABINET
04 - DRUM
05 - BLOWER & HEATER HOUSING COMPONENTS
06 - GLOW BAR BURNER & COMBUSTION CHAMBE
Common parts from model Electrolux DEA500A0W DRYER
*90320
END TRIM AND CAP ASSEMBLY, LH WCI F139719-100 Contact Us For Availability
*90321
WCI F140240-000 WCI F140240-000 Contact Us For Availability
*90322
WCI F140255-000 WCI F140255-000 Contact Us For Availability
*90323
INSTALLATION INSTRUCTIONS WCI F139991-000 Contact Us For Availability
*90328
GROUND WIRE, ELECTRIC WCI F140282-000 Contact Us For Availability
*90329
GROUND WIRE, GAS WCI F140282-100 Contact Us For Availability
*90330
WCI NOTE 1 WCI NOTE 1 Contact Us For Availability
*90331
WCI NOTE 2 WCI NOTE 2 Contact Us For Availability
*90333
WCI F133285-000 WCI F133285-000 Contact Us For Availability
*90338
WCI F083602-000 WCI F083602-000 Contact Us For Availability
*90340
WCI F137071-000 WCI F137071-000 Contact Us For Availability
*90341
WCI F137070-000 WCI F137070-000 Contact Us For Availability
*90345
WCI F133047-000 WCI F133047-000 Contact Us For Availability
*90346
WCI F133006-500 WCI F133006-500 Contact Us For Availability
1
WCI F139230-026 WCI F139230-026 Contact Us For Availability
1
TOP PANEL, WHITE WCI F139207-032 Contact Us For Availability
1
TOP PANEL, WHEAT WCI F139207-038 Contact Us For Availability
1
TOP PANEL, ALMOND WCI F139207-039 Contact Us For Availability
1
WCI F133072-000 WCI F133072-000 Contact Us For Availability
1
WCI F139744-000 WCI F139744-000 Contact Us For Availability
2
TOP COVER (ROSE WOOD GRAIN) WCI F139795-000 Contact Us For Availability
2
WCI F001345-000 WCI F001345-000 Contact Us For Availability
2
PLENUM SUPT ASSEMBLY WCI F137077-000 Contact Us For Availability
2
MOTOR SWITCH, (G.E.) - F067634-002 (EMERSON) WCI F067634-006 Contact Us For Availability
3
CLIP (3) WCI F139635-000 Contact Us For Availability
3
CLIP (2) WCI F130448-000 Contact Us For Availability
3
WCI F131174-000 WCI F131174-000 Contact Us For Availability
3
WCI F134225-000 WCI F134225-000 Contact Us For Availability
4
PUSH TO START SWITCH WCI F135006-000 Contact Us For Availability
4
WCI F139218-526 WCI F139218-526 Contact Us For Availability
4
IDLER WHEEL ASSEMBLY (IDLER BAR ASSEMBLY WHEE WCI F079499-000 Contact Us For Availability
5
SCREW 92) WCI F137505-000 Contact Us For Availability
5
ACCESS PLATE TERM. BLOCK WCI F139218-326 Contact Us For Availability
5
BELT WCI F131654-000 Contact Us For Availability
6
SHAFT AND MTG PLATE (3) WCI F133165-000 Contact Us For Availability
6
WCI F076992-000 WCI F076992-000 Contact Us For Availability
7
WCI F065111-012 WCI F065111-012 Contact Us For Availability
7
SCREW (6) WCI F132080-000 Contact Us For Availability
7
WCI F079485-000 WCI F079485-000 Contact Us For Availability
7
WCI F062792-300 WCI F062792-300 Contact Us For Availability
7A
WCI F065111-009 WCI F065111-009 Contact Us For Availability
8
RESISTOR (ELECTRIC MODELS ONLY) WCI F137448-100 Contact Us For Availability
8
WCI F076968-000 WCI F076968-000 Contact Us For Availability
8
WCI F076822-000 WCI F076822-000 Contact Us For Availability
8
WCI F062791-300 WCI F062791-300 Contact Us For Availability
9
WCI F139771-000 WCI F139771-000 Contact Us For Availability
9
DOOR SWITCH WCI F130791-000 Contact Us For Availability
9
WCI F131652-000 WCI F131652-000 Contact Us For Availability
9
WCI F078202-100 WCI F078202-100 Contact Us For Availability
9A
WCI F079459-021 WCI F079459-021 Contact Us For Availability
10
CLIP (5) WCI F063124-000 Contact Us For Availability
10
WCI F133170-000 WCI F133170-000 Contact Us For Availability
11
WCI F079171-000 WCI F079171-000 Contact Us For Availability
11
WHEEL, TIRE, NYLINER ASSEMBLY (5) (NOTE 1) WCI F133006-000 Contact Us For Availability
11
SEMS SCREW WCI F133911-000 Contact Us For Availability
11
WCI F079904-000 WCI F079904-000 Contact Us For Availability
12
WCI F139816-000 WCI F139816-000 Contact Us For Availability
12
WCI F137033-000 WCI F137033-000 Contact Us For Availability
12
SCREW (4) WCI F132459-000 Contact Us For Availability
12
WCI F078190-026 WCI F078190-026 Contact Us For Availability
13
CABLE TIE HARNESS TO RH CAB (REPAIR LOCALLY) WCI F133780-000 Contact Us For Availability
13
WIRE RING HARNESS TO BK PAN ANDRH CAB, REAR ( WCI F136345-000 Contact Us For Availability
13
CLIP HARNESS TO RH CAB (2) (REPAIR LOCALLY) WCI F140144-000 Contact Us For Availability
13
WCI F140232-000 WCI F140232-000 Contact Us For Availability
13
WCI F140235-000 WCI F140235-000 Contact Us For Availability
13
WCI F140281-026 WCI F140281-026 Contact Us For Availability
13
SHAFT AND MTG PLATE (2) WCI F133163-000 Contact Us For Availability
13
SCREW (2) WCI F132144-000 Contact Us For Availability
14
END TRIM AND CAP ASSEMBLY, RH WCI F139719-000 Contact Us For Availability
14
SPEED NUT, ELECTRIC MODELS (2) WCI F078085-000 Contact Us For Availability
14
WCI F133279-000 WCI F133279-000 Contact Us For Availability
14
WCI F133008-000 WCI F133008-000 Contact Us For Availability
14
WCI F064354-028 WCI F064354-028 Contact Us For Availability
14
WCI F137060-000 WCI F137060-000 Contact Us For Availability
14
WCI F139745-000 WCI F139745-000 Contact Us For Availability
15
SCREW (2) WCI F140203-000 Contact Us For Availability
15
WCI F066904-000 WCI F066904-000 Contact Us For Availability
15
EXHAUST AND LINT HSG ASSEMBLY (NOTE 2) WCI F133005-000 Contact Us For Availability
15
WCI F076829-000 WCI F076829-000 Contact Us For Availability
15
WCI F066452-019 WCI F066452-019 Contact Us For Availability
15
WCI F066457-020 WCI F066457-020 Contact Us For Availability
16
WCI F078951-000 WCI F078951-000 Contact Us For Availability
16
ACCESS PANEL, WHITE WCI F134145-032 Contact Us For Availability
16
ACCESS PANEL, WHEAT WCI F134145-038 Contact Us For Availability
16
ACCESS PANEL, ALMOND WCI F134145-039 Contact Us For Availability
16
WCI F137050-000 WCI F137050-000 Contact Us For Availability
16
WCI F078201-100 WCI F078201-100 Contact Us For Availability
16
WCI F133075-000 WCI F133075-000 Contact Us For Availability
17
WCI F078950-100 WCI F078950-100 Contact Us For Availability
17
WCI F078319-000 WCI F078319-000 Contact Us For Availability
17
WCI F078861-100 WCI F078861-100 Contact Us For Availability
17
WCI F132073-000 WCI F132073-000 Contact Us For Availability
17
WCI F132076-000 WCI F132076-000 Contact Us For Availability
18
WCI F060796-000 WCI F060796-000 Contact Us For Availability
18
WCI F76979 WCI F76979 Contact Us For Availability
18
WCI F078101-000 WCI F078101-000 Contact Us For Availability
19
CONTROL MTG BRKT WCI F140183-022 Contact Us For Availability
19
OUTER DOOR PANEL, WHITE WCI F137874-032 Contact Us For Availability
19
WCI F134722-000 WCI F134722-000 Contact Us For Availability
19
BRACKET WCI F078680-000 Contact Us For Availability
20
WCI F140233-100 WCI F140233-100 Contact Us For Availability
20
WCI F078673-200 WCI F078673-200 Contact Us For Availability
20
WCI F078825-000 WCI F078825-000 Contact Us For Availability
20
SERVICE CORD WCI F079022-000 Contact Us For Availability
21
GROMMET (2) WCI F131653-000 Contact Us For Availability
22
WCI F139577-000 WCI F139577-000 Contact Us For Availability
22
WCI F133271-000 WCI F133271-000 Contact Us For Availability
22
WCI F063536-026 WCI F063536-026 Contact Us For Availability
23
SCREW (2) WCI F136470-000 Contact Us For Availability
23
WCI F133007-100 WCI F133007-100 Contact Us For Availability
23
EXHAUST PIPE ASSEMBLY WCI F140283-000 Contact Us For Availability
23
COMBUSTION CHAMBER WCI F133078-300 Contact Us For Availability
24
SCREW (3) WCI F079999-000 Contact Us For Availability
24
WCI F076951-300 WCI F076951-300 Contact Us For Availability
24
WCI F064360-000 WCI F064360-000 Contact Us For Availability
25
WCI F132413-000 WCI F132413-000 Contact Us For Availability
25
WCI F133007-000 WCI F133007-000 Contact Us For Availability
25
MOTOR CLIP (2) WCI F002618-000 Contact Us For Availability
26
WCI F137873-028 WCI F137873-028 Contact Us For Availability
26
PLENUM AND SEAL ASSEMBLY WITHOUT LIGHT WCI F133060-100 Contact Us For Availability
26
WCI F076956-200 WCI F076956-200 Contact Us For Availability
28
WCI F134920-332 WCI F134920-332 Contact Us For Availability
28
SAFETY THERMO WCI F132077-000 Contact Us For Availability
29
SCREW (2) WCI F134584-000 Contact Us For Availability
31
NUT (4) WCI F073339-000 Contact Us For Availability
32
WCI F073329-000 WCI F073329-000 Contact Us For Availability
35
WCI F076793-100 WCI F076793-100 Contact Us For Availability
36
NUT (2) WCI F073340-000 Contact Us For Availability
37
WASHER (2) WCI F063602-000 Contact Us For Availability
38
INSULATOR, FEMALE (2) WCI F078254-000 Contact Us For Availability
39
INSULATOR, MALE (2) WCI F078253-000 Contact Us For Availability
40
HEAT ELEMENT PKG (NOTE 1) WCI F137022-000 Contact Us For Availability
41
HTR HOUSING (NOTE 2) WCI F133078-100 Contact Us For Availability
43
CLIP (11) WCI F131734-000 Contact Us For Availability
44
WCI F131735-000 WCI F131735-000 Contact Us For Availability
45
WCI F076956-000 WCI F076956-000 Contact Us For Availability
46
WCI F132202-000 WCI F132202-000 Contact Us For Availability
× ![]()
