Model Maytag DE906 ELECTRIC DRYER – Common Parts & Diagrams
01 - 50 CYCLE CONVERSION LIST
02 - CABINET REMOVED

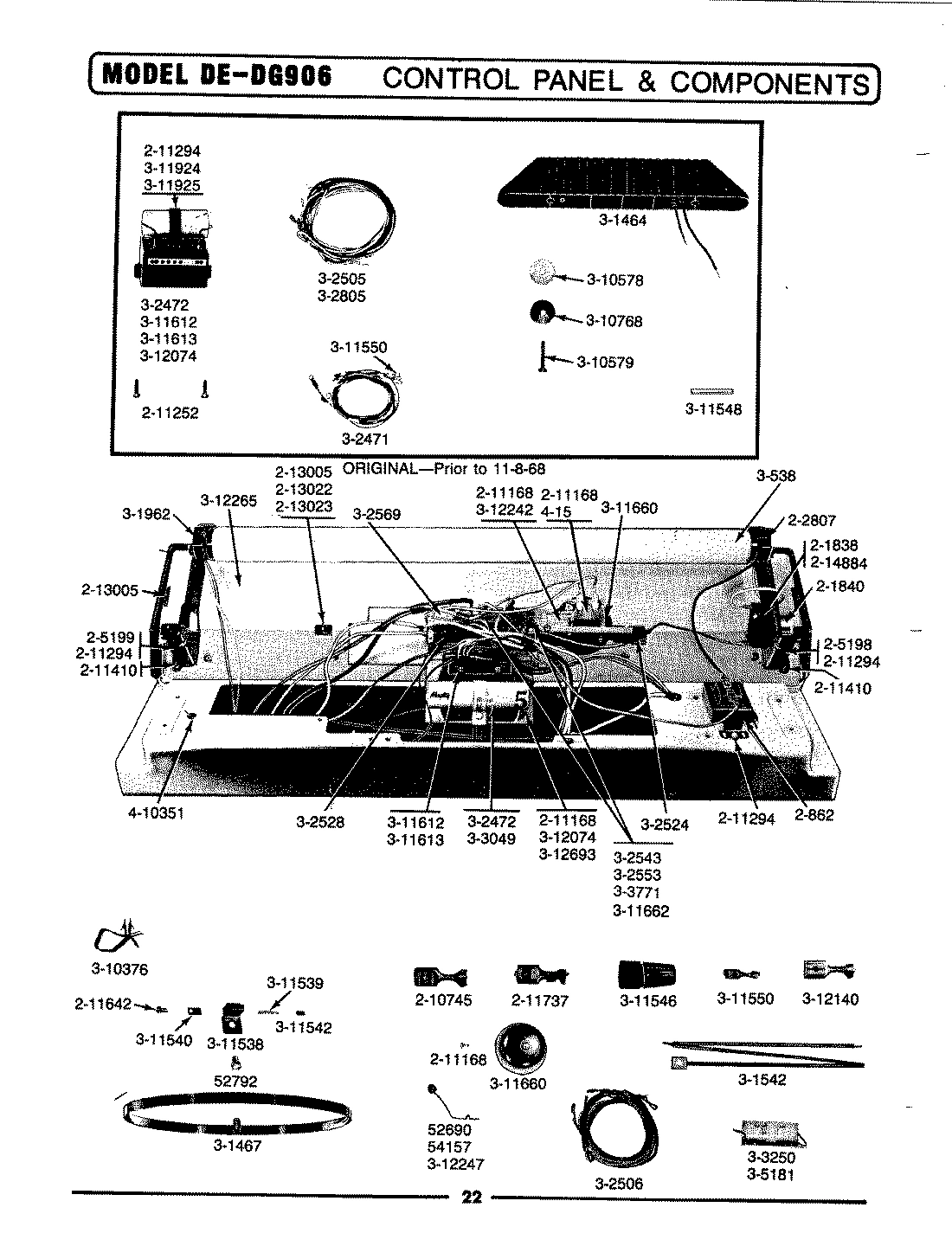

03 - CONTROL PANEL & COMPONENTS

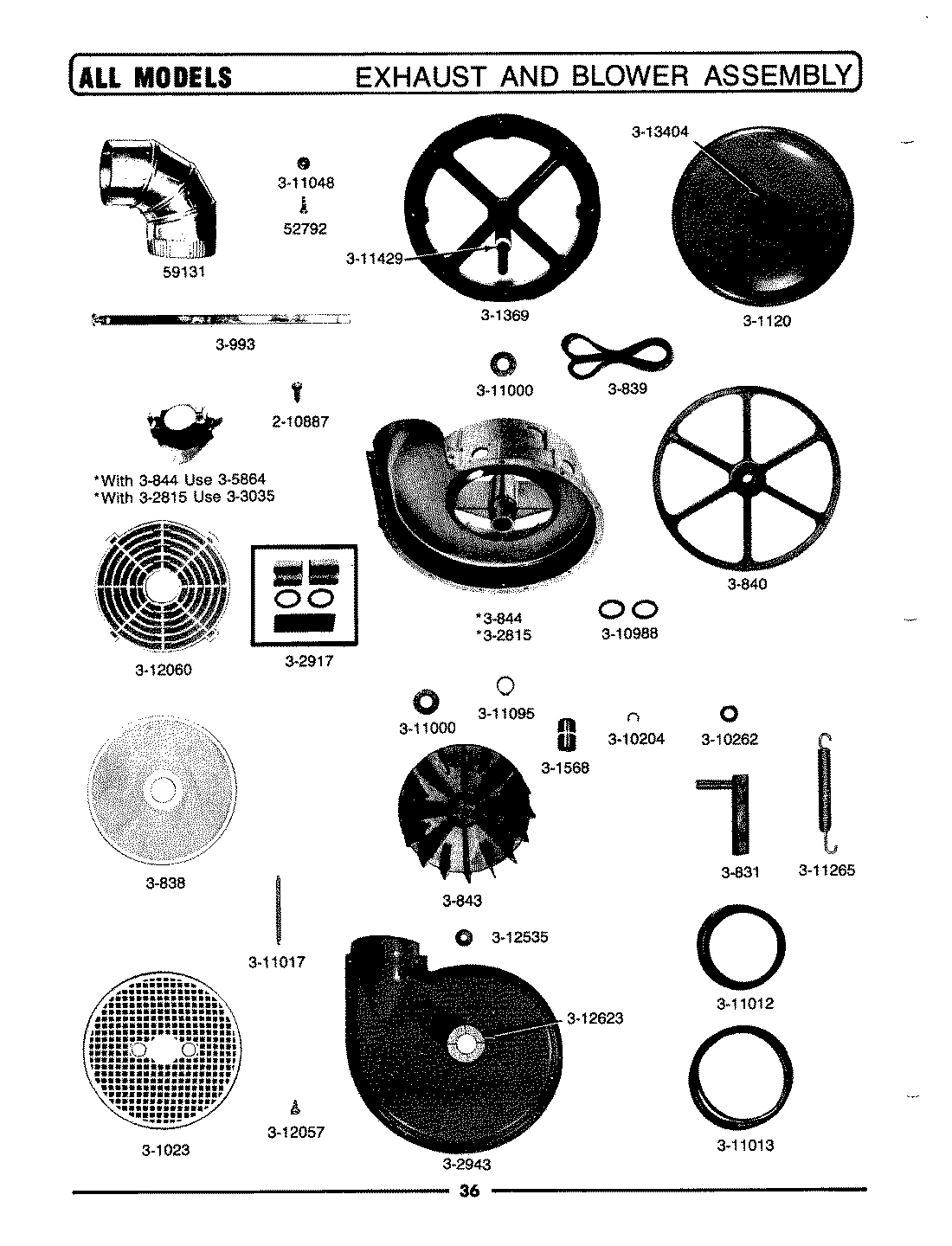

04 - EXHAUST & BLOWER ASSEMBLY

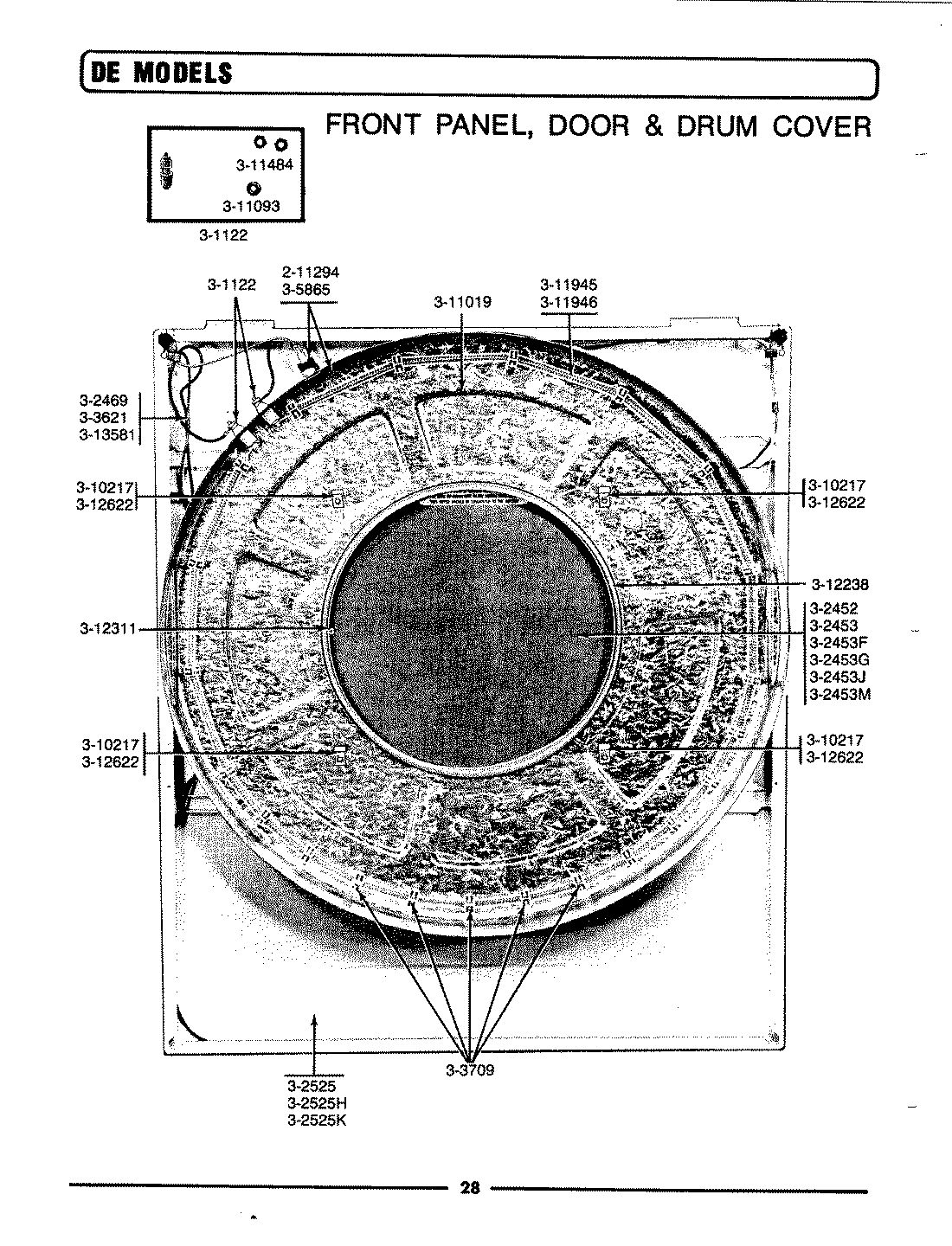

05 - FRONT PANEL, DOOR & DRUM COVER

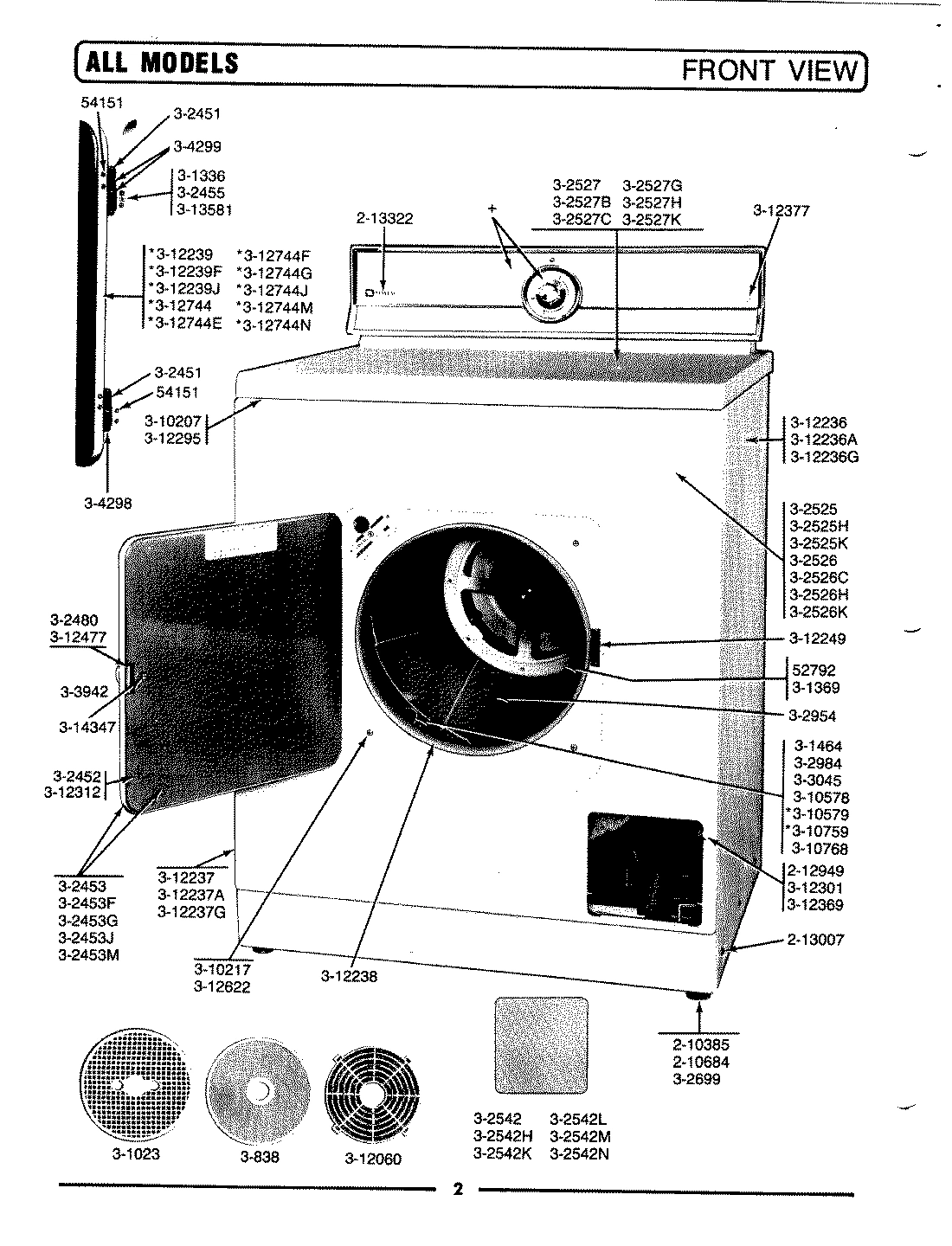

06 - FRONT VIEW

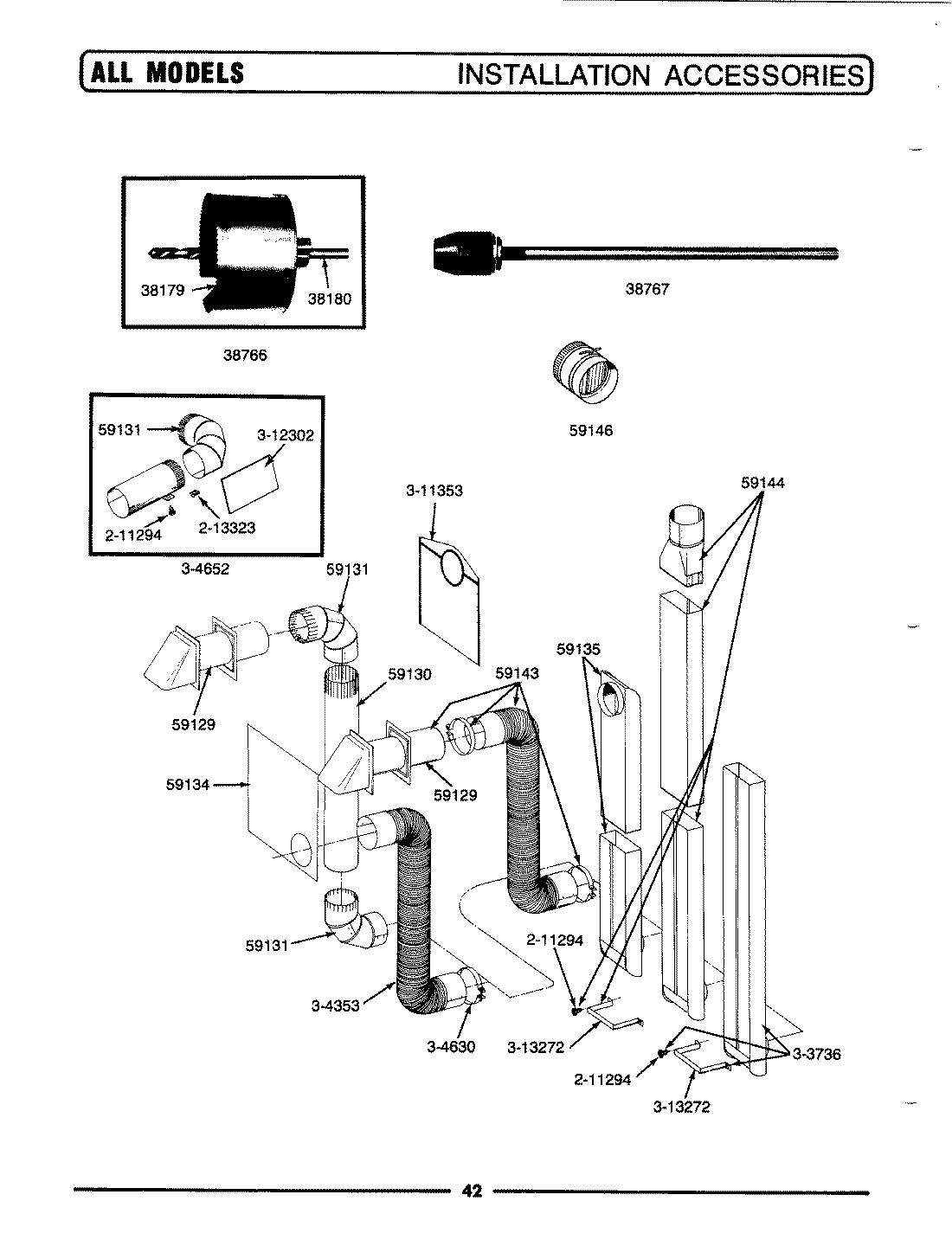

07 - INSTALLATION ACCESSORIES

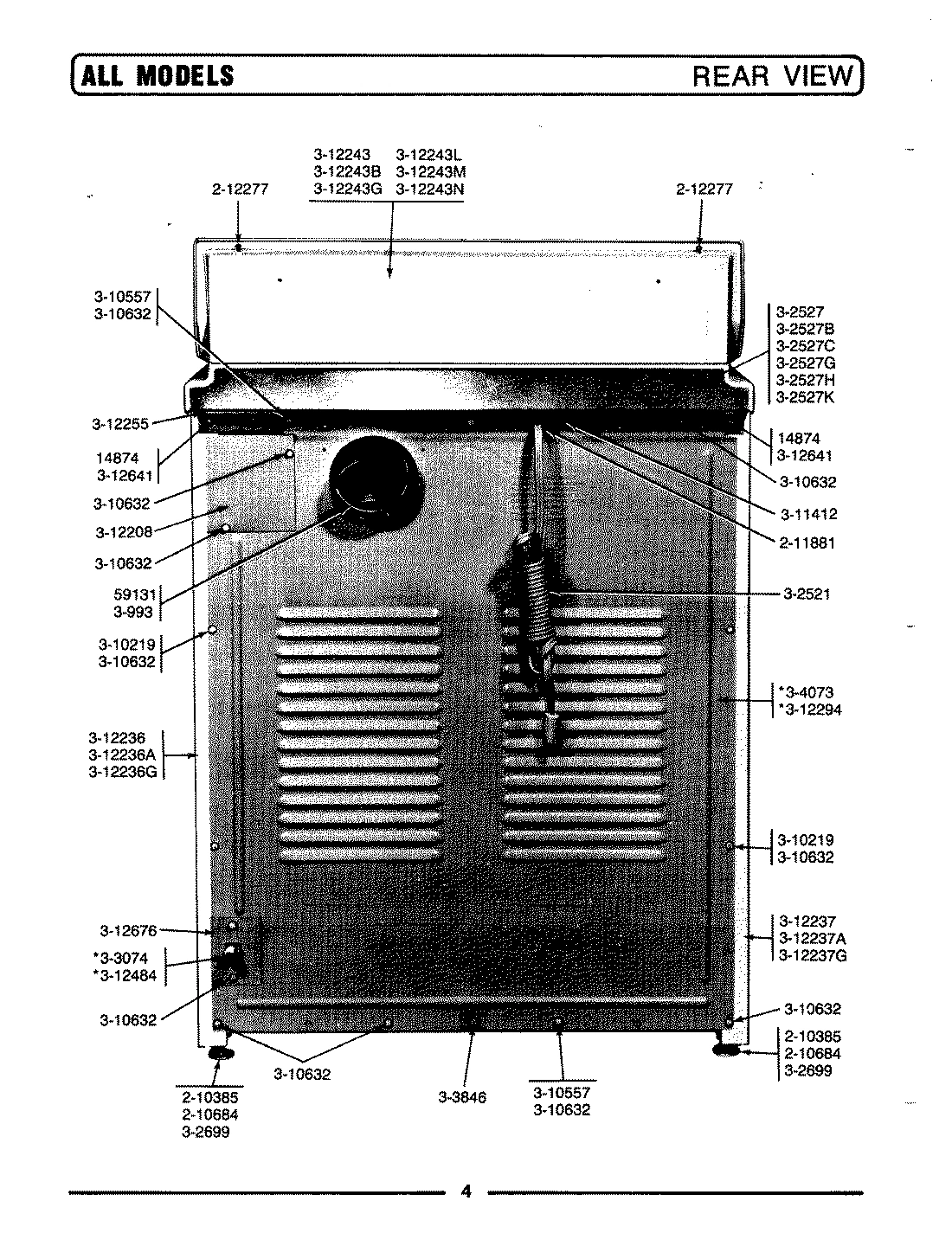

08 - REAR VIEW

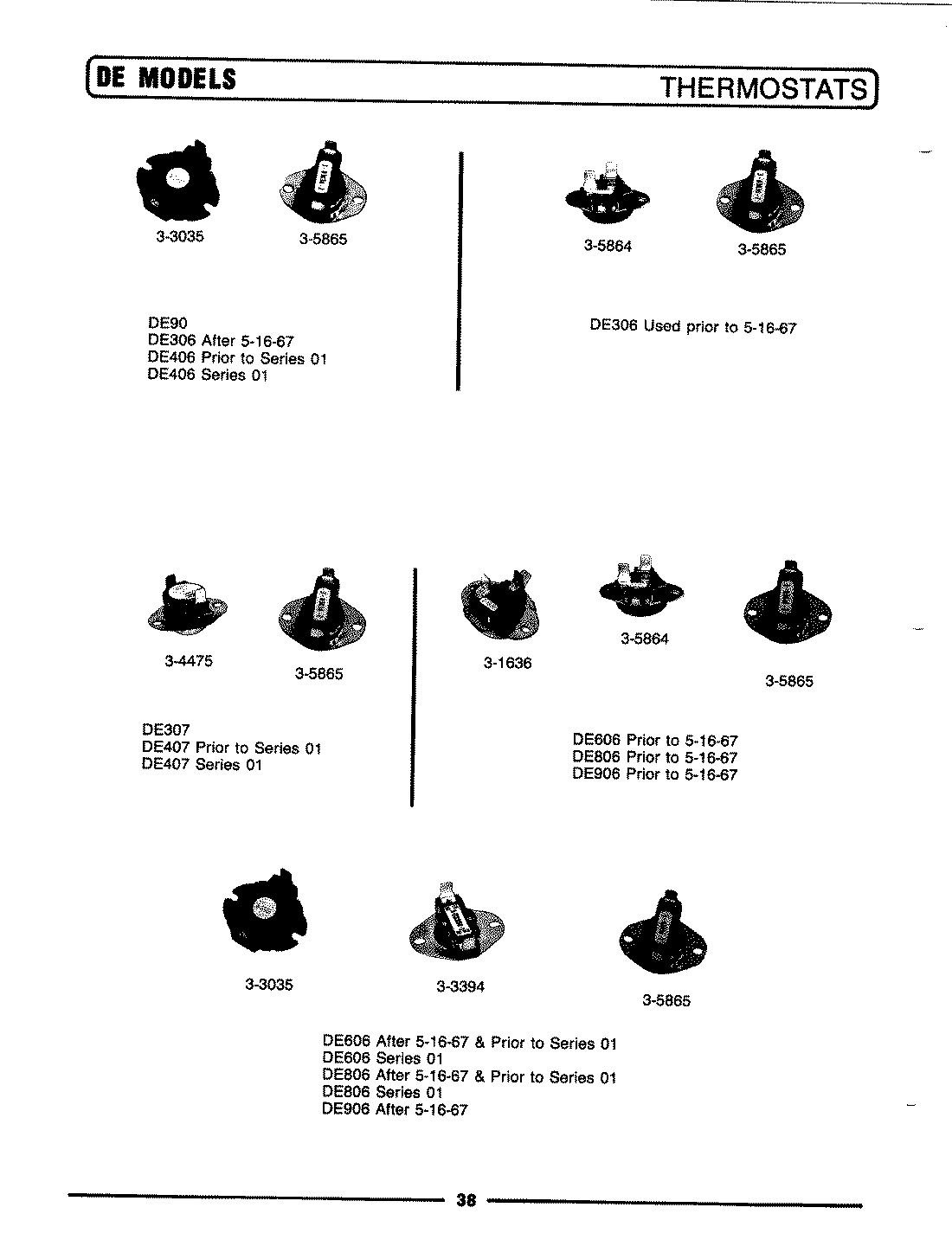

09 - THERMOSTATS
Common parts from model Maytag DE906 ELECTRIC DRYER
1
MAY Y301636 MAY Y301636 Contact Us For Availability
1
MAY 052690 MAY 052690 Contact Us For Availability
1
MAY 052792 MAY 052792 Contact Us For Availability
1
MAY Y059131 MAY Y059131 Contact Us For Availability
1
MAY 038179 MAY 038179 Contact Us For Availability
2
MAY 054151 MAY 054151 Contact Us For Availability
2
MAY 038180 MAY 038180 Contact Us For Availability
2
MAY Y201808 MAY Y201808 Contact Us For Availability
3
MAY Y303394 MAY Y303394 Contact Us For Availability
3
MAY 054157 MAY 054157 Contact Us For Availability
3
MAY 300831 MAY 300831 Contact Us For Availability
3
MAY 038766 MAY 038766 Contact Us For Availability
4
MAY 300838 MAY 300838 Contact Us For Availability
4
MAY 200862 MAY 200862 Contact Us For Availability
4
MAY 038767 MAY 038767 Contact Us For Availability
5
MAY 201838 MAY 201838 Contact Us For Availability
5
MAY 300839 MAY 300839 Contact Us For Availability
5
MAY 305864 MAY 305864 Contact Us For Availability
5
MAY 212949 MAY 212949 Contact Us For Availability
6
MAY 201840 MAY 201840 Contact Us For Availability
6
MAY 300840 MAY 300840 Contact Us For Availability
6
MAY 300993 MAY 300993 Contact Us For Availability
6
HIGH LIMIT THERMOSTAT MAY 305865 Contact Us For Availability
6
MAY Y059130 MAY Y059130 Contact Us For Availability
7
MAY 202807 MAY 202807 Contact Us For Availability
7
MAY 300843 MAY 300843 Contact Us For Availability
7
MAY 213322 MAY 213322 Contact Us For Availability
7
MAY 301548 MAY 301548 Contact Us For Availability
8
MAY 205198 MAY 205198 Contact Us For Availability
8
MAY 214697 MAY 214697 Contact Us For Availability
8
MAY Y059134 MAY Y059134 Contact Us For Availability
9
MAY 205199 MAY 205199 Contact Us For Availability
9
HARNESS FOR SHROUD MAY 302469 Contact Us For Availability
9
TOP COVER-WHITE MAY 302527 Contact Us For Availability
9
MAY Y059135 MAY Y059135 Contact Us For Availability
10
MAY 210745 MAY 210745 Contact Us For Availability
10
MAY 301023 MAY 301023 Contact Us For Availability
10
MAY Y301120 MAY Y301120 Contact Us For Availability
10
MAY 302527B MAY 302527B Contact Us For Availability
10
MAY Y059143 MAY Y059143 Contact Us For Availability
11
MAY Y301336 MAY Y301336 Contact Us For Availability
11
MAY 302527C MAY 302527C Contact Us For Availability
11
MAY 059144 MAY 059144 Contact Us For Availability
12
MAY 301369 MAY 301369 Contact Us For Availability
12
MAY 301568 MAY 301568 Contact Us For Availability
12
MAY 059146 MAY 059146 Contact Us For Availability
12
MAY Y311423 MAY Y311423 Contact Us For Availability
13
MAY Y302815 MAY Y302815 Contact Us For Availability
13
MAY 302527H MAY 302527H Contact Us For Availability
14
MAY 211410 MAY 211410 Contact Us For Availability
14
BEARING KIT - DRUM MAY 302917 Contact Us For Availability
14
HINGE ASSEMBLY MAY 302451 Contact Us For Availability
14
MAY 302527K MAY 302527K Contact Us For Availability
14
MAY 213323 MAY 213323 Contact Us For Availability
15
MAY Y302699 MAY Y302699 Contact Us For Availability
15
MAY 302943 MAY 302943 Contact Us For Availability
15
MAY 211642 MAY 211642 Contact Us For Availability
15
DOOR LINER MAY 302452 Contact Us For Availability
15
MAY 303736 MAY 303736 Contact Us For Availability
16
MAY 211737 MAY 211737 Contact Us For Availability
16
MAY 302453 MAY 302453 Contact Us For Availability
16
MAY Y304353 MAY Y304353 Contact Us For Availability
16
MAY 303074 MAY 303074 Contact Us For Availability
17
DRUM COVER MAY 311019 Contact Us For Availability
17
MAY 310204 MAY 310204 Contact Us For Availability
17
MAY 213005 MAY 213005 Contact Us For Availability
17
MAY 302453F MAY 302453F Contact Us For Availability
17
MAY Y304630 MAY Y304630 Contact Us For Availability
18
MAY 303846 MAY 303846 Contact Us For Availability
18
MAY 310262 MAY 310262 Contact Us For Availability
18
MAY 213022 MAY 213022 Contact Us For Availability
18
MAY 302453G MAY 302453G Contact Us For Availability
18
MAY 311147 MAY 311147 Contact Us For Availability
19
MAY 213023 MAY 213023 Contact Us For Availability
19
MAY 302453J MAY 302453J Contact Us For Availability
19
MAY 311353 MAY 311353 Contact Us For Availability
19
BACK PANEL MAY 304073 Contact Us For Availability
20
MAY 310988 MAY 310988 Contact Us For Availability
20
MAY 214884 MAY 214884 Contact Us For Availability
20
MAY 302453M MAY 302453M Contact Us For Availability
20
MAY Y311945 MAY Y311945 Contact Us For Availability
20
MAY 313272 MAY 313272 Contact Us For Availability
20
MAY 310219 MAY 310219 Contact Us For Availability
21
MAY Y311946 MAY Y311946 Contact Us For Availability
21
MAY Y300538 MAY Y300538 Contact Us For Availability
21
MAY 311000 MAY 311000 Contact Us For Availability
21
MAY 313766 MAY 313766 Contact Us For Availability
21
MAY 310557 MAY 310557 Contact Us For Availability
22
MAY 302480 MAY 302480 Contact Us For Availability
22
MAY Y310632 MAY Y310632 Contact Us For Availability
23
MAY Y302278 MAY Y302278 Contact Us For Availability
23
MAY 301467 MAY 301467 Contact Us For Availability
23
MAY 302525 MAY 302525 Contact Us For Availability
23
MAY 312311 MAY 312311 Contact Us For Availability
24
SUPPORT MAY 302535 Contact Us For Availability
24
MAY 301542 MAY 301542 Contact Us For Availability
24
MAY Y311017 MAY Y311017 Contact Us For Availability
24
MAY 302525H MAY 302525H Contact Us For Availability
24
SCREW MAY 311412 Contact Us For Availability
25
BASE MAY 302536 Contact Us For Availability
25
MAY 311048 MAY 311048 Contact Us For Availability
25
MAY 301962 MAY 301962 Contact Us For Availability
25
MAY 302525K MAY 302525K Contact Us For Availability
26
MAY 311095 MAY 311095 Contact Us For Availability
26
FRONT PANEL-WHITE MAY 302526 Contact Us For Availability
26
MAY 312206 MAY 312206 Contact Us For Availability
27
MAY 311265 MAY 311265 Contact Us For Availability
27
MAY 302470 MAY 302470 Contact Us For Availability
27
MAY 302526C MAY 302526C Contact Us For Availability
27
MAY 312207 MAY 312207 Contact Us For Availability
28
MAY 302471 MAY 302471 Contact Us For Availability
28
MAY Y311429 MAY Y311429 Contact Us For Availability
28
MAY 302526H MAY 302526H Contact Us For Availability
28
MAY 312208 MAY 312208 Contact Us For Availability
29
MAY Y312057 MAY Y312057 Contact Us For Availability
29
ELECTRONIC CONTROL MAY 302472 Contact Us For Availability
29
MAY 302526K MAY 302526K Contact Us For Availability
29
MAY Y312209 MAY Y312209 Contact Us For Availability
30
MAY 303709 MAY 303709 Contact Us For Availability
30
MAY 302505 MAY 302505 Contact Us For Availability
30
MAY 312236 MAY 312236 Contact Us For Availability
31
MAY 302506 MAY 302506 Contact Us For Availability
31
MAY 312236A MAY 312236A Contact Us For Availability
32
MAY 302524 MAY 302524 Contact Us For Availability
32
MAY Y312623 MAY Y312623 Contact Us For Availability
32
MAY 312236G MAY 312236G Contact Us For Availability
33
MAY Y313404 MAY Y313404 Contact Us For Availability
33
MAY Y302528 MAY Y302528 Contact Us For Availability
33
MAY 302527G MAY 302527G Contact Us For Availability
33
PANEL-WHITE MAY 312237 Contact Us For Availability
34
MAY Y302543 MAY Y302543 Contact Us For Availability
34
MAY 210887 MAY 210887 Contact Us For Availability
34
MAY 312237A MAY 312237A Contact Us For Availability
35
MAY 302553 MAY 302553 Contact Us For Availability
35
MAY Y300844 MAY Y300844 Contact Us For Availability
35
MAY 312237G MAY 312237G Contact Us For Availability
36
MAY 302569 MAY 302569 Contact Us For Availability
36
MAY 300909 MAY 300909 Contact Us For Availability
36
MAY 312243 MAY 312243 Contact Us For Availability
37
MAY 310933 MAY 310933 Contact Us For Availability
37
MAY 302805 MAY 302805 Contact Us For Availability
37
MAY 300910 MAY 300910 Contact Us For Availability
37
MAY 312243B MAY 312243B Contact Us For Availability
38
MAY Y311012 MAY Y311012 Contact Us For Availability
38
MAY 303040 MAY 303040 Contact Us For Availability
38
MAY 312243G MAY 312243G Contact Us For Availability
39
MAY Y311013 MAY Y311013 Contact Us For Availability
39
LAMP SUPPORT MAY 311056 Contact Us For Availability
39
MAY 312243L MAY 312243L Contact Us For Availability
40
LAMP SUPPORT FOR 3-2815 MAY 312479 Contact Us For Availability
40
BAFFLE GROUND WIRE MAY 303042 Contact Us For Availability
40
MAY 312243M MAY 312243M Contact Us For Availability
41
BAFFLE LEAD WIRE MAY 303043 Contact Us For Availability
41
MAY 312243N MAY 312243N Contact Us For Availability
42
MAY 312255 MAY 312255 Contact Us For Availability
43
DRUM W/FELT - PORCELAIN MAY 302954 Contact Us For Availability
43
MAY 311324 MAY 311324 Contact Us For Availability
43
MAY 303049 MAY 303049 Contact Us For Availability
43
BACK FOR CABINET MAY 312294 Contact Us For Availability
44
MAY 311534 MAY 311534 Contact Us For Availability
44
MAY 303054 MAY 303054 Contact Us For Availability
44
MAY Y312484 MAY Y312484 Contact Us For Availability
45
MAY Y303045 MAY Y303045 Contact Us For Availability
45
MAY Y303250 MAY Y303250 Contact Us For Availability
45
MAY Y312641 MAY Y312641 Contact Us For Availability
46
MAY Y303771 MAY Y303771 Contact Us For Availability
46
MAY 303942 MAY 303942 Contact Us For Availability
46
MAY 312676 MAY 312676 Contact Us For Availability
47
CAPACITOR MAY 305181 Contact Us For Availability
47
MAY Y304298 MAY Y304298 Contact Us For Availability
47
MAY 313122 MAY 313122 Contact Us For Availability
48
MAY 400008 MAY 400008 Contact Us For Availability
48
MAY Y310376 MAY Y310376 Contact Us For Availability
48
MAY 304299 MAY 304299 Contact Us For Availability
49
MAY 310207 MAY 310207 Contact Us For Availability
50
MAY 251117 MAY 251117 Contact Us For Availability
50
MAY 310217 MAY 310217 Contact Us For Availability
51
MAY 310578 MAY 310578 Contact Us For Availability
52
MAY Y311538 MAY Y311538 Contact Us For Availability
52
SCREW, No.10-24 X 11/16 INCH MAY 310579 Contact Us For Availability
53
MAY Y310759 MAY Y310759 Contact Us For Availability
53
MAY Y303877 MAY Y303877 Contact Us For Availability
53
MAY Y311539 MAY Y311539 Contact Us For Availability
54
MAY 310768 MAY 310768 Contact Us For Availability
54
MAY Y303879 MAY Y303879 Contact Us For Availability
54
COVER FOR CARBON BRUSH MAY 311540 Contact Us For Availability
55
MAY 306208 MAY 306208 Contact Us For Availability
55
MAY Y311542 MAY Y311542 Contact Us For Availability
55
SHIELD FOR SPIDER MAY Y312060 Contact Us For Availability
56
MAY 311546 MAY 311546 Contact Us For Availability
57
MAY 311548 MAY 311548 Contact Us For Availability
58
MAY Y311550 MAY Y311550 Contact Us For Availability
59
COVER FOR CIRCUIT BOARD MAY 311612 Contact Us For Availability
60
MAY Y311660 MAY Y311660 Contact Us For Availability
61
LINK - SOLENOID TO SWITCH MAY 311662 Contact Us For Availability
62
MAY 311924 MAY 311924 Contact Us For Availability
62
MAY 312238 MAY 312238 Contact Us For Availability
63
CLAMP FOR CAPACITOR MAY 311925 Contact Us For Availability
63
MAY 312239 MAY 312239 Contact Us For Availability
64
MAY 312074 MAY 312074 Contact Us For Availability
64
MAY 312239F MAY 312239F Contact Us For Availability
65
MAY Y312140 MAY Y312140 Contact Us For Availability
65
MAY 312239J MAY 312239J Contact Us For Availability
66
MAY 810148 MAY 810148 Contact Us For Availability
66
MAY 312242 MAY 312242 Contact Us For Availability
66
MAY 312249 MAY 312249 Contact Us For Availability
67
MAY Y312247 MAY Y312247 Contact Us For Availability
67
MAY 312295 MAY 312295 Contact Us For Availability
68
GLASS FOR CONTROL PANEL MAY 312265 Contact Us For Availability
68
BUSHING FOR ACCESS STUD MAY 312301 Contact Us For Availability
69
MAY 312693 MAY 312693 Contact Us For Availability
69
MAY 312312 MAY 312312 Contact Us For Availability
70
MAY 400015 MAY 400015 Contact Us For Availability
70
MAY 312369 MAY 312369 Contact Us For Availability
71
MAY 410351 MAY 410351 Contact Us For Availability
72
MAY 312477 MAY 312477 Contact Us For Availability
73
MAY 312622 MAY 312622 Contact Us For Availability
74
MAY Y312744 MAY Y312744 Contact Us For Availability
75
MAY 312744E MAY 312744E Contact Us For Availability
76
MAY 312744F MAY 312744F Contact Us For Availability
77
MAY 312744G MAY 312744G Contact Us For Availability
78
MAY 312744J MAY 312744J Contact Us For Availability
79
MAY 312744M MAY 312744M Contact Us For Availability
80
MAY 312744N MAY 312744N Contact Us For Availability
81
SLEEVE FOR DOOR WIRES MAY 313581 Contact Us For Availability
83
MAY 301464 MAY 301464 Contact Us For Availability
× ![]()
