Model Whirlpool DE7400 ELECTRIC DRYER – Common Parts &amp; Diagrams

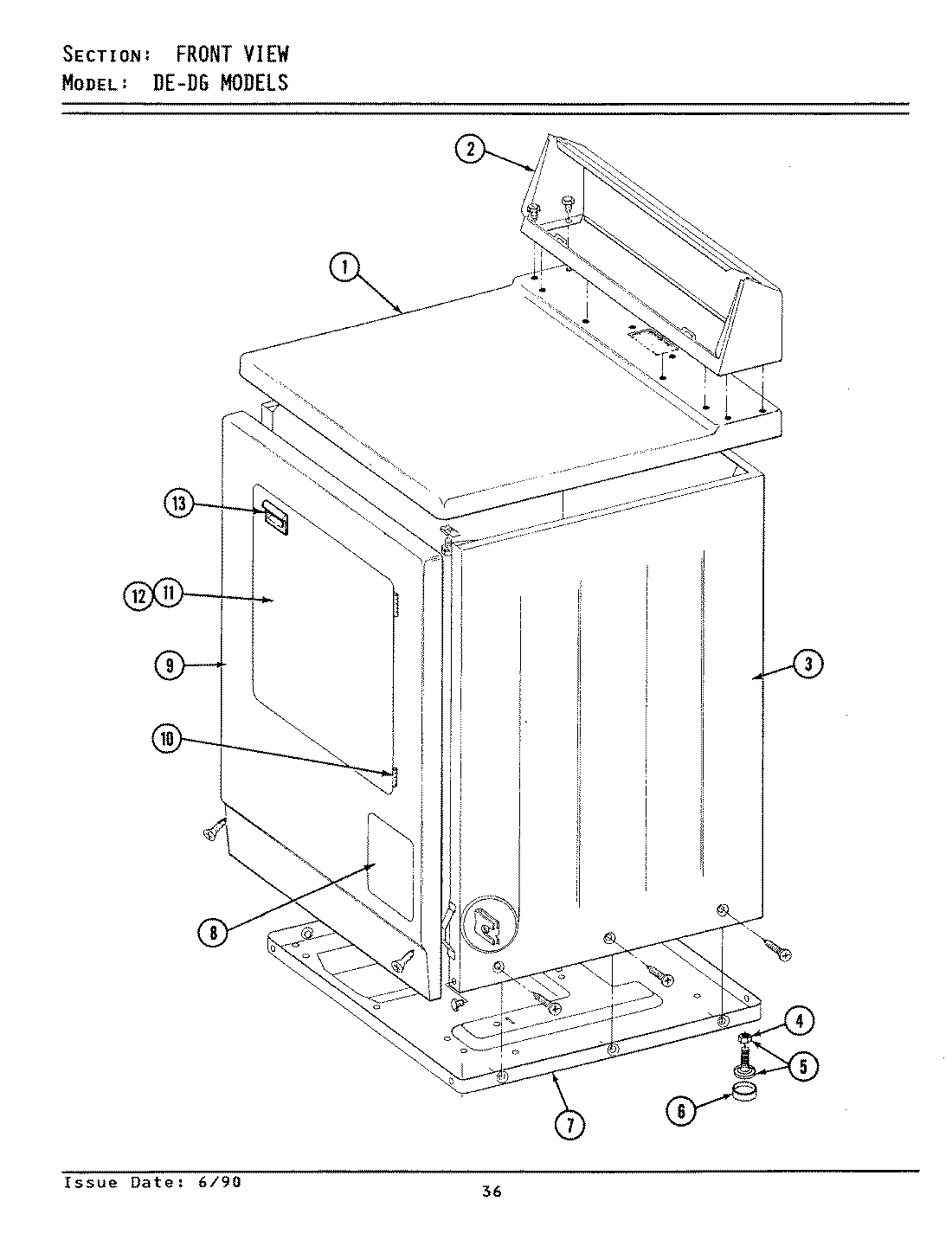

1

SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability

1

INSTRUCTION LABEL WPL 314942 Contact Us For Availability

1

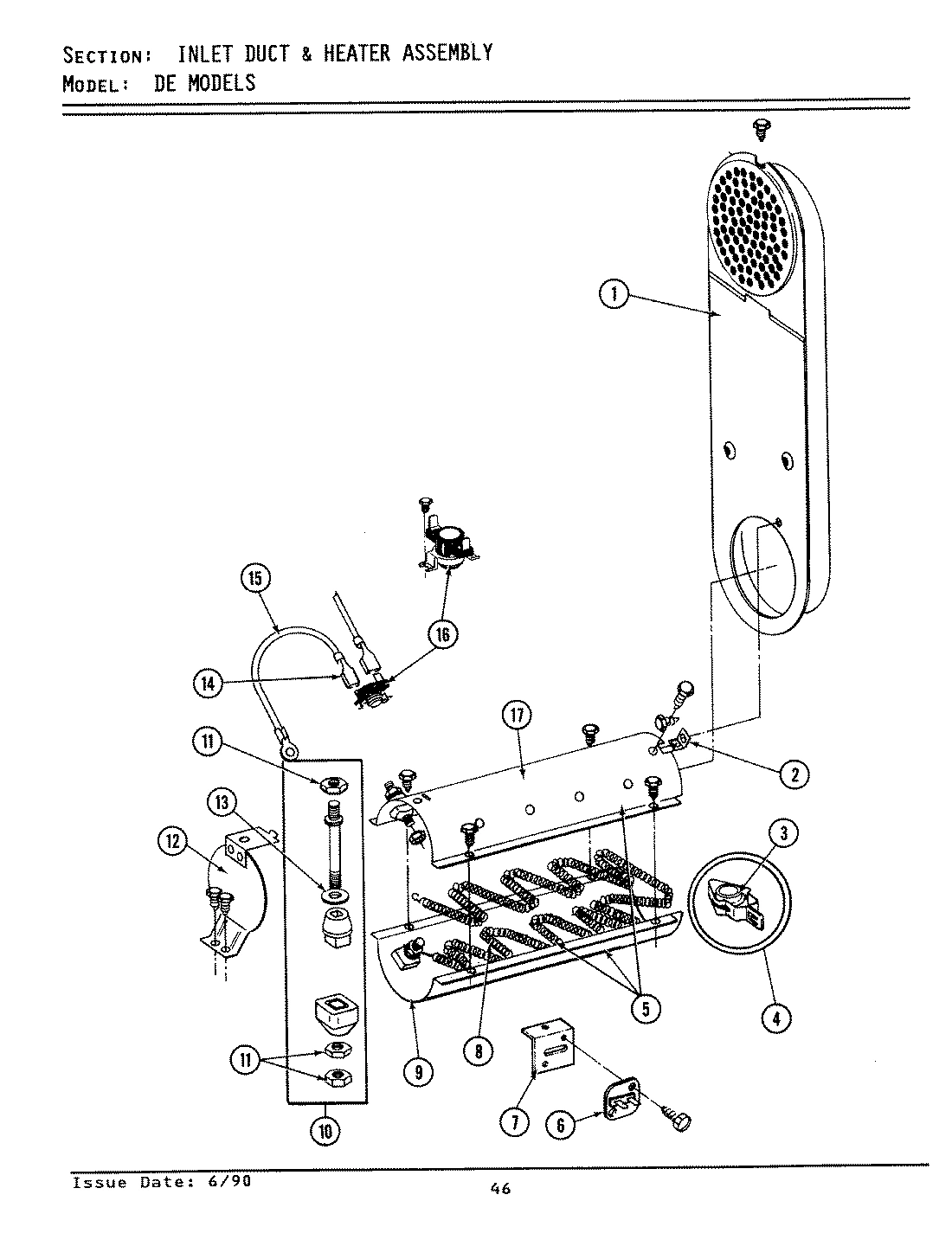

INLET DUCT ASSY. WPL 307120 Contact Us For Availability

1

DUCT, OUTLET ASSY. WPL Y307112 Contact Us For Availability

1

COVER, TERMINAL WPL Y312905 Contact Us For Availability

1

BLADE, SAW WPL 038179 Contact Us For Availability

2

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.60

2

WP306604 Whirlpool Cut-off In Stock WPL WP306604 $15.11

2

WP312967 Whirlpool Clamp In Stock WPL WP312967 $4.96

2

LABEL, INSTRUCTION WPL 314941 Contact Us For Availability

2

RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability

2

SHIELD, RADIANT WPL 314999 Contact Us For Availability

2

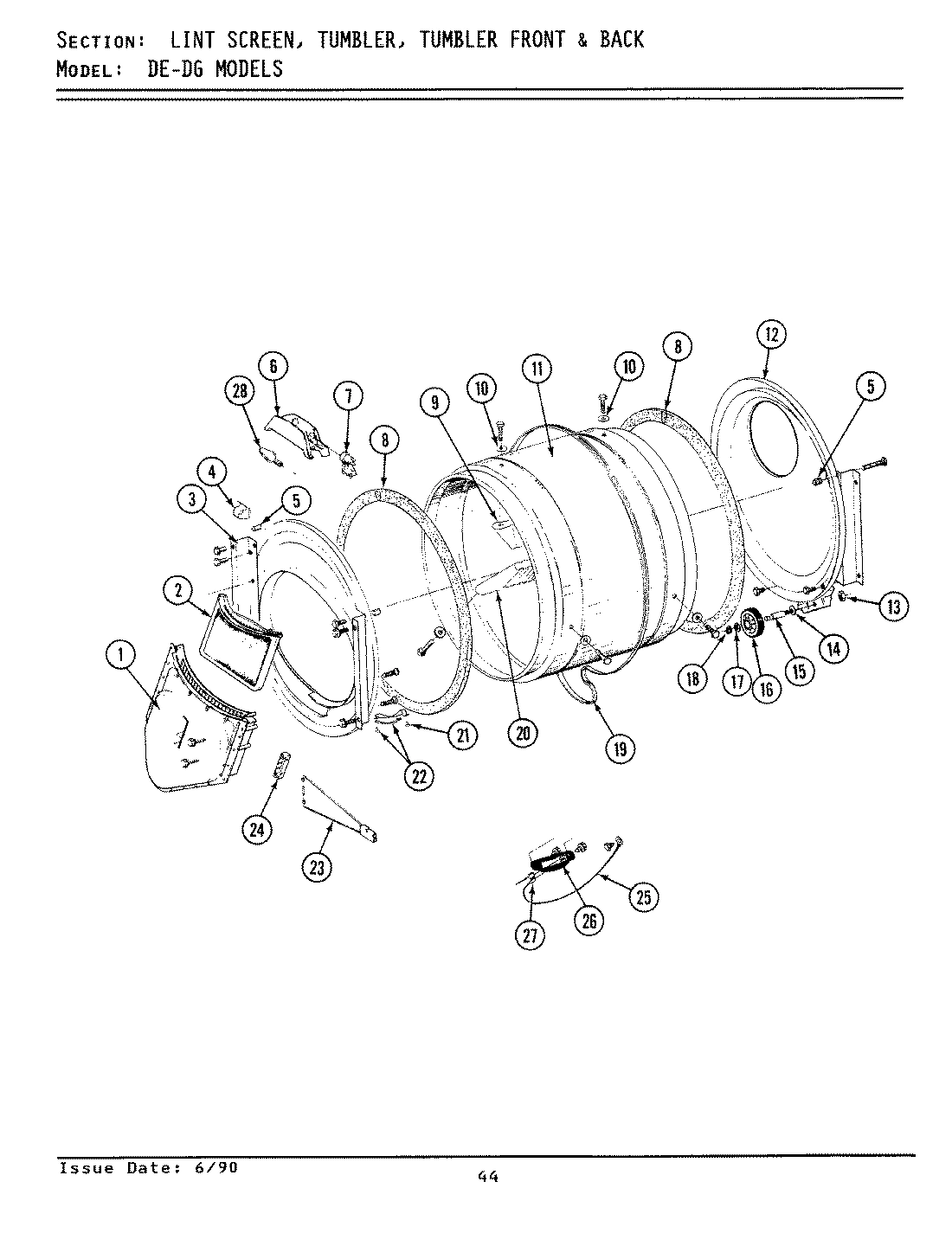

LINT FILTER WPL Y307107 Contact Us For Availability

2

REPLACEMENT DRILL WPL 038180 Contact Us For Availability

3

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.75

3

WPY308612 Whirlpool Heating Element In Stock WPL WPY308612 $139.94

3

Y303836 Whirlpool Dryer Blower Wheel In Stock WPL Y303836 $10.11

3

HINGE WPL 307099 Contact Us For Availability

3

SCREW WPL Y314062 Contact Us For Availability

3

INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability

3

FRONT, TUMBLER (W/SEAL) WPL 307109 Contact Us For Availability

3

SCREW WPL 313764 Contact Us For Availability

3

STRAP, GROUND WPL Y312184 Contact Us For Availability

3

HOLE SAW W/DRILL BIT WPL 038766 Contact Us For Availability

4

W11164114 Whirlpool Screw Backorder WPL W11164114 $3.02

4

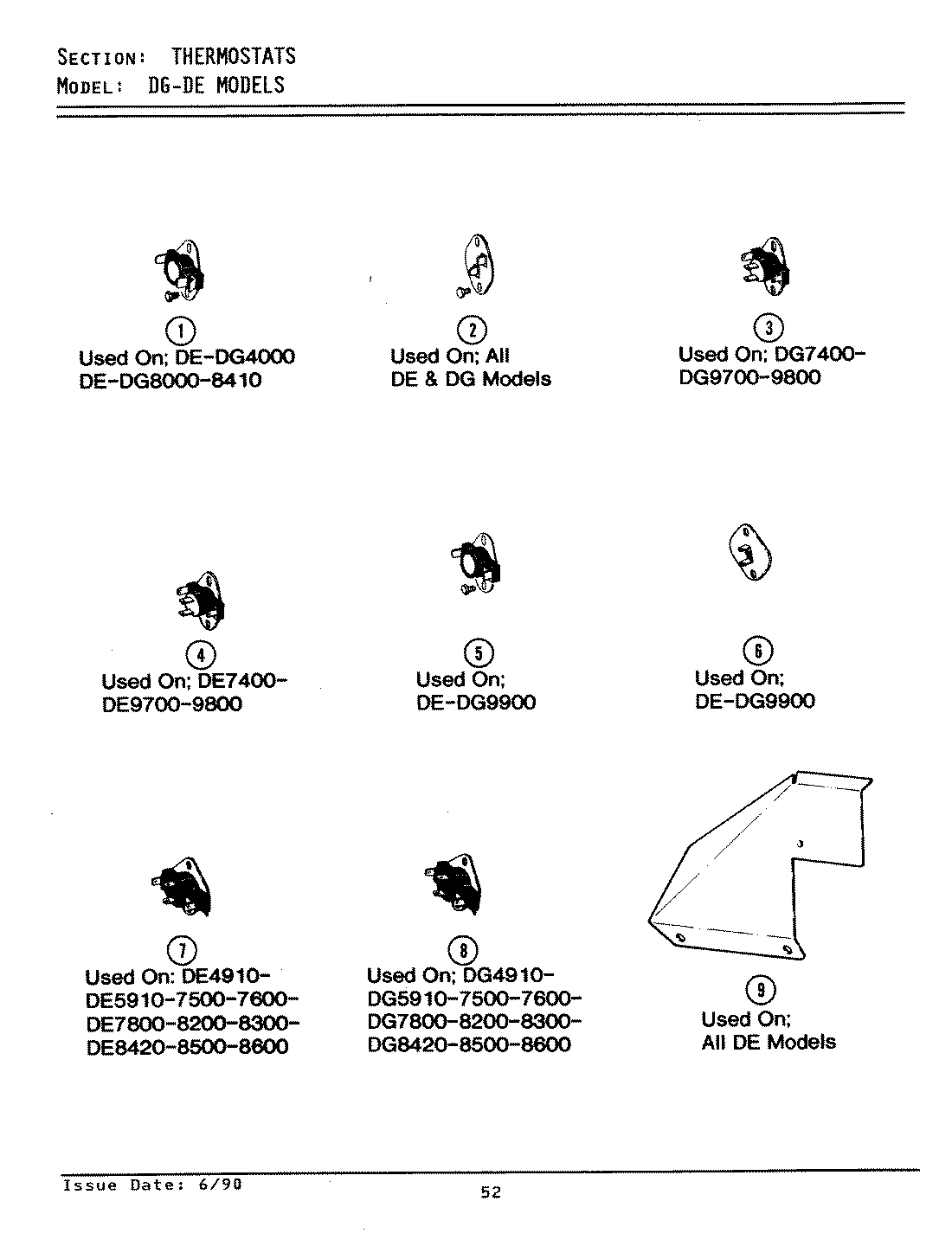

WP3387137 Whirlpool Thermostat In Stock WPL WP3387137 $49.97

4

WPY303881 Whirlpool Clip and Insulator Backorder WPL WPY303881 $9.50

4

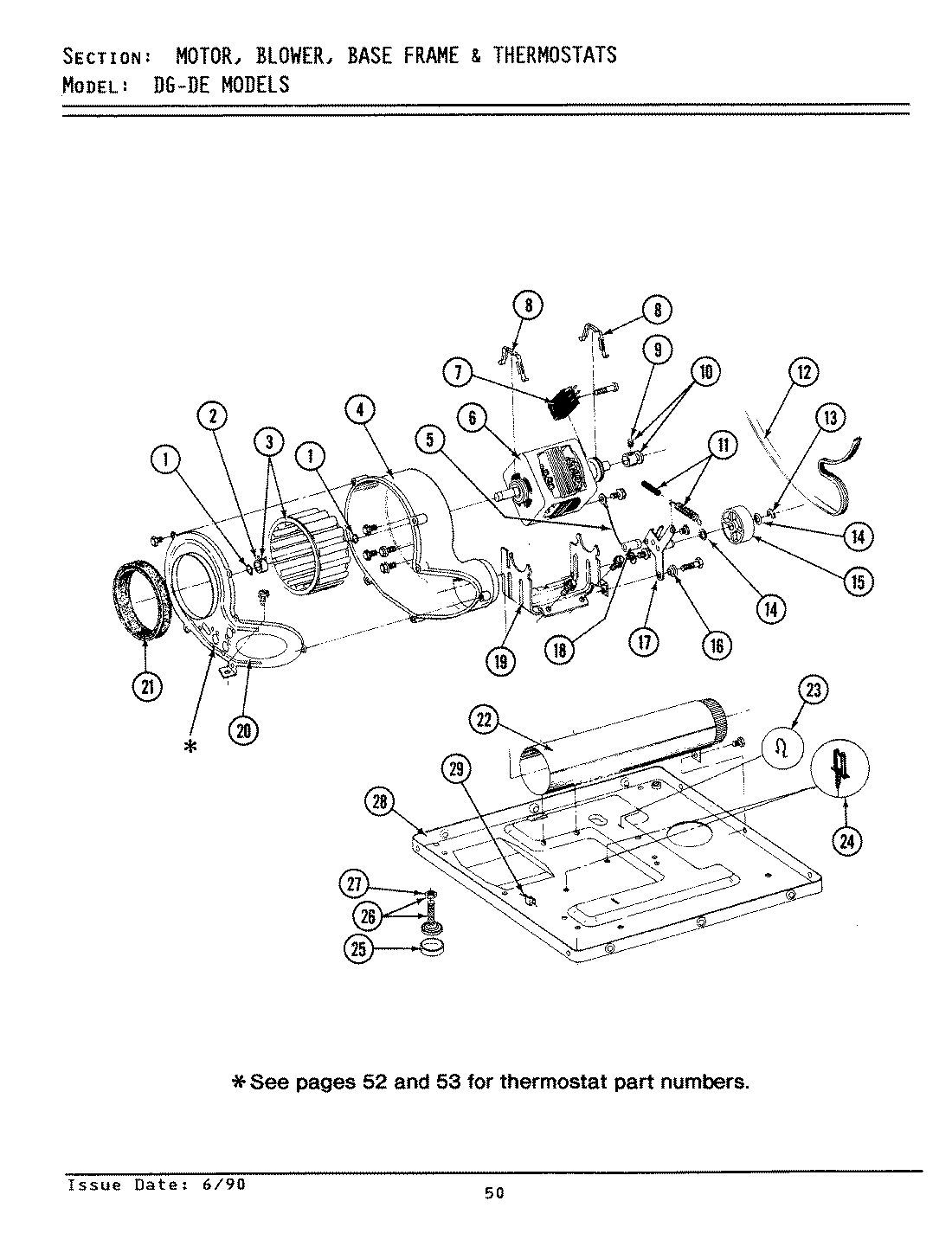

HOUSING, BLOWER WPL Y312893 Contact Us For Availability

4

HANDLE WHITE WPL 314946 Contact Us For Availability

4

CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability

4

INSULATOR, TERMINAL WPL 314998 Contact Us For Availability

4

BLOCK, TERMINAL WPL 400008 Contact Us For Availability

4

EXTENSION CHUCK, DRILL WPL 038767 Contact Us For Availability

5

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

5

DOOR ASSY. COMPLETE (WHT) WPL Y307111 Contact Us For Availability

5

HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability

5

WIRE, GROUND WPL 901220 Contact Us For Availability

5

BRACKET, THERMAL FUSE WPL 315346 Contact Us For Availability

5

COVER, THREAD WPL 313915 Contact Us For Availability

5

BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability

5

ELBOW, VENTING (4``) WPL Y059131 Contact Us For Availability

6

W10410999 Whirlpool Dryer Drive Motor In Stock WPL W10410999 $79.39

6

WP307473 Whirlpool Thermal Fuse In Stock WPL WP307473 $35.00

6

GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability

6

PANEL, OUTER (WHT) WPL 314966 Contact Us For Availability

6

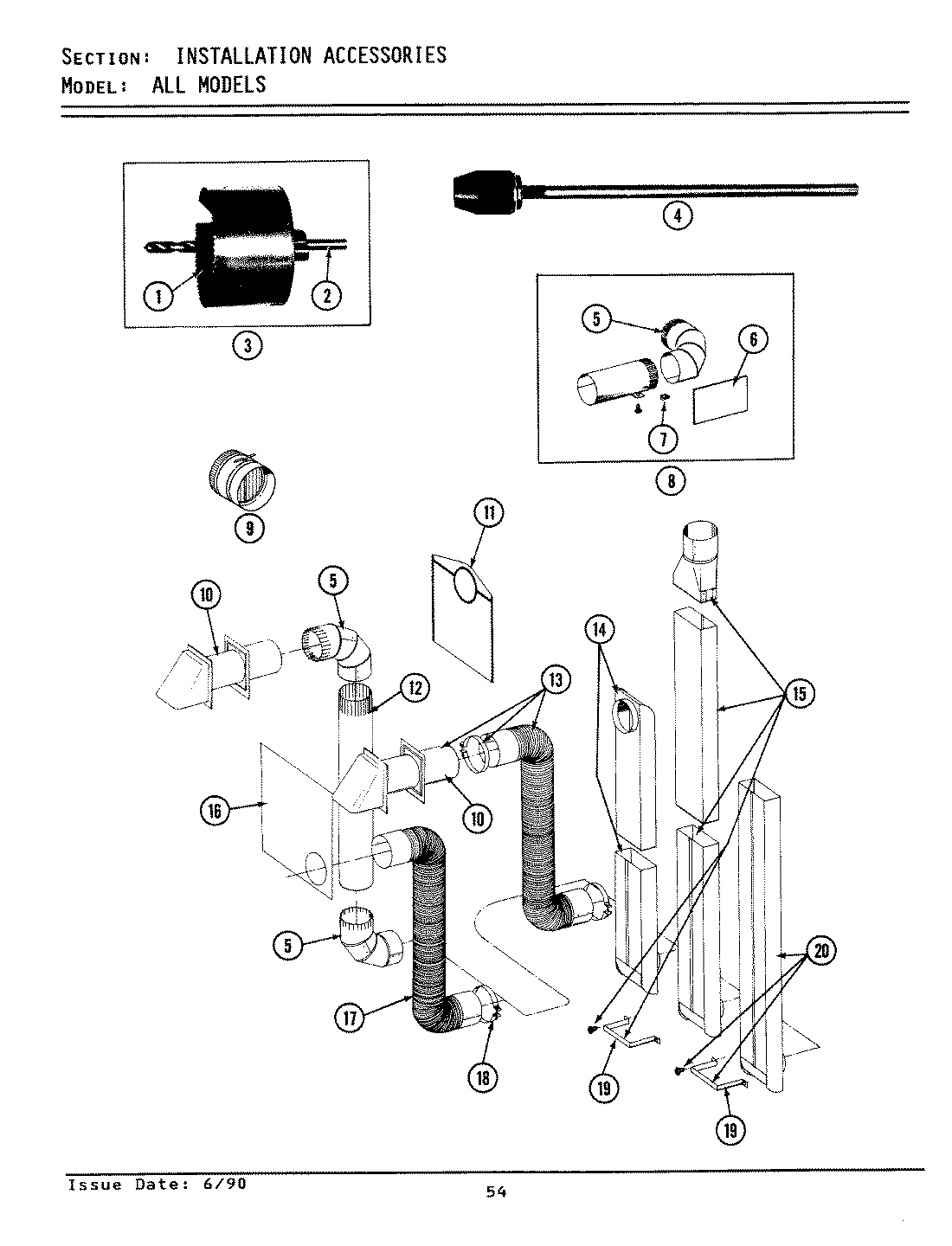

INSULATION, EXHAUST DUCT KIT WPL 312302 Contact Us For Availability

7

306436 Whirlpool Washer Dryer Door Catch and In Stock WPL 306436 $3.10

7

TIMER WPL 305447 Contact Us For Availability

7

CONSOLE (WHT) WPL Y305193 Contact Us For Availability

7

MOUNTING BRACKET WPL 315046 Contact Us For Availability

7

SWITCH, MOTOR START-PROD. WPL 306207 Contact Us For Availability

7

SWITCH, MOTOR WPL Y303877 Contact Us For Availability

7

SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability

7

FASTENER, EXHAUST DUCT KIT WPL 213323 Contact Us For Availability

8

WP22001650 Whirlpool Spring Clip In Stock WPL WP22001650 $4.03

8

WP314820 Whirlpool Felt Seal In Stock WPL WP314820 $15.87

8

WPY015825 Whirlpool Motor Clip Backorder WPL WPY015825 $9.56

8

WPY313538 Whirlpool Heater Element In Stock WPL WPY313538 $26.96

8

PAD, CONTROL PANEL WPL 214897 Contact Us For Availability

8

HEATER ENCLOSURE WPL 314995 Contact Us For Availability

8

FASTENER,CNTRL PNL TO CONSOLE WPL 215075 Contact Us For Availability

8

EXHAUST DUCT KIT WPL Y304652 Contact Us For Availability

9

END CAP RH WPL 207216 Contact Us For Availability

9

HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability

9

SET SCREW, PULLEY WPL Y053241 Contact Us For Availability

9

SCREW----NA WPL Y313561 Contact Us For Availability

9

SCREW WPL 314554 Contact Us For Availability

9

BAFFLE (SHORT) WPL 314803 Contact Us For Availability

9

COVER, THERMOSTAT WPL 315122 Contact Us For Availability

9

DAMPER, BACK DRAFT WPL 059146 Contact Us For Availability

4396007RW Whirlpool Dryer Vent Hood In Stock WPL 4396007RW $12.35

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $11.51

WP307178 Whirlpool Element In Stock WPL WP307178 $154.56

Y304596 Whirlpool Terminal Insulator Assembly Backorder WPL Y304596 $12.31

FASTENER, END CAP WPL 214894 Contact Us For Availability

PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability

WASHER WPL 314158 Contact Us For Availability

CAP, KNOB WPL 215821 Contact Us For Availability

SEAL, FRONT PANEL WPL 314937 Contact Us For Availability

IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability

TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability

TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability

CORD, POWER (CANADA) WPL 305168 Contact Us For Availability

BAG, LINT (DACRON) WPL 311353 Contact Us For Availability

W10155650 Whirlpool Nut Backorder WPL W10155650 $9.96

TWIN FASTENER WPL Y313907 Contact Us For Availability

HEATER SHIELD WPL 304124 Contact Us For Availability

BACK, TUMBLER (W/SEAL) WPL Y307114 Contact Us For Availability

PIPE, VENTING WPL Y059130 Contact Us For Availability

WP311093 Whirlpool Washer 7 Backorder WPL WP311093 $2.60

WP33001443 Whirlpool Hex Nut Backorder WPL WP33001443 $2.60

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.13

KNOB, TIMER WPL 315041 Contact Us For Availability

TOP COVER ASSY WPL 307104 Contact Us For Availability

FLEXIBLE VENT KIT WPL Y059143 Contact Us For Availability

WPY312527 Whirlpool Dryer Idler Shaft Washer In Stock WPL WPY312527 $4.04

DIAL SKIRT WPL 315042 Contact Us For Availability

PANEL, FRONT (WHT) WPL 308000 Contact Us For Availability

WIRE TERMINAL WPL 210745 Contact Us For Availability

VENT DUCT ASSY. WPL Y059135 Contact Us For Availability

6-3129480CM Choice Shaft-Tumblr In Stock CMP 6-3129480CM $3.31

WP6-3037050 Whirlpool Idler Pulley In Stock WPL WP6-3037050 $6.95

WPY304693 Whirlpool Wire Jumper In Stock WPL WPY304693 $3.84

SCREW, No.8 X 9/16 CTSK WPL 210932 Contact Us For Availability

CONTROL PANEL WPL 307316 Contact Us For Availability

CABINET (WHT) WPL 307124 Contact Us For Availability

SCREW WPL Y310632 Contact Us For Availability

RECTANGULAR VENT KIT WPL 059144 Contact Us For Availability

12001541 Whirlpool Dryer Drum Roller Kit In Stock WPL 12001541 $8.00

WP303396 Whirlpool Thermostat In Stock WPL WP303396 $15.79

WP303896 Whirlpool High Limit Thermostat Backorder WPL WP303896 $50.79

WP315772 Whirlpool Sleeve In Stock WPL WP315772 $4.96

WIRE HARNESS WPL 307255 Contact Us For Availability

WIRE HARNESS WPL 307262 Contact Us For Availability

BASE ASSY. WPL Y303361 Contact Us For Availability

PLATE, ALUM. WINDOW (15``X20``) WPL Y059134 Contact Us For Availability

4396010RP Whirlpool Dryer 6 Ft. Secure Connec In Stock WPL 4396010RP $15.96

WP312535 Whirlpool Washer Backorder WPL WP312535 $5.13

WP33001305 Whirlpool Door Strike Assembly Backorder WPL WP33001305 $1.88

WP6-3033630 Whirlpool Dryer Idler Arm Assembl In Stock WPL WP6-3033630 $48.49

WP62739 Whirlpool Nut Backorder WPL WP62739 $2.60

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.60

END CAP LH WPL 207215 Contact Us For Availability

HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability

WP9703438 Whirlpool Snap Retaining Ring In Stock WPL WP9703438 $2.13

WPW10116756 Whirlpool Spacer Backorder WPL WPW10116756 $30.29

DOOR SEAL WPL 314935 Contact Us For Availability

CLAMP, FLEXIBLE DUCT WPL Y304630 Contact Us For Availability

ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

WPY312959 Whirlpool Dryer Drum Belt In Stock WPL WPY312959 $12.31

DOOR, INNER (W/SEAL) WPL 307098 Contact Us For Availability

SUPPORT, MOTOR WPL 312897 Contact Us For Availability

BRACKET, EXHAUST DEFLECTOR WPL 313272 Contact Us For Availability

33001004 Whirlpool Baffle In Stock WPL 33001004 $61.83

WPW10116751 Whirlpool Screw Backorder WPL WPW10116751 $2.60

SCREW WPL Y310759 Contact Us For Availability

CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability

COVER, BLOWER HOUSING WPL 314846 Contact Us For Availability

COVER, ACCESS WPL Y312951 Contact Us For Availability

EXHAUST DEFLECTOR KIT WPL 303736 Contact Us For Availability

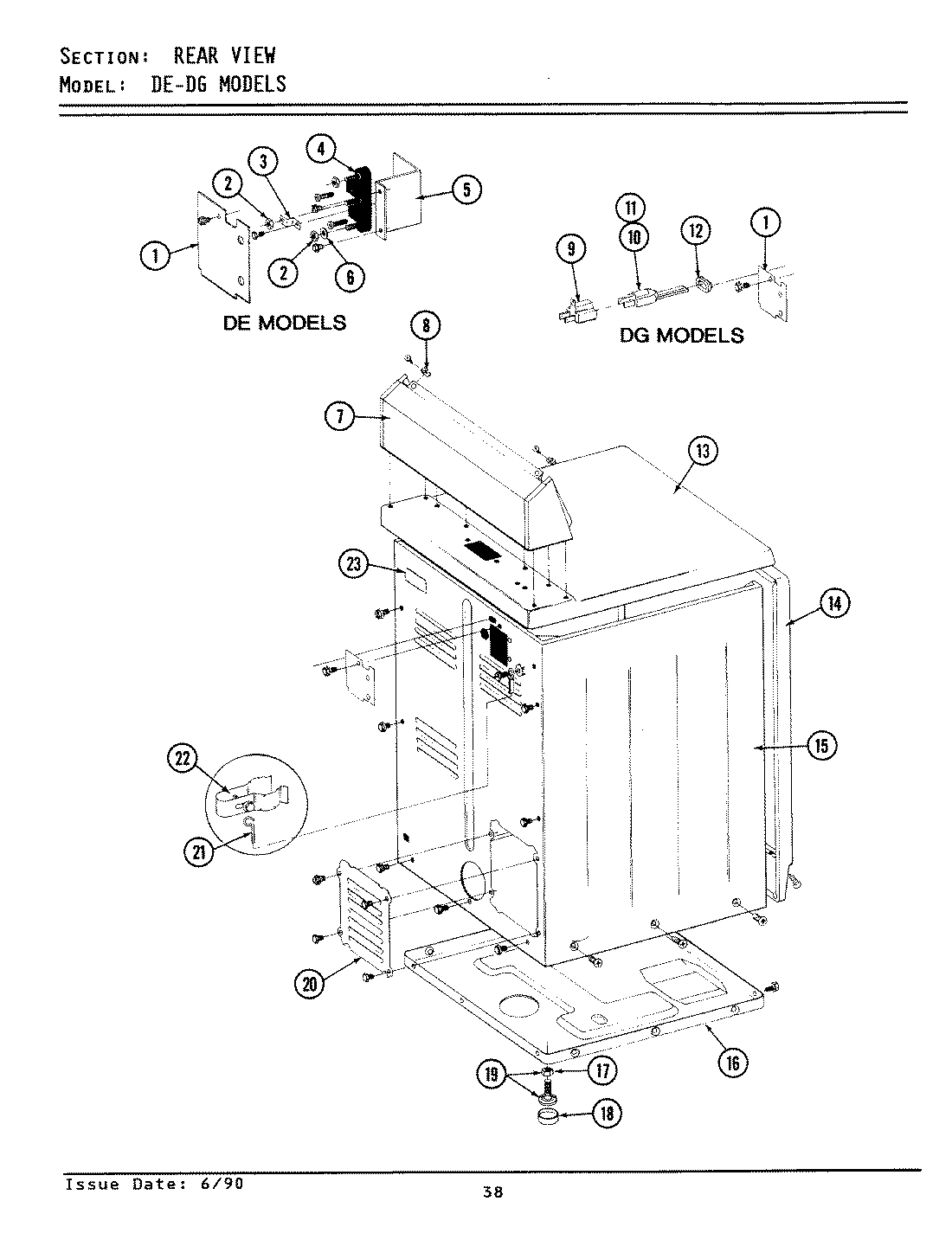

21

WP210720 Whirlpool Rivet Backorder WPL WP210720 $9.96

21

WPY312901 Whirlpool Blow Seal In Stock WPL WPY312901 $32.49

22

306508 Whirlpool Dryer Front Glide Kit In Stock WPL 306508 $5.49

22

EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability

23

SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability

24

RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
