Model Electrolux DE27S6WPMC DRYER – Common Parts & Diagrams

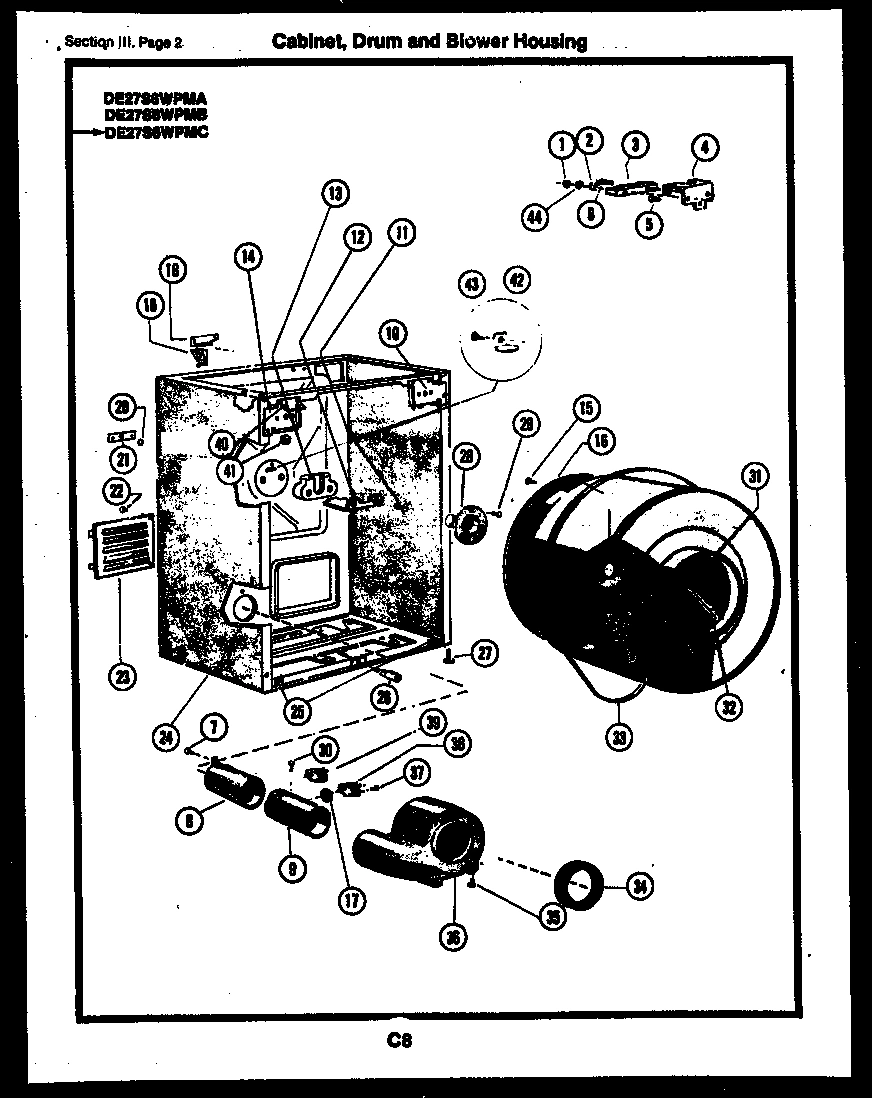

01 - CABINET, DRUM AND BLOWER HOUSING

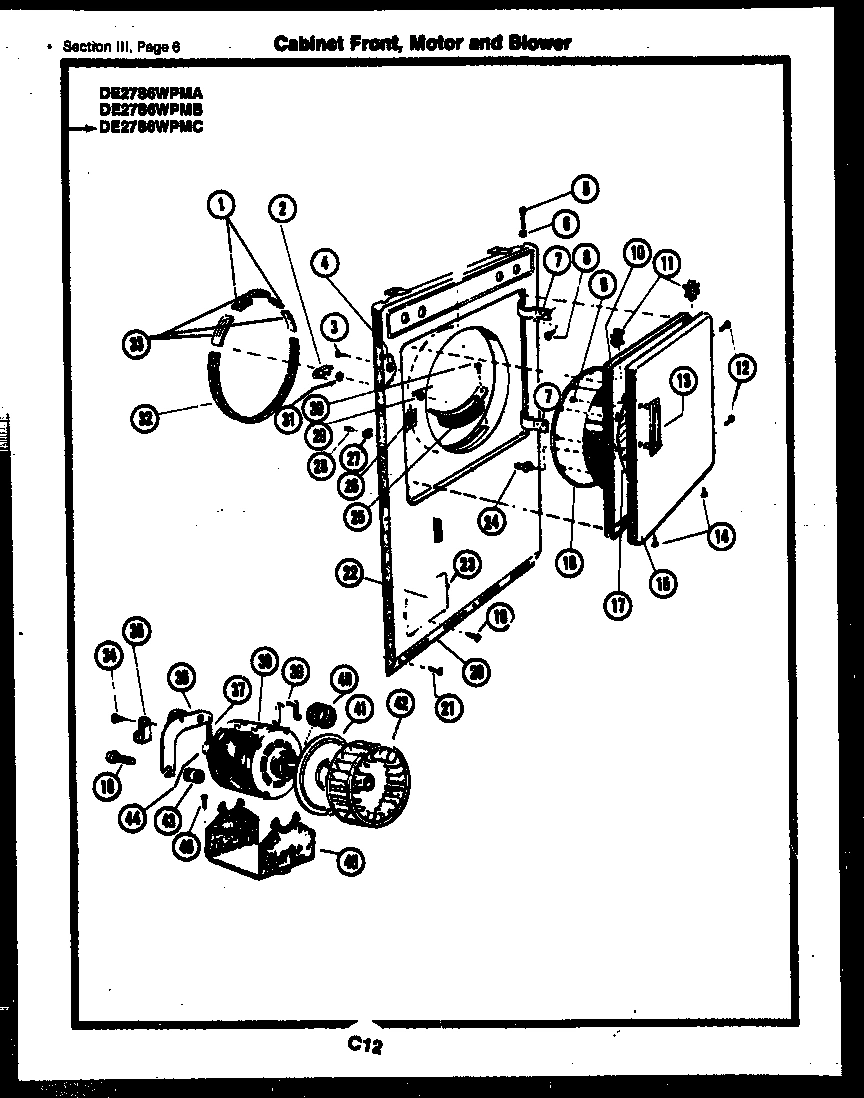

03 - CABINET FRONT, MOTOR AND BLOWER
04 - TOP, CONTROLS AND MISCELLANEOUS PAR
05 - HEATER AND HOUSING
Common parts from model Electrolux DE27S6WPMC DRYER
*72697
WCI 8GD1004B WCI 8GD1004B Contact Us For Availability
*73149
LUBRICANT - USE WITH WQ15224 GLIDES WCI WQ15141 Contact Us For Availability
*73316
RESISTOR TIMER MOTOR WCI WQ14905 Contact Us For Availability
*73337
STACKING PARTS BOLT (2) WCI WQ428901 Contact Us For Availability
*73347
STACKING PARTS HOLDDOWN BRACKET (2) WCI WQ606741 Contact Us For Availability
1
HEX NUT - STEEL (2) WCI WQ401002 Contact Us For Availability
1
SCREW WCI WQ505553 Contact Us For Availability
1
WCI WQ616043 WCI WQ616043 Contact Us For Availability
1
PANEL - TOP WCI WQ126585 Contact Us For Availability
2
WCI WQ405401 WCI WQ405401 Contact Us For Availability
2
SWITCH - DOOR (NON-ILLUSTRATED) WCI WQ622422 Contact Us For Availability
2
WCI WQ415403 WCI WQ415403 Contact Us For Availability
2
THERMOSTAT - HI LIMIT (NON-ILLUSTRATED) WCI WQ602994 Contact Us For Availability
3
WCI WQ81666 WCI WQ81666 Contact Us For Availability
4
WCI WQ133288 WCI WQ133288 Contact Us For Availability
4
WCI WQ69551 WCI WQ69551 Contact Us For Availability
5
WCI WQ409702 WCI WQ409702 Contact Us For Availability
5
SCREW (4) WCI WQ505564 Contact Us For Availability
5
WCI WQ55021 WCI WQ55021 Contact Us For Availability
5
WCI WQ69552 WCI WQ69552 Contact Us For Availability
6
WCI WQ435152 WCI WQ435152 Contact Us For Availability
6
WCI WQ500155 WCI WQ500155 Contact Us For Availability
6
WCI WQ503041 WCI WQ503041 Contact Us For Availability
7
WCI WQ94651 WCI WQ94651 Contact Us For Availability
7
SWITCH - START (NON-ILLUSTRATED) WCI WQ184711 Contact Us For Availability
7
TERMINAL BLOCK WCI WQ622211 Contact Us For Availability
8
DUCT - EXHAUST WCI WQ182901 Contact Us For Availability
8
SCREW (6) WCI WQ403102 Contact Us For Availability
8
WCI W1468242 WCI W1468242 Contact Us For Availability
8
WCI WQ435010 WCI WQ435010 Contact Us For Availability
9
WCI WQ603012 WCI WQ603012 Contact Us For Availability
9
SCREW (2) WCI WQ503952 Contact Us For Availability
10
WCI WQ630223 WCI WQ630223 Contact Us For Availability
10
WCI WQ125730 WCI WQ125730 Contact Us For Availability
10
WCI WQ165146 WCI WQ165146 Contact Us For Availability
11
WCI WQ631591 WCI WQ631591 Contact Us For Availability
11
WCI WQ618876 WCI WQ618876 Contact Us For Availability
12
WCI WQ66793 WCI WQ66793 Contact Us For Availability
13
WCI WQ151326 WCI WQ151326 Contact Us For Availability
13
WCI W1467854 WCI W1467854 Contact Us For Availability
14
WCI WQ630225 WCI WQ630225 Contact Us For Availability
14
WCI WQ411004 WCI WQ411004 Contact Us For Availability
14
WCI WQ630291 WCI WQ630291 Contact Us For Availability
15
SCREW - BAFFLE (3) WCI WQ435174 Contact Us For Availability
15
WCI WQ125670 WCI WQ125670 Contact Us For Availability
16
WCI WQ433401 WCI WQ433401 Contact Us For Availability
17
WCI WQ606131 WCI WQ606131 Contact Us For Availability
17
WCI WQ115045 WCI WQ115045 Contact Us For Availability
17
WCI WQ617652 WCI WQ617652 Contact Us For Availability
18
WCI WQ133281 WCI WQ133281 Contact Us For Availability
18
WCI WQ167701 WCI WQ167701 Contact Us For Availability
18
WCI WQ617641 WCI WQ617641 Contact Us For Availability
19
BRACKET - KO WCI WQ133283 Contact Us For Availability
19
WCI WQ502207 WCI WQ502207 Contact Us For Availability
20
WCI WQ621530 WCI WQ621530 Contact Us For Availability
20
WCI WQ409004 WCI WQ409004 Contact Us For Availability
21
SCREW WCI WQ435098 Contact Us For Availability
21
WCI WQ500717 WCI WQ500717 Contact Us For Availability
22
DOOR ACCESS WCI WQ182708 Contact Us For Availability
22
WCI WQ632043 WCI WQ632043 Contact Us For Availability
23
WCI WQ94811 WCI WQ94811 Contact Us For Availability
23
SCREW (2) WCI W1825642 Contact Us For Availability
24
WCI WQ604189 WCI WQ604189 Contact Us For Availability
24
WCI WQ504552 WCI WQ504552 Contact Us For Availability
25
WCI WQ502956 WCI WQ502956 Contact Us For Availability
25
WCI WQ168541 WCI WQ168541 Contact Us For Availability
25
WCI WQ500411 WCI WQ500411 Contact Us For Availability
26
WCI WQ504281 WCI WQ504281 Contact Us For Availability
26
WCI WQ630117 WCI WQ630117 Contact Us For Availability
27
WCI WQ198170 WCI WQ198170 Contact Us For Availability
27
WCI W1466314 WCI W1466314 Contact Us For Availability
27
WCI WQ62196 WCI WQ62196 Contact Us For Availability
28
WCI WQ502482 WCI WQ502482 Contact Us For Availability
28
WCI WQ165150 WCI WQ165150 Contact Us For Availability
29
WCI WQ503210 WCI WQ503210 Contact Us For Availability
29
WCI WQ181406 WCI WQ181406 Contact Us For Availability
30
LOCK NUT WCI WQ501450 Contact Us For Availability
30A
WCI WQ500255 WCI WQ500255 Contact Us For Availability
31
BASKET - SPINNER WCI WQ616552 Contact Us For Availability
31
WCI WQ440068 WCI WQ440068 Contact Us For Availability
32
WCI WQ615894 WCI WQ615894 Contact Us For Availability
32
FELT SEAL - LOWER WCI WQ616042 Contact Us For Availability
32A
WCI WQ615893 WCI WQ615893 Contact Us For Availability
32B
WCI WQ501592 WCI WQ501592 Contact Us For Availability
33
WCI WQ15224 WCI WQ15224 Contact Us For Availability
34
WCI WQ414002 WCI WQ414002 Contact Us For Availability
35
WCI WQ416306 WCI WQ416306 Contact Us For Availability
35
CLAMP - MOTOR WIRES WCI WQ502107 Contact Us For Availability
36
FAN HOUSING WCI WQ171281 Contact Us For Availability
36
IDLER PULLEY AND BRACKET WCI WQ128472 Contact Us For Availability
37
WCI WQ405901 WCI WQ405901 Contact Us For Availability
38
WCI WQ602978 WCI WQ602978 Contact Us For Availability
38
WCI WQ616403 WCI WQ616403 Contact Us For Availability
38A
WCI WQ198138 WCI WQ198138 Contact Us For Availability
39
WCI WQ602973 WCI WQ602973 Contact Us For Availability
39
CLAMP (2) WCI WQ62206 Contact Us For Availability
40
WCI WQ19341 WCI WQ19341 Contact Us For Availability
40
WCI WQ94712 WCI WQ94712 Contact Us For Availability
41
WCI WQ504094 WCI WQ504094 Contact Us For Availability
41
WCI WQ94948 WCI WQ94948 Contact Us For Availability
42
WCI WQ94710 WCI WQ94710 Contact Us For Availability
42
BLOWER FAN (NON-ILLUSTRATED) WCI WQ615901 Contact Us For Availability
43
WCI WQ600179 WCI WQ600179 Contact Us For Availability
44
WCI WQ621502 WCI WQ621502 Contact Us For Availability
44A
WCI WQ404502 WCI WQ404502 Contact Us For Availability
46
WCI WQ500732 WCI WQ500732 Contact Us For Availability
× ![]()
