Model Whirlpool DE24CA ELECTRIC DRYER – Common Parts & Diagrams

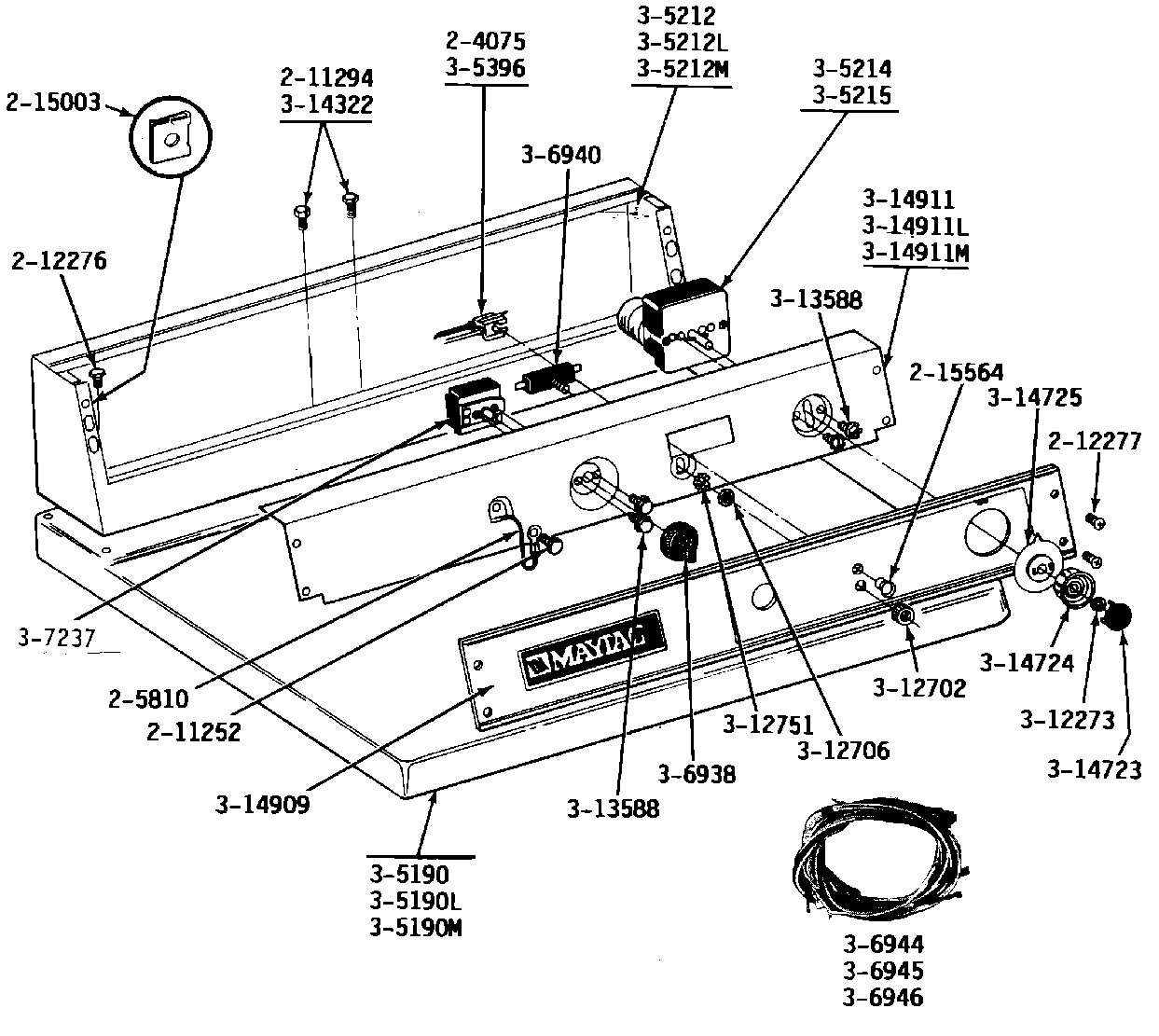

02 - CA CONTROL PANEL
08 - 50HZ CONVERSION LIST

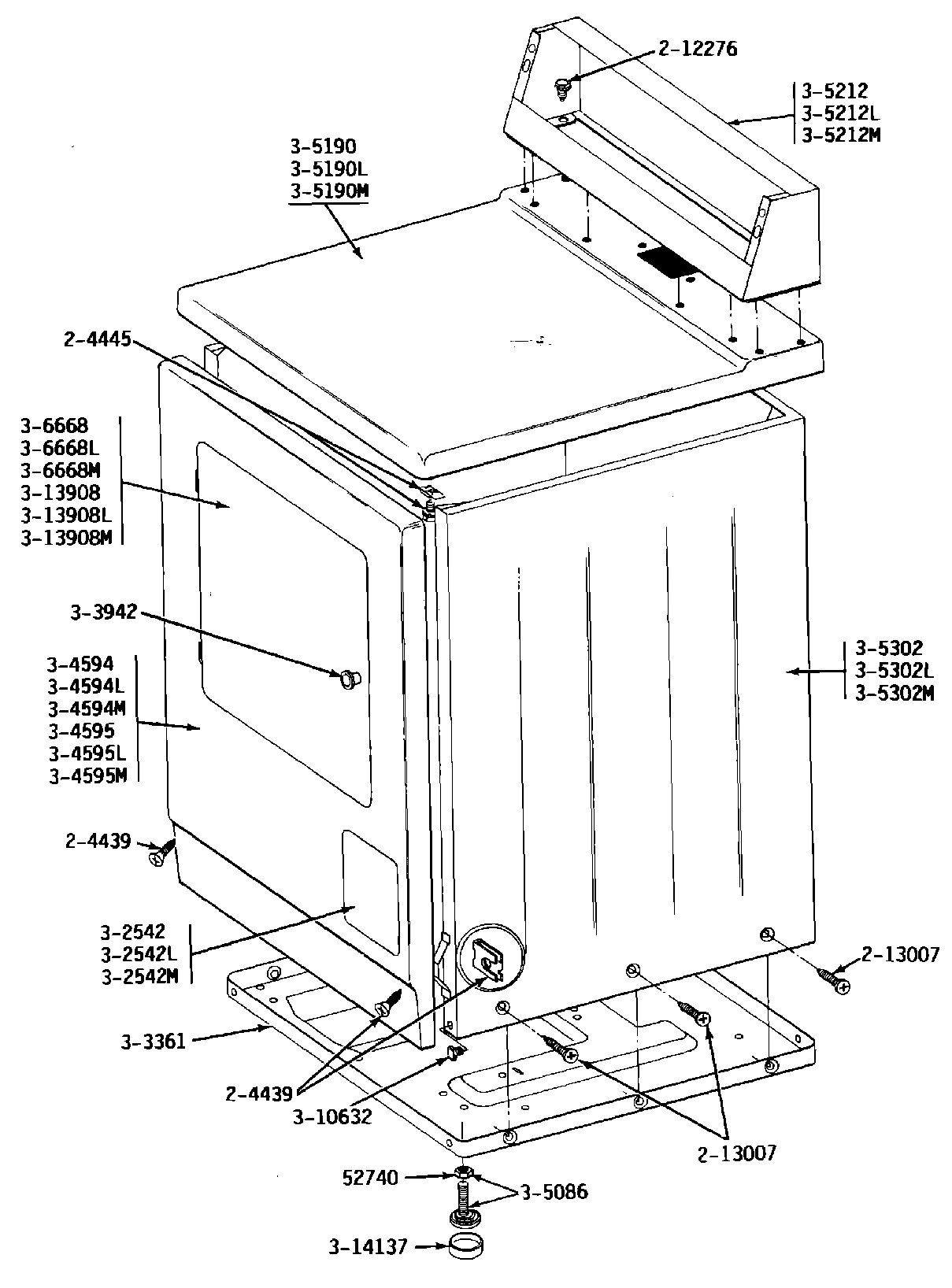

01 - FRONT VIEW

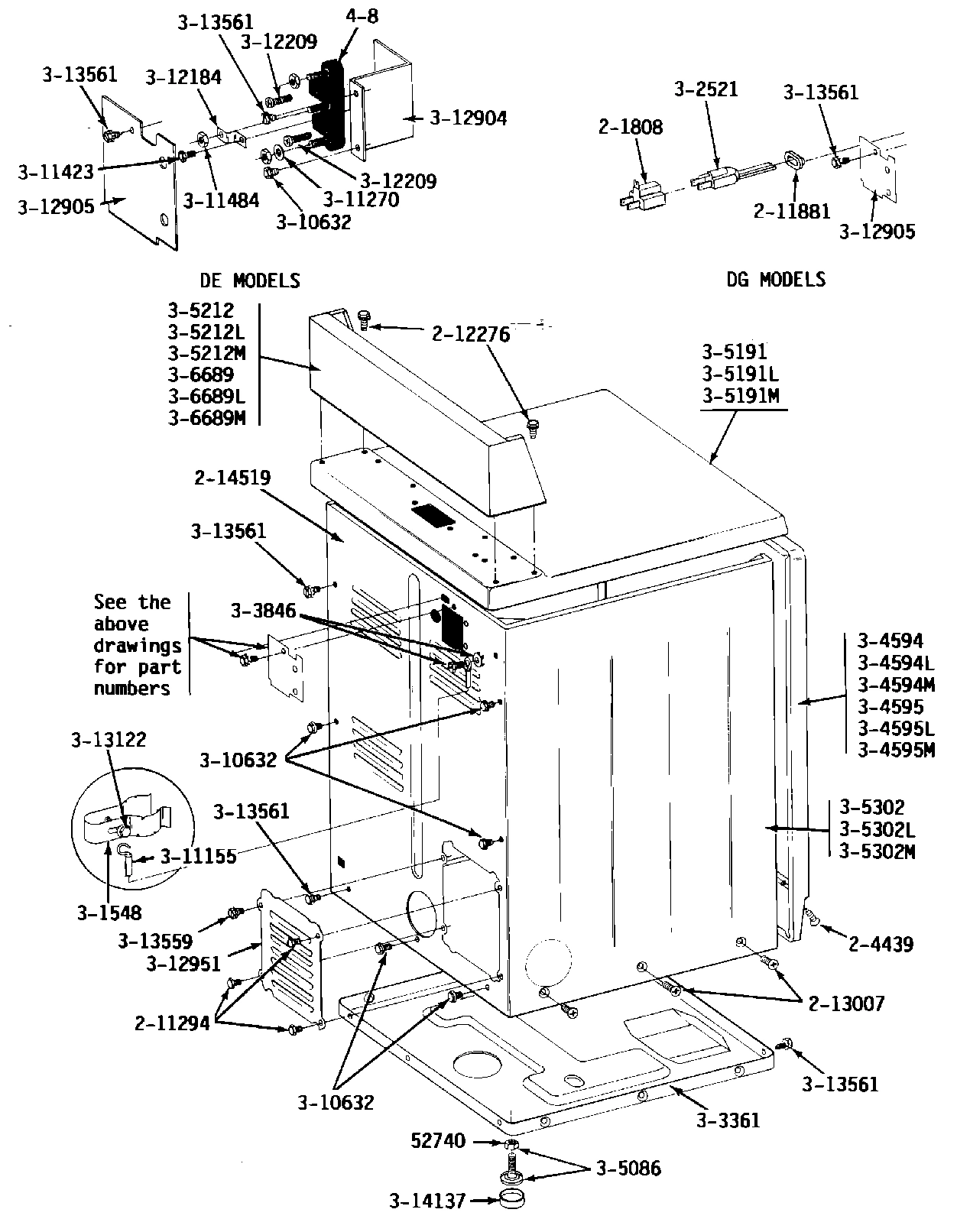

03 - REAR VIEW

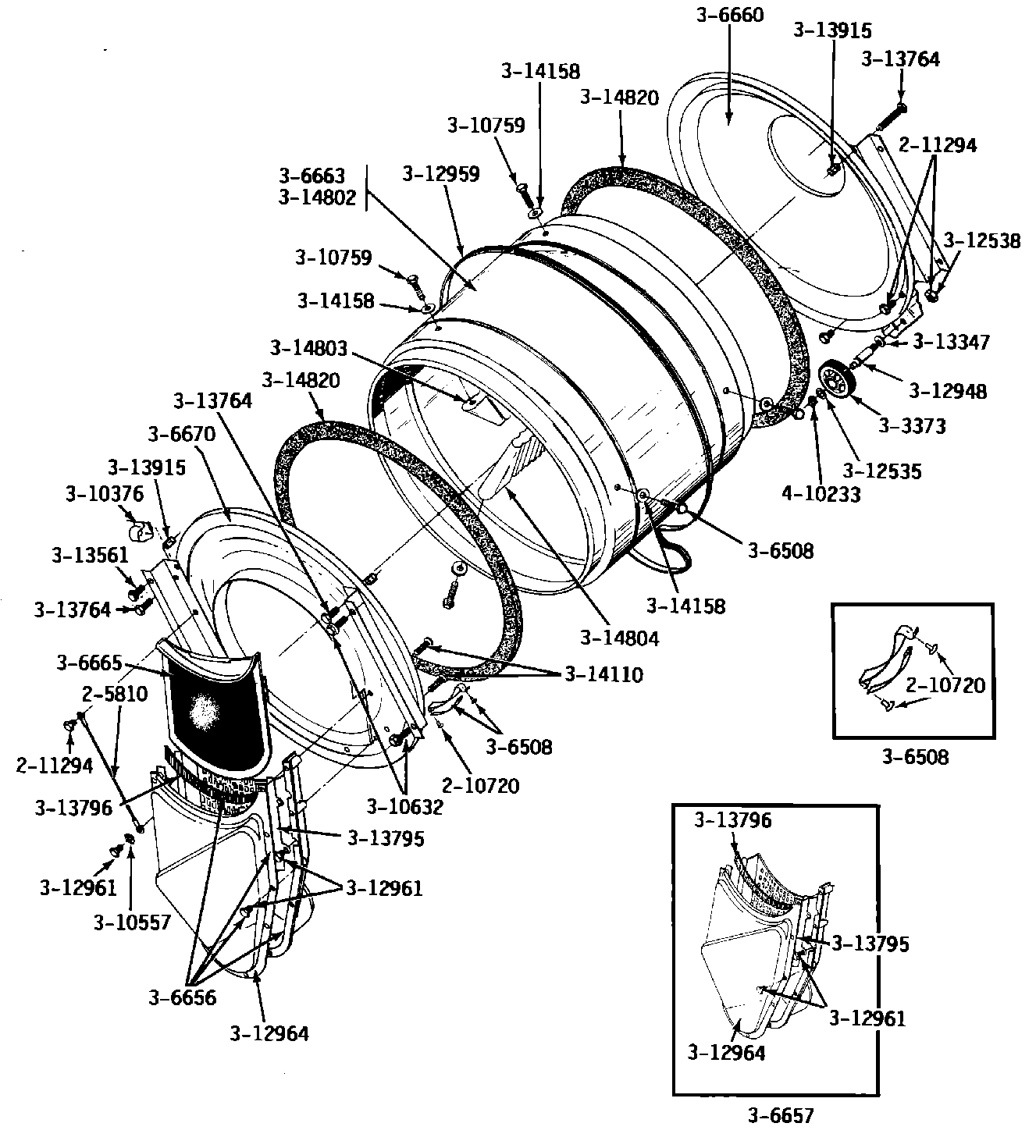

05 - LINT SCREEN, TUMBLER (FRONT & BACK)

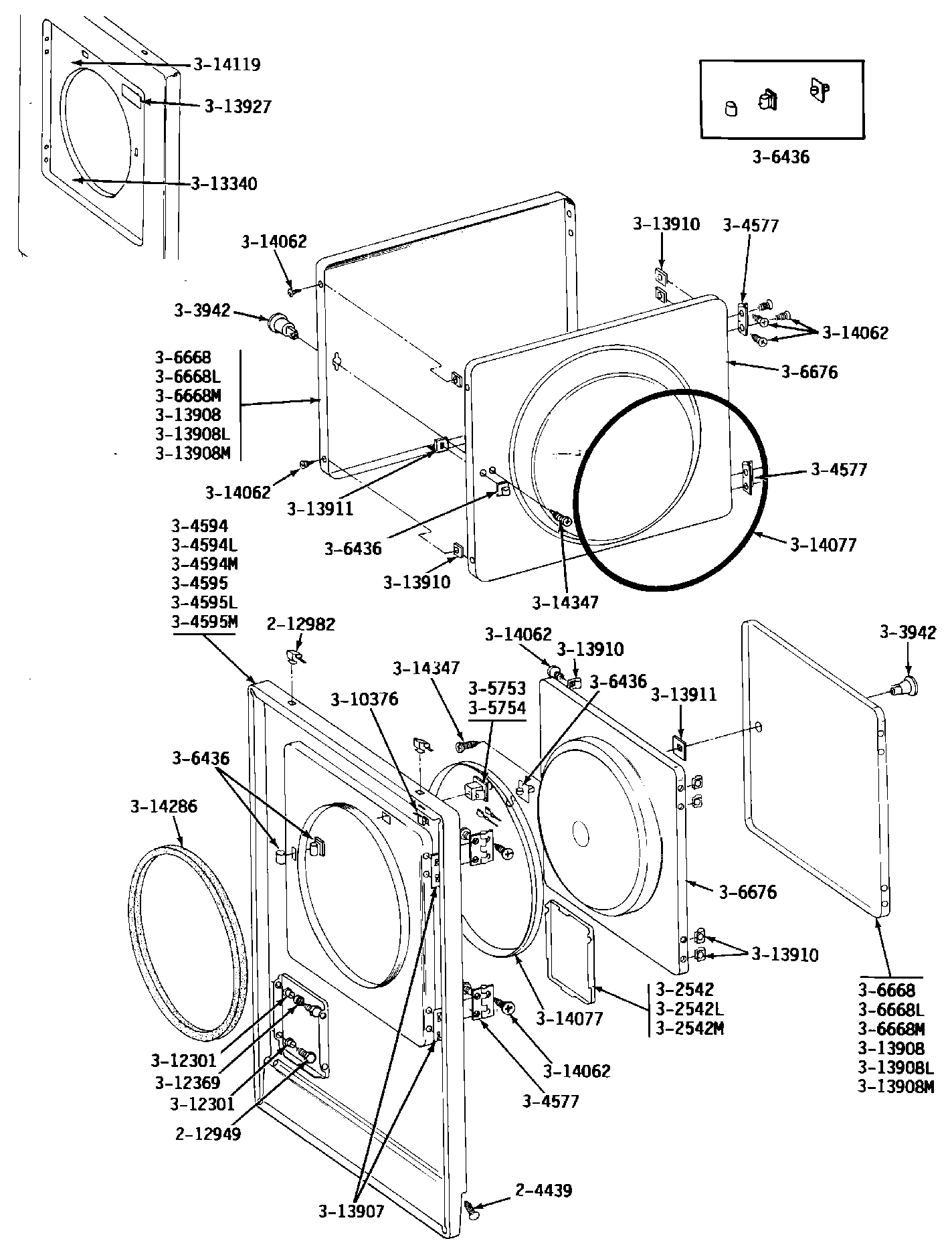

04 - FRONT PANEL & DOOR ASSEMBLY

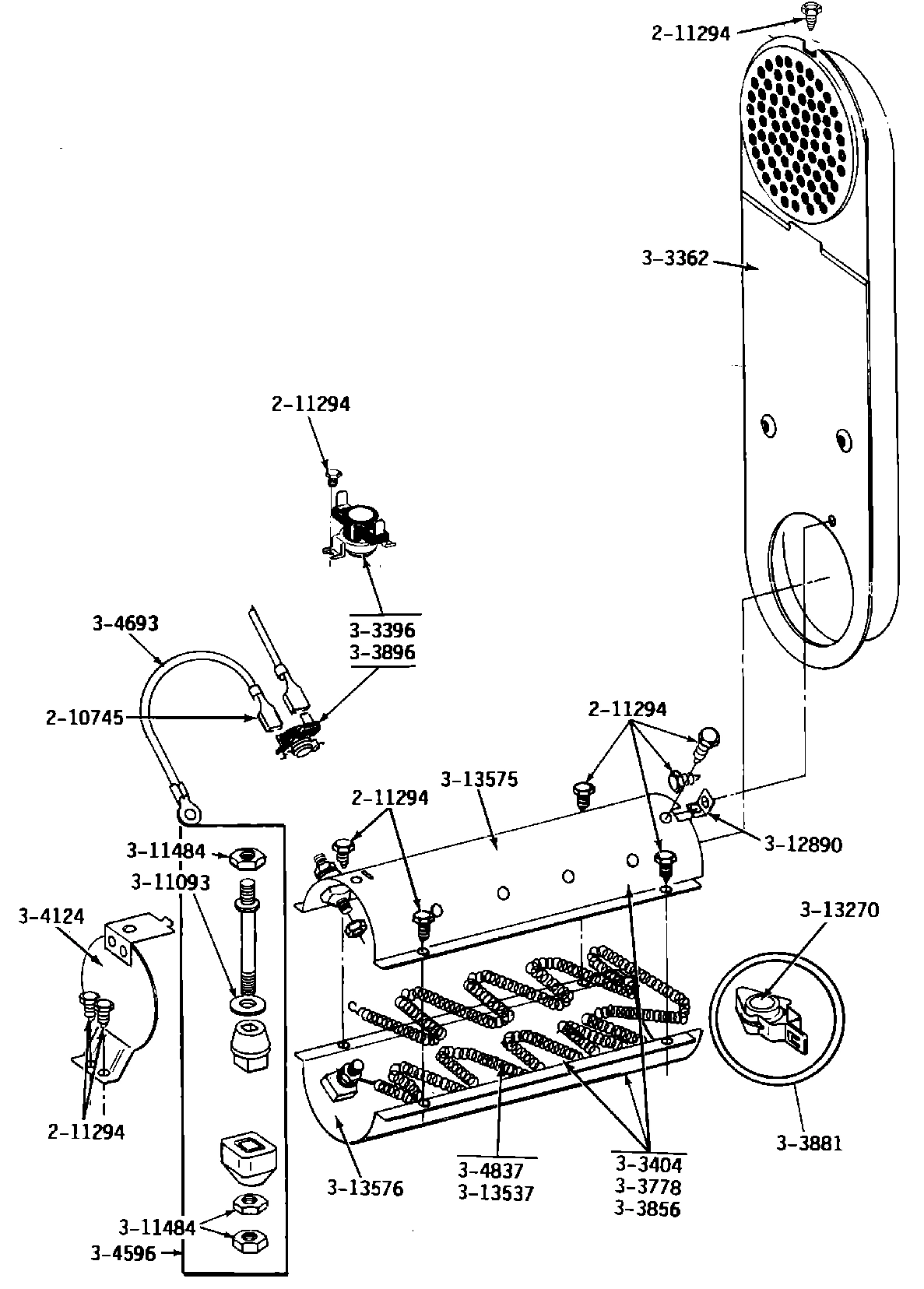

06 - INLET DUCT & HEATER ASSEMBLY

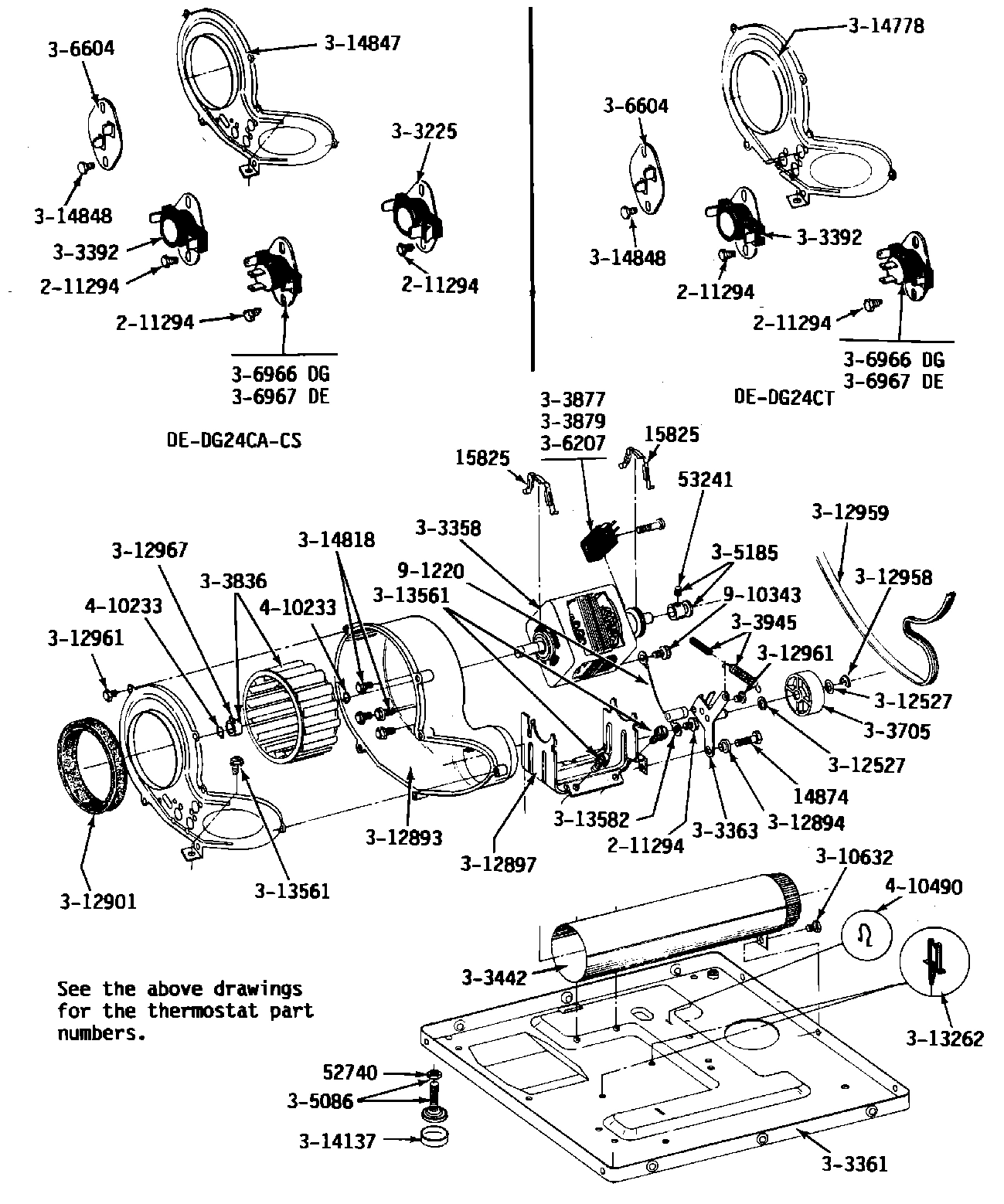

07 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS
Common parts from model Whirlpool DE24CA ELECTRIC DRYER
001
SCREW, No.10 X 3/8 WPL Y014872 Contact Us For Availability
001
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
001
WIRE, GROUND WPL 205810 Contact Us For Availability
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
002
RETAINER, TIMER KNOB WPL 211605 Contact Us For Availability
002
CONVERTER WPL Y201808 Contact Us For Availability
002
SCREW WPL 212949 Contact Us For Availability
003
MOTOR 240-50 WPL Y304656 Contact Us For Availability
003
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
003
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
004
BURNER ASSEMBLY WPL Y304697 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
005
GAS VALVE (240-50) WPL Y304698 Contact Us For Availability
006
OUTLET DUCT & GRID ASSEMBLY WPL 306656 Contact Us For Availability
006
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
006
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
007
OUTLET DUCT & GRID WPL 306657 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
008
MOTOR PULLEY - 50 CYCLE WPL 305186 Contact Us For Availability
008
BASE ASSY. WPL Y303361 Contact Us For Availability
008
LABEL, ELECTRICAL INSTRUCTION WPL 214519 Contact Us For Availability
008
TUMBLER BACK WPL Y306660 Contact Us For Availability
009
CLAMP, GROUND (W/SCREW) WPL 301548 Contact Us For Availability
009
TUMBLER W/BAFFLES WPL 306663 Contact Us For Availability
010
TIMER 240-50 WPL Y305758 Contact Us For Availability
010
POWER CORD WPL 302521 Contact Us For Availability
010
HEATER SHIELD WPL 304124 Contact Us For Availability
011
TIMER 240-50 WPL 305812 Contact Us For Availability
011
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
011
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
012
TIMER MOTOR 240-50 WPL 306527 Contact Us For Availability
013
WASHER WPL 310557 Contact Us For Availability
014
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
015
SCREW WPL Y310759 Contact Us For Availability
015
TIMER WPL 305214 Contact Us For Availability
015
DOOR WPL Y306668 Contact Us For Availability
015
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
016
TIMER WPL 305215 Contact Us For Availability
016
COMPRESSION SLEEVE WPL Y310693 Contact Us For Availability
016
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
016
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
017
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
017
INDICATOR LAMP WPL Y305396 Contact Us For Availability
017
SCREW WPL Y311711 Contact Us For Availability
017
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
018
KNOB, SELECTOR SWITCH WPL 306938 Contact Us For Availability
018
TOP COVER-WHITE WPL Y305190 Contact Us For Availability
018
HEATER ELEMENT 240 VOLT WPL Y313537 Contact Us For Availability
018
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
019
PILOT TUBE WPL Y312483 Contact Us For Availability
019
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
019
HEATER CHAMBER, TOP WPL Y313575 Contact Us For Availability
020
HEATER ELEMENT 240-50 WPL Y313950 Contact Us For Availability
020
CORD, POWER (CANADA) WPL 305168 Contact Us For Availability
020
HEATER CHAMBER, BOTTOM WPL Y313576 Contact Us For Availability
021
TOP COVER-WHITE WPL Y305191 Contact Us For Availability
021
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
021
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
022
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
023
TWIN FASTENER WPL Y313907 Contact Us For Availability
023
THERMOSTAT, MULTI-TEMP WPL 306967 Contact Us For Availability
024
SCREW WPL Y310632 Contact Us For Availability
024
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
025
KNURLED NUT WPL Y312702 Contact Us For Availability
025
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
026
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
026
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
026
LINT SEAL WPL Y313796 Contact Us For Availability
027
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
028
SUPPORT, MOTOR WPL NLA Contact Us For Availability
028
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
029
SCREW, No.8-32 X 3/8 INCH WPL Y314322 Contact Us For Availability
029
WASHER WPL 314158 Contact Us For Availability
029
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
030
TUMBLER W/OUT BAFFLES WPL 314802 Contact Us For Availability
030
SCREW WPL Y314062 Contact Us For Availability
031
DOOR SEAL WPL 314077 Contact Us For Availability
032
TIMER DIAL INDICATOR WPL 314725 Contact Us For Availability
032
BAFFLE (SHORT) WPL 314803 Contact Us For Availability
033
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
033
CONTROL PANEL COMMERCIAL DRYER WPL 314909 Contact Us For Availability
034
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
035
SCREW----NA WPL Y313561 Contact Us For Availability
038
STRAP, GROUND WPL Y312184 Contact Us For Availability
038
SCREW WPL 314818 Contact Us For Availability
039
COVER, BLOWER HOUSING WPL 314847 Contact Us For Availability
040
BRACKET, TERMINAL BLOCK WPL Y312904 Contact Us For Availability
041
COVER, TERMINAL WPL Y312905 Contact Us For Availability
042
COVER, ACCESS WPL Y312951 Contact Us For Availability
042
WIRE, GROUND WPL 901220 Contact Us For Availability
043
SCREW - BAFFLE TO TUMBLER WPL 313122 Contact Us For Availability
047
BLOCK, TERMINAL WPL 400008 Contact Us For Availability
× ![]()
