Model Electrolux DE24A7WTFB DRYER – Common Parts & Diagrams

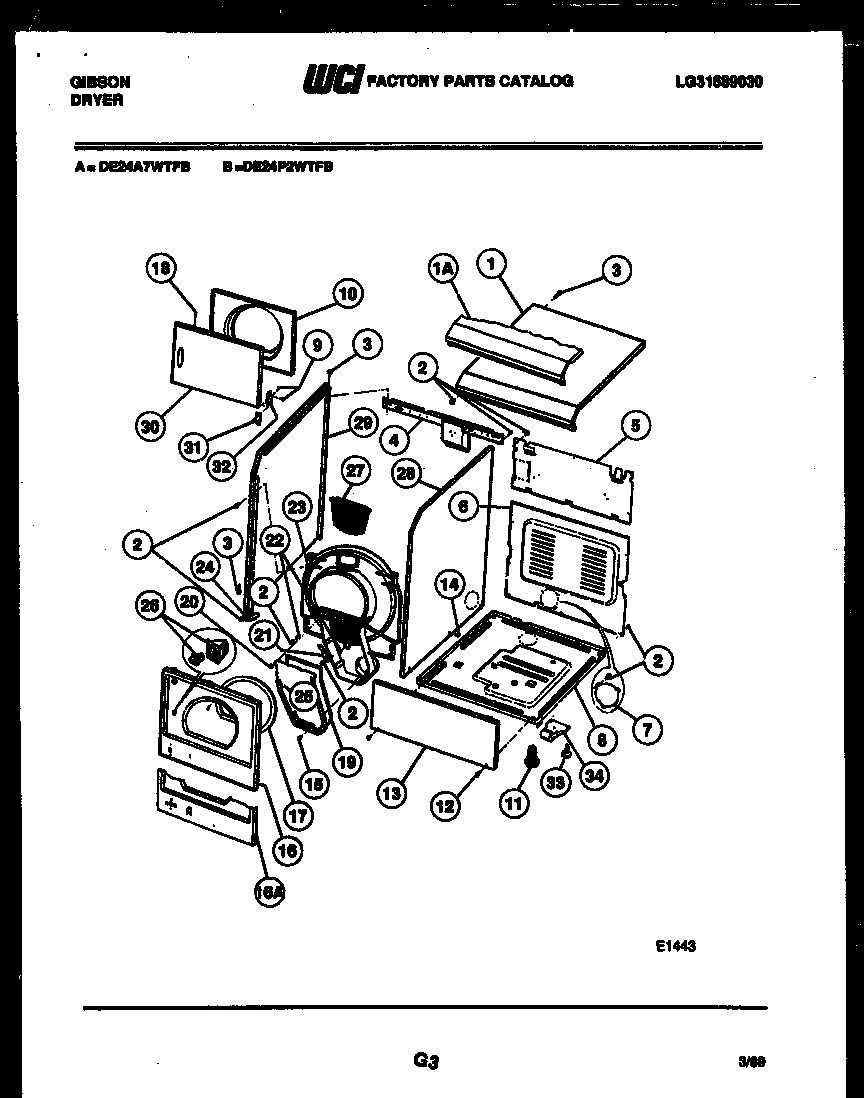

02 - CABINET PARTS

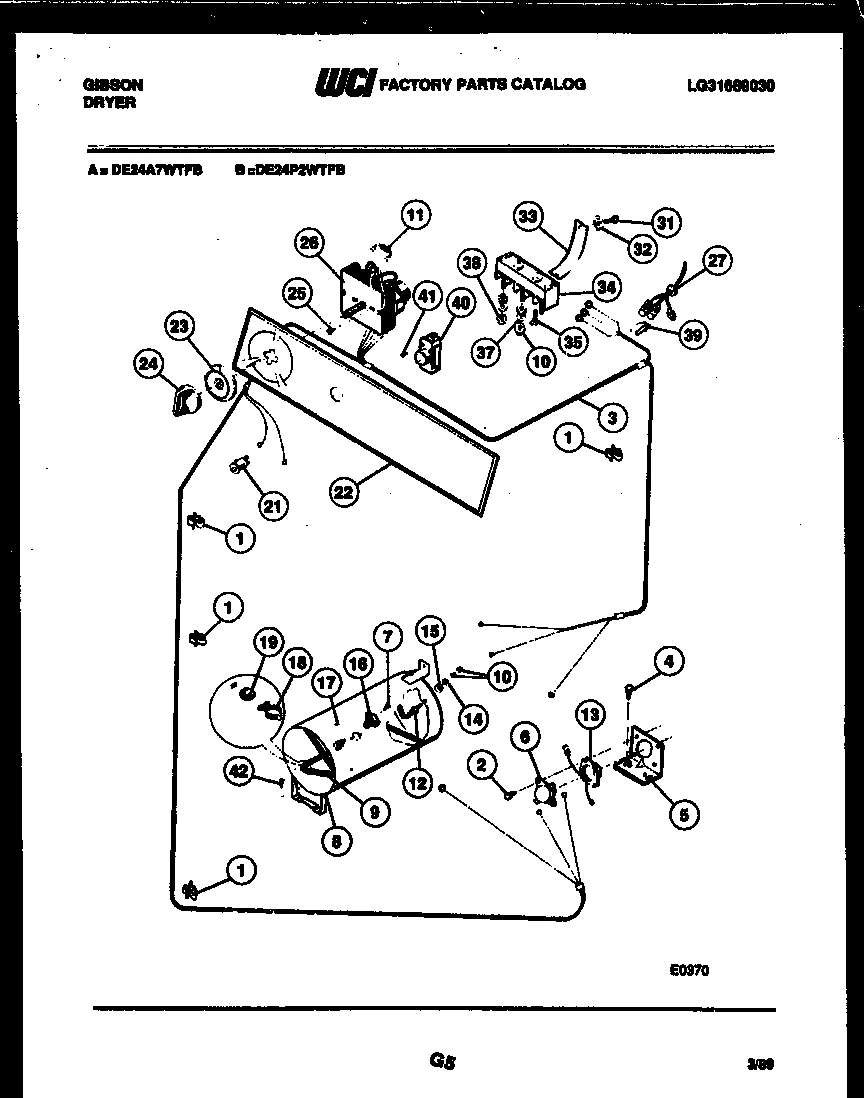

03 - CONSOLE AND CONTROL PARTS
04 - DRUM AND BLOWER PARTS
Common parts from model Electrolux DE24A7WTFB DRYER
*15218
WCI F139540-000 WCI F139540-000 Contact Us For Availability
*15218
WCI F140144-000 WCI F140144-000 Contact Us For Availability
1
CONTROL PANEL (ALMD) WCI F138976-039 Contact Us For Availability
1
CLIP-HARNESS (5) WCI F131347-000 Contact Us For Availability
1
WCI F078841-000 WCI F078841-000 Contact Us For Availability
1A
CONTROL PANEL, WHITE WCI F138976-032 Contact Us For Availability
2
SCREW-THERM & HTR TO BRACKET WCI F130220-000 Contact Us For Availability
3
WCI F140760-000 WCI F140760-000 Contact Us For Availability
3A
CLIP-HARNESS TO PLENUM (NON-ILLUSTRATED) WCI F130354-000 Contact Us For Availability
4
WCI F140416-000 WCI F140416-000 Contact Us For Availability
4
SCREW-THERM BRKT TO BSE WCI F130439-000 Contact Us For Availability
4
WCI F131168-000 WCI F131168-000 Contact Us For Availability
5
WCI F078782-428 WCI F078782-428 Contact Us For Availability
5
BRKT-CNTRL THERMOSTAT WCI F141414-000 Contact Us For Availability
5
WCI F078448-000 WCI F078448-000 Contact Us For Availability
6
WCI F141073-528 WCI F141073-528 Contact Us For Availability
6
CONTROL, THERMOSTAT WCI F136776-000 Contact Us For Availability
7
WCI F139218-200 WCI F139218-200 Contact Us For Availability
8
WCI F140397-026 WCI F140397-026 Contact Us For Availability
8
WCI F130228-200 WCI F130228-200 Contact Us For Availability
8
CLIP-HARN TO RH SIDE PNL WCI F002751-000 Contact Us For Availability
9
WCI F134266-100 WCI F134266-100 Contact Us For Availability
9
CHANNEL ASSEMBLY WCI F078185-100 Contact Us For Availability
10
WCI F140691-028 WCI F140691-028 Contact Us For Availability
10
MOTOR CLIP WCI F002618-000 Contact Us For Availability
10B
HEX NUT-HARN TO STUD WCI F073340-000 Contact Us For Availability
11
WCI F137033-000 WCI F137033-000 Contact Us For Availability
11
WCI F065111-011 WCI F065111-011 Contact Us For Availability
11
MOTOR WCI F140566-000 Contact Us For Availability
11A
WCI F065111-017 WCI F065111-017 Contact Us For Availability
11A
WCI F067634-008 WCI F067634-008 Contact Us For Availability
11B
WCI F137448-100 WCI F137448-100 Contact Us For Availability
12
WCI F130139-000 WCI F130139-000 Contact Us For Availability
12
MALE BUSHING WCI F078253-000 Contact Us For Availability
13
ACCESS PANEL, WHITE WCI F138855-032 Contact Us For Availability
13
ACCESS PANEL (ALMD) WCI F138855-039 Contact Us For Availability
13
EXT THERMOSTAT HTR WCI F136777-000 Contact Us For Availability
13
SEMS SCREW-CRDL TO BASE WCI F133911-000 Contact Us For Availability
14
LOCK WASHER WCI F063602-000 Contact Us For Availability
14
WCI F131736-000 WCI F131736-000 Contact Us For Availability
15
SCREW-COVER TO LINT HSG WCI F066409-000 Contact Us For Availability
15
FEMALE BUSHING WCI F078254-000 Contact Us For Availability
15
WCI F078190-026 WCI F078190-026 Contact Us For Availability
16
DOOR OPENING PNL (ALMD) WCI F138967-039 Contact Us For Availability
16
SAFETY THERMOSTAT WCI F132267-000 Contact Us For Availability
16
WCI F064360-000 WCI F064360-000 Contact Us For Availability
16A
DOOR OPENING PNL (WHITE) WCI F138967-032 Contact Us For Availability
17
DOOR GASKET WCI 3203531 Contact Us For Availability
17
WCI F064354-028 WCI F064354-028 Contact Us For Availability
18
WCI F131734-000 WCI F131734-000 Contact Us For Availability
18
WCI F140935-000 WCI F140935-000 Contact Us For Availability
18A
SCREW-DR OPG PNL TO LINT HSG (7) WCI F079999-000 Contact Us For Availability
19
WCI F078861-000 WCI F078861-000 Contact Us For Availability
19
WCI F131735-000 WCI F131735-000 Contact Us For Availability
19
WCI F141418-000 WCI F141418-000 Contact Us For Availability
20
SCREW-CVR TO LINT HSG-TOP (2) WCI F130140-000 Contact Us For Availability
20
WCI F141604-000 WCI F141604-000 Contact Us For Availability
21
WCI F079990-000 WCI F079990-000 Contact Us For Availability
21
DOOR SWITCH WCI F130791-000 Contact Us For Availability
22
WCI F079528-000 WCI F079528-000 Contact Us For Availability
22
WCI F140597-000 WCI F140597-000 Contact Us For Availability
22
WCI F140414-000 WCI F140414-000 Contact Us For Availability
23
EXH & LINT HSG W/DRUM GSKT WCI F133061-000 Contact Us For Availability
23
WCI F140767-000 WCI F140767-000 Contact Us For Availability
23
WCI F130396-000 WCI F130396-000 Contact Us For Availability
23A
WCI F133009-000 WCI F133009-000 Contact Us For Availability
24
WCI F140766-000 WCI F140766-000 Contact Us For Availability
24
WCI F079485-000 WCI F079485-000 Contact Us For Availability
25
WCI F078197-026 WCI F078197-026 Contact Us For Availability
25
SCREW-TIMER TO CNTRL PNL WCI F060796-000 Contact Us For Availability
25
WCI F076822-000 WCI F076822-000 Contact Us For Availability
26
TIMER WCI F140779-000 Contact Us For Availability
26
WCI F079499-000 WCI F079499-000 Contact Us For Availability
26B
TIMER MOTOR (MALLORY) (NON-ILLUSTRATED) WCI F079459-021 Contact Us For Availability
27
WCI 3203533 WCI 3203533 Contact Us For Availability
27
BAFFLE WCI F078188-100 Contact Us For Availability
28
RH SIDE PNL (WHITE) WCI F140418-032 Contact Us For Availability
28
RH SIDE PNL (ALMD) WCI F140418-039 Contact Us For Availability
28
WCI F078183-032 WCI F078183-032 Contact Us For Availability
28A
REAR DRUM SEAL KIT (NON-ILLUSTRATED) WCI F079436-000 Contact Us For Availability
29
LH SIDE PNL (WHITE) WCI F140641-032 Contact Us For Availability
29
LH SIDE PNL (ALMD) WCI F140641-039 Contact Us For Availability
29
WHEEL & TIRE ASSY WCI F133006-000 Contact Us For Availability
30
OUTER DOOR PNL (WHITE) WCI F140692-032 Contact Us For Availability
30
OUTER DOOR PNL (ALMD) WCI F140692-039 Contact Us For Availability
30
SNAP RING WCI F076978-000 Contact Us For Availability
31
WCI F078176-000 WCI F078176-000 Contact Us For Availability
31
WCI F132225-000 WCI F132225-000 Contact Us For Availability
32
WCI F078228-000 WCI F078228-000 Contact Us For Availability
32
WCI F078101-000 WCI F078101-000 Contact Us For Availability
32
WCI F140282-000 WCI F140282-000 Contact Us For Availability
33
WCI F076793-100 WCI F076793-100 Contact Us For Availability
33
WCI F132144-000 WCI F132144-000 Contact Us For Availability
35
SCREW-TERM BLK TO JB WCI F134584-000 Contact Us For Availability
37
WASHER WCI F073329-000 Contact Us For Availability
38
NUT-HARNESS TO L1 & L2 WCI F073339-000 Contact Us For Availability
39
CLIP-HARNESS TO JB WCI F131169-000 Contact Us For Availability
40
SWITCH-PUSH TO START WCI F135006-000 Contact Us For Availability
41
SCREW-SWITCH TO CNTRL PNL WCI F137505-000 Contact Us For Availability
× ![]()
