Model Maytag DE22CA ELECTRIC DRYER – Common Parts & Diagrams
01 - FRONT VIEW
02 - REAR VIEW

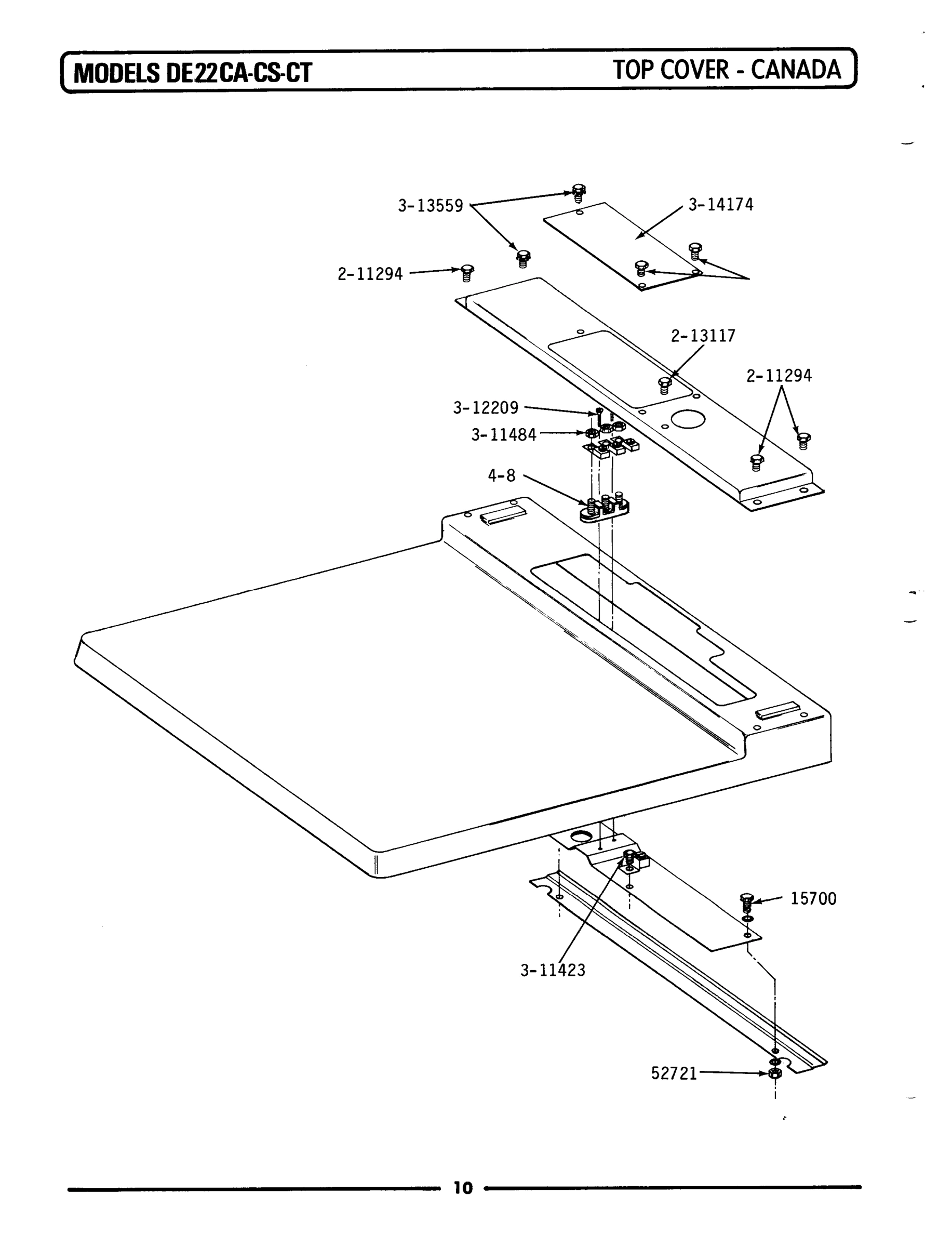

03 - TOP COVER-CANADA

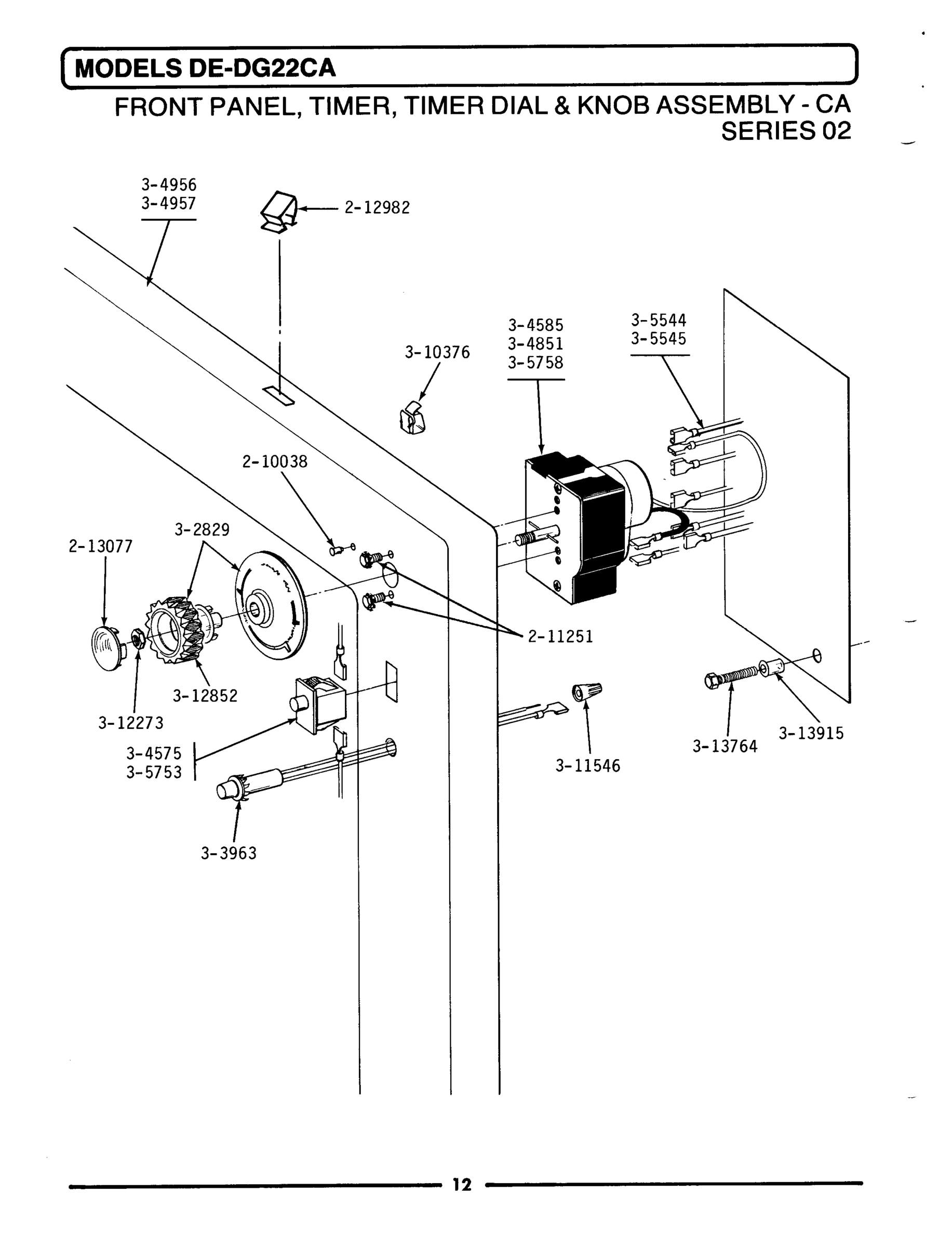

04 - FRONT PANEL, TIMER, TIMER DIAL & KNOB

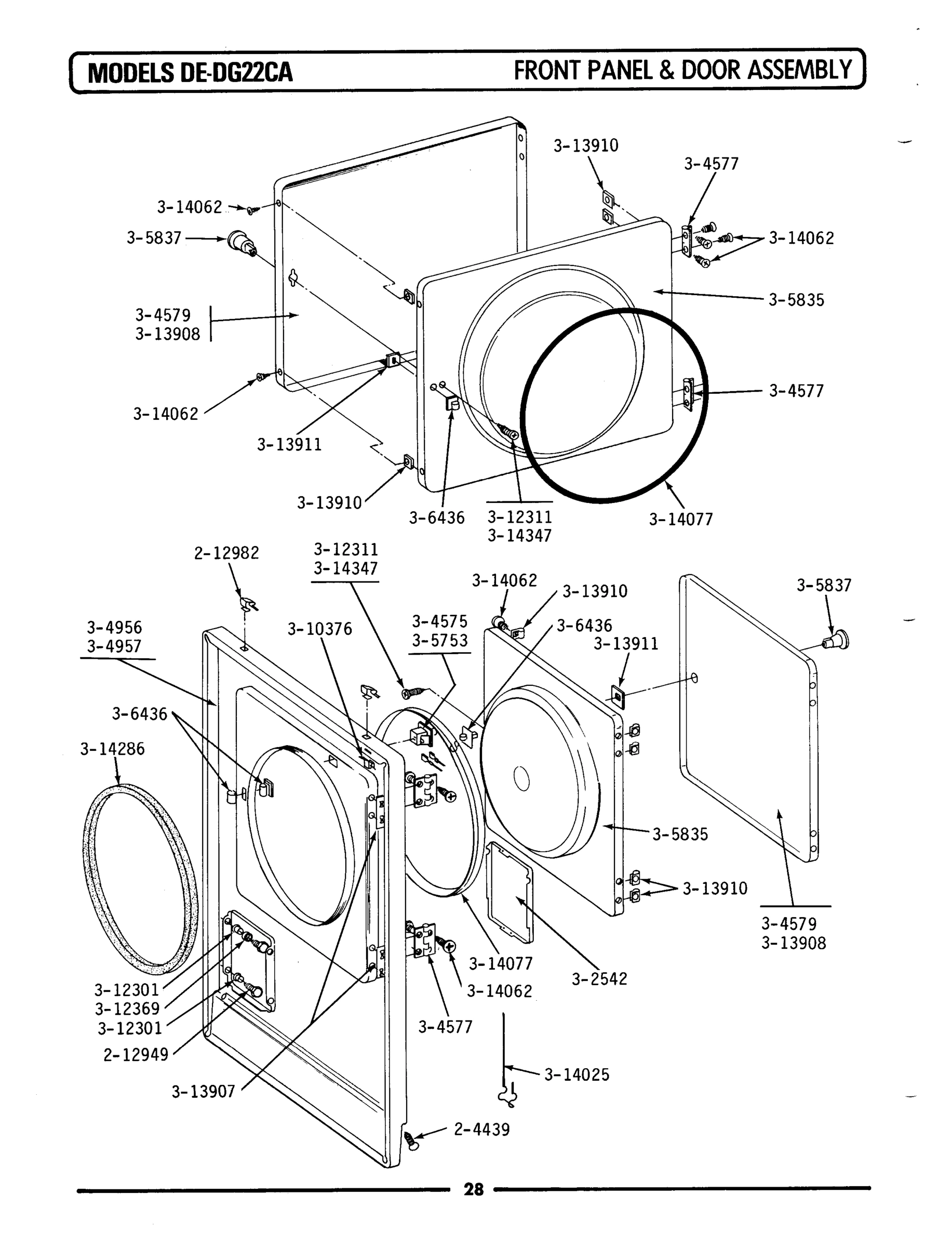

05 - FRONT PANEL & DOOR ASSEMBLY

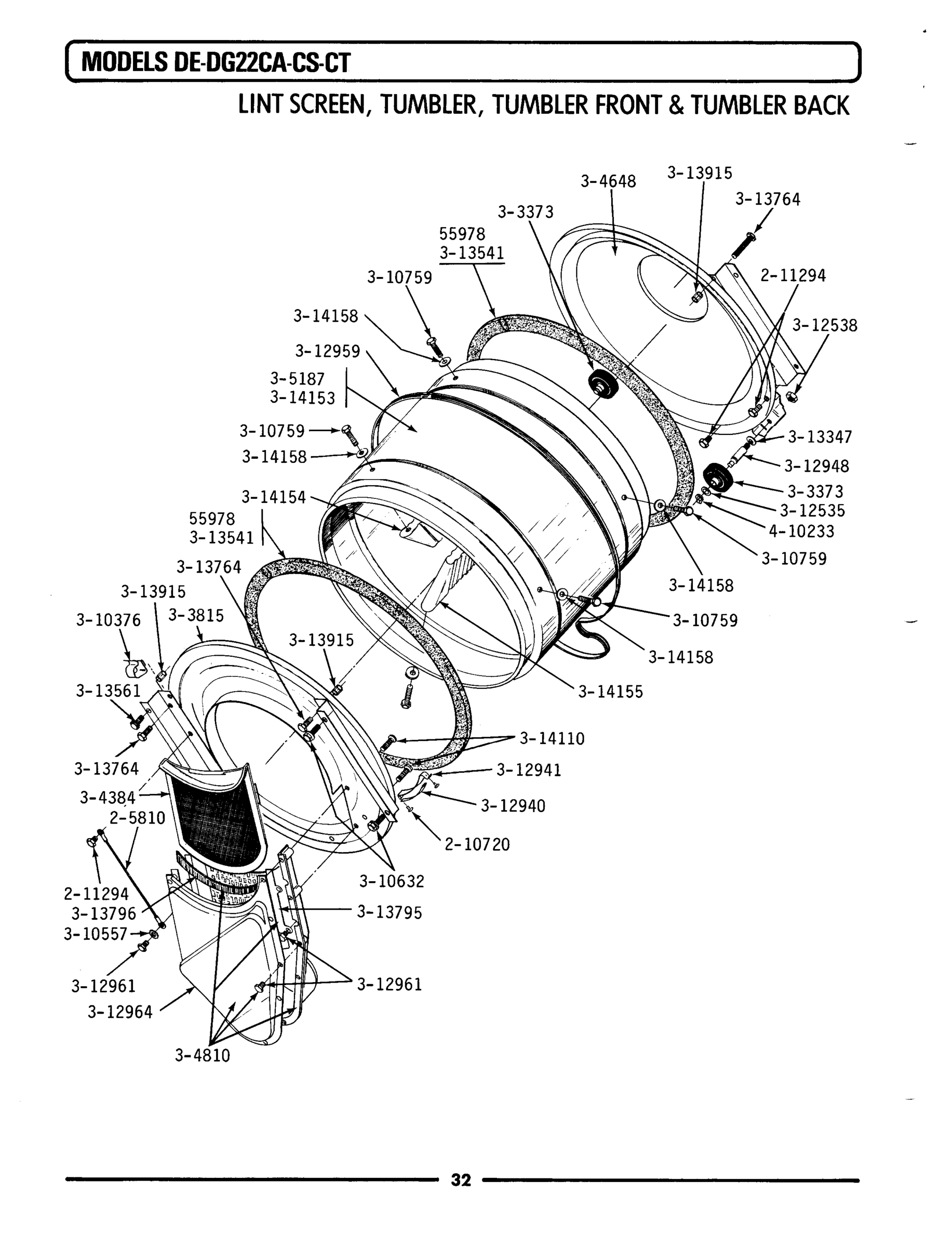

06 - LINT SCREEN, TUMBLER (FRONT & BACK)

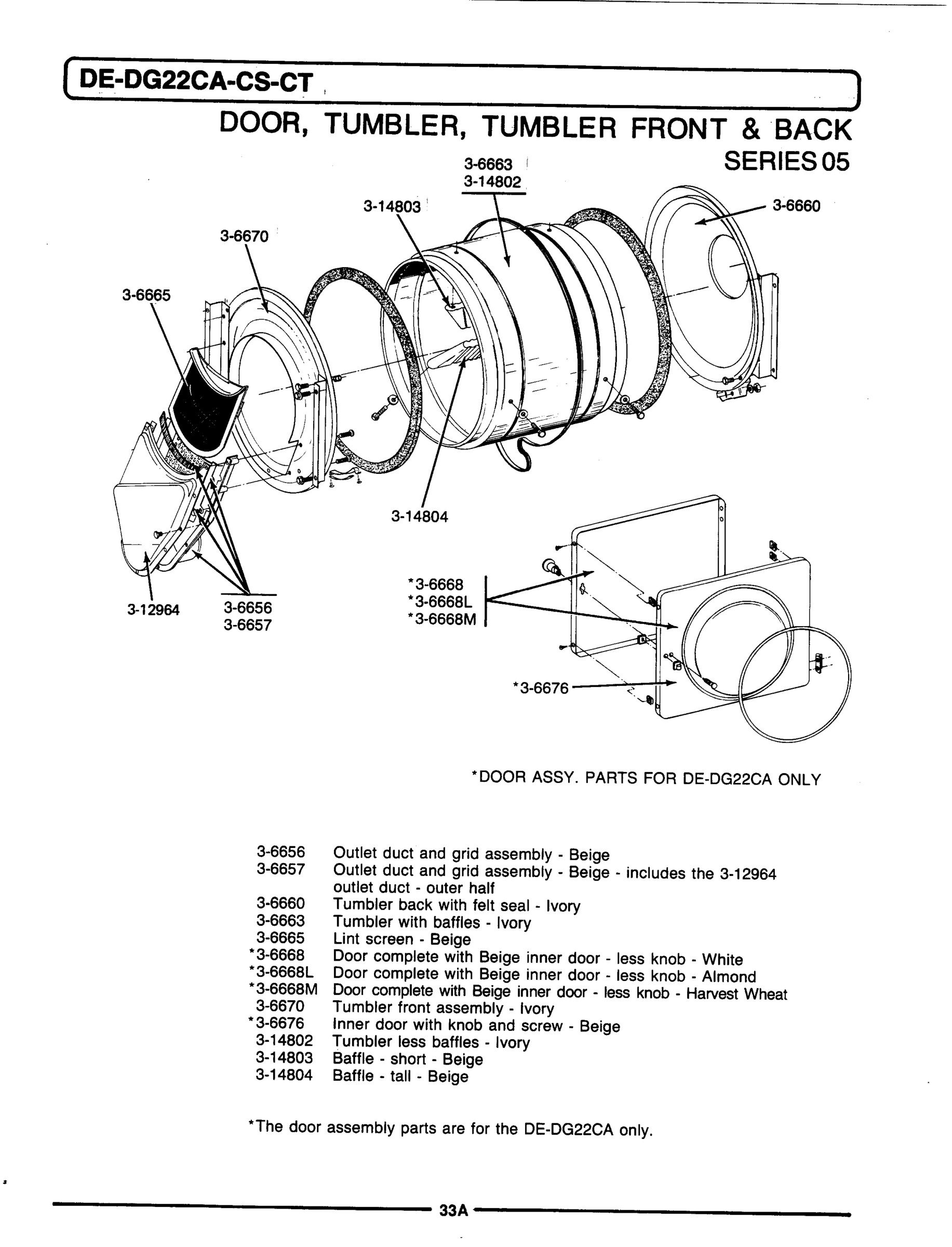

07 - DOOR, TUMBLER, TUMBLER FRONT & BACK

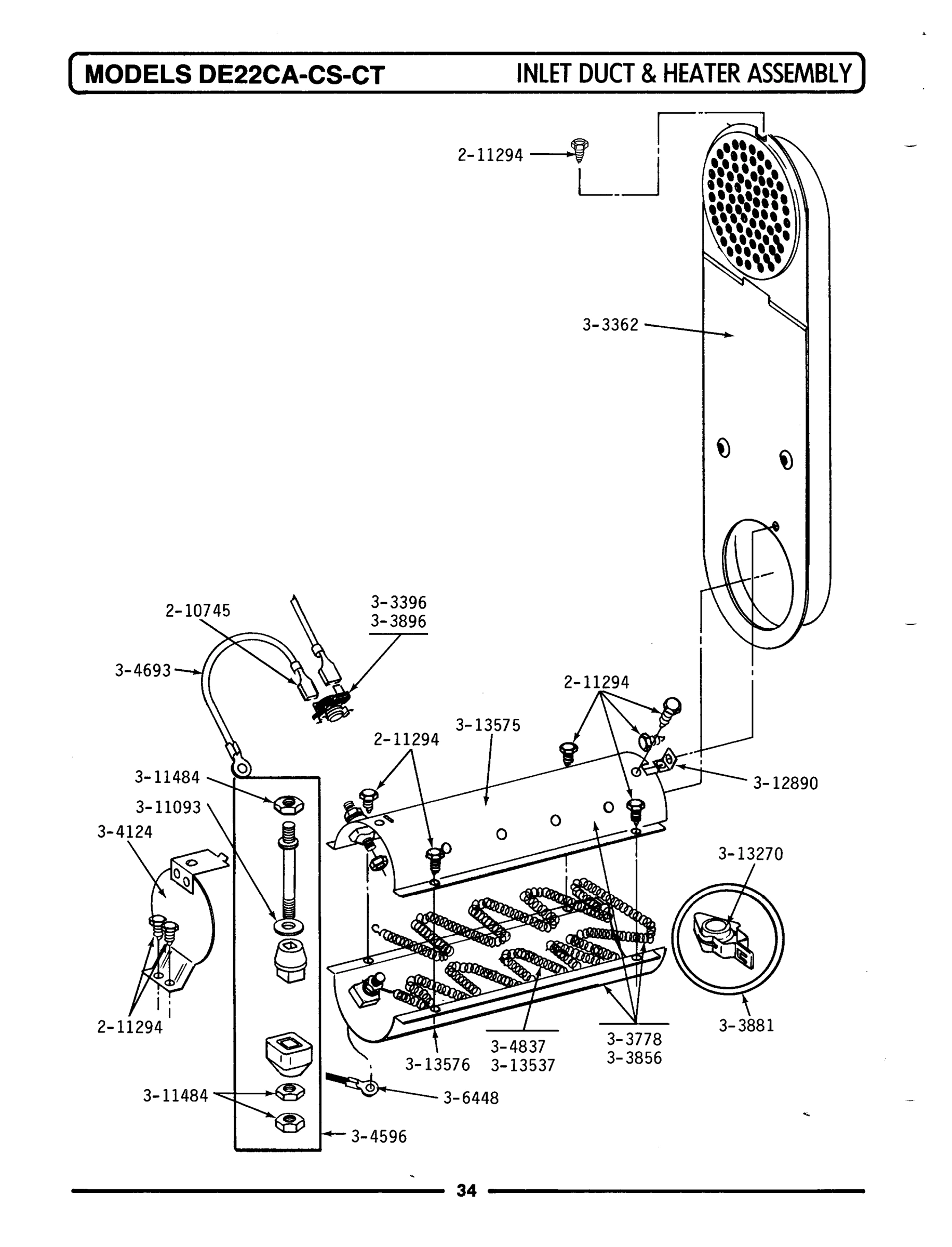

08 - INLET DUCT & HEATER ASSEMBLY

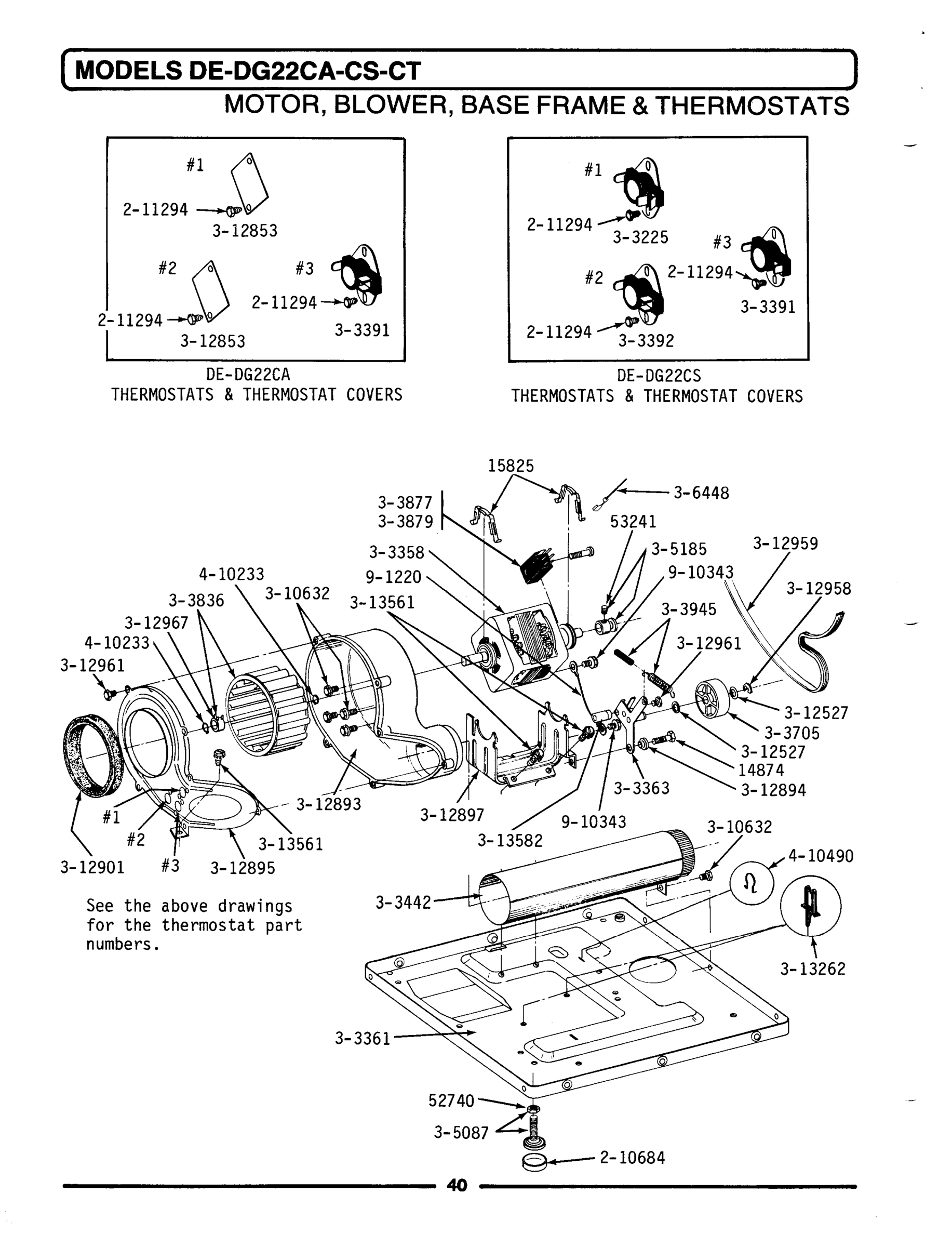

09 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

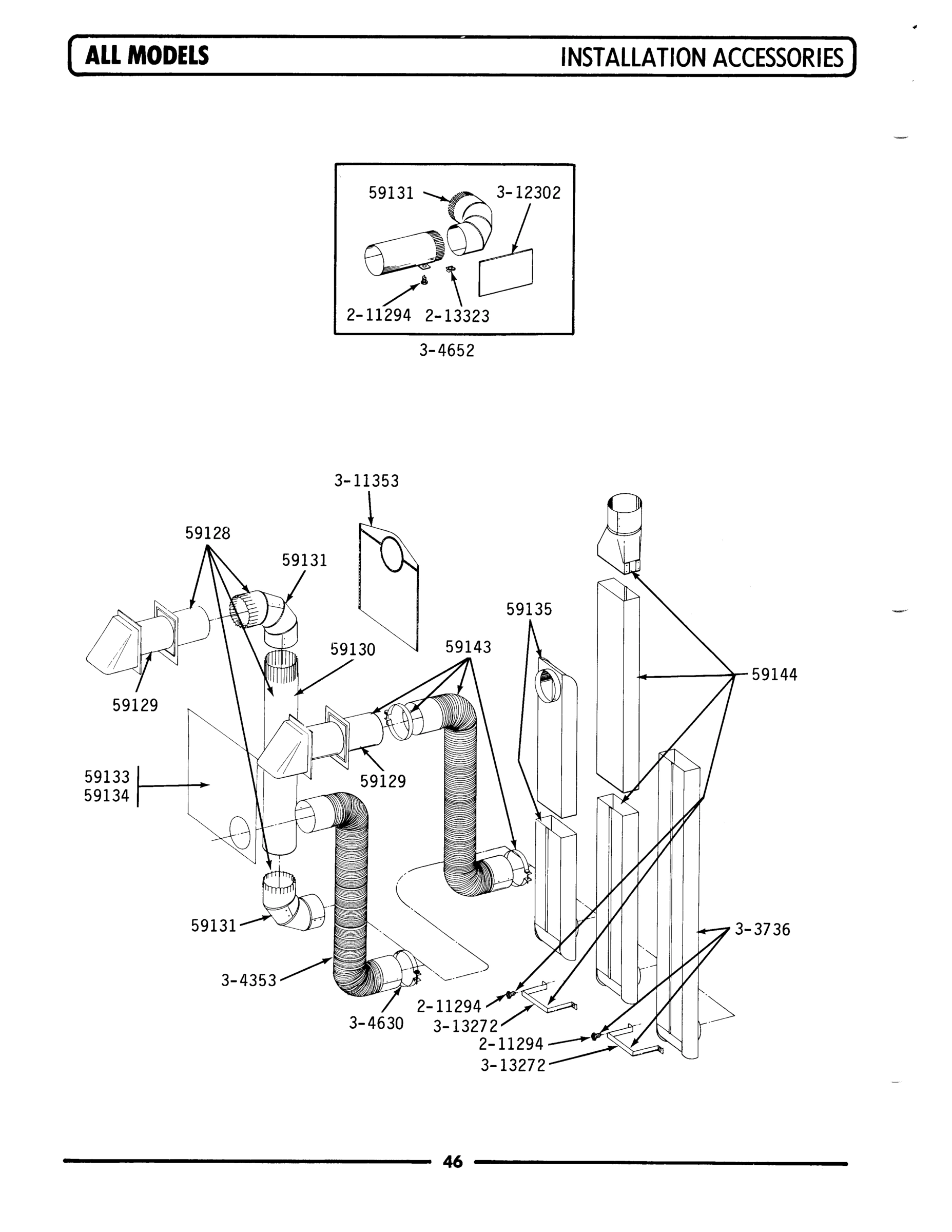

10 - INSTALLATION ACCESSORIES
Common parts from model Maytag DE22CA ELECTRIC DRYER
001
MAY Y055978 MAY Y055978 Contact Us For Availability
001
MAY 306656 MAY 306656 Contact Us For Availability
001
MAY 210745 MAY 210745 Contact Us For Availability
002
MAY 204439 MAY 204439 Contact Us For Availability
002
MAY 211251 MAY 211251 Contact Us For Availability
002
MAY 212949 MAY 212949 Contact Us For Availability
002
MAY 205810 MAY 205810 Contact Us For Availability
002
MAY 306657 MAY 306657 Contact Us For Availability
003
MAY 212982 MAY 212982 Contact Us For Availability
003
MAY Y306660 MAY Y306660 Contact Us For Availability
003
MAY Y303362 MAY Y303362 Contact Us For Availability
004
MAY 213077 MAY 213077 Contact Us For Availability
004
MAY 306663 MAY 306663 Contact Us For Availability
004
MAY Y053241 MAY Y053241 Contact Us For Availability
005
HEATER ASSY. COMPLETE (240V) MAY Y303778 Contact Us For Availability
005
MAY Y302829 MAY Y302829 Contact Us For Availability
005
MAY Y311423 MAY Y311423 Contact Us For Availability
005
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
005
MAY Y303373 MAY Y303373 Contact Us For Availability
005
MAY Y306665 MAY Y306665 Contact Us For Availability
005
MAY Y059128 MAY Y059128 Contact Us For Availability
006
INDICATOR LIGHT MAY 303963 Contact Us For Availability
006
MAY Y304579 MAY Y304579 Contact Us For Availability
006
MAY Y303815 MAY Y303815 Contact Us For Availability
006
DOOR MAY Y306668 Contact Us For Availability
006
HEATER ASSY. COMPLETE (208V) MAY Y303856 Contact Us For Availability
007
SCREW, No.10-24 X 3/4 INCH-----O MAY Y312209 Contact Us For Availability
007
MAY Y304384 MAY Y304384 Contact Us For Availability
007
MAY Y059130 MAY Y059130 Contact Us For Availability
008
MAY Y313559 MAY Y313559 Contact Us For Availability
008
MAY Y304585 MAY Y304585 Contact Us For Availability
008
MAY Y304648 MAY Y304648 Contact Us For Availability
008
MAY Y303361 MAY Y303361 Contact Us For Availability
008
MAY Y059131 MAY Y059131 Contact Us For Availability
009
MAY Y314174 MAY Y314174 Contact Us For Availability
009
OUTLET DUCT ASSEMBLY---S MAY Y304810 Contact Us For Availability
009
MAY 314802 MAY 314802 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
010
MAY 400008 MAY 400008 Contact Us For Availability
010
MAY 305187 MAY 305187 Contact Us For Availability
010
MAY 314803 MAY 314803 Contact Us For Availability
010
MAY Y059134 MAY Y059134 Contact Us For Availability
011
MAY 305544 MAY 305544 Contact Us For Availability
011
MAY Y310376 MAY Y310376 Contact Us For Availability
011
MAY Y303442 MAY Y303442 Contact Us For Availability
011
MAY Y059135 MAY Y059135 Contact Us For Availability
012
MAY 310557 MAY 310557 Contact Us For Availability
012
MAY Y059143 MAY Y059143 Contact Us For Availability
013
MAY Y305758 MAY Y305758 Contact Us For Availability
014
MAY Y310759 MAY Y310759 Contact Us For Availability
014
SWITCH, MOTOR START PROD. NO. 3-3358-2 MAY Y303877 Contact Us For Availability
015
MAY 311546 MAY 311546 Contact Us For Availability
015
MAY 312369 MAY 312369 Contact Us For Availability
015
SWITCH, MOTOR START PROD. NO. 3-3358 MAY Y303879 Contact Us For Availability
015
MAY 213323 MAY 213323 Contact Us For Availability
016
MAY Y313340 MAY Y313340 Contact Us For Availability
016
MAY 312538 MAY 312538 Contact Us For Availability
016
MAY Y312890 MAY Y312890 Contact Us For Availability
016
MAY Y303945 MAY Y303945 Contact Us For Availability
017
MAY 312940 MAY 312940 Contact Us For Availability
017
MAY Y313270 MAY Y313270 Contact Us For Availability
017
MAY 312852 MAY 312852 Contact Us For Availability
017
MAY Y313907 MAY Y313907 Contact Us For Availability
017
MAY Y305087 MAY Y305087 Contact Us For Availability
017
MAY Y304353 MAY Y304353 Contact Us For Availability
018
MAY Y313908 MAY Y313908 Contact Us For Availability
018
MAY 312941 MAY 312941 Contact Us For Availability
018
HEATER ELEMENT (240V) MAY Y313537 Contact Us For Availability
018
MAY Y305185 MAY Y305185 Contact Us For Availability
018
MAY Y304630 MAY Y304630 Contact Us For Availability
019
SHAFT, TUMBLER ROLLER----C WPL WP6-3129480 No Longer Available
019
MAY Y313910 MAY Y313910 Contact Us For Availability
019
MAY Y313575 MAY Y313575 Contact Us For Availability
019
MAY Y304652 MAY Y304652 Contact Us For Availability
020
MAY Y313911 MAY Y313911 Contact Us For Availability
020
MAY Y310632 MAY Y310632 Contact Us For Availability
020
MAY Y313576 MAY Y313576 Contact Us For Availability
020
MAY 311353 MAY 311353 Contact Us For Availability
021
MAY Y313927 MAY Y313927 Contact Us For Availability
021
MAY Y312527 MAY Y312527 Contact Us For Availability
021
MAY 312302 MAY 312302 Contact Us For Availability
022
BRACKET, EXHAUST DEFLECTOR MAY NLA Contact Us For Availability
022
MAY Y314025 MAY Y314025 Contact Us For Availability
022
MAY Y312964 MAY Y312964 Contact Us For Availability
022
MAY Y312853 MAY Y312853 Contact Us For Availability
023
MAY Y312893 MAY Y312893 Contact Us For Availability
024
MAY 314077 MAY 314077 Contact Us For Availability
024
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
024
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
025
MAY Y312895 MAY Y312895 Contact Us For Availability
027
MAY Y313795 MAY Y313795 Contact Us For Availability
028
MAY Y313796 MAY Y313796 Contact Us For Availability
030
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
031
TUMBLER No. MAY Y314153 Contact Us For Availability
032
MAY 911050 MAY 911050 Contact Us For Availability
033
MAY 314155 MAY 314155 Contact Us For Availability
033
MAY Y313262 MAY Y313262 Contact Us For Availability
034
MAY 314158 MAY 314158 Contact Us For Availability
034
MAY Y313561 MAY Y313561 Contact Us For Availability
037
MAY 410490 MAY 410490 Contact Us For Availability
038
MAY 901220 MAY 901220 Contact Us For Availability
039
MAY 910343 MAY 910343 Contact Us For Availability
× ![]()
