Model Maytag DE19CS ELECTRIC DRYER – Common Parts & Diagrams

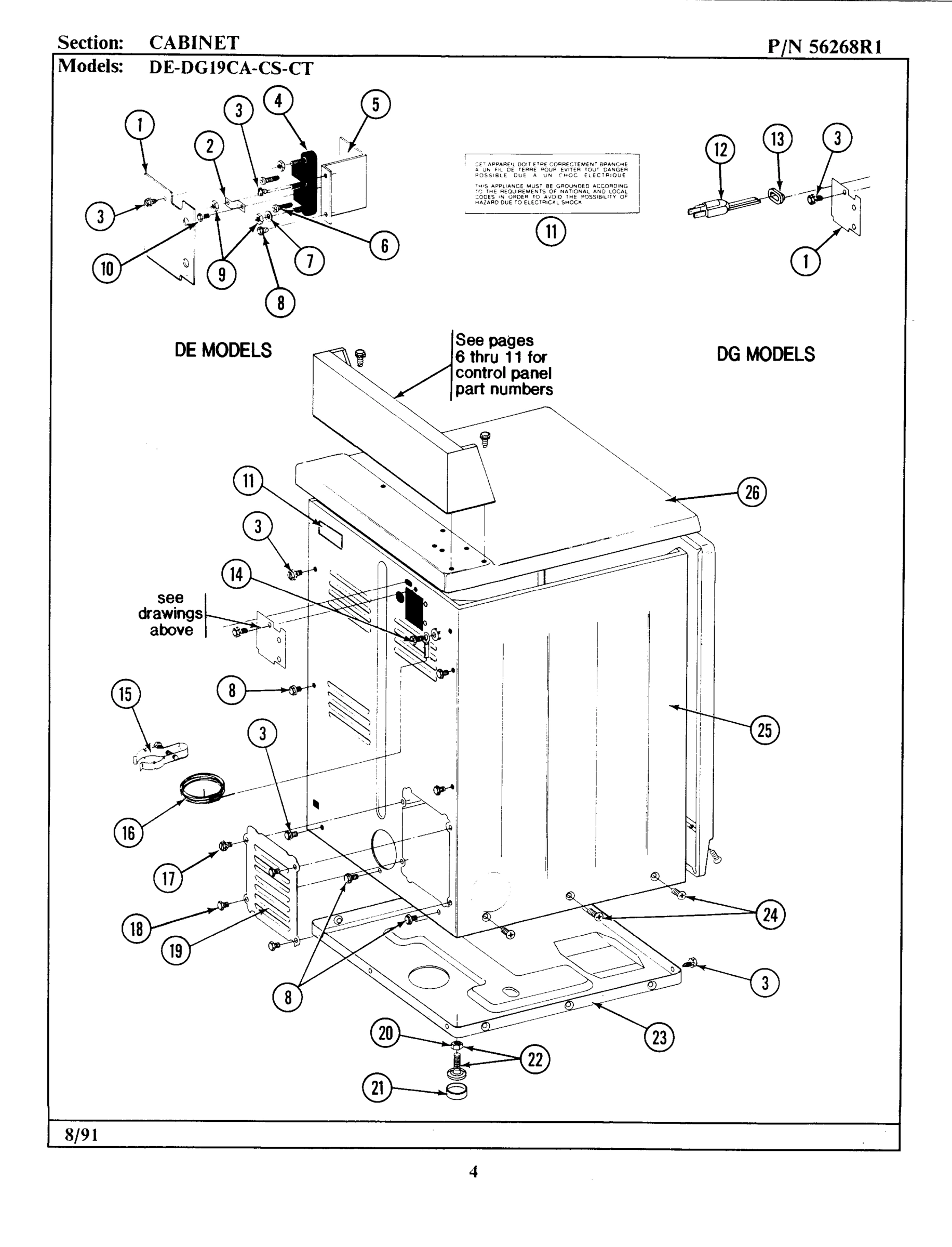

01 - CABINET-FRONT
02 - CABINET-REAR
03 - CONTROL PANEL
04 - DOOR
05 - TUMBLER
06 - HEATER
07 - MOTOR DRIVE
08 - INSTALLATION ACCESSORIES
09 - CONTROL CENTER
10 - CONTROL CENTER CASE
11 - CONTROL CENTER (SERIES 02)
12 - MAYTAG COIN SLIDE-ACCESSORY
13 - 50HZ CONVERSION LIST
Common parts from model Maytag DE19CS ELECTRIC DRYER
001
MAY Y306660 MAY Y306660 Contact Us For Availability
001
MAY Y303362 MAY Y303362 Contact Us For Availability
001
MAY Y312068 MAY Y312068 Contact Us For Availability
001
MAY 203188 MAY 203188 Contact Us For Availability
001
ACCESS DOOR-ALMOND MAY 203188L Contact Us For Availability
001
MAY 203188M MAY 203188M Contact Us For Availability
001
MAY 305870 MAY 305870 Contact Us For Availability
002
MAY 305796 MAY 305796 Contact Us For Availability
002
MAY Y303225 MAY Y303225 Contact Us For Availability
002
MAY 212982 MAY 212982 Contact Us For Availability
002
MAY 305813 MAY 305813 Contact Us For Availability
003
MAY Y313575 MAY Y313575 Contact Us For Availability
003
SPRING WASHER MAY 312073 Contact Us For Availability
003
TIMER MOUNTING BRACKET MAY 314333 Contact Us For Availability
003
MAY 214572 MAY 214572 Contact Us For Availability
004
MAY 400008 MAY 400008 Contact Us For Availability
004
MAY 910181 MAY 910181 Contact Us For Availability
004
MAY 315277 MAY 315277 Contact Us For Availability
004
MAY 211605 MAY 211605 Contact Us For Availability
005
MAY 312538 MAY 312538 Contact Us For Availability
005
PART NOT USED MAY Y312853 Contact Us For Availability
005
MAY Y059131 MAY Y059131 Contact Us For Availability
005
MAY Y303707 MAY Y303707 Contact Us For Availability
005
MAY 910708 MAY 910708 Contact Us For Availability
006
MAY 210745 MAY 210745 Contact Us For Availability
006
MAY 312302 MAY 312302 Contact Us For Availability
006
MAY Y301774 MAY Y301774 Contact Us For Availability
006
MAY 314546 MAY 314546 Contact Us For Availability
006
MAY 214597 MAY 214597 Contact Us For Availability
006
MAY Y304656 MAY Y304656 Contact Us For Availability
007
MAY Y305799 MAY Y305799 Contact Us For Availability
007
MAY Y313910 MAY Y313910 Contact Us For Availability
007
MAY 213323 MAY 213323 Contact Us For Availability
007
COIN BOX-WHITE MAY 205423 Contact Us For Availability
007
COIN BOX-ALMOND MAY 205423L Contact Us For Availability
007
MAY 205423M MAY 205423M Contact Us For Availability
007
MAY 214578 MAY 214578 Contact Us For Availability
007
MAY 305186 MAY 305186 Contact Us For Availability
008
PILOT LAMP MAY NLA Contact Us For Availability
008
MAY Y303373 MAY Y303373 Contact Us For Availability
008
MAY Y304652 MAY Y304652 Contact Us For Availability
008
MAY 312250 MAY 312250 Contact Us For Availability
008
MAY 305798 MAY 305798 Contact Us For Availability
009
MAY Y313911 MAY Y313911 Contact Us For Availability
009
MAY 304124 MAY 304124 Contact Us For Availability
009
MAY Y303743 MAY Y303743 Contact Us For Availability
009
MAY 910309 MAY 910309 Contact Us For Availability
009
MAY 314332 MAY 314332 Contact Us For Availability
009
MAY 305812 MAY 305812 Contact Us For Availability
010
MAY Y314137 MAY Y314137 Contact Us For Availability
010
MAY Y310632 MAY Y310632 Contact Us For Availability
010
MAY 314339 MAY 314339 Contact Us For Availability
010
MAY 214581 MAY 214581 Contact Us For Availability
010
MAY 306527 MAY 306527 Contact Us For Availability
011
MAY Y305086 MAY Y305086 Contact Us For Availability
011
DOOR MAY Y306668 Contact Us For Availability
011
MAY Y310759 MAY Y310759 Contact Us For Availability
011
MAY Y313561 MAY Y313561 Contact Us For Availability
011
MAY Y313576 MAY Y313576 Contact Us For Availability
011
MAY 311353 MAY 311353 Contact Us For Availability
011
MAY 305395 MAY 305395 Contact Us For Availability
011
MAY Y052634 MAY Y052634 Contact Us For Availability
011
MAY Y313950 MAY Y313950 Contact Us For Availability
012
MAY 314158 MAY 314158 Contact Us For Availability
012
MAY Y313537 MAY Y313537 Contact Us For Availability
012
MAY 901220 MAY 901220 Contact Us For Availability
012
MAY Y059130 MAY Y059130 Contact Us For Availability
012
MAY 214660 MAY 214660 Contact Us For Availability
013
MAY Y303778 MAY Y303778 Contact Us For Availability
013
MAY 314155 MAY 314155 Contact Us For Availability
013
MAY Y303856 MAY Y303856 Contact Us For Availability
013
MAY Y059143 MAY Y059143 Contact Us For Availability
013
MAY 205646 MAY 205646 Contact Us For Availability
013
MAY 205646L MAY 205646L Contact Us For Availability
013
MAY 205646M MAY 205646M Contact Us For Availability
013
MAY 214589 MAY 214589 Contact Us For Availability
014
MAY 314077 MAY 314077 Contact Us For Availability
014
SCREW, INLET DUCT ----S MAY Y314110 Contact Us For Availability
014
MAY Y059135 MAY Y059135 Contact Us For Availability
014
MAY 314548 MAY 314548 Contact Us For Availability
015
MAY Y313270 MAY Y313270 Contact Us For Availability
015
DOOR HINGE ----S MAY Y304577 Contact Us For Availability
016
MAY 204439 MAY 204439 Contact Us For Availability
016
MAY 314330 MAY 314330 Contact Us For Availability
016
MAY Y312890 MAY Y312890 Contact Us For Availability
016
PROD. No.3-3358-8 & No.3-3358-9 MAY 306207 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358-2, No.3-3 MAY Y303877 Contact Us For Availability
016
SWITCH, MOTOR START PROD. No.3-3358 & No.3-33 MAY Y303879 Contact Us For Availability
016
MAY Y059134 MAY Y059134 Contact Us For Availability
017
MAY 211065 MAY 211065 Contact Us For Availability
017
MAY 205663 MAY 205663 Contact Us For Availability
017
MAY Y313907 MAY Y313907 Contact Us For Availability
017
MAY Y053241 MAY Y053241 Contact Us For Availability
017
MAY Y304353 MAY Y304353 Contact Us For Availability
017
MAY 214596 MAY 214596 Contact Us For Availability
018
MAY 212949 MAY 212949 Contact Us For Availability
018
MAY Y313795 MAY Y313795 Contact Us For Availability
018
MAY Y305185 MAY Y305185 Contact Us For Availability
018
MAY Y304630 MAY Y304630 Contact Us For Availability
018
MAY Y312270 MAY Y312270 Contact Us For Availability
018
MAY 205343 MAY 205343 Contact Us For Availability
019
MAY Y303420 MAY Y303420 Contact Us For Availability
019
MAY 910343 MAY 910343 Contact Us For Availability
019
MAY 214594 MAY 214594 Contact Us For Availability
020
TIME ADJUSTMENT PEG MAY 314335 Contact Us For Availability
020
MAY 312369 MAY 312369 Contact Us For Availability
020
MAY Y312964 MAY Y312964 Contact Us For Availability
020
MAY Y303945 MAY Y303945 Contact Us For Availability
021
MAY 213035 MAY 213035 Contact Us For Availability
021
MAY 306657 MAY 306657 Contact Us For Availability
022
MAY 310557 MAY 310557 Contact Us For Availability
022
MAY 211251 MAY 211251 Contact Us For Availability
022
MAY 306104 MAY 306104 Contact Us For Availability
022
MAY 214584 MAY 214584 Contact Us For Availability
023
MAY Y313796 MAY Y313796 Contact Us For Availability
023
MAY Y313927 MAY Y313927 Contact Us For Availability
023
MAY Y312527 MAY Y312527 Contact Us For Availability
023
MAY Y312069 MAY Y312069 Contact Us For Availability
023
MAY 314547 MAY 314547 Contact Us For Availability
024
MAY Y313309 MAY Y313309 Contact Us For Availability
024
MAY Y313340 MAY Y313340 Contact Us For Availability
024
MAY 305800 MAY 305800 Contact Us For Availability
025
MAY Y306665 MAY Y306665 Contact Us For Availability
025
MAY 410730 MAY 410730 Contact Us For Availability
025
MAY 305797 MAY 305797 Contact Us For Availability
025
MAY 214582 MAY 214582 Contact Us For Availability
026
SLEEVE, IDLER ARM ----S MAY Y312894 Contact Us For Availability
026
MAY Y312071 MAY Y312071 Contact Us For Availability
026
MAY 205350 MAY 205350 Contact Us For Availability
027
MAY Y310376 MAY Y310376 Contact Us For Availability
027
MAY 314073 MAY 314073 Contact Us For Availability
028
MAY 214648 MAY 214648 Contact Us For Availability
029
MAY Y055978 MAY Y055978 Contact Us For Availability
029
TUMBLER SEAL -----S MAY Y313541 Contact Us For Availability
030
MAY 314803 MAY 314803 Contact Us For Availability
030
MAY Y303442 MAY Y303442 Contact Us For Availability
030
MAY Y313439 MAY Y313439 Contact Us For Availability
030
BRACKET FOR COIN SLIDE MAY 314334 Contact Us For Availability
031
MAY 305187 MAY 305187 Contact Us For Availability
031
MAY 306663 MAY 306663 Contact Us For Availability
031
MAY Y312893 MAY Y312893 Contact Us For Availability
032
COVER FOR BLOWER HOUSING MAY Y313770 Contact Us For Availability
032
MAY Y312577 MAY Y312577 Contact Us For Availability
033
MAY Y312578 MAY Y312578 Contact Us For Availability
034
MAY Y303361 MAY Y303361 Contact Us For Availability
034
MAY Y302924 MAY Y302924 Contact Us For Availability
035
MAY Y312576 MAY Y312576 Contact Us For Availability
038
MAY Y313262 MAY Y313262 Contact Us For Availability
039
MAY 410490 MAY 410490 Contact Us For Availability
× ![]()
