Model GE DBR453GA0WW Dryer Gas – Common Parts & Diagrams

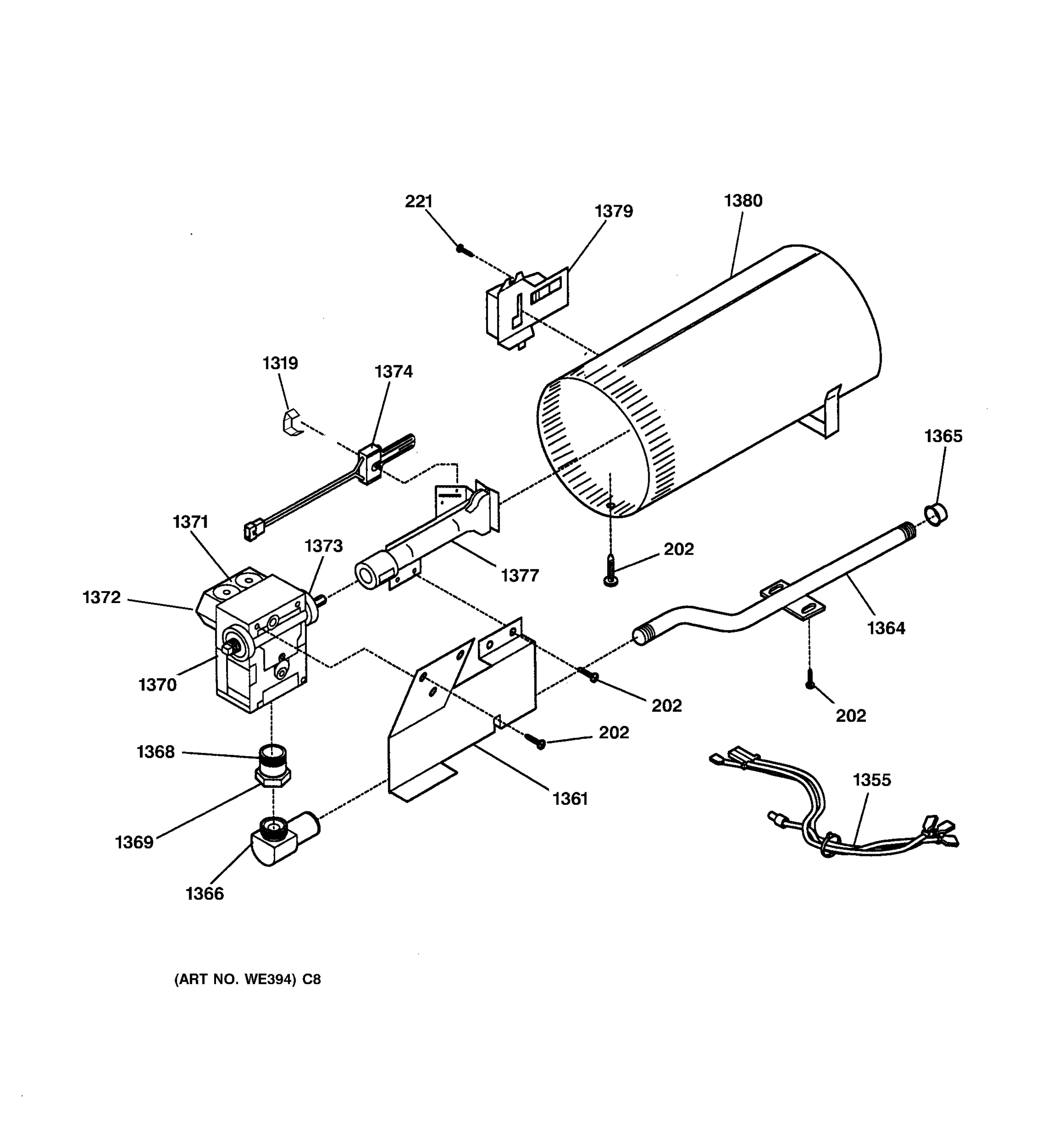

BURNER

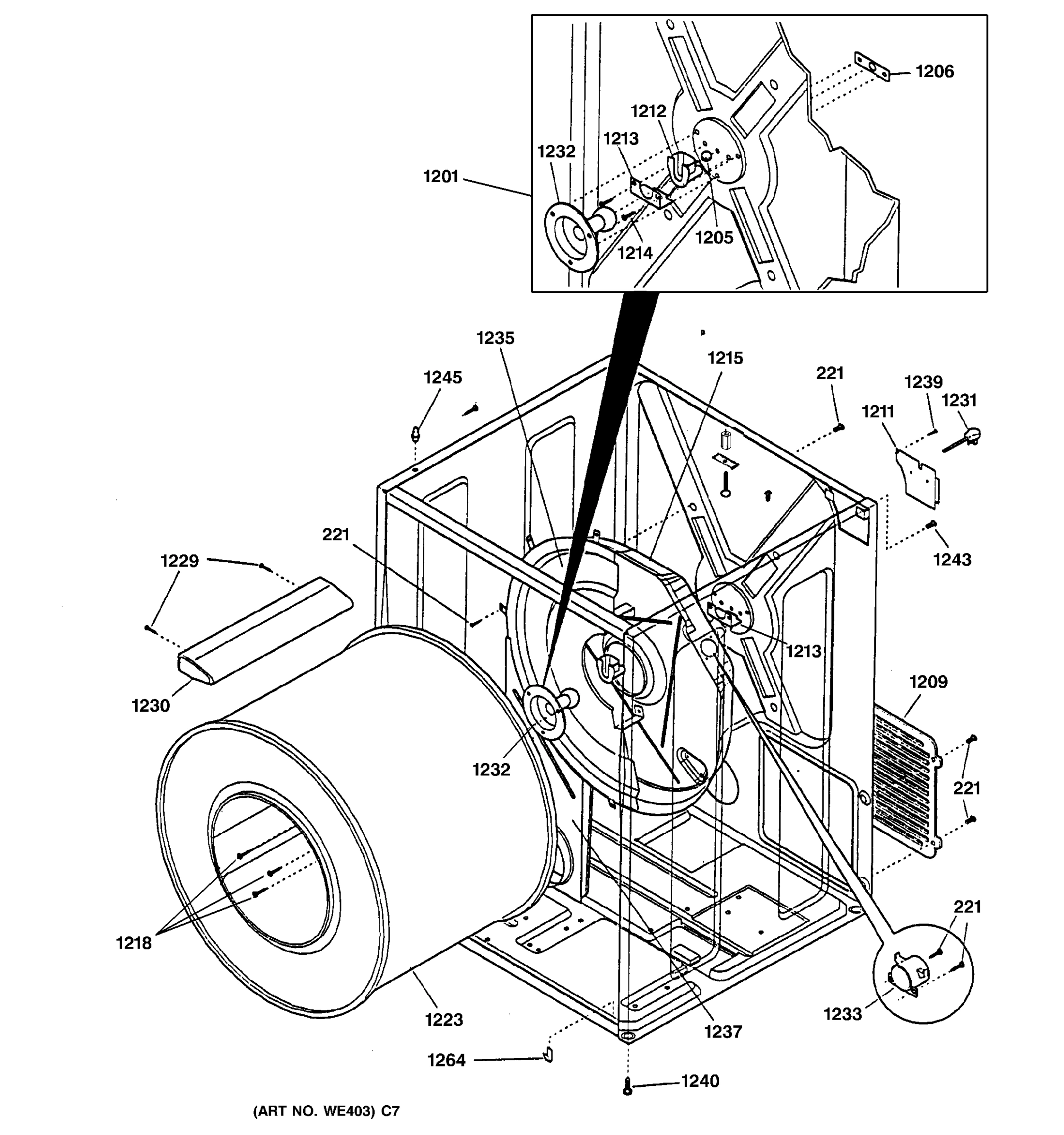

CABINET & DRUM

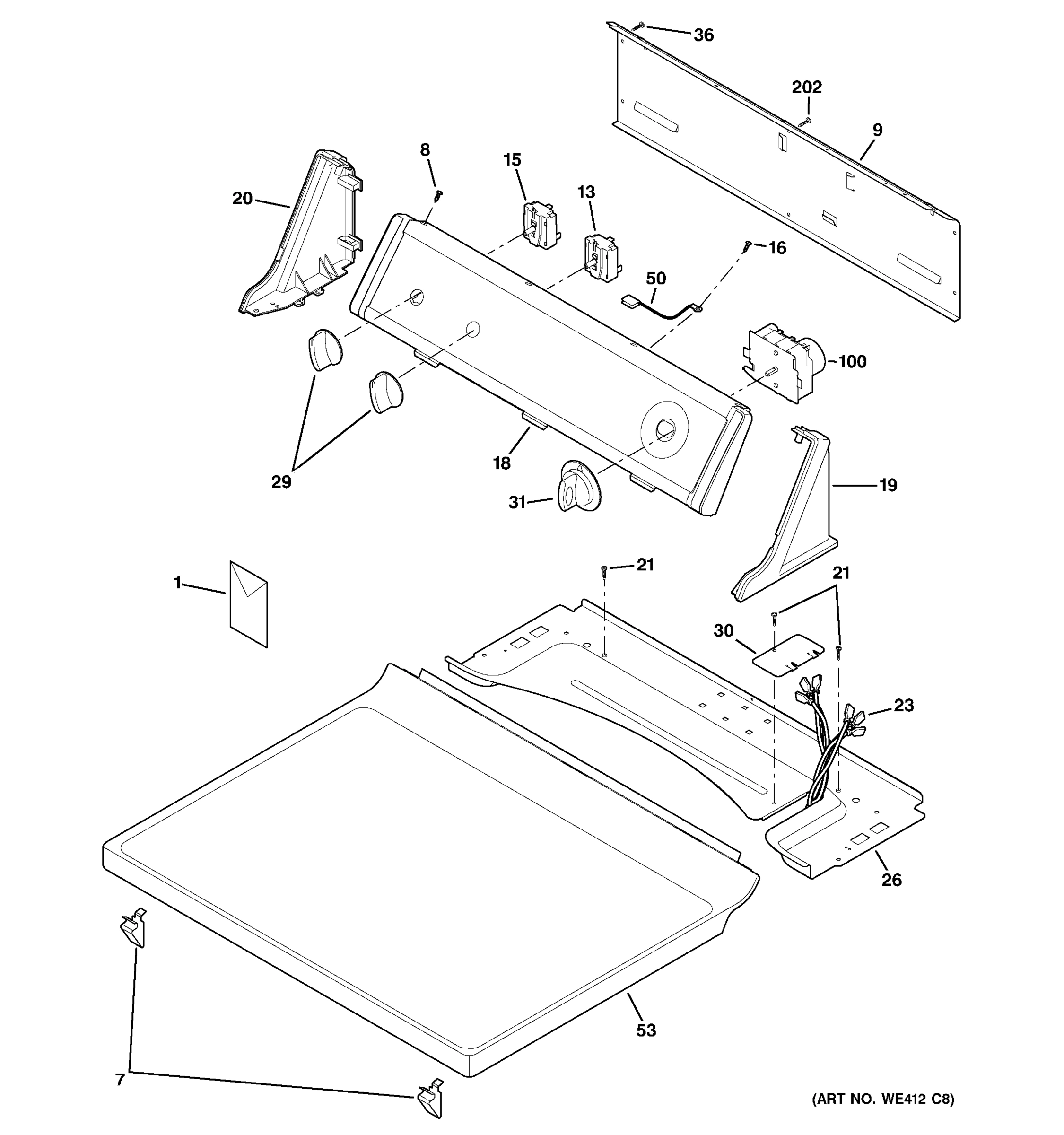

CONTROLS & TOP PANEL

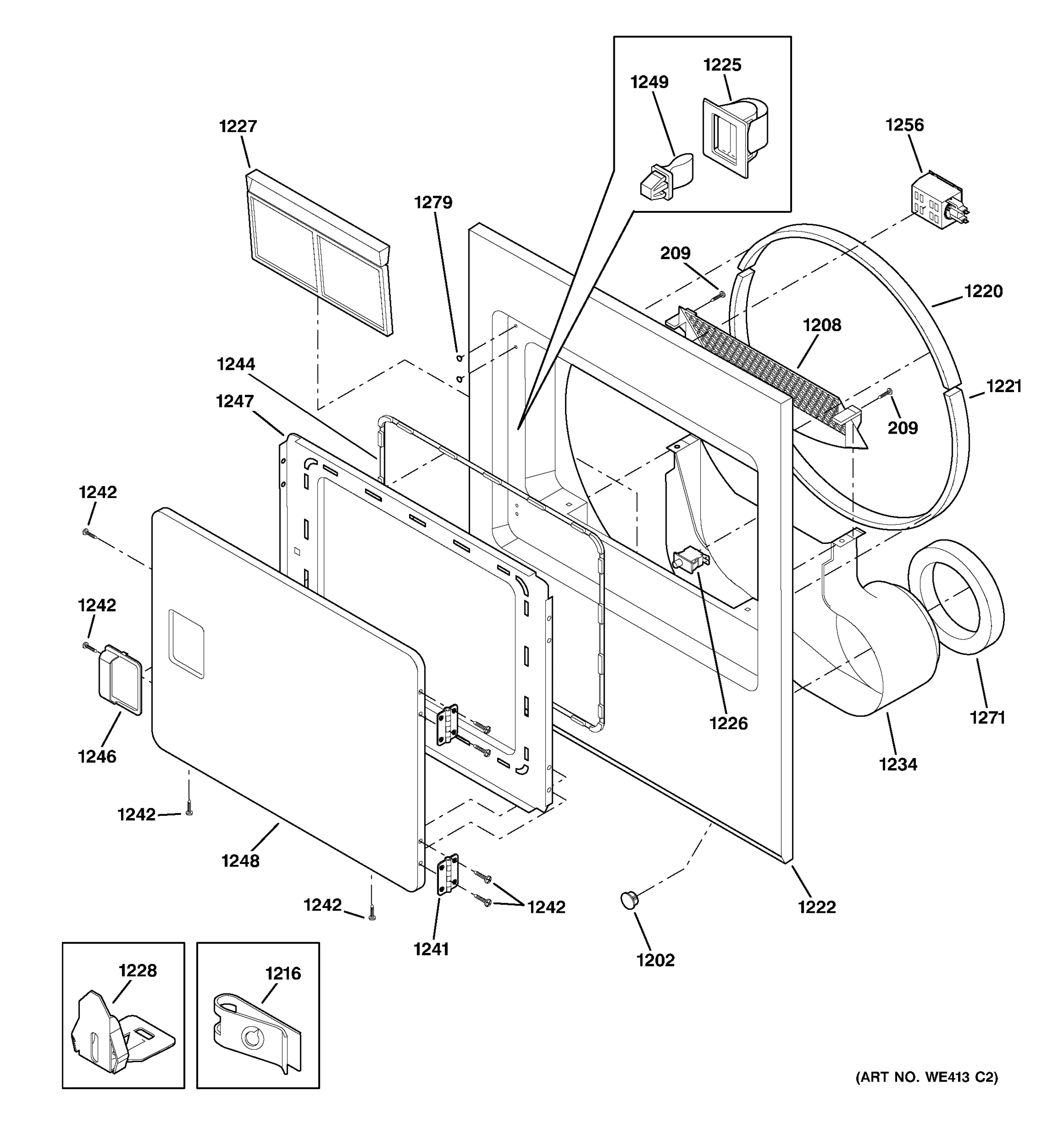

FRONT PANEL & LINT FILTER

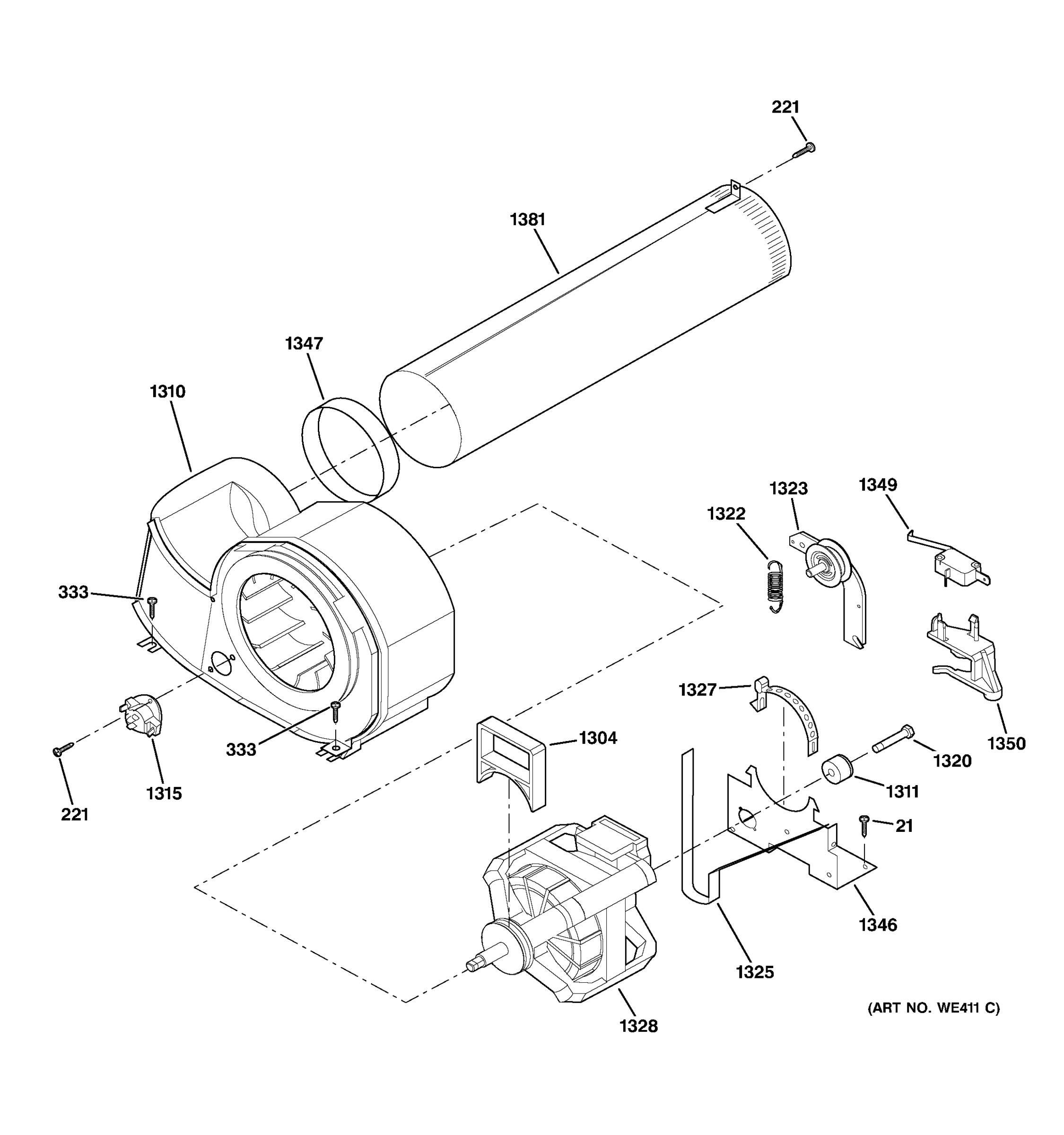

MOTOR
Common parts from model GE DBR453GA0WW Dryer Gas
1
GEN 31-15496 GEN 31-15496 Contact Us For Availability
1
GEN 49-90097 GEN 49-90097 Contact Us For Availability
1
GEN 49-9996 GEN 49-9996 Contact Us For Availability
1
KIT-GAS LP GEN WE25X10003 Contact Us For Availability
7
CLIP-TOP FRONT/PANEL GEN WE02X10009 Contact Us For Availability
8
SCR 8-18 X .50 FLT HD/SN GEN WE02X10021 Contact Us For Availability
9
GEN WE20X10010 GEN WE20X10010 Contact Us For Availability
13
GEN WE04X10085 GEN WE04X10085 Contact Us For Availability
16
GEN WE02X10050 GEN WE02X10050 Contact Us For Availability
18
GEN WE19X10049 GEN WE19X10049 Contact Us For Availability
19
GEN WE19X10020 GEN WE19X10020 Contact Us For Availability
20
GEN WE19X10022 GEN WE19X10022 Contact Us For Availability
21
SCREW, 8-18X0.31 GEN WR02X9494 Contact Us For Availability
23
GEN WE08X10032 GEN WE08X10032 Contact Us For Availability
26
GEN WE19X10035 GEN WE19X10035 Contact Us For Availability
30
GEN WE01X10034 GEN WE01X10034 Contact Us For Availability
36
GEN WH02X10007 GEN WH02X10007 Contact Us For Availability
50
GEN WE08X10006 GEN WE08X10006 Contact Us For Availability
53
GEN WE20X10011 GEN WE20X10011 Contact Us For Availability
202
SCREW, 8-18 X 1/2 GEN WH02X10013 Contact Us For Availability
209
SCREW-LOCK, 10-16 X .500 GEN WH02X10009 Contact Us For Availability
221
SCREW 8-18 AB X .375 GEN WH01X10004 Contact Us For Availability
333
GEN WH02X10028 GEN WH02X10028 Contact Us For Availability
1202
PLUG WH GEN WE01X10010 Contact Us For Availability
1208
GEN WE18X10005 GEN WE18X10005 Contact Us For Availability
1213
BRACKET BEARING GEN WE13X10009 Contact Us For Availability
1214
GEN WE02X10005 GEN WE02X10005 Contact Us For Availability
1216
GEN WE02X10010 GEN WE02X10010 Contact Us For Availability
1218
SCREW 10-16 X.375 GEN WE02X10006 Contact Us For Availability
1221
GEN WE09X0105 GEN WE09X0105 Contact Us For Availability
1222
GEN WE20X10042 GEN WE20X10042 Contact Us For Availability
1225
GEN WE01X10023 GEN WE01X10023 Contact Us For Availability
1226
GEN WE04X10046 GEN WE04X10046 Contact Us For Availability
1227
GEN WE18X10002 GEN WE18X10002 Contact Us For Availability
1228
GEN WE02X0361 GEN WE02X0361 Contact Us For Availability
1229
SCREW-VANE GEN WE02X10007 Contact Us For Availability
1234
GEN WE14X10022 GEN WE14X10022 Contact Us For Availability
1240
FOOT-CABINET GEN WE02X10012 Contact Us For Availability
1241
GEN WE01X10012 GEN WE01X10012 Contact Us For Availability
1242
SCREW, 8-18 AB X .44 GEN WH02X10038 Contact Us For Availability
1243
SCREW, 8-18 AB X.44 GEN WE02X10020 Contact Us For Availability
1244
GASKET DOOR GEN WE09X0107 Contact Us For Availability
1245
GEN WE01X10035 GEN WE01X10035 Contact Us For Availability
1246
HANDLE-DOOR WH GEN WE01X10013 Contact Us For Availability
1247
PANEL-INNER DOOR WH GEN WE10X10008 Contact Us For Availability
1248
DOOR-OUTER WH GEN WE10X10009 Contact Us For Availability
1249
STRIKE DOOR GEN WE01X1158 Contact Us For Availability
1256
GEN WE04X10058 GEN WE04X10058 Contact Us For Availability
1264
CLIP CABINET BTM GEN WE02X10013 Contact Us For Availability
1271
GEN WE09X10002 GEN WE09X10002 Contact Us For Availability
1279
GEN WE01X10011 GEN WE01X10011 Contact Us For Availability
1304
GEN WE01X10016 GEN WE01X10016 Contact Us For Availability
1310
GEN WE14X10025 GEN WE14X10025 Contact Us For Availability
1311
SPACER IDLER GEN WE01X10029 Contact Us For Availability
1315
THERMOSTAT CONTROL GEN WE04X10018 Contact Us For Availability
1320
SCREW HX HD 1/4-20TX1.25 GEN WE02X10014 Contact Us For Availability
1322
SPRING IDLER GEN WE01X10027 Contact Us For Availability
1323
GEN WE01X10057 GEN WE01X10057 Contact Us For Availability
1327
CLAMP MOTOR GEN WE01X10003 Contact Us For Availability
1346
BRACKET MOTOR GEN WE13X10006 Contact Us For Availability
1347
GEN WE09X10003 GEN WE09X10003 Contact Us For Availability
1349
SWITCH-BELT GEN WE04X10030 Contact Us For Availability
1350
GEN WE13X10008 GEN WE13X10008 Contact Us For Availability
1371
GEN WE04X10020 GEN WE04X10020 Contact Us For Availability
1373
ORIFICE NATURAL GAS GEN WE01X10022 Contact Us For Availability
1381
GEN WE14X10007 GEN WE14X10007 Contact Us For Availability
× ![]()
