Model Whirlpool DA9043 WASHER – Common Parts & Diagrams

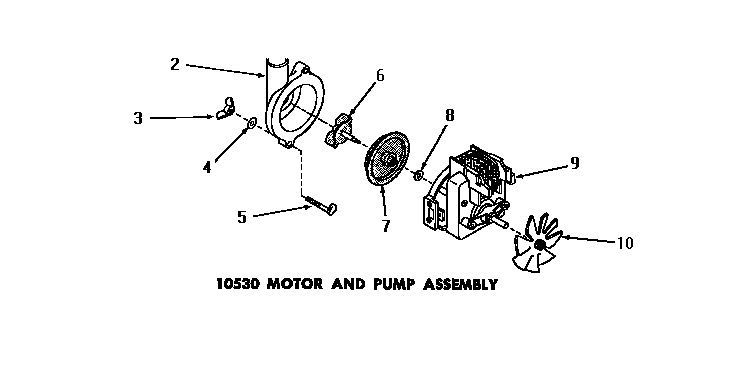

01 - 10530 MOTOR & PUMP ASSY

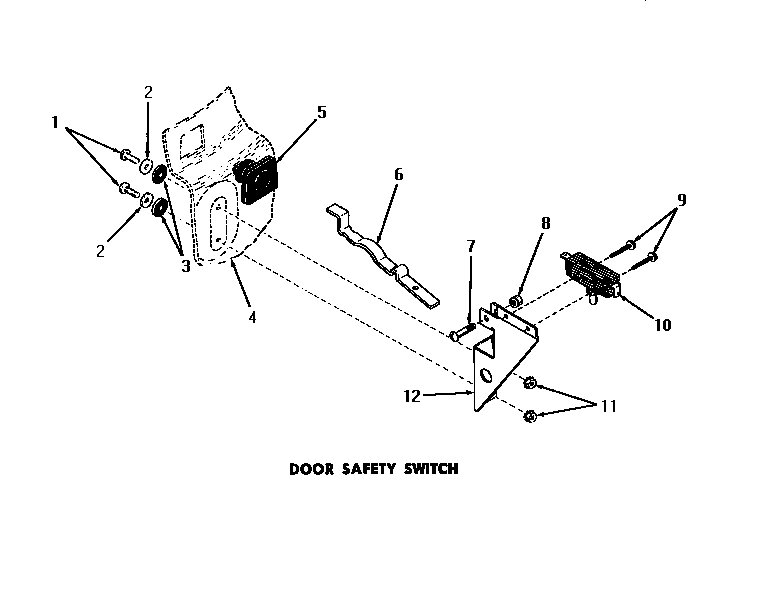

16 - DOOR SAFETY SWITCH

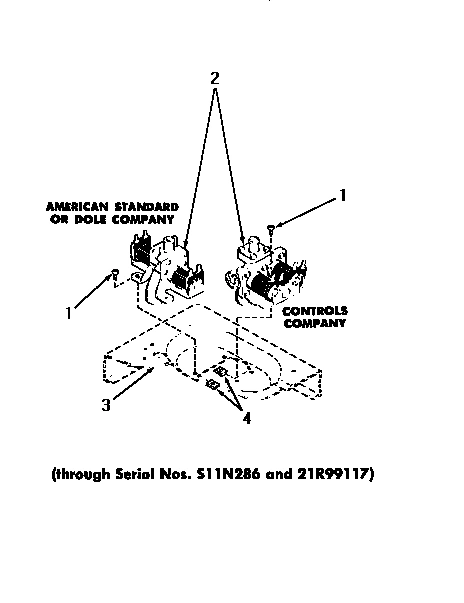

18 - MIXING VALVES

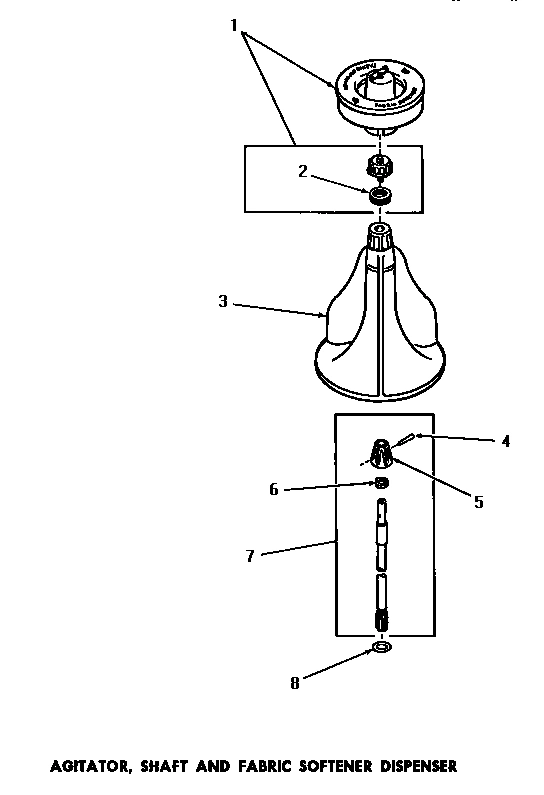

09 - AGITATOR, SHAFT & FABRIC SOFTENER DISP

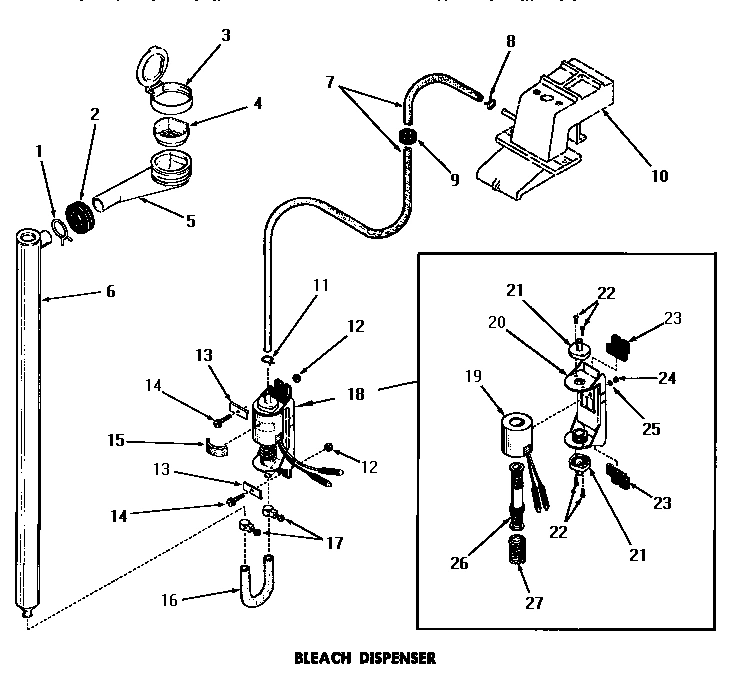

10 - BLEACH DISPENSER

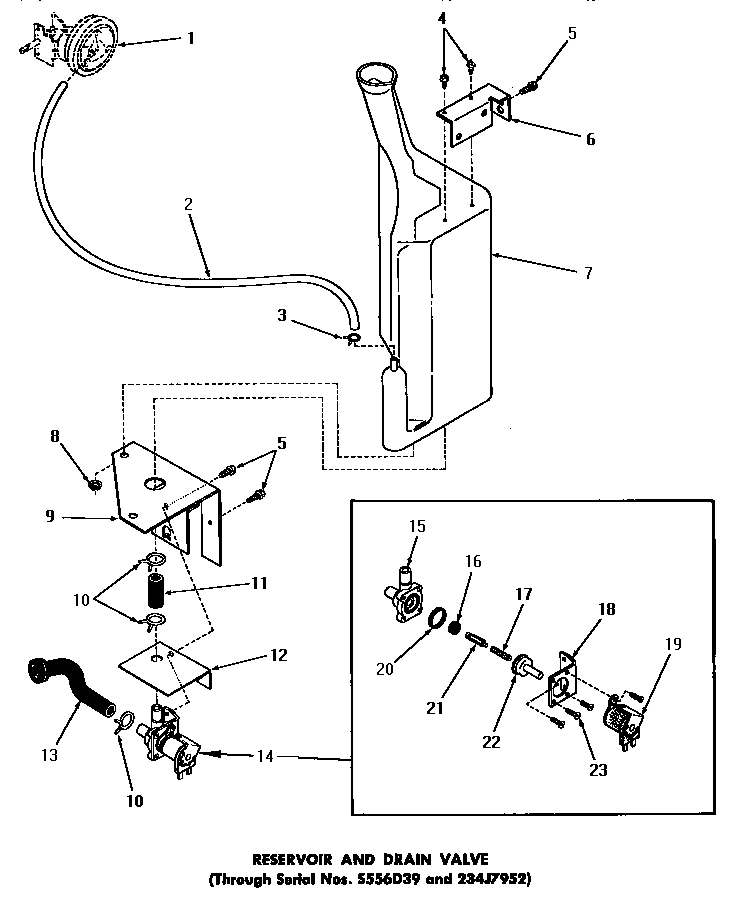

24 - RESERVOIR & DRAIN VALVE

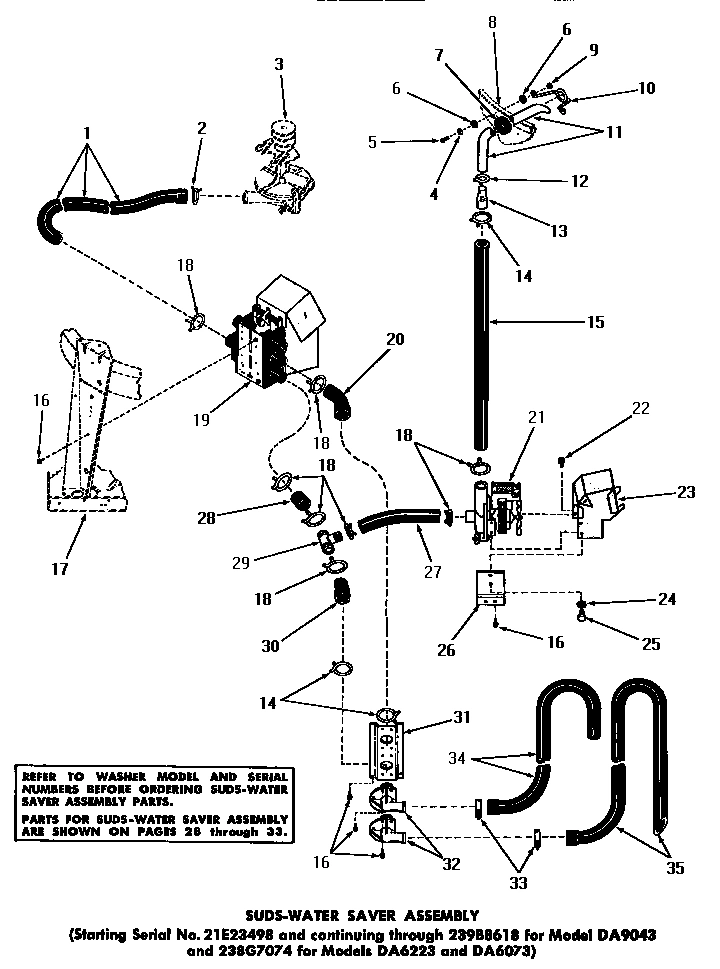

27 - SUDS-WATER SAVER ASSY

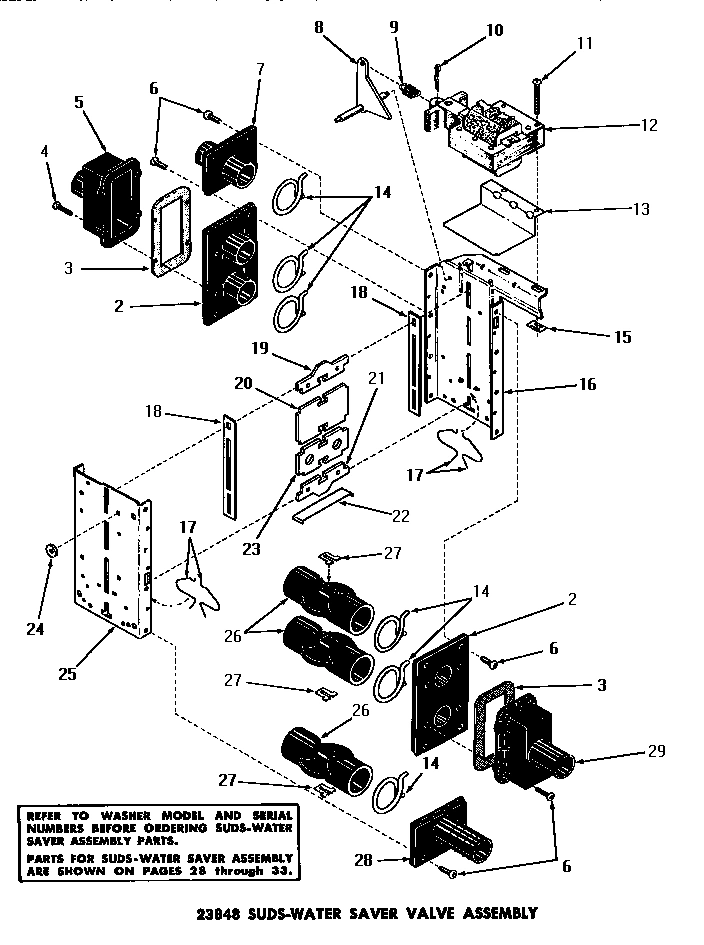

02 - 23848 SUDS-WATER SAVER VALVE ASSY

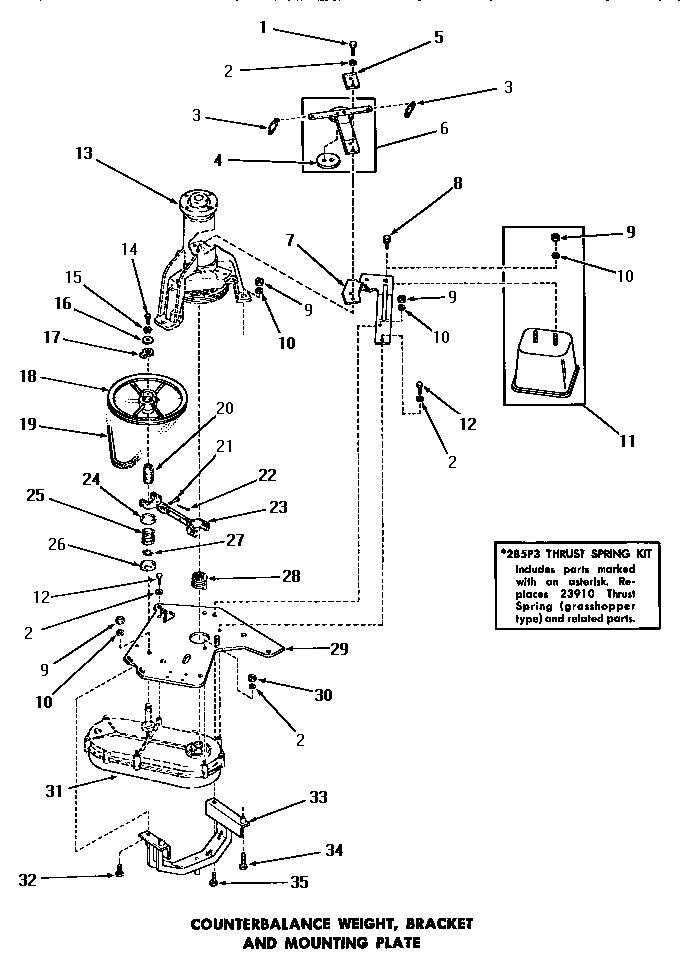

15 - COUNTERBALANCE WEIGHT, BRKT & MTG PLATE

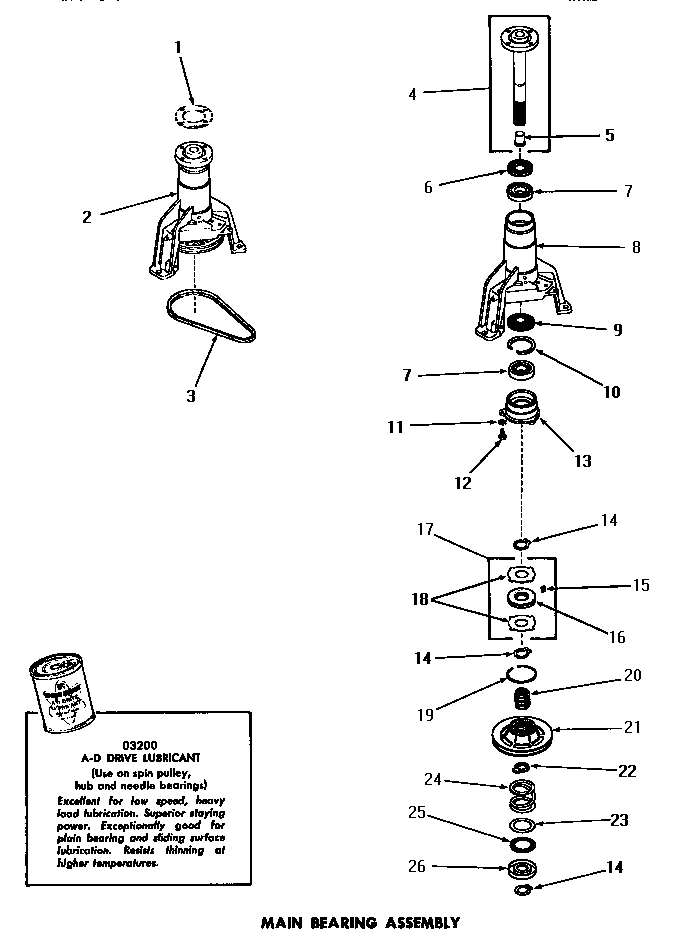

17 - MAIN BEARING ASSY

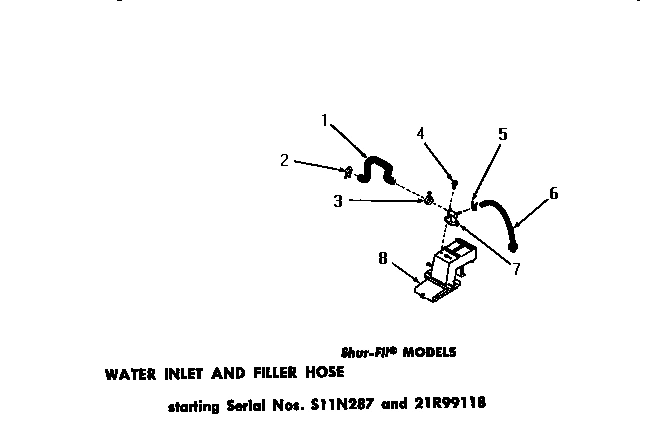

32 - WATER INLET & FILLER HOSE

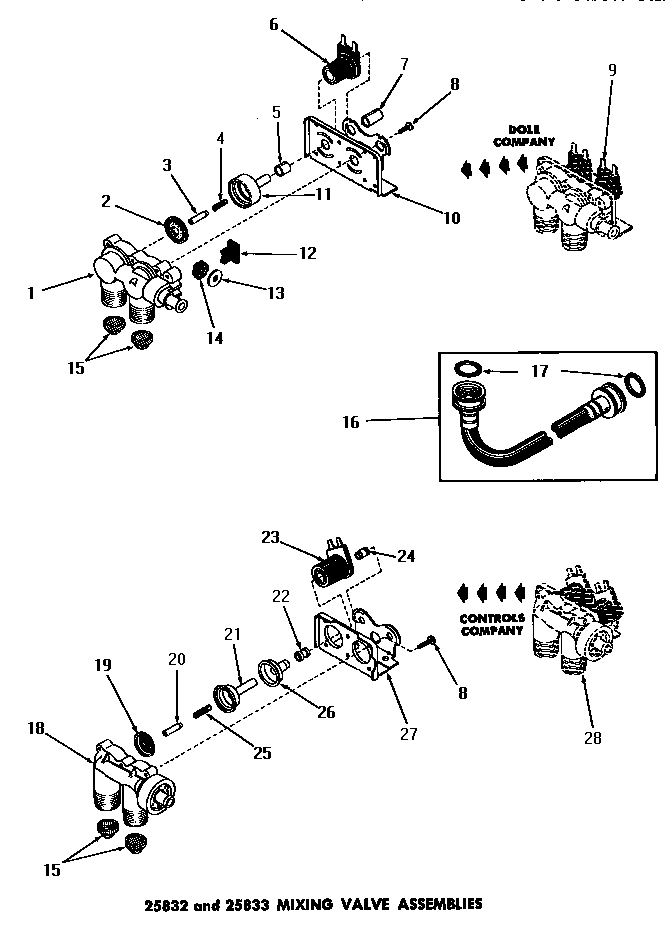

06 - 25832 & 25833 MIXING VALVE ASSEMBLIES

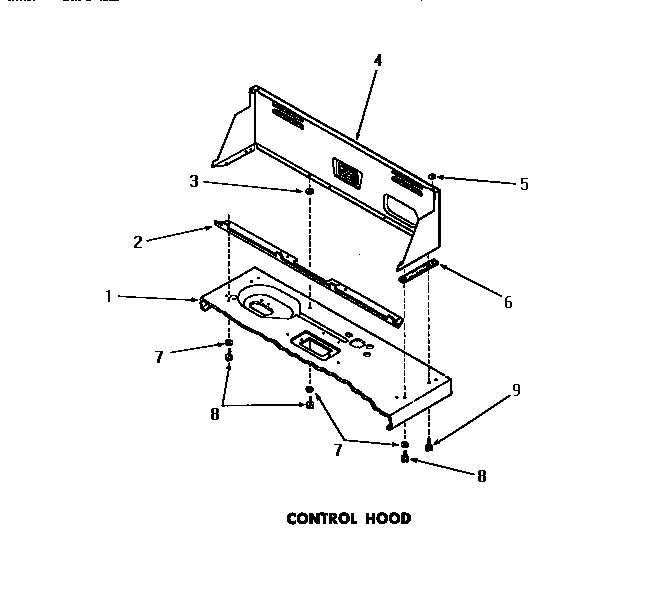

13 - CONTROL HOOD

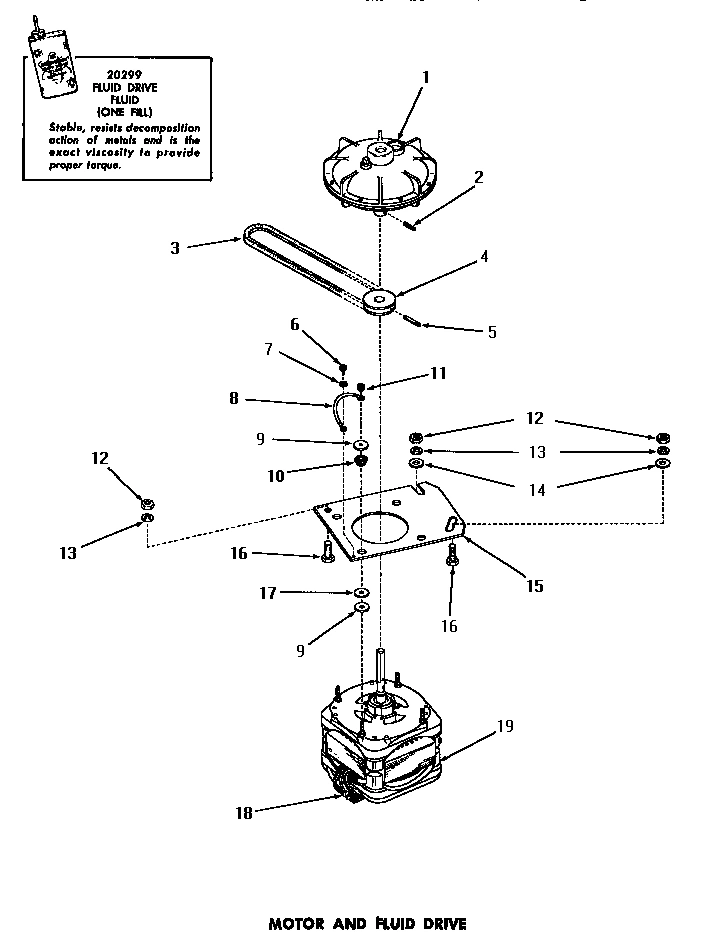

20 - MOTOR & FLUID DRIVE

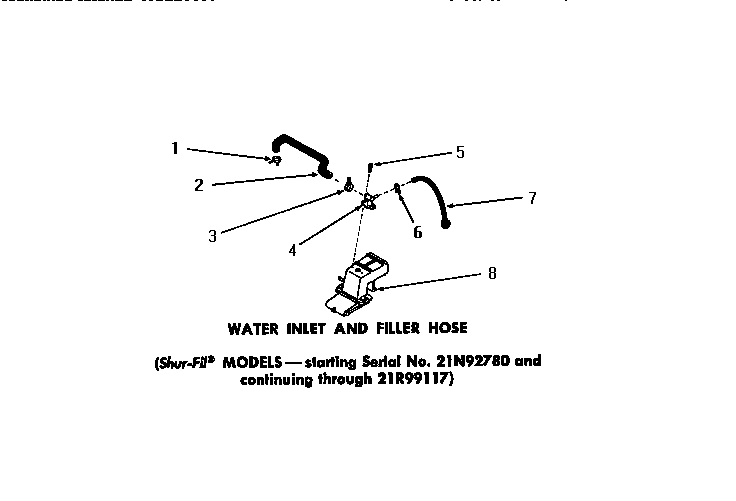

31 - WATER INLET & FILLER HOSE

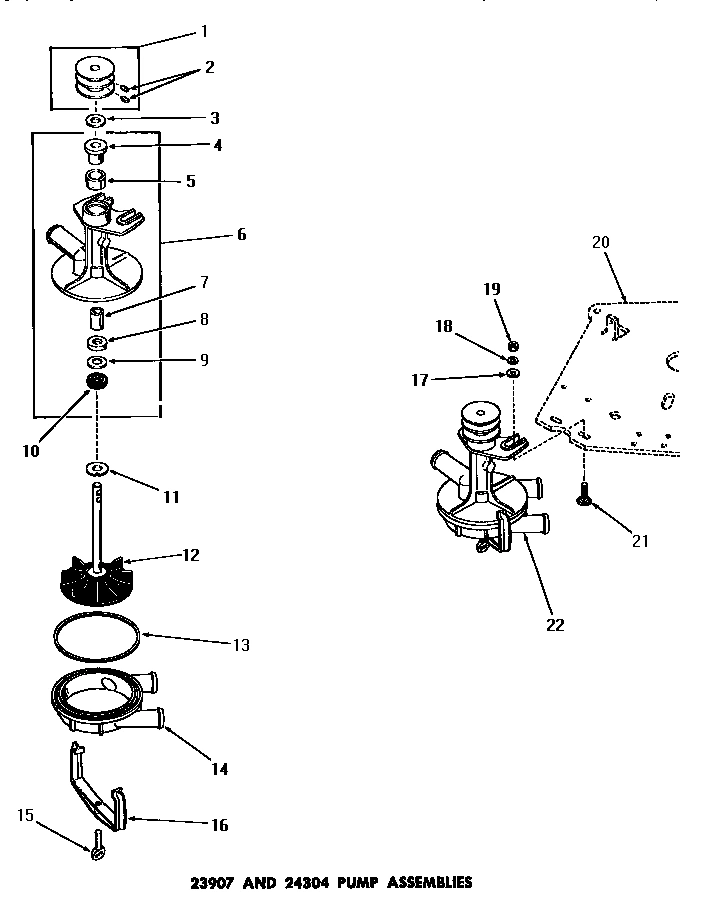

03 - 23907 & 24304 PUMP ASSEMBLIES

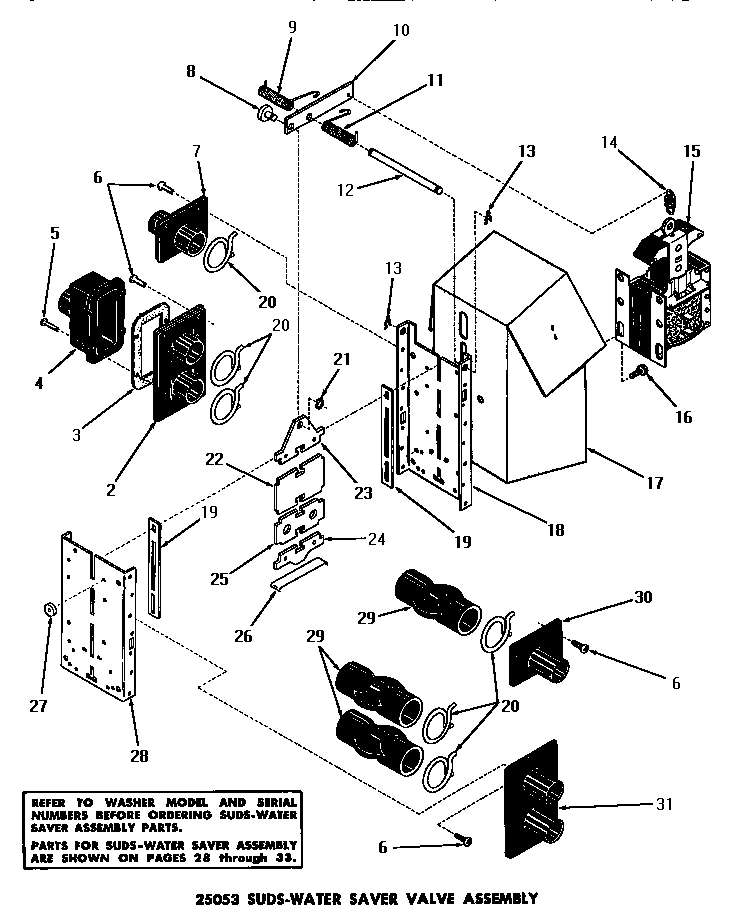

05 - 25053 SUDS-WATER SAVER VALVE ASSY

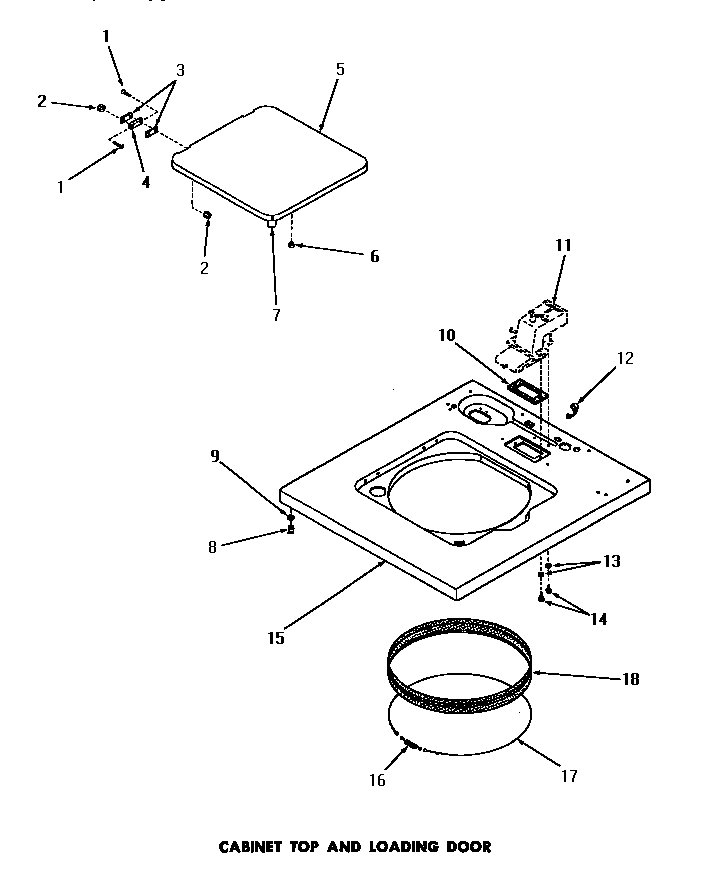

12 - CABINET TOP & LOADING DOOR

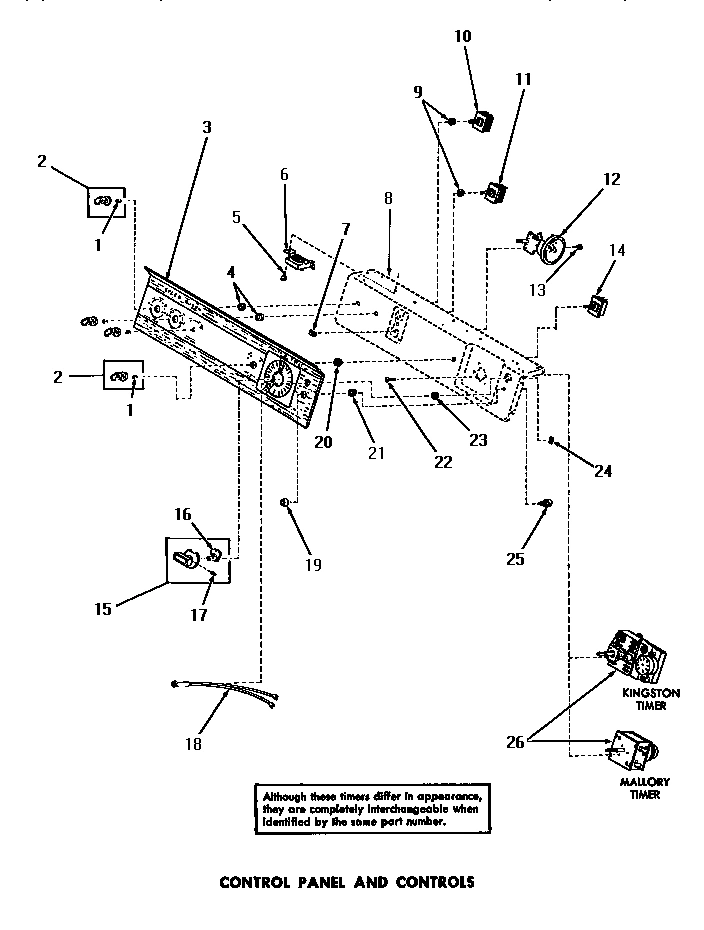

14 - CONTROL PANEL & CONTROLS

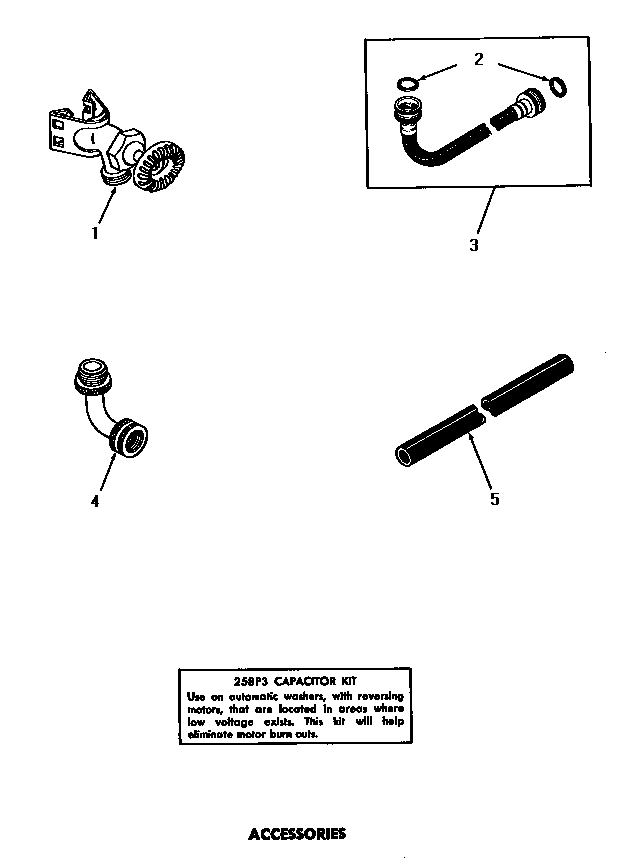

07 - ACCESSORIES

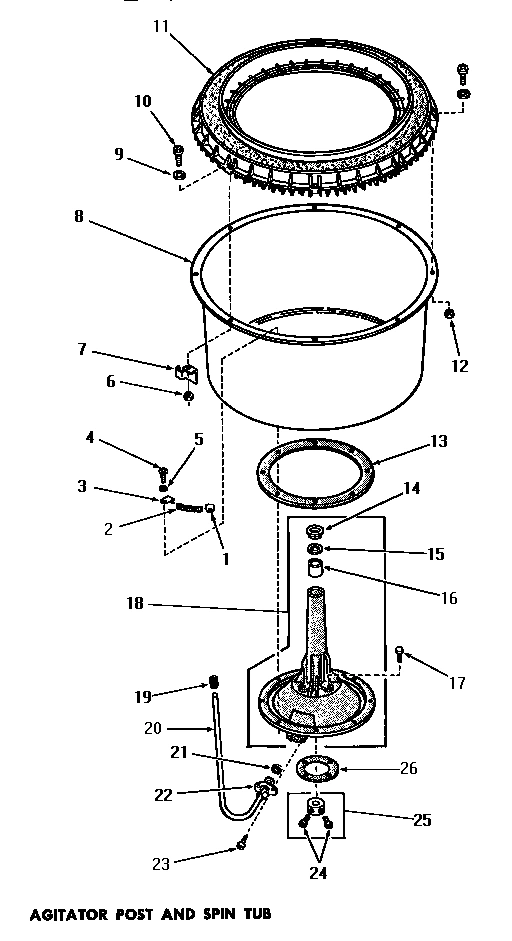

08 - AGITATOR POST & SPIN TUB

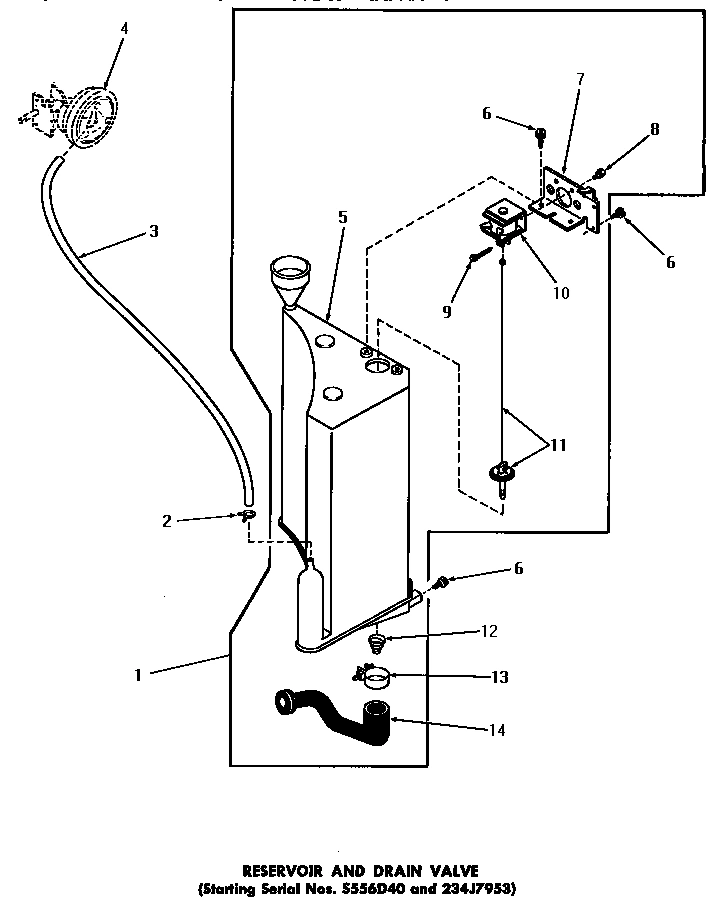

25 - RESERVOIR & DRAIN VALVE

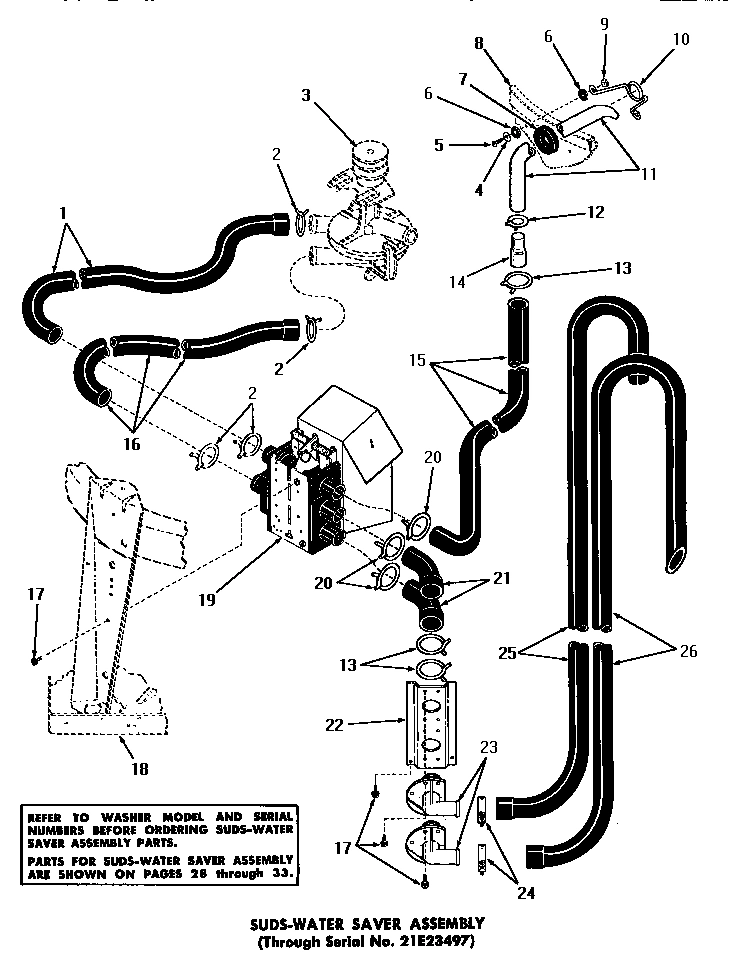

26 - SUDS-WATER SAVER ASSY

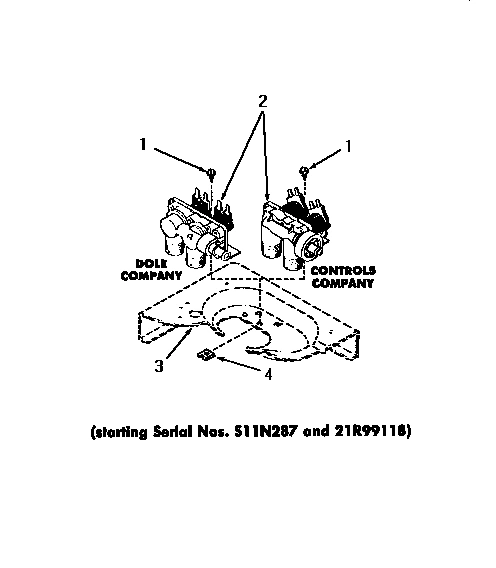

19 - MIXING VALVES

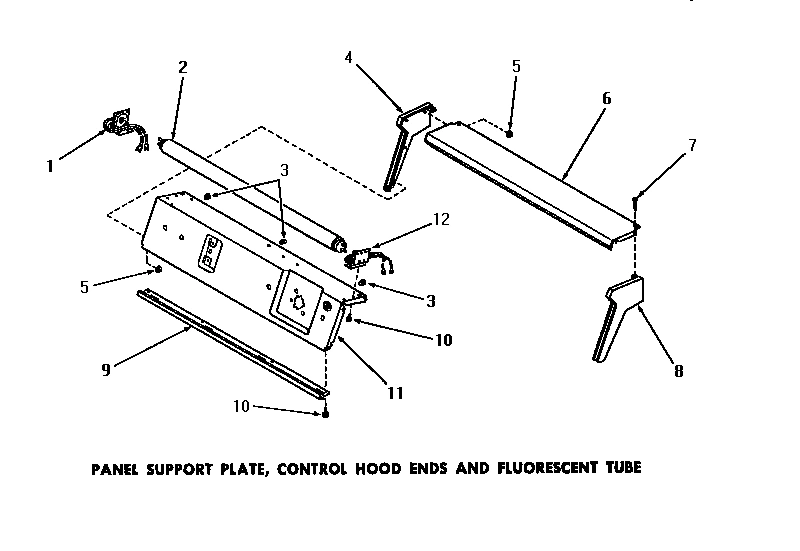

21 - PAN SUPP PLT/CTRL HOOD ENDS & FLOUR TUBE

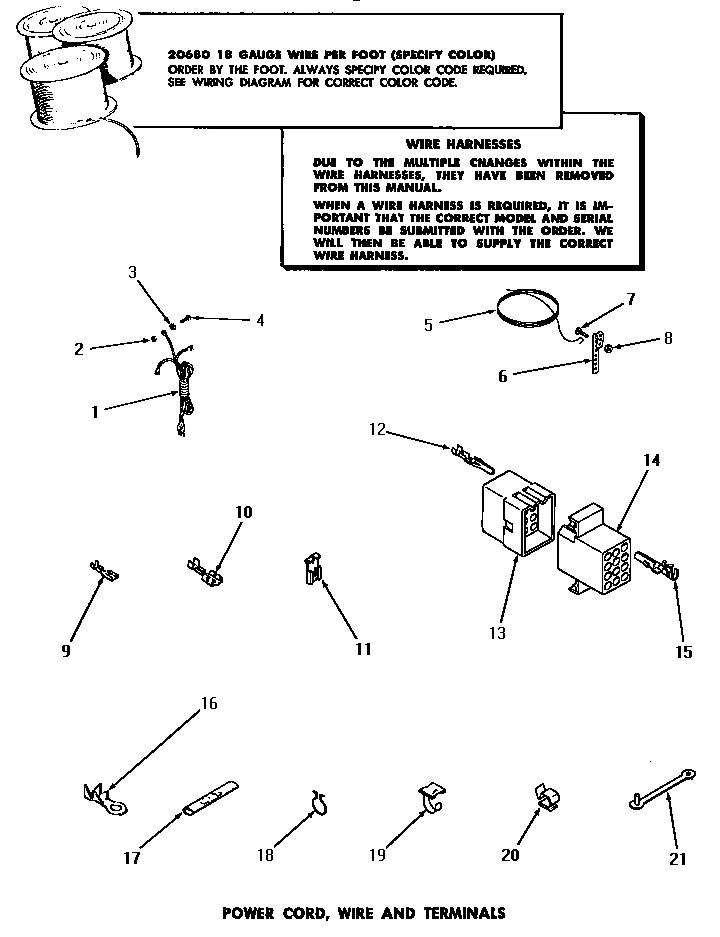

23 - POWER CORD, WIRE & TERMINALS

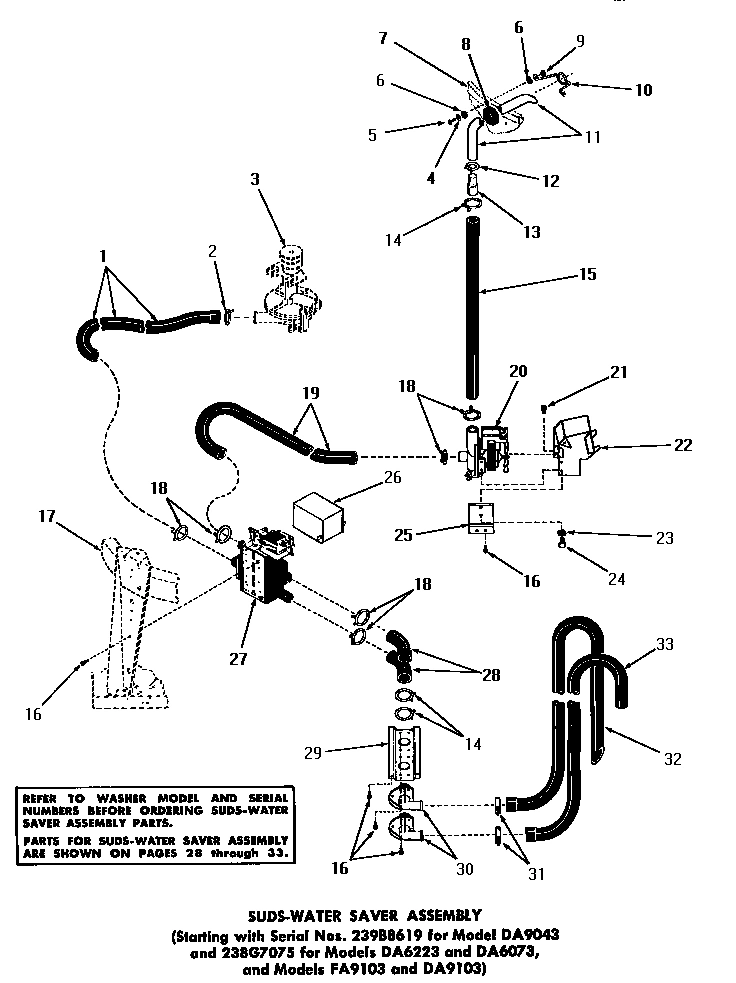

28 - SUDS-WATER SAVER ASSY

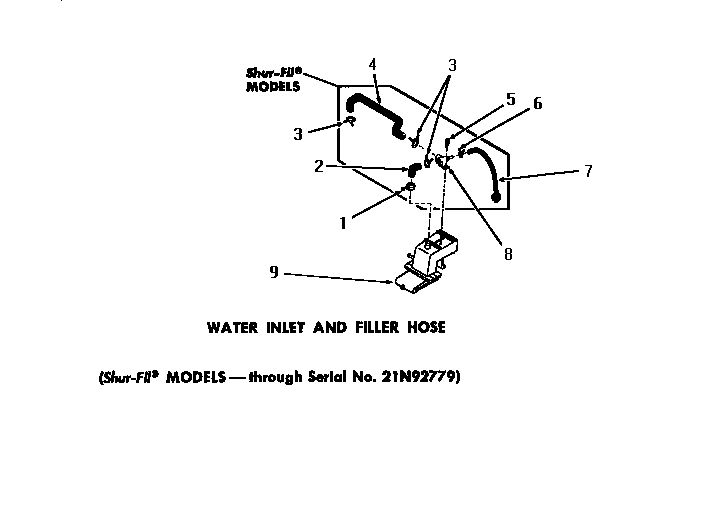

30 - WATER INLET & FILLER HOSE

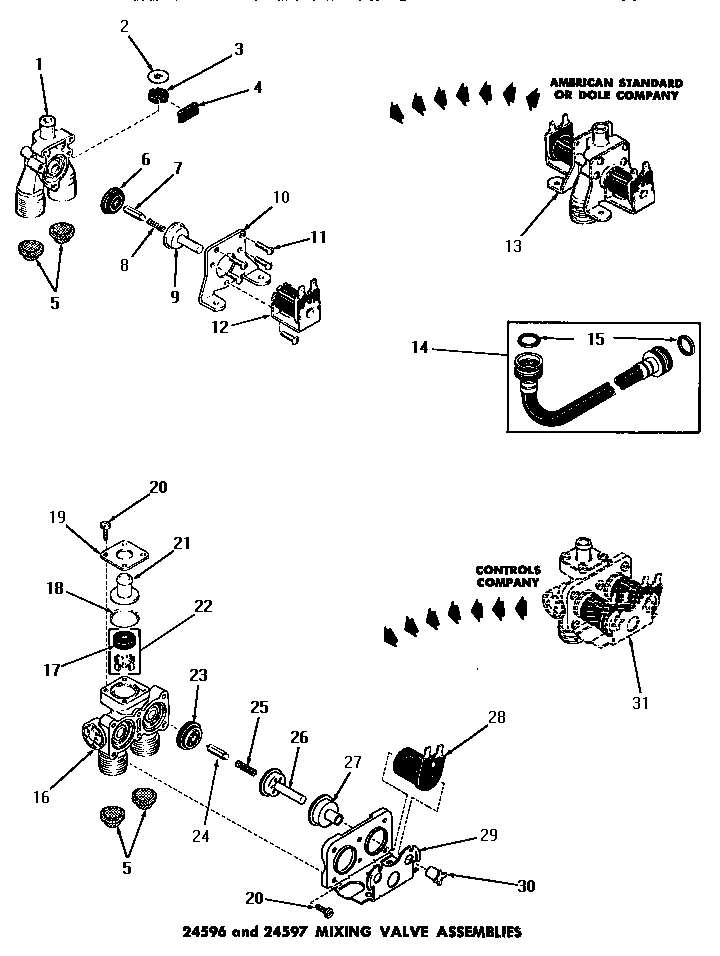

04 - 24596 & 24597 MIXING VALVE ASSEMBLIES

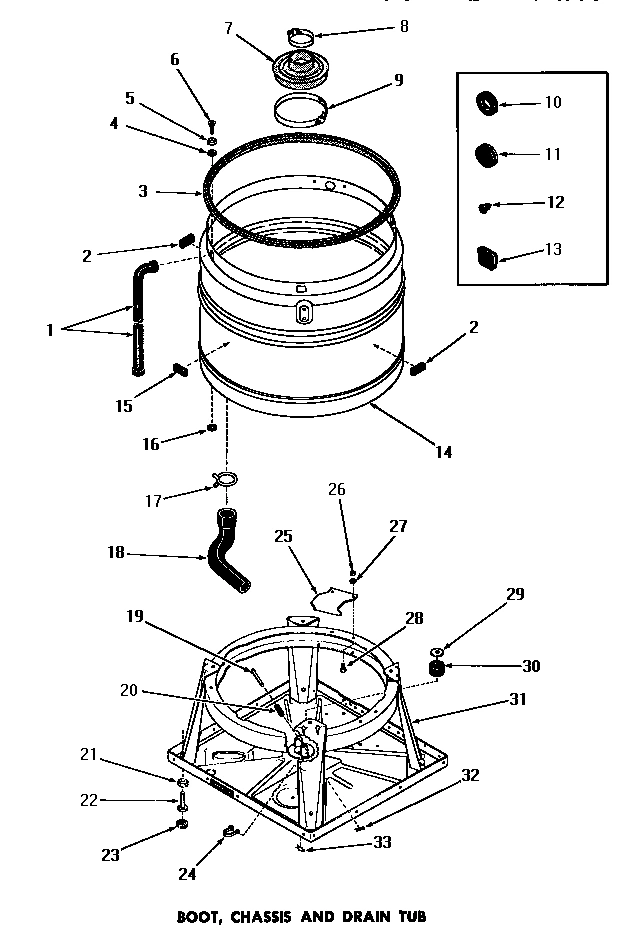

11 - BOOT, CHASSIS & DRAIN TUB

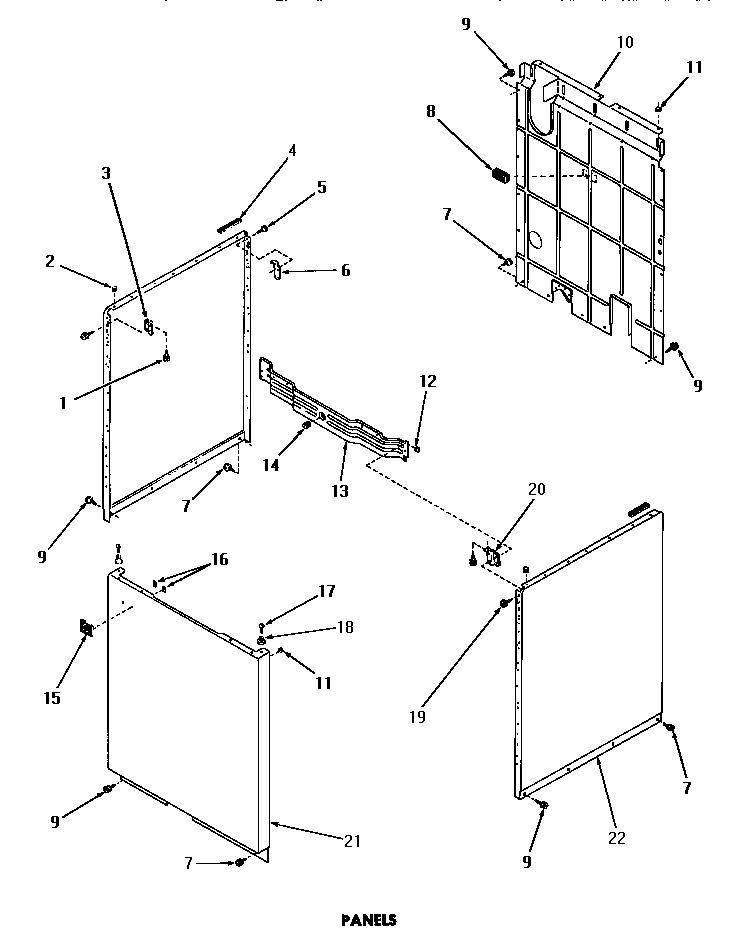

22 - PANELS

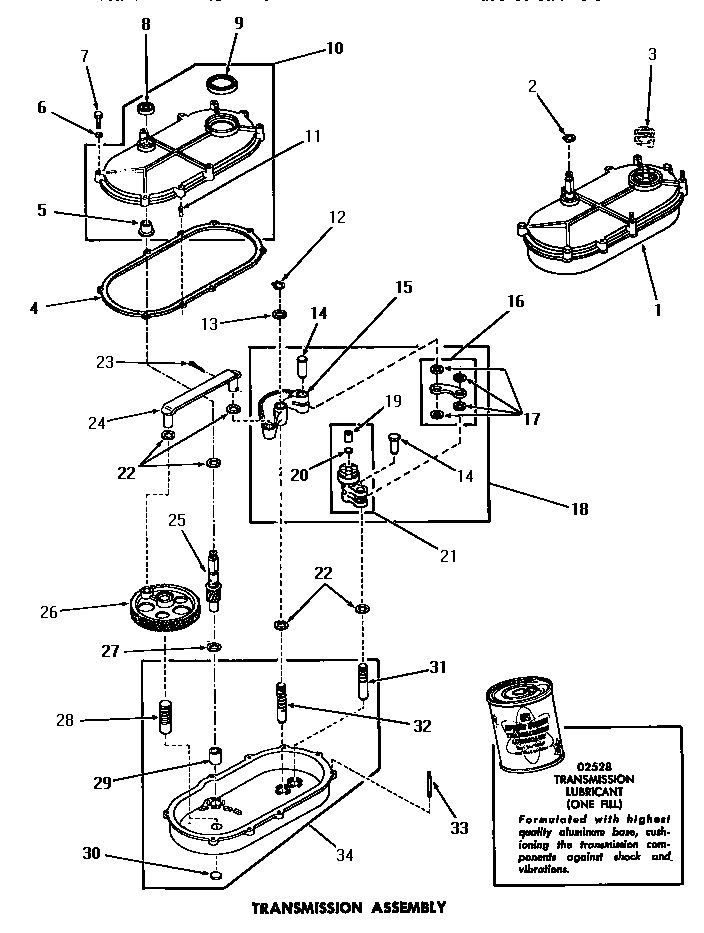

29 - TRANSMISSION ASSY
Common parts from model Whirlpool DA9043 WASHER
ALTHOUGH THESE MIXING VALVES DIFFER IN APPEAR WPL NOTE Contact Us For Availability
1
SCREW,8B-18 X 1/2 RD H WPL 51778 Contact Us For Availability
1
ASSY,DISPENSER-FAB-SOF WPL 23546 Contact Us For Availability
1
ASSY,CAP & RING-AGITAT WPL 26015 Contact Us For Availability
1
CLAMP WPL Y03640 Contact Us For Availability
1
NO LONGER AVAILABLE WPL 24575 Contact Us For Availability
1
SCREW,CAP-1/4-20 X 3/4 WPL 24233 Contact Us For Availability
1
HOSE,FILLER WPL 25821 Contact Us For Availability
1
BODY,VALVE WPL 24125 Contact Us For Availability
1
ASSY,FLUID DRIVE WPL 24706 Contact Us For Availability
1
ASSY,PULLEY WPL 23902 Contact Us For Availability
1
SCREW,8-32 X 13/32 FL WPL 22649 Contact Us For Availability
1
CLIP FOR 26816 KNOB WPL 23392 Contact Us For Availability
1
SADDLE FAUCETS, PAIR WPL 20655 Contact Us For Availability
1
CLIP WPL 22446 Contact Us For Availability
1
ASSY,PRESSURE TANK-COM WPL 26003 Contact Us For Availability
1
WIRING DIAGRAM WPL 24576 Contact Us For Availability
1
FLUORESCENT TUBE HOLDER, LEFT WPL 23398 Contact Us For Availability
1
POWER CORD AND PLUG WPL 22660 Contact Us For Availability
1
BODY,VALVE WPL 20678 Contact Us For Availability
1
HOSE WPL 22818 Contact Us For Availability
1
SCREW,10-24 X 3/4 SEMS WPL 23008 Contact Us For Availability
1
ASSY,TRANSMISSION WPL 23828 Contact Us For Availability
2
PUMP COVER WPL 10277 Contact Us For Availability
2
MIXING VALVE ASSEMBLY WPL 24597 Contact Us For Availability
2
RING WPL 20136 Contact Us For Availability
2
NO LONGER AVAILABLE WPL 20210 Contact Us For Availability
2
DOUBLE TUBE HOSE ADAPTER WPL 21296X Contact Us For Availability
2
ASSY,BEARING HOUSING-M WPL 26018 Contact Us For Availability
2
DIAPHRAGM WPL 24134 Contact Us For Availability
2
DIFFUSER WPL 23224G Contact Us For Availability
2
ANGLE WPL 23360 Contact Us For Availability
2
PIN,ROLL WPL 24703 Contact Us For Availability
2
SCREW,1/4-20 X5/16 HEX WPL 23960 Contact Us For Availability
2
NUT,8-32 HEX BRILOCK WPL 21752 Contact Us For Availability
2
BUMPER WPL 21176 Contact Us For Availability
2
ASSY,KNOB WPL 24291 Contact Us For Availability
2
SPRING WPL 22144 Contact Us For Availability
2
NO LONGER AVAILABLE WPL 24442 Contact Us For Availability
2
NUT WPL 03673 Contact Us For Availability
2
FILLER ELBOW HOSE WPL 24432 Contact Us For Availability
2
PAD,BUMPER WPL 23258 Contact Us For Availability
3
NUT,WING xREPLACE WPL 10280 Contact Us For Availability
3
SEE NOTE SHIFT CLUTCH WPL Y00000000 Contact Us For Availability
3
ASSY,AGITATOR WPL 26006 Contact Us For Availability
3
BLEACH LID WPL 22484 Contact Us For Availability
3
NO LONGER AVAILABLE WPL 24444 Contact Us For Availability
3
HOSE CLAMP WPL 80479 Contact Us For Availability
3
GASKET WPL 21296I Contact Us For Availability
3
SPRING WPL 23632 Contact Us For Availability
3
BELT WPL 23759 Contact Us For Availability
3
ARMATURE WPL 24132 Contact Us For Availability
3
REGULATOR,FLOW WPL 23224C Contact Us For Availability
3
WASHER,7/32IDX7/16ODX. WPL 23425 Contact Us For Availability
3
WASHER,.566IDX1.00ODX1 WPL 23897 Contact Us For Availability
3
GASKET WPL 21584 Contact Us For Availability
3
CONTROL PANEL WPL 24504 Contact Us For Availability
3
HOSE, INLET (8 FT) WPL 20617 Contact Us For Availability
3
HOSE, INLET (10 FT) WPL 20618 Contact Us For Availability
3
CLIP WPL 22447 Contact Us For Availability
3
LOCKWASHER,No.10 EXT SHK WPL 03815 Contact Us For Availability
3
GASKET WPL 21233 Contact Us For Availability
3
BRACKET WPL 22847 Contact Us For Availability
3
BRACKET,HOLD DOWN-L.H. WPL 26691 Contact Us For Availability
4
WASHER WPL 10279 Contact Us For Availability
4
WASHER WPL 20492 Contact Us For Availability
4
NUT,SPEED WPL 23277 Contact Us For Availability
4
PIN,TAPER WPL 20243 Contact Us For Availability
4
COVER,DISPENSER WPL 21984 Contact Us For Availability
4
PHILLIPS HEAD SCREW WPL 21296H Contact Us For Availability
4
MANIFOLD COVER WPL 22007A Contact Us For Availability
4
DISC,FRICTION WPL 20453 Contact Us For Availability
4
ASSY,SPIN SHAFT WPL 23731 Contact Us For Availability
4
TEE,INLET WPL 25952 Contact Us For Availability
4
SPRING WPL 24131 Contact Us For Availability
4
CONTROL HOOD, AVOCADO WPL 24330A Contact Us For Availability
4
CONTROL HOOD, COPPERTONE WPL 24330C Contact Us For Availability
4
CONTROL HOOD, HARVEST GOLD WPL 24330H Contact Us For Availability
4
CONTROL HOOD, WHITE WPL 24330W Contact Us For Availability
4
PULLEY,DRIVE WPL 26116 Contact Us For Availability
4
FILLER HOSE WPL 24445 Contact Us For Availability
4
BEARING WPL 23882 Contact Us For Availability
4
HINGE WPL 21583 Contact Us For Availability
4
KNURLED NUT WPL 24391 Contact Us For Availability
4
90 DEGREE INLET ELBOW WPL 20656 Contact Us For Availability
4
SCREW,5/16-18 X 3/4 RD WPL 20260 Contact Us For Availability
4
WIRING DIAGRAM WPL 23367 Contact Us For Availability
4
SCREW,10-24 X 3/8 ROUND WPL 20267 Contact Us For Availability
4
PLUG WPL 21561D Contact Us For Availability
4
GROMMET WPL 20112 Contact Us For Availability
4
BUMPER PAD WPL 80312 Contact Us For Availability
4
GASKET WPL 20059 Contact Us For Availability
5
BOLT,J xREPLACE WPL 10278 Contact Us For Availability
5
SCREW,10-24 X 1/2 RD H WPL 21081 Contact Us For Availability
5
DIAPHRAGM WPL 23591 Contact Us For Availability
5
BLOCK, DRIVE WPL 20056 Contact Us For Availability
5
DISPENSER xREPLACE WPL 22377 Contact Us For Availability
5
PLATE,SUPPORT WPL 22614 Contact Us For Availability
5
BEARING WPL 25854 Contact Us For Availability
5
SLEEVE,SHORT WPL 24129 Contact Us For Availability
5
PIN,ROLL WPL 23750 Contact Us For Availability
5
WICK WPL 26478 Contact Us For Availability
5
PHILLIPS HEAD SCREW WPL 22007B Contact Us For Availability
5
LOADING DOOR, AVOCADO WPL 22271A Contact Us For Availability
5
LOADING DOOR, COPPERTONE WPL 22271C Contact Us For Availability
5
LOADING DOOR, HARVEST GOLD WPL 22271H Contact Us For Availability
5
LOADING DOOR, WHITE WPL 22271W Contact Us For Availability
5
EXTENSION, DRAIN HOSE (1 FT) WPL 20616 Contact Us For Availability
5
GASKET WPL 20121 Contact Us For Availability
5
RESERVOIR WPL 25993 Contact Us For Availability
5
NUT WPL 23409 Contact Us For Availability
5
GROUND WIRE WPL Y21429 Contact Us For Availability
5
INLET SCREEN WPL 201810 Contact Us For Availability
5
WASHER WPL 20111 Contact Us For Availability
5
BEARING WPL 20082 Contact Us For Availability
6
IMPELLER 625-0034 xREPLACE WPL 10276 Contact Us For Availability
6
WASHER WPL 02928 Contact Us For Availability
6
ARM WPL 23592 Contact Us For Availability
6
WASHER, 21/32 ID X 1.156 OD WPL 20057 Contact Us For Availability
6
TUBE,BLEACH WPL 22303 Contact Us For Availability
6
UPPER BRACKET WPL 24394 Contact Us For Availability
6
PHILLIPS HEAD SCREW WPL 21296J Contact Us For Availability
6
LOCKWASHER,1/4 STD-C P WPL 03189 Contact Us For Availability
6
ASSY,SNUBBER WPL 20168 Contact Us For Availability
6
SEAL WPL Y21659 Contact Us For Availability
6
SOLENOID WPL 24126 Contact Us For Availability
6
GASKET,CONTROL BOX END WPL 23028 Contact Us For Availability
6
ASSY,PUMP BODY WPL 23901 Contact Us For Availability
6
BALLAST WPL 21975 Contact Us For Availability
6
NUT,SELF-LOCKING WPL 26678 Contact Us For Availability
6
CONTROL HOOD TOP WPL 23383 Contact Us For Availability
6
STRAP,GROUND WPL 21430 Contact Us For Availability
6
DIAPHRAGM WPL 23224F Contact Us For Availability
6
SCREW WPL 20259 Contact Us For Availability
6
LUG,HOLD-DOWN WPL 52487 Contact Us For Availability
7
GASKET & SEAL WPL 10275 Contact Us For Availability
7
SCREW,10-24X15/16 HEX WPL Y02370 Contact Us For Availability
7
AGITATOR SHAFT ASSEMBLY WPL 21751 Contact Us For Availability
7
HOSE WPL 22300 Contact Us For Availability
7
LOCKWASHER,No.10 INTSHKP WPL 21735 Contact Us For Availability
7
RESERVOIR WPL 24430 Contact Us For Availability
7
BRACKET WPL 25139 Contact Us For Availability
7
BEARING WPL 20012 Contact Us For Availability
7
HOSE WPL 24439 Contact Us For Availability
7
SLEEVE,LONG WPL 24128 Contact Us For Availability
7
NUT,SPEED-8AB-18 C1995 WPL 24522 Contact Us For Availability
7
BEARING WPL 23883 Contact Us For Availability
7
CATCH,LID SWITCH WPL 25217 Contact Us For Availability
7
BRACKET WPL 22025 Contact Us For Availability
7
BRACKET WPL Y26000 Contact Us For Availability
7
SCREW,8AB-18X7/8 OVAL WPL 25232 Contact Us For Availability
7
ROUND HEAD SCREW WPL 21431 Contact Us For Availability
7
ARMATURE WPL 23224D Contact Us For Availability
7
BOOT WPL 20129 Contact Us For Availability
7
SCREW,1/4-20 X 1-1/4 H WPL 20257 Contact Us For Availability
8
FLINGER WPL 10274 Contact Us For Availability
8
WASHER WPL 22135 Contact Us For Availability
8
HOSE CLAMP WPL 23410 Contact Us For Availability
8
WIRING DIAGRAM WPL 24441 Contact Us For Availability
8
LEVER WPL 22574S Contact Us For Availability
8
CAP SCREW AND LOCKWASHER WPL 23928 Contact Us For Availability
8
HOUSING,MAIN BEARING WPL 25979 Contact Us For Availability
8
ASSY,WATER INLET WPL 25955 Contact Us For Availability
8
SCREW WPL 25817C Contact Us For Availability
8
GROUND WIRE WPL 25484 Contact Us For Availability
8
WASHER,8/16IDX1.00ODX. WPL 23885 Contact Us For Availability
8
ACTUATING PIN WPL 24292C Contact Us For Availability
8
CAGED NUT WPL 23007 Contact Us For Availability
8
TUB,SPIN WPL 22382 Contact Us For Availability
8
SCREW,10-32X5/16 SEMS WPL Y03950 Contact Us For Availability
8
WIRING DIAGRAM WPL 23368 Contact Us For Availability
8
NUT WPL Y20276 Contact Us For Availability
8
TEE,INLET xREPLACE WPL 24275 Contact Us For Availability
8
SPRING WPL 23224E Contact Us For Availability
8
UPPER CLAMP WPL 20107 Contact Us For Availability
8
PAD,BUMPER WPL 23257 Contact Us For Availability
8
SEAL WPL 20200 Contact Us For Availability
9
MOTOR WPL 10273 Contact Us For Availability
9
SCREW,6B-20 X 7/8 HEX WPL 51783 Contact Us For Availability
9
GROMMET WPL 22299 Contact Us For Availability
9
LOWER BRACKET WPL 24393 Contact Us For Availability
9
NUT WPL 21080 Contact Us For Availability
9
SPRING WPL 21296E Contact Us For Availability
9
PIN,COTTER WPL 20248 Contact Us For Availability
9
SLINGER,WATER WPL 26247 Contact Us For Availability
9
HEX HEAD SCREW WPL 25724 Contact Us For Availability
9
WASHER WPL 20103 Contact Us For Availability
9
WASHER,37/64IDX63/64OD WPL 23887 Contact Us For Availability
9
TORSION SPRING, LEFT WPL 24292E Contact Us For Availability
9
LOCKWASHER,.448X.789SH WPL 24861 Contact Us For Availability
9
LOCKWASHER,3/8 INTSHKP WPL 91176 Contact Us For Availability
9
WASHER,17/64IDX1/2ODX. WPL 25100 Contact Us For Availability
9
PANEL TRIM WPL 23390 Contact Us For Availability
9
TERMINAL,SPADE-3/16 FE WPL 00112 Contact Us For Availability
9
ASSY,WATER INLET WPL 23366 Contact Us For Availability
9
GUIDE WPL 23224B Contact Us For Availability
9
LOWER CLAMP WPL 20108 Contact Us For Availability
9
HEX HEAD SCREW WPL 26592 Contact Us For Availability
9
SEAL WPL 20199 Contact Us For Availability
10
FAN WPL 10272 Contact Us For Availability
10
SWITCH WPL 23540 Contact Us For Availability
10
GROMMET,1982 INV WPL 20118 Contact Us For Availability
10
RETURN HOSE SUPPORT WPL 22355 Contact Us For Availability
10
COTTER PIN WPL 21296D Contact Us For Availability
10
RING,RETAINING WPL 20084 Contact Us For Availability
10
MOUNTING BRACKET WPL Y24127 Contact Us For Availability
10
WASHER WPL 20102 Contact Us For Availability
10
SEAL WPL 23900 Contact Us For Availability
10
ACTUATING LEVER WPL 24292B Contact Us For Availability
10
GASKET WPL 23255 Contact Us For Availability
10
SWITCH TEMP WPL 24392 Contact Us For Availability
10
PHILLIPS HEAD SCREW WPL 25251 Contact Us For Availability
10
SOLENOID,DRAIN VALVE WPL 25999 Contact Us For Availability
10
SPADE TERMINAL(18 GAUGE) WPL Y00119 Contact Us For Availability
10
MOUNTING BRACKET WPL 21561E Contact Us For Availability
10
REAR PANEL, GRAY WPL 24342GR Contact Us For Availability
10
ASSY,TRANSMISSION COVE WPL 20216 Contact Us For Availability
11
HOSE CLAMP WPL 22295 Contact Us For Availability
11
CODE J WPL 24440 Contact Us For Availability
11
ROUND HEAD SCREW WPL 21561G Contact Us For Availability
11
SUDS-WATER RETURN HOSE WPL 22356 Contact Us For Availability
11
PHILLIPS HEAD SCREW WPL 21296B Contact Us For Availability
11
COUNTERBALANCE WEIGHT WPL 25230 Contact Us For Availability
11
GUIDE,ARMATURE WPL 24130 Contact Us For Availability
11
NUT,HEX 10-32 LOCK WPL 23604 Contact Us For Availability
11
WASHER,.578IDX1.25ODX1 WPL 23886 Contact Us For Availability
11
TORSION SPRING, RIGHT WPL 24292F Contact Us For Availability
11
PANEL SUPPORT PLATE WPL Y24329 Contact Us For Availability
11
SPEED SWITCH WPL 24431 Contact Us For Availability
11
BALANCE RING WPL 24931 Contact Us For Availability
11
ASSY,PLUNGER-DRAIN VAL WPL 26244 Contact Us For Availability
11
TERMINAL,FLAG-1/4 FEMA WPL Y00120 Contact Us For Availability
11
GROMMET WPL 20305 Contact Us For Availability
11
BUMPER WPL 20387 Contact Us For Availability
11
DOWEL PIN WPL 20197 Contact Us For Availability
12
NUT,10-24 NYLON HEX BR WPL 22001 Contact Us For Availability
12
BRACKET WPL 22783 Contact Us For Availability
12
SOLENOID SHIELD WPL 25044 Contact Us For Availability
12
HOSE CLAMP WPL Y22671 Contact Us For Availability
12
SOLENOID WPL 22574A Contact Us For Availability
12
SCREW,1/4-20 X 2 HEX H WPL 20264 Contact Us For Availability
12
RING,RETAINING WPL 23751 Contact Us For Availability
12
PLUG,FLOW REGULATOR WPL Y24135 Contact Us For Availability
12
ASSY,IMPELLER WPL 23898 Contact Us For Availability
12
PIVOT PIN WPL 24292G Contact Us For Availability
12
STRAIN RELIEF WPL 21903 Contact Us For Availability
12
NUT,1/4-20 HEX NYLLOCK WPL 25250 Contact Us For Availability
12
SPRING,DRAIN VALVE WPL 25997 Contact Us For Availability
12
FLUORESCENT TUBE HOLDER, RIGHT WPL 23397 Contact Us For Availability
12
TERMINAL,PIN-MALE WPL Y00116 Contact Us For Availability
12
SOLENOID WPL 21714A Contact Us For Availability
12
GROMMET WPL 21393 Contact Us For Availability
12
NUT,SPEED WPL 21747 Contact Us For Availability
12
NUT,SPEED WPL 25987 Contact Us For Availability
13
BLEACH PUMP BRACKET WPL Y22287 Contact Us For Availability
13
HOSE WPL 24437 Contact Us For Availability
13
CODE J WPL 21086 Contact Us For Availability
13
SPLASH SHIELD WPL 21296F Contact Us For Availability
13
LOCKWASHER,3/8 STD X 3 WPL 20277 Contact Us For Availability
13
RETAINER WPL 23639 Contact Us For Availability
13
WASHER,11/64IDX3/8ODX3 WPL 20493 Contact Us For Availability
13
GASKET WPL 23892 Contact Us For Availability
13
HAIR PIN CLIP WPL 21296R Contact Us For Availability
13
GASKET WPL 20122 Contact Us For Availability
13
HOSE CLAMP WPL 20824 Contact Us For Availability
13
PLUG,9 CIRCUIT WPL 23033 Contact Us For Availability
13
PLUG,12 CIRCUIT WPL 23035 Contact Us For Availability
13
PLUG,15 CIRCUIT WPL 23037 Contact Us For Availability
13
PLUG, 3 CIRCUIT WPL 23040 Contact Us For Availability
13
PLUG,6 CIRCUIT WPL 23041 Contact Us For Availability
13
GROMMET WPL 21651 Contact Us For Availability
13
CROSS BRACE, FRONT WPL 21262 Contact Us For Availability
14
HEX HEAD SCREW WPL 25989 Contact Us For Availability
14
SCREW, THERMOSTAT WPL 52150 Contact Us For Availability
14
DRAIN VALVE WPL 24438 Contact Us For Availability
14
CLAMP xREPLACE WPL Y03698 Contact Us For Availability
14
RING,RETAINING WPL 23724 Contact Us For Availability
14
INLET HOSE, 4 FEET WPL 20241 Contact Us For Availability
14
WASHER,13/32IDX13/16OD WPL 20279 Contact Us For Availability
14
PUMP COVER WPL 23876 Contact Us For Availability
14
SPRING WPL 22155G Contact Us For Availability
14
SUDS-WATER SAVER SWITCH WPL 24580 Contact Us For Availability
14
BEARING WPL 23685 Contact Us For Availability
14
HOSE,DRAIN-PRESSURE TA WPL 25998 Contact Us For Availability
14
RECEPTACLE,12 CIRCUIT WPL 23036 Contact Us For Availability
14
RECEPTACLE,15 CIRCUIT WPL 23038 Contact Us For Availability
14
RECEPTACLE,3 CIRCUIT WPL 23039 Contact Us For Availability
14
RECEPTACLE WPL 23042 Contact Us For Availability
14
TERMINAL BLOCK, 9 CIRCUIT WPL Y23034 Contact Us For Availability
14
DRAIN TUB, SHUR-FIL WPL 25983 Contact Us For Availability
14
GROMMET WPL 25959 Contact Us For Availability
14
PIN,LINK WPL 01690 Contact Us For Availability
15
BUMPER WPL 25220 Contact Us For Availability
15
BODY WPL 24438G Contact Us For Availability
15
PUMP OUTLET RETURN HOSE WPL 25782 Contact Us For Availability
15
SPEED NUT WPL 21296C Contact Us For Availability
15
CLIP,SPRING WPL 24500 Contact Us For Availability
15
WASHER, 19/32 IDX1.031 WPL 20290 Contact Us For Availability
15
PLATE,MOUNTING WPL 23769 Contact Us For Availability
15
SCREW,5/16-18 X 1-1/16 WPL 20161 Contact Us For Availability
15
SOLENOID WPL 24292A Contact Us For Availability
15
CABINET TOP, AVOCADO WPL 24355A Contact Us For Availability
15
CABINET TOP, COPPERTONE WPL 24355C Contact Us For Availability
15
CABINET TOP, HARVEST GOLD WPL 24355H Contact Us For Availability
15
CABINET TOP, W WPL 24355W Contact Us For Availability
15
CABINET TOP, AVOCADO WPL 25830A Contact Us For Availability
15
CABINET TOP, COPPERTONE WPL 25830C Contact Us For Availability
15
CABINET TOP, HARVEST GOLD WPL 25830H Contact Us For Availability
15
CABINET TOP, WHITE WPL 25830W Contact Us For Availability
15
ASSY,KNOB-TIMER WPL 24290 Contact Us For Availability
15
SEAL WPL 23684 Contact Us For Availability
15
VALVE OUTLET RETURN HOSE WPL 24581 Contact Us For Availability
15
FEMALE SOCKET TERMINAL WPL Y00117 Contact Us For Availability
15
MONOGRAM WPL 22086 Contact Us For Availability
15
ASSY,ROCKER ARM WPL 05005 Contact Us For Availability
16
HOSE WPL 22302 Contact Us For Availability
16
SEAL WPL 24438F Contact Us For Availability
16
SIDE PLATE WPL 23848B Contact Us For Availability
16
WASHER WPL 23716 Contact Us For Availability
16
SCREW,3/8-16 X 1 HEX H WPL 20255 Contact Us For Availability
16
ASSY,BRAKE DISK WPL 23708 Contact Us For Availability
16
CLAMP,PUMP WPL 23879 Contact Us For Availability
16
HEX HEAD SCREW WPL 24292J Contact Us For Availability
16
SPRING WPL 20791 Contact Us For Availability
16
INDICATOR,TIMER KNOB WPL 24283 Contact Us For Availability
16
BEARING WPL 23686 Contact Us For Availability
16
TERMINAL,RING-10 STUD WPL 00110 Contact Us For Availability
16
VALVE BODY WPL 24596Q Contact Us For Availability
16
GROMMET WPL 20115 Contact Us For Availability
16
CLIP WPL 22161 Contact Us For Availability
16
LINK WPL Y04999 Contact Us For Availability
17
CLAMP WPL 24904 Contact Us For Availability
17
SPRING WPL 24438C Contact Us For Availability
17
TOGGLE SPRING WPL 21296Q Contact Us For Availability
17
PULLEY STOP WPL 23643 Contact Us For Availability
17
ASSY,BRAKE DISK WPL 24599 Contact Us For Availability
17
WASHER WPL 20104 Contact Us For Availability
17
WASHER,.2656IDX9/16ODX WPL 20176 Contact Us For Availability
17
SHIELD WPL 25052 Contact Us For Availability
17
RETAINER,WIRE WPL 22352 Contact Us For Availability
17
SCREW,8-32 X 1/4 HEX S WPL 20310 Contact Us For Availability
17
SCREW,CAP WPL 20261 Contact Us For Availability
17
CONNECTOR TWO 1/4 INCH MALE WPL 21091 Contact Us For Availability
17
CLAMP WPL 10180 Contact Us For Availability
17
SCREW,10B-16 X 3/4 ROU WPL Q6535 Contact Us For Availability
17
WASHER,.626IDX1.00ODX. WPL 20212 Contact Us For Availability
18
PUMP,BLEACH WPL 22337 Contact Us For Availability
18
MOUNTING BRACKET WPL 24438H Contact Us For Availability
18
HOSE CLAMP WPL 21372 Contact Us For Availability
18
ASSY,PULLEY-TRANSMISSI WPL 23773 Contact Us For Availability
18
DISC,BRAKE WPL 23637 Contact Us For Availability
18
VALVE BODY WPL 24123 Contact Us For Availability
18
SWITCH,MOTOR WPL 24142 Contact Us For Availability
18
SIDE PLATE WPL 24292D Contact Us For Availability
18
GUARD, RIM WPL 25277 Contact Us For Availability
18
INDICATOR LIGHT WPL 25045 Contact Us For Availability
18
ASSY,CENTER COLUMN WPL 23993 Contact Us For Availability
18
CLIP,WIRE WPL 51291 Contact Us For Availability
18
OUTLET FITTING GASKET WPL 24596L Contact Us For Availability
18
HOSE WPL 25112 Contact Us For Availability
18
MOUNT,PANEL WPL 23020 Contact Us For Availability
18
ASSY,ROCKER ARM WPL 20220 Contact Us For Availability
19
COIL AND FRAME WPL 22337B Contact Us For Availability
19
SCREW,10B-16 X 1/2 HEX WPL 51784 Contact Us For Availability
19
SOLENOID WPL 24438A Contact Us For Availability
19
SUDS-WATER SAVER VALVE ASSEMBL WPL 25053 Contact Us For Availability
19
GUIDE YOKE WPL 21296M Contact Us For Availability
19
END POST WPL 21296O Contact Us For Availability
19
BELT WPL 23758 Contact Us For Availability
19
RING,SNAP WPL Y23720 Contact Us For Availability
19
DIAPHRAGM WPL 25817K Contact Us For Availability
19
MOTOR WPL 26082 Contact Us For Availability
19
SWITCH COLLAR WPL 23399 Contact Us For Availability
19
SLEEVE WPL 22351 Contact Us For Availability
19
CABLE CLIP WPL 21793 Contact Us For Availability
19
VALVE-TO-PUMP HOSE WPL 26052 Contact Us For Availability
19
OUTLET FITTING PLATE WPL 24596N Contact Us For Availability
19
HOLD-DOWN PIN WPL Y22693 Contact Us For Availability
19
SCREW,10-24 X 1/2 ROUN WPL 03814 Contact Us For Availability
19
BEARING WPL 01711 Contact Us For Availability
20
MOTOR AND PUMP ASSEMBLY WPL Y10530 Contact Us For Availability
20
BASE WPL 22337A Contact Us For Availability
20
GASKET WPL 24438E Contact Us For Availability
20
HOSE CLAMP WPL 21296W Contact Us For Availability
20
HUB WPL 23644 Contact Us For Availability
20
HUB WPL 23634 Contact Us For Availability
20
ARMATURE WPL 25817H Contact Us For Availability
20
KNURLED NUT WPL 23406 Contact Us For Availability
20
TUBE,SEDIMENT WPL 22359 Contact Us For Availability
20
CLIP,CABLE WPL 21036 Contact Us For Availability
20
SCREW WPL 24596P Contact Us For Availability
20
FERRULE WPL Y22690 Contact Us For Availability
20
BRACKET WPL 22846 Contact Us For Availability
20
BRACKET,HOLD DOWN-R.H. WPL 26690 Contact Us For Availability
20
DISC,EXPANSION WPL Y02479 Contact Us For Availability
21
HOSE CONNECTOR WPL 22337E Contact Us For Availability
21
ARMATURE WPL 24438D Contact Us For Availability
21
WIRING DIAGRAM WPL 24574 Contact Us For Availability
21
PIN,SHIFTER WPL 23718 Contact Us For Availability
21
ASSY,SPIN PULLEY WPL 24690 Contact Us For Availability
21
ARMATURE GUIDE WPL 25817F Contact Us For Availability
21
BOLT WPL 24390 Contact Us For Availability
21
RETAINER RING WPL 24292K Contact Us For Availability
21
FERRULE WPL 23400 Contact Us For Availability
21
GASKET WPL 20110 Contact Us For Availability
21
OUTLET FITTING WPL 24596M Contact Us For Availability
21
FRONT PANEL, AVOCADO WPL 24687A Contact Us For Availability
21
FRONT PANEL, COPPERTONE WPL 24687C Contact Us For Availability
21
FRONT PANEL, HARVEST GOLD WPL 24687H Contact Us For Availability
21
FRONT PANEL, WHITE WPL 24687W Contact Us For Availability
21
DRIVE CLUTCH ASSEMBLY WPL 20219 Contact Us For Availability
22
SCREW,6-32 X 5/16 RD H WPL 51356 Contact Us For Availability
22
GUIDE,ARMATURE WPL 24438B Contact Us For Availability
22
SHIELD WPL 25839 Contact Us For Availability
22
STATIONARY POST WPL 21296AA Contact Us For Availability
22
STOP WPL 23635 Contact Us For Availability
22
SLEEVE ADAPTER WPL 25817D Contact Us For Availability
22
ASSY,PUMP WPL 23907 Contact Us For Availability
22
PUMP ASSEMBLY WPL Y24304 Contact Us For Availability
22
SCREW,8-32 X 5/32 RD H WPL 70212 Contact Us For Availability
22
BRACKET,SEDIMENT TUBE WPL 26046 Contact Us For Availability
22
FLOW REGULATOR WPL 24597J Contact Us For Availability
22
SIDE PANEL, RIGHT OR LEFT, AVO WPL 24336A Contact Us For Availability
22
SIDE PANEL, RIGHT OR LEFT, COP WPL 24336C Contact Us For Availability
22
SIDE PANEL, RIGHT OR LEFT, HAR WPL 24336H Contact Us For Availability
22
xREPLACE WPL 24336W Contact Us For Availability
22
WASHER,.626 X 1.125 X1 WPL 01791 Contact Us For Availability
23
ISOLATION MOUNT WPL 22337F Contact Us For Availability
23
LOCKWASHER,1/4 EXT SHK WPL 02431 Contact Us For Availability
23
ASSY,SHIFTER FORK WPL 23732 Contact Us For Availability
23
RACE,BEARING WPL 23722 Contact Us For Availability
23
END POST WPL 24292H Contact Us For Availability
23
WASHER WPL 25043 Contact Us For Availability
23
SCREW,10-24 X 1/2 HEX WPL 20852 Contact Us For Availability
23
DIAPHRAGM WPL 24596H Contact Us For Availability
23
RUBBER PAD WPL 21749 Contact Us For Availability
23
PIN,COTTER WPL 02578 Contact Us For Availability
24
NUT WPL 22337G Contact Us For Availability
24
END POST WPL 21296N Contact Us For Availability
24
RETAINER,SPRING-UPPER WPL 26610 Contact Us For Availability
24
SPRING WPL 23723 Contact Us For Availability
24
SOLENOID PLUG WPL 25817M Contact Us For Availability
24
SPEED NUT WPL 25042 Contact Us For Availability
24
SETSCREW WPL 23481 Contact Us For Availability
24
STRAP,WIRE WPL 22837 Contact Us For Availability
24
ARMATURE WPL 24596G Contact Us For Availability
24
ROD,CONNECTING WPL 03969 Contact Us For Availability
25
MOUNTING BRACKET WPL 25779 Contact Us For Availability
25
INTERMEDIATE POST WPL 21296Z Contact Us For Availability
25
SPRING WPL 26609 Contact Us For Availability
25
BEARING,NEEDLE WPL 23721 Contact Us For Availability
25
SPRING WPL 25817G Contact Us For Availability
25
SWITCH WPL 23401 Contact Us For Availability
25
NO LONGER AVAILABLE WPL 20377 Contact Us For Availability
25
SPRING WPL 24596F Contact Us For Availability
25
PLATE,SNUBBER WPL 21905 Contact Us For Availability
25
PINION WPL 23645 Contact Us For Availability
26
ARMATURE AND VALVE WPL 22337C Contact Us For Availability
26
LEAF SPRING WPL 21296K Contact Us For Availability
26
RETAINER,SPRING-LOWER WPL 26611 Contact Us For Availability
26
RETAINER WPL 23640 Contact Us For Availability
26
SLEEVE,GUIDE xREPLACE WPL 25817E Contact Us For Availability
26
TIMER WPL 24815 Contact Us For Availability
26
GASKET WPL 20120 Contact Us For Availability
26
SHIELD WPL 26053 Contact Us For Availability
26
GUIDE WPL 24596E Contact Us For Availability
26
GEAR,CRANK WPL 02175 Contact Us For Availability
27
SPRING WPL 22337D Contact Us For Availability
27
TEE-TO-PUMP HOSE WPL 25783 Contact Us For Availability
27
VALVE WPL 23848 Contact Us For Availability
27
SPACER WPL 23848D Contact Us For Availability
27
TUBE VALVE LUG CLIP WPL 21296U Contact Us For Availability
27
MOUNTING BRACKET WPL 25817B Contact Us For Availability
27
GUIDE SLEEVE WPL 24596D Contact Us For Availability
27
WASHER,.626IDX1.250ODX WPL 20198 Contact Us For Availability
28
SCREW,1/4-20 X 1/2 HEX WPL 02422 Contact Us For Availability
28
VALVE-TO-TEE HOSE WPL 10430 Contact Us For Availability
28
SIDE PLATE WPL 23848C Contact Us For Availability
28
SINGLE TUBE HOSE ADAPTER WPL 21296V Contact Us For Availability
28
JAW WPL 23647 Contact Us For Availability
28
SOLENOID WPL 24596A Contact Us For Availability
28
TEE-TO-ELBOW HOSE WPL 23845 Contact Us For Availability
28
PIN WPL 03477 Contact Us For Availability
29
TEE WPL 25781 Contact Us For Availability
29
BRACKET WPL 23560 Contact Us For Availability
29
TUBE WPL 21296Y Contact Us For Availability
29
MANIFOLD COVER WPL 22574G Contact Us For Availability
29
MOUNTING PLATE WPL 24749 Contact Us For Availability
29
MOUNTING BRACKET WPL 24596C Contact Us For Availability
29
SPACER WPL 20162 Contact Us For Availability
29
BEARING,7/8ODX5/8ID WPL 01993 Contact Us For Availability
30
TEE-TO-ELBOW HOSE WPL 25780 Contact Us For Availability
30
ELBOW,DRAIN HOSE-PLAST WPL 23553 Contact Us For Availability
30
SINGLE TUBE HOSE ADAPTER WPL 22007G Contact Us For Availability
30
SOLENOID SLEEVE WPL 24596B Contact Us For Availability
30
GROMMET WPL 20195 Contact Us For Availability
30
DISC WPL Y02769 Contact Us For Availability
31
DOUBLE TUBE HOSE ADAPTER WPL 22155A Contact Us For Availability
31
ASSY,CHASSIS xREPLACE WPL 26028 Contact Us For Availability
31
PIN WPL 01688 Contact Us For Availability
32
HOSE WPL 22627 Contact Us For Availability
32
SCREW WPL 22687 Contact Us For Availability
32
PIN CLIP WPL Y22689 Contact Us For Availability
32
PIN,ROCKER ARM WPL 24817 Contact Us For Availability
33
HOSE,M/F 29219 WPL 20240 Contact Us For Availability
33
ASSY,YOKE & SLEEVE WPL 22702 Contact Us For Availability
33
PIN CLIP WPL 26012 Contact Us For Availability
33
STUD,DOUBLE END 1/4-20 WPL 20155 Contact Us For Availability
34
SCREW,CAP-3/8-16X1-1/4 WPL Y22688 Contact Us For Availability
34
ASSY,TRANSMISSION xREPLACE WPL 23927 Contact Us For Availability
NI
A-D DRIVE LUBRICANT WPL 03200 Contact Us For Availability
NI
KIT,SPRING WPL 285P3 Contact Us For Availability
NI
FLUID DRIVE FLUID-BULK WPL 20299 Contact Us For Availability
NI
KIT,PUMP REPAIR WPL 211P3 Contact Us For Availability
NI
KIT,CAPACITOR WPL 258P3 Contact Us For Availability
NI
KIT,AGITATOR POST WPL 243P3 Contact Us For Availability
NI
TRANSMISSION LUBRICANT WPL 02528 Contact Us For Availability
× ![]()
Login and Registration Form
