Model GE CVM517P4M6W2 Microwave Or Advantium – Common Parts & Diagrams

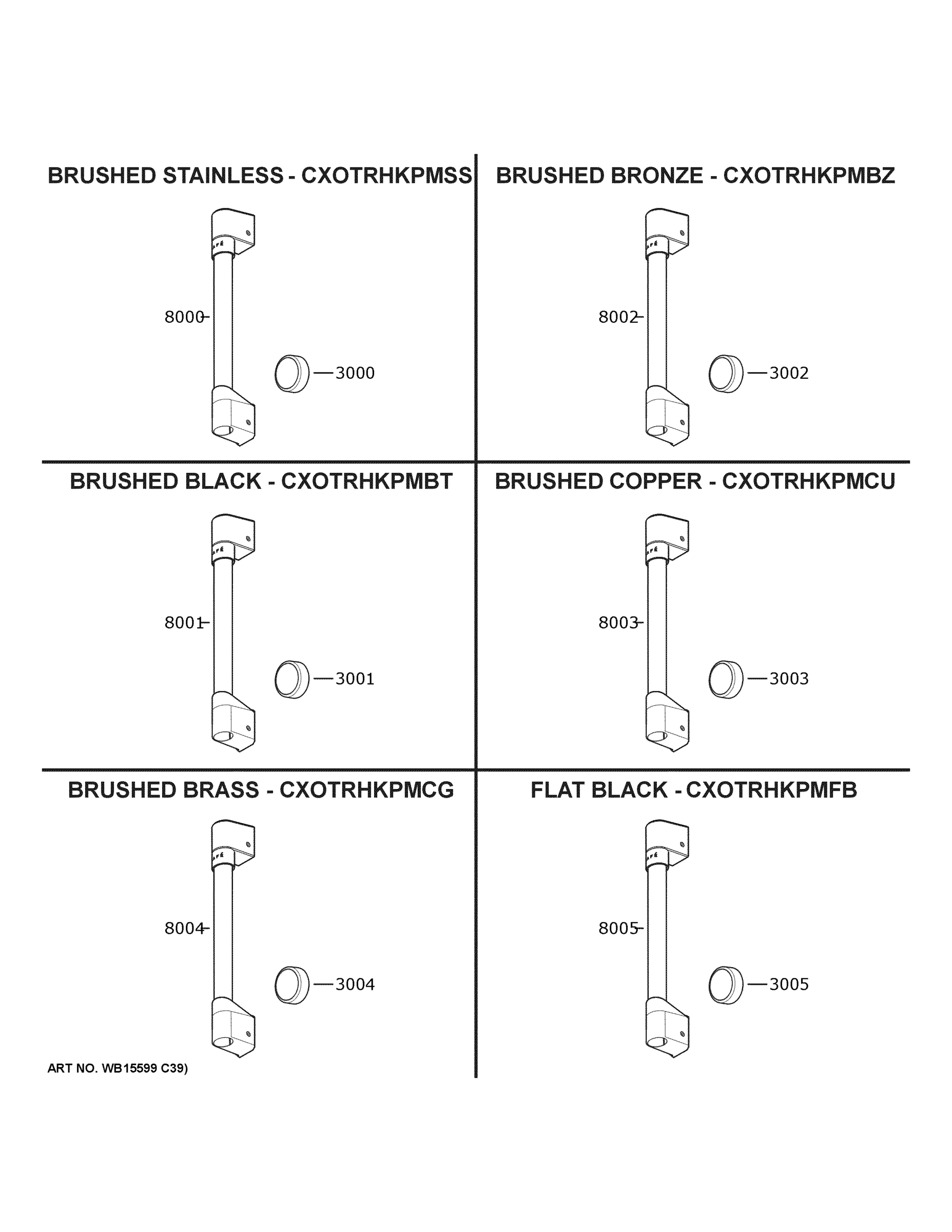

CAFE CUSTOMIZATION

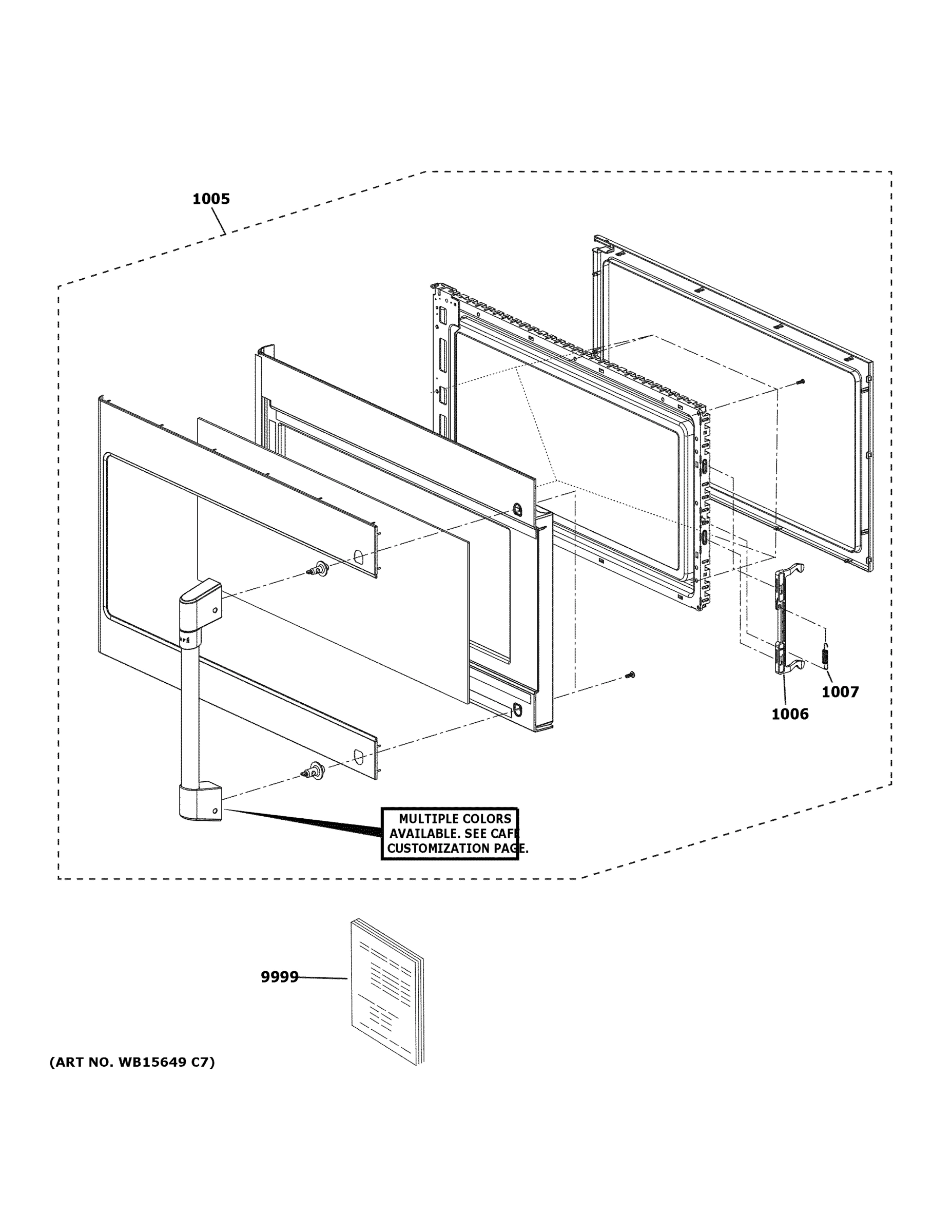

DOOR PARTS

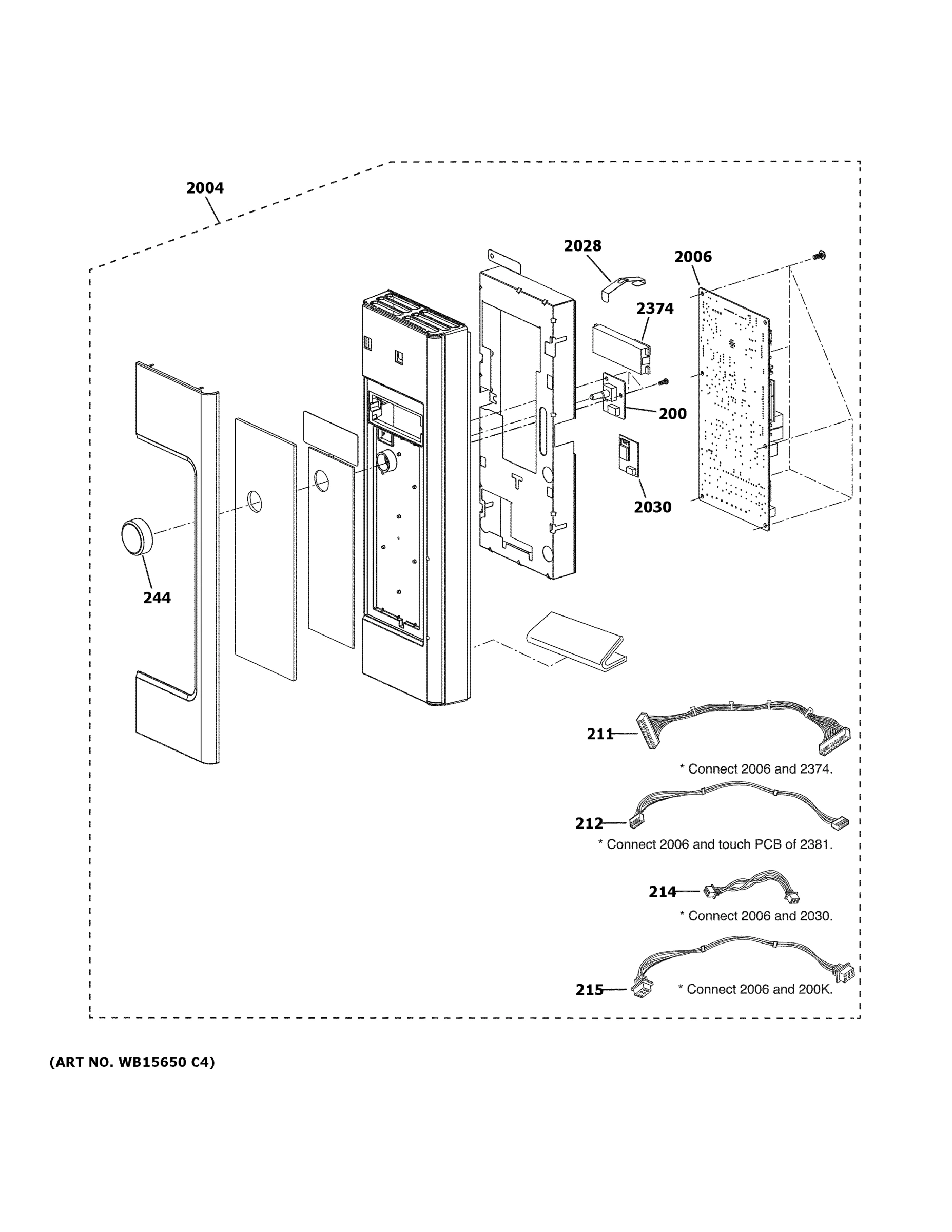

CONTROL PARTS

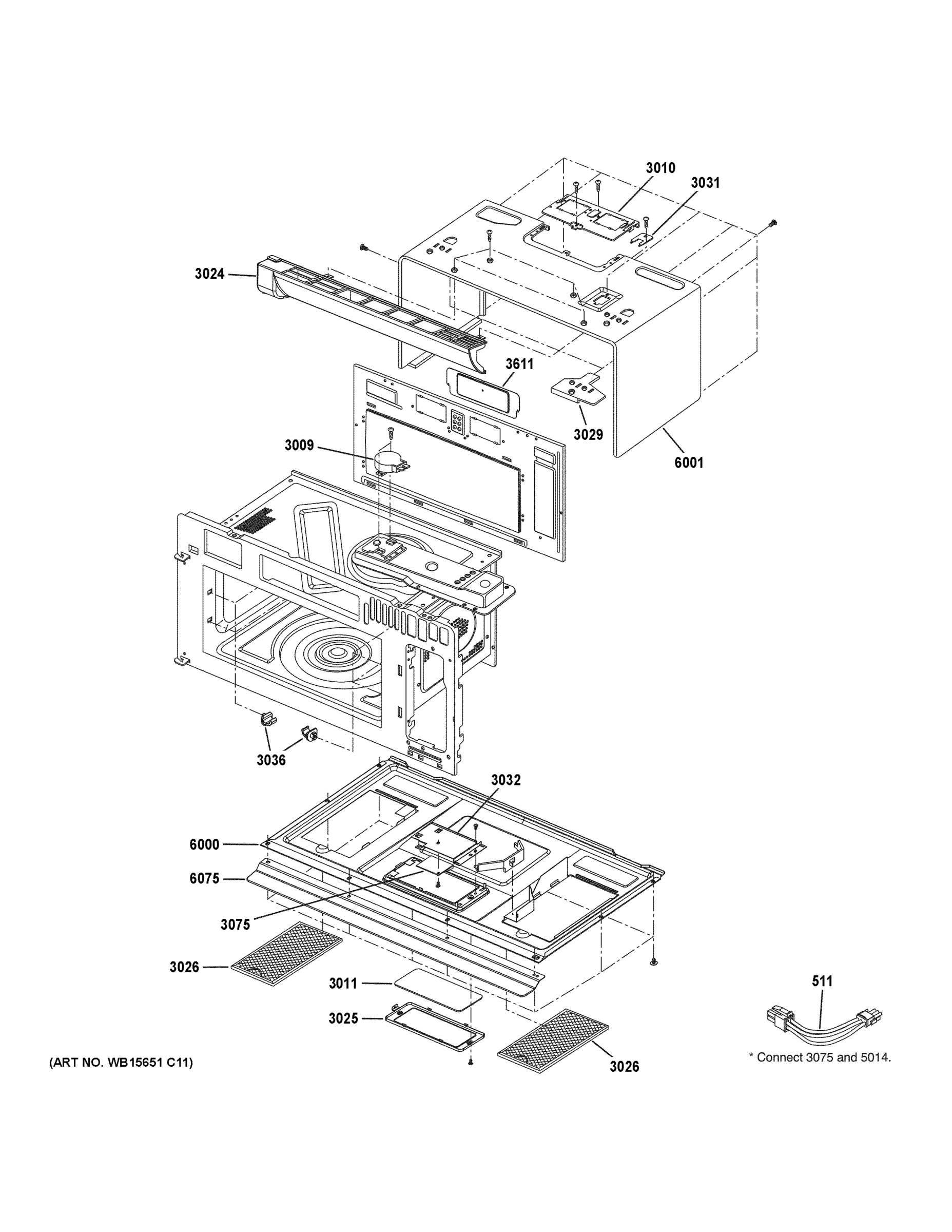

OVEN CAVITY PARTS

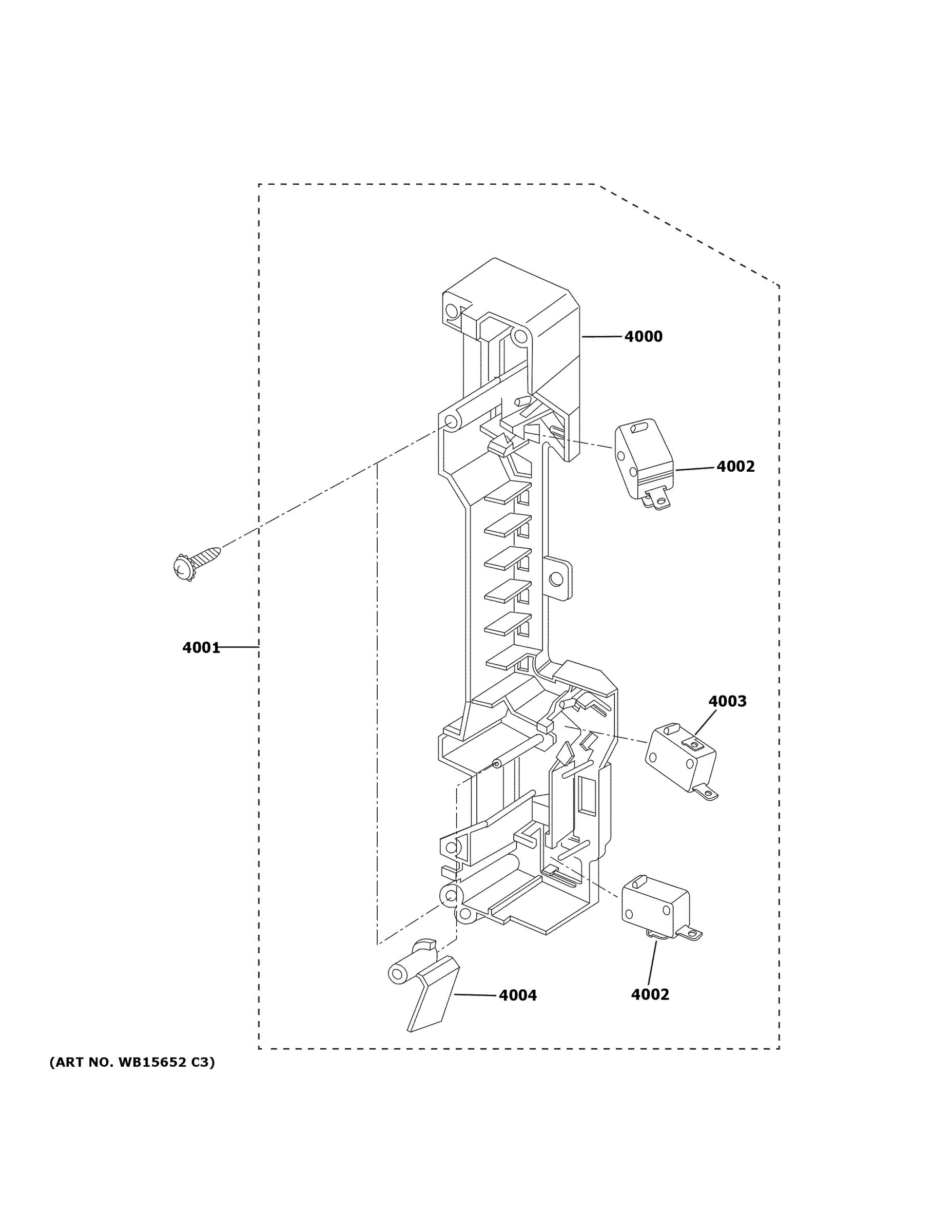

LATCH BOARD PARTS

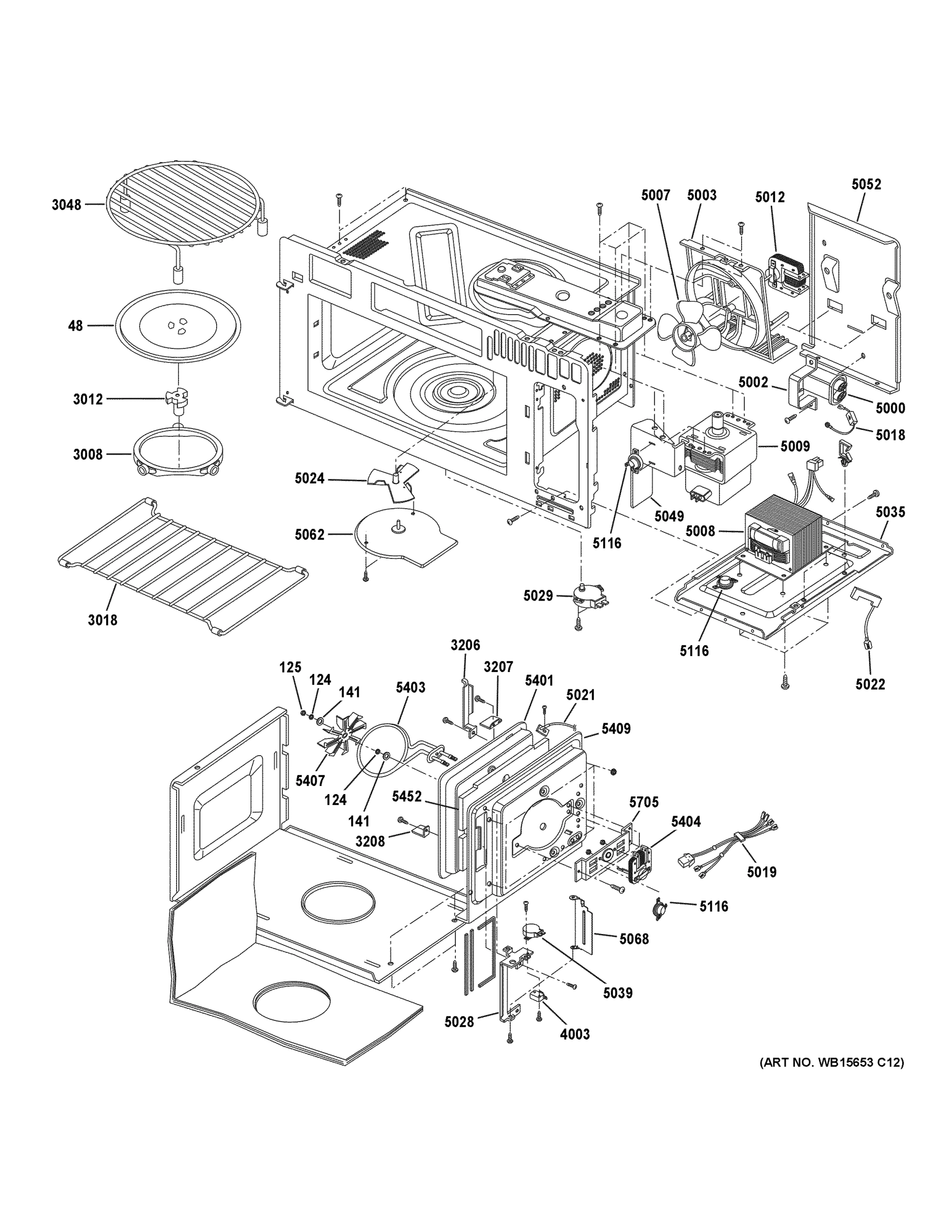

INTERIOR PARTS (1)

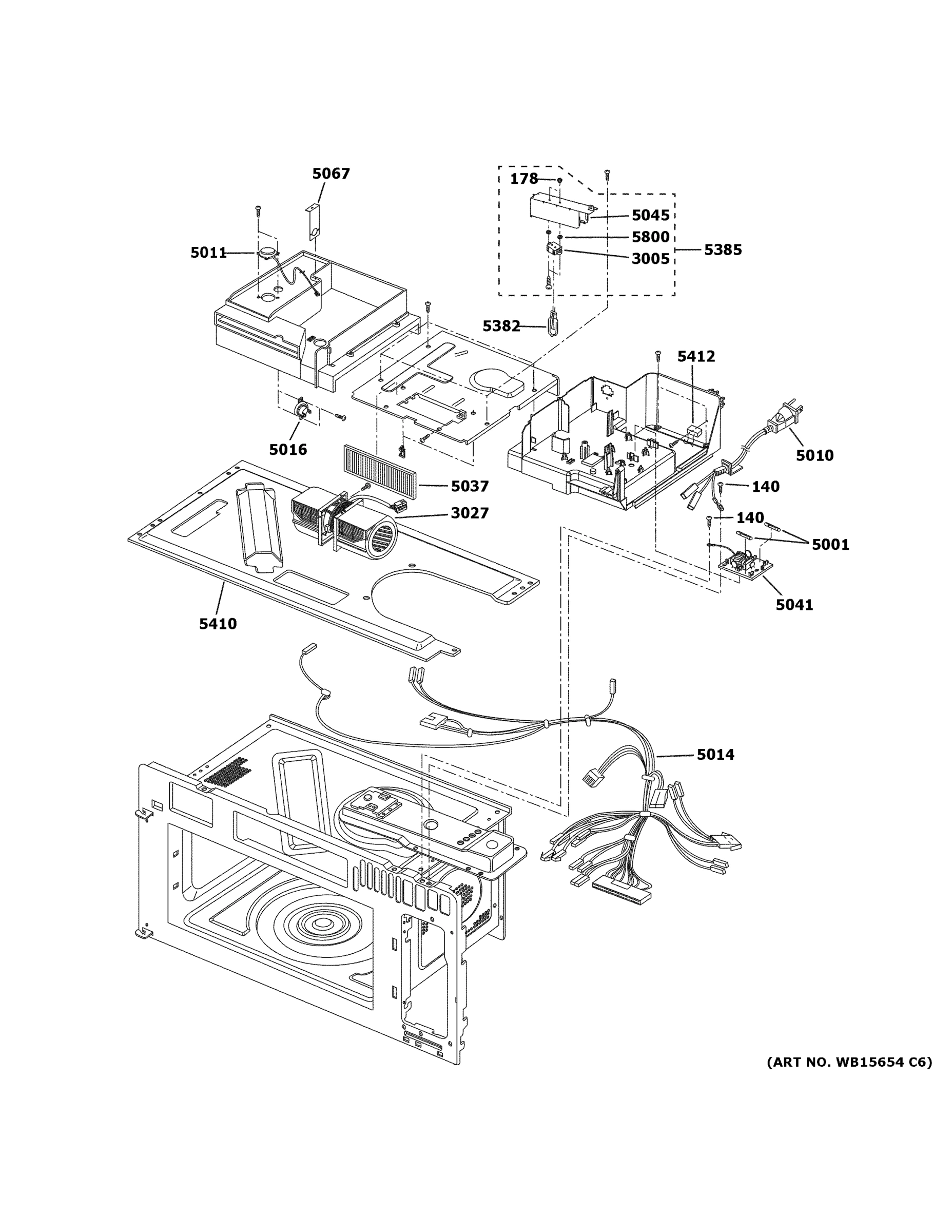

INTERIOR PARTS (2)

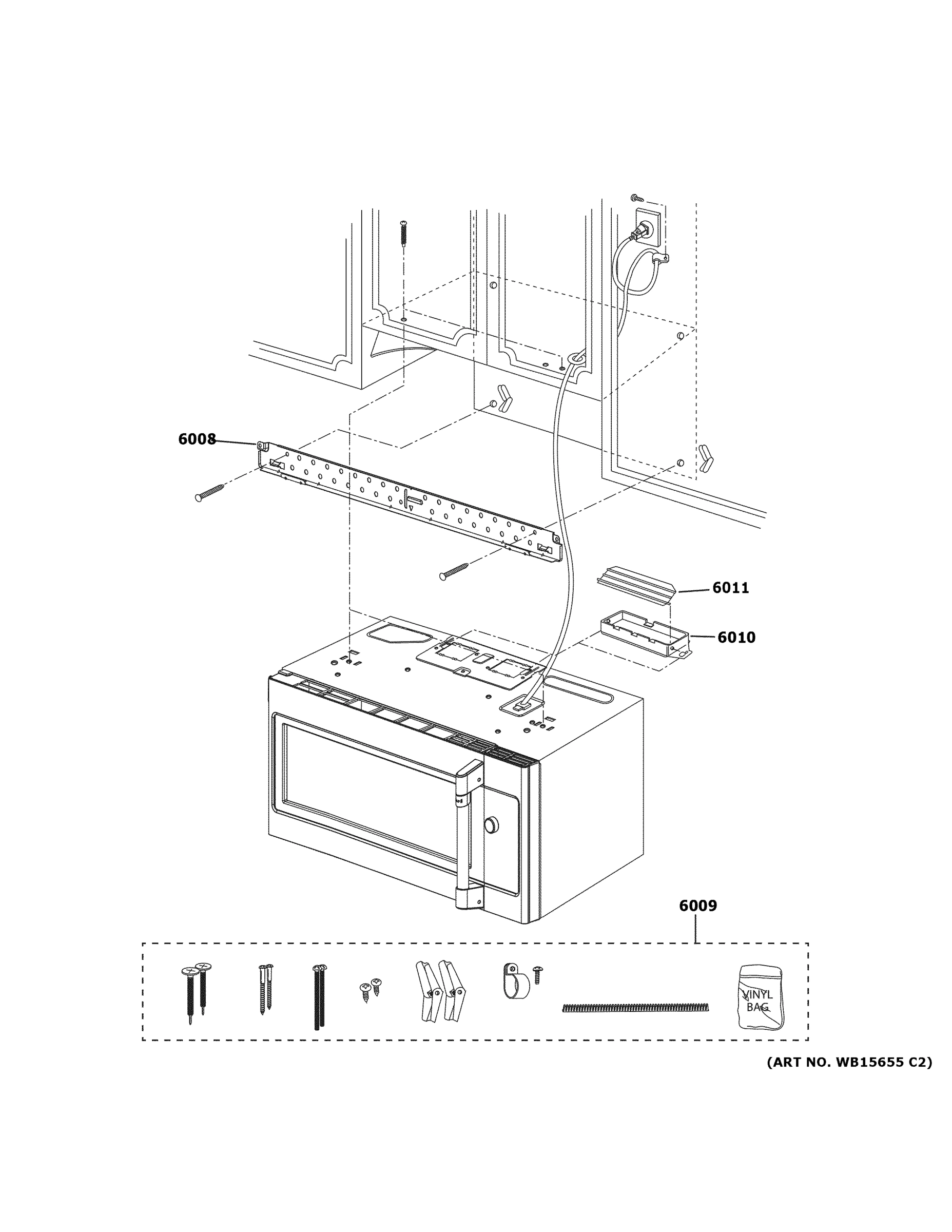

INSTALLATION PARTS
Common parts from model GE CVM517P4M6W2 Microwave Or Advantium
124
WASHER, SPLK GEN WB1X1522 Contact Us For Availability
125
NUT,HEXAGON GEN WB1X1520 Contact Us For Availability
140
SCREW GEN WB01X35374 Contact Us For Availability
141
WASHER,PLAIN GEN WB1X1521 Contact Us For Availability
200
ENCODER BOARD GEN WB27X32632 Contact Us For Availability
1006
DOOR LATCH GEN WB10X35346 Contact Us For Availability
1007
SPRING LATCH DOOR GEN WB09X10017 Contact Us For Availability
3005
HOLDER ASSEMBLY GEN WB06X10554 Contact Us For Availability
3005
FLAT BLACK STAINLESS KNOB GEN WB01X45990 Contact Us For Availability
3011
WINDOW,GLASS GEN WB36X10350 Contact Us For Availability
3025
BRACKET LAMP GEN WB02X32716 Contact Us For Availability
3029
BRACKET ASM GEN WB06X10710 Contact Us For Availability
3031
COVER POWER CORD GEN WB06X10680 Contact Us For Availability
3032
BRACKET LAMP GEN WB01X36208 Contact Us For Availability
3036
RACK HOLDER GEN WB02X10750 Contact Us For Availability
3048
SHELF GEN WB48X35378 Contact Us For Availability
3075
LED ASM GEN WB18X35388 Contact Us For Availability
3206
LARGE BRACKET HEATER GEN WB01X36209 Contact Us For Availability
3207
SMALL BRACKET HEATER GEN WB01X36210 Contact Us For Availability
3208
HOLDER - HEATER GEN WB06X35376 Contact Us For Availability
3611
SAFETY COVER GEN WB06X35395 Contact Us For Availability
4000
HOLDER LOCKER GEN WB02X32720 Contact Us For Availability
4001
LOCKER HOLDER ASM GEN WB10X35397 Contact Us For Availability
4002
SW PRIM INTERLOCK & DOOR GEN WB24X10047 Contact Us For Availability
4003
SWITCH MONITOR INTERLOCK GEN WB24X25397 Contact Us For Availability
4004
LEVER GEN WB02X32760 Contact Us For Availability
5002
CAPACITOR BRACKET GEN WB02X32593 Contact Us For Availability
5003
GUIDE SUCTION GEN WB39X32800 Contact Us For Availability
5008
HIGH VOLTAGE TRANSFORMER GEN WB26X35402 Contact Us For Availability
5009
MAGNETRON GEN WB27X44106 Contact Us For Availability
5014
HARNESS GEN WB18X35379 Contact Us For Availability
5018
DIODE-CABLE ASM GEN WB27X35382 Contact Us For Availability
5019
HARNESS GEN WB18X35381 Contact Us For Availability
5021
THERMISTOR GEN WB18X10126 Contact Us For Availability
5022
FUSE ASM GEN WB02X35377 Contact Us For Availability
5024
FAN ASM GEN WB38X35383 Contact Us For Availability
5028
BRACKET DAMPER GEN WB02X33933 Contact Us For Availability
5035
PLATE BOTTOM GEN WB56X35364 Contact Us For Availability
5037
CHARCOAL FILTER GEN WB02X35607 Contact Us For Availability
5045
LAMP COVER GEN WB34X35400 Contact Us For Availability
5049
GUIDE AIR GEN WB34X32721 Contact Us For Availability
5052
GUIDE AIR GEN WB34X32729 Contact Us For Availability
5062
COVER ASM STIRRER FAN GEN WB02X32719 Contact Us For Availability
5067
THERMOSTAT BRACKET GEN WB34X35401 Contact Us For Availability
5068
DAMPER BRACKET GEN WB34X35371 Contact Us For Availability
5116
THERMOSTAT GEN WB26X35390 Contact Us For Availability
5382
LAMP,HALOGEN GEN WB25X35368 Contact Us For Availability
5385
LAMP AND HOLDER ASM GEN WB25X35394 Contact Us For Availability
5401
CHAMBER GEN WB02X35367 Contact Us For Availability
5404
MOTOR CIRCULATION GEN WB26X35370 Contact Us For Availability
5407
FAN MOTOR GEN WB26X32609 Contact Us For Availability
5409
INSULATOR GEN WB35X34794 Contact Us For Availability
5410
INSULATION ASM GEN WB35X35372 Contact Us For Availability
5452
GLASS WOOL GEN WB06X10664 Contact Us For Availability
5705
PLATE SIDE HEATER GEN WB56X32723 Contact Us For Availability
5800
SUPPORTER,HOUSING GEN WB01X10414 Contact Us For Availability
6000
BASE PLATE GEN WB56X35366 Contact Us For Availability
6001
DARK DORIAN OUTER CASE GEN WB56X39187 Contact Us For Availability
6008
MOUNTING PLATE ASM GEN WB56X35363 Contact Us For Availability
6009
INSTALLATION H/W BAG GEN WB01X35373 Contact Us For Availability
6010
BRACKET,MISC GEN WB06X10568 Contact Us For Availability
6075
AIR GUIDE GEN WB39X35526 Contact Us For Availability
× ![]()
