Model Hotpoint CTX18CIXKLWW Refrigerator – Common Parts & Diagrams
CABINET PARTS
COMPARTMENT SEPARATOR PARTS

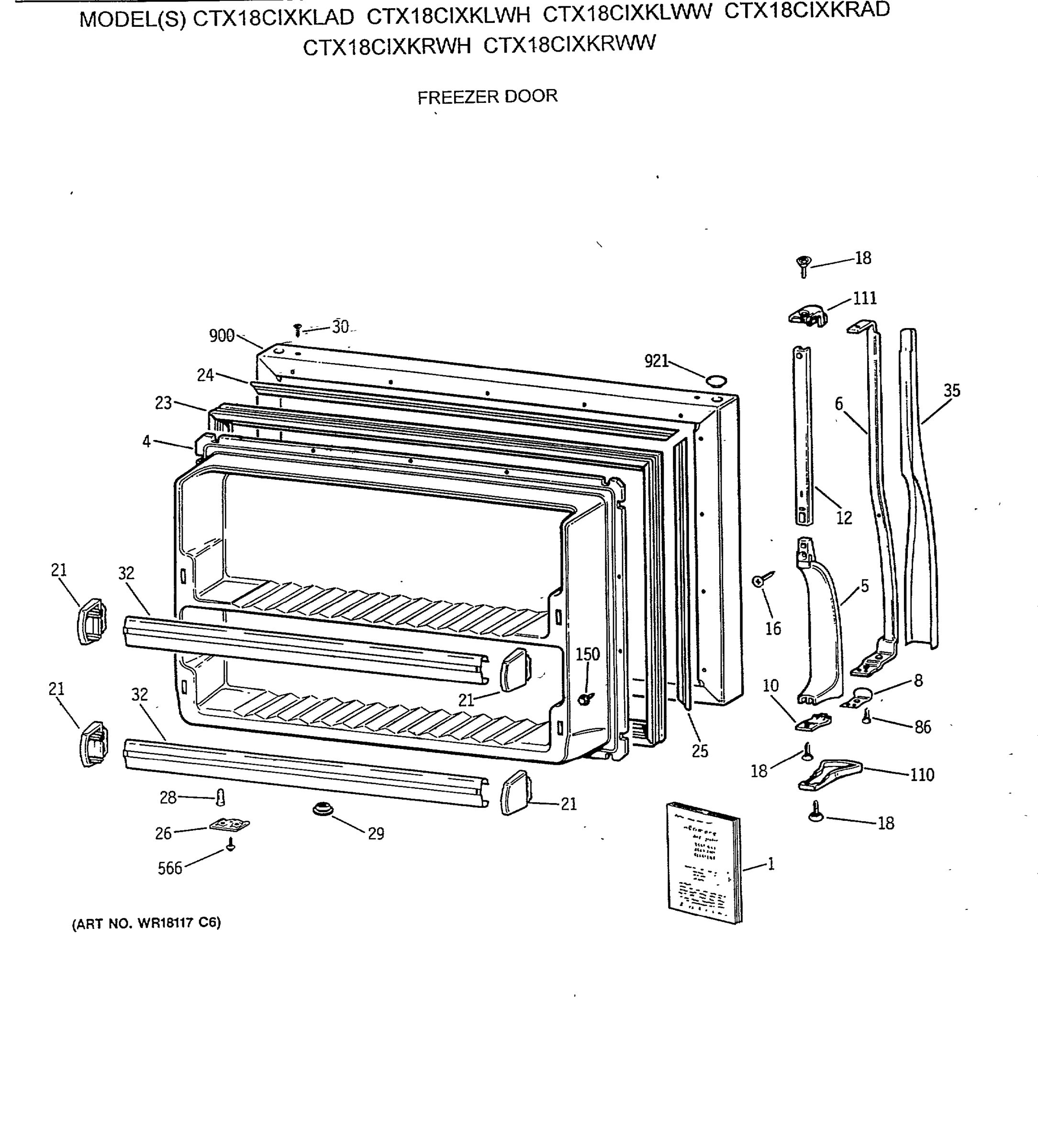

FREEZER DOOR

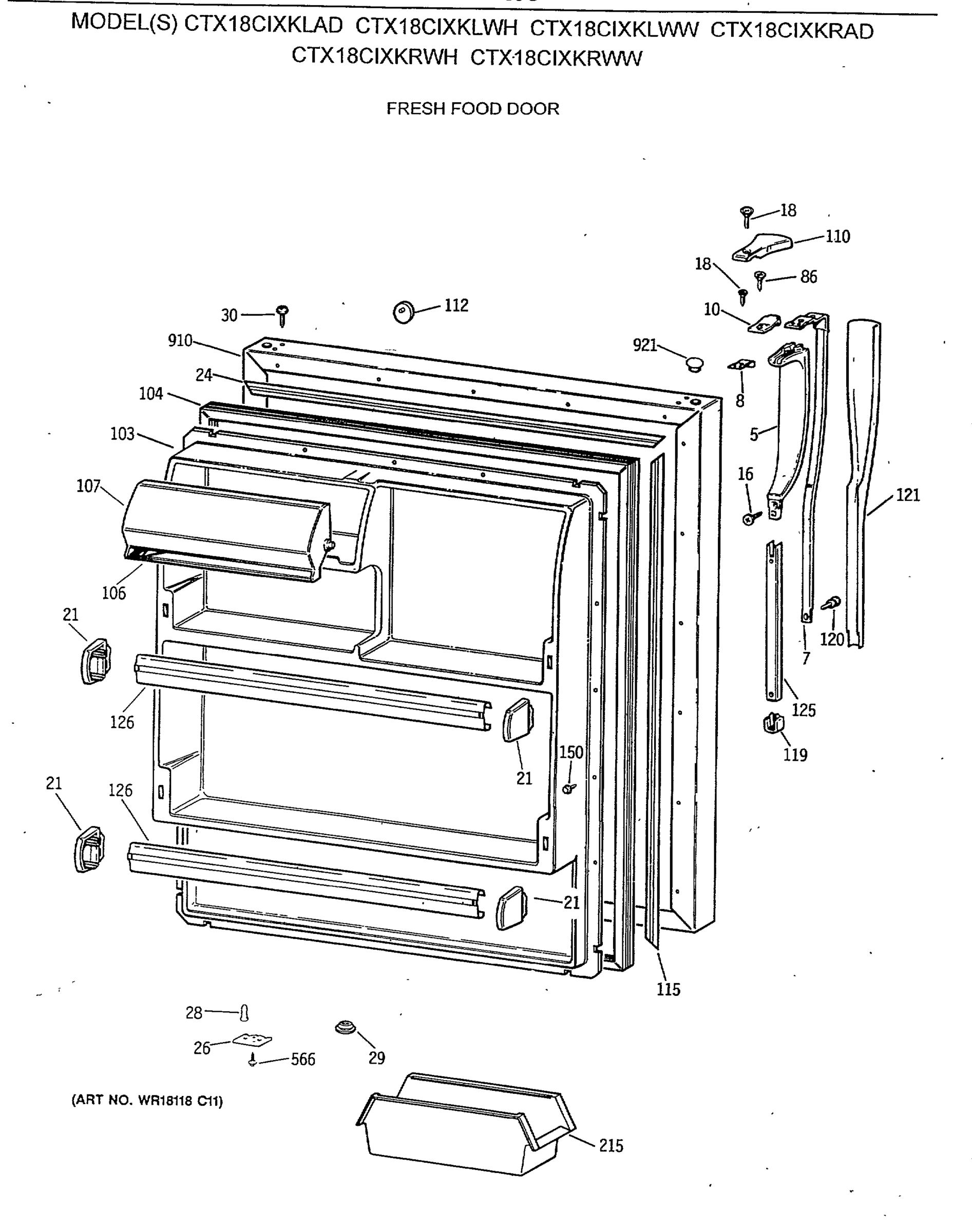

FRESH FOOD DOOR

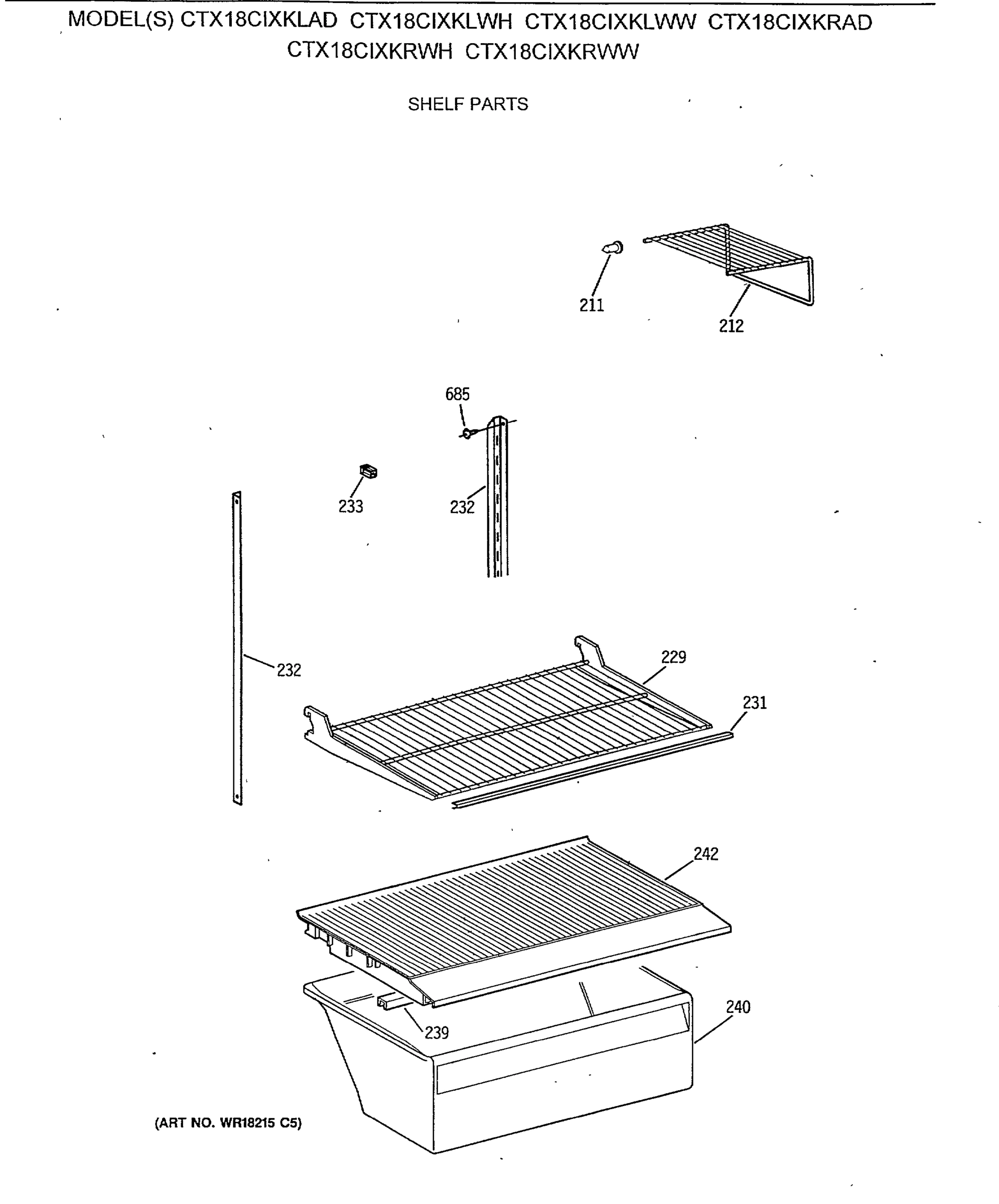

SHELF PARTS

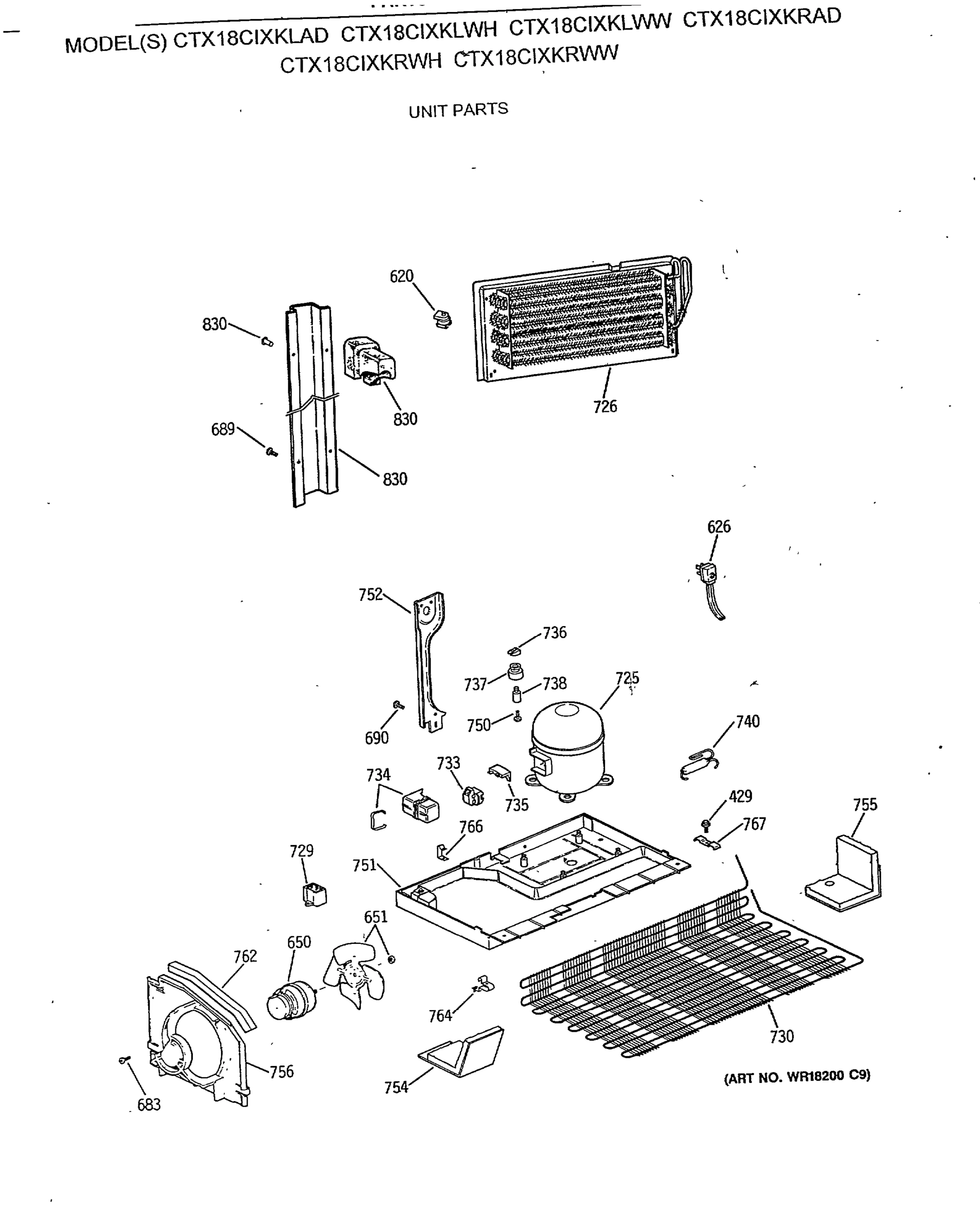

UNIT PARTS
Common parts from model Hotpoint CTX18CIXKLWW Refrigerator
1
GEN 31-5025 GEN 31-5025 Contact Us For Availability
1
GEN 31-51087 GEN 31-51087 Contact Us For Availability
1
GEN 39-6403 GEN 39-6403 Contact Us For Availability
4
GEN WR77X0610 GEN WR77X0610 Contact Us For Availability
5
GEN WR12X0463 GEN WR12X0463 Contact Us For Availability
6
GEN WR12X0645 GEN WR12X0645 Contact Us For Availability
7
GEN WR12X0582 GEN WR12X0582 Contact Us For Availability
8
GEN WR02X7793 GEN WR02X7793 Contact Us For Availability
10
GEN WR02X7140 GEN WR02X7140 Contact Us For Availability
12
GEN WR12X0643 GEN WR12X0643 Contact Us For Availability
16
GEN WR01X1565 GEN WR01X1565 Contact Us For Availability
21
GEN WR02X8797 GEN WR02X8797 Contact Us For Availability
24
GEN WR17X2279 GEN WR17X2279 Contact Us For Availability
25
GEN WR17X2281 GEN WR17X2281 Contact Us For Availability
26
GEN WR02X7628 GEN WR02X7628 Contact Us For Availability
28
GEN WR02X7627 GEN WR02X7627 Contact Us For Availability
29
GEN WR02X8087 GEN WR02X8087 Contact Us For Availability
30
SCREW GEN WR01X5475 Contact Us For Availability
35
GEN WR12X0963 GEN WR12X0963 Contact Us For Availability
86
GEN WH02X0940 GEN WH02X0940 Contact Us For Availability
103
GEN WR77X0609 GEN WR77X0609 Contact Us For Availability
106
GEN WR38X2161 GEN WR38X2161 Contact Us For Availability
107
DOOR DAIRY GEN WR22X0484 Contact Us For Availability
110
GEN WR02X7791 GEN WR02X7791 Contact Us For Availability
111
GEN WR02X7792 GEN WR02X7792 Contact Us For Availability
115
GEN WR17X2280 GEN WR17X2280 Contact Us For Availability
119
GEN WR02X4928 GEN WR02X4928 Contact Us For Availability
120
GEN WR01X1755 GEN WR01X1755 Contact Us For Availability
121
GEN WR12X1004 GEN WR12X1004 Contact Us For Availability
125
GEN WR12X0471 GEN WR12X0471 Contact Us For Availability
203
GEN WR17X4195 GEN WR17X4195 Contact Us For Availability
204
GEN WR02X7822 GEN WR02X7822 Contact Us For Availability
204
GEN WR02X7823 GEN WR02X7823 Contact Us For Availability
207
GEN WR17X2990 GEN WR17X2990 Contact Us For Availability
210
GEN WR02X6261 GEN WR02X6261 Contact Us For Availability
211
GEN WR02X7973 GEN WR02X7973 Contact Us For Availability
212
GEN WR71X1954 GEN WR71X1954 Contact Us For Availability
215
GEN WR32X0897 GEN WR32X0897 Contact Us For Availability
219
GEN WR51X0358 GEN WR51X0358 Contact Us For Availability
226
GEN WR02X7640 GEN WR02X7640 Contact Us For Availability
229
GEN WR71X1956 GEN WR71X1956 Contact Us For Availability
231
GEN WR38X2085 GEN WR38X2085 Contact Us For Availability
232
GEN WR72X0096 GEN WR72X0096 Contact Us For Availability
233
GEN WR02X7018 GEN WR02X7018 Contact Us For Availability
239
SCREW 8-18 X 3/8 SS GEN WR01X1737 Contact Us For Availability
239
GEN WR17X2282 GEN WR17X2282 Contact Us For Availability
240
GEN WR32X1392 GEN WR32X1392 Contact Us For Availability
242
GEN WR32X1180 GEN WR32X1180 Contact Us For Availability
256
GEN WR23X0309 GEN WR23X0309 Contact Us For Availability
260
GEN WR02X7773 GEN WR02X7773 Contact Us For Availability
261
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
265
GEN WR01X1774 GEN WR01X1774 Contact Us For Availability
267
GEN WR82X0321 GEN WR82X0321 Contact Us For Availability
268
GEN WR01X1816 GEN WR01X1816 Contact Us For Availability
269
GEN WR01X1803 GEN WR01X1803 Contact Us For Availability
275
HINGE TOP & PIN ASM WH GEN WR13X0715 Contact Us For Availability
276
GEN WR13X0714 GEN WR13X0714 Contact Us For Availability
277
GEN WR17X3743 GEN WR17X3743 Contact Us For Availability
278
GEN WR02X8842 GEN WR02X8842 Contact Us For Availability
279
GEN WR13X0587 GEN WR13X0587 Contact Us For Availability
280
CAP CORNER O.C. WH GEN WR02X7656 Contact Us For Availability
282
GEN WR13X0648 GEN WR13X0648 Contact Us For Availability
286
GEN WR01X1815 GEN WR01X1815 Contact Us For Availability
287
GEN WR02X9168 GEN WR02X9168 Contact Us For Availability
288
GEN WR02X7646 GEN WR02X7646 Contact Us For Availability
288
GEN WR74X0220 GEN WR74X0220 Contact Us For Availability
295
GEN WR23X0315 GEN WR23X0315 Contact Us For Availability
300
GEN WR09X0559 GEN WR09X0559 Contact Us For Availability
301
GEN WR02X8692 GEN WR02X8692 Contact Us For Availability
304
GEN WR02X8363 GEN WR02X8363 Contact Us For Availability
304
GEN WR02X9298 GEN WR02X9298 Contact Us For Availability
306
GEN WR02X7652 GEN WR02X7652 Contact Us For Availability
306
GEN WR02X7669 GEN WR02X7669 Contact Us For Availability
306
GEN WR17X3196 GEN WR17X3196 Contact Us For Availability
308
GEN WR02X7768 GEN WR02X7768 Contact Us For Availability
314
GEN WR02X8503 GEN WR02X8503 Contact Us For Availability
315
GROMMET&TUBE DRAIN GEN WR02X8504 Contact Us For Availability
323
GEN WR02X7767 GEN WR02X7767 Contact Us For Availability
324
GEN WR02X7051 GEN WR02X7051 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
429
GEN WH02X0795 GEN WH02X0795 Contact Us For Availability
603
LINER BOTTOM FZ GEN WR17X2275 Contact Us For Availability
604
GEN WR17X3494 GEN WR17X3494 Contact Us For Availability
606
GEN WR17X2385 GEN WR17X2385 Contact Us For Availability
608
GEN WR17X2774 GEN WR17X2774 Contact Us For Availability
610
GEN WR60X0190 GEN WR60X0190 Contact Us For Availability
611
GEN WR02X7664 GEN WR02X7664 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
622
GEN WR17X2283 GEN WR17X2283 Contact Us For Availability
622
GEN WR14X0357 GEN WR14X0357 Contact Us For Availability
624
GEN WR17X3883 GEN WR17X3883 Contact Us For Availability
651
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
651
GEN WR01X1715 GEN WR01X1715 Contact Us For Availability
651
GEN WR60X0212 GEN WR60X0212 Contact Us For Availability
679
GEN WZ06X0133 GEN WZ06X0133 Contact Us For Availability
683
GEN WR01X1825 GEN WR01X1825 Contact Us For Availability
692
SCREW GEN WZ04X0416 Contact Us For Availability
693
SCREW 12-24 WH GEN WR01X2136 Contact Us For Availability
726
GEN WR85X0311 GEN WR85X0311 Contact Us For Availability
730
GEN WR84X0194 GEN WR84X0194 Contact Us For Availability
734
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
736
GEN WR02X8203 GEN WR02X8203 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
751
GEN WR17X3759 GEN WR17X3759 Contact Us For Availability
752
GEN WR17X3858 GEN WR17X3858 Contact Us For Availability
754
GEN WR17X3771 GEN WR17X3771 Contact Us For Availability
755
GEN WR17X2268 GEN WR17X2268 Contact Us For Availability
756
GEN WR17X3760 GEN WR17X3760 Contact Us For Availability
762
GEN WR14X0313 GEN WR14X0313 Contact Us For Availability
764
GEN WR02X9208 GEN WR02X9208 Contact Us For Availability
766
GEN WR02X9206 GEN WR02X9206 Contact Us For Availability
767
GEN WR02X9207 GEN WR02X9207 Contact Us For Availability
802
GEN WR01X1360 GEN WR01X1360 Contact Us For Availability
830
GEN WR01X1841 GEN WR01X1841 Contact Us For Availability
830
GEN WR17X3056 GEN WR17X3056 Contact Us For Availability
830
GEN WR82X0360 GEN WR82X0360 Contact Us For Availability
900
GEN WR78X8727 GEN WR78X8727 Contact Us For Availability
910
GEN WR78X8726 GEN WR78X8726 Contact Us For Availability
921
PLUG BUTTON WH GEN WR02X7624 Contact Us For Availability
× ![]()
