Model Hotpoint CTX16FAZBAD Refrigerator – Common Parts & Diagrams

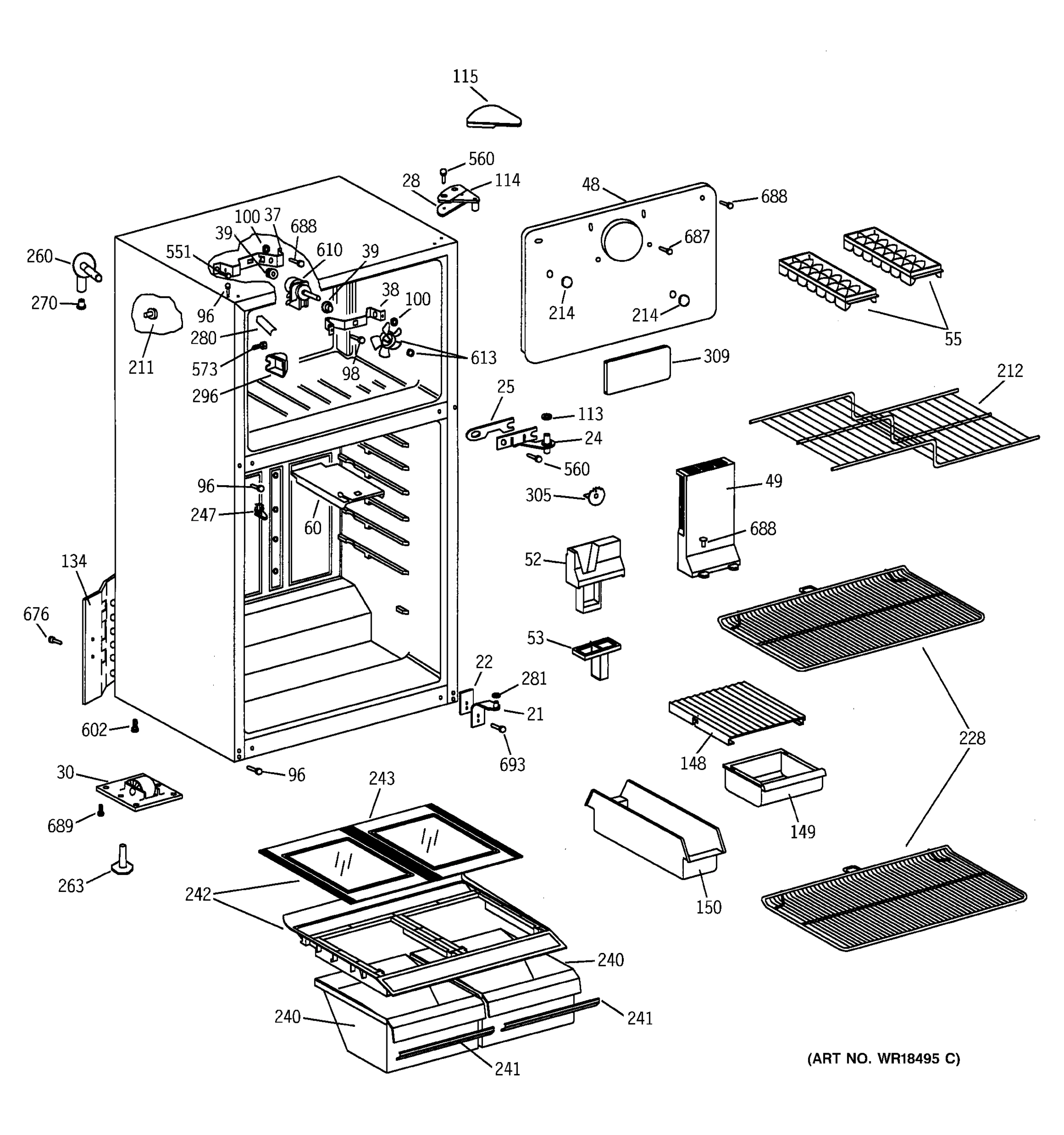

CABINET

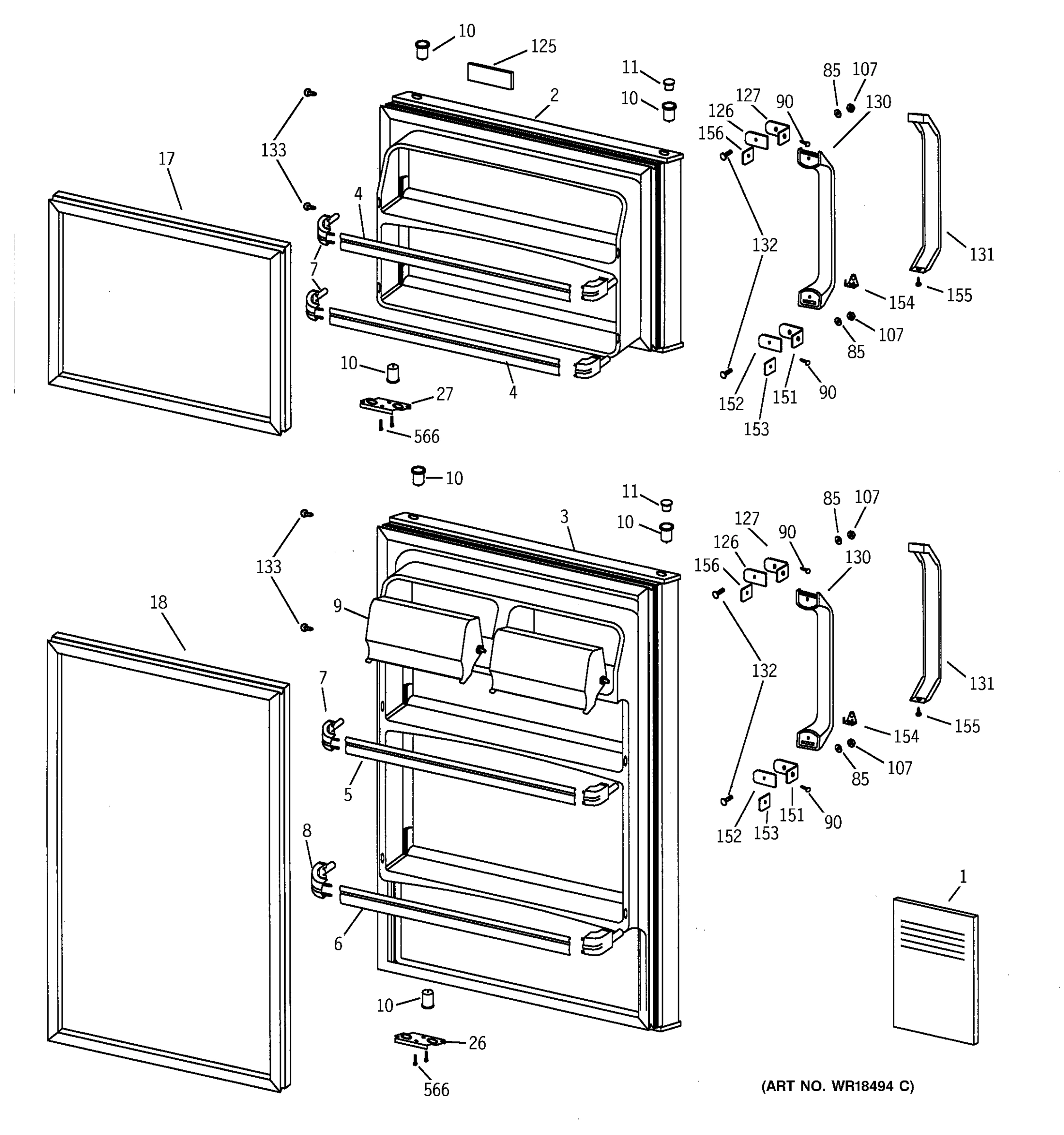

DOORS
UNIT PARTS
Common parts from model Hotpoint CTX16FAZBAD Refrigerator
1
TECHNICAL DATA SHEET GEN 31-51109 Contact Us For Availability
1
GUIDE OWNER'S GEN 39-6410 Contact Us For Availability
2
GEN WR78K0033 GEN WR78K0033 Contact Us For Availability
3
GEN WR78K0024 GEN WR78K0024 Contact Us For Availability
4
GEN WR17K10010 GEN WR17K10010 Contact Us For Availability
5
GEN WR17K10011 GEN WR17K10011 Contact Us For Availability
6
GEN WR17K10012 GEN WR17K10012 Contact Us For Availability
7
GEN WR02X9185 GEN WR02X9185 Contact Us For Availability
8
GEN WR02X9186 GEN WR02X9186 Contact Us For Availability
9
GEN WR22K10001 GEN WR22K10001 Contact Us For Availability
10
GEN WR02X9203 GEN WR02X9203 Contact Us For Availability
11
PLUG BUTTON THIMBLE (AD) GEN WR02X9204 Contact Us For Availability
17
GEN WR49K0006 GEN WR49K0006 Contact Us For Availability
18
GEN WR49K10005 GEN WR49K10005 Contact Us For Availability
22
GEN WR02X9199 GEN WR02X9199 Contact Us For Availability
24
GEN WR13K10003 GEN WR13K10003 Contact Us For Availability
24
GEN WR13K10004 GEN WR13K10004 Contact Us For Availability
25
GEN WR02X9200 GEN WR02X9200 Contact Us For Availability
26
STOP DOOR FF GEN WR02K0060 Contact Us For Availability
27
GEN WR02K0061 GEN WR02K0061 Contact Us For Availability
28
GEN WR02X9201 GEN WR02X9201 Contact Us For Availability
30
GEN WR02X9194 GEN WR02X9194 Contact Us For Availability
30
GEN WR02X9195 GEN WR02X9195 Contact Us For Availability
31
GEN WR01X5753 GEN WR01X5753 Contact Us For Availability
37
GEN WR02X9183 GEN WR02X9183 Contact Us For Availability
38
GEN WR02X9182 GEN WR02X9182 Contact Us For Availability
39
GEN WR02X9192 GEN WR02X9192 Contact Us For Availability
48
GEN WR17X3753 GEN WR17X3753 Contact Us For Availability
49
GEN WR17X3754 GEN WR17X3754 Contact Us For Availability
52
GEN WR02K10014 GEN WR02K10014 Contact Us For Availability
53
GEN WR02X9189 GEN WR02X9189 Contact Us For Availability
55
GEN WR30K10001 GEN WR30K10001 Contact Us For Availability
60
GEN WR02X9196 GEN WR02X9196 Contact Us For Availability
61
GEN WR17K10013 GEN WR17K10013 Contact Us For Availability
66
SOCKET & TERMINAL ASM GEN WR02K0058 Contact Us For Availability
69
GEN WR23X0418 GEN WR23X0418 Contact Us For Availability
72
GEN WR17X3758 GEN WR17X3758 Contact Us For Availability
73
GEN WR17X3756 GEN WR17X3756 Contact Us For Availability
74
GEN WR17X3752 GEN WR17X3752 Contact Us For Availability
75
GEN WR02X8080 GEN WR02X8080 Contact Us For Availability
76
GEN WR02K10006 GEN WR02K10006 Contact Us For Availability
78
GEN WR87K10001 GEN WR87K10001 Contact Us For Availability
85
GEN WR01K0007 GEN WR01K0007 Contact Us For Availability
86
GEN WR02K0069 GEN WR02K0069 Contact Us For Availability
87
GEN WR17K10001 GEN WR17K10001 Contact Us For Availability
88
GEN WR86K0002 GEN WR86K0002 Contact Us For Availability
89
GEN WR01X2007 GEN WR01X2007 Contact Us For Availability
90
GEN WR01K0011 GEN WR01K0011 Contact Us For Availability
96
GEN WR01X2009 GEN WR01X2009 Contact Us For Availability
98
GEN WR01K0013 GEN WR01K0013 Contact Us For Availability
100
WASHER FOAM GEN WR02K10004 Contact Us For Availability
101
GEN WR02K10005 GEN WR02K10005 Contact Us For Availability
102
GROMMET RUBBER GEN WR02K10003 Contact Us For Availability
103
PAD FOAM GEN WR02K10001 Contact Us For Availability
104
PAD FOAM GEN WR02K10002 Contact Us For Availability
105
GEN WR01X2005 GEN WR01X2005 Contact Us For Availability
106
GEN WR01X2004 GEN WR01X2004 Contact Us For Availability
107
GEN WR01K0009 GEN WR01K0009 Contact Us For Availability
113
GEN WR01X2006 GEN WR01X2006 Contact Us For Availability
114
GEN WR13X0688 GEN WR13X0688 Contact Us For Availability
115
GEN WR13K10006 GEN WR13K10006 Contact Us For Availability
125
GEN WR04X0200 GEN WR04X0200 Contact Us For Availability
126
GEN WR02K10009 GEN WR02K10009 Contact Us For Availability
127
GEN WR02K10010 GEN WR02K10010 Contact Us For Availability
130
GEN WR12K0008 GEN WR12K0008 Contact Us For Availability
131
GEN WR12K10001 GEN WR12K10001 Contact Us For Availability
132
GEN WR01K0021 GEN WR01K0021 Contact Us For Availability
133
GEN WR01K10002 GEN WR01K10002 Contact Us For Availability
134
GEN WR82K0006 GEN WR82K0006 Contact Us For Availability
135
GEN WR01X2008 GEN WR01X2008 Contact Us For Availability
136
GEN WR23K0005 GEN WR23K0005 Contact Us For Availability
137
GEN WR85K0004 GEN WR85K0004 Contact Us For Availability
138
SCREW & NUT GEN WR01K0012 Contact Us For Availability
139
WASHER GEN WR02K0044 Contact Us For Availability
140
GEN WR01K0015 GEN WR01K0015 Contact Us For Availability
148
COVER MEAT PAN GEN WR32K0008 Contact Us For Availability
149
GEN WR32K10005 GEN WR32K10005 Contact Us For Availability
150
GEN WR32K10001 GEN WR32K10001 Contact Us For Availability
151
GEN WR02K10008 GEN WR02K10008 Contact Us For Availability
152
GEN WR02K10007 GEN WR02K10007 Contact Us For Availability
153
GEN WR02K10017 GEN WR02K10017 Contact Us For Availability
154
GEN WR02X7903 GEN WR02X7903 Contact Us For Availability
155
GEN WR01K10001 GEN WR01K10001 Contact Us For Availability
156
GEN WR02K10016 GEN WR02K10016 Contact Us For Availability
240
GEN WR32K10003 GEN WR32K10003 Contact Us For Availability
241
GEN WR38K0001 GEN WR38K0001 Contact Us For Availability
242
GEN WR32K10002 GEN WR32K10002 Contact Us For Availability
243
GEN WR32K10004 GEN WR32K10004 Contact Us For Availability
247
GEN WR02X8242 GEN WR02X8242 Contact Us For Availability
260
GEN WR02X8228 GEN WR02X8228 Contact Us For Availability
280
GEN WR02X8466 GEN WR02X8466 Contact Us For Availability
281
WASHER BTM HINGE GEN WR01K0014 Contact Us For Availability
296
GEN WR02X9159 GEN WR02X9159 Contact Us For Availability
300
GEN WR09K10001 GEN WR09K10001 Contact Us For Availability
301
GEN WR02K10015 GEN WR02K10015 Contact Us For Availability
305
GEN WR02K0041 GEN WR02K0041 Contact Us For Availability
309
GEN WR02X8246 GEN WR02X8246 Contact Us For Availability
551
GEN WR01K10005 GEN WR01K10005 Contact Us For Availability
560
GEN WR01K10006 GEN WR01K10006 Contact Us For Availability
573
GEN WZ04X0254 GEN WZ04X0254 Contact Us For Availability
602
GEN WR01K10011 GEN WR01K10011 Contact Us For Availability
610
GEN WR60X0191 GEN WR60X0191 Contact Us For Availability
613
GEN WR02K0059 GEN WR02K0059 Contact Us For Availability
618
GEN WR51K0001 GEN WR51K0001 Contact Us For Availability
620
THERMOSTAT DEF GEN WR50X0112 Contact Us For Availability
626
POWER CORD & HARNESS GEN WR23K0008 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
688
GEN WR01K10010 GEN WR01K10010 Contact Us For Availability
690
GEN WR01K10009 GEN WR01K10009 Contact Us For Availability
692
GEN WR01K10007 GEN WR01K10007 Contact Us For Availability
694
GEN WR01K10008 GEN WR01K10008 Contact Us For Availability
732
GEN WR02K0042 GEN WR02K0042 Contact Us For Availability
733
GEN WR07K0005 GEN WR07K0005 Contact Us For Availability
734
GEN WR02K0045 GEN WR02K0045 Contact Us For Availability
735
GEN WR08K0004 GEN WR08K0004 Contact Us For Availability
× ![]()
