Model Maytag CTB1822VRB01 REFRIGERATOR – Common Parts & Diagrams
01 - CABINET PARTS
02 - DOOR PARTS

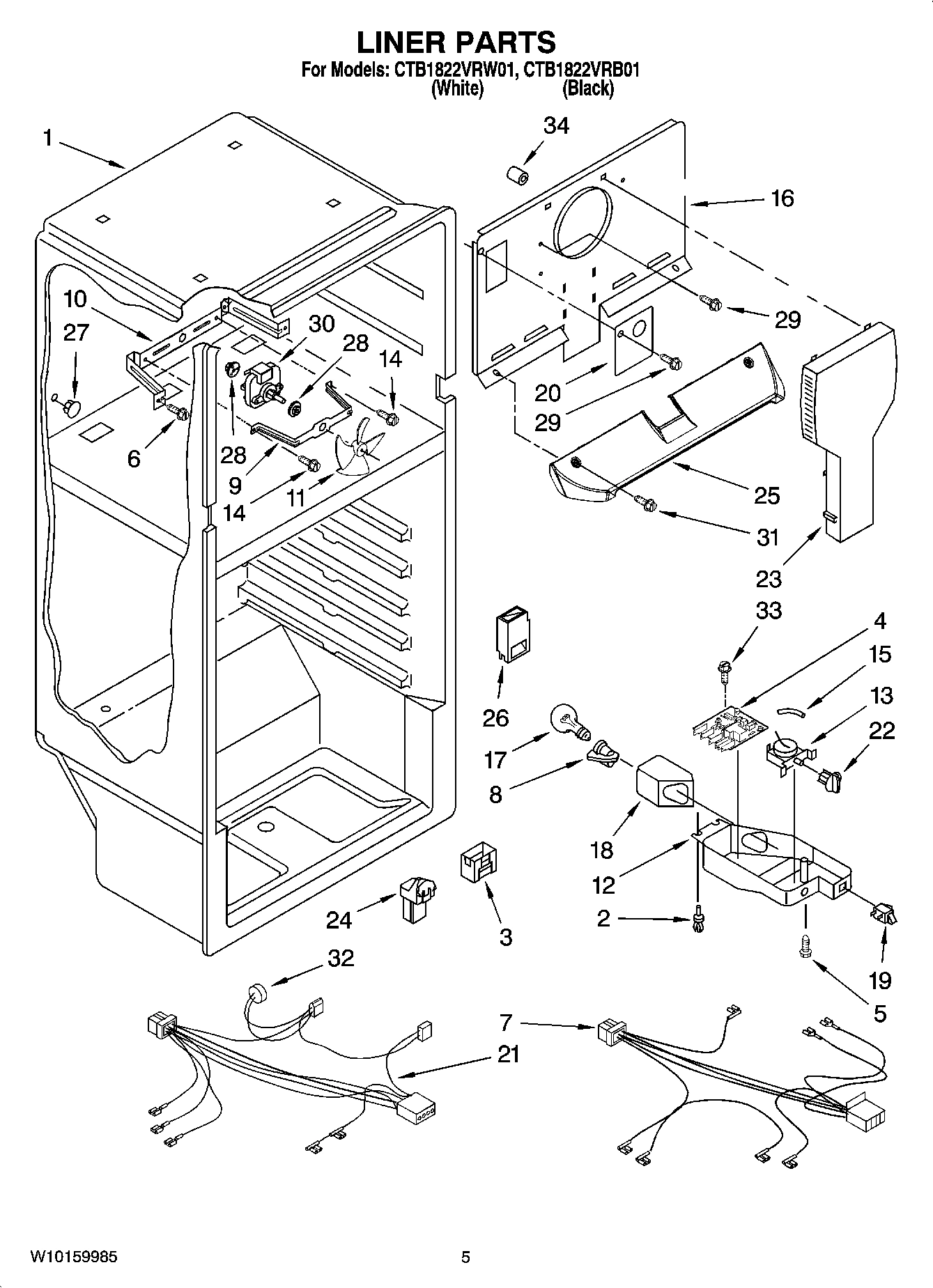

03 - LINER PARTS

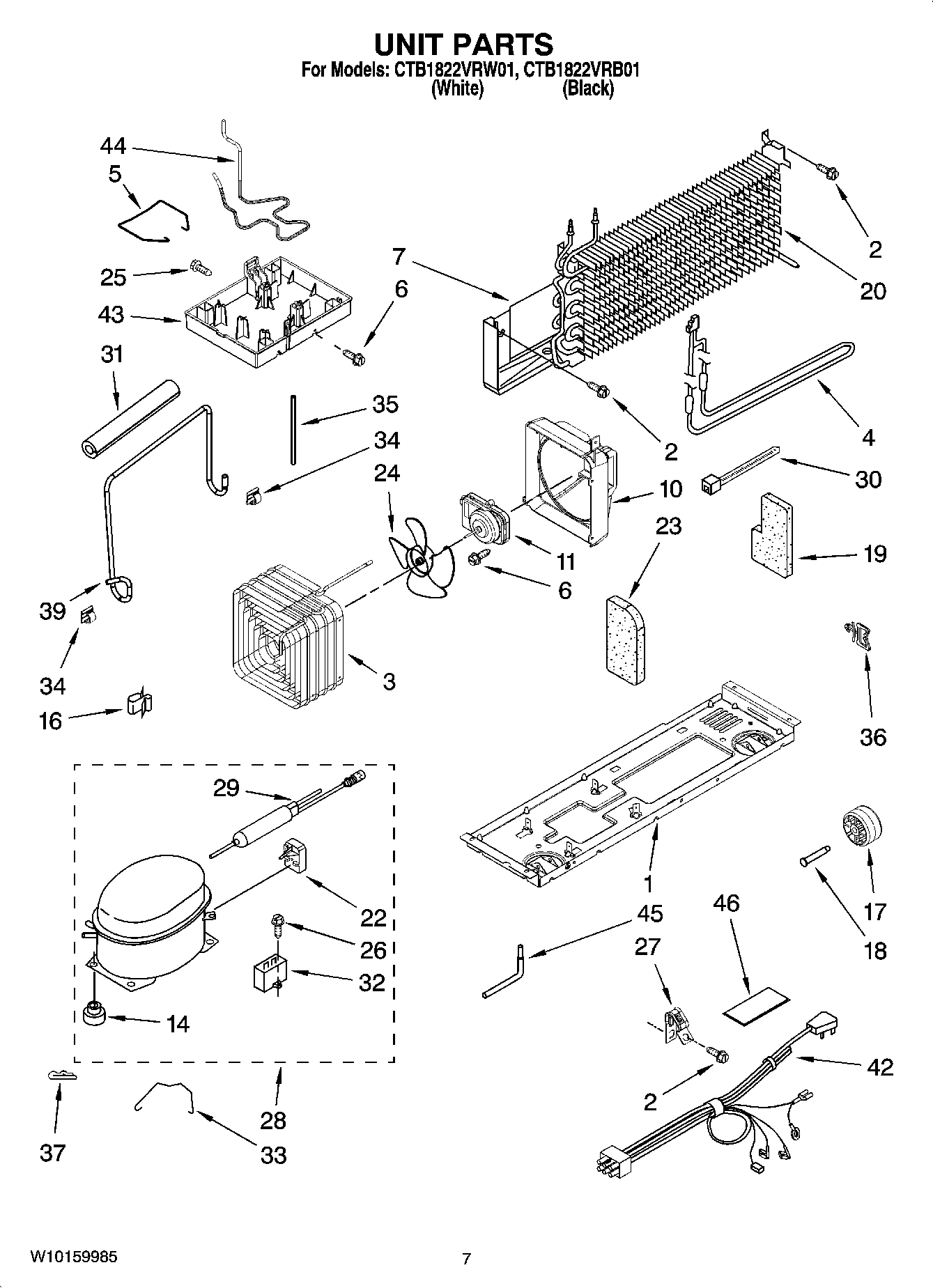

04 - UNIT PARTS

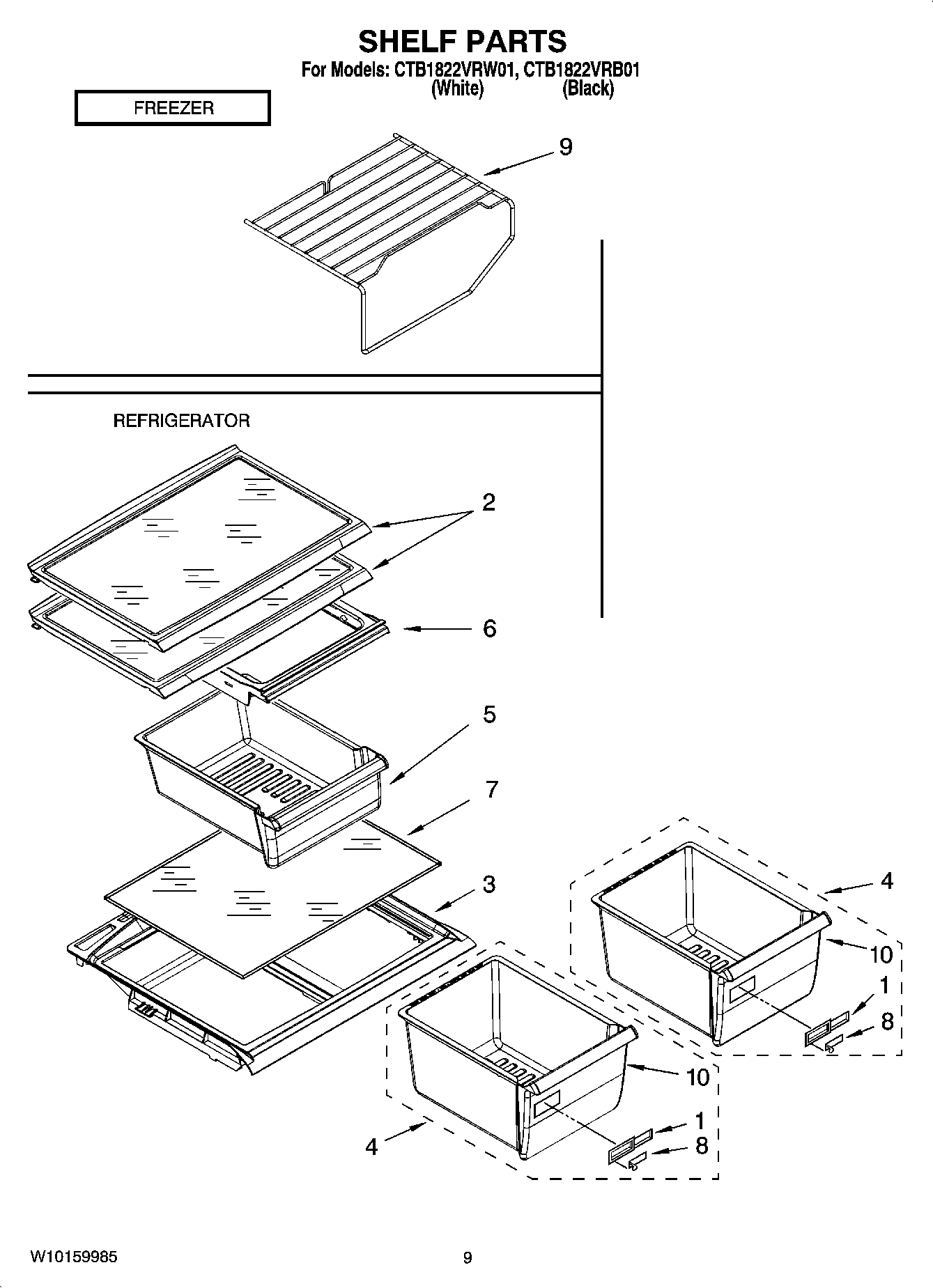

05 - SHELF PARTS, OPTIONAL PARTS
Common parts from model Maytag CTB1822VRB01 REFRIGERATOR
1
SWITCH (W/NUT) MAY 206794 Contact Us For Availability
1
MAY 2326126 MAY 2326126 Contact Us For Availability
1
MAY 2326133 MAY 2326133 Contact Us For Availability
1
DO-IT-YOURSELF MANUAL REF./FZR. MAY 677969 Contact Us For Availability
1
MAY W10145175 MAY W10145175 Contact Us For Availability
1
Refrigerator Door (Includes Illus. 9 & 13) (W MAY 2264750W Contact Us For Availability
1
MAY W10142006 MAY W10142006 Contact Us For Availability
1
MAY W10127456 MAY W10127456 Contact Us For Availability
1
MAY 2212446 MAY 2212446 Contact Us For Availability
2
Hinge Butt, Top MAY 2261963 Contact Us For Availability
2
MAY 489442 MAY 489442 Contact Us For Availability
2
Rivet MAY 939962 Contact Us For Availability
2
Shelf (2) MAY 2263641 Contact Us For Availability
3
Roller-Front MAY 2324094 Contact Us For Availability
3
MAY 8281206 MAY 8281206 Contact Us For Availability
3
MAY 2183061 MAY 2183061 Contact Us For Availability
3
MAY W10140200 MAY W10140200 Contact Us For Availability
3
CRISPER, COVER MAY 2192250 Contact Us For Availability
4
MAY 2266506 MAY 2266506 Contact Us For Availability
4
MAY 2202819B MAY 2202819B Contact Us For Availability
4
Cover, Screw (White) MAY 2202819W Contact Us For Availability
4
MAY 2303825 MAY 2303825 Contact Us For Availability
4
MAY 2176942 MAY 2176942 Contact Us For Availability
4
Terminal, Tinned & Brass (3) (Includes No.40) MAY 279318 Contact Us For Availability
5
Handle, Refrigerator (White) MAY 2221946W Contact Us For Availability
5
Handle, Refrigerator (Black) MAY 2326169B Contact Us For Availability
5
MAY 489174 MAY 489174 Contact Us For Availability
5
Clip, Condensor MAY 2264835 Contact Us For Availability
5
MAY 2207936 MAY 2207936 Contact Us For Availability
6
MAY 489357 MAY 489357 Contact Us For Availability
6
MAY 8533859 MAY 8533859 Contact Us For Availability
6
MAY 2262686 MAY 2262686 Contact Us For Availability
7
Freezer Door (Includes Illus. 13 & 16) (White MAY 2263254W Contact Us For Availability
7
MAY W10142007 MAY W10142007 Contact Us For Availability
7
MAY 2265930 MAY 2265930 Contact Us For Availability
7
MAY 2319224 MAY 2319224 Contact Us For Availability
7
MAY 2210047 MAY 2210047 Contact Us For Availability
8
MAY 2264132 MAY 2264132 Contact Us For Availability
8
MAY 8281146 MAY 8281146 Contact Us For Availability
8
Socket, Light MAY 2162085 Contact Us For Availability
8
Slide, Humidity Control MAY 2176222 Contact Us For Availability
9
SCREW MAY 2222100 Contact Us For Availability
9
Door Gasket, Magnetic (RC) (Beige) MAY 2263258 Contact Us For Availability
9
Door Gasket, Magnetic (RC) (Black) MAY 2264723 Contact Us For Availability
9
MAY 2197404 MAY 2197404 Contact Us For Availability
9
MAY 2262654 MAY 2262654 Contact Us For Availability
10
Nameplate MAY 2326131 Contact Us For Availability
10
MAY 2197405 MAY 2197405 Contact Us For Availability
10
MAY 2263929 MAY 2263929 Contact Us For Availability
10
MAY 2252931 MAY 2252931 Contact Us For Availability
11
MAY 2166086 MAY 2166086 Contact Us For Availability
11
Fan Blade MAY 2169142 Contact Us For Availability
11
Motor, Condensor MAY 2188875 Contact Us For Availability
12
SHIM HINGE, CENTER MAY 2166043 Contact Us For Availability
12
Trim, Door Shelf (Upper) MAY 2266729 Contact Us For Availability
12
MAY 2215210 MAY 2215210 Contact Us For Availability
13
MAY 489497 MAY 489497 Contact Us For Availability
13
MAY 2262054 MAY 2262054 Contact Us For Availability
13
MAY 2325701 MAY 2325701 Contact Us For Availability
14
Hinge Butt, Bottom MAY 2221926 Contact Us For Availability
14
Trim, Door Shelf (Wide) MAY 2266738 Contact Us For Availability
14
MAY 489399 MAY 489399 Contact Us For Availability
14
MAY 2222084 MAY 2222084 Contact Us For Availability
14
Grommet (Service) MAY 4387558 Contact Us For Availability
15
Hinge-Pin, Bottom MAY 9791682 Contact Us For Availability
15
Hole Plug, Handle (White) MAY 2189000 Contact Us For Availability
15
Hole Plug, Handle (Black) MAY 2189009 Contact Us For Availability
15
MAY 1118680 MAY 1118680 Contact Us For Availability
16
MAY 3428970 MAY 3428970 Contact Us For Availability
16
Door Gasket, Magnetic (FC) (Beige) MAY 2263257 Contact Us For Availability
16
Door Gasket, Magnetic (FC) (Black) MAY 2264722 Contact Us For Availability
16
MAY 2264669 MAY 2264669 Contact Us For Availability
16
MAY 939054 MAY 939054 Contact Us For Availability
17
MAY 2201567 MAY 2201567 Contact Us For Availability
17
MAY 2189202 MAY 2189202 Contact Us For Availability
17
MAY 2252970 MAY 2252970 Contact Us For Availability
17
Roller MAY 2150304 Contact Us For Availability
18
MAY 2174760 MAY 2174760 Contact Us For Availability
18
MAY 488921 MAY 488921 Contact Us For Availability
18
MAY 9791702 MAY 9791702 Contact Us For Availability
18
MAY 2264756 MAY 2264756 Contact Us For Availability
19
MAY 2183998 MAY 2183998 Contact Us For Availability
19
Hole Plug (6) (White) MAY 2201012 Contact Us For Availability
19
Hole Plug (2) (White) MAY 2212648 Contact Us For Availability
19
Hole Plug (2) (Black) MAY 2212651 Contact Us For Availability
19
MAY 1118894 MAY 1118894 Contact Us For Availability
19
MAY 2262191 MAY 2262191 Contact Us For Availability
20
Seal MAY 1106508 Contact Us For Availability
20
Plug-Trim MAY 2156007 Contact Us For Availability
20
MAY 2217784 MAY 2217784 Contact Us For Availability
20
EVAPORATOR ASSY MAY 2263920 Contact Us For Availability
21
MAY 2262176 MAY 2262176 Contact Us For Availability
21
END CAP, TRIM MAY 2195916 Contact Us For Availability
21
Wiring, Freezer (Includes Item 32) MAY 2319442 Contact Us For Availability
22
MAY 2166003 MAY 2166003 Contact Us For Availability
22
Corner Filler (Black) MAY 2215384 Contact Us For Availability
22
MAY 2207942 MAY 2207942 Contact Us For Availability
22
MAY 2202885 MAY 2202885 Contact Us For Availability
22
Start- Device Combination (Start Relay and Ov MAY W10128791 Contact Us For Availability
23
MAY 489341 MAY 489341 Contact Us For Availability
23
Handle, Freezer (White) MAY 2202098 Contact Us For Availability
23
Handle, Freezer (Black) MAY 2202098B Contact Us For Availability
23
MAY 9790408 MAY 9790408 Contact Us For Availability
23
MAY 2262192 MAY 2262192 Contact Us For Availability
24
Washer 7/64 MAY 487576 Contact Us For Availability
24
Trim, Door (Narrow) MAY 2266727 Contact Us For Availability
24
Hood And Foil Assembly MAY 2197052 Contact Us For Availability
24
MAY 2264129 MAY 2264129 Contact Us For Availability
25
END CAP, TRIM MAY 2156003 Contact Us For Availability
25
MAY 2261978 MAY 2261978 Contact Us For Availability
25
MAY 2264841 MAY 2264841 Contact Us For Availability
26
MAY 2221992 MAY 2221992 Contact Us For Availability
26
MAY 8533919 MAY 8533919 Contact Us For Availability
27
MAY 941839 MAY 941839 Contact Us For Availability
27
MAY 549193 MAY 549193 Contact Us For Availability
28
MAY 2264462 MAY 2264462 Contact Us For Availability
28
Compressor (Includes Items 14,29, & 32) MAY W10141544 Contact Us For Availability
29
MAY 489478 MAY 489478 Contact Us For Availability
29
MAY 2317845 MAY 2317845 Contact Us For Availability
30
Evaporator, Fan Motor MAY 2201212 Contact Us For Availability
30
MAY 2263990 MAY 2263990 Contact Us For Availability
31
MAY 2262178 MAY 2262178 Contact Us For Availability
31
MAY 2264838 MAY 2264838 Contact Us For Availability
32
MAY 2266066 MAY 2266066 Contact Us For Availability
32
Capacitor (Service) MAY 1118576 Contact Us For Availability
32
Capacitor (Production) MAY 2264017 Contact Us For Availability
33
Screw MAY 488693 Contact Us For Availability
33
Bale Strap MAY W10141545 Contact Us For Availability
34
MAY 487996 MAY 487996 Contact Us For Availability
34
MAY 1114718 MAY 1114718 Contact Us For Availability
35
MAY 2264278 MAY 2264278 Contact Us For Availability
36
CLIP-HARNESS MAY 2266467 Contact Us For Availability
37
MAY 24364001 MAY 24364001 Contact Us For Availability
39
MAY W10140199 MAY W10140199 Contact Us For Availability
42
MAY 2263753 MAY 2263753 Contact Us For Availability
43
Evaporator Tray MAY 2263928 Contact Us For Availability
44
Tube, Discharge (Incl. Pre Cooler) MAY W10140197 Contact Us For Availability
45
MAY W10140201 MAY W10140201 Contact Us For Availability
46
SHIELD-ELECTRICAL MAY 2266360 Contact Us For Availability
46
MAY 876764 MAY 876764 Contact Us For Availability
46
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
46
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
46
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
46
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
46
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
46
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
FIELD INSTALLABLE ICE MAKER (ECKMF94) MAY 2155469 Contact Us For Availability
NI
Enamel, White (12 Oz. Spray Can) MAY 350930 Contact Us For Availability
NI
Enamel, Black (12 Oz. Spray Can) MAY 350939 Contact Us For Availability
NI
Primer, White (12 Oz. Spray Can) MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
TOUCH-UP, WHITE PORCELAIN (2 OZ.) MAY 511873 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
Brush Touch-Up Kit (White) MAY 72017 Contact Us For Availability
NI
Brush Touch-Up Kit (Black) MAY 72032 Contact Us For Availability
NI
MAY 799340 MAY 799340 Contact Us For Availability
NI
Enamel, White (1 Qt. Uncut) MAY 799344 Contact Us For Availability
NI
MAY 799832 MAY 799832 Contact Us For Availability
NI
Kit, Evaporator Repair (Aluminum Epoxy) MAY 799833 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
KIT, INSULATION (14 PCS. 3`` X 24`` X 48``) MAY 876305 Contact Us For Availability
NI
KIT, INSULATION (2 PCS. 3`` X 24 `` X 48``) MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
