Model Hotpoint CSX22EGB Refrigerator – Common Parts & Diagrams

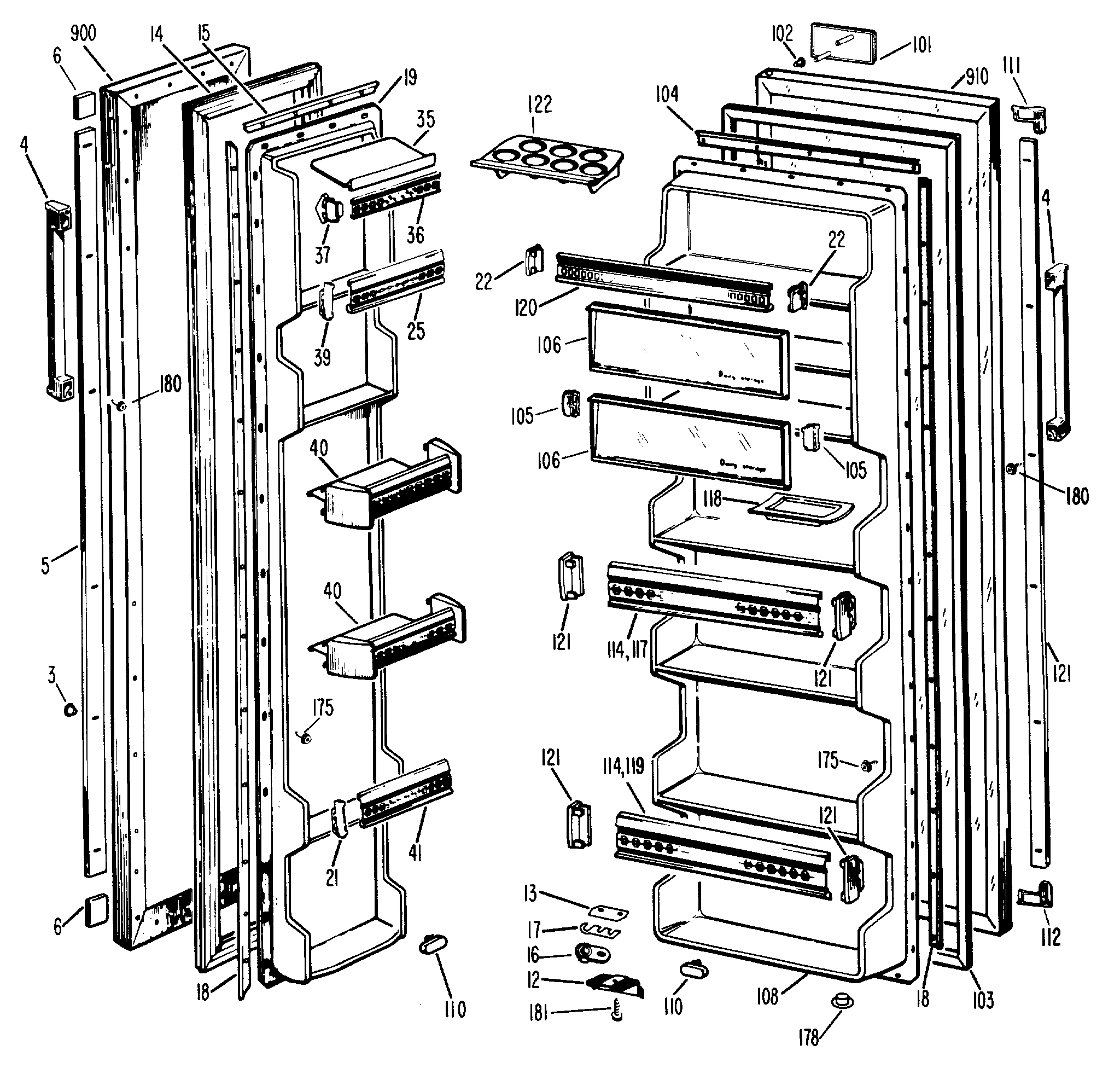

0

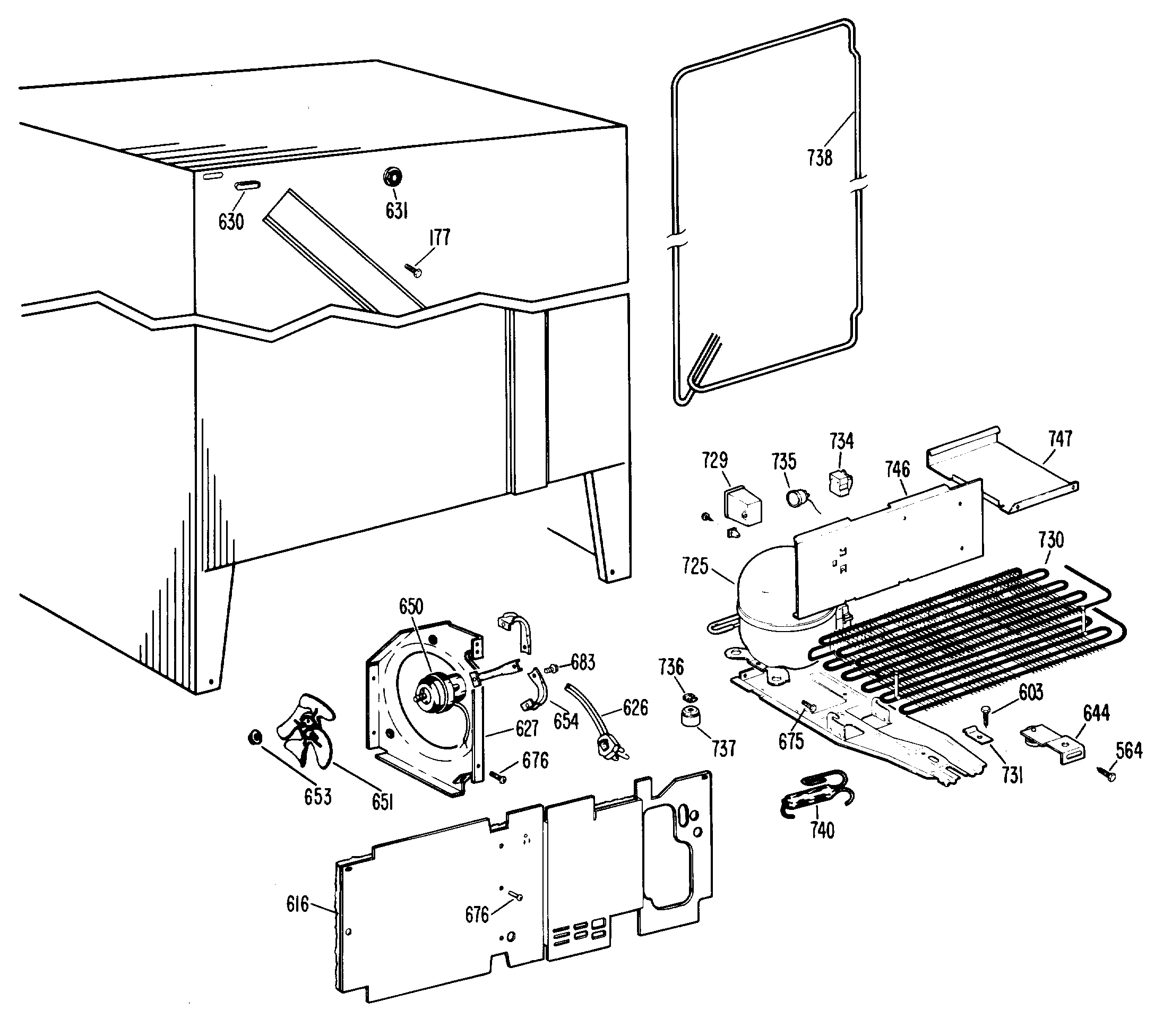

1

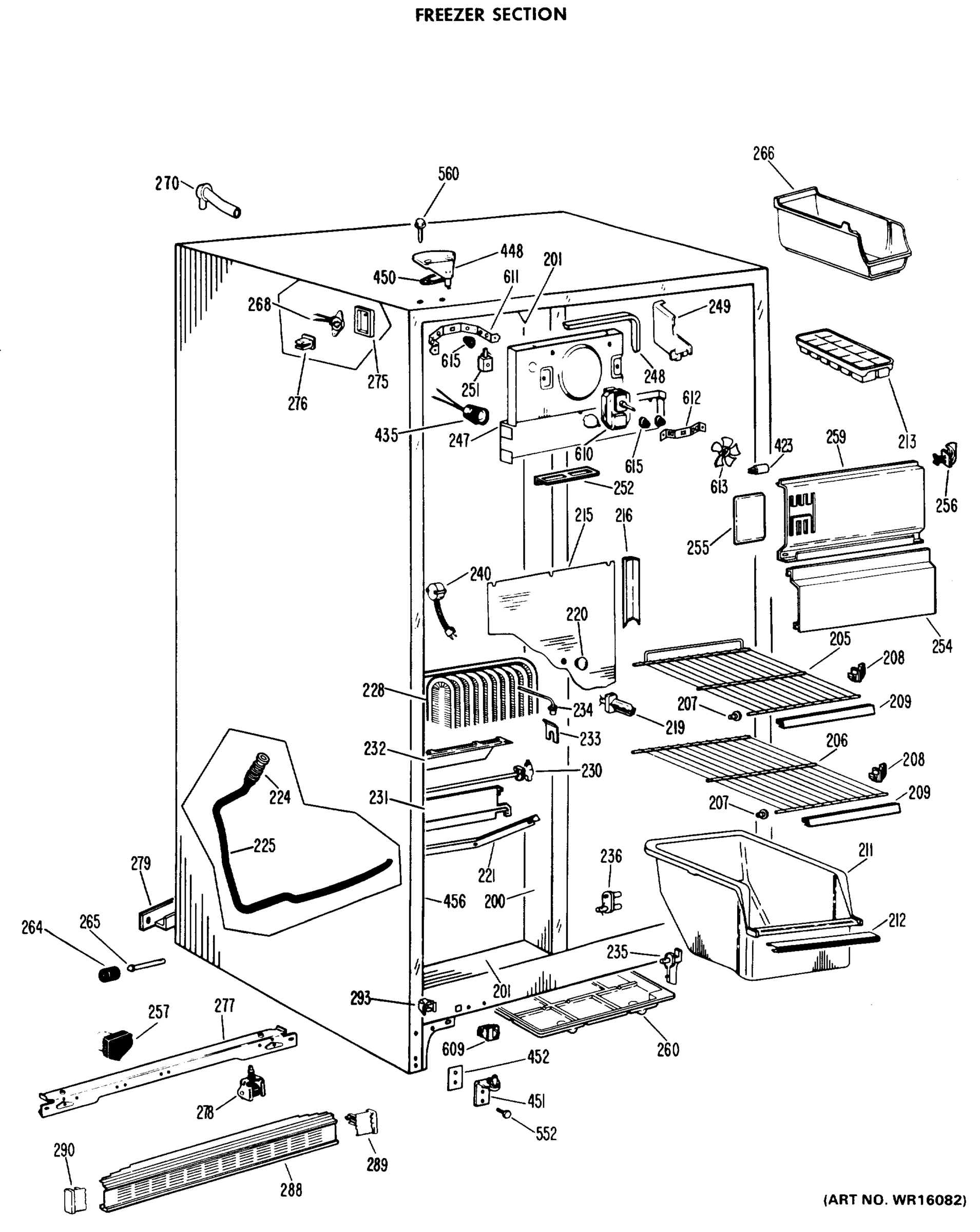

FREEZER SECTION

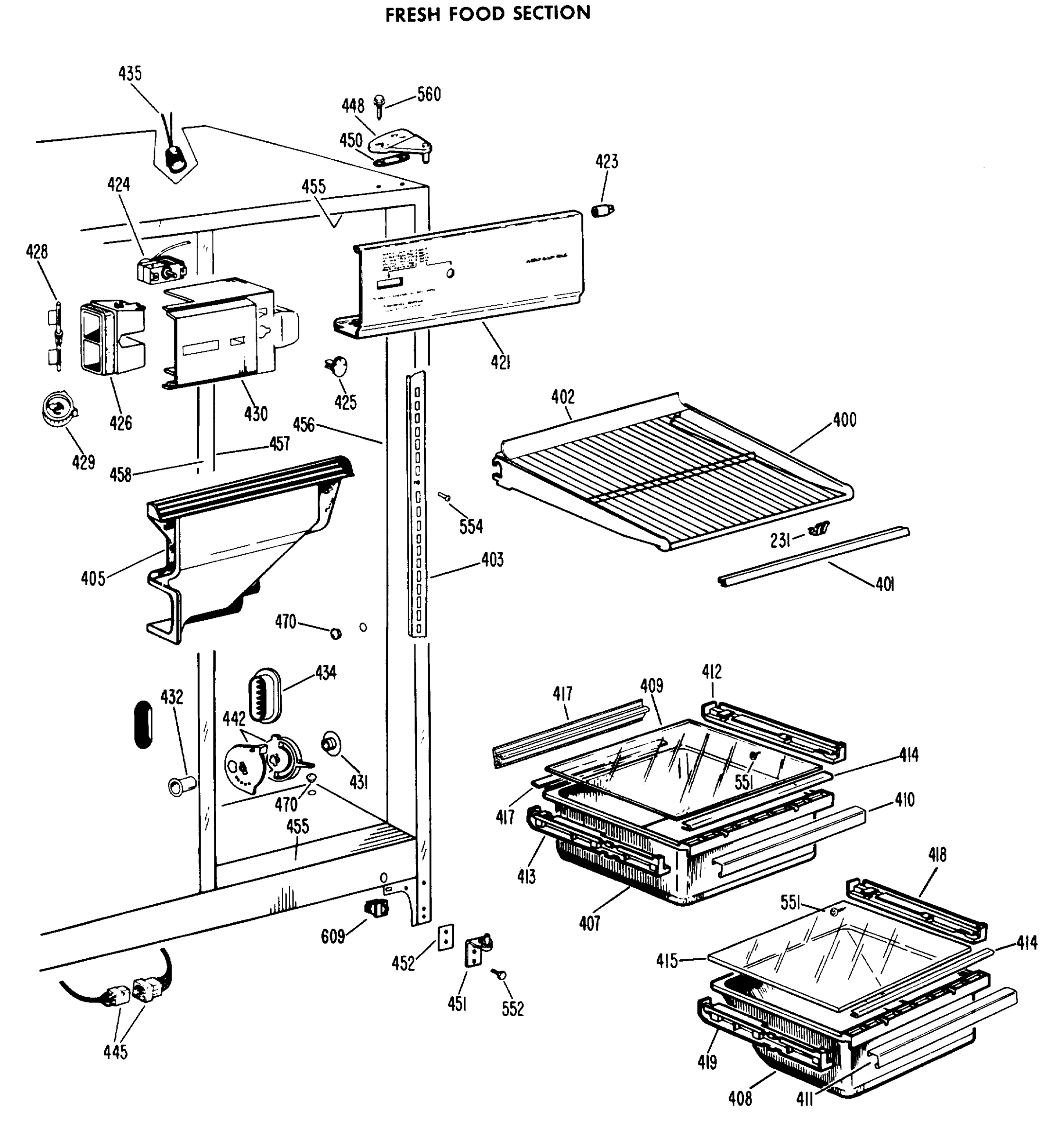

FRESH FOOD SECTION
Common parts from model Hotpoint CSX22EGB Refrigerator
5
GEN WR12X5140 GEN WR12X5140 Contact Us For Availability
5
GEN WR01X5473 GEN WR01X5473 Contact Us For Availability
5
GEN WR38X5296 GEN WR38X5296 Contact Us For Availability
6
GEN WR12X5106 GEN WR12X5106 Contact Us For Availability
7
GEN WR01X5349 GEN WR01X5349 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0252 GEN WR24X0252 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X5410 GEN WR77X5410 Contact Us For Availability
21
GEN WR02X4100 GEN WR02X4100 Contact Us For Availability
22
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
25
GEN WR71X6000 GEN WR71X6000 Contact Us For Availability
35
GEN WR71X5735 GEN WR71X5735 Contact Us For Availability
36
GEN WR71X5925 GEN WR71X5925 Contact Us For Availability
37
GEN WR02X5991 GEN WR02X5991 Contact Us For Availability
39
GEN WR02X5992 GEN WR02X5992 Contact Us For Availability
40
GEN WR71X5996 GEN WR71X5996 Contact Us For Availability
41
GEN WR71X5998 GEN WR71X5998 Contact Us For Availability
101
GEN WR04X5064 GEN WR04X5064 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0246 GEN WR24X0246 Contact Us For Availability
104
GEN WR17X1168 GEN WR17X1168 Contact Us For Availability
105
GEN WR02X5797 GEN WR02X5797 Contact Us For Availability
105
GEN WR02X5798 GEN WR02X5798 Contact Us For Availability
106
GEN WR01X5438 GEN WR01X5438 Contact Us For Availability
106
GEN WR22X5066 GEN WR22X5066 Contact Us For Availability
108
GEN WR77X5376 GEN WR77X5376 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
111
GEN WR03X5105 GEN WR03X5105 Contact Us For Availability
112
GEN WR03X5106 GEN WR03X5106 Contact Us For Availability
117
GEN WR71X6003 GEN WR71X6003 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
119
GEN WR71X6004 GEN WR71X6004 Contact Us For Availability
120
GEN WR71X6005 GEN WR71X6005 Contact Us For Availability
121
GEN WR01X5346 GEN WR01X5346 Contact Us For Availability
121
GEN WR02X5800 GEN WR02X5800 Contact Us For Availability
121
GEN WR02X5801 GEN WR02X5801 Contact Us For Availability
121
GEN WR38X5295 GEN WR38X5295 Contact Us For Availability
122
GEN WR22X5062 GEN WR22X5062 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
180
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X5872 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X7032 Contact Us For Availability
205
GEN WR71X1655 GEN WR71X1655 Contact Us For Availability
206
SHELF FZ-BTM. GEN WR71X1356 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X5180 GEN WR38X5180 Contact Us For Availability
211
GEN WR21X5074 GEN WR21X5074 Contact Us For Availability
212
GEN WR02X6042 GEN WR02X6042 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
215
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
215
GEN WR17X2007 GEN WR17X2007 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
217
GEN WR02X7257 GEN WR02X7257 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
230
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0231 GEN WR51X0231 Contact Us For Availability
231
GEN WR02X3440 GEN WR02X3440 Contact Us For Availability
231
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
GEN WR17X1567 GEN WR17X1567 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
259
GEN WR17X1927 GEN WR17X1927 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
266
GEN WR30X5105 GEN WR30X5105 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X0191 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
270
GEN WR02X7255 GEN WR02X7255 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X1492 GEN WR17X1492 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X2343 GEN WR17X2343 Contact Us For Availability
288
GEN WR79X5149 GEN WR79X5149 Contact Us For Availability
289
GEN WR02X6810 GEN WR02X6810 Contact Us For Availability
290
GEN WR02X6811 GEN WR02X6811 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
400
GEN WR71X1295 GEN WR71X1295 Contact Us For Availability
401
GEN WR38X5003 GEN WR38X5003 Contact Us For Availability
402
GEN WR38X5002 GEN WR38X5002 Contact Us For Availability
403
GEN WR72X0062 GEN WR72X0062 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1523 GEN WR17X1523 Contact Us For Availability
406
GEN WR17X5749 GEN WR17X5749 Contact Us For Availability
407
GEN WR32X0889 GEN WR32X0889 Contact Us For Availability
408
GEN WR32X0890 GEN WR32X0890 Contact Us For Availability
409
GEN WR02X7361 GEN WR02X7361 Contact Us For Availability
409
GEN WR32X5177 GEN WR32X5177 Contact Us For Availability
410
GEN WR17X2073 GEN WR17X2073 Contact Us For Availability
411
GEN WR17X2074 GEN WR17X2074 Contact Us For Availability
414
GEN WR14X0339 GEN WR14X0339 Contact Us For Availability
415
GEN WR32X0886 GEN WR32X0886 Contact Us For Availability
417
GEN WR02X7359 GEN WR02X7359 Contact Us For Availability
421
GEN WR17X6033 GEN WR17X6033 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X7156 GEN WR02X7156 Contact Us For Availability
430
CLIP-CONTROL HOUSING GEN WR01X5463 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
GEN WR02X6146 GEN WR02X6146 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
442
GEN WR02X3884 GEN WR02X3884 Contact Us For Availability
442
GEN WR02X7362 GEN WR02X7362 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0496 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7190 GEN WR02X7190 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5378 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
479
GEN WR72X0087 GEN WR72X0087 Contact Us For Availability
480
SLIDE PAN-R.SIDE GEN WR72X0084 Contact Us For Availability
480
SLIDE PAN-L.SIDE GEN WR72X0085 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
554
GEN WR01X1483 GEN WR01X1483 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
GEN WR60X0131 GEN WR60X0131 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
GEN WR82X0261 GEN WR82X0261 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
BAFFLE AIR COND FAN GEN WR17X1488 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
652
GEN WR01X1683 GEN WR01X1683 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
678
SCR 8-18 AB HXW 3/8 S GEN WR01X1687 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
687
GEN WZ05X0194 GEN WZ05X0194 Contact Us For Availability
725
GEN WR97X0096 GEN WR97X0096 Contact Us For Availability
729
GEN WR62X0038 GEN WR62X0038 Contact Us For Availability
730
GEN WR84X0050 GEN WR84X0050 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7225 GEN WR02X7225 Contact Us For Availability
734
CLAMP RELAY COVER GEN WR02X7226 Contact Us For Availability
734
GEN WR07X0174 GEN WR07X0174 Contact Us For Availability
735
GEN WR02X7227 GEN WR02X7227 Contact Us For Availability
735
GEN WR08X0085 GEN WR08X0085 Contact Us For Availability
736
GEN WR02X7228 GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0045 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
748
GEN WR17X2004 GEN WR17X2004 Contact Us For Availability
900
GEN WR78X7477 GEN WR78X7477 Contact Us For Availability
901
GEN WR78X7478 GEN WR78X7478 Contact Us For Availability
902
GEN WR78X7479 GEN WR78X7479 Contact Us For Availability
903
GEN WR78X7618 GEN WR78X7618 Contact Us For Availability
910
GEN WR78X7483 GEN WR78X7483 Contact Us For Availability
911
GEN WR78X7484 GEN WR78X7484 Contact Us For Availability
912
GEN WR78X7485 GEN WR78X7485 Contact Us For Availability
913
GEN WR78X7616 GEN WR78X7616 Contact Us For Availability
914
GEN WR78X7617 GEN WR78X7617 Contact Us For Availability
32767
GEN 31-5012 GEN 31-5012 Contact Us For Availability
32767
GEN 39-6214 GEN 39-6214 Contact Us For Availability
32767
GEN WR01X1227 GEN WR01X1227 Contact Us For Availability
32767
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
32767
GEN WR02X462 GEN WR02X462 Contact Us For Availability
32767
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
× ![]()
