Model GE CST20KABAAD – Common Parts & Diagrams
DOORS
FREEZER SECTION

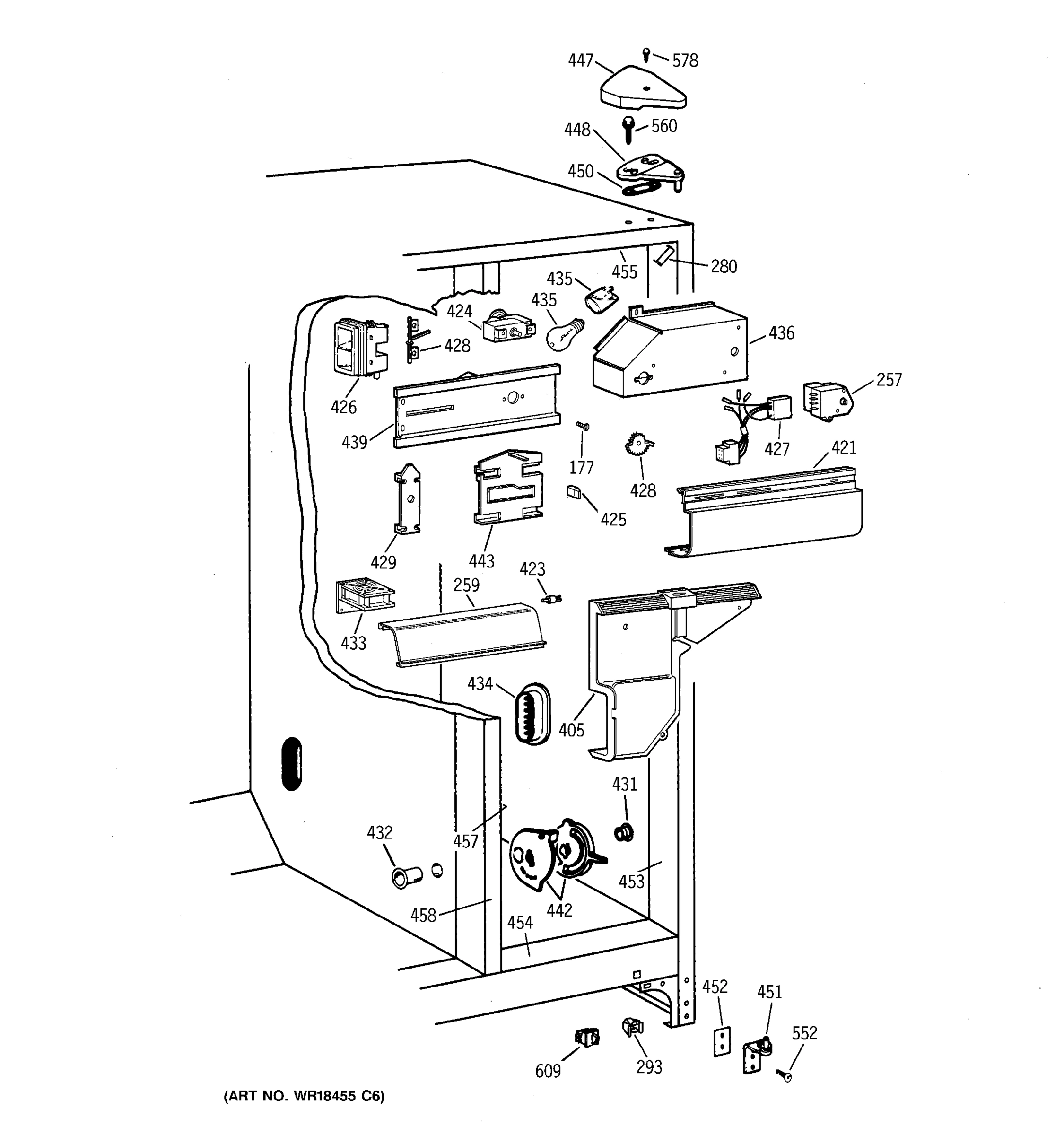

FRESH FOOD SECTION

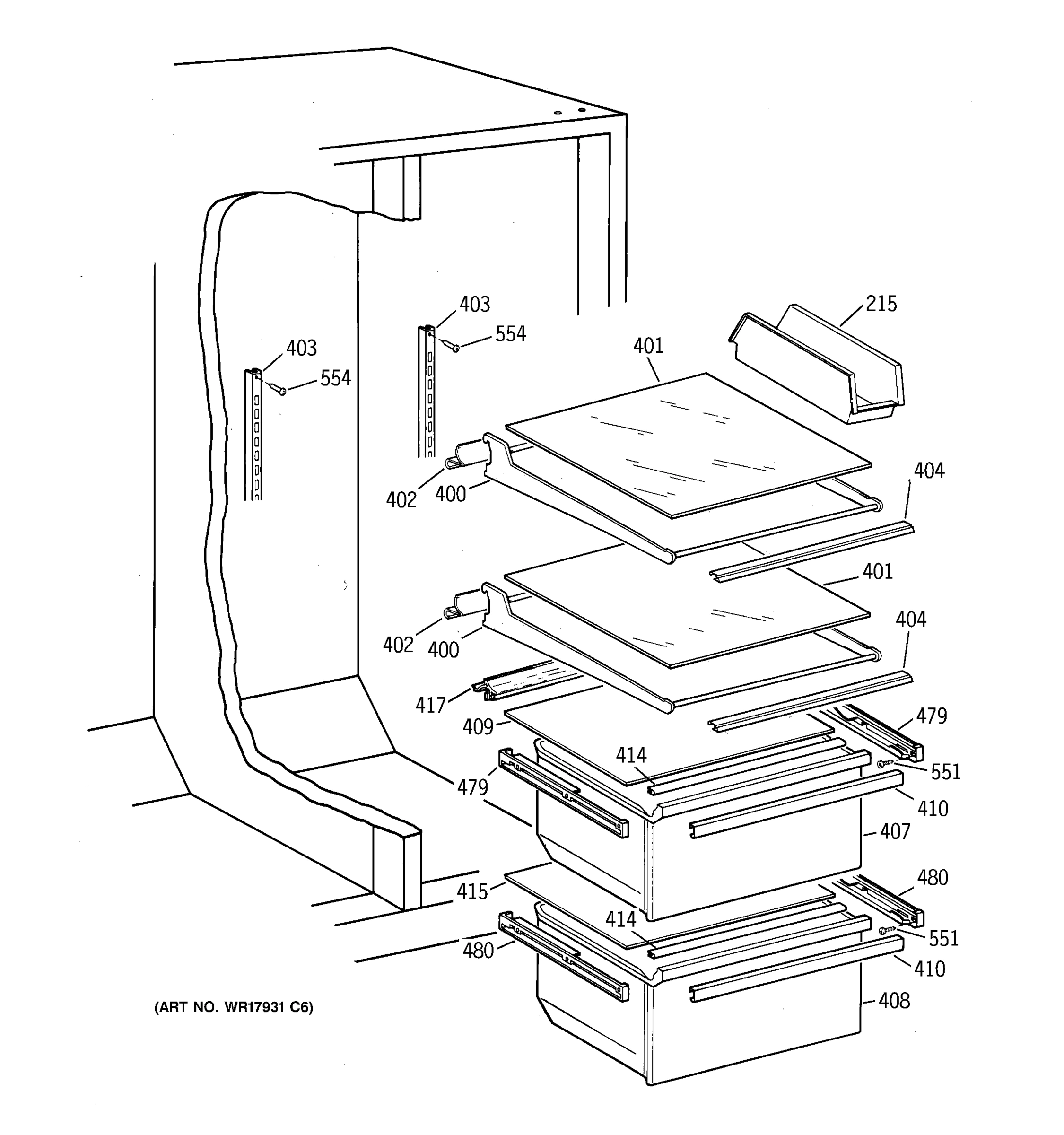

FRESH FOOD SHELVES

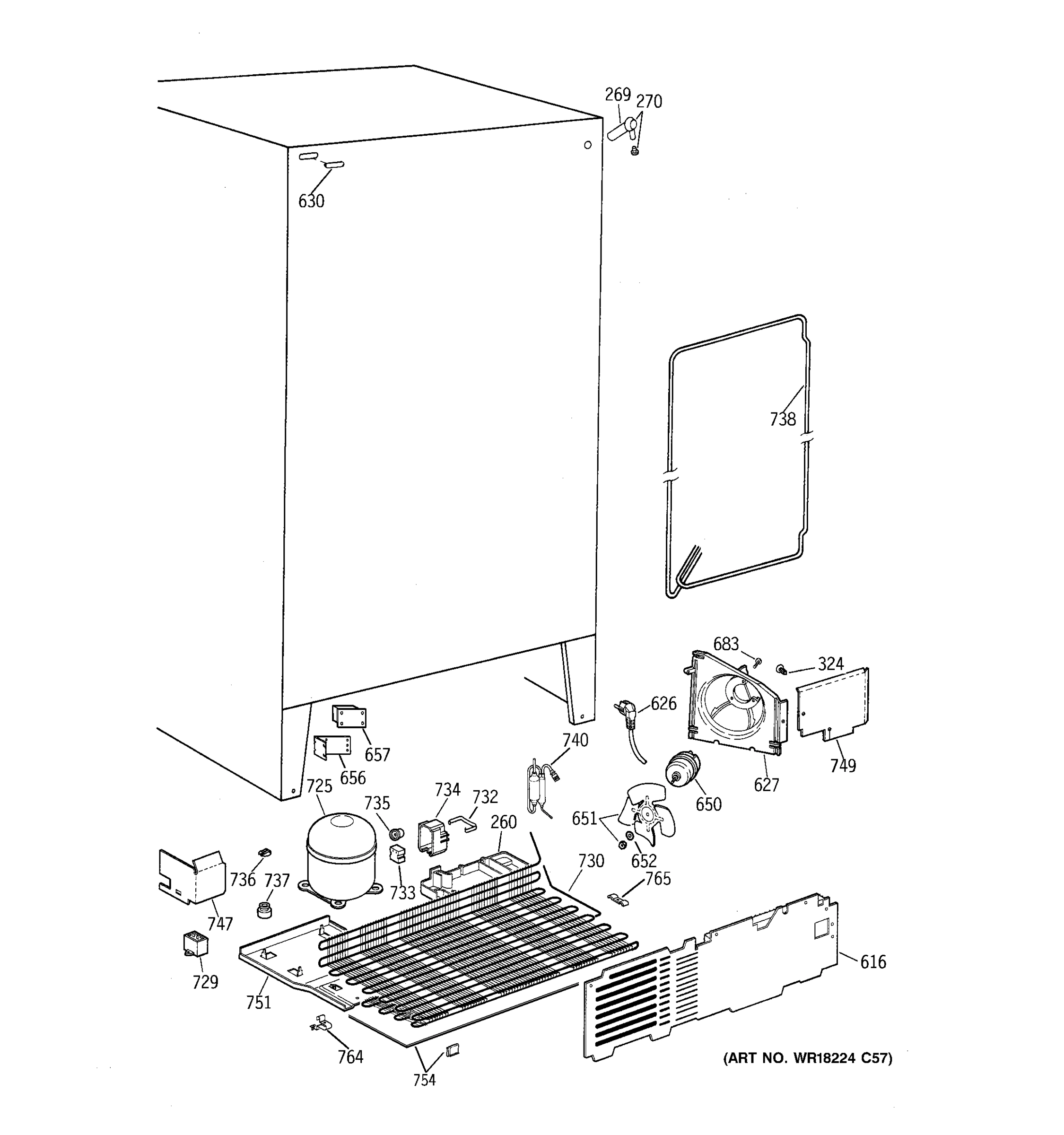

UNIT PARTS
Common parts from model GE CST20KABAAD
6
TAIL HANDLE SXS GEN WR12X10203 Contact Us For Availability
19
GEN WR77X0597 GEN WR77X0597 Contact Us For Availability
21
GEN WR17X4029 GEN WR17X4029 Contact Us For Availability
103
GASKET DOOR FF WH GEN WR24X0528 Contact Us For Availability
104
GEN WR17X3120 GEN WR17X3120 Contact Us For Availability
105
GEN WR38X2219 GEN WR38X2219 Contact Us For Availability
106
GEN WR22X0495 GEN WR22X0495 Contact Us For Availability
108
GEN WR77X0598 GEN WR77X0598 Contact Us For Availability
109
GEN WR71X2640 GEN WR71X2640 Contact Us For Availability
110
GEN WR02X8989 GEN WR02X8989 Contact Us For Availability
112
FRONT DOOR SHELF GEN WR17X4041 Contact Us For Availability
125
GEN WR04X10039 GEN WR04X10039 Contact Us For Availability
152
GEN WR01X10038 GEN WR01X10038 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
GEN WR40X1741 GEN WR40X1741 Contact Us For Availability
201
GEN WR40X1742 GEN WR40X1742 Contact Us For Availability
202
GEN WR40X1743 GEN WR40X1743 Contact Us For Availability
204
GEN WR02X9217 GEN WR02X9217 Contact Us For Availability
206
GEN WR71X1888 GEN WR71X1888 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X2217 GEN WR38X2217 Contact Us For Availability
211
GEN WR21X0188 GEN WR21X0188 Contact Us For Availability
212
GEN WR17X4036 GEN WR17X4036 Contact Us For Availability
214
GEN WR01X2128 GEN WR01X2128 Contact Us For Availability
214
GEN WR14X0455 GEN WR14X0455 Contact Us For Availability
214
GEN WR17X4066 GEN WR17X4066 Contact Us For Availability
215
GEN WR32X0897 GEN WR32X0897 Contact Us For Availability
220
GEN WR02X9002 GEN WR02X9002 Contact Us For Availability
224
GEN WR02X8657 GEN WR02X8657 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X8293 GEN WR02X8293 Contact Us For Availability
230
GEN WR02X8671 GEN WR02X8671 Contact Us For Availability
231
GEN WR01X1987 GEN WR01X1987 Contact Us For Availability
231
GEN WR01X2110 GEN WR01X2110 Contact Us For Availability
231
GEN WR17X3666 GEN WR17X3666 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR02X4845 GEN WR02X4845 Contact Us For Availability
247
GEN WR17X3483 GEN WR17X3483 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
258
GEN WR17X3662 GEN WR17X3662 Contact Us For Availability
259
GEN WR17X4069 GEN WR17X4069 Contact Us For Availability
260
GEN WR32X1427 GEN WR32X1427 Contact Us For Availability
265
GEN WR02X3595 GEN WR02X3595 Contact Us For Availability
265
GEN WR02X3598 GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
GEN WR23X0312 GEN WR23X0312 Contact Us For Availability
269
GEN WR02X6087 GEN WR02X6087 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
275
GEN WR02X9004 GEN WR02X9004 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
GEN WR17X3117 GEN WR17X3117 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
279
GEN WR17X10059 GEN WR17X10059 Contact Us For Availability
280
GEN WR02X8519 GEN WR02X8519 Contact Us For Availability
288
GEN WR74X0215 GEN WR74X0215 Contact Us For Availability
293
GEN WR02X7080 GEN WR02X7080 Contact Us For Availability
324
PLUG BUTTON LG WH GEN WR02X7069 Contact Us For Availability
400
GEN WR71X2290 GEN WR71X2290 Contact Us For Availability
401
GEN WR32X1535 GEN WR32X1535 Contact Us For Availability
402
GEN WR38X2221 GEN WR38X2221 Contact Us For Availability
403
GEN WR72X0255 GEN WR72X0255 Contact Us For Availability
404
GEN WR38X2222 GEN WR38X2222 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1382 GEN WR17X1382 Contact Us For Availability
407
GEN WR32X1045 GEN WR32X1045 Contact Us For Availability
408
GEN WR32X1169 GEN WR32X1169 Contact Us For Availability
409
GEN WR32X1534 GEN WR32X1534 Contact Us For Availability
410
GEN WR17X4042 GEN WR17X4042 Contact Us For Availability
414
GEN WR14X0444 GEN WR14X0444 Contact Us For Availability
415
GEN WR32X1105 GEN WR32X1105 Contact Us For Availability
417
GEN WR02X10138 GEN WR02X10138 Contact Us For Availability
421
GEN WR17X10301 GEN WR17X10301 Contact Us For Availability
423
GEN WR02X10050 GEN WR02X10050 Contact Us For Availability
423
GEN WR02X6347 GEN WR02X6347 Contact Us For Availability
424
GEN WR09X0570 GEN WR09X0570 Contact Us For Availability
425
GEN WR02X8398 GEN WR02X8398 Contact Us For Availability
426
GEN WR02X8425 GEN WR02X8425 Contact Us For Availability
426
GEN WR02X8514 GEN WR02X8514 Contact Us For Availability
427
GEN WR23X0469 GEN WR23X0469 Contact Us For Availability
428
GEN WR02X8513 GEN WR02X8513 Contact Us For Availability
428
GEN WR02X9396 GEN WR02X9396 Contact Us For Availability
429
GEN WR02X8516 GEN WR02X8516 Contact Us For Availability
432
GEN WR02X8654 GEN WR02X8654 Contact Us For Availability
433
GEN WR60X0246 GEN WR60X0246 Contact Us For Availability
434
GEN WR02X9431 GEN WR02X9431 Contact Us For Availability
436
GEN WR02X7736 GEN WR02X7736 Contact Us For Availability
439
GEN WR17X2922 GEN WR17X2922 Contact Us For Availability
442
GEN WR17X10060 GEN WR17X10060 Contact Us For Availability
443
GEN WR02X8570 GEN WR02X8570 Contact Us For Availability
446
GEN WR13X0744 GEN WR13X0744 Contact Us For Availability
447
GEN WR02X8263 GEN WR02X8263 Contact Us For Availability
448
GEN WR13X0743 GEN WR13X0743 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X9442 GEN WR02X9442 Contact Us For Availability
453
GEN WR40X1757 GEN WR40X1757 Contact Us For Availability
454
GEN WR40X1758 GEN WR40X1758 Contact Us For Availability
455
GEN WR40X1759 GEN WR40X1759 Contact Us For Availability
456
GEN WR40X1747 GEN WR40X1747 Contact Us For Availability
457
GEN WR40X1748 GEN WR40X1748 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
458
GEN WR02X9376 GEN WR02X9376 Contact Us For Availability
458
GEN WR40X1751 GEN WR40X1751 Contact Us For Availability
459
GEN WR14X0479 GEN WR14X0479 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
479
GEN WR72X10009 GEN WR72X10009 Contact Us For Availability
479
GEN WR72X10010 GEN WR72X10010 Contact Us For Availability
480
GEN WR72X10008 GEN WR72X10008 Contact Us For Availability
480
GEN WR72X10007 GEN WR72X10007 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
560
GEN WR01X2140 GEN WR01X2140 Contact Us For Availability
564
GEN WR01X1194 GEN WR01X1194 Contact Us For Availability
610
GEN WR60X0240 GEN WR60X0240 Contact Us For Availability
612
GEN WR02X9319 GEN WR02X9319 Contact Us For Availability
615
GEN WR02X7391 GEN WR02X7391 Contact Us For Availability
616
GEN WR82X10043 GEN WR82X10043 Contact Us For Availability
627
HSG COND LEG ASM GEN WR17X3952 Contact Us For Availability
650
GEN WR60X0245 GEN WR60X0245 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0231 GEN WR60X0231 Contact Us For Availability
652
GEN WR01X1714 GEN WR01X1714 Contact Us For Availability
656
GEN WR17X4071 GEN WR17X4071 Contact Us For Availability
657
GEN WR55X0128 GEN WR55X0128 Contact Us For Availability
683
SCR 8-32 TT PT 3/8 GEN WR01X1825 Contact Us For Availability
730
GEN WR84X0188 GEN WR84X0188 Contact Us For Availability
732
CLAMP-COVER GEN WR02X7226 Contact Us For Availability
734
COVER RELAY GEN WR02X7834 Contact Us For Availability
735
GEN WR08X0170 GEN WR08X0170 Contact Us For Availability
738
GEN WR84X0169 GEN WR84X0169 Contact Us For Availability
747
GEN WR17X3643 GEN WR17X3643 Contact Us For Availability
749
GEN WR17X3988 GEN WR17X3988 Contact Us For Availability
754
GEN WR82X10033 GEN WR82X10033 Contact Us For Availability
765
GEN WR01X1985 GEN WR01X1985 Contact Us For Availability
811
GEN WR02X8659 GEN WR02X8659 Contact Us For Availability
900
GEN WR78X10162 GEN WR78X10162 Contact Us For Availability
910
GEN WR78X10161 GEN WR78X10161 Contact Us For Availability
940
GEN WR02X10124 GEN WR02X10124 Contact Us For Availability
1458
GEN WB17X5061 GEN WB17X5061 Contact Us For Availability
1458
GEN WB17X5062 GEN WB17X5062 Contact Us For Availability
× ![]()
