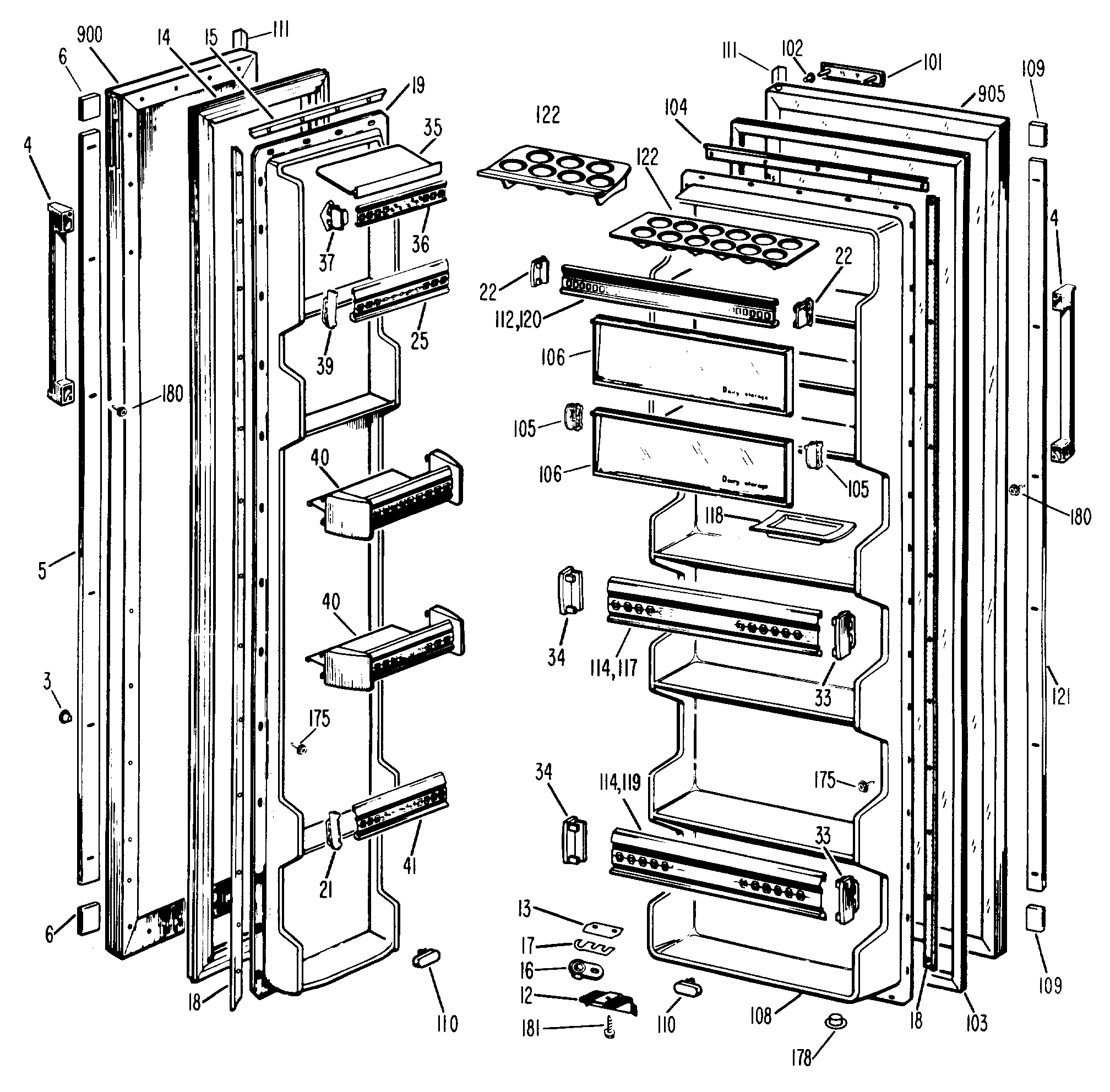

Model Hotpoint CSF22EBD Refrigerator – Common Parts & Diagrams
0
1
FREEZER SECTION
FRESH FOOD SECTION
Common parts from model Hotpoint CSF22EBD Refrigerator
4
GEN WR12X5140 GEN WR12X5140 Contact Us For Availability
5
GEN WR01X5473 GEN WR01X5473 Contact Us For Availability
5
GEN WR38X5296 GEN WR38X5296 Contact Us For Availability
6
GEN WR12X5106 GEN WR12X5106 Contact Us For Availability
7
GEN WR01X5349 GEN WR01X5349 Contact Us For Availability
12
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0252 GEN WR24X0252 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
17
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
19
GEN WR77X5410 GEN WR77X5410 Contact Us For Availability
21
GEN WR02X4100 GEN WR02X4100 Contact Us For Availability
22
GEN WR02X5795 GEN WR02X5795 Contact Us For Availability
25
GEN WR71X5789 GEN WR71X5789 Contact Us For Availability
33
GEN WR02X5800 GEN WR02X5800 Contact Us For Availability
34
GEN WR02X5801 GEN WR02X5801 Contact Us For Availability
35
GEN WR71X5735 GEN WR71X5735 Contact Us For Availability
36
GEN WR71X5731 GEN WR71X5731 Contact Us For Availability
37
GEN WR02X5991 GEN WR02X5991 Contact Us For Availability
39
GEN WR02X5992 GEN WR02X5992 Contact Us For Availability
40
GEN WR71X5793 GEN WR71X5793 Contact Us For Availability
40
GEN WR71X5923 GEN WR71X5923 Contact Us For Availability
41
GEN WR17X5968 GEN WR17X5968 Contact Us For Availability
41
GEN WR71X5792 GEN WR71X5792 Contact Us For Availability
101
GEN WR04X5053 GEN WR04X5053 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0304 GEN WR24X0304 Contact Us For Availability
104
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
105
GEN WR01X5437 GEN WR01X5437 Contact Us For Availability
105
GEN WR02X5797 GEN WR02X5797 Contact Us For Availability
105
GEN WR02X5798 GEN WR02X5798 Contact Us For Availability
106
GEN WR22X5028 GEN WR22X5028 Contact Us For Availability
108
GEN WR77X5524 GEN WR77X5524 Contact Us For Availability
109
GEN WR03X5105 GEN WR03X5105 Contact Us For Availability
109
GEN WR03X5106 GEN WR03X5106 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
112
GEN WR71X5788 GEN WR71X5788 Contact Us For Availability
114
GEN WR71X5791 GEN WR71X5791 Contact Us For Availability
118
BUTTER DISH GEN WR19X5003 Contact Us For Availability
120
GEN WR17X5967 GEN WR17X5967 Contact Us For Availability
121
GEN WR01X5346 GEN WR01X5346 Contact Us For Availability
121
GEN WR38X5295 GEN WR38X5295 Contact Us For Availability
175
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
180
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER-BTM. GEN WR02X7032 Contact Us For Availability
205
SHELF FZ GEN WR71X1514 Contact Us For Availability
206
SHELF FZ-BTM. GEN WR71X1356 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
209
GEN WR38X5180 GEN WR38X5180 Contact Us For Availability
210
GEN WR02X5008 GEN WR02X5008 Contact Us For Availability
211
BASKET FRZ. GEN WR21X5080 Contact Us For Availability
212
GEN WR02X6042 GEN WR02X6042 Contact Us For Availability
214
GEN WR30X5102 GEN WR30X5102 Contact Us For Availability
215
GEN WR17X1566 GEN WR17X1566 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
217
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
218
PLUG HOLE GEN WR02X6008 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
223
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
227
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
229
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
229
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
229
REFRIGERANT GEN WR97X5036 Contact Us For Availability
230
HEATER DEF ASM GEN WR51X0231 Contact Us For Availability
231
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
233
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
235
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
GEN WR17X1567 GEN WR17X1567 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
259
GEN WR17X5959 GEN WR17X5959 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
263
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
263
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
265
NUT PUSH ON GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
HARNESS IM ASM GEN WR23X0191 Contact Us For Availability
269
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
269
TUBE WATER FILL GEN WR29X5104 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
RAIL MACH MTG FRT GEN WR17X1491 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
288
GEN WR79X5148 GEN WR79X5148 Contact Us For Availability
289
GEN WR02X6383 GEN WR02X6383 Contact Us For Availability
290
CAP GRILLE L. SIDE GEN WR02X6384 Contact Us For Availability
325
GEN WR02X4396 GEN WR02X4396 Contact Us For Availability
400
SHELF CANT WIRE ASM GEN WR71X5768 Contact Us For Availability
401
GEN WR38X5146 GEN WR38X5146 Contact Us For Availability
403
TRACK CANT SHELF GEN WR72X5041 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1382 GEN WR17X1382 Contact Us For Availability
407
PAN VEG. GEN WR32X5221 Contact Us For Availability
408
PAN MEAT GEN WR32X5222 Contact Us For Availability
409
GEN WR32X0654 GEN WR32X0654 Contact Us For Availability
410
GEN WR17X5960 GEN WR17X5960 Contact Us For Availability
411
GEN WR02X6390 GEN WR02X6390 Contact Us For Availability
411
GEN WR17X5961 GEN WR17X5961 Contact Us For Availability
412
SLIDE PAN GEN WR02X6012 Contact Us For Availability
413
SLIDE PAN GEN WR02X6013 Contact Us For Availability
414
GEN WR14X5111 GEN WR14X5111 Contact Us For Availability
415
COVER PAN GEN WR32X5173 Contact Us For Availability
417
GEN WR14X5108 GEN WR14X5108 Contact Us For Availability
418
SLIDE PAN GEN WR02X6014 Contact Us For Availability
419
SLIDE PAN GEN WR02X6015 Contact Us For Availability
421
GEN WR17X5958 GEN WR17X5958 Contact Us For Availability
422
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
CONTROL TEMP GEN WR09X5131 Contact Us For Availability
425
GEN WR02X6389 GEN WR02X6389 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
INSUL FOAM NOZZL2 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X4836 GEN WR02X4836 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
431
CAP MULLION DUCT GEN WR02X4799 Contact Us For Availability
432
GEN WR02X3886 GEN WR02X3886 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
436
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
442
GEN WR02X7035 GEN WR02X7035 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0496 Contact Us For Availability
449
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
SHIM HINGE BTM. GEN WR02X4497 Contact Us For Availability
452
GEN WR02X7011 GEN WR02X7011 Contact Us For Availability
453
NUT STRIP GEN WR02X4400 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5375 Contact Us For Availability
456
RETAINER BREAKER GEN WR02X4597 Contact Us For Availability
456
RETAINER BREAKER GEN WR02X4598 Contact Us For Availability
456
RETAINER BREAKER GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
MULLION & TAB ASM(WH) GEN WR40X1576 Contact Us For Availability
459
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
460
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
461
SCREW 8-32X3/8 GEN WR01X1501 Contact Us For Availability
461
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
550
SCR 8-18 AB FL 5/8 SNS GEN WZ05X0221 Contact Us For Availability
551
SCR 8-18 AB RNDW 5/8 SS GEN WZ04X0244 Contact Us For Availability
552
SCR 12-24 HXW 1 1/64 SPP GEN WR01X1587 Contact Us For Availability
554
SCR 10-24 BP PA 11/8 S GEN WR01X1483 Contact Us For Availability
555
SCR 12-24 A HXW 7/8 SPP GEN WR01X1249 Contact Us For Availability
556
GEN WZ02X0460 GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
562
SCREWBOTTOM GEN WZ05X0196 Contact Us For Availability
563
GEN WR01X1326 GEN WR01X1326 Contact Us For Availability
564
SCR 1/4-14 BA HX 3/4 SN GEN WR01X1194 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
GEN WR60X0126 GEN WR60X0126 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
BRACKET EVAP FAN GEN WR02X4793 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
GEN WR82X0219 GEN WR82X0219 Contact Us For Availability
627
BAFFLE & GROMMET ASM.-COND. FAN GEN WR17X1632 Contact Us For Availability
628
GEN WR02X7104 GEN WR02X7104 Contact Us For Availability
629
GEN WR02X7105 GEN WR02X7105 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GROMMMET GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
BLADE COND FAN GEN WR60X0042 Contact Us For Availability
652
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
653
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
675
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
677
GEN WR01X1467 GEN WR01X1467 Contact Us For Availability
680
GEN WR01X1546 GEN WR01X1546 Contact Us For Availability
683
SCREW (MOTOR) 8-36 X 3/8 GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
690
GEN WR01X1604 GEN WR01X1604 Contact Us For Availability
730
GEN WR84X0050 GEN WR84X0050 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
732
CUP & BRACKET ASM-R. SIDE GEN WR02X1864 Contact Us For Availability
732
CUP & BRACKET ASM-L. SIDE GEN WR02X1865 Contact Us For Availability
734
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
734
COVER RELAY GEN WR02X3867 Contact Us For Availability
734
RELAY COMP GEN WR07X0138 Contact Us For Availability
735
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
736
GEN WR02X7089 GEN WR02X7089 Contact Us For Availability
737
SLEEVE COMP MTG GEN WR02X2202 Contact Us For Availability
738
TUBE COND LOOP ASM GEN WR84X0045 Contact Us For Availability
743
EXT COMP MTG GEN WR02X6157 Contact Us For Availability
745
NUTSTRIP COMP MTG GEN WR02X3904 Contact Us For Availability
746
BAFFLE COMP FRT GEN WR17X1489 Contact Us For Availability
747
BAFFLE COMP FLR GEN WR17X1494 Contact Us For Availability
900
GEN WR78X6880 GEN WR78X6880 Contact Us For Availability
901
GEN WR78X6881 GEN WR78X6881 Contact Us For Availability
902
GEN WR78X6882 GEN WR78X6882 Contact Us For Availability
903
GEN WR78X6883 GEN WR78X6883 Contact Us For Availability
904
GEN WR78X6884 GEN WR78X6884 Contact Us For Availability
905
GEN WR78X6861 GEN WR78X6861 Contact Us For Availability
906
GEN WR78X6862 GEN WR78X6862 Contact Us For Availability
907
GEN WR78X6863 GEN WR78X6863 Contact Us For Availability
908
GEN WR78 GEN WR78 Contact Us For Availability
× ![]()
