Model Hotpoint CSF20ACM Refrigerator – Common Parts & Diagrams
0
FREEZER SECTION

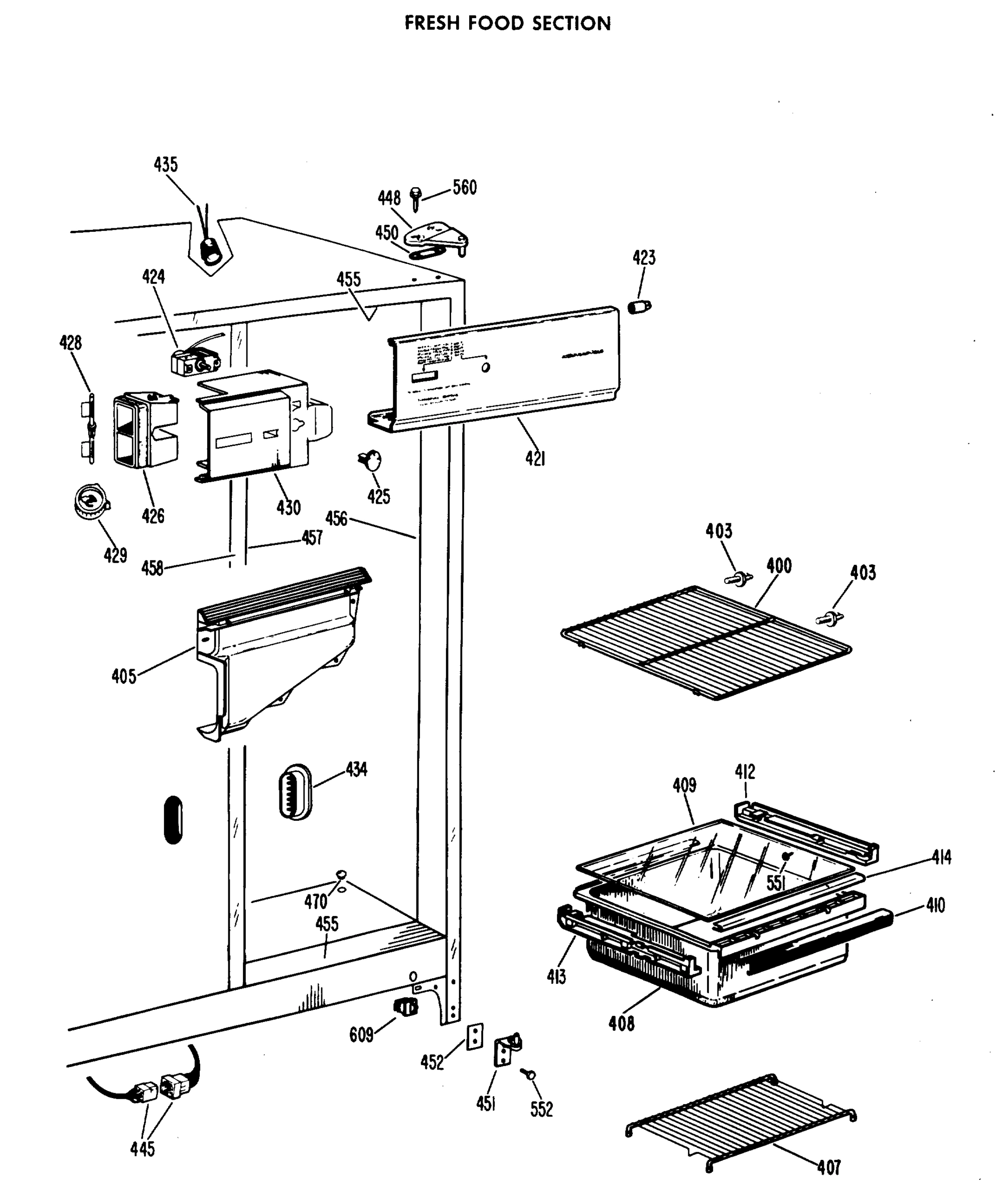

FRESH FOOD SECTION

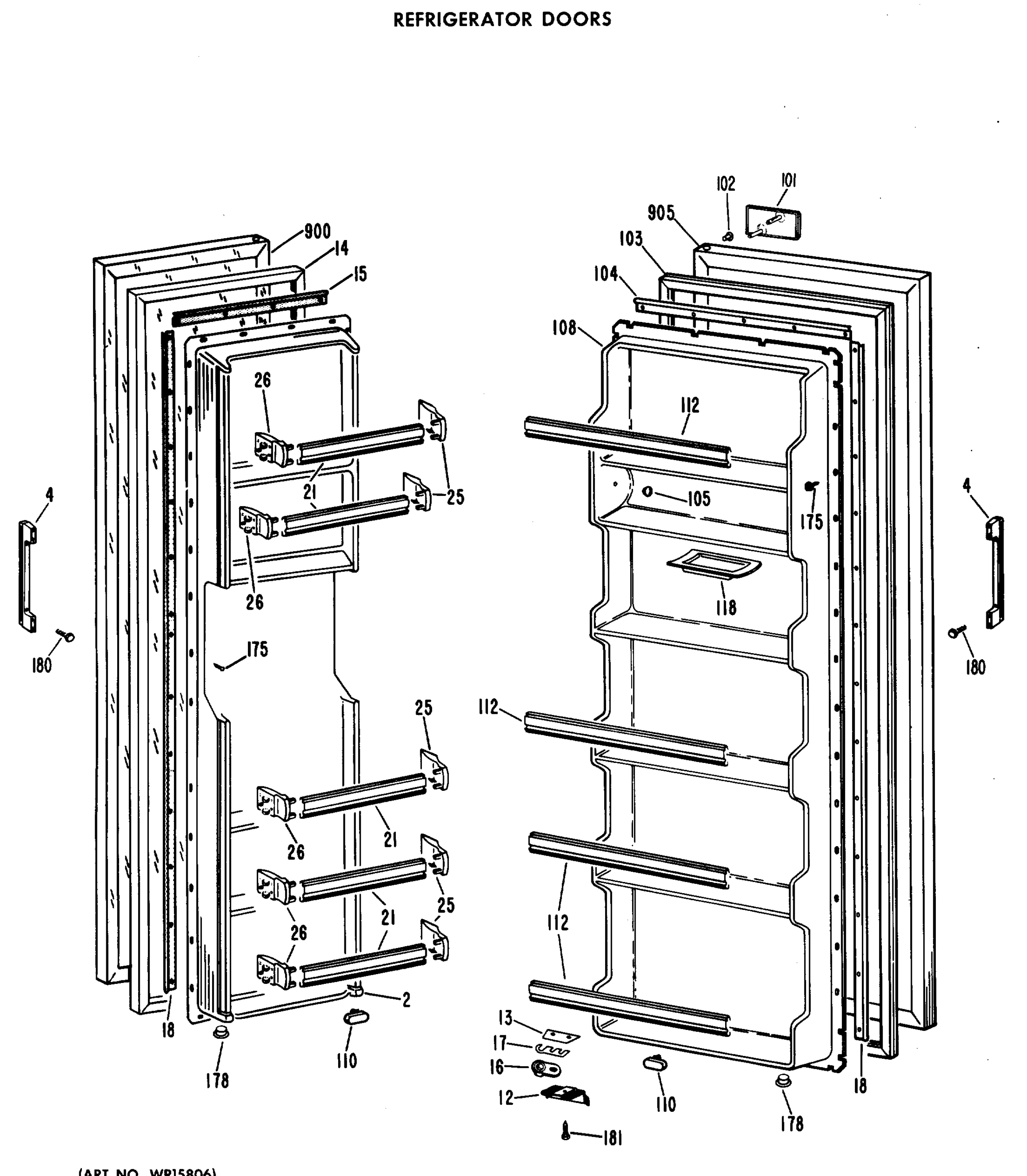

REFRIGERATOR DOORS
Common parts from model Hotpoint CSF20ACM Refrigerator
2
GEN WR77X0413 GEN WR77X0413 Contact Us For Availability
5
GEN WR12X5140 GEN WR12X5140 Contact Us For Availability
12
GEN WR02X7213 GEN WR02X7213 Contact Us For Availability
13
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
13
GEN WR02X4540 GEN WR02X4540 Contact Us For Availability
13
GEN WR02X4599 GEN WR02X4599 Contact Us For Availability
14
GEN WR24X0252 GEN WR24X0252 Contact Us For Availability
15
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
18
GEN WR17X1169 GEN WR17X1169 Contact Us For Availability
21
GEN WR71X1652 GEN WR71X1652 Contact Us For Availability
25
GEN WR02X6320 GEN WR02X6320 Contact Us For Availability
26
GEN WR02X6321 GEN WR02X6321 Contact Us For Availability
101
GEN WR04X5064 GEN WR04X5064 Contact Us For Availability
102
GEN WR02X4990 GEN WR02X4990 Contact Us For Availability
103
GEN WR24X0304 GEN WR24X0304 Contact Us For Availability
104
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
105
GEN WR02X6349 GEN WR02X6349 Contact Us For Availability
108
GEN WR77X0407 GEN WR77X0407 Contact Us For Availability
110
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
112
GEN WR71X1653 GEN WR71X1653 Contact Us For Availability
118
GEN WR19X5003 GEN WR19X5003 Contact Us For Availability
175
SCREW GEN WR01X1464 Contact Us For Availability
177
SCREW GEN WR01X5034 Contact Us For Availability
178
GEN WR02X6058 GEN WR02X6058 Contact Us For Availability
180
GEN WZ06X0112 GEN WZ06X0112 Contact Us For Availability
181
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
200
BREAKER STRIP-FZ MULLION GEN WR40X1574 Contact Us For Availability
201
BREAKER STRIP-TOP & BTM. GEN WR40X5371 Contact Us For Availability
203
RETNR BRKR-TOP FF & FZ GEN WR02X5927 Contact Us For Availability
204
RETAINER BREAKER GEN WR02X7032 Contact Us For Availability
205
GEN WR71X1655 GEN WR71X1655 Contact Us For Availability
206
SHELF FZ-BTM. GEN WR71X1356 Contact Us For Availability
207
GEN WR02X4676 GEN WR02X4676 Contact Us For Availability
208
GEN WR02X4674 GEN WR02X4674 Contact Us For Availability
211
GEN WR21X5074 GEN WR21X5074 Contact Us For Availability
214
GEN WR01X1332 GEN WR01X1332 Contact Us For Availability
215
GEN WR17X2007 GEN WR17X2007 Contact Us For Availability
215
CLIP EVAP COVER GEN WR02X4843 Contact Us For Availability
216
GASKET EVAP COVER GEN WR14X0274 Contact Us For Availability
217
GEN WR02X7257 GEN WR02X7257 Contact Us For Availability
219
GEN WR02X4421 GEN WR02X4421 Contact Us For Availability
220
PLUG RECESSED GEN WR02X3025 Contact Us For Availability
221
TROUGH DRAIN GEN WR17X1238 Contact Us For Availability
221
GASKET DRAIN TROUGH GEN WR02X4594 Contact Us For Availability
224
GEN WR02X4967 GEN WR02X4967 Contact Us For Availability
225
GEN WR02X7088 GEN WR02X7088 Contact Us For Availability
225
GEN WR01X5042 GEN WR01X5042 Contact Us For Availability
225
GEN WR02X4838 GEN WR02X4838 Contact Us For Availability
228
LOW SIDE ASM GEN WR85X0102 Contact Us For Availability
228
GEN WR02X4982 GEN WR02X4982 Contact Us For Availability
228
GEN WR02X4983 GEN WR02X4983 Contact Us For Availability
230
BRACKET DEF HTR GEN WR02X4837 Contact Us For Availability
230
SHIELD DEF HTR END GEN WR17X1276 Contact Us For Availability
230
GEN WR51X0231 GEN WR51X0231 Contact Us For Availability
232
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
234
GEN WR02X4546 GEN WR02X4546 Contact Us For Availability
236
GEN WR02X4548 GEN WR02X4548 Contact Us For Availability
237
GEN WR02X7036 GEN WR02X7036 Contact Us For Availability
247
GEN WR17X1413 GEN WR17X1413 Contact Us For Availability
248
GEN WR14X0272 GEN WR14X0272 Contact Us For Availability
249
BAFFLE AIR OUTLET FZ GEN WR17X1414 Contact Us For Availability
251
GEN WR02X2880 GEN WR02X2880 Contact Us For Availability
252
GEN WR02X7042 GEN WR02X7042 Contact Us For Availability
253
RIVET POP GEN WR01X1168 Contact Us For Availability
254
GEN WR17X1567 GEN WR17X1567 Contact Us For Availability
255
GEN WR02X6254 GEN WR02X6254 Contact Us For Availability
256
GEN WR02X4839 GEN WR02X4839 Contact Us For Availability
257
BRACKET DEF CONTROL GEN WR02X4527 Contact Us For Availability
259
GEN WR17X1927 GEN WR17X1927 Contact Us For Availability
260
GEN WR02X7074 GEN WR02X7074 Contact Us For Availability
260
PAN WATER DISPOSAL ASM GEN WR32X0755 Contact Us For Availability
265
COTTERPIN-AXLE GEN WR02X3598 Contact Us For Availability
265
GEN WR02X4742 GEN WR02X4742 Contact Us For Availability
268
RECEPTACLE-ICEMAKER GEN WR23X0191 Contact Us For Availability
269
FILL TUBE GEN WR02X6087 Contact Us For Availability
270
GEN WR02X3248 GEN WR02X3248 Contact Us For Availability
270
GROMMET WATER FILL GEN WR02X6268 Contact Us For Availability
275
GEN WR02X4339 GEN WR02X4339 Contact Us For Availability
276
GEN WR01X1510 GEN WR01X1510 Contact Us For Availability
277
RAIL MACH MTG FRT GEN WR17X1491 Contact Us For Availability
278
WHEEL ASM FRT GEN WR02X4858 Contact Us For Availability
288
GRILLE O.CASE(BRN) GEN WR79X5148 Contact Us For Availability
289
GEN WR02X6810 GEN WR02X6810 Contact Us For Availability
290
GEN WR02X6811 GEN WR02X6811 Contact Us For Availability
293
CLIP-0. CASE-END CAP GEN WR02X7080 Contact Us For Availability
400
SHELF FF C GEN WR71X1347 Contact Us For Availability
403
SUPPORT SHELF GEN WR02X4076 Contact Us For Availability
405
GEN WR14X0264 GEN WR14X0264 Contact Us For Availability
405
GEN WR17X1382 GEN WR17X1382 Contact Us For Availability
407
GEN WR21X0115 GEN WR21X0115 Contact Us For Availability
408
PAN VEG. GEN WR32X5137 Contact Us For Availability
409
GEN WR32X0654 GEN WR32X0654 Contact Us For Availability
410
HANDLE PAN GEN WR17X1495 Contact Us For Availability
412
SLIDE PAN-R. SIDE GEN WR02X6012 Contact Us For Availability
413
SLIDE PAN-L. SIDE GEN WR02X6013 Contact Us For Availability
414
GEN WR14X5111 GEN WR14X5111 Contact Us For Availability
421
GEN WR17X6032 GEN WR17X6032 Contact Us For Availability
423
SUPPORT SHIELD-TOP GEN WR02X6347 Contact Us For Availability
423
GEN WR02X6350 GEN WR02X6350 Contact Us For Availability
424
GEN WR09X0359 GEN WR09X0359 Contact Us For Availability
425
GEN WR02X7157 GEN WR02X7157 Contact Us For Availability
426
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
426
GEN WR02X4834 GEN WR02X4834 Contact Us For Availability
426
GASKET FOAM GEN WR14X0271 Contact Us For Availability
428
GEN WR02X4835 GEN WR02X4835 Contact Us For Availability
429
GEN WR02X7156 GEN WR02X7156 Contact Us For Availability
430
HOUSING CONT GEN WR17X1412 Contact Us For Availability
430
CLIP-CONTROL HOUSING GEN WR01X5463 Contact Us For Availability
433
GEN WR02X7217 GEN WR02X7217 Contact Us For Availability
434
GEN WR02X4542 GEN WR02X4542 Contact Us For Availability
435
SOCKET LAMP GEN WR02X4049 Contact Us For Availability
435
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
445
R-E-D SERVICE PKG. GEN WR49X0233 Contact Us For Availability
448
HINGE TOP ASM GEN WR13X0496 Contact Us For Availability
450
GEN WR02X4194 GEN WR02X4194 Contact Us For Availability
452
GEN WR02X7190 GEN WR02X7190 Contact Us For Availability
455
BREAKER STRIP-TOP & BTM. GEN WR40X5375 Contact Us For Availability
456
RETAINER BREAKER-TOP FF GEN WR02X4597 Contact Us For Availability
456
RETAINER BREAKER-BTM FF GEN WR02X4598 Contact Us For Availability
456
RETNR BRKR-HINGE & MULL GEN WR02X5926 Contact Us For Availability
456
BREAKER STRIP-HINGE SIDE GEN WR40X5376 Contact Us For Availability
457
BREAKER STRIP-FF MULLION GEN WR40X1575 Contact Us For Availability
458
GEN WR40X1576 GEN WR40X1576 Contact Us For Availability
458
GEN WR02X4739 GEN WR02X4739 Contact Us For Availability
458
GEN WR02X7031 GEN WR02X7031 Contact Us For Availability
458
GEN WR02X7033 GEN WR02X7033 Contact Us For Availability
461
GEN WZ06X0136 GEN WZ06X0136 Contact Us For Availability
470
GEN WR02X4632 GEN WR02X4632 Contact Us For Availability
551
SCREW GEN WZ04X0244 Contact Us For Availability
552
GEN WR01X1587 GEN WR01X1587 Contact Us For Availability
556
SCR 8-32 MA TR 1/4 SS GEN WZ02X0460 Contact Us For Availability
558
GEN WZ06X0107 GEN WZ06X0107 Contact Us For Availability
560
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
562
SCR 8-32 T TR 1/2 SS NS GEN WZ05X0196 Contact Us For Availability
563
GROMMET SCR CLOSED GEN WR01X1326 Contact Us For Availability
565
SCR 8-32 T TR 1/2 SS XTW GEN WZ06X0113 Contact Us For Availability
571
GEN WZ04X0247 GEN WZ04X0247 Contact Us For Availability
610
GEN WR60X0131 GEN WR60X0131 Contact Us For Availability
611
GEN WR02X4792 GEN WR02X4792 Contact Us For Availability
612
GEN WR02X7137 GEN WR02X7137 Contact Us For Availability
615
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
616
GEN WR82X0260 GEN WR82X0260 Contact Us For Availability
621
GEN WR02X4495 GEN WR02X4495 Contact Us For Availability
627
BAFFLE AIR COND FAN GEN WR17X1488 Contact Us For Availability
631
GEN WR02X4829 GEN WR02X4829 Contact Us For Availability
631
GEN WR02X4968 GEN WR02X4968 Contact Us For Availability
644
GEN WR02X2375 GEN WR02X2375 Contact Us For Availability
644
TONGUE ASM GEN WR17X1284 Contact Us For Availability
651
GEN WR01X1515 GEN WR01X1515 Contact Us For Availability
651
GEN WR60X0117 GEN WR60X0117 Contact Us For Availability
652
GEN WR01X1683 GEN WR01X1683 Contact Us For Availability
654
GEN WR02X7106 GEN WR02X7106 Contact Us For Availability
678
GEN WR01X1687 GEN WR01X1687 Contact Us For Availability
683
SCREW GEN WZ05X0164 Contact Us For Availability
687
GEN WZ04X0224 GEN WZ04X0224 Contact Us For Availability
725
GEN WR97X0096 GEN WR97X0096 Contact Us For Availability
729
GEN WR62X0038 GEN WR62X0038 Contact Us For Availability
730
GEN WR84X0050 GEN WR84X0050 Contact Us For Availability
731
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
734
GEN WR02X7225 GEN WR02X7225 Contact Us For Availability
734
CLAMP RELAY COVER GEN WR02X7226 Contact Us For Availability
734
GEN WR07X0174 GEN WR07X0174 Contact Us For Availability
735
GEN WR08X0085 GEN WR08X0085 Contact Us For Availability
735
GEN WR02X7227 GEN WR02X7227 Contact Us For Availability
736
CLIP MTG GROMMET GEN WR02X7228 Contact Us For Availability
737
GEN WR02X7238 GEN WR02X7238 Contact Us For Availability
746
GEN WR17X2006 GEN WR17X2006 Contact Us For Availability
748
GEN WR17X2004 GEN WR17X2004 Contact Us For Availability
900
GEN WR78X7126 GEN WR78X7126 Contact Us For Availability
905
GEN WR78X7339 GEN WR78X7339 Contact Us For Availability
32767
TUBE COND LOOP GEN WR84X0045 Contact Us For Availability
32767
GEN WZ06X0096 GEN WZ06X0096 Contact Us For Availability
32767
GEN WR02X4816 GEN WR02X4816 Contact Us For Availability
32767
GEN 31-5004 GEN 31-5004 Contact Us For Availability
32767
GEN 39-6197 GEN 39-6197 Contact Us For Availability
32767
GEN WR01X1227 GEN WR01X1227 Contact Us For Availability
32767
NUTSTRIP TOP HINGE GEN WR02X4198 Contact Us For Availability
32767
GEN WR02X7108 GEN WR02X7108 Contact Us For Availability
32767
GEN WR49X0249 GEN WR49X0249 Contact Us For Availability
× ![]()
