Model GE CSF19AYX – Common Parts & Diagrams
0
1

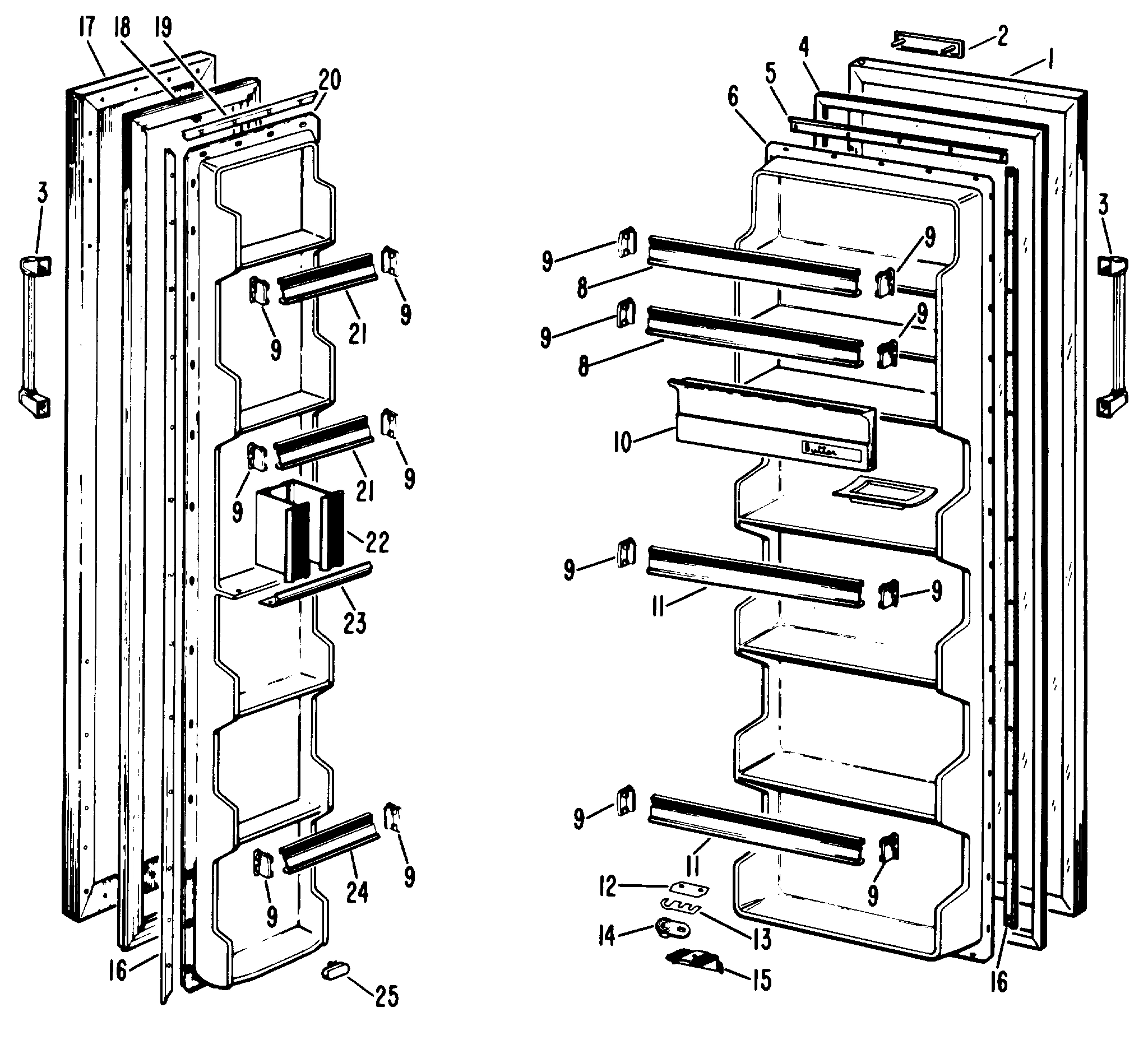

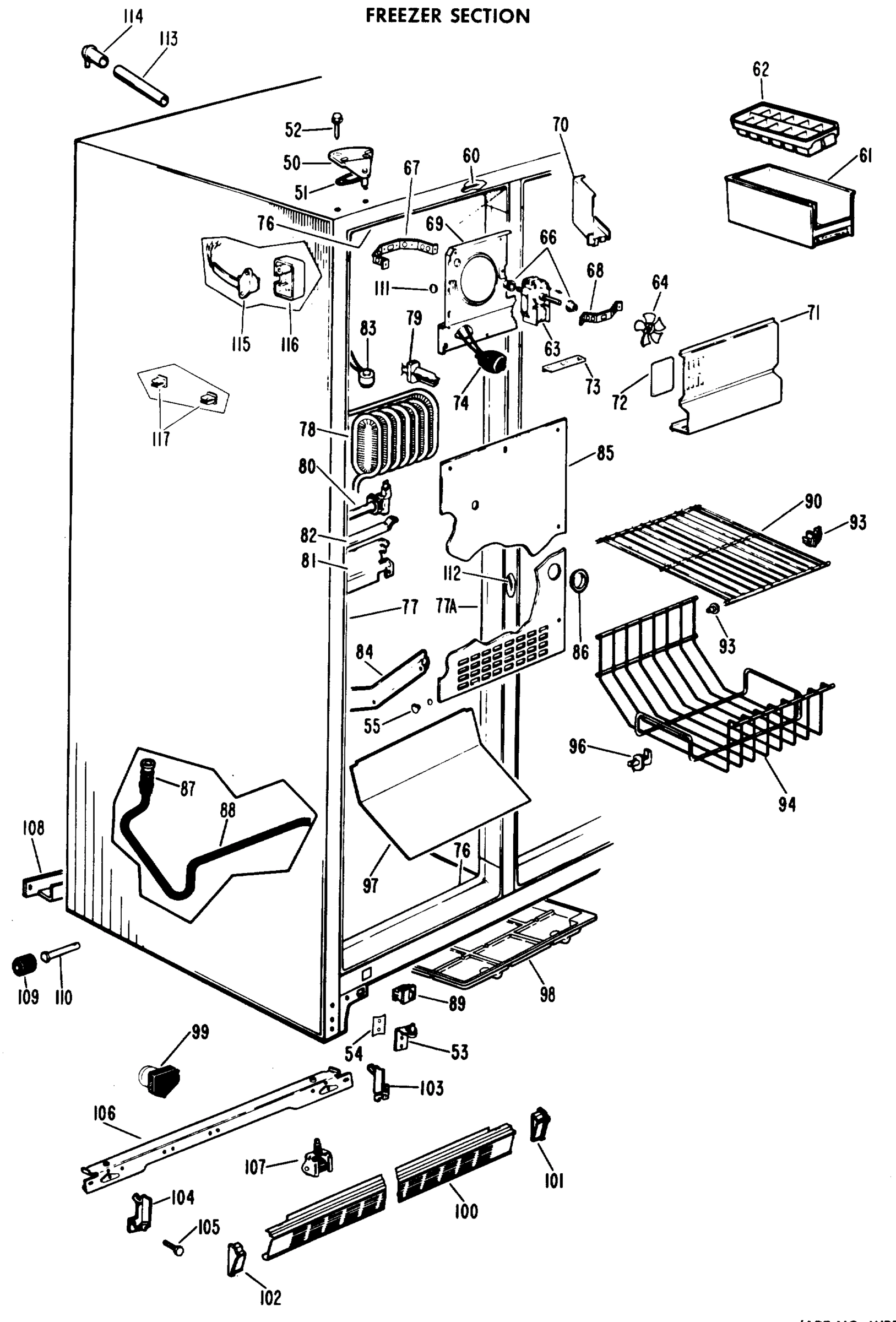

FREEZER SECTION

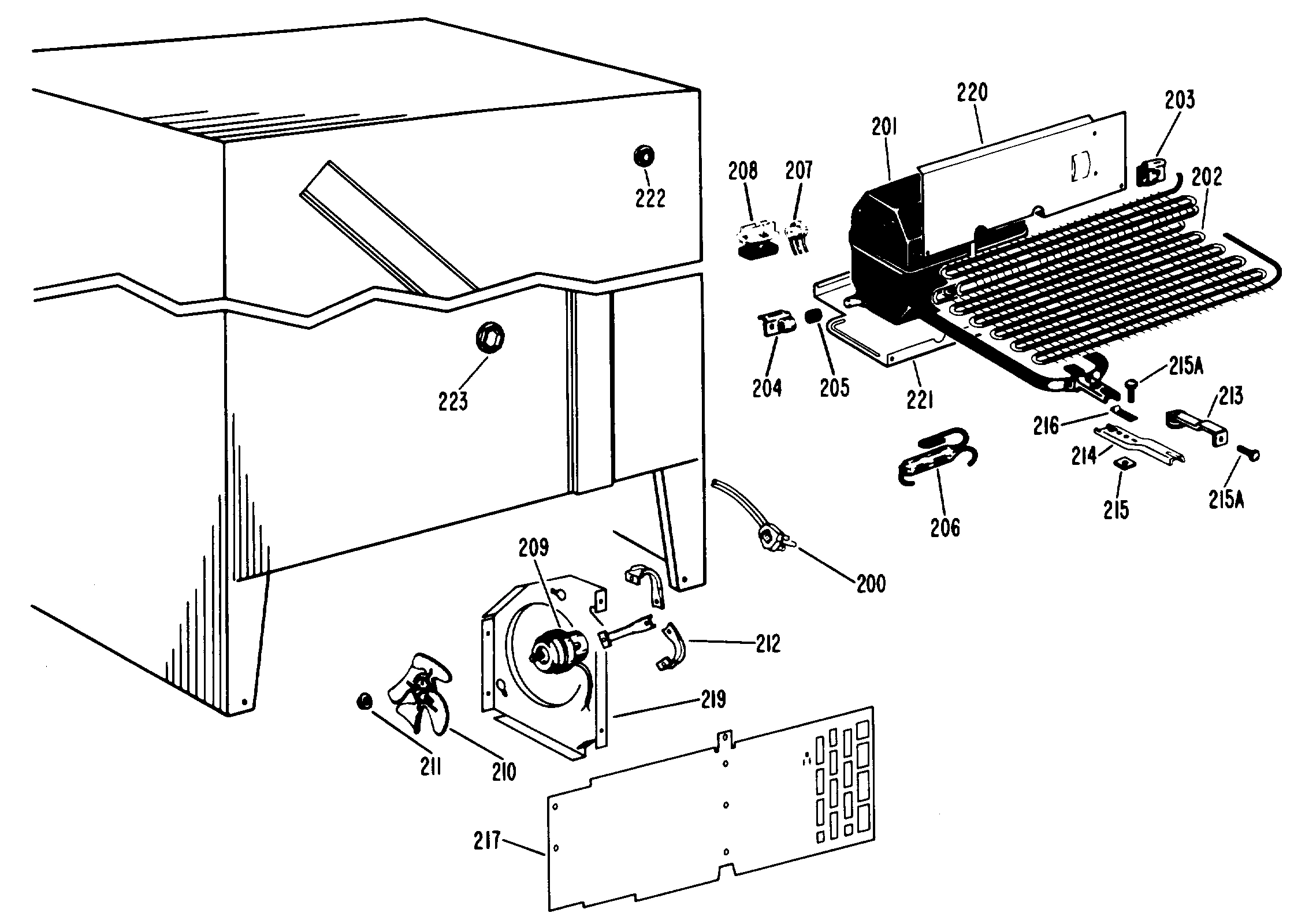

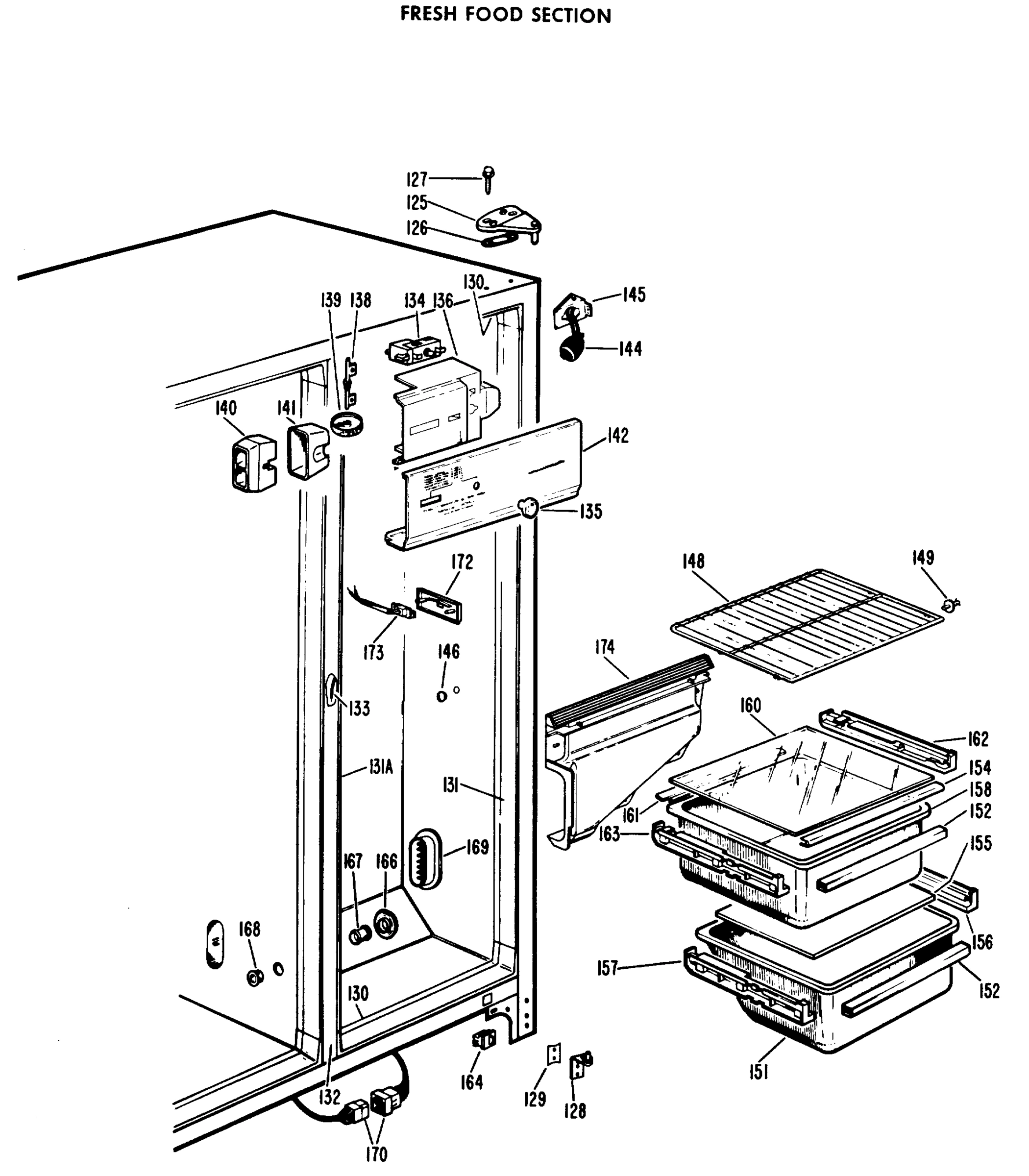

FRESH FOOD SECTION
Common parts from model GE CSF19AYX
1
GEN WR78X6444 GEN WR78X6444 Contact Us For Availability
2
GEN WR04X5053 GEN WR04X5053 Contact Us For Availability
3
GEN WR02X6143 GEN WR02X6143 Contact Us For Availability
3
GEN WR02X6239 GEN WR02X6239 Contact Us For Availability
3
GEN WR02X6240 GEN WR02X6240 Contact Us For Availability
3
GEN WZ04X0356 GEN WZ04X0356 Contact Us For Availability
4
GEN WR24X5115 GEN WR24X5115 Contact Us For Availability
5
GEN WR17X5600 GEN WR17X5600 Contact Us For Availability
6
GEN WR77X5446 GEN WR77X5446 Contact Us For Availability
8
GEN WR71X5702 GEN WR71X5702 Contact Us For Availability
9
GEN WR02X6079 GEN WR02X6079 Contact Us For Availability
10
GEN WR02X5939 GEN WR02X5939 Contact Us For Availability
10
GEN WR02X5940 GEN WR02X5940 Contact Us For Availability
10
GEN WR02X6076 GEN WR02X6076 Contact Us For Availability
10
GEN WR02X6077 GEN WR02X6077 Contact Us For Availability
10
GEN WR02X6078 GEN WR02X6078 Contact Us For Availability
10
BUTTER DISH GEN WR19X5003 Contact Us For Availability
11
GEN WR71X5701 GEN WR71X5701 Contact Us For Availability
12
SHIM CAM DOOR STOP GEN WR02X4540 Contact Us For Availability
13
GEN WR02X6043 GEN WR02X6043 Contact Us For Availability
15
GEN WR01X0993 GEN WR01X0993 Contact Us For Availability
15
STOP DOOR CHROME GEN WR02X4537 Contact Us For Availability
15
GEN WZ06X0105 GEN WZ06X0105 Contact Us For Availability
16
GEN WR17X5599 GEN WR17X5599 Contact Us For Availability
17
GEN WR78X6447 GEN WR78X6447 Contact Us For Availability
18
GEN WR24X5116 GEN WR24X5116 Contact Us For Availability
19
GEN WR17X1231 GEN WR17X1231 Contact Us For Availability
20
SCREW SW. CRADLE GEN WR01X1464 Contact Us For Availability
20
GEN WR77X5447 GEN WR77X5447 Contact Us For Availability
21
GEN WR71X5704 GEN WR71X5704 Contact Us For Availability
22
GEN WR01X1305 GEN WR01X1305 Contact Us For Availability
22
GEN WR17X5668 GEN WR17X5668 Contact Us For Availability
23
GEN WR01X5337 GEN WR01X5337 Contact Us For Availability
23
GEN WR30X5072 GEN WR30X5072 Contact Us For Availability
24
GEN WR71X5703 GEN WR71X5703 Contact Us For Availability
25
GEN WR02X4678 GEN WR02X4678 Contact Us For Availability
55
GEN WR02X4632 GEN WR02X4632 Contact Us For Availability
60
GEN WR51X0214 GEN WR51X0214 Contact Us For Availability
61
GEN WR30X5096 GEN WR30X5096 Contact Us For Availability
62
GEN WR30X5079 GEN WR30X5079 Contact Us For Availability
63
GEN WR60X0108 GEN WR60X0108 Contact Us For Availability
66
GEN WR02X2945 GEN WR02X2945 Contact Us For Availability
67
MOUNTING BRKT. LG. GEN WR02X4792 Contact Us For Availability
68
GEN WR02X4793 GEN WR02X4793 Contact Us For Availability
69
SUPPORT ORIFICE GEN WR02X2880 Contact Us For Availability
69
GASKET ORIFICE GEN WR14X0272 Contact Us For Availability
69
FAN ORIFICE GEN WR17X1413 Contact Us For Availability
70
AIR DEFLECTOR GEN WR17X1414 Contact Us For Availability
71
SUPPORT COVER TOP GEN WR02X4839 Contact Us For Availability
71
GEN WR17X5841 GEN WR17X5841 Contact Us For Availability
72
INSERT COVER GEN WR02X6254 Contact Us For Availability
73
GEN WR01X1168 GEN WR01X1168 Contact Us For Availability
73
GEN WR02X4851 GEN WR02X4851 Contact Us For Availability
76
GEN WR02X5872 GEN WR02X5872 Contact Us For Availability
76
GEN WR02X5927 GEN WR02X5927 Contact Us For Availability
76
GEN WR40X5371 GEN WR40X5371 Contact Us For Availability
77
GEN WR40X1566 GEN WR40X1566 Contact Us For Availability
78
GEN WR85X0074 GEN WR85X0074 Contact Us For Availability
79
SUPPORT EVAPORATOR GEN WR02X4421 Contact Us For Availability
80
LEAD & CONNECTOR GEN WR02X4546 Contact Us For Availability
80
GEN WR17X1276 GEN WR17X1276 Contact Us For Availability
80
HEATER DEFROST GEN WR51X0231 Contact Us For Availability
81
GEN WR02X4837 GEN WR02X4837 Contact Us For Availability
82
GEN WR02X4971 GEN WR02X4971 Contact Us For Availability
84
GEN WR02X4594 GEN WR02X4594 Contact Us For Availability
84
GEN WR17X1238 GEN WR17X1238 Contact Us For Availability
85
GEN WR02X4843 GEN WR02X4843 Contact Us For Availability
85
GEN WR02X6008 GEN WR02X6008 Contact Us For Availability
85
GASKET COVER GEN WR14X0274 Contact Us For Availability
85
GEN WR17X5823 GEN WR17X5823 Contact Us For Availability
85
GEN WZ06X0113 GEN WZ06X0113 Contact Us For Availability
86
GEN WR02X3025 GEN WR02X3025 Contact Us For Availability
87
DRAIN TUBE FRZ. GEN WR02X4967 Contact Us For Availability
88
CLAMP GEN WR01X5042 Contact Us For Availability
88
GEN WR02X4969 GEN WR02X4969 Contact Us For Availability
89
GEN WR02X4735 GEN WR02X4735 Contact Us For Availability
90
GEN WR71X1356 GEN WR71X1356 Contact Us For Availability
90
GEN WR71X5887 GEN WR71X5887 Contact Us For Availability
93
SUPPORT SHELF (ALL OTHERS) GEN WR02X4674 Contact Us For Availability
93
SUPPORT L/SIDE GROMMET GEN WR02X4676 Contact Us For Availability
94
GEN WR21X5066 GEN WR21X5066 Contact Us For Availability
96
GEN WR02X5815 GEN WR02X5815 Contact Us For Availability
97
GEN WR02X3543 GEN WR02X3543 Contact Us For Availability
97
SHELF PROTECTOR GEN WR02X4566 Contact Us For Availability
97
GEN WR02X5874 GEN WR02X5874 Contact Us For Availability
97
GEN WR17X5714 GEN WR17X5714 Contact Us For Availability
97
GEN WZ06X0094 GEN WZ06X0094 Contact Us For Availability
98
GEN WR32X0687 GEN WR32X0687 Contact Us For Availability
99
SCREW BRKT. BTM. GEN WZ05X0164 Contact Us For Availability
99
GEN WR02X3756 GEN WR02X3756 Contact Us For Availability
99
GEN WR02X4527 GEN WR02X4527 Contact Us For Availability
99
SCREW BRKT. TOP GEN WZ04X0364 Contact Us For Availability
100
GEN WR79X5119 GEN WR79X5119 Contact Us For Availability
101
GEN WR02X5776 GEN WR02X5776 Contact Us For Availability
102
GEN WR02X5777 GEN WR02X5777 Contact Us For Availability
103
GEN WR02X4098 GEN WR02X4098 Contact Us For Availability
104
GEN WR02X4099 GEN WR02X4099 Contact Us For Availability
105
SCREW BRACKET GEN WR01X1194 Contact Us For Availability
106
GEN WR17X1491 GEN WR17X1491 Contact Us For Availability
107
GEN WR02X4667 GEN WR02X4667 Contact Us For Availability
108
GEN WR17X5480 GEN WR17X5480 Contact Us For Availability
110
AXLE REAR WHEEL GEN WR02X4742 Contact Us For Availability
112
GEN WR51X0235 GEN WR51X0235 Contact Us For Availability
113
GEN WR29X5104 GEN WR29X5104 Contact Us For Availability
114
PLUG BUTTON GEN WR02X3248 Contact Us For Availability
114
GEN WR02X6268 GEN WR02X6268 Contact Us For Availability
115
GEN WR23X0191 GEN WR23X0191 Contact Us For Availability
116
COVER RECEPTACLE GEN WR02X4339 Contact Us For Availability
117
GROMMET I.M. MOUNTING GEN WR01X1510 Contact Us For Availability
117
SCREW GEN WZ04 Contact Us For Availability
125
GEN WR13X0496 GEN WR13X0496 Contact Us For Availability
126
SHIM GEN WR02X4194 Contact Us For Availability
127
GEN WR01X1249 GEN WR01X1249 Contact Us For Availability
128
GEN WR01X1188 GEN WR01X1188 Contact Us For Availability
128
GEN WR01X1361 GEN WR01X1361 Contact Us For Availability
128
GEN WR02X4400 GEN WR02X4400 Contact Us For Availability
129
GEN WR02X4497 GEN WR02X4497 Contact Us For Availability
130
GEN WR02X4597 GEN WR02X4597 Contact Us For Availability
130
GEN WR02X4598 GEN WR02X4598 Contact Us For Availability
130
GEN WR40X5375 GEN WR40X5375 Contact Us For Availability
131
RETAINER SIDE GEN WR02X5926 Contact Us For Availability
131
GEN WR40X5373 GEN WR40X5373 Contact Us For Availability
131
GEN WR40X1565 GEN WR40X1565 Contact Us For Availability
132
SCREW MULLION PLATE GEN WZ06X0096 Contact Us For Availability
132
GEN WR01X1501 GEN WR01X1501 Contact Us For Availability
132
GEN WR02X4737 GEN WR02X4737 Contact Us For Availability
132
GEN WR02X4738 GEN WR02X4738 Contact Us For Availability
132
U-NUT GEN WR02X4739 Contact Us For Availability
132
GEN WR40X1564 GEN WR40X1564 Contact Us For Availability
132
GEN WZ05X0221 GEN WZ05X0221 Contact Us For Availability
133
GEN WR51X0234 GEN WR51X0234 Contact Us For Availability
134
GEN WR01X5463 GEN WR01X5463 Contact Us For Availability
134
GEN WR09X5131 GEN WR09X5131 Contact Us For Availability
134
SCREW CONTROL TO HOUSING GEN WZ02X0460 Contact Us For Availability
135
GEN WR02X6275 GEN WR02X6275 Contact Us For Availability
136
GEN WR17X1412 GEN WR17X1412 Contact Us For Availability
138
GEN WR02X4559 GEN WR02X4559 Contact Us For Availability
138
DAMPER SHAFT GEN WR02X4835 Contact Us For Availability
139
DAMPER WHEEL GEN WR02X4836 Contact Us For Availability
140
NOZZLE GEN WR02X4834 Contact Us For Availability
140
GEN WR14X0271 GEN WR14X0271 Contact Us For Availability
141
GEN WR02X3880 GEN WR02X3880 Contact Us For Availability
141
GEN WZ05X0165 GEN WZ05X0165 Contact Us For Availability
142
SUPPORT SHIELD GEN WR02X4840 Contact Us For Availability
142
CLIP GEN WR01X1332 Contact Us For Availability
142
GEN WR17X5842 GEN WR17X5842 Contact Us For Availability
144
APPL. BULB GEN WR02X3998 Contact Us For Availability
145
SCREW BRACKET GEN WZ05X0196 Contact Us For Availability
145
GEN WR02X4849 GEN WR02X4849 Contact Us For Availability
148
GEN WR71X1347 GEN WR71X1347 Contact Us For Availability
149
GEN WR02X4076 GEN WR02X4076 Contact Us For Availability
151
GEN WR32X5139 GEN WR32X5139 Contact Us For Availability
152
GEN WR17X5671 GEN WR17X5671 Contact Us For Availability
154
GASKET FRONT VEG. PAN GEN WR14X5111 Contact Us For Availability
155
GEN WR32X5173 GEN WR32X5173 Contact Us For Availability
156
GEN WR02X6014 GEN WR02X6014 Contact Us For Availability
157
GEN WR02X6015 GEN WR02X6015 Contact Us For Availability
158
GEN WR32X5137 GEN WR32X5137 Contact Us For Availability
160
COVER VEG. PAN (GLASS) GEN WR32X0654 Contact Us For Availability
161
GASKET REAR VEG. PAN GEN WR14X5108 Contact Us For Availability
162
GEN WR02X6012 GEN WR02X6012 Contact Us For Availability
163
GEN WR02X6013 GEN WR02X6013 Contact Us For Availability
166
GEN WR02X6153 GEN WR02X6153 Contact Us For Availability
167
DUCT VENT GEN WR02X3886 Contact Us For Availability
168
GEN WR02X6160 GEN WR02X6160 Contact Us For Availability
169
AIR RETURN BAFFLE GEN WR02X4542 Contact Us For Availability
169
GEN WR02X4543 GEN WR02X4543 Contact Us For Availability
170
GEN WR49X0194 GEN WR49X0194 Contact Us For Availability
172
FASTENER GEN WR02X3757 Contact Us For Availability
172
GEN WR04X5057 GEN WR04X5057 Contact Us For Availability
173
GEN WR23X0179 GEN WR23X0179 Contact Us For Availability
173
SCREW SWITCH GEN WZ05X0160 Contact Us For Availability
174
GROMMET SCREW GEN WR01X1326 Contact Us For Availability
174
SCREW DUCT GEN WZ04X0244 Contact Us For Availability
174
GASKET GEN WR14X0264 Contact Us For Availability
174
AIR RETURN & DUCT ASM. GEN WR17X1382 Contact Us For Availability
200
SCREW GEN WR01X5034 Contact Us For Availability
202
GEN WR02X4621 GEN WR02X4621 Contact Us For Availability
202
GEN WR84X0036 GEN WR84X0036 Contact Us For Availability
202
FREON 6-1/2 OZ. GEN WR97X5036 Contact Us For Availability
203
GEN WR02X3734 GEN WR02X3734 Contact Us For Availability
204
GEN WR02X3735 GEN WR02X3735 Contact Us For Availability
205
GEN WR02X2202 GEN WR02X2202 Contact Us For Availability
205
GEN WZ06X0062 GEN WZ06X0062 Contact Us For Availability
207
GEN WR08X0044 GEN WR08X0044 Contact Us For Availability
208
GEN WR02X3583 GEN WR02X3583 Contact Us For Availability
208
GEN WR02X3867 GEN WR02X3867 Contact Us For Availability
208
GEN WR07X0138 GEN WR07X0138 Contact Us For Availability
210
GEN WR60X0042 GEN WR60X0042 Contact Us For Availability
211
NUT BLADE GEN WR01X1515 Contact Us For Availability
211
GEN WR02X4191 GEN WR02X4191 Contact Us For Availability
212
GEN WR02X4801 GEN WR02X4801 Contact Us For Availability
213
GEN WR17X1284 GEN WR17X1284 Contact Us For Availability
214
GEN WR02X6157 GEN WR02X6157 Contact Us For Availability
215
GEN WR02X3904 GEN WR02X3904 Contact Us For Availability
216
GEN WR02X4850 GEN WR02X4850 Contact Us For Availability
217
GEN WR82X0207 GEN WR82X0207 Contact Us For Availability
219
GEN WR17X1488 GEN WR17X1488 Contact Us For Availability
220
GEN WR17X1489 GEN WR17X1489 Contact Us For Availability
221
GEN WR17X1494 GEN WR17X1494 Contact Us For Availability
222
PLUG BUTTON 1-1/2" DIA. HOLE GEN WR02X4968 Contact Us For Availability
223
PLUG BUTTON 1.79" HEX HOLE GEN WR02X4829 Contact Us For Availability
× ![]()
