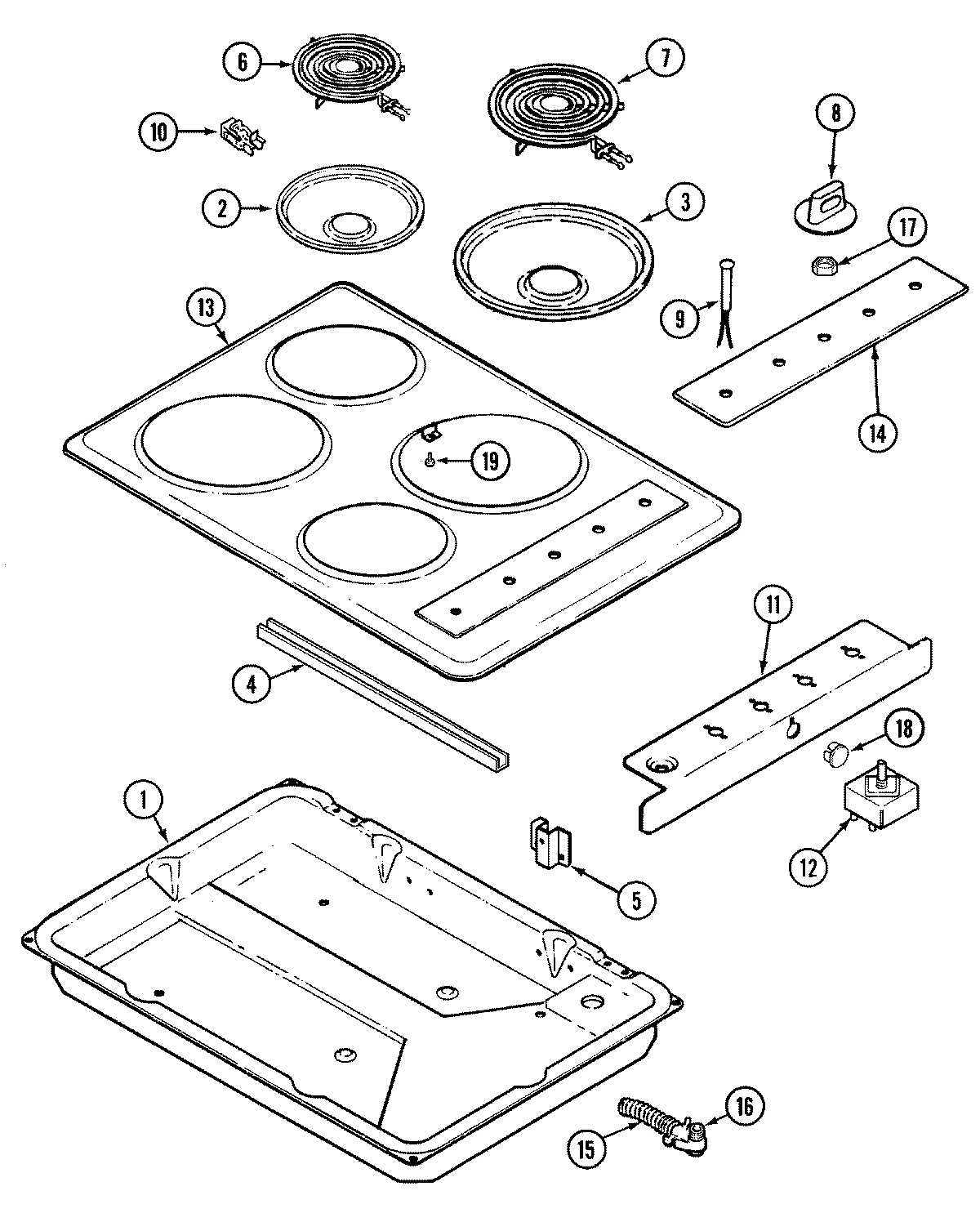

Model Whirlpool CSEA300ACD ELECTRIC COOK-TOP – Common Parts & Diagrams

1
BOTTOM, BURNER BOX
BOTTOM, BURNER BOX WPL 4011F14380 Contact Us For Availability
View on Model
2
BOWL, DRIP (8``-CHR)
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
View on Model
3
BOWL, DRIP (6``-CHR)
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
View on Model
4
BRACE, TOP
BRACE, TOP WPL 3802F07080 Contact Us For Availability
View on Model
5
BRACKET, MAIN TOP SUPPORT
BRACKET, MAIN TOP SUPPORT WPL 3801F18345 Contact Us For Availability
View on Model
8
KNOB, SWITCH
KNOB, SWITCH WPL 7737P02660 Contact Us For Availability
View on Model
9
LAMP SIGNAL
LAMP SIGNAL WPL 7407P06260 Contact Us For Availability
View on Model
11
SHIELD SWITCH WIRING
SHIELD SWITCH WIRING WPL 3604F13380 Contact Us For Availability
View on Model
12
SWITCH, INFINITE
SWITCH, INFINITE WPL 7403P02760 Contact Us For Availability
View on Model
13
TOP, MAIN (STAINLESS)
TOP, MAIN (STAINLESS) WPL 2002W06330 Contact Us For Availability
View on Model
14
NAMEPLATE, ADMIRAL (BLK)
NAMEPLATE, ADMIRAL (BLK) WPL 7719P06260 Contact Us For Availability
View on Model
14
TRIM, CONTROL PANEL (BLK)
TRIM, CONTROL PANEL (BLK) WPL 7720P14760 Contact Us For Availability
View on Model
15
TUBING, CONDUIT (FLEXIBLE)
TUBING, CONDUIT (FLEXIBLE) WPL 3414F03544 Contact Us For Availability
View on Model
15
WIRES, TUBING
WIRES, TUBING WPL 74001447 Contact Us For Availability
View on Model
16
BRACKET, CONDUIT
BRACKET, CONDUIT WPL 3801F07245 Contact Us For Availability
View on Model
16
CONNECTOR, RIGHT ANG
CONNECTOR, RIGHT ANG WPL 7417P00460 Contact Us For Availability
View on Model
16
SLEEVE, TUBE
SLEEVE, TUBE WPL 8018P00160 Contact Us For Availability
View on Model
17
NUT, SWITCH
NUT, SWITCH WPL 7103P02160 Contact Us For Availability
View on Model
18
GROMMET
GROMMET WPL 8008P01060 Contact Us For Availability
View on Model
19
SCREW
SCREW WPL 7101P34960 Contact Us For Availability
View on Model
NI
GUIDE, QUICK REF - ADMIRAL
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
View on Model
NI
HARNESS, COMPLETE ASSY
HARNESS, COMPLETE ASSY WPL 5175A01560 Contact Us For Availability
View on Model
NI
MANUAL, USE & CARE
MANUAL, USE & CARE WPL 8112P10260 Contact Us For Availability
View on Model
