Model Electrolux CRSS262QS2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

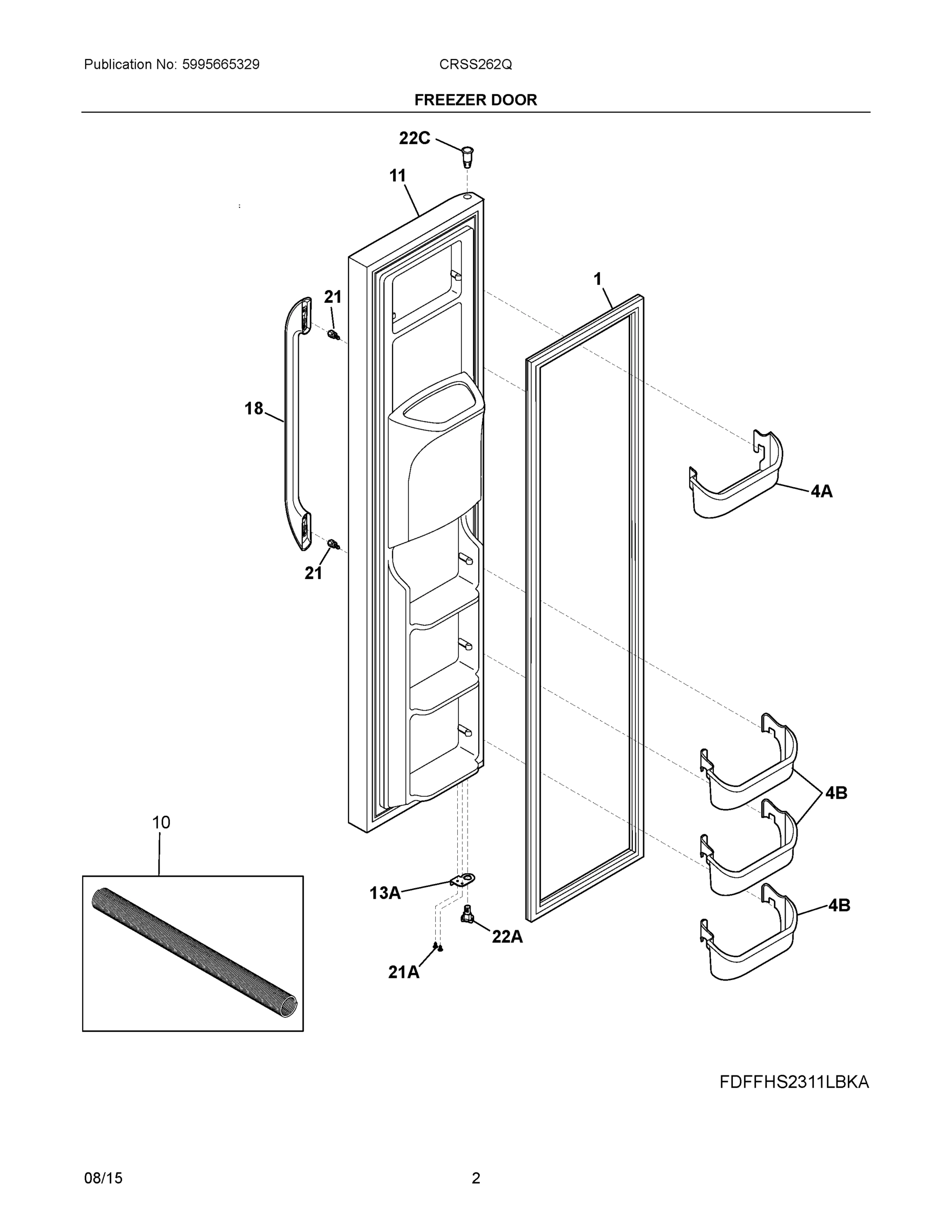

02 - FREEZER DOOR
03 - REFRIGERATOR DOOR

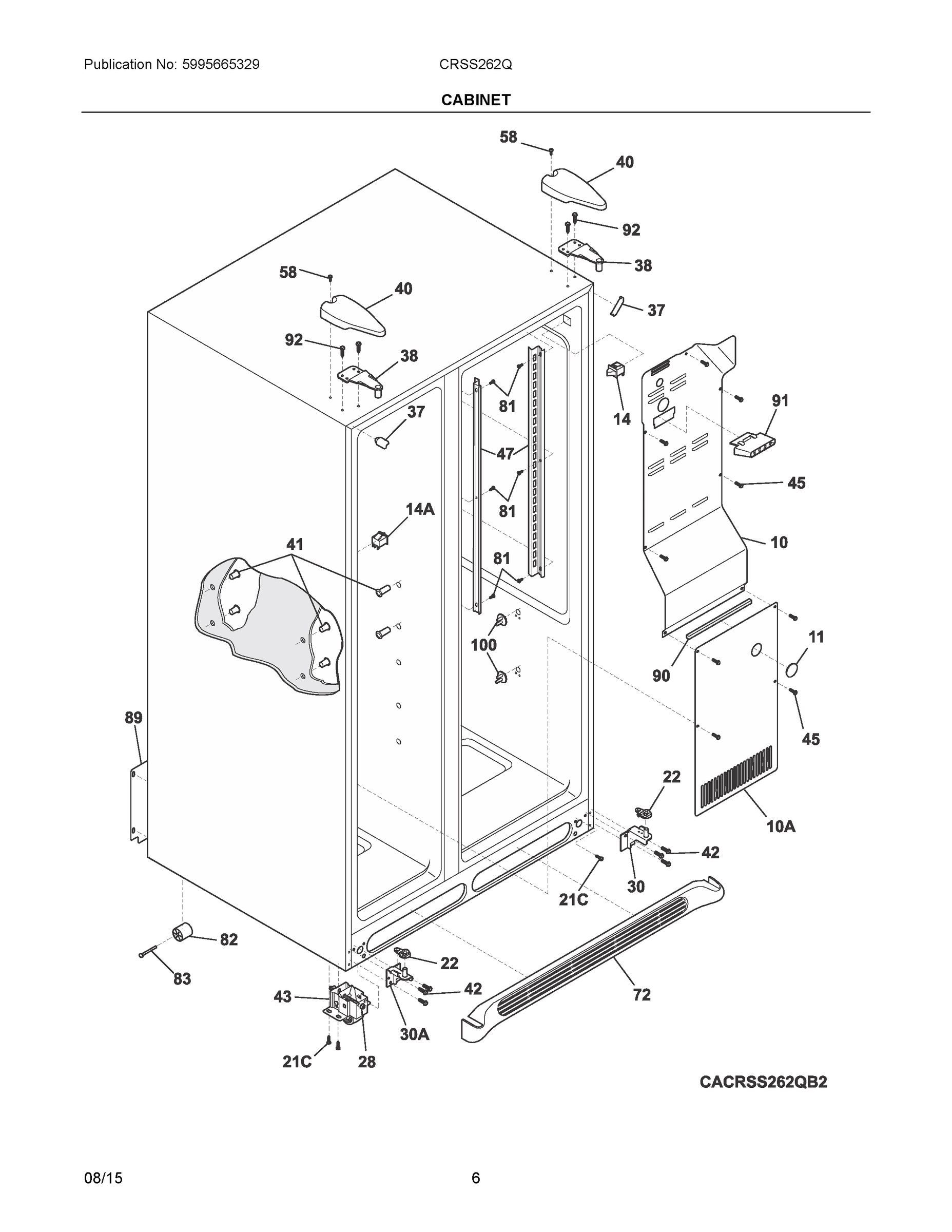

04 - CABINET

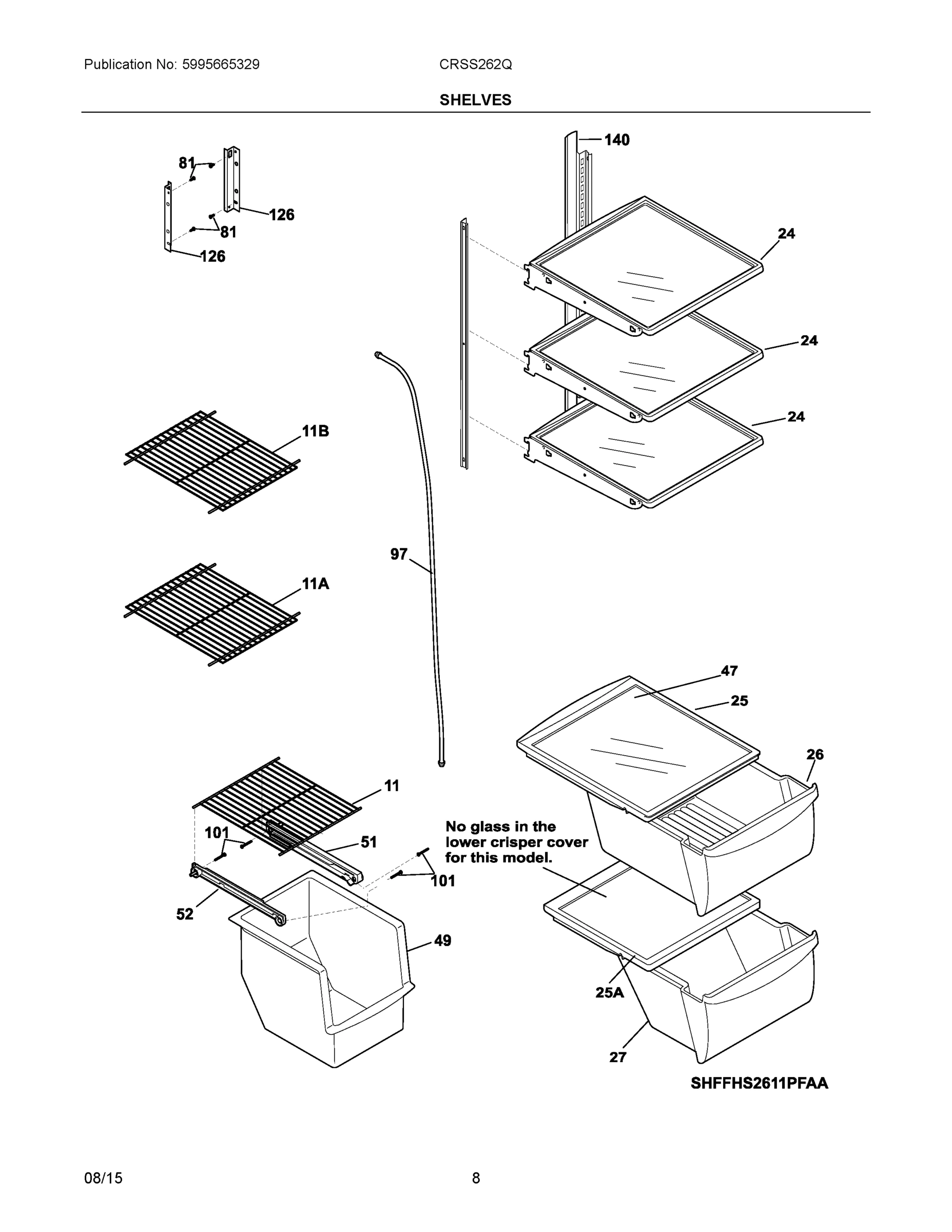

05 - SHELVES
06 - CONTROLS
07 - SYSTEM

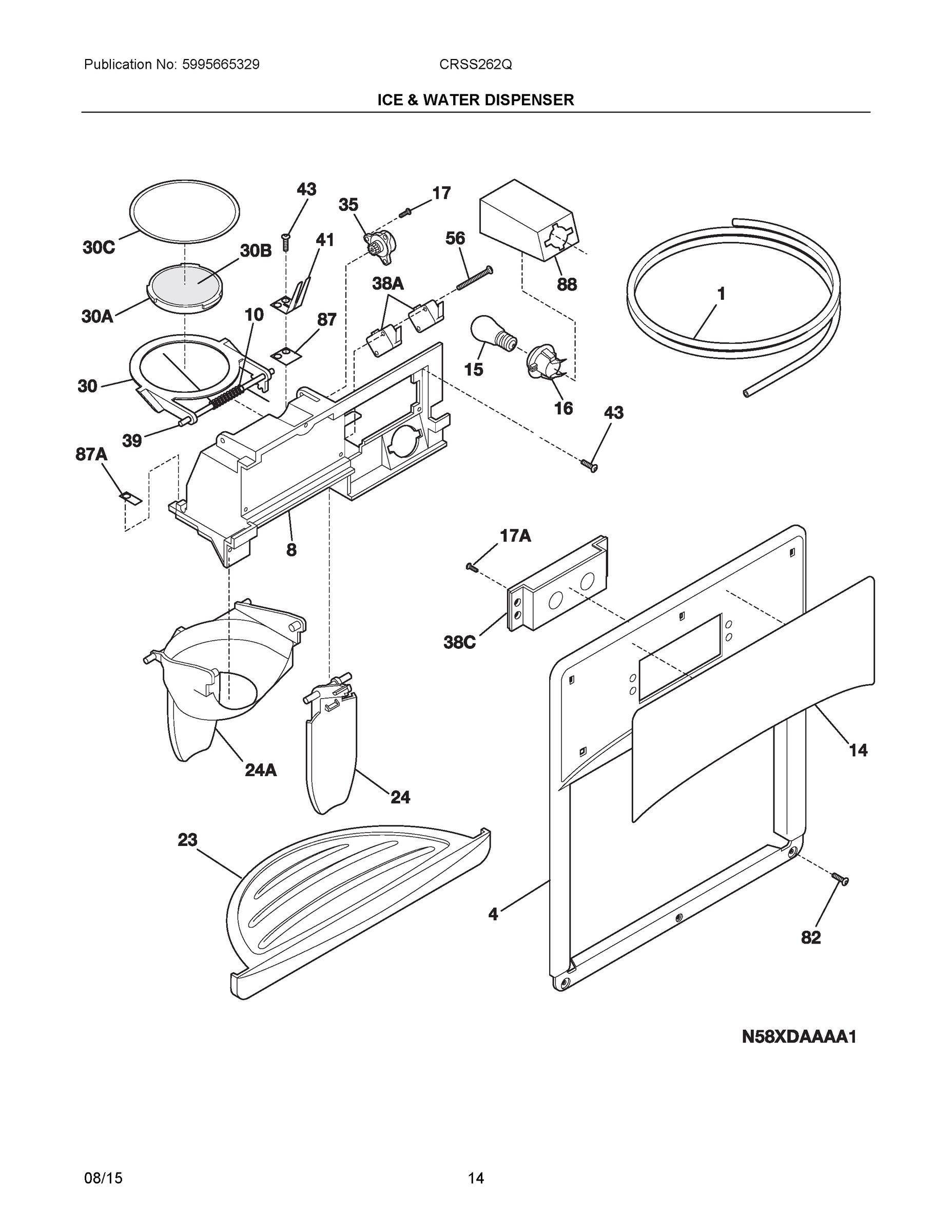

08 - ICE & WATER DISPENSER

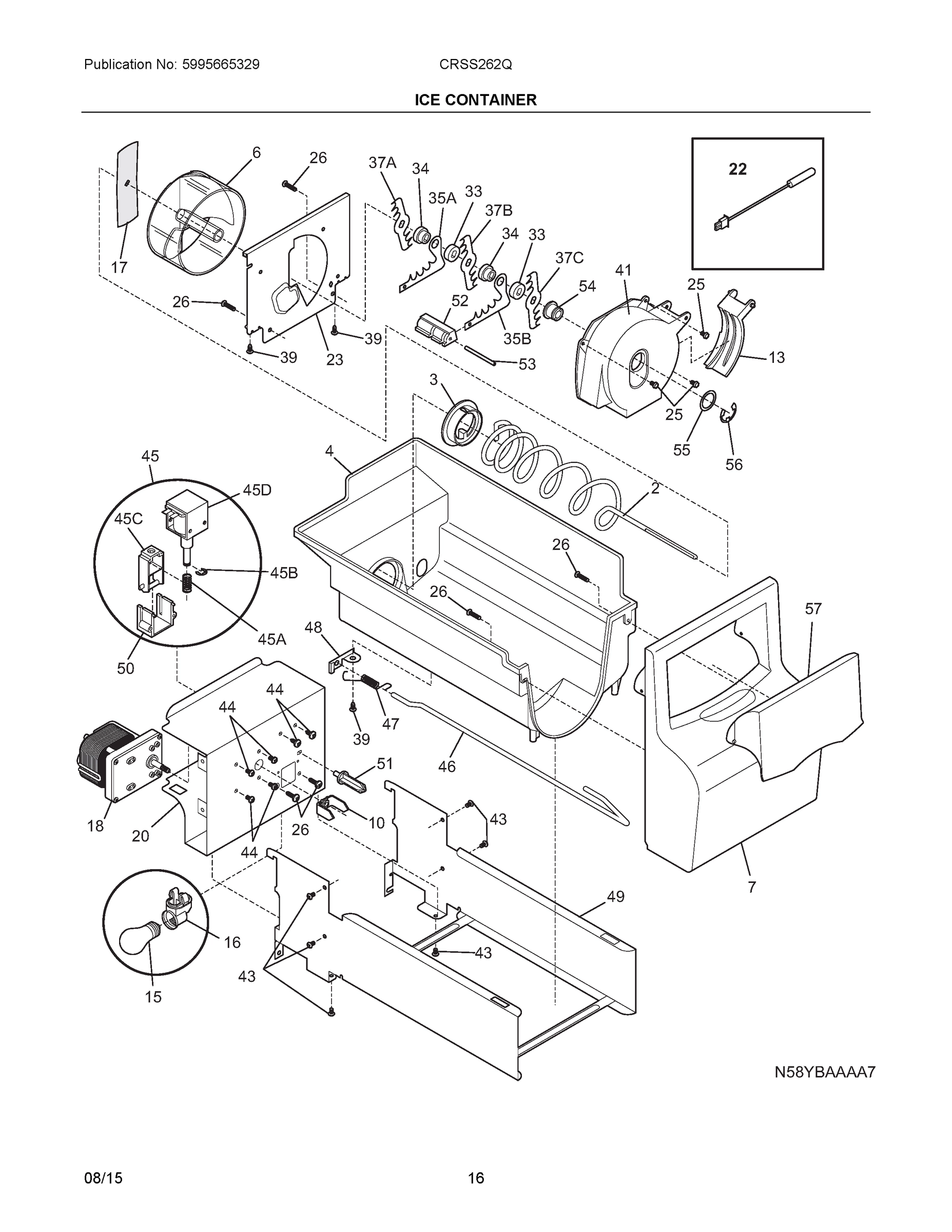

09 - ICE CONTAINER

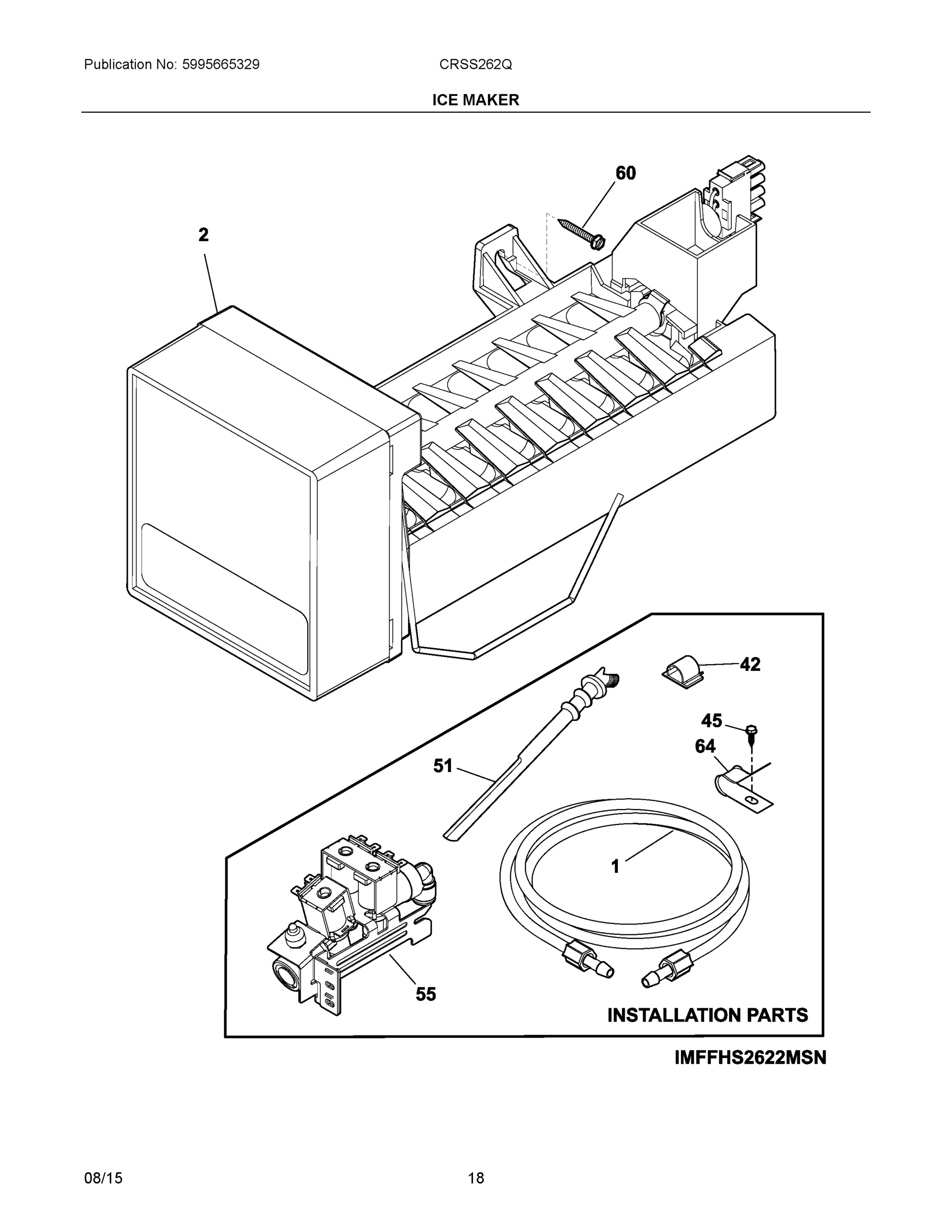

10 - ICE MAKER

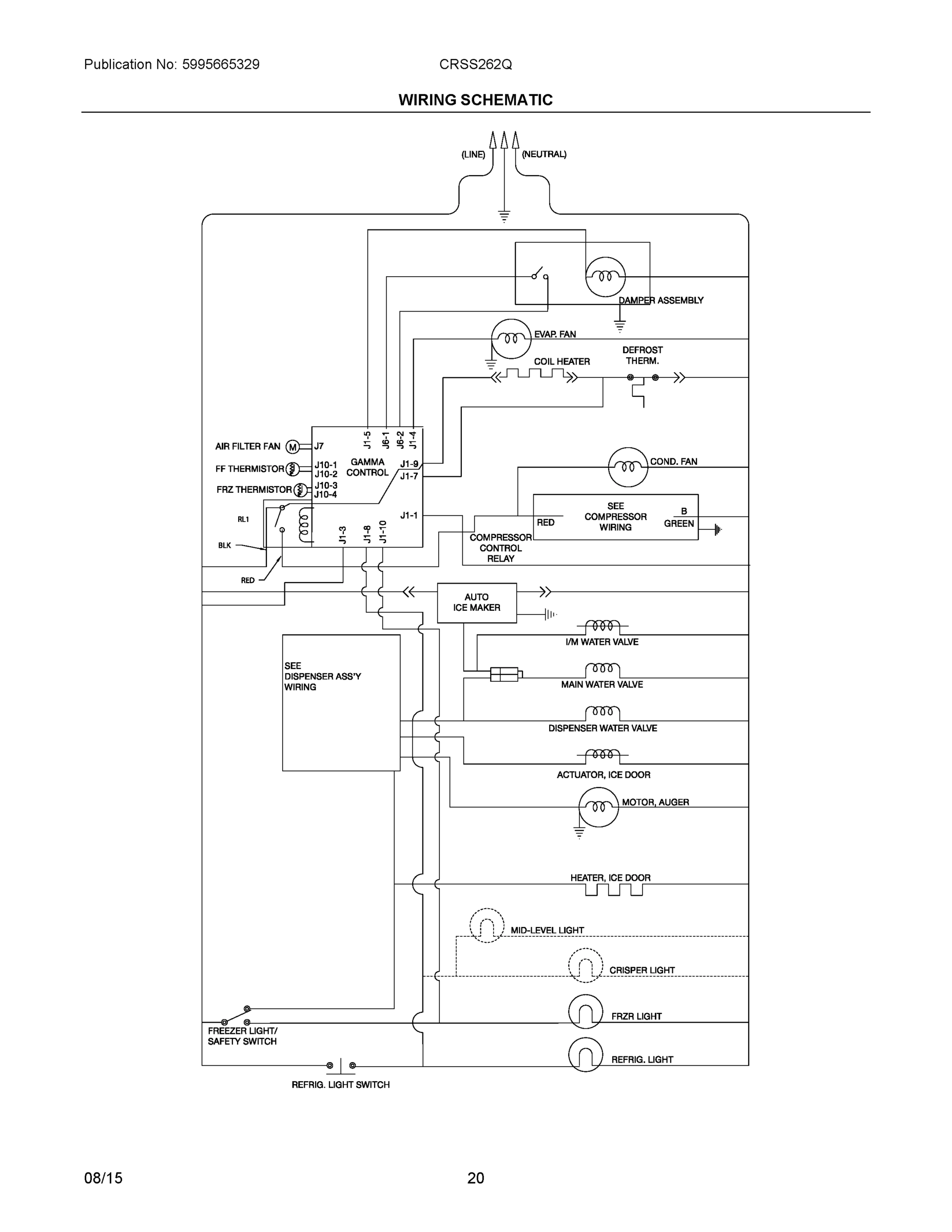

11 - WIRING SCHEMATIC

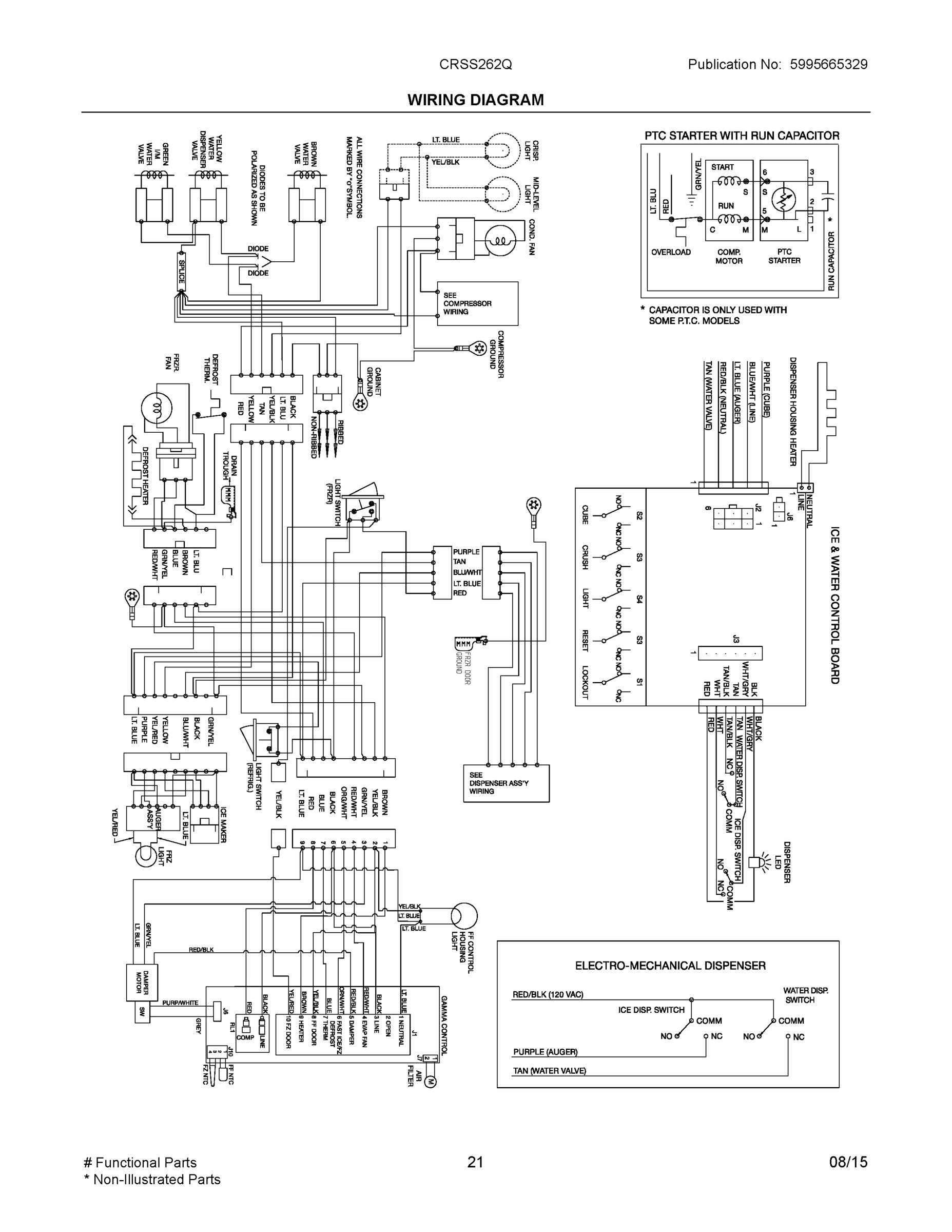

12 - WIRING DIAGRAM
Common parts from model Electrolux CRSS262QS2 REFRIGERATOR
1
TUBE, WATER, 60", NATURAL, DOOR WCI 218976409 Contact Us For Availability
1
WCI 242106605 WCI 242106605 Contact Us For Availability
2
WCI 241716101 WCI 241716101 Contact Us For Availability
3
WCI 241685201 WCI 241685201 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM, (2) WCI 218679614 Contact Us For Availability
4
BIN-DOOR, PSEUDO, BOTTOM WCI 240323001 Contact Us For Availability
4
CONTAINER-ICE, BUCKET ONLY WCI 241734001 Contact Us For Availability
4
COVER-MODULE, BLACK WCI 241679003 Contact Us For Availability
4A
BIN-DOOR, FRZR-UPPER WCI 240334201 Contact Us For Availability
4B
WCI 240351601 WCI 240351601 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
7
WCI 240326203 WCI 240326203 Contact Us For Availability
7
WCI 241734201 WCI 241734201 Contact Us For Availability
8
WCI 241680507 WCI 241680507 Contact Us For Availability
8
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
9
WCI 241563601 WCI 241563601 Contact Us For Availability
10
WCI 241726501 WCI 241726501 Contact Us For Availability
10
WCI 241688901 WCI 241688901 Contact Us For Availability
10
WCI 807688301 WCI 807688301 Contact Us For Availability
10
WCI 240435912 WCI 240435912 Contact Us For Availability
10A
COVER-EVAP COIL, LOWER WCI 241719711 Contact Us For Availability
11
SHELF, FLIP UP, WIRE WCI 241657602 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
WCI 807460004 WCI 807460004 Contact Us For Availability
11A
SHELF, FIXED, FREEZER WCI 241657502 Contact Us For Availability
11B
SHELF, FIXED, UPPER, FREEZER WCI 241657504 Contact Us For Availability
13
DOOR STOP, BLACK, REF WCI 240581905 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240581906 Contact Us For Availability
14
WCI 242044113 WCI 242044113 Contact Us For Availability
14
SWITCH, LIGHT/LAMP WCI 240505801 Contact Us For Availability
14
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
15
WCI 5303918284 WCI 5303918284 Contact Us For Availability
15
WCI 807460104 WCI 807460104 Contact Us For Availability
16
WCI 218906802 WCI 218906802 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
16
WCI 240548901 WCI 240548901 Contact Us For Availability
17
WCI 241633511 WCI 241633511 Contact Us For Availability
17
WCI 241679801 WCI 241679801 Contact Us For Availability
18
HANDLE-DOOR, STAINLESS, W/SET SCREWS WCI 242059301 Contact Us For Availability
20
WCI 241604010 WCI 241604010 Contact Us For Availability
20
COVER, MOTOR WCI 241734902 Contact Us For Availability
21
THERMOSTAT-DEFROST, KIT WCI 5303918214 Contact Us For Availability
21A
THERMISTOR ASSEMBLY, REFRIG/FREEZER, W/CONNEC WCI 242278801 Contact Us For Availability
22
PLATE-DOOR CLOSER, BLACK WCI 241856502 Contact Us For Availability
22
BEARING-HINGE (REF), BLACK, CLOSER WCI 242015302 Contact Us For Availability
22A
BEARING-HINGE, BLACK, LOWER WCI 242000502 Contact Us For Availability
22B
BEARING-HINGE, BLACK, UPPER WCI 240328404 Contact Us For Availability
23
DRIP TRAY, BLACK WCI 241649003 Contact Us For Availability
23
WCI 241684001 WCI 241684001 Contact Us For Availability
24
ACTUATOR-WATER, BLACK WCI 241682003 Contact Us For Availability
24
SHELF-"SPILL-SAFE", FIXED WCI 240355270 Contact Us For Availability
24A
ACTUATOR-ICE, BLACK WCI 241681903 Contact Us For Availability
25
COVER-CRISPER PAN, UPPER WCI 240350702 Contact Us For Availability
25
SCREW-COMPRESSOR MTG, 1/4-28 X 1.16, (4) WCI 240491503 Contact Us For Availability
25A
COVER-CRISPER PAN, LOWER WCI 240350903 Contact Us For Availability
26
SCREW, CR PAN HD, 10-16 X 0.500 WCI 215503203 Contact Us For Availability
27
PAN-CRISPER, LOWER WCI 240351207 Contact Us For Availability
30
WCI 241941005 WCI 241941005 Contact Us For Availability
30
WCI 241688401 WCI 241688401 Contact Us For Availability
30
WCI 242034601 WCI 242034601 Contact Us For Availability
30A
WCI 241688501 WCI 241688501 Contact Us For Availability
30A
WCI 242034604 WCI 242034604 Contact Us For Availability
30B
WCI 241688601 WCI 241688601 Contact Us For Availability
30C
WCI 241688701 WCI 241688701 Contact Us For Availability
32
CLAMP, ELEC CONT MTG, COMPRESSOR WCI 297030500 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
WCI 241689301 WCI 241689301 Contact Us For Availability
37
WCI 242161202 WCI 242161202 Contact Us For Availability
38
WCI 240327207 WCI 240327207 Contact Us For Availability
39
WCI 241688801 WCI 241688801 Contact Us For Availability
40
COVER-UPPER HINGE, BLACK WCI 240327007 Contact Us For Availability
41
GROMMET-SHELF MTG, 1.40" LONG WCI 241550801 Contact Us For Availability
41
WCI 241689001 WCI 241689001 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
WCI 218515403 WCI 218515403 Contact Us For Availability
43
SCREW, PAN HEAD, 8-32 X 0.250 WCI 218359202 Contact Us For Availability
45
SOLENOID ASSY, 115V WCI 241675704 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-18AB X 1/2 WCI 241500303 Contact Us For Availability
45A
WCI 241675902 WCI 241675902 Contact Us For Availability
45B
WCI 241676001 WCI 241676001 Contact Us For Availability
45C
WCI 241676101 WCI 241676101 Contact Us For Availability
46
WCI 241716002 WCI 241716002 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 240350649 Contact Us For Availability
47
WCI 241731801 WCI 241731801 Contact Us For Availability
48
WCI 241684602 WCI 241684602 Contact Us For Availability
49
BIN-DOOR, GALLON WCI 240356401 Contact Us For Availability
49
WCI 240564401 WCI 240564401 Contact Us For Availability
49
WCI 241734501 WCI 241734501 Contact Us For Availability
50
WCI 241675601 WCI 241675601 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796405 Contact Us For Availability
51
HANGER-BASKET, RH WCI 240343002 Contact Us For Availability
51
WCI 241676301 WCI 241676301 Contact Us For Availability
52
HANGER-BASKET, LH WCI 240343102 Contact Us For Availability
52
WCI 241684901 WCI 241684901 Contact Us For Availability
53
WCI 241608902 WCI 241608902 Contact Us For Availability
53
PIN-SPIRAL, FIXED BLADES WCI 241690402 Contact Us For Availability
54
WCI 241685001 WCI 241685001 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
55
WCI 241690306 WCI 241690306 Contact Us For Availability
56
WCI 241690201 WCI 241690201 Contact Us For Availability
56
SCREW-MICRO SWITCH, PAN HEAD WCI 241689201 Contact Us For Availability
57
WCI 241734101 WCI 241734101 Contact Us For Availability
58
SCREW, PAN HEAD, 8-18 X 0.625 WCI 218781101 Contact Us For Availability
59
WCI 241946106 WCI 241946106 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
72
GRILLE/KICKPLATE, BLACK WCI 240324411 Contact Us For Availability
79
SCREW-SET, 10-32 X 0.375 WCI 218755401 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
87
WCI 241688302 WCI 241688302 Contact Us For Availability
87A
WCI 241688301 WCI 241688301 Contact Us For Availability
88
WCI 241686101 WCI 241686101 Contact Us For Availability
91
WCI 240380101 WCI 240380101 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
97
WCI 242220208 WCI 242220208 Contact Us For Availability
100
WCI 241993101 WCI 241993101 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101
SCREW, HEX SEMS HEAD, 8-18AB X 1-3/4 WCI 241637202 Contact Us For Availability
115
DAMPER ASSY, W/SEAL WCI 242303001 Contact Us For Availability
126
CHANNEL, AUGER MTG, LH WCI 241674401 Contact Us For Availability
126A
CHANNEL, AUGER MTG, RH WCI 241674402 Contact Us For Availability
140
CHANNEL, WTR TUBE COVER WCI 240430501 Contact Us For Availability
151
WCI 242069701 WCI 242069701 Contact Us For Availability
210
HOUSING-WATER FILTER WCI 241983814 Contact Us For Availability
NI
ICE CONTAINER ASSY, W/MOVING PARTS WCI 241860803 Contact Us For Availability
NI
PLUG-BUTTON, WHITE, CAB LINER HOLES WCI 240494001 Contact Us For Availability
NI
PAINT, TOUCH-UP, BLACK WCI 5303321321 Contact Us For Availability
NI
WCI 240507202 WCI 240507202 Contact Us For Availability
NI
SCREW, IND HEX WSHR HD, 8-32 X 0.375, TRILOBE WCI 240451503 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
WCI 241993001 WCI 241993001 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
CLIP-SLIDE, COVER WCI 240362101 Contact Us For Availability
NIA
GROMMET-SHELF MTG, .96" LONG WCI 241550701 Contact Us For Availability
NIA
TUBE-WATER INLET, 5/16 - 34", YELLOW, VALVE T WCI 218976419 Contact Us For Availability
NIA
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
NIA
HARNESS-WIRING, ICMKR/CONTAINER WCI 241522901 Contact Us For Availability
NIA
CLIP, SENSOR WCI 241519401 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIAA
WCI 241679201 WCI 241679201 Contact Us For Availability
NIB
TUBE-WATER INLET, 5/16 - 97.50", BROWN/TAN WCI 218976429 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
NIB
WCI 240363602 WCI 240363602 Contact Us For Availability
NID
SEAL-WATER INLET, INLET VALVE, TO ICE MAKER WCI 240561701 Contact Us For Availability
× ![]()
