Model Maytag CRPA200BXW GAS RANGE – Common Parts & Diagrams
01 - BODY
02 - DOOR/DRAWER

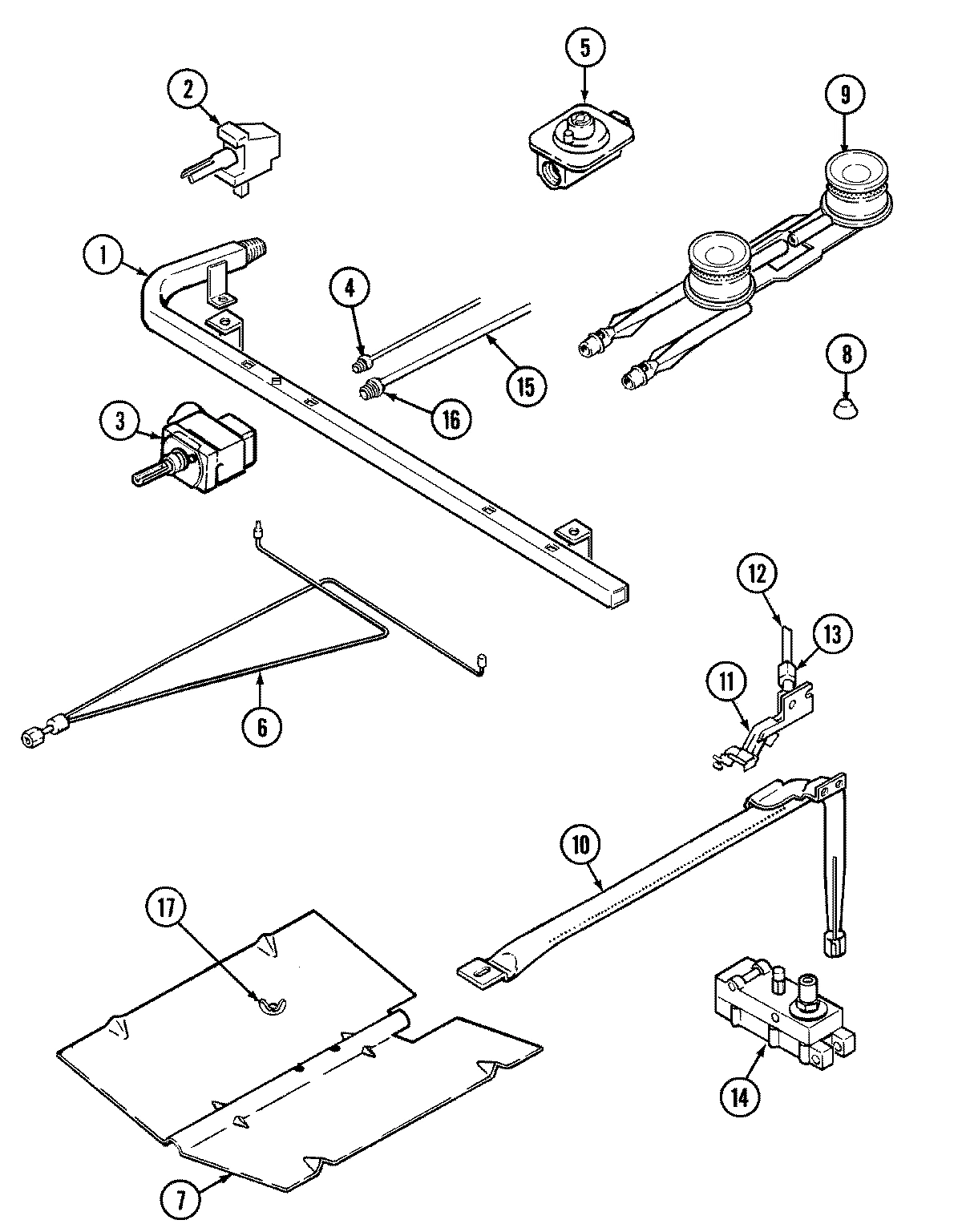

03 - GAS CONTROLS

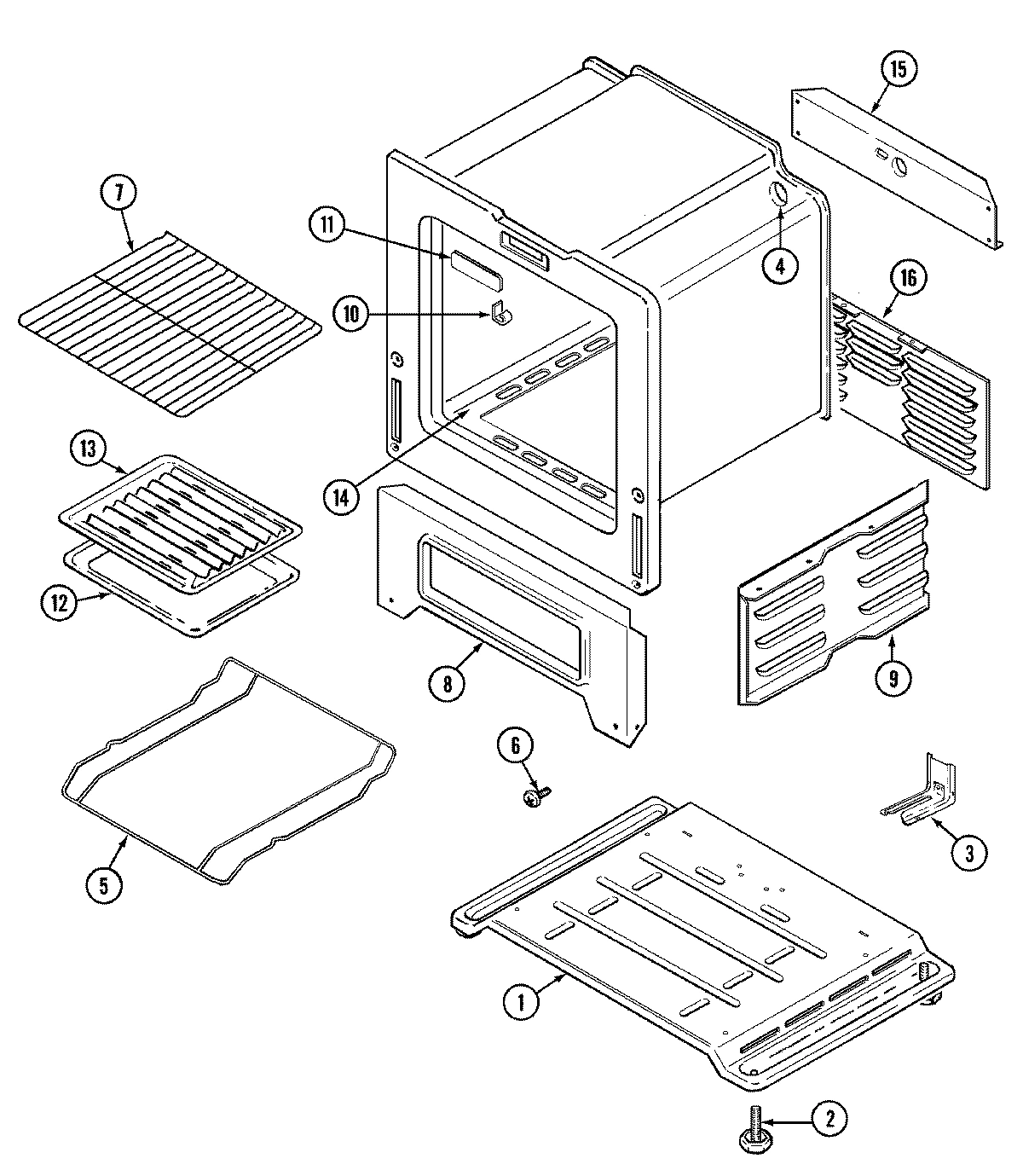

04 - OVEN/BASE

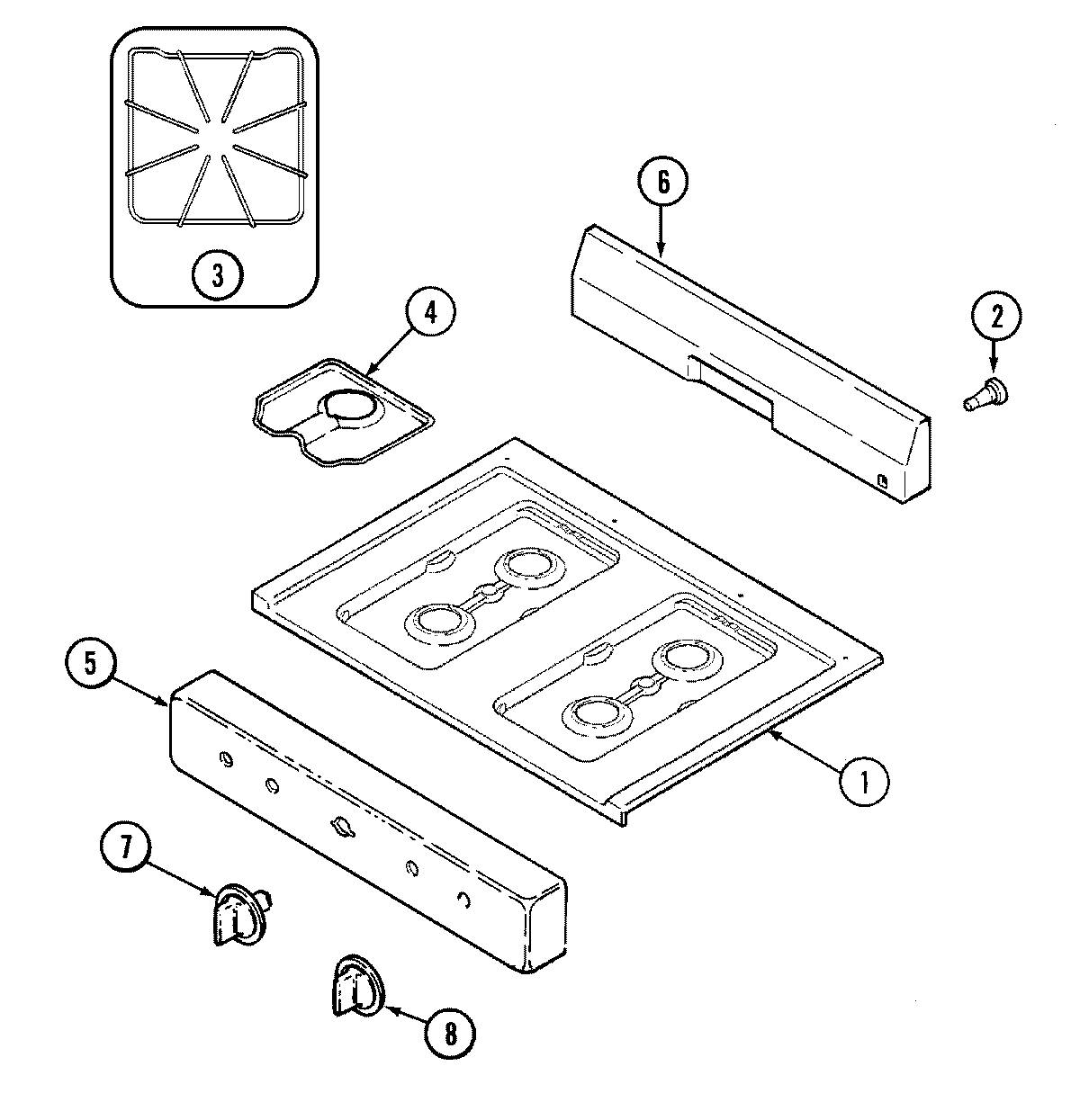

05 - TOP ASSEMBLY
Common parts from model Maytag CRPA200BXW GAS RANGE
1
PANEL, DOOR (WHT) MAY 2401F096-71 Contact Us For Availability
1
MAY 74002282 MAY 74002282 Contact Us For Availability
1
MAY 74002424 MAY 74002424 Contact Us For Availability
1
MAY 74002372 MAY 74002372 Contact Us For Availability
1
MAY 2001F098-81 MAY 2001F098-81 Contact Us For Availability
2
SPACER, HINGE (MAIN TOP) MAY 8010P069-60 Contact Us For Availability
2
CLIP, DOOR MAY 7112P034-60 Contact Us For Availability
2
MAY 74002383 MAY 74002383 Contact Us For Availability
3
MAY 8010P084-60 MAY 8010P084-60 Contact Us For Availability
3
MAY 7101P010-60 MAY 7101P010-60 Contact Us For Availability
3
MAY 74002425 MAY 74002425 Contact Us For Availability
3
MAY 7101P344-60 MAY 7101P344-60 Contact Us For Availability
3
MAY 74002311 MAY 74002311 Contact Us For Availability
3
MAY 2003W026-00 MAY 2003W026-00 Contact Us For Availability
4
MAY 1555222 MAY 1555222 Contact Us For Availability
4
MAY 74002380 MAY 74002380 Contact Us For Availability
4
MAY 5401A433-60 MAY 5401A433-60 Contact Us For Availability
5
MAY 74001820 MAY 74001820 Contact Us For Availability
5
MAY 7510P002-60 MAY 7510P002-60 Contact Us For Availability
5
MAY 74002381 MAY 74002381 Contact Us For Availability
5
MAY 7101P074-60 MAY 7101P074-60 Contact Us For Availability
5
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
5
MAY 74002411 MAY 74002411 Contact Us For Availability
6
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
6
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
6
MAY 7103P128-60 MAY 7103P128-60 Contact Us For Availability
6
MAY 74002426 MAY 74002426 Contact Us For Availability
6
MAY 74002354 MAY 74002354 Contact Us For Availability
7
MAY 74002366 MAY 74002366 Contact Us For Availability
7
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
7
MAY 74002396 MAY 74002396 Contact Us For Availability
7
MAY 74002393 MAY 74002393 Contact Us For Availability
8
MAY 74002367 MAY 74002367 Contact Us For Availability
8
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
8
MAY 4804F050-60 MAY 4804F050-60 Contact Us For Availability
8
MAY 74002435 MAY 74002435 Contact Us For Availability
8
MAY 74002327 MAY 74002327 Contact Us For Availability
9
MAY Y707347 MAY Y707347 Contact Us For Availability
9
MAY 74001729 MAY 74001729 Contact Us For Availability
9
SCREW (8BX3/8-NI) MAY 7101P338-60 Contact Us For Availability
9
MAY 74002392 MAY 74002392 Contact Us For Availability
9
MAY 74002374 MAY 74002374 Contact Us For Availability
9
MAY 74002375 MAY 74002375 Contact Us For Availability
9
MAY 74002355 MAY 74002355 Contact Us For Availability
10
MAY 74002434 MAY 74002434 Contact Us For Availability
10
MAY 74002369 MAY 74002369 Contact Us For Availability
10
MAY 7101P080-60 MAY 7101P080-60 Contact Us For Availability
10
MAY 16002079 MAY 16002079 Contact Us For Availability
11
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
11
MAY 74002397 MAY 74002397 Contact Us For Availability
11
MAY 7432P068-60 MAY 7432P068-60 Contact Us For Availability
11
MAY 7718P013-60 MAY 7718P013-60 Contact Us For Availability
12
MAY 74002370 MAY 74002370 Contact Us For Availability
12
MAY 74002634 MAY 74002634 Contact Us For Availability
12
MAY 74001814 MAY 74001814 Contact Us For Availability
12
MAY 3414F108-44 MAY 3414F108-44 Contact Us For Availability
12
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
13
MAY 7106P055-60 MAY 7106P055-60 Contact Us For Availability
13
MAY 74002398 MAY 74002398 Contact Us For Availability
13
MAY 1555261K MAY 1555261K Contact Us For Availability
13
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
14
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
14
MAY 74001449 MAY 74001449 Contact Us For Availability
14
MAY 74002428 MAY 74002428 Contact Us For Availability
14
MAY 74002376 MAY 74002376 Contact Us For Availability
14
MAY 74002377 MAY 74002377 Contact Us For Availability
15
MAY 12001100 MAY 12001100 Contact Us For Availability
15
MAY 74001062 MAY 74001062 Contact Us For Availability
15
MAY 74002378 MAY 74002378 Contact Us For Availability
16
MAY 1555251 MAY 1555251 Contact Us For Availability
16
MAY 74002379 MAY 74002379 Contact Us For Availability
17
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
× ![]()
