Model Maytag CRG9800BAB GAS RANGE – Common Parts & Diagrams

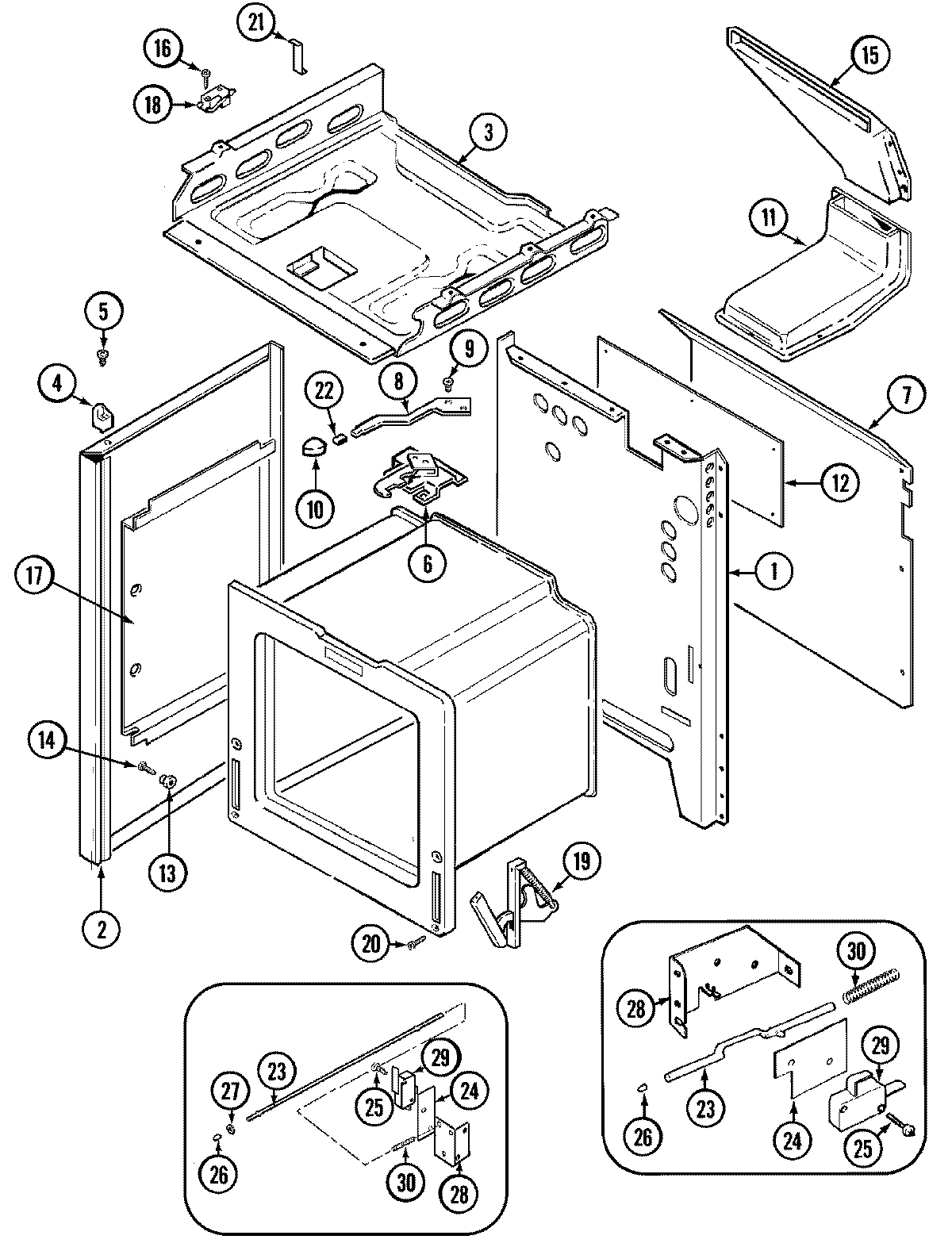

01 - BODY

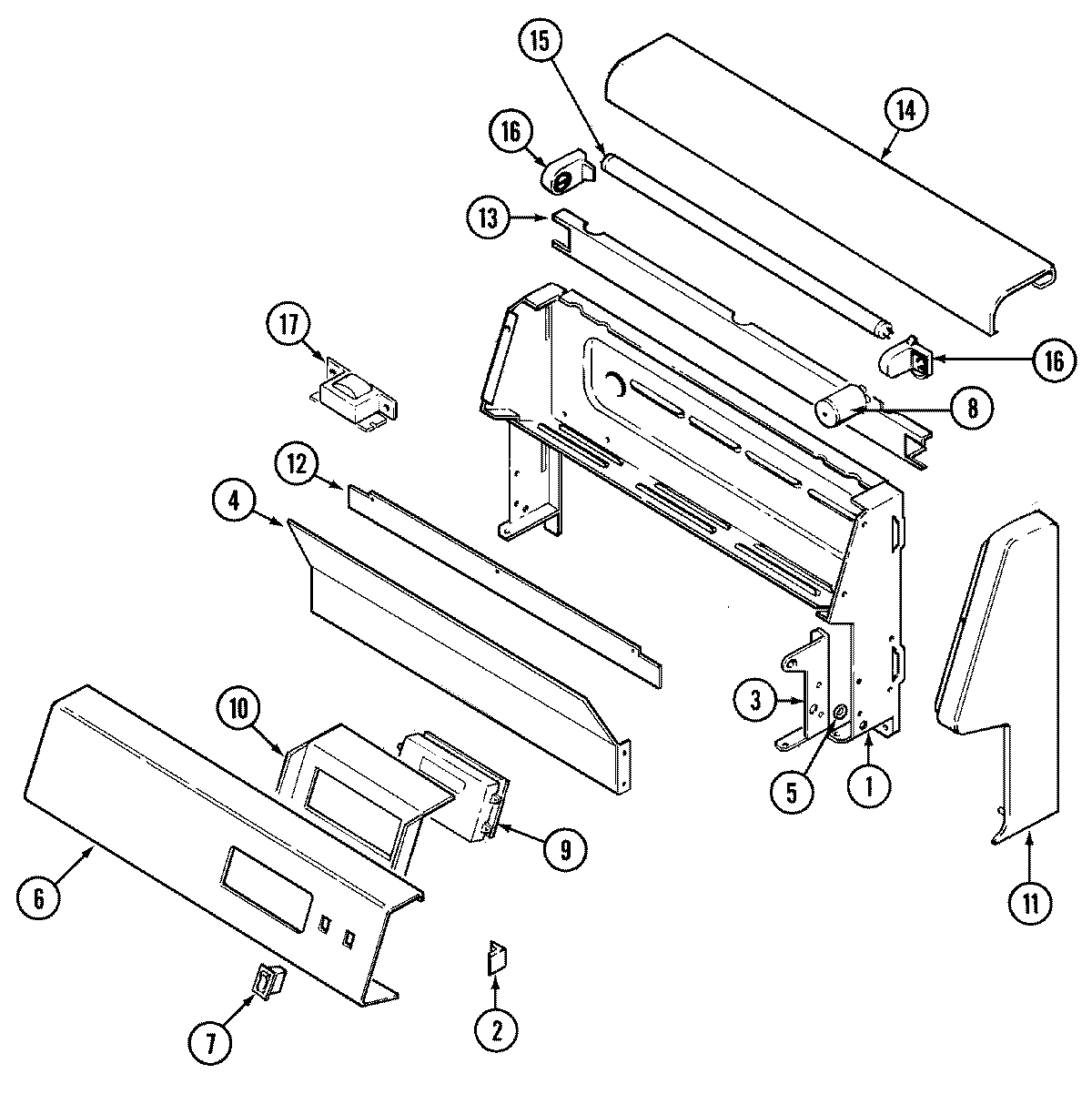

02 - CONTROL PANEL
03 - DOOR/DRAWER

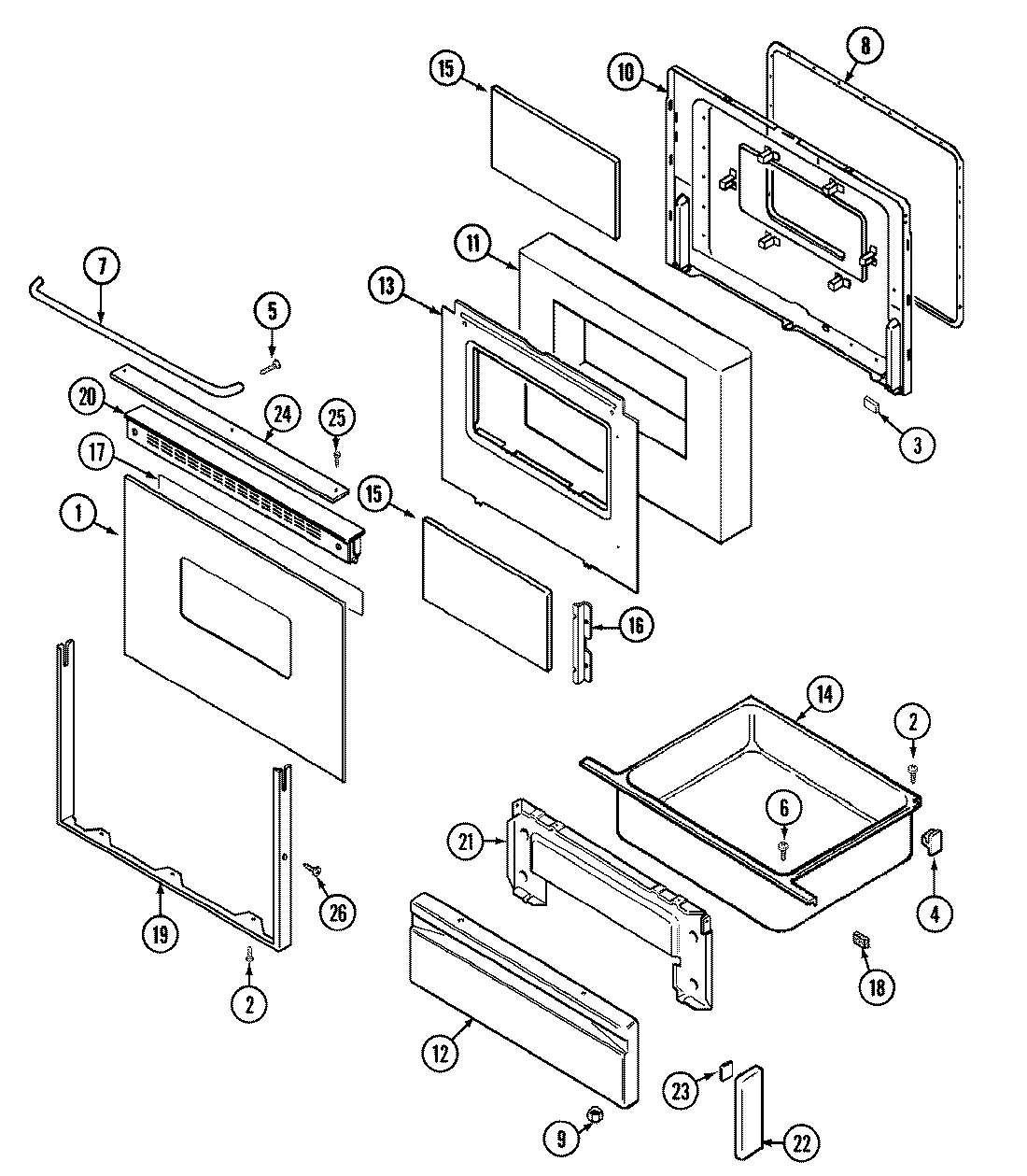

04 - DOOR/DRAWER (SERIAL PREFIX 16)

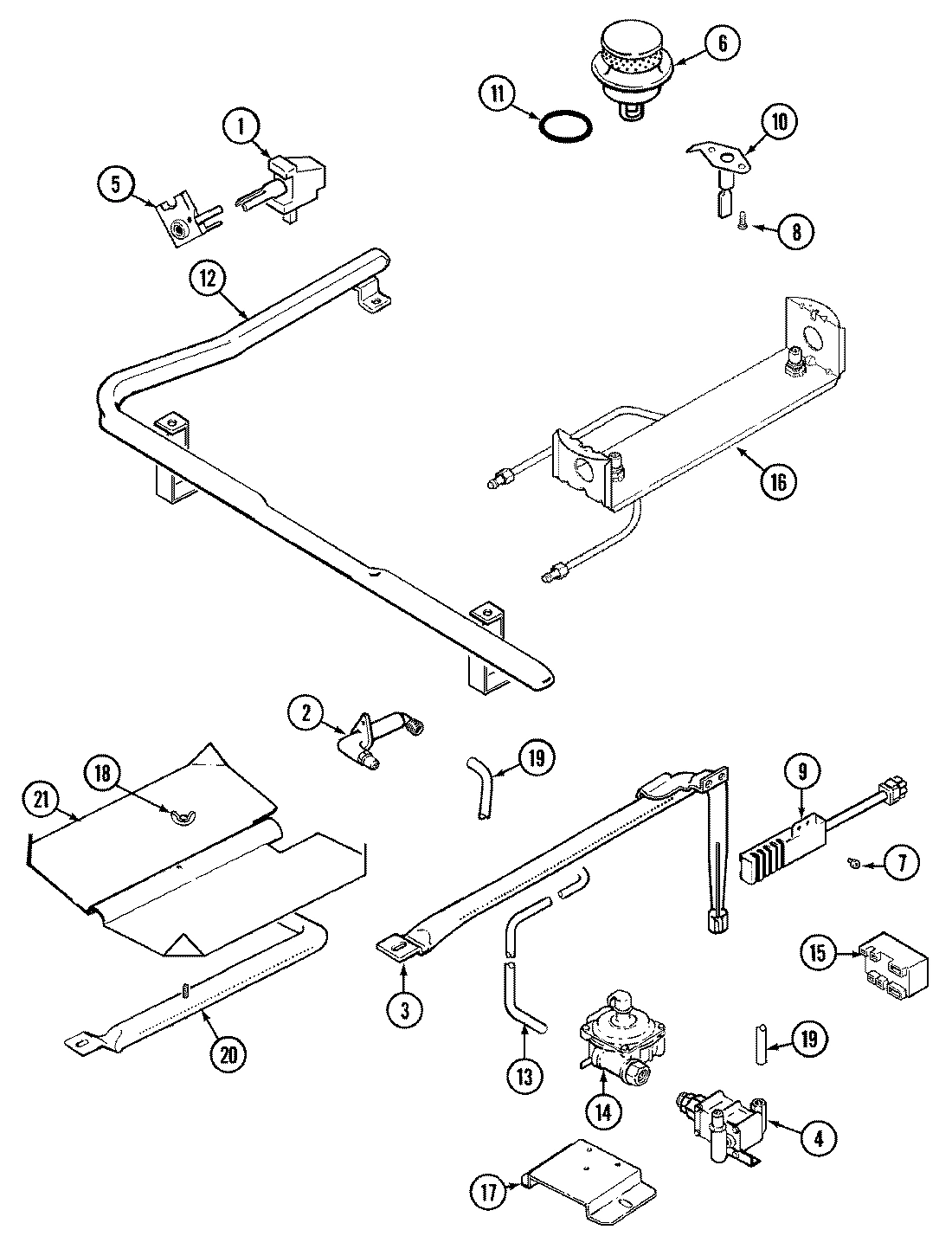

05 - GAS CONTROLS
06 - OVEN/BASE

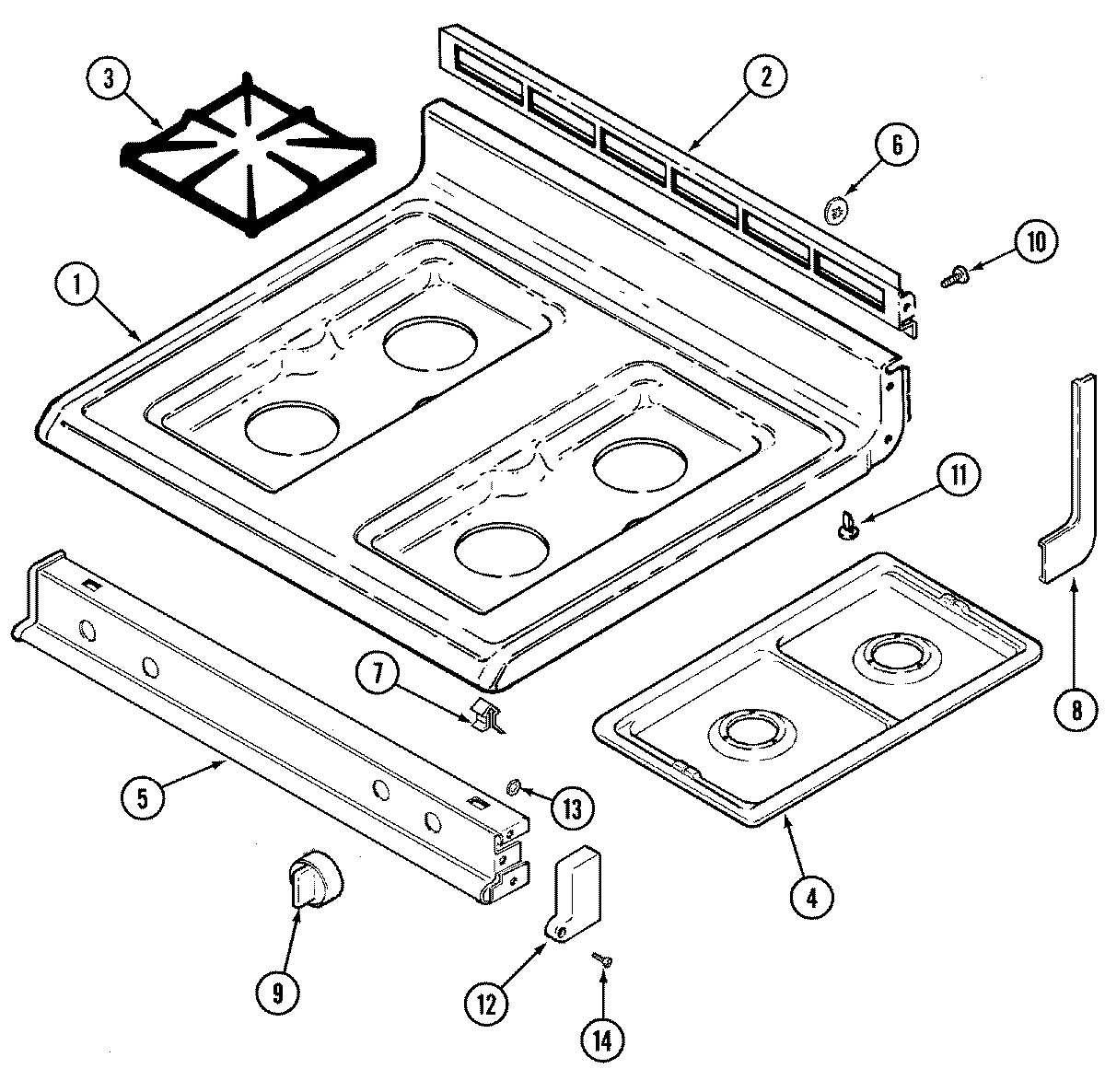

07 - TOP ASSEMBLY

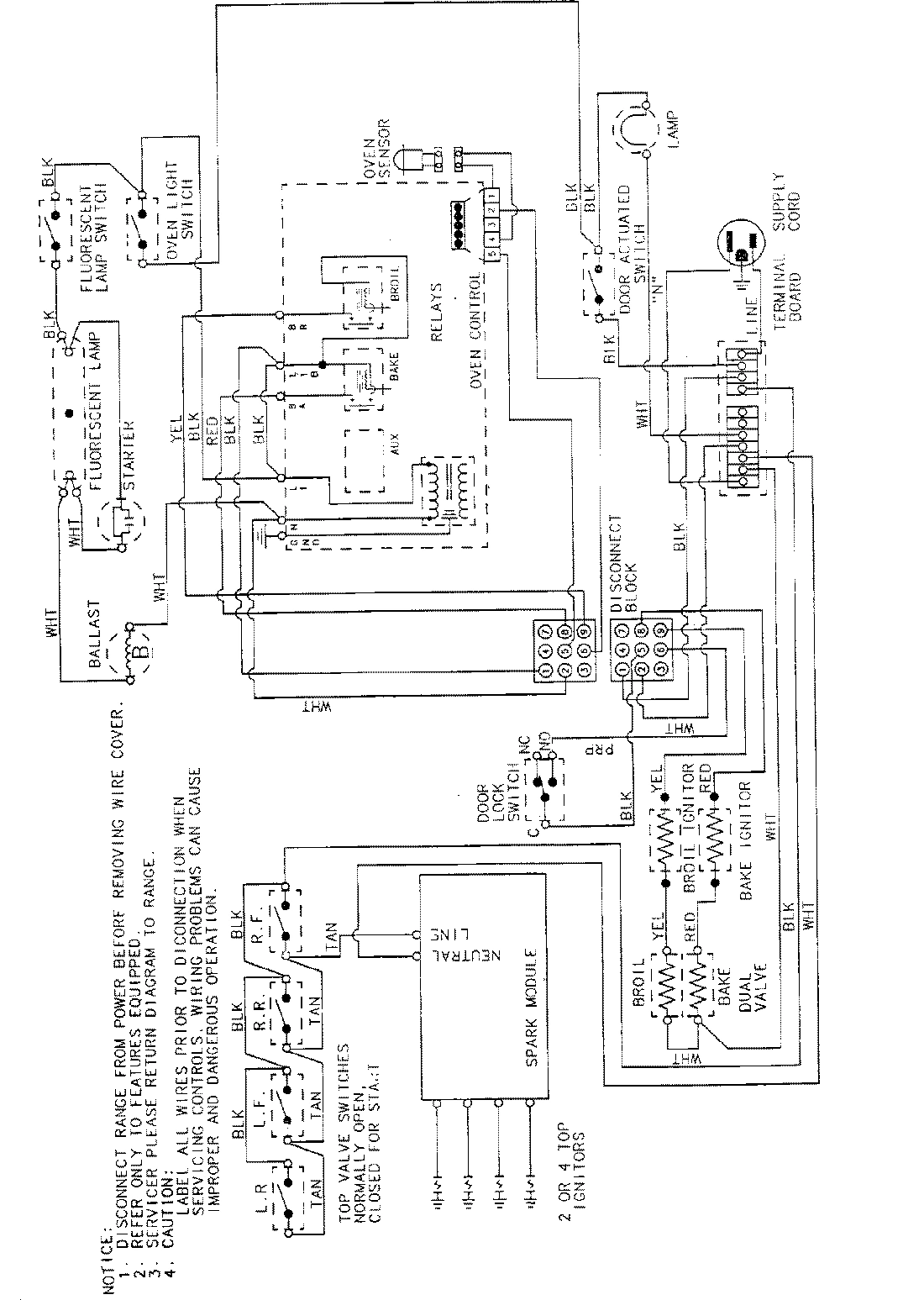

08 - WIRING INFORMATION
Common parts from model Maytag CRG9800BAB GAS RANGE
1
MAY 4001F091-51 MAY 4001F091-51 Contact Us For Availability
1
MAY 4005F448-45 MAY 4005F448-45 Contact Us For Availability
1
MAY 7118P015-60 MAY 7118P015-60 Contact Us For Availability
1
MAY 7902P361-60 MAY 7902P361-60 Contact Us For Availability
1
MAY 7101P044-60 MAY 7101P044-60 Contact Us For Availability
1
MAY 7502P252-60 MAY 7502P252-60 Contact Us For Availability
1
MAY 4020W015-80 MAY 4020W015-80 Contact Us For Availability
1
MAY 2001W085-09 MAY 2001W085-09 Contact Us For Availability
2
MAY 7101P148-60 MAY 7101P148-60 Contact Us For Availability
2
MAY 8010P083-60 MAY 8010P083-60 Contact Us For Availability
2
MAY 74001449 MAY 74001449 Contact Us For Availability
2
MAY 3605F186-45 MAY 3605F186-45 Contact Us For Availability
2
MAY 7507P088-60 MAY 7507P088-60 Contact Us For Availability
2
MAY 3406F028-51 MAY 3406F028-51 Contact Us For Availability
2
MAY 3608F042-09 MAY 3608F042-09 Contact Us For Availability
3
MAY 74001311 MAY 74001311 Contact Us For Availability
3
MAY 3807F453-60 MAY 3807F453-60 Contact Us For Availability
3
MAY 3807F454-60 MAY 3807F454-60 Contact Us For Availability
3
MAY 8010P085-60 MAY 8010P085-60 Contact Us For Availability
3
MAY 3403D043-45 MAY 3403D043-45 Contact Us For Availability
3
MAY 3807F446-45 MAY 3807F446-45 Contact Us For Availability
3
MAY 2003W027-00 MAY 2003W027-00 Contact Us For Availability
4
MAY 3604F188-09 MAY 3604F188-09 Contact Us For Availability
4
MAY 8004P025-60 MAY 8004P025-60 Contact Us For Availability
4
MAY 5401A452-60 MAY 5401A452-60 Contact Us For Availability
5
MAY 7101P313-60 MAY 7101P313-60 Contact Us For Availability
5
SCREW MAY 7101P326-60 Contact Us For Availability
5
MAY 74002625 MAY 74002625 Contact Us For Availability
5
MAY 7430P009-60 MAY 7430P009-60 Contact Us For Availability
5
MAY 7712P176-60 MAY 7712P176-60 Contact Us For Availability
6
MAY 4804F028-60 MAY 4804F028-60 Contact Us For Availability
6
MAY 8002P027-60 MAY 8002P027-60 Contact Us For Availability
6
MAY 7703P548-60 MAY 7703P548-60 Contact Us For Availability
6
MAY 3412D018-09 MAY 3412D018-09 Contact Us For Availability
6
MAY 7801P046-60 MAY 7801P046-60 Contact Us For Availability
7
MAY 4005F331-51 MAY 4005F331-51 Contact Us For Availability
7
SCREW (10-24X5/16-NI) MAY 7101P282-60 Contact Us For Availability
7
MAY 7403P309-60 MAY 7403P309-60 Contact Us For Availability
7
MAY 7701P149-60 MAY 7701P149-60 Contact Us For Availability
7
MAY Y3401F02019 MAY Y3401F02019 Contact Us For Availability
7
MAY 7112P087-60 MAY 7112P087-60 Contact Us For Availability
8
MAY 8009P029-60 MAY 8009P029-60 Contact Us For Availability
8
MAY 7109P015-60 MAY 7109P015-60 Contact Us For Availability
8
MAY 8009P023-60 MAY 8009P023-60 Contact Us For Availability
8
MAY 7415P001-60 MAY 7415P001-60 Contact Us For Availability
8
MAY 7101P315-60 MAY 7101P315-60 Contact Us For Availability
8
MAY Y3413F01619 MAY Y3413F01619 Contact Us For Availability
8
MAY 7746P034-60 MAY 7746P034-60 Contact Us For Availability
8
MAY 7746P035-60 MAY 7746P035-60 Contact Us For Availability
9
SCREW, LEVER MAY 7101P230-60 Contact Us For Availability
9
MAY 74001316 MAY 74001316 Contact Us For Availability
9
MAY 4005F421-45 MAY 4005F421-45 Contact Us For Availability
9
MAY 7432P076-60 MAY 7432P076-60 Contact Us For Availability
10
MAY 7701P132-60 MAY 7701P132-60 Contact Us For Availability
10
MAY 3801F276-45 MAY 3801F276-45 Contact Us For Availability
10
MAY 2402W202-19 MAY 2402W202-19 Contact Us For Availability
10
MAY 2402W209-19 MAY 2402W209-19 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) MAY 7103P039-60 Contact Us For Availability
10
MAY 7103P136-60 MAY 7103P136-60 Contact Us For Availability
10
SCREW (10ABX1/4P TR ZN) MAY 7101P208-60 Contact Us For Availability
11
MAY 4006W113-45 MAY 4006W113-45 Contact Us For Availability
11
MAY 7726P065-60 MAY 7726P065-60 Contact Us For Availability
11
MAY 7726P066-60 MAY 7726P066-60 Contact Us For Availability
11
MAY 4804F051-60 MAY 4804F051-60 Contact Us For Availability
11
MAY 74001842 MAY 74001842 Contact Us For Availability
11
MAY 7201P050-60 MAY 7201P050-60 Contact Us For Availability
11
MAY 8016P015-60 MAY 8016P015-60 Contact Us For Availability
12
MAY 3604F165-51 MAY 3604F165-51 Contact Us For Availability
12
MAY 8036P001-60 MAY 8036P001-60 Contact Us For Availability
12
MAY 2416W002-70 MAY 2416W002-70 Contact Us For Availability
12
MAY 7513P156-60 MAY 7513P156-60 Contact Us For Availability
12
MAY 7744P108-60 MAY 7744P108-60 Contact Us For Availability
12
MAY 7744P109-60 MAY 7744P109-60 Contact Us For Availability
13
MAY 8004P024-60 MAY 8004P024-60 Contact Us For Availability
13
MAY 3807F406-71 MAY 3807F406-71 Contact Us For Availability
13
MAY 3601F236-47 MAY 3601F236-47 Contact Us For Availability
13
MAY 7103P045-60 MAY 7103P045-60 Contact Us For Availability
13
MAY 74001843 MAY 74001843 Contact Us For Availability
13
MAY 3414F103-44 MAY 3414F103-44 Contact Us For Availability
13
MAY 7103P121-60 MAY 7103P121-60 Contact Us For Availability
13
MAY 4020F001-80 MAY 4020F001-80 Contact Us For Availability
13
MAY 7112P092-60 MAY 7112P092-60 Contact Us For Availability
14
MAY 7101P300-60 MAY 7101P300-60 Contact Us For Availability
14
MAY 7724P058-60 MAY 7724P058-60 Contact Us For Availability
14
MAY 3405F018-80 MAY 3405F018-80 Contact Us For Availability
14
MAY 3405F019-80 MAY 3405F019-80 Contact Us For Availability
14
MAY 7101P290-60 MAY 7101P290-60 Contact Us For Availability
14
MAY 7118P013-60 MAY 7118P013-60 Contact Us For Availability
15
MAY 4022W007-19 MAY 4022W007-19 Contact Us For Availability
15
MAY 7407P004-60 MAY 7407P004-60 Contact Us For Availability
15
MAY 7907P021-60 MAY 7907P021-60 Contact Us For Availability
15
MAY 74001841 MAY 74001841 Contact Us For Availability
15
MAY 7431P027-60 MAY 7431P027-60 Contact Us For Availability
15
MAY 3807F447-51 MAY 3807F447-51 Contact Us For Availability
16
MAY 7101P130-60 MAY 7101P130-60 Contact Us For Availability
16
MAY 7408P029-60 MAY 7408P029-60 Contact Us For Availability
16
MAY 7408P030-60 MAY 7408P030-60 Contact Us For Availability
16
MAY 74001844 MAY 74001844 Contact Us For Availability
16
MAY 5187D030-60 MAY 5187D030-60 Contact Us For Availability
16
MAY 5187D031-60 MAY 5187D031-60 Contact Us For Availability
16
MAY 3804F112-51 MAY 3804F112-51 Contact Us For Availability
17
MAY 3804F103-51 MAY 3804F103-51 Contact Us For Availability
17
MAY 7412P007-60 MAY 7412P007-60 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) MAY 8270P090-60 Contact Us For Availability
17
MAY 8020P007-60 MAY 8020P007-60 Contact Us For Availability
17
MAY 3604F204-51 MAY 3604F204-51 Contact Us For Availability
18
MAY 3801F267-45 MAY 3801F267-45 Contact Us For Availability
18
MAY 7003P063-60 MAY 7003P063-60 Contact Us For Availability
18
MAY 7403P361-60 MAY 7403P361-60 Contact Us For Availability
18
MAY 7403P363-60 MAY 7403P363-60 Contact Us For Availability
18
MAY 3818F052-51 MAY 3818F052-51 Contact Us For Availability
18
MAY 7208P011-60 MAY 7208P011-60 Contact Us For Availability
18
NUT, WING MAY 7103P030-60 Contact Us For Availability
18
INSULATION, DRAWER & SHIELD MAY 7002P140-60 Contact Us For Availability
19
MAY 7106P056-60 MAY 7106P056-60 Contact Us For Availability
19
MAY 7208P002-60 MAY 7208P002-60 Contact Us For Availability
19
MAY 7706P309-60 MAY 7706P309-60 Contact Us For Availability
19
MAY 3414F102-44 MAY 3414F102-44 Contact Us For Availability
19
MAY 3604F205-51 MAY 3604F205-51 Contact Us For Availability
20
MAY 7706P305-60 MAY 7706P305-60 Contact Us For Availability
20
MAY 3403D024-45 MAY 3403D024-45 Contact Us For Availability
20
MAY 4804F014-60 MAY 4804F014-60 Contact Us For Availability
21
MAY 3807F431-45 MAY 3807F431-45 Contact Us For Availability
21
MAY 3805F002-34 MAY 3805F002-34 Contact Us For Availability
21
MAY 2404F043-80 MAY 2404F043-80 Contact Us For Availability
21
MAY 3601F217-45 MAY 3601F217-45 Contact Us For Availability
21
MAY 3401F024-45 MAY 3401F024-45 Contact Us For Availability
22
MAY 7112P112-60 MAY 7112P112-60 Contact Us For Availability
22
MAY 7744P092-60 MAY 7744P092-60 Contact Us For Availability
22
MAY 3601F208-45 MAY 3601F208-45 Contact Us For Availability
23
MAY 74001630 MAY 74001630 Contact Us For Availability
23
MAY 7809P022-60 MAY 7809P022-60 Contact Us For Availability
23
TAPE MAY 8270P098-60 Contact Us For Availability
23
MAY 7706P294-60 MAY 7706P294-60 Contact Us For Availability
23
MAY 4804F030-60 MAY 4804F030-60 Contact Us For Availability
23
MAY 4804F036-60 MAY 4804F036-60 Contact Us For Availability
24
MAY 7003P062-60 MAY 7003P062-60 Contact Us For Availability
24
MAY 74001626 MAY 74001626 Contact Us For Availability
24
MAY 3807F473-51 MAY 3807F473-51 Contact Us For Availability
25
MAY 7101P330-60 MAY 7101P330-60 Contact Us For Availability
25
MAY 7744P114-60 MAY 7744P114-60 Contact Us For Availability
25
MAY 4005F429-51 MAY 4005F429-51 Contact Us For Availability
26
MAY 74001631 MAY 74001631 Contact Us For Availability
26
MAY 8003P012-60 MAY 8003P012-60 Contact Us For Availability
26
MAY 74001464 MAY 74001464 Contact Us For Availability
26
MAY 5504M004-19 MAY 5504M004-19 Contact Us For Availability
27
MAY 7109P020-60 MAY 7109P020-60 Contact Us For Availability
27
MAY 7744P087-60 MAY 7744P087-60 Contact Us For Availability
27
MAY 3801F218-51 MAY 3801F218-51 Contact Us For Availability
27
MAY 7101P289-60 MAY 7101P289-60 Contact Us For Availability
28
MAY 3801F354-51 MAY 3801F354-51 Contact Us For Availability
28
BRACKET, SWITCH ACTUATOR MAY 74001632 Contact Us For Availability
28
MAY 7401P037-60 MAY 7401P037-60 Contact Us For Availability
29
MAY 4874F001-60 MAY 4874F001-60 Contact Us For Availability
29
MAY 74001628 MAY 74001628 Contact Us For Availability
29
MAY 7402P043-60 MAY 7402P043-60 Contact Us For Availability
30
MAY 7803P067-60 MAY 7803P067-60 Contact Us For Availability
NI
MAY 16000327 MAY 16000327 Contact Us For Availability
NI
MAY 5125A356-60 MAY 5125A356-60 Contact Us For Availability
NI
MAY 5170P204-60 MAY 5170P204-60 Contact Us For Availability
NI
MAY 5180D151-60 MAY 5180D151-60 Contact Us For Availability
NI
MAY 74001181 MAY 74001181 Contact Us For Availability
NI
NOT REQUIRED PART OR SEE NOTE LP CONVERSION K MAY W10124350 Contact Us For Availability
NI
MAY 5120D019-60 MAY 5120D019-60 Contact Us For Availability
NI
MAY 5125A357-60 MAY 5125A357-60 Contact Us For Availability
NI
MAY 5140D035-60 MAY 5140D035-60 Contact Us For Availability
NI
MAY 15001129 MAY 15001129 Contact Us For Availability
× ![]()
