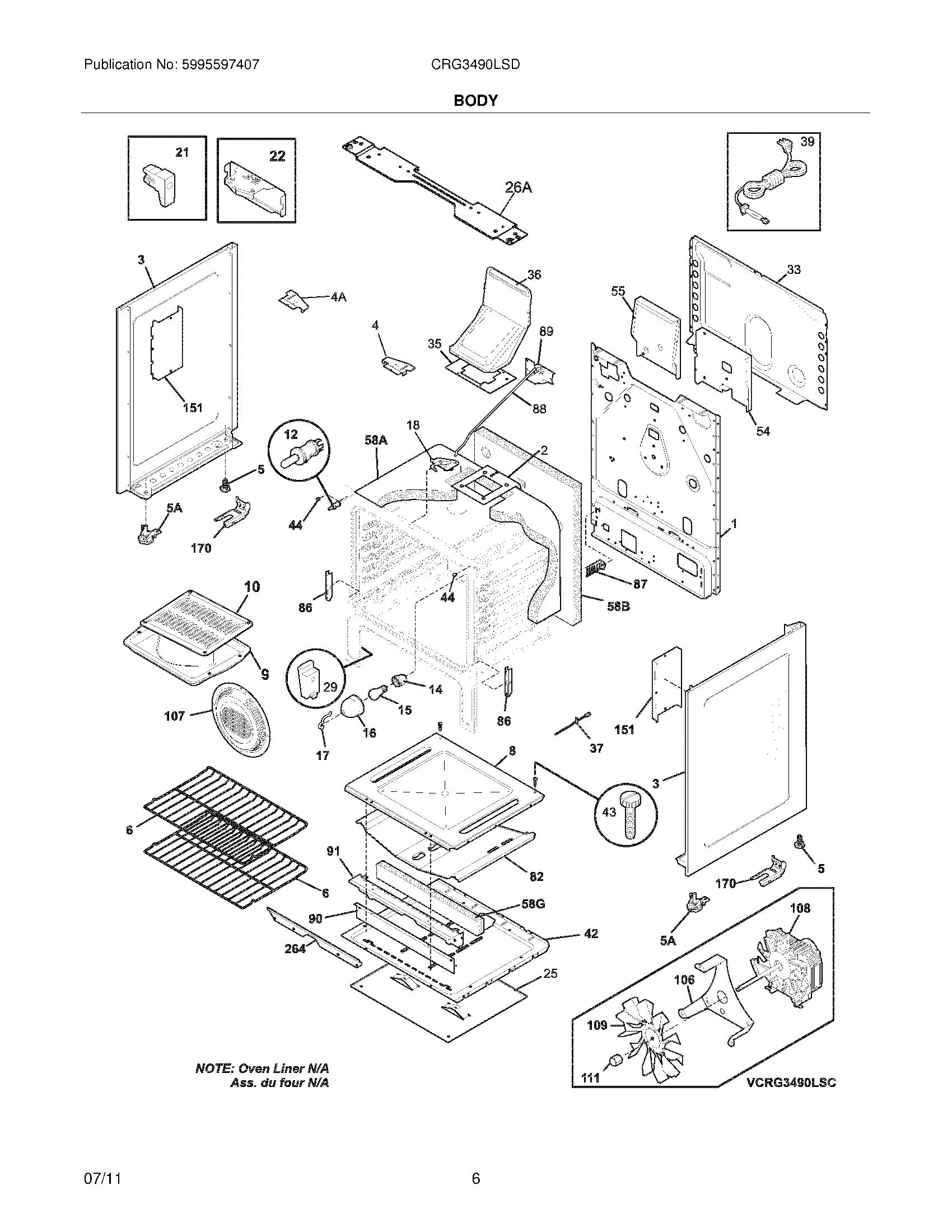

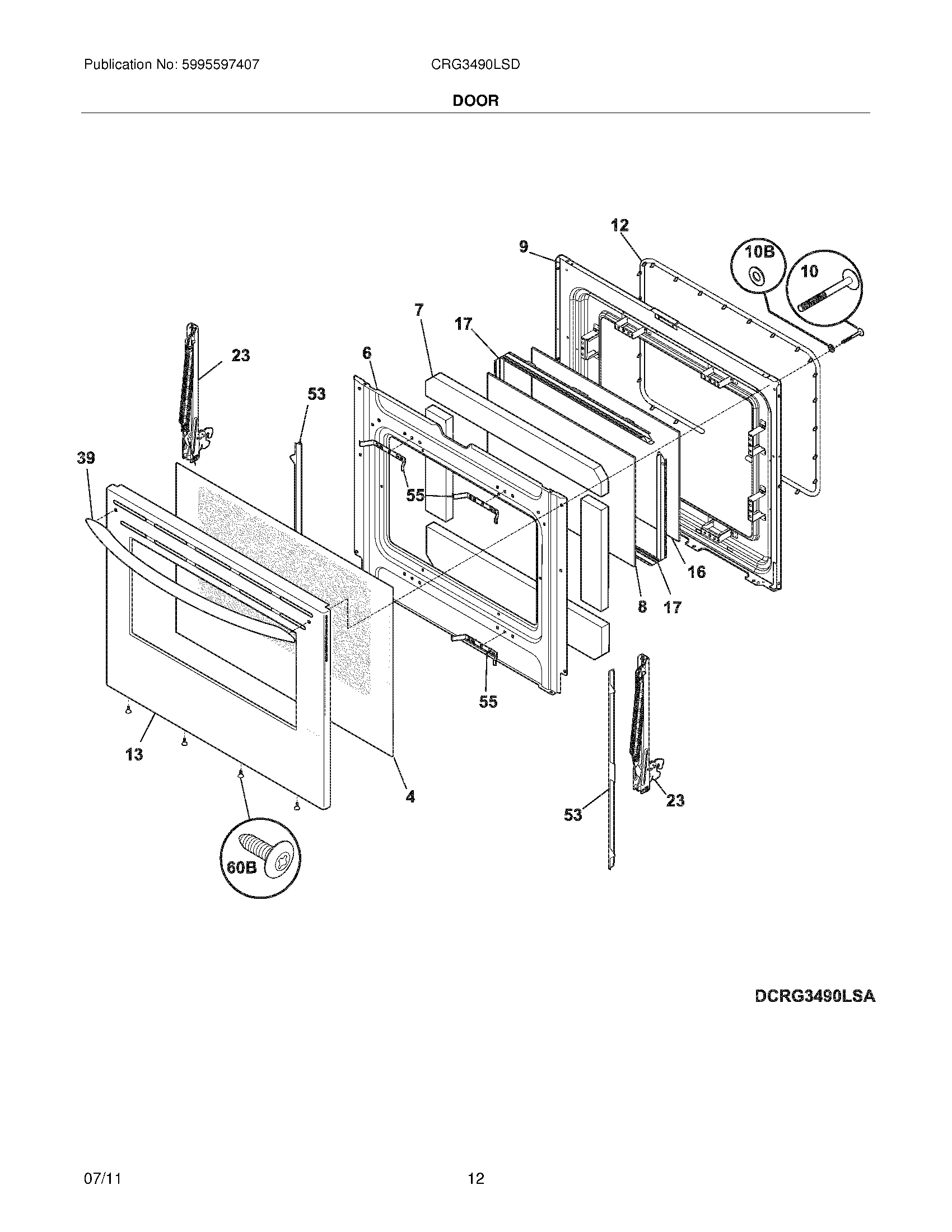

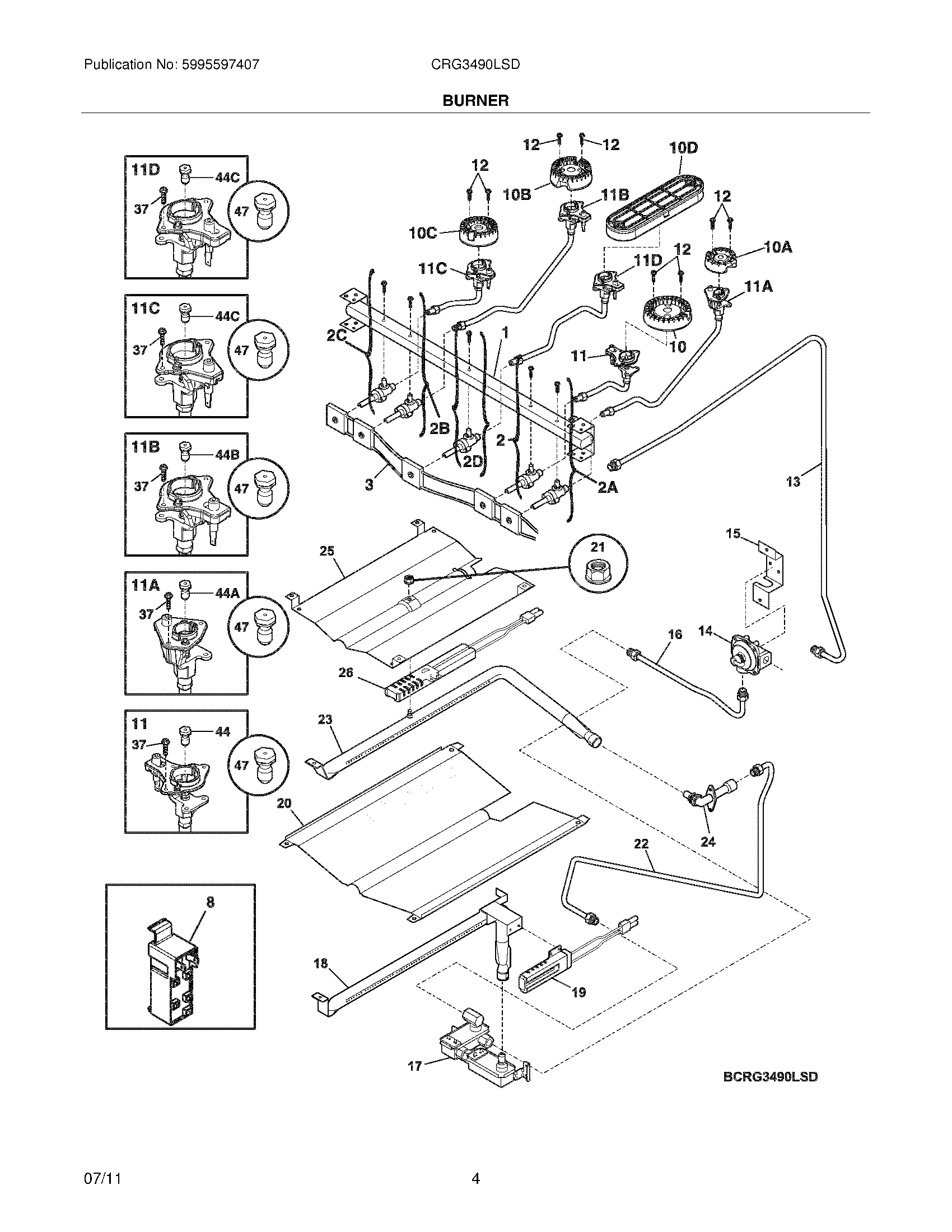

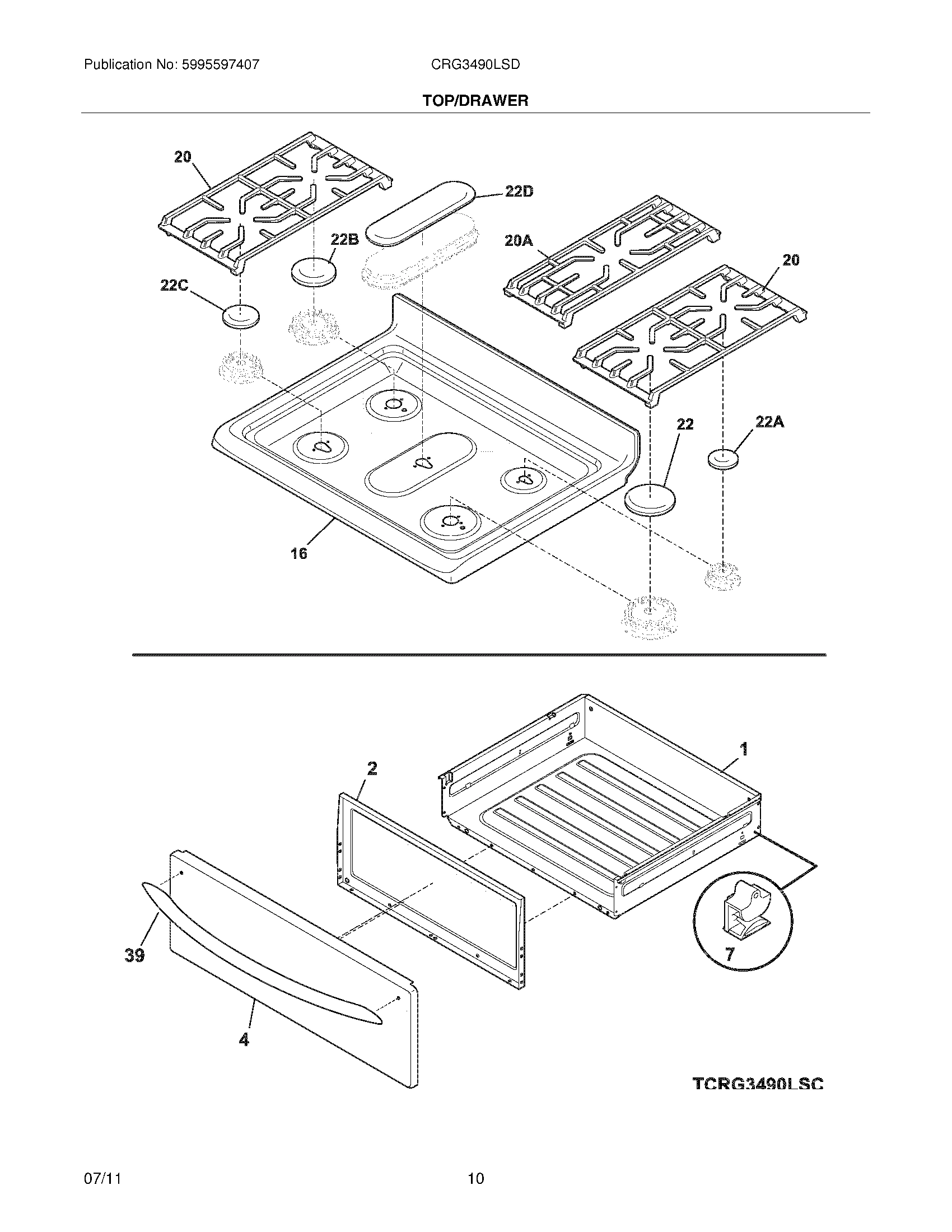

Model Electrolux CRG3490LSD RANGE – Common Parts &amp; Diagrams

1

316408706 Frigidaire Oven Drawer Assembly In Stock WCI 316408706 $42.54

2

5304527988 Frigidaire Liner Backorder WCI 5304527988 $15.85

2

WCI 5303935233 WCI 5303935233 Contact Us For Availability

2

WCI 316497600 WCI 316497600 Contact Us For Availability

2A

5303935308 Frigidaire Range Valve Backorder WCI 5303935308 $44.82

2B

5303935306 Frigidaire Range Valve Backorder WCI 5303935306 $51.10

2C

5303935305 Frigidaire Range Valve Backorder WCI 5303935305 $48.87

2D

5303935309 Frigidaire Top Burner Valve In Stock WCI 5303935309 $52.01

3

316580614 Frigidaire Range Wiring Harness In Stock WCI 316580614 $62.02

4

316452722 Frigidaire Range Glass In Stock WCI 316452722 $159.83

5

316272900 Frigidaire Oven Leg Levelling Plast In Stock WCI 316272900 $8.60

5A

5304509869 Frigidaire Oven Leveling Leg Assem In Stock WCI 5304509869 $3.61

6

316402316 Frigidaire Shield Backorder WCI 316402316 $52.43

6

316496201 Frigidaire Oven Rack In Stock WCI 316496201 $57.70

7

316403900 Frigidaire Insulation Backorder WCI 316403900 $45.72

7

316407402 Frigidaire Range Drawer Glide In Stock WCI 316407402 $5.88

8

316400603 Frigidaire Range Stove Bottom Panel In Stock WCI 316400603 $107.26

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $73.95

9

316423807 Frigidaire Range Door Liner In Stock WCI 316423807 $98.56

9

WCI 316081900 WCI 316081900 Contact Us For Availability

10

316438400 Frigidaire Range Sealed Burner, 16/ In Stock WCI 316438400 $53.66

10

Screw,handle mtg. ,10-24 x 1.75`` ,(2) WCI 316439500 Contact Us For Availability

10

Insert,broiler panOPTIONAL ACCESS0RY WCI 316082000 Contact Us For Availability

10A

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 $36.24

10B

316284100 Frigidaire Range Spacer Assembly In Stock WCI 316284100 $9.50

10B

316438000 Frigidaire Sealed Burner 12K Assemb Backorder WCI 316438000 $42.87

10C

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 $33.50

10D

316559300 Frigidaire Range Burner Backorder WCI 316559300 $109.03

11

316536621 Frigidaire Igniter and Orifice Asse Backorder WCI 316536621 $89.54

11A

316536610 Frigidaire Igniter Assembly/Orifice In Stock WCI 316536610 $38.72

11B

316536612 Frigidaire Igniter Assembly/Orifice Backorder WCI 316536612 $73.66

11C

316536602 Frigidaire Range Igniter/Orifice As In Stock WCI 316536602 $91.21

11D

316536623 Frigidaire Igniter/Orifice Assembly In Stock WCI 316536623 $90.89

12

316445500 Frigidaire Oven Switch Backorder WCI 316445500 $38.11

12

316540900 Frigidaire Oven Screw In Stock WCI 316540900 $9.04

12

5304498835 Frigidaire Range Seal In Stock WCI 5304498835 $63.63

13

316489101 Frigidaire Suppl Tube-Manifold Backorder WCI 316489101 $64.54

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $40.25

14A

316022500 Frigidaire Oven Warmer Drawer Zone In Stock WCI 316022500 $36.24

15

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $43.49

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.61

15

WCI 316411405 WCI 316411405 Contact Us For Availability

15A

WCI 316411404 WCI 316411404 Contact Us For Availability

5304507348 Frigidaire Range Tube Backorder WCI 5304507348 $28.09

5304524341 Frigidaire Lens In Stock WCI 5304524341 $9.87

WCI 316117501 WCI 316117501 Contact Us For Availability

WCI 316469629 WCI 316469629 Contact Us For Availability

17

316087500 Frigidaire Oven Retainer Backorder WCI 316087500 $36.24

17

316404901 Frigidaire Range Valve In Stock WCI 316404901 $212.39

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $14.94

18

316404400 Frigidaire Range Burner Backorder WCI 316404400 $69.45

18

316405800 Frigidaire Assembly Latch Backorder WCI 316405800 $29.00

19

5304506545 Frigidaire Gas Oven Range Igniter In Stock WCI 5304506545 $47.88

20

5304519024 Frigidaire Range Baffle In Stock WCI 5304519024 $47.49

20

WCI 316557206 WCI 316557206 Contact Us For Availability

20

WCI 316424203 WCI 316424203 Contact Us For Availability

20A

316419303 Frigidaire Range Overlay Backorder WCI 316419303 $32.62

21

Backorder WCI 154079601 $0.28

21

316408000 Frigidaire Oven Clip Assembly Backorder WCI 316408000 $10.85

22

316286300 Frigidaire Bodyside Bracket Backorder WCI 316286300 $11.32

22

5304507768 Frigidaire Range Tube Backorder WCI 5304507768 $29.90

22

5304508468 Frigidaire Oven Cap Assembly In Stock WCI 5304508468 $29.53

22A

5304508441 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508441 $20.91

22B

5304508510 Frigidaire Surface Burner Cap In Stock WCI 5304508510 $23.09

22C

5304508442 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508442 $20.14

22D

316559604 Frigidaire Range Cap In Stock WCI 316559604 $45.70

23

316404302 Frigidaire Range Burner Backorder WCI 316404302 $65.86

23

316575906 Frigidaire Range Hinge Backorder WCI 316575906 $55.12

24

5304516894 Frigidaire Range Elbow Assembly Backorder WCI 5304516894 $51.54

24C

316259800 Frigidaire Rocker Switch Backorder WCI 316259800 $21.61

25

316406200 Frigidaire Oven Shield Assembly Backorder WCI 316406200 $51.99

25

WCI 316401301 WCI 316401301 Contact Us For Availability

26

316489403 Frigidaire Range Bake Igniter In Stock WCI 316489403 $57.36

26A

316498200 Frigidaire Oven Bracket Backorder WCI 316498200 $31.23

29

807047102 Frigidaire Oven Front Drawer Glide In Stock WCI 807047102 $7.34

33

316402500 Frigidaire Range Shield Backorder WCI 316402500 $76.18

35

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $7.23

36

316220009 Frigidaire Oven Black Range Top Bur In Stock WCI 316220009 $33.00

36A

316220002 Frigidaire Range Black Burner Knob In Stock WCI 316220002 $36.24

37

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $7.23

37

316490000 Frigidaire Oven Range Temperature S In Stock WCI 316490000 $42.27

39

316246105 Frigidaire Oven Handle Backorder WCI 316246105 $87.65

42

316416204 Frigidaire Range Trim Backorder WCI 316416204 $26.27

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $6.32

44

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.69

44

316527508 Frigidaire Range Orifice Assembly Backorder WCI 316527508 $11.78

44A

316527504 Frigidaire Oven Orifice Assembly In Stock WCI 316527504 $14.48

44B

316527502 Frigidaire Oven Orifice In Stock WCI 316527502 $14.50

44C

316527500 Frigidaire Oven Burner Orifice Asse In Stock WCI 316527500 $13.65

46

316557300 Frigidaire Range Indicator Light Le In Stock WCI 316557300 $6.67

47

GRLP3 Frigidaire Range LP Conversion Kit In Stock WCI GRLP3 $34.93

55

316408300 Frigidaire Range Bracket Backorder WCI 316408300 $12.67

58A

316403700 Frigidaire Insulation Backorder WCI 316403700 $176.57

58B

WCI 316403600 WCI 316403600 Contact Us For Availability

58G

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $33.06

82

316400801 Frigidaire Range Shield Backorder WCI 316400801 $94.62

86

316441300 Frigidaire Receptacle In Stock WCI 316441300 $14.03

88

316232702 Frigidaire Rod Backorder WCI 316232702 $7.67

106

316404100 Frigidaire Oven Bracket Backorder WCI 316404100 $37.65

107

316026701 Frigidaire Oven Cover Assembly Backorder WCI 316026701 $215.44

108

316256900 Frigidaire Range Fan Motor In Stock WCI 316256900 $114.35

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $15.38

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.20

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.32

316001017 Frigidaire Screw Backorder WCI 316001017 $1.83

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $4.97

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.23

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $9.06

316089500 Frigidaire Oven Screw In Stock WCI 316089500 $8.60

316215600 Frigidaire Oven Screw In Stock WCI 316215600 $9.04

316401500 Frigidaire Range Cover Backorder WCI 316401500 $7.67

316418900 Frigidaire Oven Screw Backorder WCI 316418900 $9.06

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $9.06

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $8.60

5304494425 Frigidaire Range Harness Backorder WCI 5304494425 $51.08

Screw,cup pt ,8-18 x 0.375 ,chrome WCI 316021108 Contact Us For Availability
