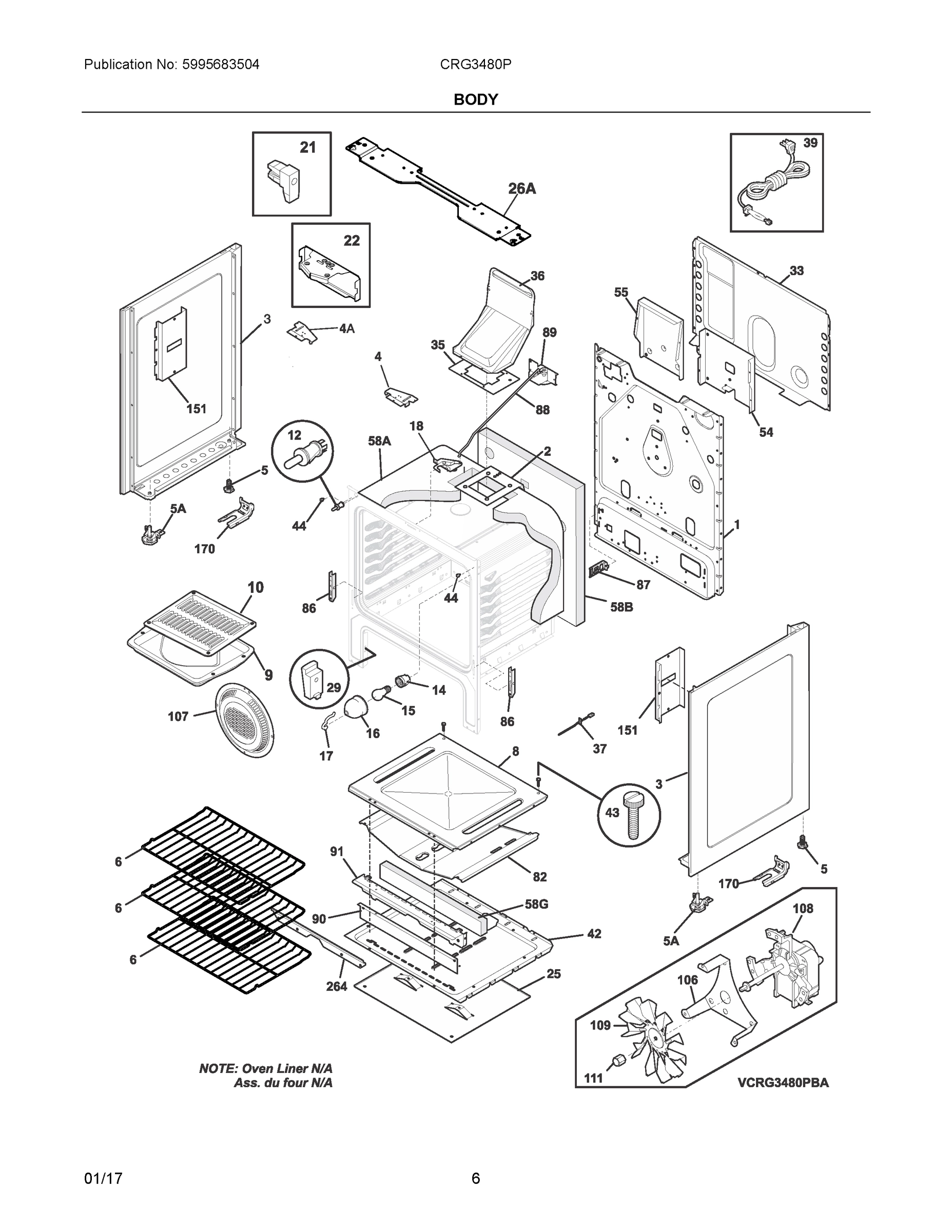

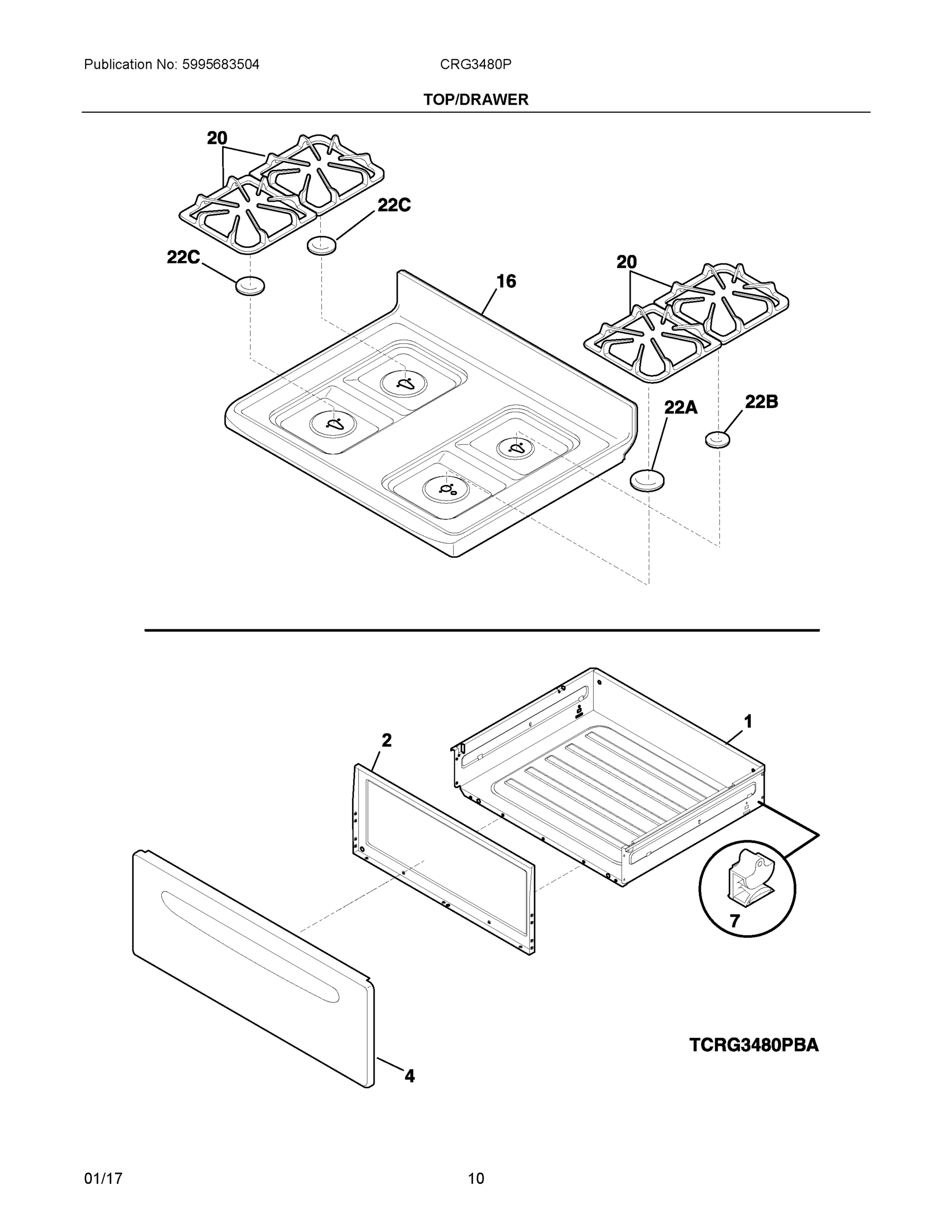

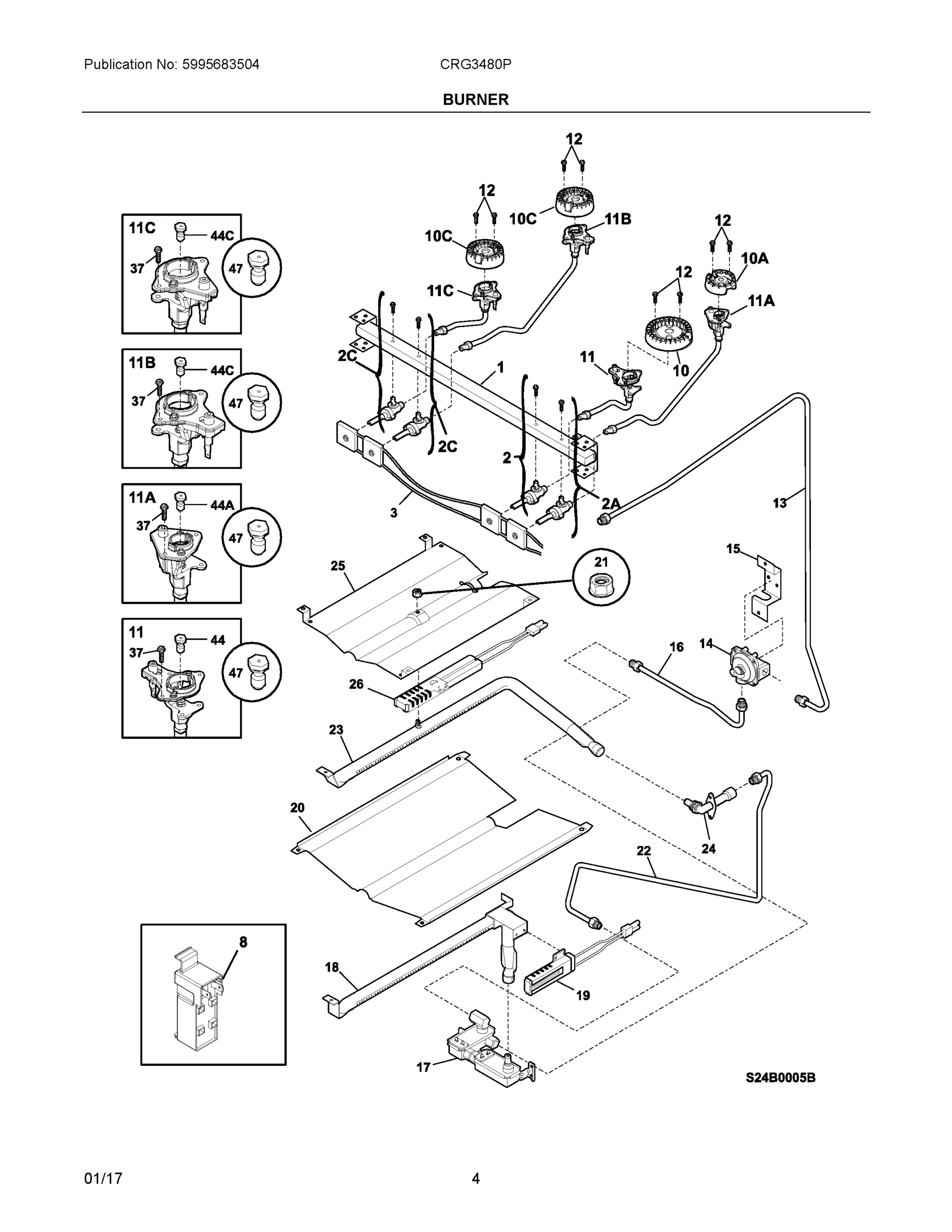

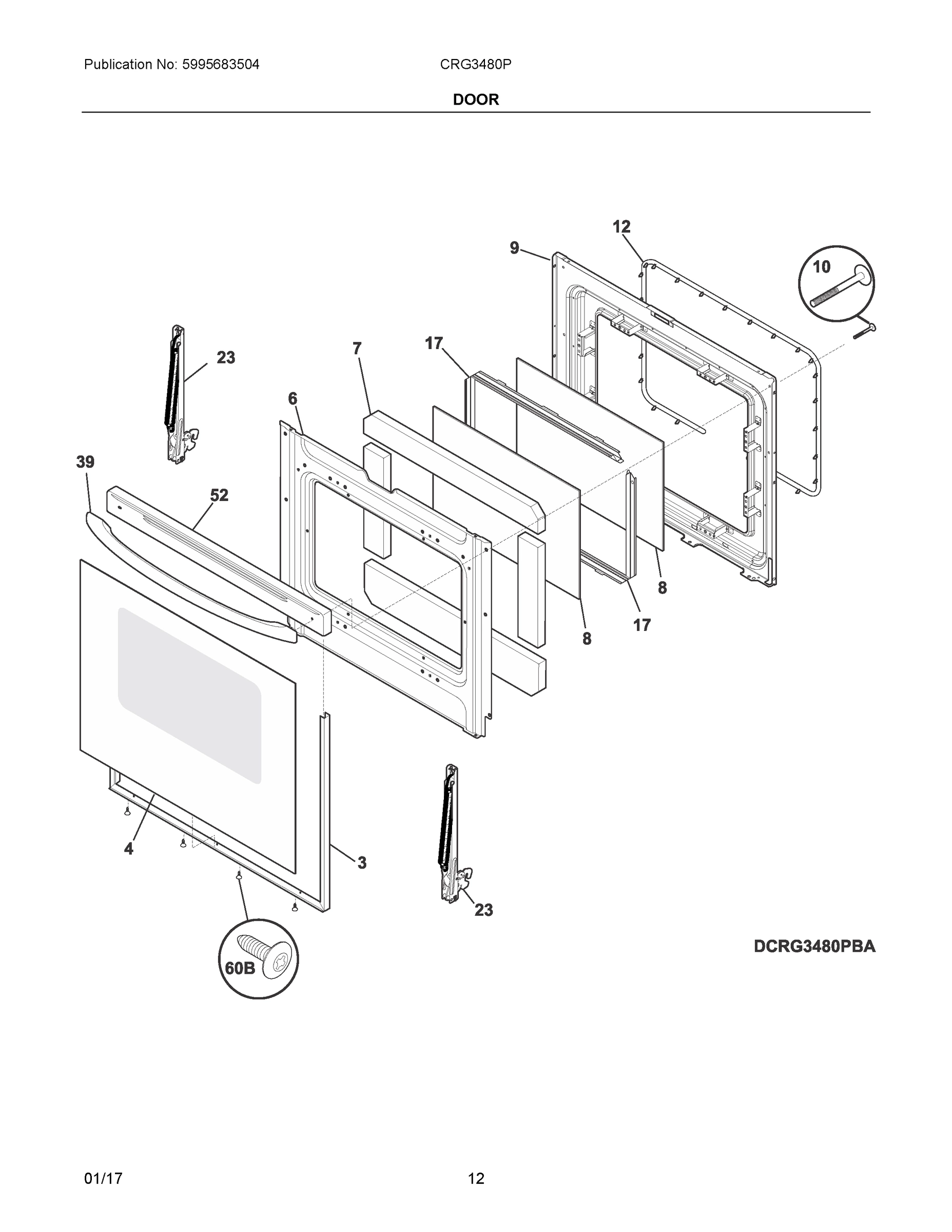

Model Electrolux CRG3480PWC RANGE/OVEN, GAS, FREESTANDING – Common Parts &amp; Diagrams

1

316408706 Frigidaire Oven Drawer Assembly In Stock WCI 316408706 $65.66

1

316417900 Frigidaire Pipe Manifold Backorder WCI 316417900 $88.74

2

5304506549 Frigidaire Oven Valve In Stock WCI 5304506549 $41.01

2

5304527988 Frigidaire Liner Backorder WCI 5304527988 $15.59

2

SHIELD, BACKGUARD, INNER WCI 316497600 Contact Us For Availability

2A

5304506547 Frigidaire Oven Valve In Stock WCI 5304506547 $40.11

2C

5304506548 Frigidaire Oven Valve In Stock WCI 5304506548 $48.06

3

5304506555 Frigidaire Oven Harness Backorder WCI 5304506555 $44.95

4

316558905 Frigidaire Oven Glass Backorder WCI 316558905 $78.46

4

PANEL, DRAWER, WHITE, FRONT WCI 316403401 Contact Us For Availability

5

316272900 Frigidaire Oven Leg Levelling Plast In Stock WCI 316272900 $8.46

5A

5304509869 Frigidaire Oven Leveling Leg Assem In Stock WCI 5304509869 $3.55

6

316402316 Frigidaire Shield Backorder WCI 316402316 $51.57

6

316496201 Frigidaire Oven Rack In Stock WCI 316496201 $56.76

7

316403900 Frigidaire Insulation Backorder WCI 316403900 $44.97

7

316407402 Frigidaire Range Drawer Glide In Stock WCI 316407402 $5.78

8

316400603 Frigidaire Oven Stove Bottom Panel Backorder WCI 316400603 $105.46

8

5304503232 Frigidaire Oven Inner Door Glass In Stock WCI 5304503232 $72.74

8

808608802 Frigidaire Oven Spark Ignition Four In Stock WCI 808608802 $51.59

9

316423807 Frigidaire Oven Door Liner Backorder WCI 316423807 $96.90

10

316433300 Frigidaire Oven Range Door Handle M In Stock WCI 316433300 $8.89

10

316438600 Frigidaire Range Sealed Burner, 14K Backorder WCI 316438600 $49.38

10A

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 $35.65

10C

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 $32.96

11

316536614 Frigidaire Igniter/Orifice Assembly Backorder WCI 316536614 $69.64

11A

316536610 Frigidaire Igniter Assembly/Orifice In Stock WCI 316536610 $57.31

11B

316536600 Frigidaire Igniter Assembly In Stock WCI 316536600 $77.16

11C

316536602 Frigidaire Oven Igniter/Orifice Ass In Stock WCI 316536602 $77.14

12

316445500 Frigidaire Oven Switch Backorder WCI 316445500 $37.48

12

316540900 Frigidaire Oven Screw In Stock WCI 316540900 $8.89

12

5304498835 Frigidaire Oven Seal In Stock WCI 5304498835 $62.59

13

316489100 Frigidaire Oven Tube Backorder WCI 316489100 $48.48

14

316116400 Frigidaire Oven Light Socket In Stock WCI 316116400 $36.58

14

5304521339 Frigidaire Regulator In Stock WCI 5304521339 $61.25

15

316091600 Frigidaire Oven Bracket Backorder WCI 316091600 $42.77

15

316538904 Frigidaire Oven Light Lamp In Stock WCI 316538904 $10.44

15

SUPPORT, BACKGUARD, WHITE, RH WCI 316411403 Contact Us For Availability

15A

SUPPORT, BACKGUARD, WHITE, LH WCI 316411402 Contact Us For Availability

16

5304507348 Frigidaire Oven Tube Backorder WCI 5304507348 $27.63

16

5304524341 Frigidaire Lens In Stock WCI 5304524341 $8.02

16

MAINTOP, ASSEMBLY, WHITE WCI 316254506 Contact Us For Availability

17

316031501 Frigidaire Oven Valve In Stock WCI 316031501 $168.94

17

316087500 Frigidaire Oven Retainer Backorder WCI 316087500 $35.65

17

5304504811 Frigidaire Glass Spacer In Stock WCI 5304504811 $14.70

18

316404400 Frigidaire Oven Burner In Stock WCI 316404400 $64.80

18

316405800 Frigidaire Assembly Latch Backorder WCI 316405800 $29.00

19

316489403 Frigidaire Range Bake Igniter In Stock WCI 316489403 $73.52

20

5304509231 Frigidaire Refrigerator Clock In Stock WCI 5304509231 $171.80

20

5304519024 Frigidaire Oven Baffle Backorder WCI 5304519024 $46.72

20

GRATE, BLACK, (4) WCI 316248508 Contact Us For Availability

21

316408000 Frigidaire Oven Clip Assembly Backorder WCI 316408000 $10.68

21

5303013272 Frigidaire Oven Nut Backorder WCI 5303013272 $11.11

22

316286300 Frigidaire Bodyside Bracket Backorder WCI 316286300 $11.13

22

5304507768 Frigidaire Oven Tube Backorder WCI 5304507768 $29.41

22A

5304508443 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508443 $26.28

22B

5304508441 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508441 $20.05

22C

5304508442 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508442 $20.95

23

316404302 Frigidaire Oven Burner Backorder WCI 316404302 $64.78

23

316575902 Frigidaire Oven Hinge Backorder WCI 316575902 $59.51

24

5304516894 Frigidaire Oven Elbow Assembly Backorder WCI 5304516894 $50.69

25

316406200 Frigidaire Oven Shield Assembly Backorder WCI 316406200 $51.14

25

5304497666 Frigidaire Oven Baffle Backorder WCI 5304497666 $54.65

26

5304506545 Frigidaire Gas Oven Range Igniter In Stock WCI 5304506545 $70.07

26A

316498200 Frigidaire Oven Bracket Backorder WCI 316498200 $30.72

29

807047102 Frigidaire Oven Front Drawer Glide In Stock WCI 807047102 $7.11

33

316402500 Frigidaire Oven Shield Backorder WCI 316402500 $74.93

35

316542102 Frigidaire Flue Gasket Backorder WCI 316542102 $7.11

36

316220008 Frigidaire Oven Knob In Stock WCI 316220008 $21.83

37

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $7.11

37

316490000 Frigidaire Oven Range Temperature S In Stock WCI 316490000 $36.07

39

316270201 Frigidaire Range Oven White Door Ha In Stock WCI 316270201 $79.79

39

5304515659 Frigidaire Oven Power Cord In Stock WCI 5304515659 $25.39

42

316416205 Frigidaire Oven Trim Backorder WCI 316416205 $30.29

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $6.22

44

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.57

44

316527511 Frigidaire Oven Orifice Backorder WCI 316527511 $12.44

44A

316527504 Frigidaire Oven Orifice Assembly In Stock WCI 316527504 $14.24

44C

316527500 Frigidaire Oven Burner Orifice Asse In Stock WCI 316527500 $13.35

52

316575500 Frigidaire Oven Cap In Stock WCI 316575500 $70.97

56

316230708 Frigidaire Oven Shield Backorder WCI 316230708 $38.35

58A

316403700 Frigidaire Insulation Backorder WCI 316403700 $173.42

58B

INSULATION, OVEN BACK WCI 316403600 Contact Us For Availability

58G

08067973 Frigidaire 0 Insulation Backorder WCI 08067973 $32.52

82

316400801 Frigidaire Oven Shield Backorder WCI 316400801 $93.03

86

316441300 Frigidaire Receptacle Backorder WCI 316441300 $13.81

88

316232702 Frigidaire Rod Backorder WCI 316232702 $7.55

89

5304528973 Frigidaire Motor In Stock WCI 5304528973 $31.49

106

316404100 Frigidaire Oven Bracket Backorder WCI 316404100 $37.03

107

316026701 Frigidaire Oven Cover Assembly Backorder WCI 316026701 $222.73

108

316256900 Frigidaire Oven Fan Motor In Stock WCI 316256900 $105.89

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $15.13

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.01

241853202 Frigidaire Refrigerator Screw Backorder WCI 241853202 $6.22

316001017 Frigidaire Screw Backorder WCI 316001017 $1.80

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.11

316089500 Frigidaire Oven Screw In Stock WCI 316089500 $8.46

316215600 Frigidaire Oven Screw Backorder WCI 316215600 $8.89

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $8.91

5303285179 Frigidaire Oven Door Screw Backorder WCI 5303285179 $8.46

5304535516 Frigidaire Range Igniter Harness Backorder WCI 5304535516 $37.75

SCREW, CUP PT, 8-18 X 0.375, CHROME WCI 316021108 Contact Us For Availability

316021104 Frigidaire Oven Screw Assembly Backorder WCI 316021104 $4.89

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $8.91

316401500 Frigidaire Oven Cover Backorder WCI 316401500 $7.55

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $8.91
