Model Whirlpool CREA400ACL ELECTRIC RANGE – Common Parts & Diagrams

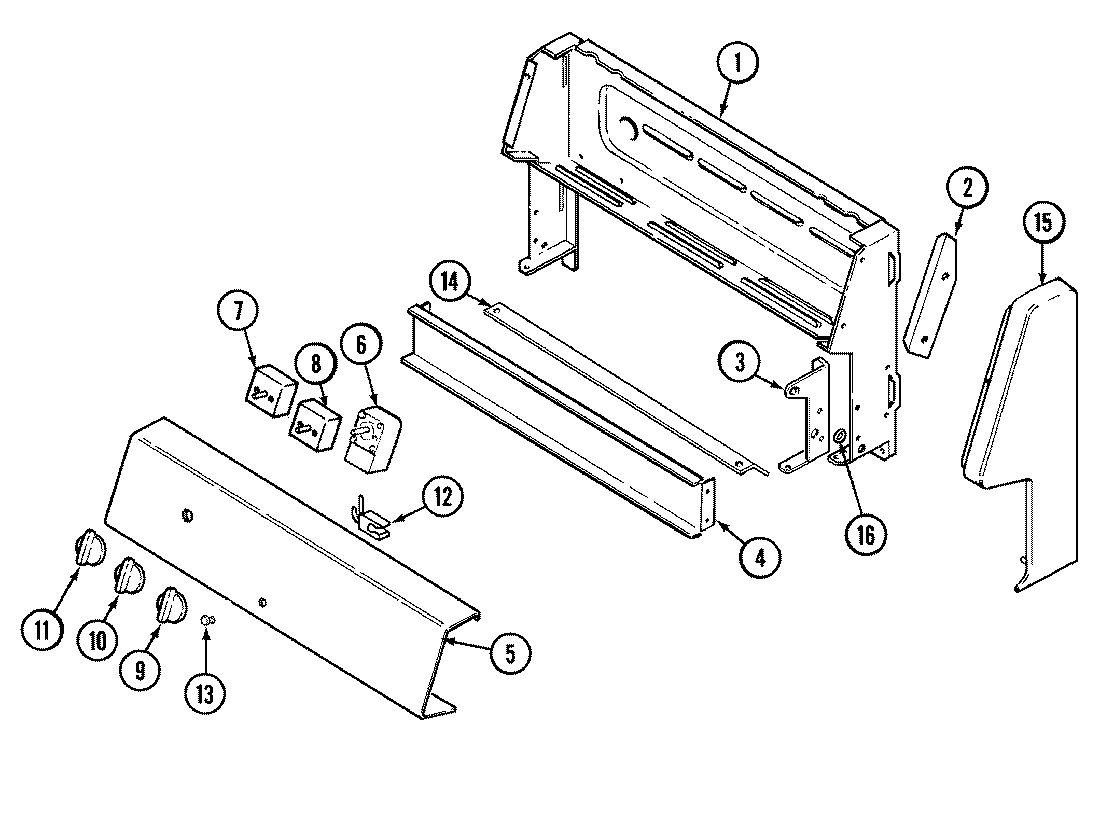

02 - CONTROL PANEL

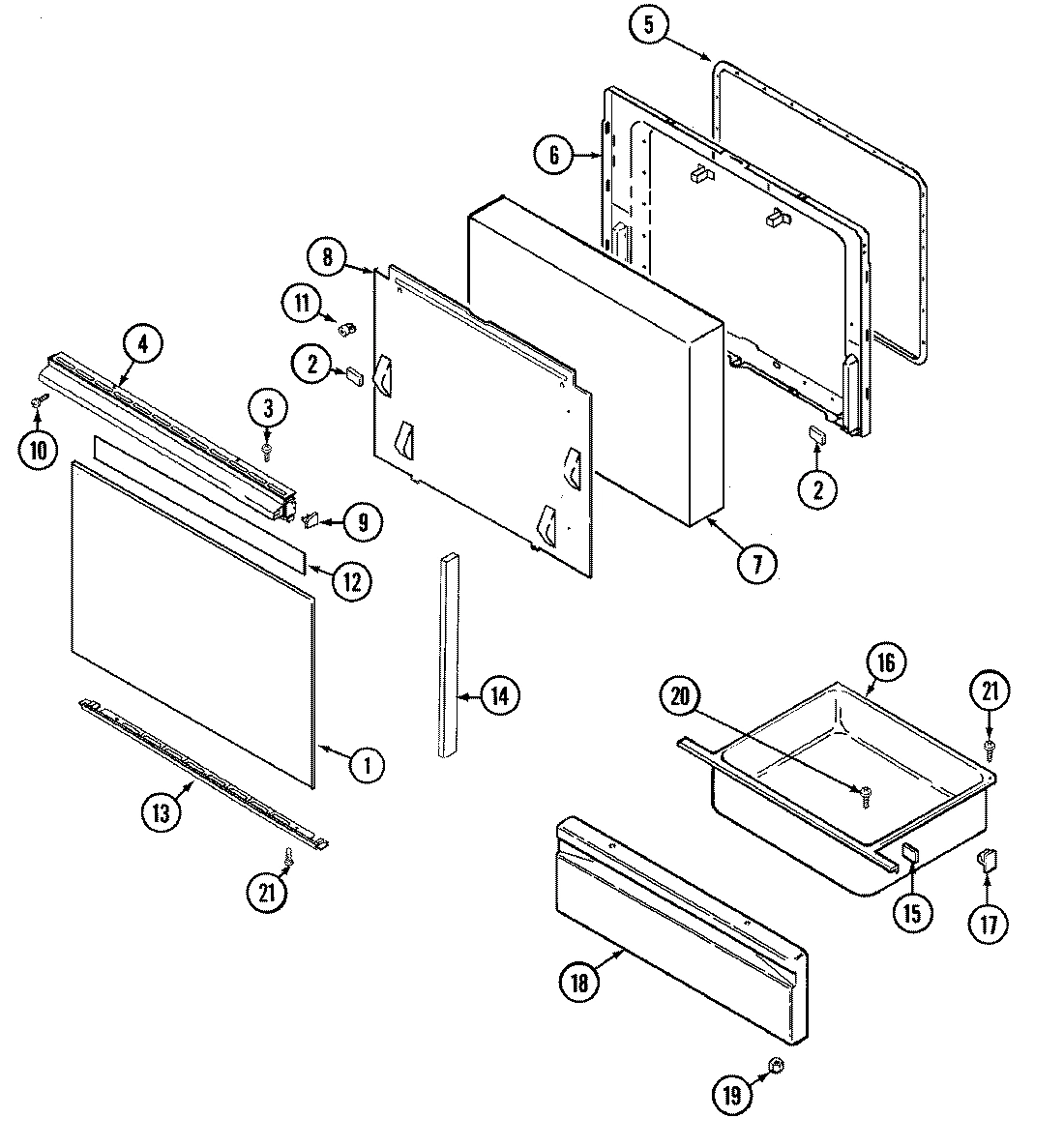

03 - DOOR/DRAWER

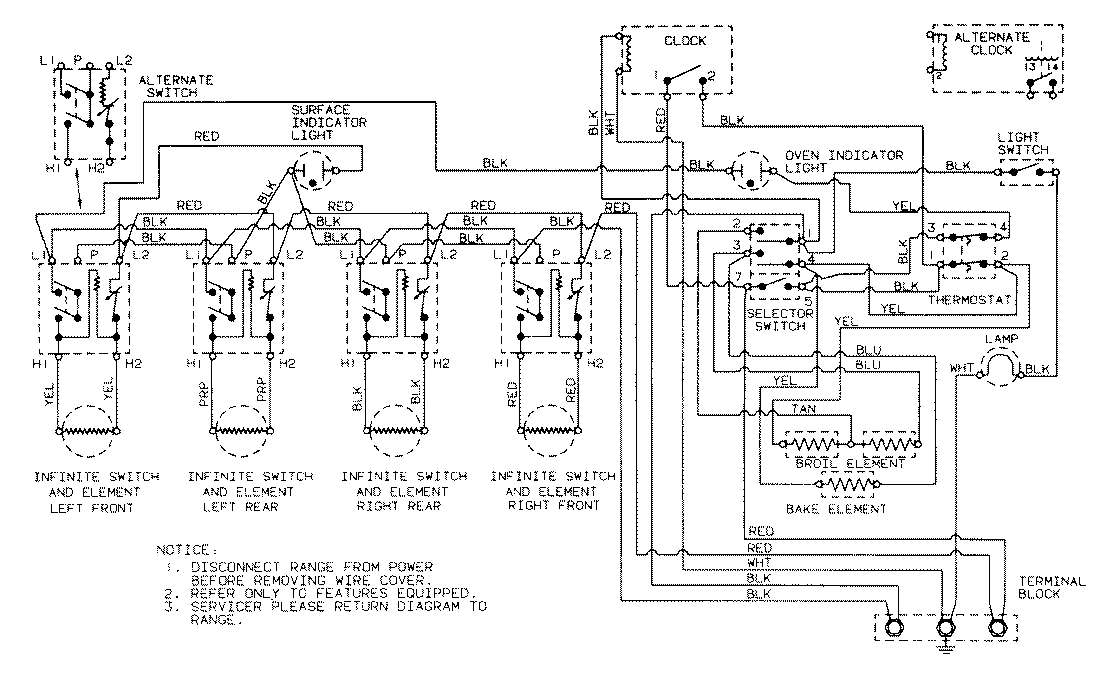

06 - WIRING INFORMATION

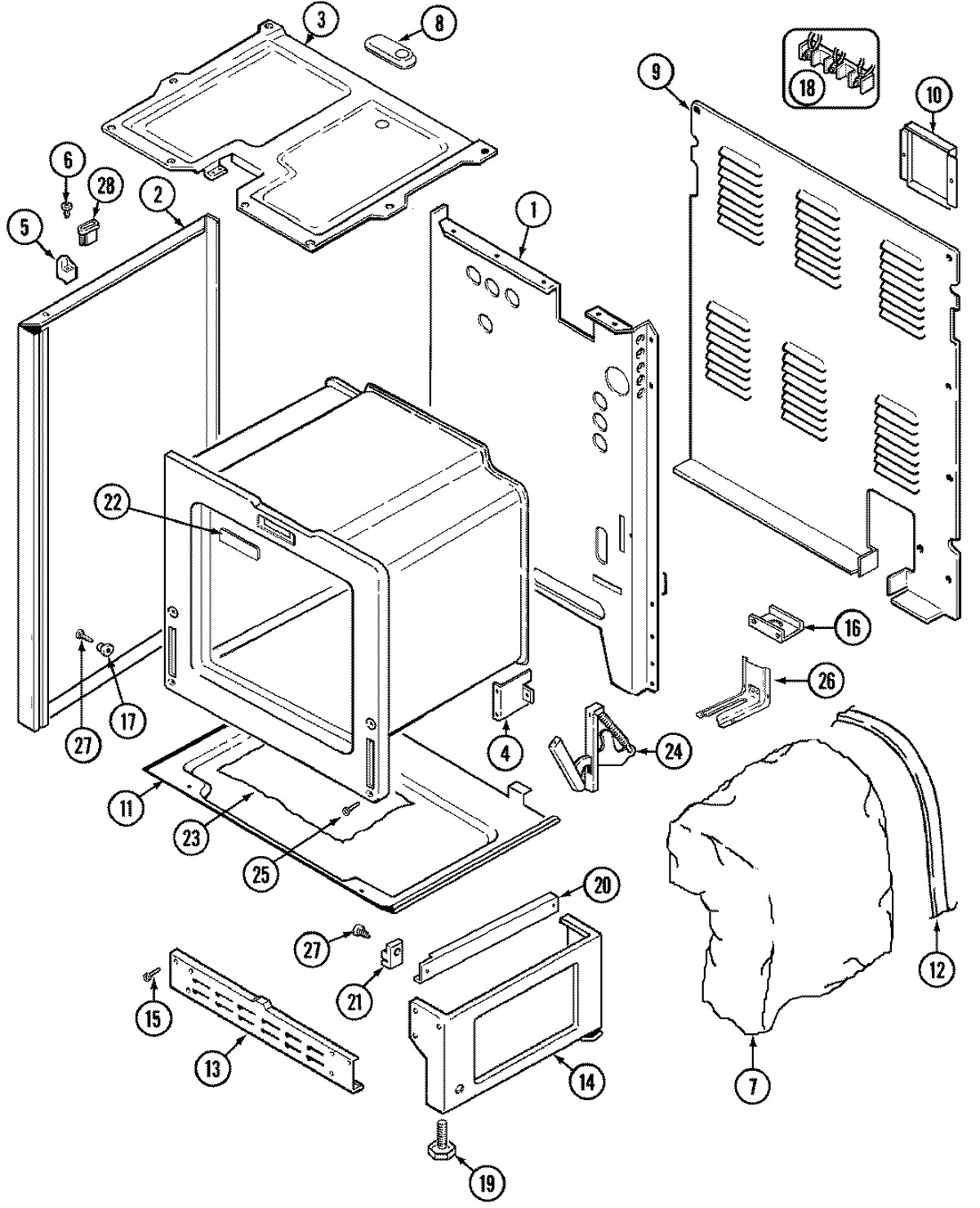

01 - BODY

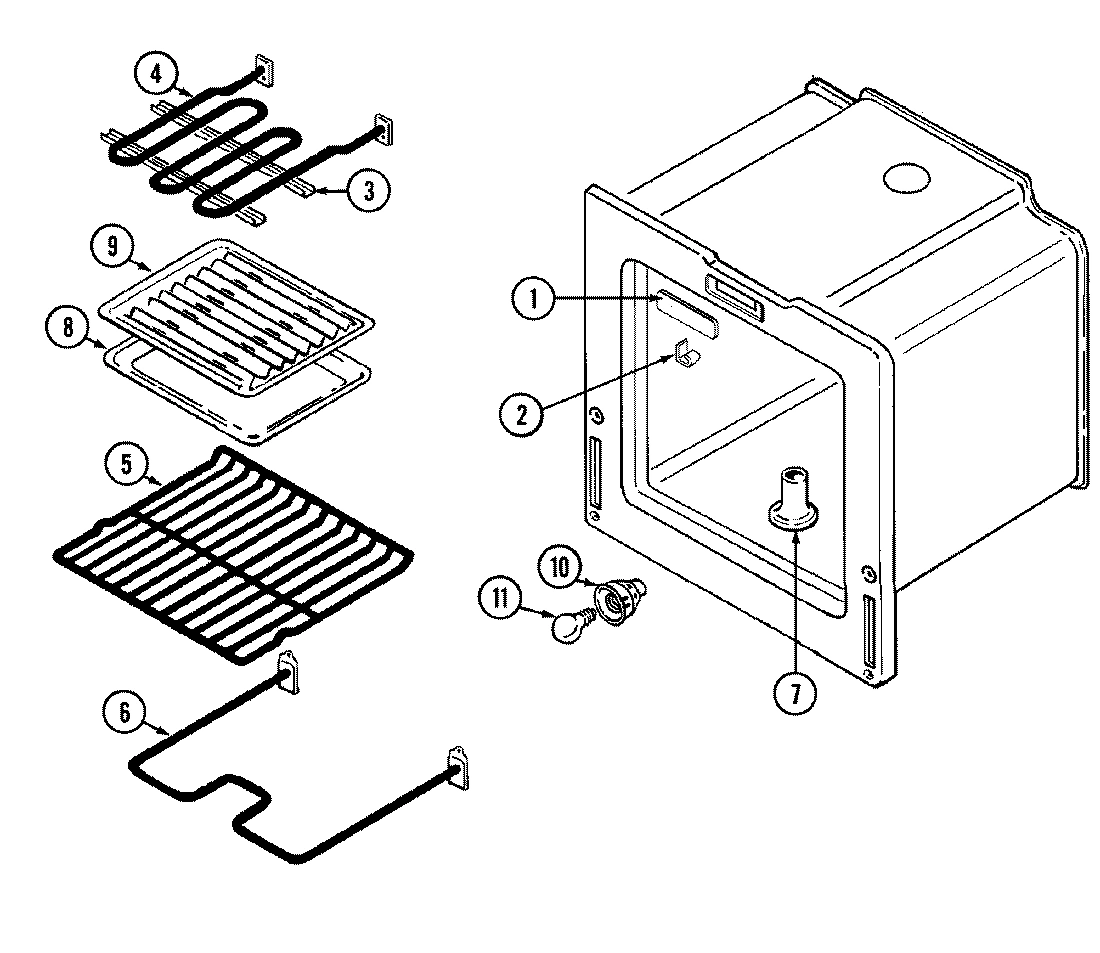

04 - OVEN

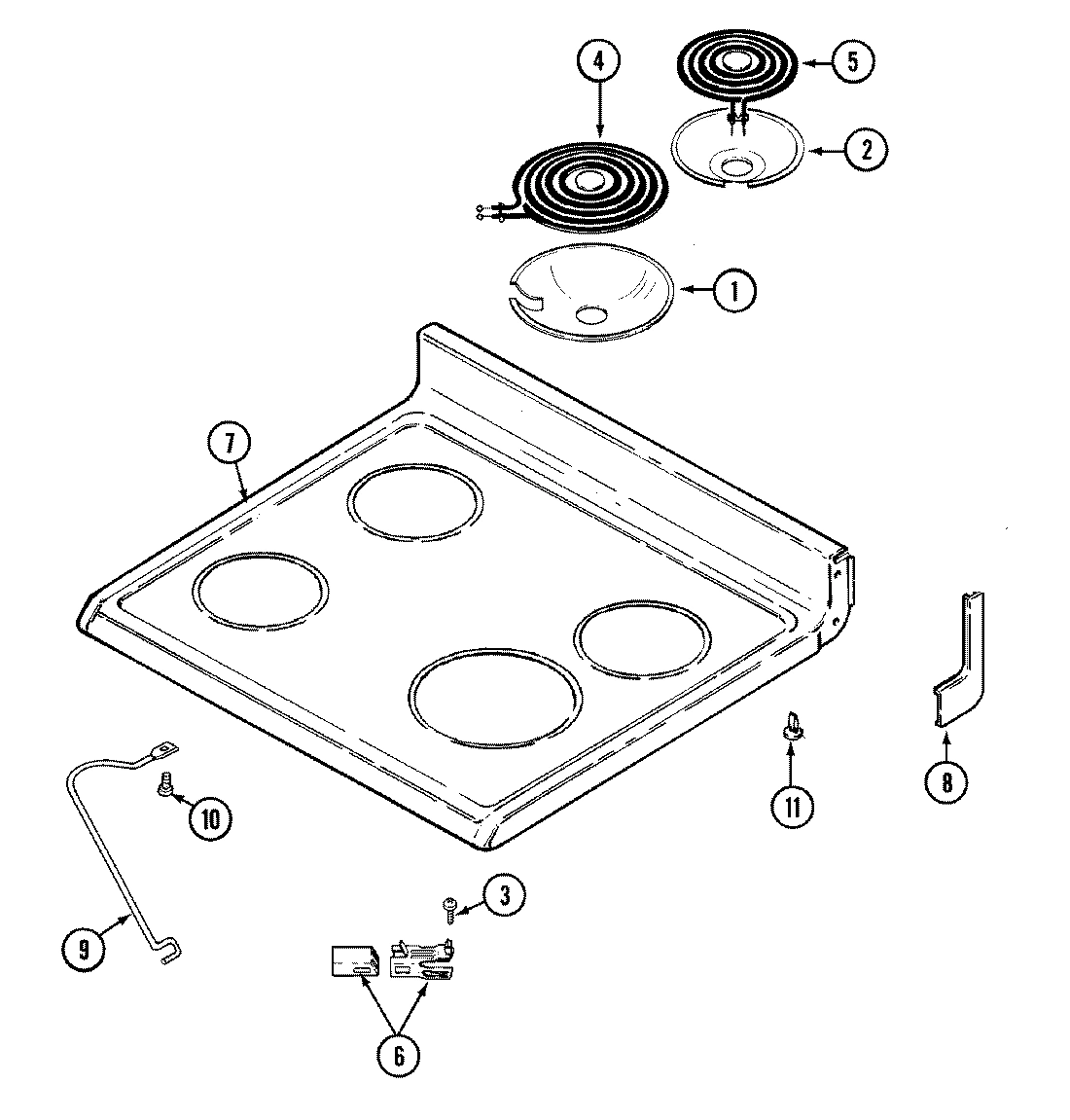

05 - TOP ASSEMBLY
Common parts from model Whirlpool CREA400ACL ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
GLASS, DOOR (OUTER-BLK) WPL 7902P32560 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
1
BOWL, DRIP (8``-CHR) WPL 7725P04760 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
2
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
BOWL, DRIP (6``-CHR) WPL 7725P04860 Contact Us For Availability
3
SCREW (8BX3/8-NI) WPL 7101P33860 Contact Us For Availability
3
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
3
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
3
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
3
BOX, BURNER WPL 4011F23919 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
4
HANDLE, DOOR (BLK) WPL 7701P10360 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT, BROIL WPL Y04000057 Contact Us For Availability
5
PANEL, CONTROL WPL 4876S06559 Contact Us For Availability
5
SEAL, SILICONE WPL 7212P03460 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
THERMOSTAT WPL 7404P10560 Contact Us For Availability
6
LINING, DOOR WPL 2402W21119 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
7
SCREW WPL 7101P30960 Contact Us For Availability
7
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
7
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
7
INSULATION, DOOR 2`` WPL 4804F05060 Contact Us For Availability
7
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
7
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
7
TUBE, VENT WPL 8026P01960 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W10384 Contact Us For Availability
8
SWITCH, SELECTOR WPL 7403P25560 Contact Us For Availability
8
BAFFLE, DOOR WPL 3601F21845 Contact Us For Availability
8
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
SCREW WPL 7101P10360 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
8
NUT, SPEED WPL 7103P04460 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
9
KNOB, THERMOSTAT (BLK)----NA WPL 7735P03760 Contact Us For Availability
9
END CAP (RT) WPL 7744P07560 Contact Us For Availability
9
END CAP (LT) WPL 7744P07660 Contact Us For Availability
9
COVER, WIRE WPL 4005F45551 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
9
SUPPORT, TOP WPL 74001170 Contact Us For Availability
10
KNOB, SELECTOR (BLK) WPL 7739P04360 Contact Us For Availability
10
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
KNOB, INFINITE (BLK) WPL 7737P03560 Contact Us For Availability
11
NUT, NYLON WPL 7103P04560 Contact Us For Availability
11
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
11
BULB-OVEN WPL 7407P10360 Contact Us For Availability
11
GLIDE WPL 8016P01560 Contact Us For Availability
12
LIGHT, INDICATOR WPL 7407P10260 Contact Us For Availability
12
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
13
LENS, INDICATOR LIGHT WPL 7730P01260 Contact Us For Availability
13
TRIM, BOTTOM (BLK)----NA WPL 7744P10560 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
14
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
14
END CAP, OVEN DOOR (BLK) WPL 7744P05560 Contact Us For Availability
14
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
SCREW WPL 7101P31760 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P05160 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P05260 Contact Us For Availability
15
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
16
NUT, SPEED WPL 7103P12960 Contact Us For Availability
16
DRAWER, STORAGE WPL 3405F01580 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
17
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
18
PANEL, DRAWER (ALM) WPL 2416F03964 Contact Us For Availability
18
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
19
NUT, LOCK WPL 7103P13960 Contact Us For Availability
19
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
SCREW WPL 7101P07260 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE WPL 7106P05560 Contact Us For Availability
25
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
SCREW WPL 7101P34560 Contact Us For Availability
28
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, LOOSE WIRE WPL 5125A31660 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D11960 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001468 Contact Us For Availability
NI
HARNESS, WIRE CONTROL/TOP WPL 74001586 Contact Us For Availability
× ![]()
