Model Whirlpool CREA200ACL ELECTRIC RANGE – Common Parts & Diagrams

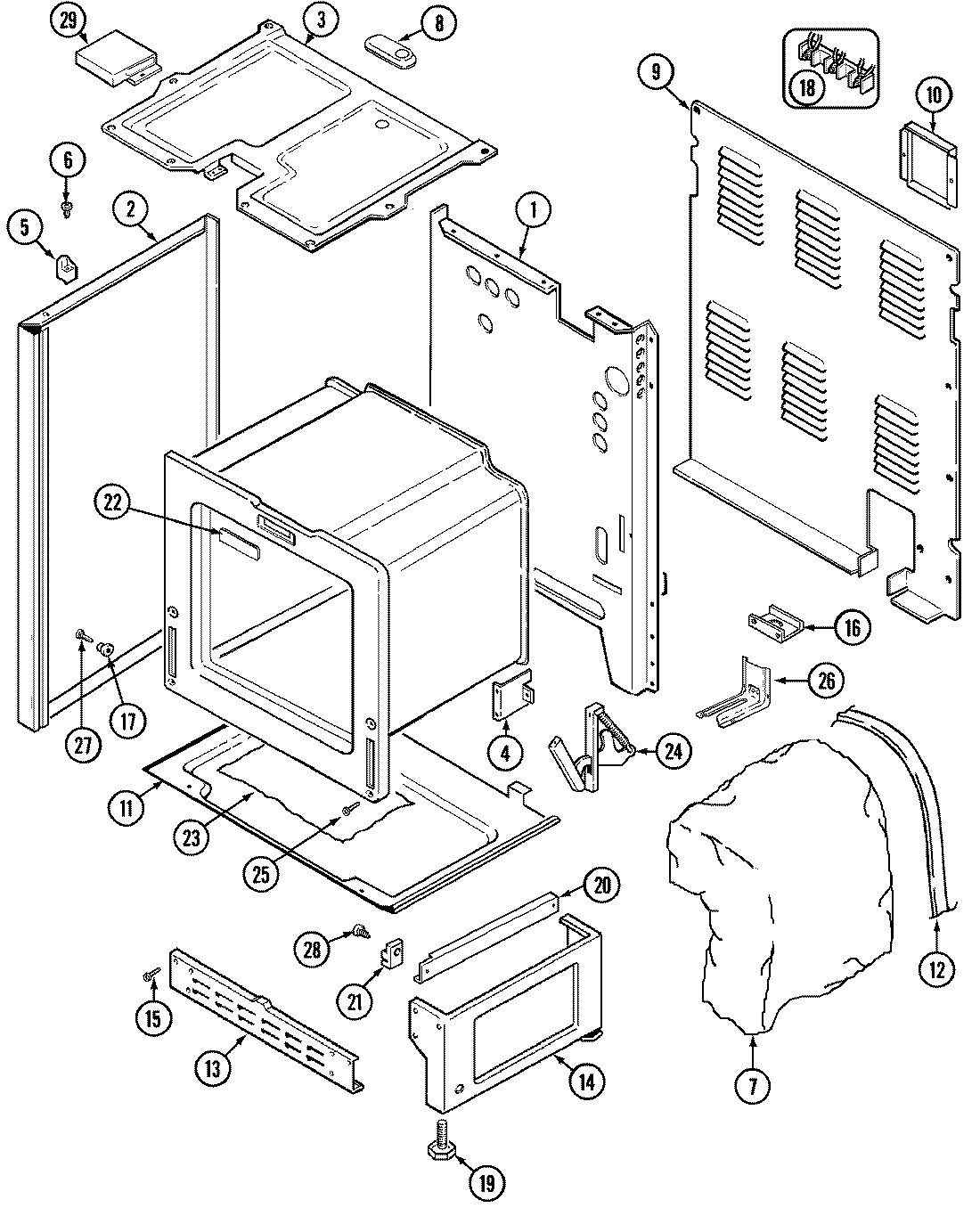

02 - BODY

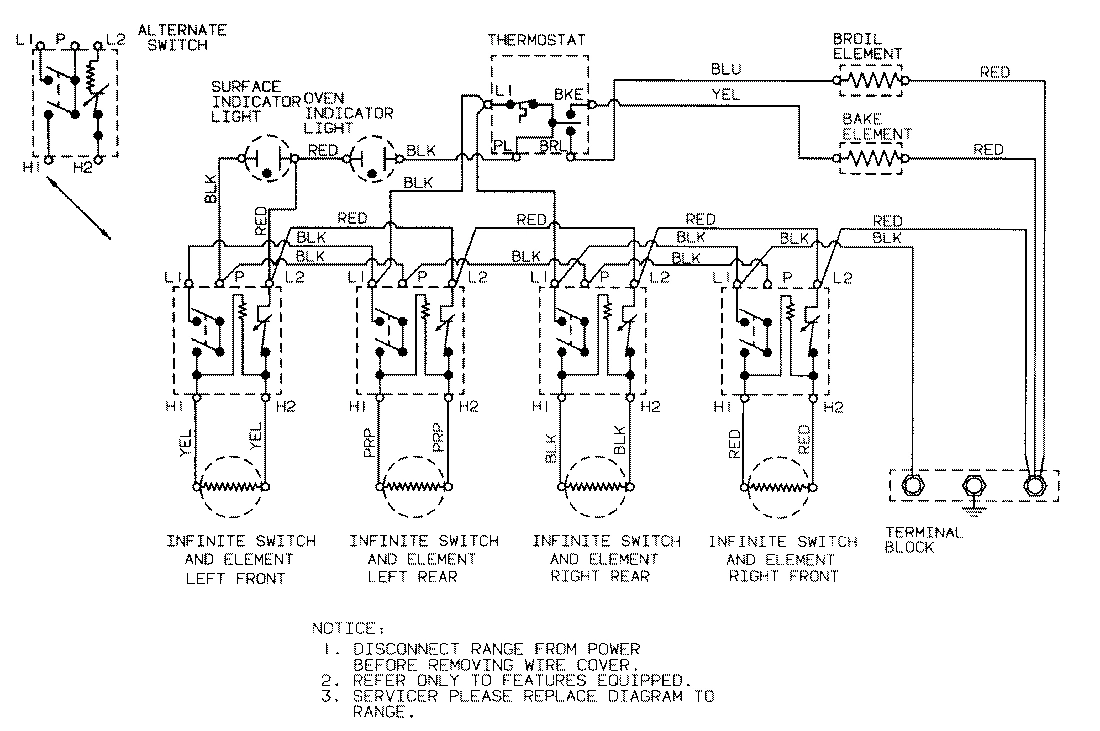

04 - WIRING INFORMATION

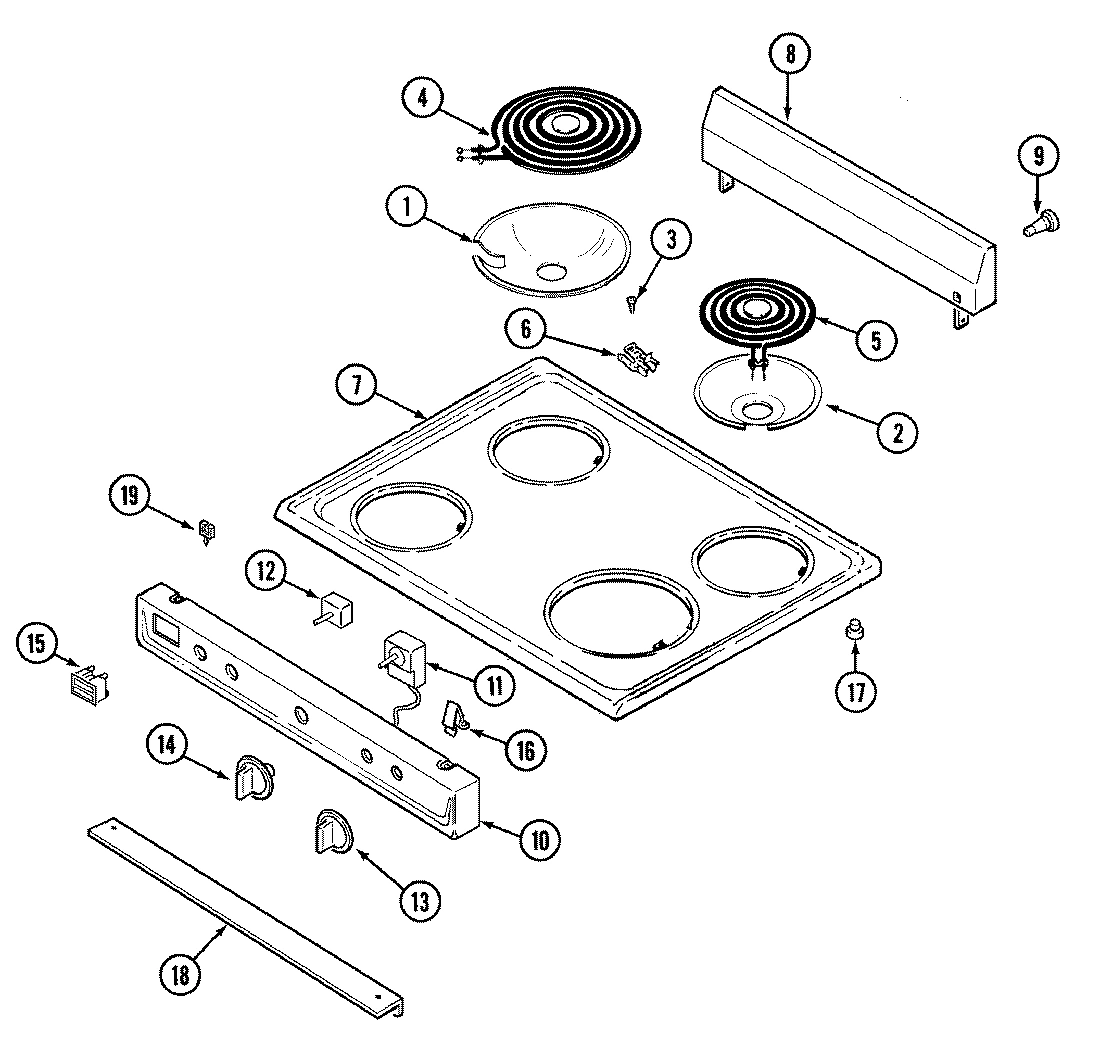

01 - BACKGUARD/CONTROL PNL/MAIN TOP

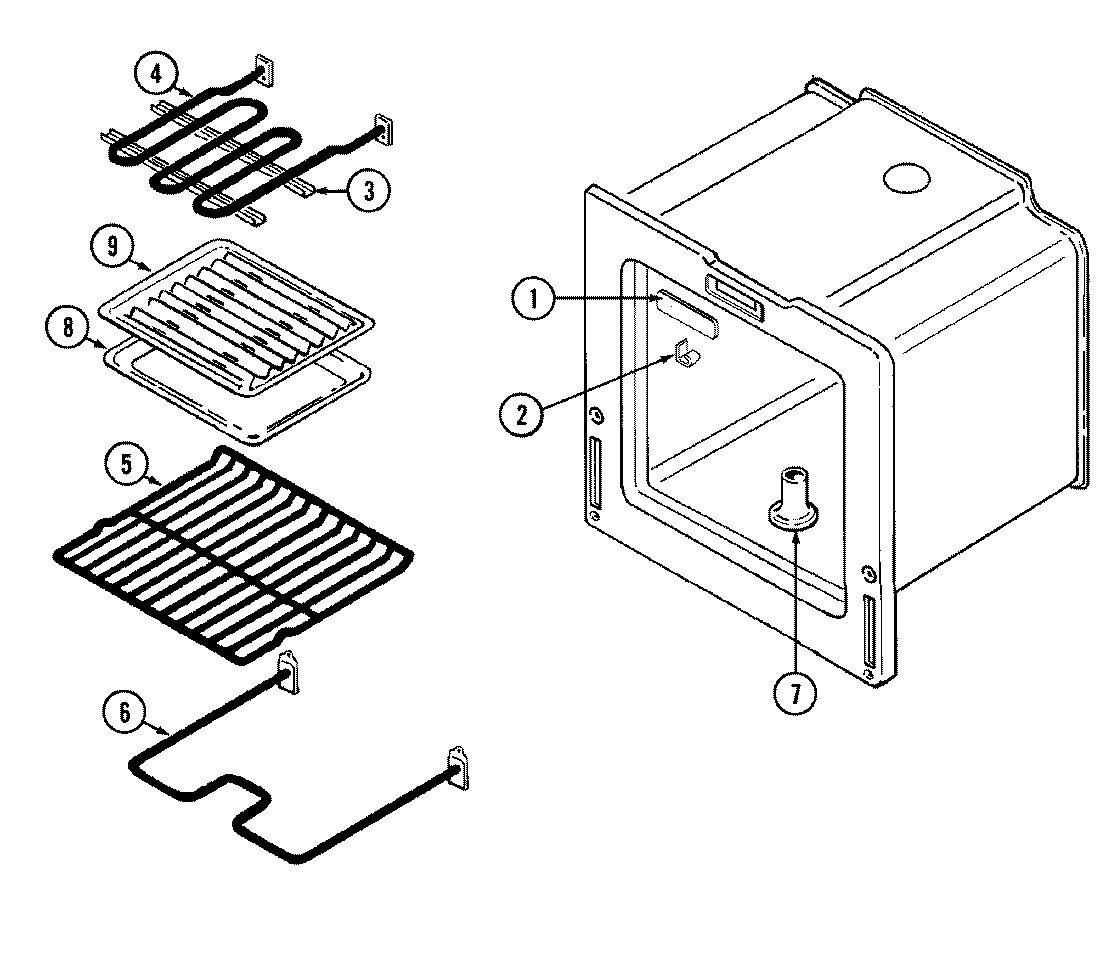

03 - OVEN
Common parts from model Whirlpool CREA200ACL ELECTRIC RANGE
1
BACK, MAIN WPL 4002F18980 Contact Us For Availability
1
COVER, LOCK SLOT WPL 8114P33560 Contact Us For Availability
1
BOWL, DRIP (8``) WPL 7725P00960 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F11074 Contact Us For Availability
2
BOWL, DRIP (6``) WPL 7725P00860 Contact Us For Availability
2
BOWL, DRIP (6``)(W/HOLE-CHR) WPL 7725P01560 Contact Us For Availability
2
CLIP, THERMOSTAT WPL 7112P00460 Contact Us For Availability
3
BOX, BURNER WPL 4011F24019 Contact Us For Availability
3
SCREW WPL 7118P01360 Contact Us For Availability
3
SCREW WPL 7101P34560 Contact Us For Availability
3
SUPPORT, ELEMENT WPL 3807F38945 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
RACK, OVEN WPL 7801P04760 Contact Us For Availability
6
SCREW WPL 7101P29060 Contact Us For Availability
7
INSULATION, OVEN BACK WPL 4804F03960 Contact Us For Availability
7
INSULATION, OVEN WRAP WPL 4804F04460 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W07484 Contact Us For Availability
7
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
7
TUBE, VENT WPL 8026P02060 Contact Us For Availability
8
COVER, VENT WPL 4005F43245 Contact Us For Availability
8
PANEL, BACKGUARD (ALM) WPL 2601F36074 Contact Us For Availability
8
BRACKET, CONTROL PANEL (RT) WPL 3801F24251 Contact Us For Availability
8
BRACKET, CONTROL PANEL (LT) WPL 3801F24351 Contact Us For Availability
8
PLATE, NAME WPL 7719P00860 Contact Us For Availability
8
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
9
COVER, MAIN BACK WIRE WPL 4005F34851 Contact Us For Availability
9
SPACER, HINGE (MAIN TOP) WPL 8010P06960 Contact Us For Availability
9
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
10
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
10
PANEL, CNTL. WPL 2614F03009 Contact Us For Availability
10
BRACKET, CNTL. PANEL WPL 3801F25151 Contact Us For Availability
10
SUPPORT UPPER FRONT PANEL WPL 3807F41980 Contact Us For Availability
11
RETAINER, INSULATION WPL 3804F11247 Contact Us For Availability
11
THERMOSTAT WPL 7404P08560 Contact Us For Availability
12
STRAP, RETAINER WPL 4820F00159 Contact Us For Availability
12
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
12
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
12
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
13
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
13
KNOB, THERMOSTAT WPL 7735P03360 Contact Us For Availability
14
PEDESTAL (SIDES) WPL 4020W01180 Contact Us For Availability
14
PEDESTAL, SIDE WPL 74003003 Contact Us For Availability
14
KNOB, SWITCH WPL 7737P03060 Contact Us For Availability
15
LIGHT, INDICATOR WPL 7407P01560 Contact Us For Availability
16
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
16
CLIP, TOP LOCKING WPL 7112P08760 Contact Us For Availability
17
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
17
SPACER, MAIN TOP WPL 8010P04860 Contact Us For Availability
18
SCREW (10ABX1.0-ZN) WPL 7101P06060 Contact Us For Availability
18
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
18
BRACE WPL 3802F08580 Contact Us For Availability
19
LEG, LEVELING WPL 7101P30660 Contact Us For Availability
19
CLIP WPL 7112P02960 Contact Us For Availability
20
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
21
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
23
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
24
HINGE WPL 7106P05560 Contact Us For Availability
25
SCREW WPL 7101P11560 Contact Us For Availability
26
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
26
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
27
SCREW WPL 7101P10360 Contact Us For Availability
29
COVER WPL 4005F39751 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001148 Contact Us For Availability
NI
GUIDE, QUICK REF - ADMIRAL WPL 16002079 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D13060 Contact Us For Availability
NI
HARNESS, COOKTOP WPL 5175D05360 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8113P02360 Contact Us For Availability
× ![]()
