Model Whirlpool CRE9400CCW ELECTRIC RANGE – Common Parts & Diagrams
05 - TOP ASSEMBLY (CRE9400CCL/CCW)
02 - CONTROL PANEL (CRE9400CCL/CCW)
01 - BODY (CRE9400CCL/CCW)

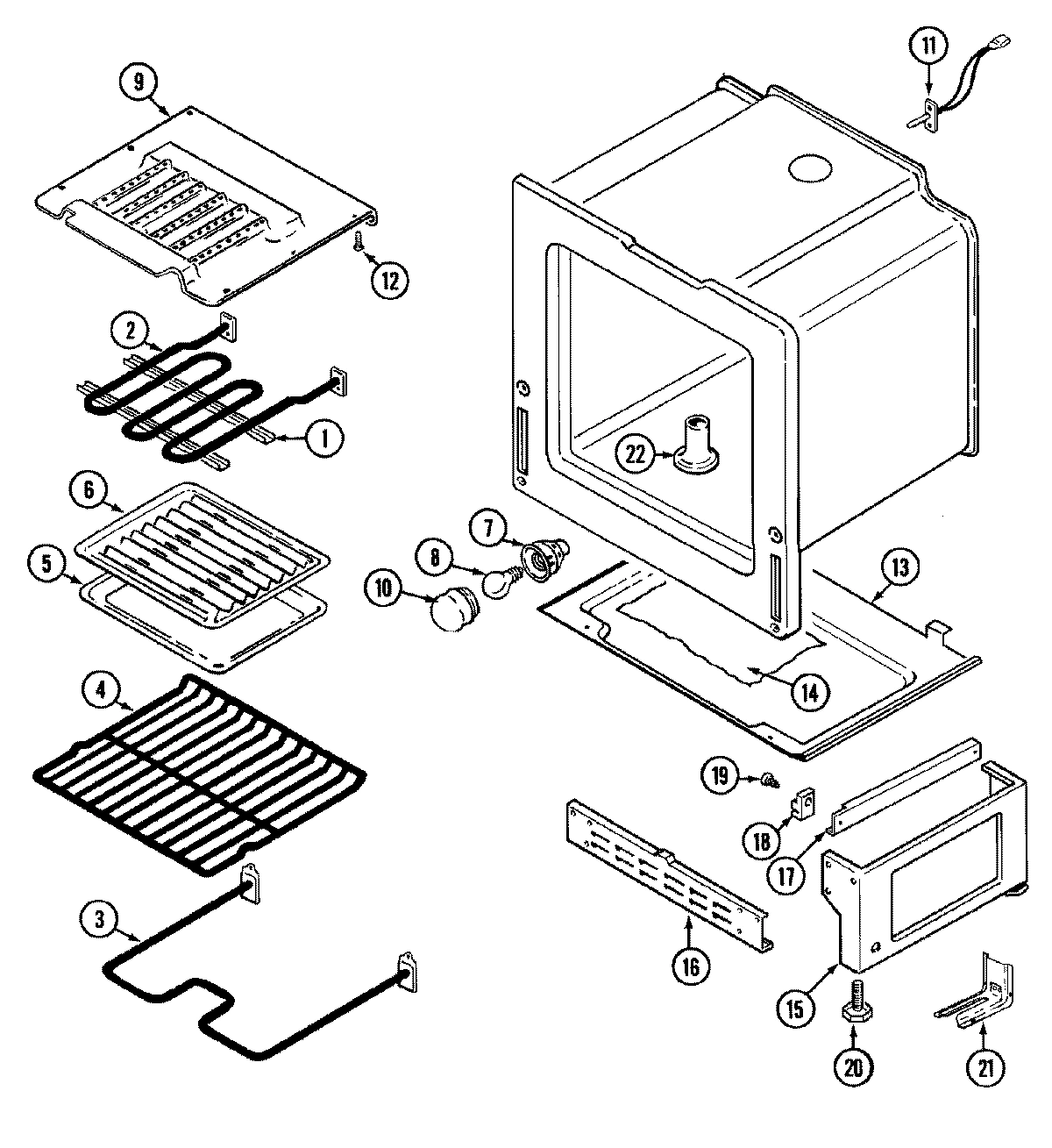

04 - OVEN/BASE (CRE9400CCL/CCW)

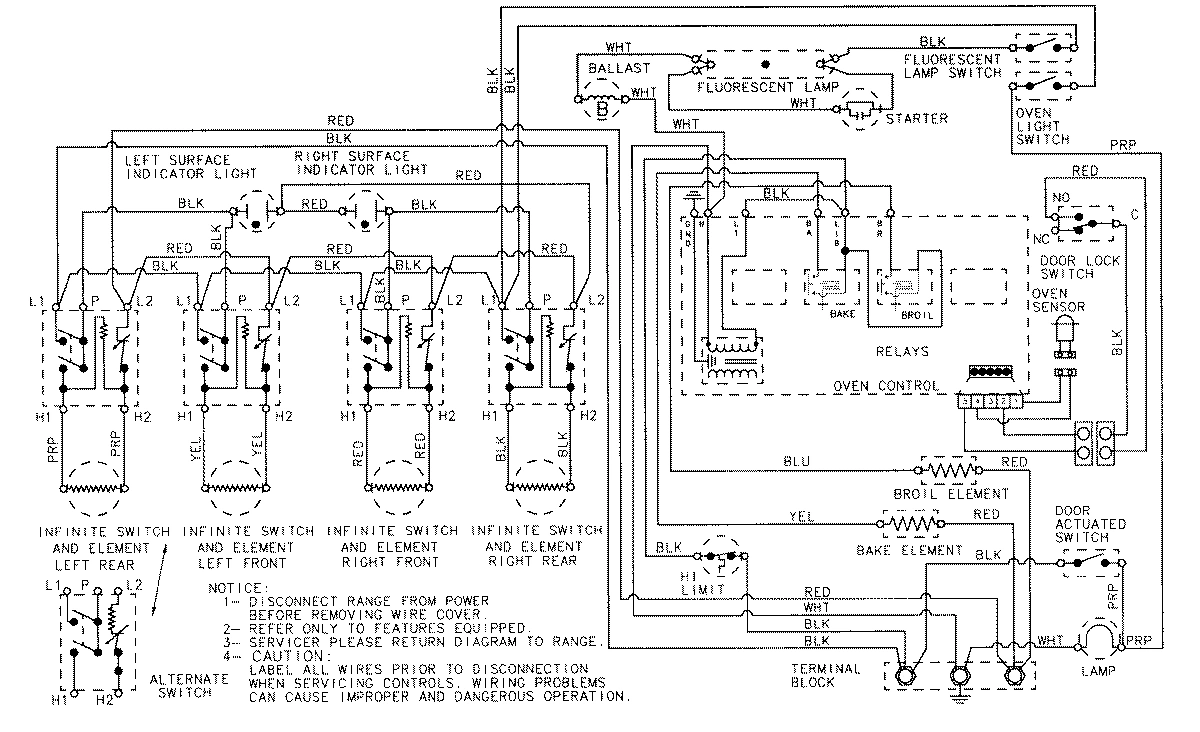

06 - WIRING INFORMATION (CRE9400CCL/CCW)

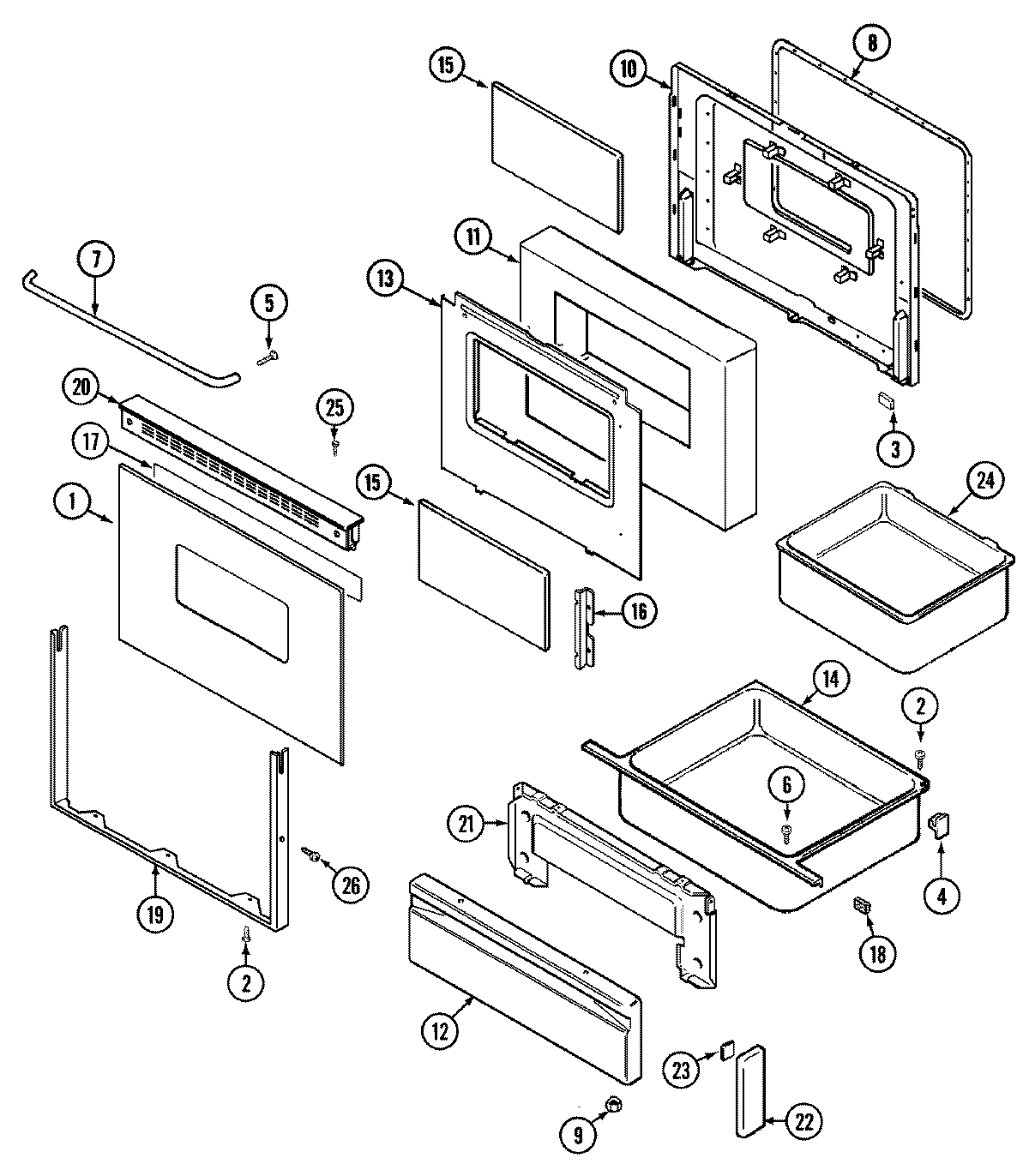

03 - DOOR/DRAWER (CRE9400CCL/CCW)
Common parts from model Whirlpool CRE9400CCW ELECTRIC RANGE
1
HOUSING, CONTROL PANEL WPL 74002162 Contact Us For Availability
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SHIELD, WIRE WPL 74002334 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (WHT) WPL 74001884 Contact Us For Availability
2
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
3
ELEMENT (8``) (2600WATT) (BLK) WPL 74001781 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
BOX, BURNER----NA WPL 74001753 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
ELEMENT (6``) (1500WATT) (BLK) WPL 74001780 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
NUT WPL 7103P08260 Contact Us For Availability
4
ROLLER, DRAWER WPL 74003566 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
5
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
5
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
5
COVER, HINGE SUPPORT WPL 8114P34860 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
6
SUPPORT, TOP WPL 74001170 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
7
TOP, MAIN (WHT) WPL 2002W10381 Contact Us For Availability
7
PANEL, CONTROL (BLK) WPL 74001225 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
RECEPTACLE, BULB WPL 74003125 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P14960 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
9
GLIDE WPL 8016P01560 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
LINING, DOOR WPL 2402W20919 Contact Us For Availability
10
NUT, SNAP (ROUND-WHT) WPL 7103P03960 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
10
LINING, DOOR WPL 74003244 Contact Us For Availability
11
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
SCREW, BLACK WPL 7101P27060 Contact Us For Availability
11
LATCH ASSY. WPL 74003032 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
INSULATION, DOOR WPL 74001842 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
SCREW WPL 7101P29060 Contact Us For Availability
12
PANEL, DRAWER (WHT) WPL 2416F05071 Contact Us For Availability
13
BRACKET, CLOCK WPL 74001488 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
BAFFLE, DOOR WPL 74001843 Contact Us For Availability
14
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
14
CLOCK (BLK) WPL 74001318 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
14
DRAWER, STORAGE WPL 74003618 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
PEDESTAL, SIDE WPL 74003016 Contact Us For Availability
15
GLASS, INNER WPL 74001841 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
16
RETAINER, GLASS WPL 74001844 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
LEVER, LATCH (BLK) WPL 74003005 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
RUNNER, DRAWER WPL 74003565 Contact Us For Availability
17
TAPE, FOIL (3`` WIDE) WPL 8270P09060 Contact Us For Availability
18
SUPPORT, DRAWER WPL 74002312 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
19
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
FRAME, DOOR (BLK) WPL 7706P30960 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
TRIM, DOOR (UPPER-BLK) WPL 7706P30560 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
SCREW WPL 7101P34460 Contact Us For Availability
21
LINING WPL 2404F04380 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 74001708 Contact Us For Availability
22
INSULATOR, DOOR LOCK SWITCH WPL 74001823 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
22
END CAP (WHT) WPL 7744P09360 Contact Us For Availability
23
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
TAPE WPL 8270P09860 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
BASKET, DRAWER WPL 8312P07960 Contact Us For Availability
25
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
25
BRACKET, SWITCH ACTUATOR WPL 74001632 Contact Us For Availability
26
SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability
26
SWITCH, DOOR LIGHT WPL 74001628 Contact Us For Availability
26
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
27
INSULATOR, SWITCH WPL 74001872 Contact Us For Availability
28
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
29
SPRING, DOOR SWITCH WPL 74001629 Contact Us For Availability
30
ROD, DOOR LIGHT SWITCH WPL 74001630 Contact Us For Availability
31
BUMPER, ROD WPL 74001631 Contact Us For Availability
32
BUSHING, PROP SUPPORT WPL 74001256 Contact Us For Availability
33
COVER, VENT WPL 4005F43245 Contact Us For Availability
34
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, SENSOR & LOCK WPL 5170P20660 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 74001354 Contact Us For Availability
NI
HARNESS, WIRE CONTROL/TOP WPL 74001590 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001411 Contact Us For Availability
× ![]()
