Model Whirlpool CRE9400ACL ELECTRIC RANGE – Common Parts & Diagrams

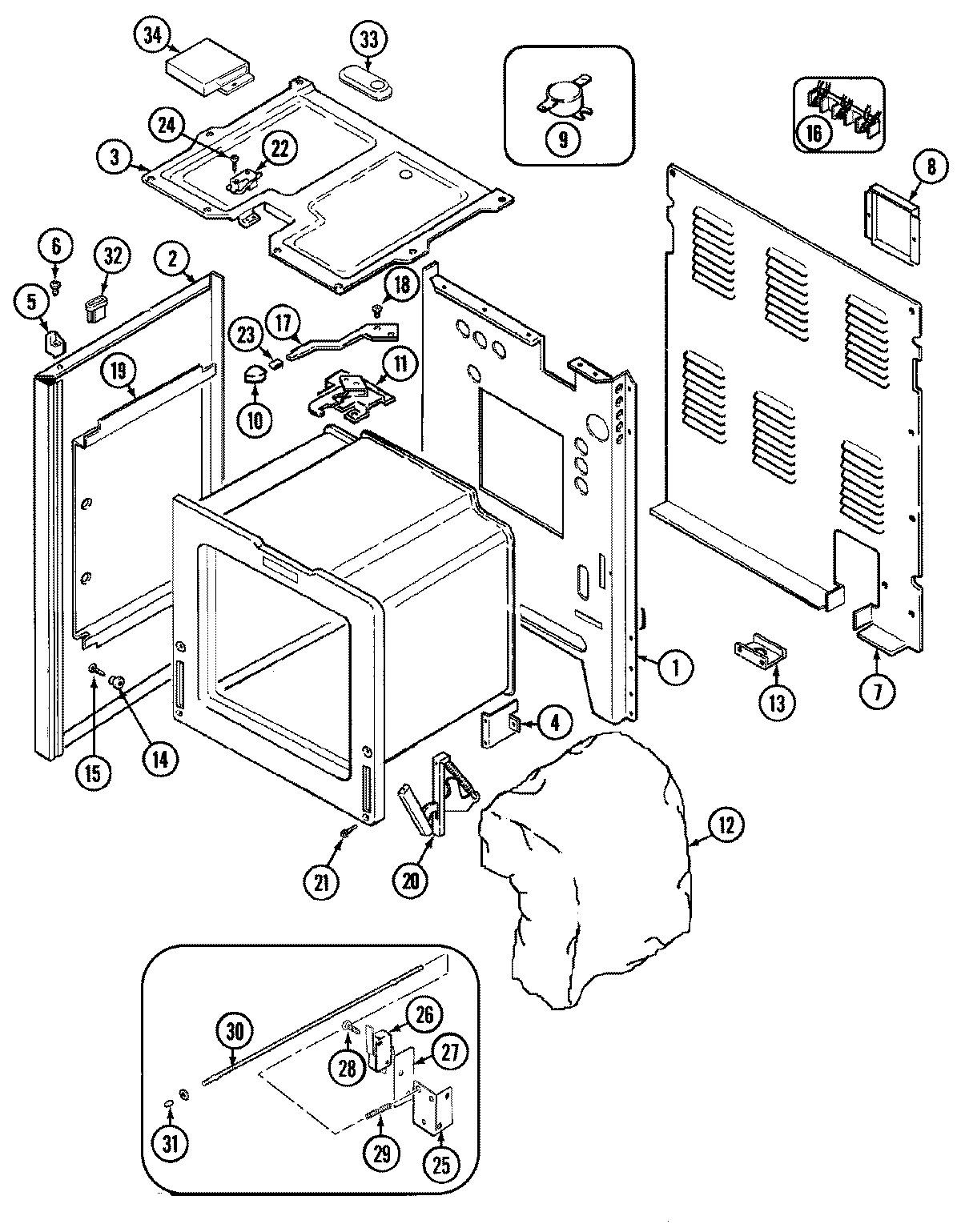

01 - BODY

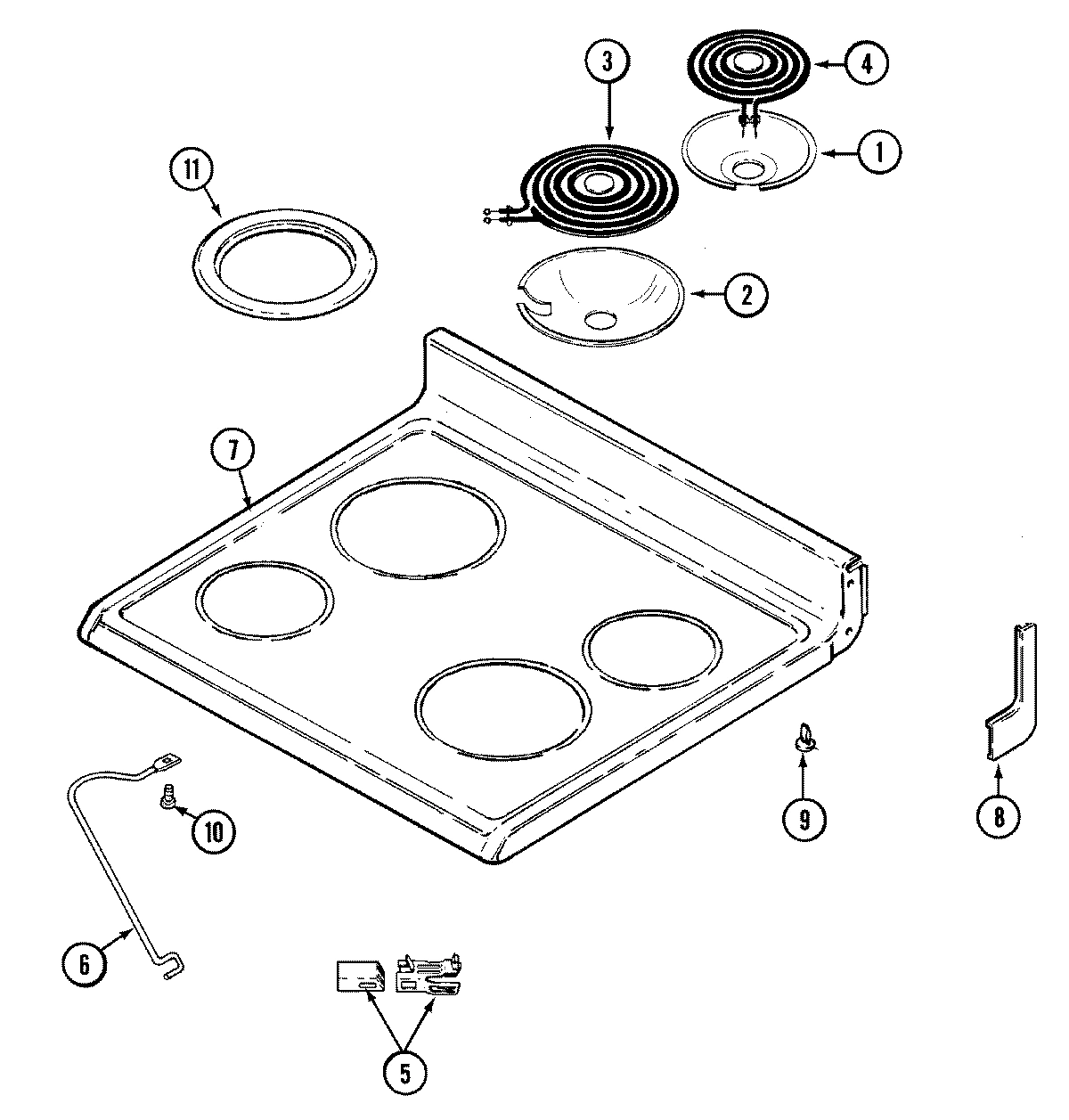

05 - TOP ASSEMBLY

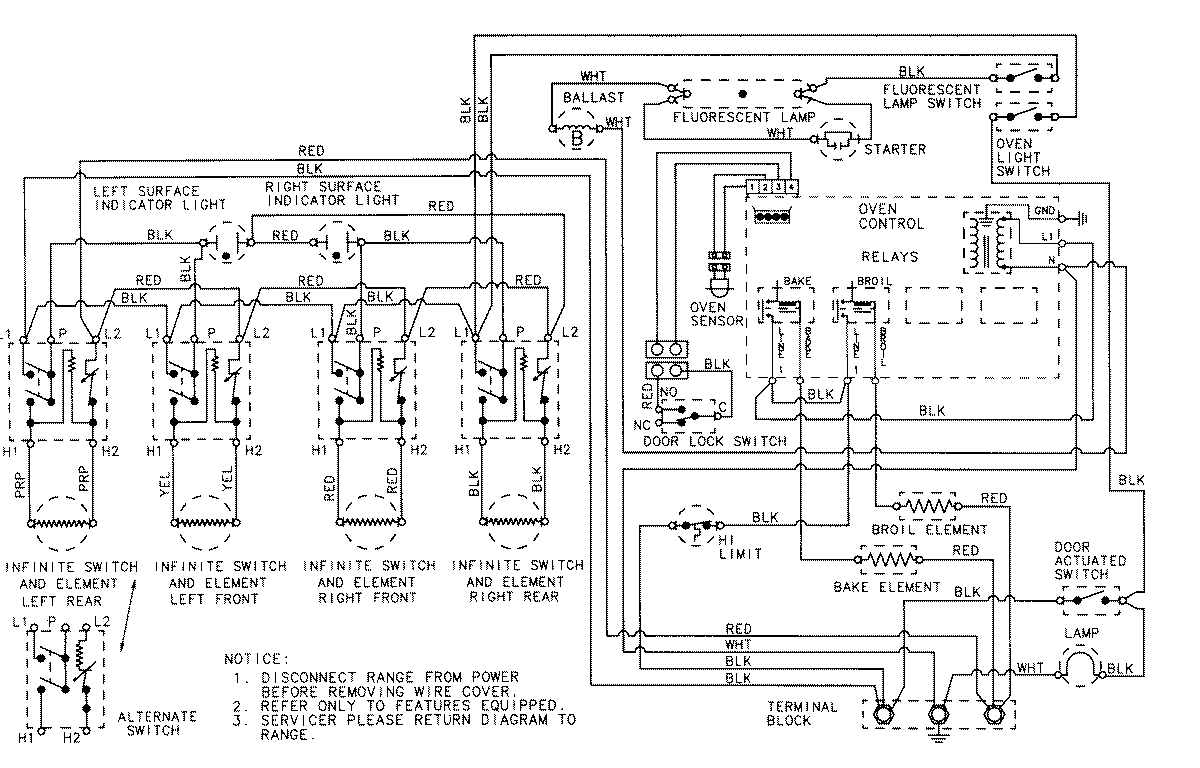

06 - WIRING INFORMATION

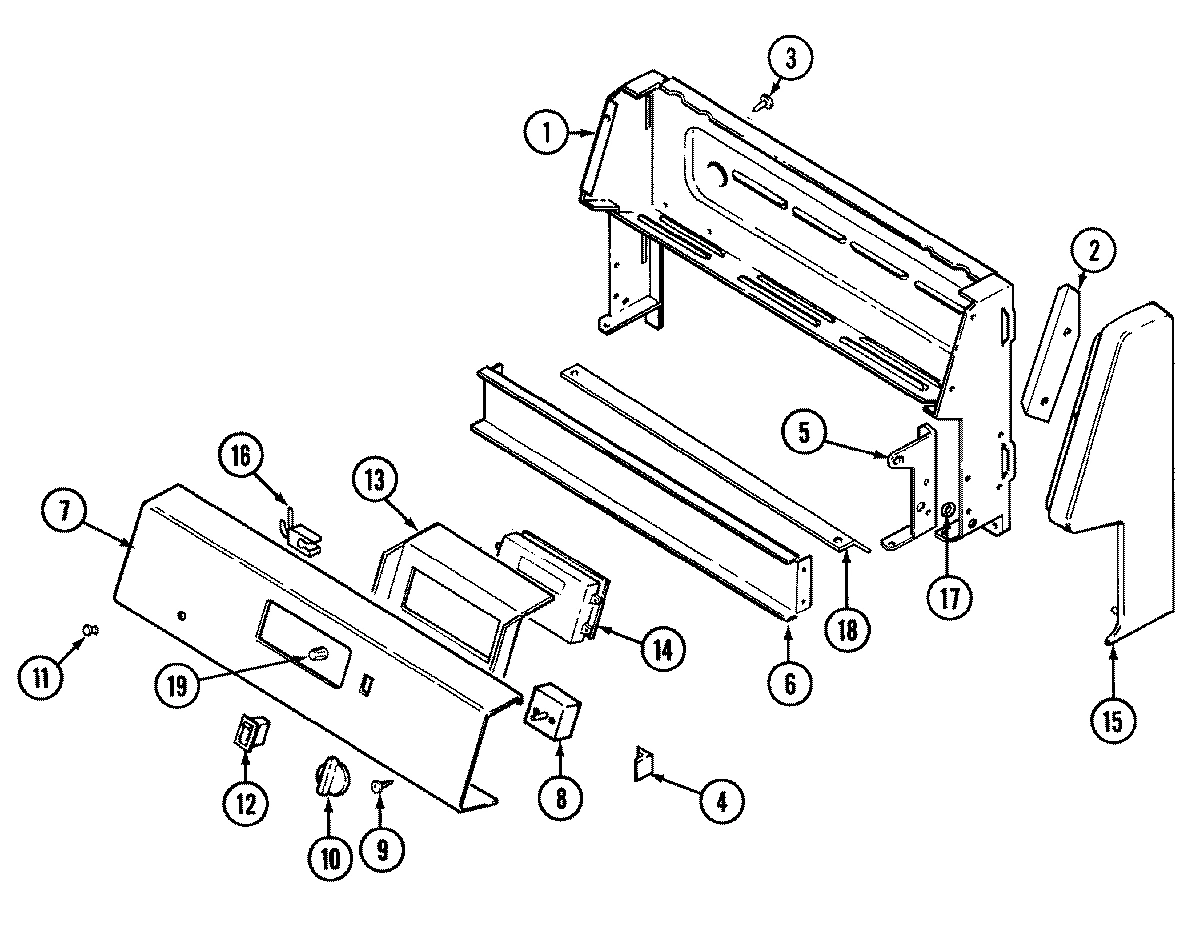

02 - CONTROL PANEL

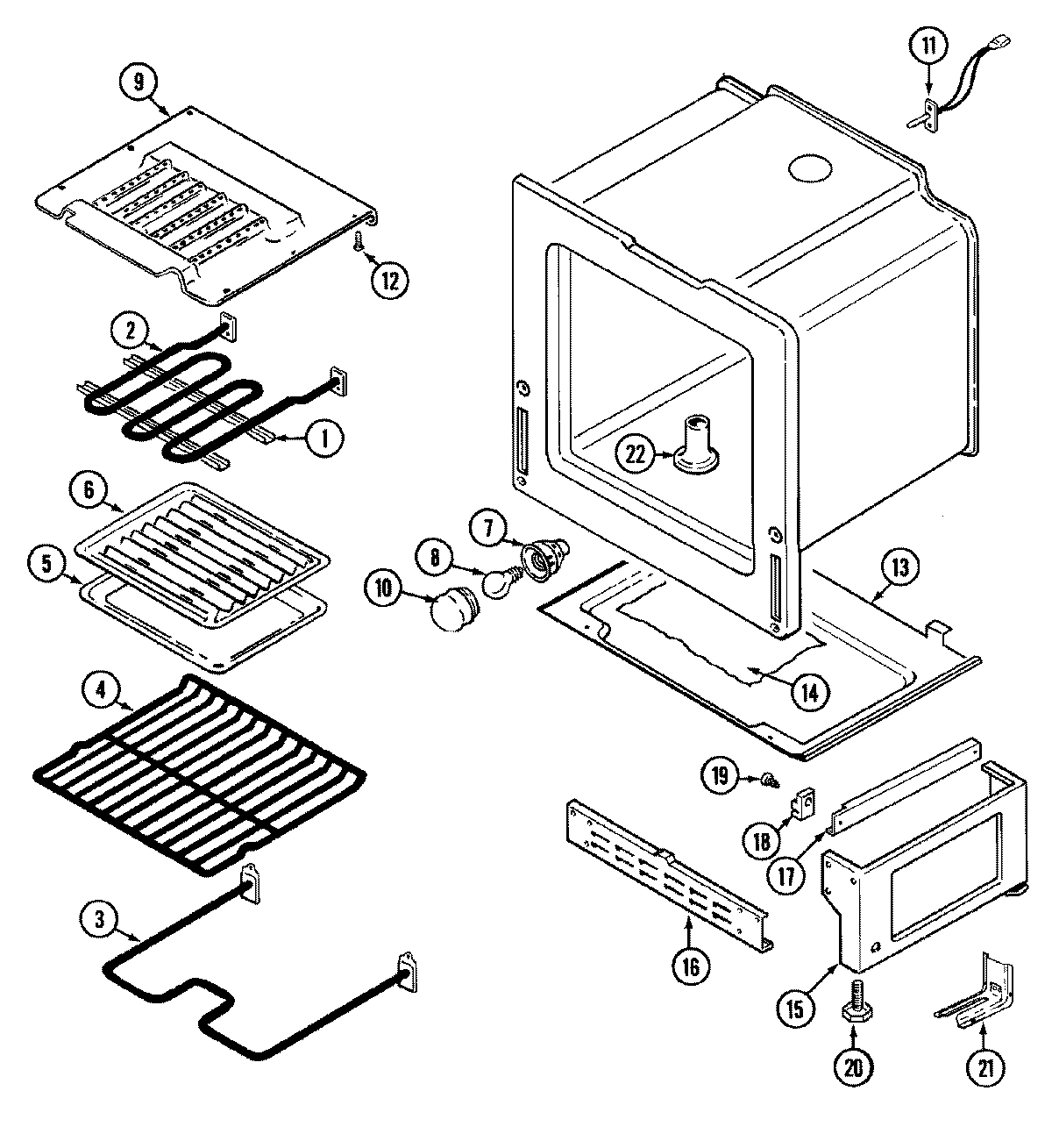

04 - OVEN/BASE

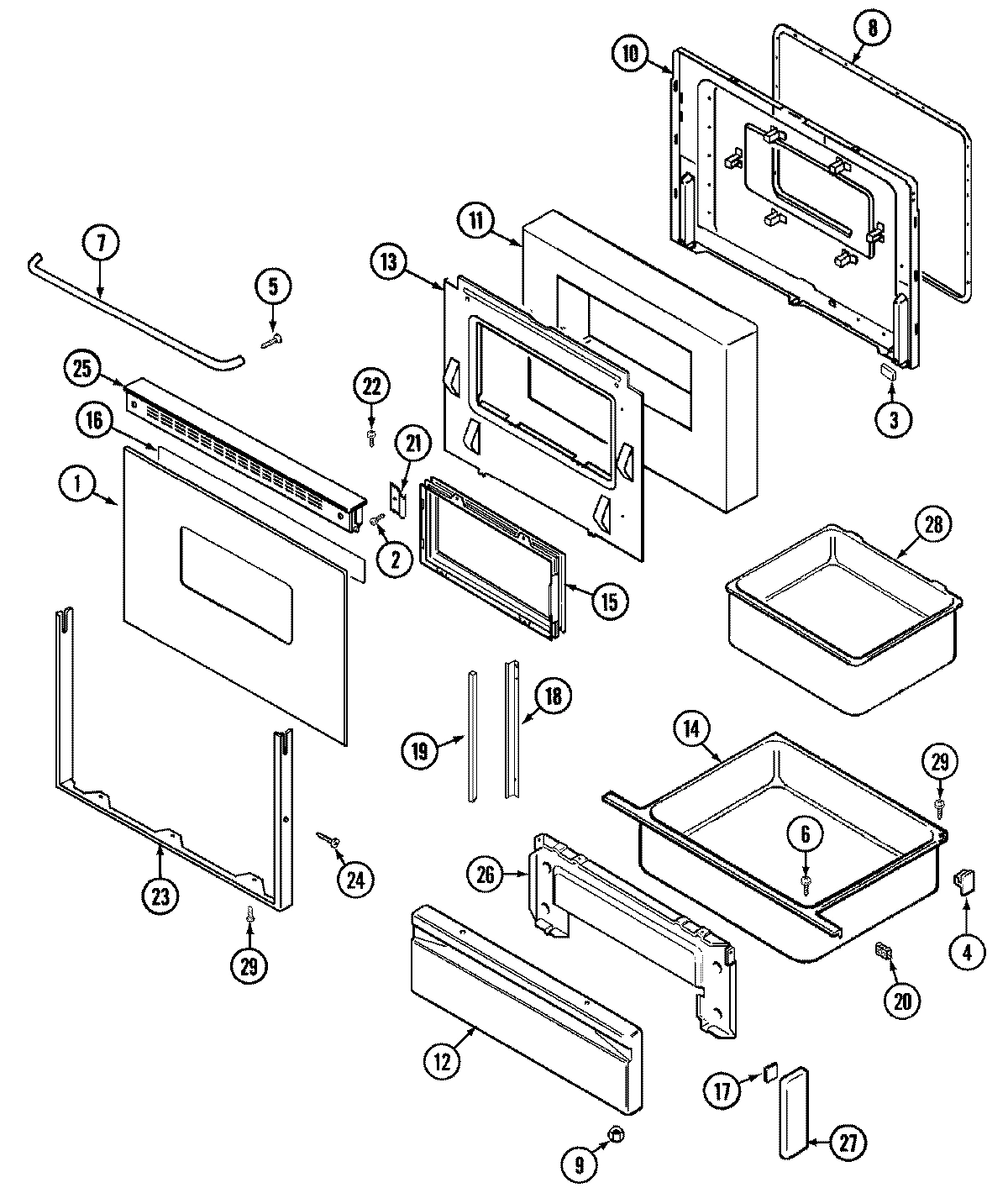

03 - DOOR/DRAWER
Common parts from model Whirlpool CRE9400ACL ELECTRIC RANGE
1
BACK, MAIN WPL 74001772 Contact Us For Availability
1
SCREW WPL 7101P34560 Contact Us For Availability
1
BOWL, DRIP (6`` W/HOLE)(BLK) WPL 7725P01360 Contact Us For Availability
1
BOWL, DRIP (6``SOLID)(BLK) WPL 7725P03860 Contact Us For Availability
1
HOUSING, CONTROL PANEL WPL 4001F09151 Contact Us For Availability
1
SUPPORT, BROIL ELEMENT WPL 3807F38745 Contact Us For Availability
1
GLASS, DOOR (OUTER/BLK) WPL 7902P36160 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 2618F08574 Contact Us For Availability
2
INSULATOR, DAMPER SOUND WPL 7003P06760 Contact Us For Availability
2
PANEL, SIDE (ALM) WPL 74001885 Contact Us For Availability
2
BOWL, DRIP (8``)(BLK) WPL 7725P03960 Contact Us For Availability
2
SUPPORT, CONTROL PNL (RT) WPL 3807F44945 Contact Us For Availability
2
SUPPORT, CONTROL PNL (LT) WPL 3807F45045 Contact Us For Availability
2
SCREW (8ABX13/16-ZN) WPL 74001449 Contact Us For Availability
3
BOX, BURNER WPL 4011F24019 Contact Us For Availability
3
ELEMENT (8``) WPL 7406P07060 Contact Us For Availability
3
SCREW, HOUSING WPL 7118P01560 Contact Us For Availability
3
SPACER, RUBBER WPL 8010P08560 Contact Us For Availability
4
SUPPORT,OVEN REAR WPL 3807F40051 Contact Us For Availability
4
ELEMENT (6``) WPL 7406P06960 Contact Us For Availability
4
SPACER WPL 8010P08360 Contact Us For Availability
4
SUPPORT, DRAWER (REAR) WPL 8004P02660 Contact Us For Availability
5
SPACER, MAIN TOP (LT) WPL 8010P08760 Contact Us For Availability
5
SPACER, MAIN TOP (RT) WPL 8010P08860 Contact Us For Availability
5
HINGE, MAIN TOP (LT) WPL 3418D09760 Contact Us For Availability
5
HINGE, MAIN TOP (RT) WPL 3418D09860 Contact Us For Availability
5
PAN, BROIL WPL Y3401F02019 Contact Us For Availability
5
SCREW WPL 7101P32660 Contact Us For Availability
6
SCREW (8ABX3/8-ZN) WPL 7101P31360 Contact Us For Availability
6
SUPPORT, TOP WPL 74001170 Contact Us For Availability
6
BRACE, CONTROL PANEL WPL 3802F08851 Contact Us For Availability
6
INSERT, BROIL PAN WPL Y3413F01619 Contact Us For Availability
6
SCREW WPL 7101P07260 Contact Us For Availability
7
COVER, WIRE WPL 4005F45551 Contact Us For Availability
7
TOP, MAIN (ALM) WPL 2002W10384 Contact Us For Availability
7
SCREW (8ABX3/8-BLK) WPL 7101P34760 Contact Us For Availability
7
PANEL, BACKGUARD WPL 7703P55460 Contact Us For Availability
7
RECEPTACLE, BULB WPL 7407P08860 Contact Us For Availability
7
NUT, NYLON WPL 7103P04560 Contact Us For Availability
7
HANDLE, OVEN DOOR (BLK) WPL 7701P14960 Contact Us For Availability
8
COVER, ACCESS WPL 4005F42751 Contact Us For Availability
8
END CAP (RT-BLK) WPL 7746P03060 Contact Us For Availability
8
END CAP (LT-BLK) WPL 7746P03160 Contact Us For Availability
8
SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability
8
SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability
8
BULB-OVEN WPL 7407P10360 Contact Us For Availability
8
GASKET, DOOR WPL 7201P04660 Contact Us For Availability
9
SWITCH, HI-LIMIT WPL 7403P16060 Contact Us For Availability
9
GLIDE WPL 8016P01360 Contact Us For Availability
9
SCREW WPL 7101P30960 Contact Us For Availability
9
BAFFLE, BROIL WPL 3601F23747 Contact Us For Availability
9
NUT, LOCK WPL 7103P13960 Contact Us For Availability
10
HANDLE, DOOR LATCH (BLK) WPL 74001719 Contact Us For Availability
10
SCREW W/WASHER (BLK) WPL 7101P28060 Contact Us For Availability
10
KNOB, VALVE (BLK) WPL 7737P03660 Contact Us For Availability
10
COVER, BULB WPL 7724P04760 Contact Us For Availability
10
LINING, DOOR WPL 2402W20219 Contact Us For Availability
10
NUT, SNAP WPL 7103P13660 Contact Us For Availability
11
INSULATION, LATCH ASSY. WPL 4804F02860 Contact Us For Availability
11
LATCH ASSY. WPL 8002P02560 Contact Us For Availability
11
RING, TRIM (6``) WPL 7744P13060 Contact Us For Availability
11
RING, TRIM (8``) WPL 7744P13160 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01060 Contact Us For Availability
11
LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability
11
SENSOR, OVEN WPL 7430P01060 Contact Us For Availability
11
INSULATION, DOOR WPL 4804F05160 Contact Us For Availability
12
INSULATION, WRAP WPL 4804F03660 Contact Us For Availability
12
INSULATION, BACK WPL 74001800 Contact Us For Availability
12
SWITCH, ROCKER (BLK) WPL 7403P30960 Contact Us For Availability
12
PANEL, DRAWER (ALM) WPL 2416F05074 Contact Us For Availability
13
PLATE, CONDUIT TUBING WPL 3605F17451 Contact Us For Availability
13
BRACKET, CLOCK WPL 74001488 Contact Us For Availability
13
RETAINER, INSULATION WPL 3804F11251 Contact Us For Availability
13
BAFFLE, DOOR WPL 3601F23651 Contact Us For Availability
14
SPACER, SIDE PANEL WPL 8004P02460 Contact Us For Availability
14
SCREW (6ABX38-ZN) WPL 7101P07760 Contact Us For Availability
14
CLOCK WPL 7601P22460 Contact Us For Availability
14
FOIL, INSULATION RETAINER WPL 8312P05860 Contact Us For Availability
14
DRAWER, STORAGE WPL 3405F01980 Contact Us For Availability
15
END CAP (RT-BLK) WPL 7726P06160 Contact Us For Availability
15
END CAP (LT-BLK) WPL 7726P06260 Contact Us For Availability
15
PEDESTAL, SIDES WPL 4020W01780 Contact Us For Availability
15
WINDOW ASY. WPL 7907P02160 Contact Us For Availability
16
TAPE, FOIL (29 1/2``) WPL 8270P07860 Contact Us For Availability
16
BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P07760 Contact Us For Availability
16
LIGHT, INDICATOR WPL 7407P10160 Contact Us For Availability
16
PEDESTAL, FRONT/REAR WPL 4020F00180 Contact Us For Availability
17
LEVER, DOOR LATCH WPL 74001725 Contact Us For Availability
17
NUT, SPEED WPL 7103P04460 Contact Us For Availability
17
RUNNER, DRAWER WPL 3406F02851 Contact Us For Availability
17
TAPE WPL 8270P09860 Contact Us For Availability
18
SCREW, LEVER WPL 7101P23060 Contact Us For Availability
18
SHIELD, SIGHT WPL 3604F20180 Contact Us For Availability
18
SUPPORT, DRAWER WPL 8004P03360 Contact Us For Availability
18
CHANNEL, AIR WPL 3818F05280 Contact Us For Availability
19
RETAINER, INSULATION (SIDE) WPL 3804F10351 Contact Us For Availability
19
KNOB, CLOCK (BLK) WPL 7711P47560 Contact Us For Availability
19
SCREW WPL 7101P33460 Contact Us For Availability
19
SEAL WPL 7208P00260 Contact Us For Availability
20
HINGE WPL 7106P05660 Contact Us For Availability
20
LEG, LEVELING WPL 74001311 Contact Us For Availability
20
SEAL, RUBBER WPL 7208P01160 Contact Us For Availability
21
SCREW (10-24X5/16-NI) WPL 7101P28260 Contact Us For Availability
21
BRACKET, ANTI-TIP WPL 3801F21851 Contact Us For Availability
21
SCREW, BRACKET WPL 7101P28960 Contact Us For Availability
21
CLAMP, WINDOW ASSY. WPL 3805F00234 Contact Us For Availability
22
SWITCH, DOOR LATCH WPL 7403P36360 Contact Us For Availability
22
TUBE, VENT WPL 8026P01960 Contact Us For Availability
23
CLIP, LATCH LEVER WPL 7112P11260 Contact Us For Availability
23
FRAME, DOOR (BLK) WPL 7706P29460 Contact Us For Availability
24
SCREW, LATCH SWITCH WPL 7101P13060 Contact Us For Availability
24
SCREW (1/2``) WPL 7101P04060 Contact Us For Availability
25
BRACKET, LIGHT SWITCH WPL 3801F31651 Contact Us For Availability
25
BRACKET, LIGHT SWITCH WPL 3801F35451 Contact Us For Availability
25
TRIM, DOOR (UPPER-BLK) WPL 7744P12860 Contact Us For Availability
26
KIT, LIGHT SWITCH ACTUATOR WPL 12001053 Contact Us For Availability
26
SWITCH, DOOR LIGHT WPL 4874F00160 Contact Us For Availability
26
SHIELD, DOOR LIGHT SWITCH WPL 74001598 Contact Us For Availability
26
LINING WPL 2404F04380 Contact Us For Availability
27
INSULATOR, SWITCH WPL 7003P04760 Contact Us For Availability
27
INSULATOR, SWITCH WPL 7003P06260 Contact Us For Availability
27
END CAP (ALM) WPL 7744P09460 Contact Us For Availability
28
SCREW, SWITCH WPL 7101P33060 Contact Us For Availability
28
BASKET, DRAWER WPL 8312P07960 Contact Us For Availability
29
SPRING WPL 7803P06760 Contact Us For Availability
29
SCREW WPL 7101P29060 Contact Us For Availability
30
WASHER WPL 7109P02060 Contact Us For Availability
30
ROD, LIGHT SWITCH WPL 7809P02260 Contact Us For Availability
31
BUMPER WPL 8003P01260 Contact Us For Availability
32
BUSHING, PROP WPL 8007P02360 Contact Us For Availability
32
NOT REQUIRED PART OR SEE NOTE WPL W10124350 Contact Us For Availability
33
COVER, VENT WPL 4005F43245 Contact Us For Availability
34
COVER, LATCH ASSY. WPL 4005F39880 Contact Us For Availability
NI
WIRING INFORMATION WPL 15001160 Contact Us For Availability
NI
GUIDE, QUICK REF. - MAYTAG WPL 16000327 Contact Us For Availability
NI
HARNESS, CONTROL PANEL WPL 5170D15360 Contact Us For Availability
NI
HARNESS, WIRE WPL 5170P18760 Contact Us For Availability
NI
HARNESS, WIRE CONTROL/TOP WPL 74001590 Contact Us For Availability
NI
MANUAL, USE & CARE WPL 8111P00560 Contact Us For Availability
× ![]()
